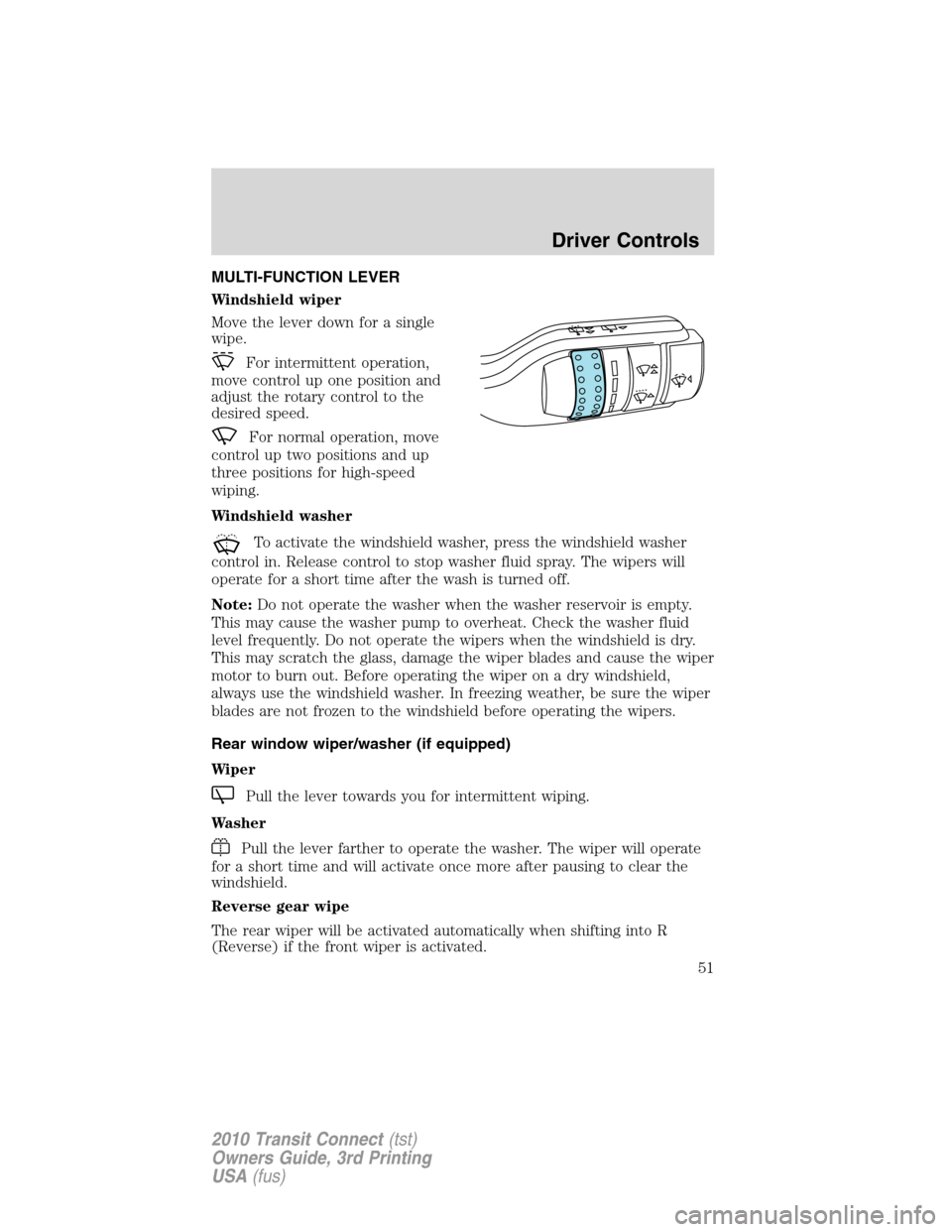

MULTI-FUNCTION LEVER
Windshield wiper
Move the lever down for a single
wipe.
For intermittent operation,
move control up one position and
adjust the rotary control to the
desired speed.
For normal operation, move
control up two positions and up
three positions for high-speed
wiping.
Windshield washer
To activate the windshield washer, press the windshield washer
control in. Release control to stop washer fluid spray. The wipers will
operate for a short time after the wash is turned off.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Rear window wiper/washer (if equipped)
Wiper
Pull the lever towards you for intermittent wiping.
Washer
Pull the lever farther to operate the washer. The wiper will operate
for a short time and will activate once more after pausing to clear the
windshield.
Reverse gear wipe
The rear wiper will be activated automatically when shifting into R
(Reverse) if the front wiper is activated.
Driver Controls
51
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

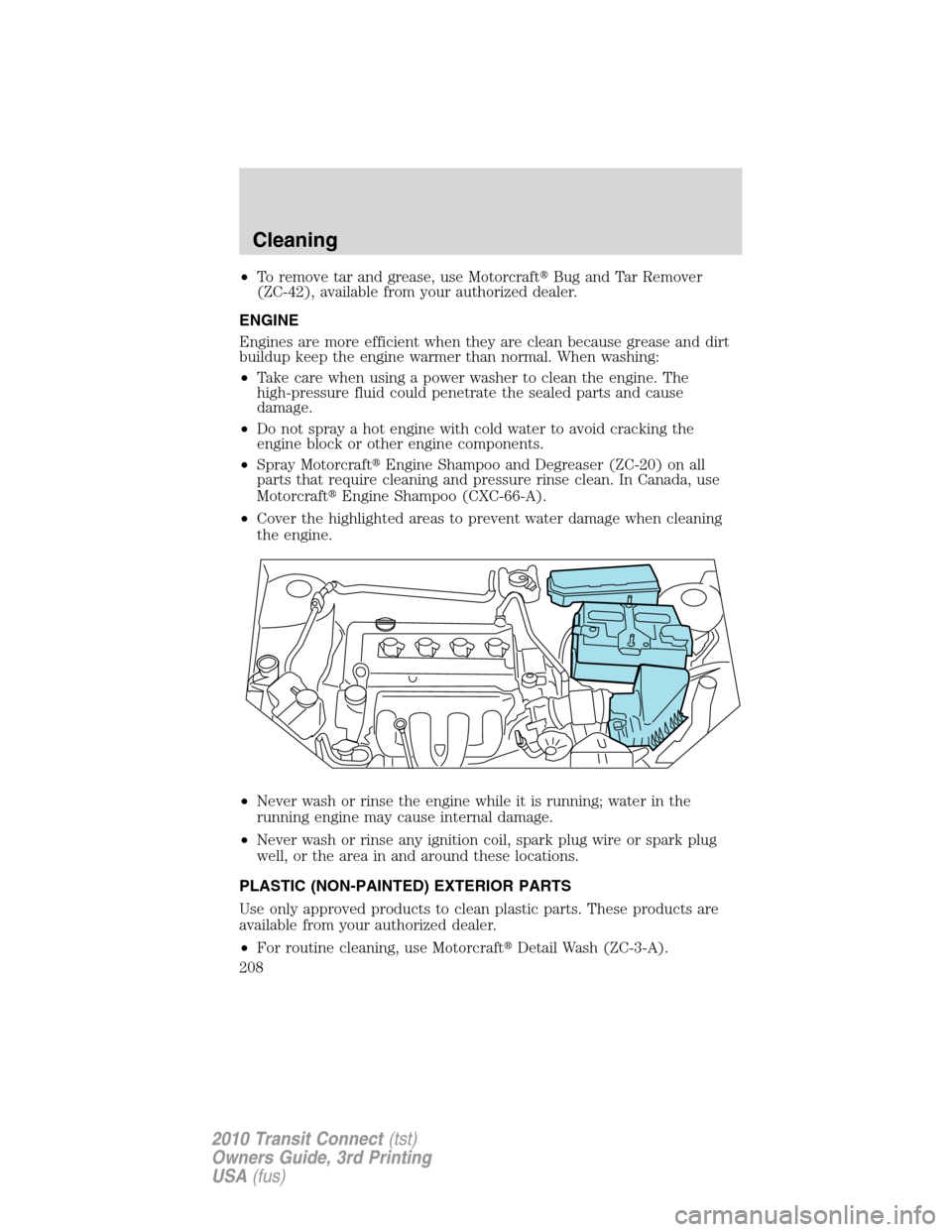

•To remove tar and grease, use MotorcraftBug and Tar Remover
(ZC-42), available from your authorized dealer.
ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray MotorcraftEngine Shampoo and Degreaser (ZC-20) on all
parts that require cleaning and pressure rinse clean. In Canada, use
MotorcraftEngine Shampoo (CXC-66-A).
•Cover the highlighted areas to prevent water damage when cleaning
the engine.
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
•Never wash or rinse any ignition coil, spark plug wire or spark plug
well, or the area in and around these locations.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use MotorcraftDetail Wash (ZC-3-A).
Cleaning
208
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

•If tar or grease spots are present, use MotorcraftBug and Tar
Remover (ZC-42).

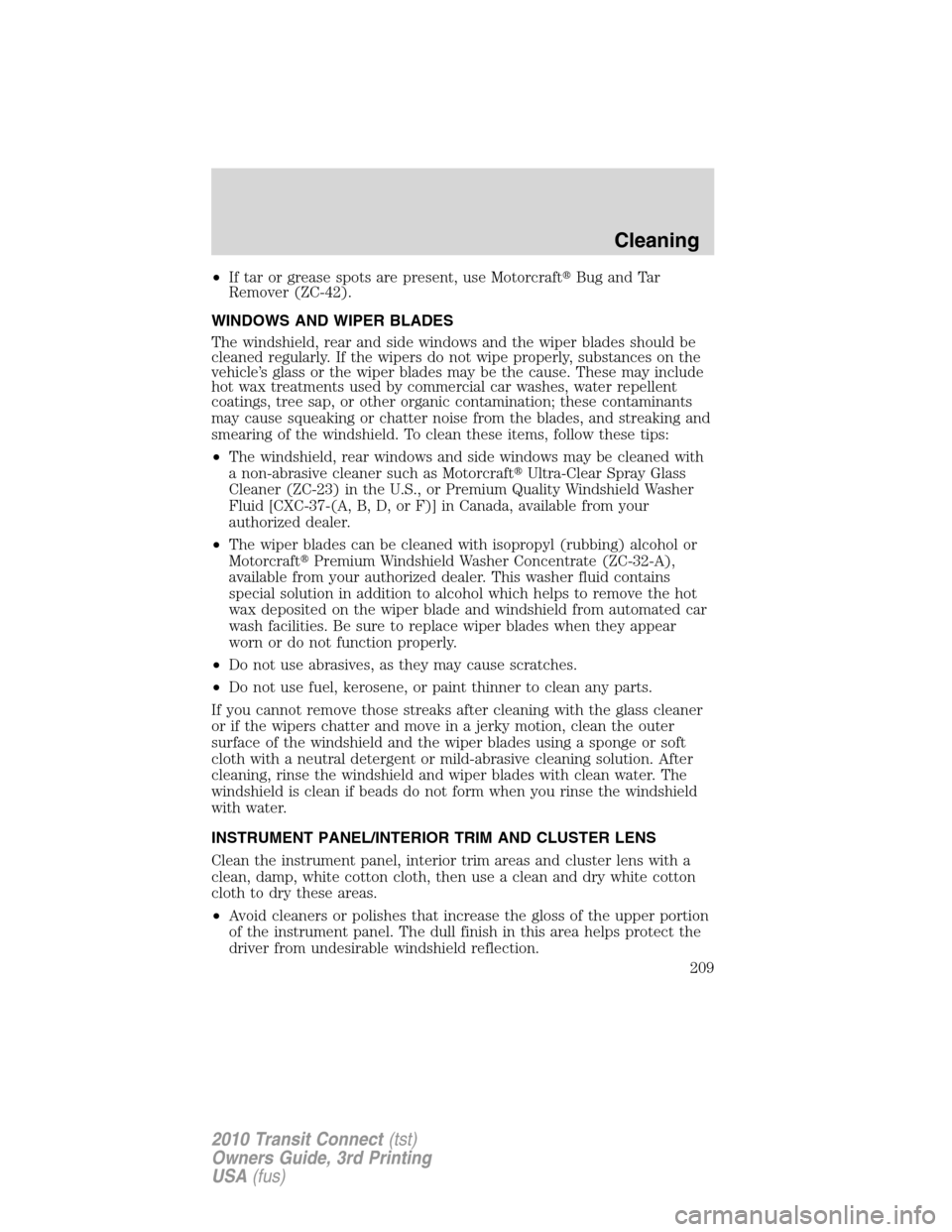

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as MotorcraftUltra-Clear Spray Glass
Cleaner (ZC-23) in the U.S., or Premium Quality Windshield Washer
Fluid [CXC-37-(A, B, D, or F)] in Canada, available from your
authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
MotorcraftPremium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
INSTRUMENT PANEL/INTERIOR TRIM AND CLUSTER LENS
Clean the instrument panel, interior trim areas and cluster lens with a
clean, damp, white cotton cloth, then use a clean and dry white cotton
cloth to dry these areas.
•Avoid cleaners or polishes that increase the gloss of the upper portion
of the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
Cleaning
209
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

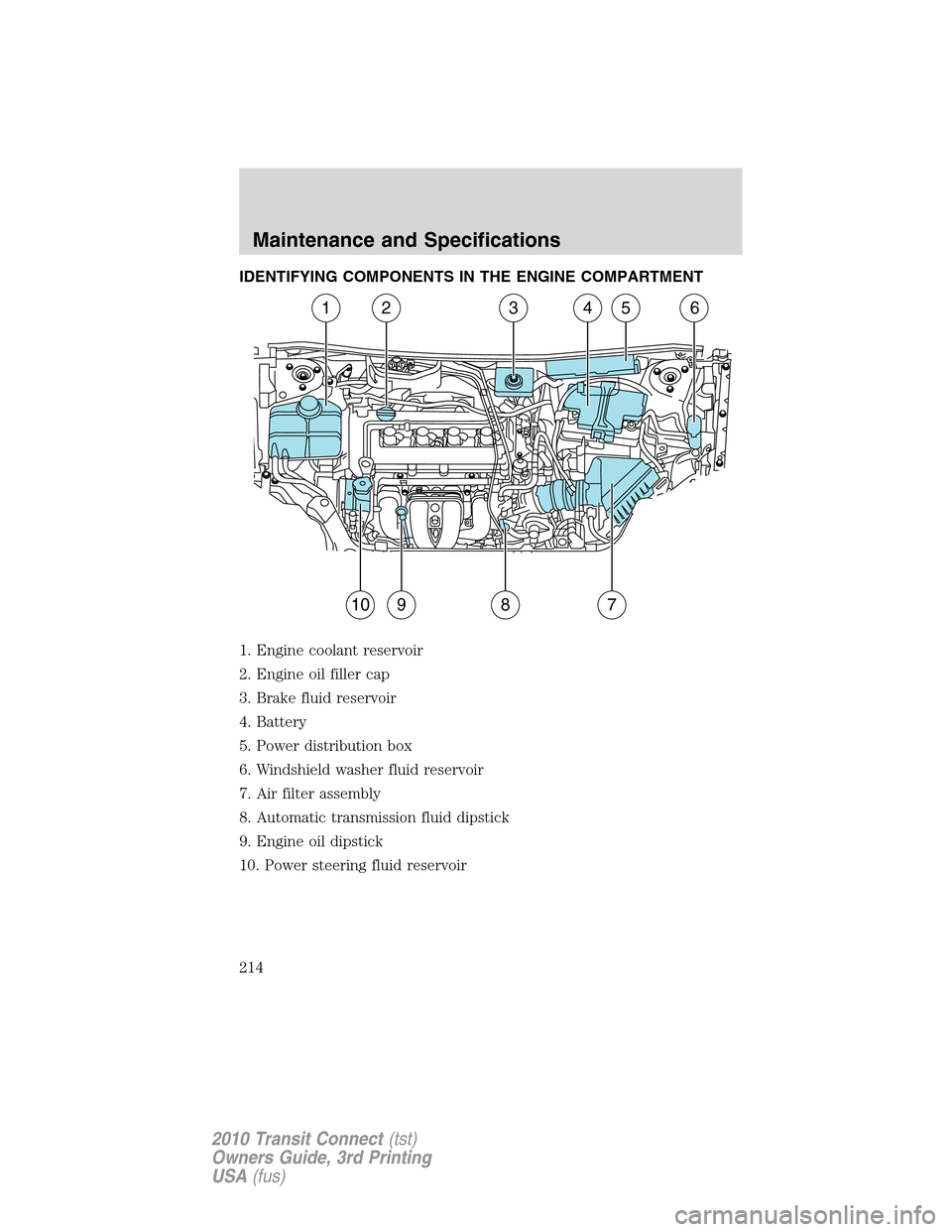

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Battery
5. Power distribution box
6. Windshield washer fluid reservoir
7. Air filter assembly
8. Automatic transmission fluid dipstick
9. Engine oil dipstick
10. Power steering fluid reservoir
123456
10987
Maintenance and Specifications
214
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

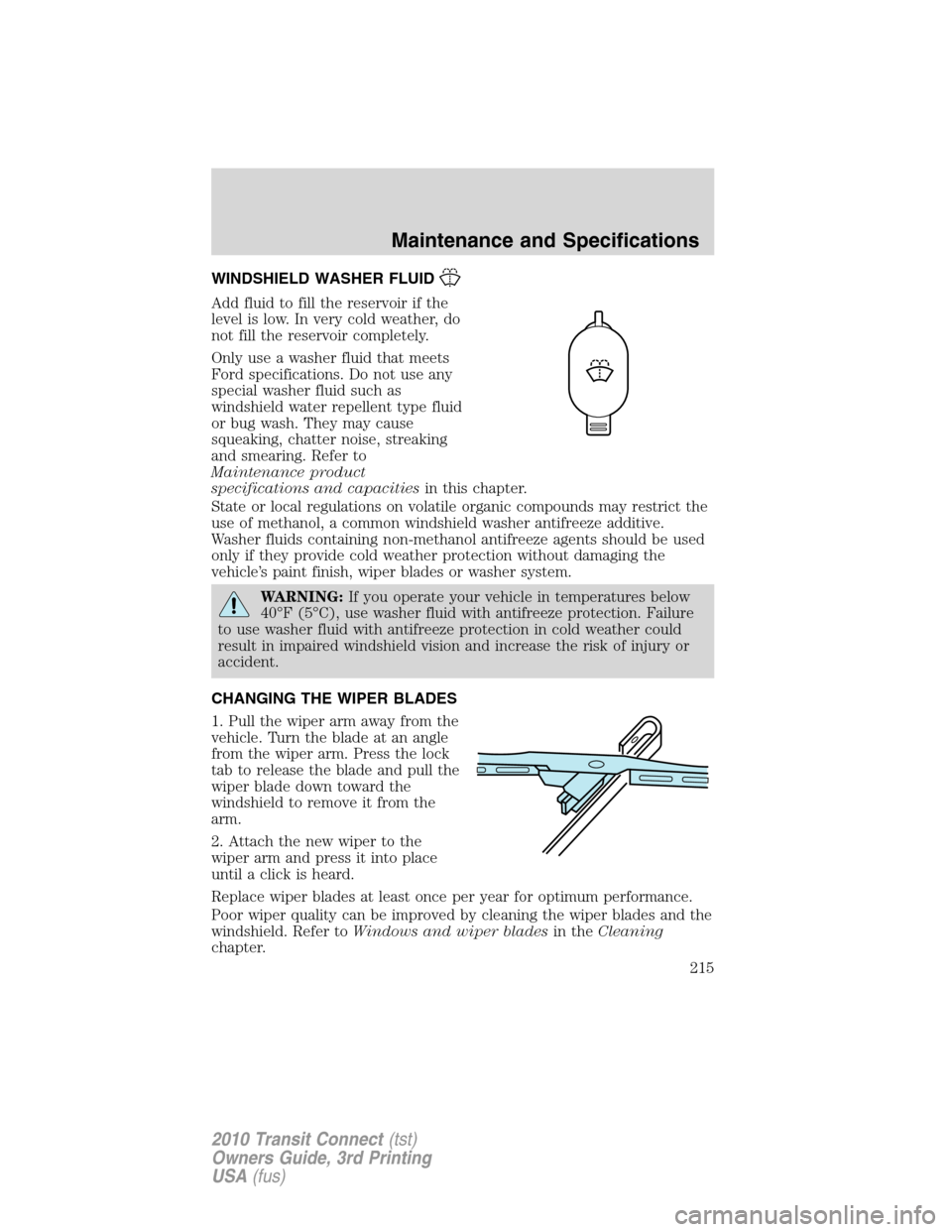

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specifications. Do not use any
special washer fluid such as
windshield water repellent type fluid
or bug wash. They may cause
squeaking, chatter noise, streaking
and smearing. Refer to
Maintenance product
specifications and capacitiesin this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Press the lock
tab to release the blade and pull the
wiper blade down toward the
windshield to remove it from the
arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer toWindows and wiper bladesin theCleaning
chapter.
Maintenance and Specifications
215
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

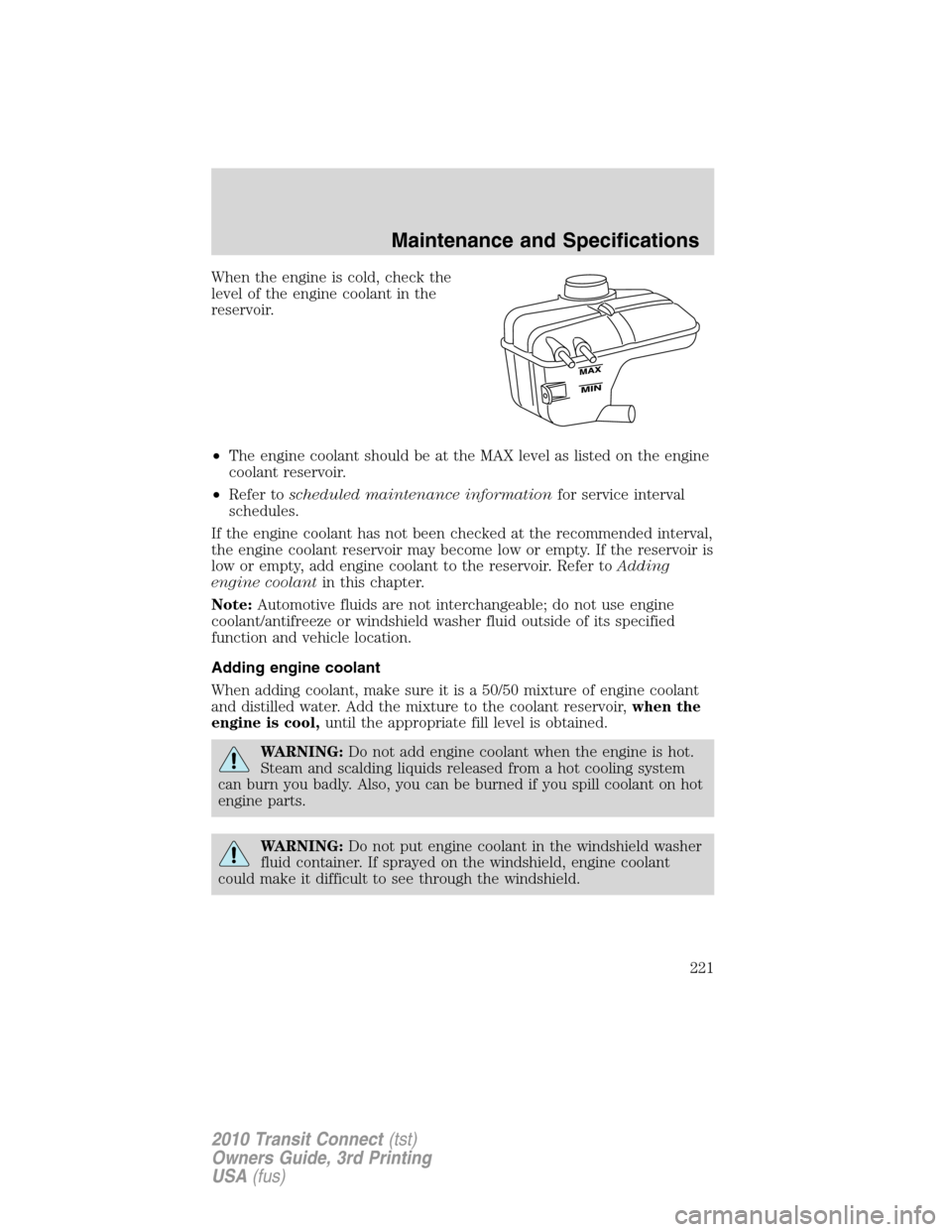

When the engine is cold, check the
level of the engine coolant in the
reservoir.
•The engine coolant should be at the MAX level as listed on the engine
coolant reservoir.
•Refer toscheduled maintenance informationfor service interval
schedules.
If the engine coolant has not been checked at the recommended interval,
the engine coolant reservoir may become low or empty. If the reservoir is
low or empty, add engine coolant to the reservoir. Refer toAdding
engine coolantin this chapter.
Note:Automotive fluids are not interchangeable; do not use engine
coolant/antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
Adding engine coolant
When adding coolant, make sure it is a 50/50 mixture of engine coolant
and distilled water. Add the mixture to the coolant reservoir,when the
engine is cool,until the appropriate fill level is obtained.
WARNING:Do not add engine coolant when the engine is hot.
Steam and scalding liquids released from a hot cooling system
can burn you badly. Also, you can be burned if you spill coolant on hot
engine parts.
WARNING:Do not put engine coolant in the windshield washer
fluid container. If sprayed on the windshield, engine coolant
could make it difficult to see through the windshield.
Maintenance and Specifications
221
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

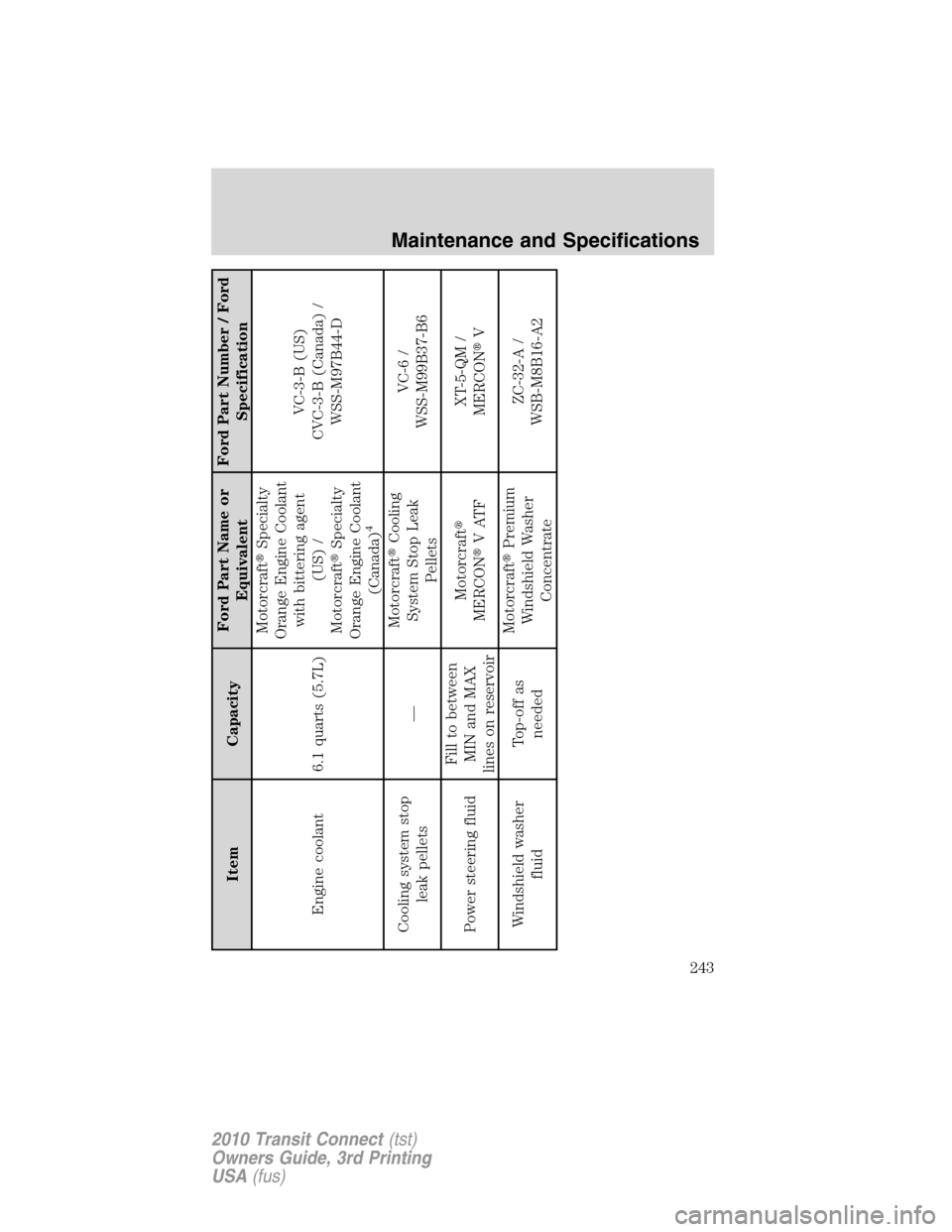

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Engine coolant 6.1 quarts (5.7L)MotorcraftSpecialty
Orange Engine Coolant
with bittering agent
(US) /
MotorcraftSpecialty
Orange Engine Coolant
(Canada)
4
VC-3-B (US)
CVC-3-B (Canada) /
WSS-M97B44-D
Cooling system stop
leak pellets—MotorcraftCooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Windshield washer
fluidTop-off as
neededMotorcraftPremium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Maintenance and Specifications
243
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Safety restraints - LATCH
anchors ......................................114
Safety seats for children ..........110
Safety Compliance
Certification Label ....................246
Seats ............................................71
child safety seats ....................110
front seats .................................74
SecuriLock passive anti-theft
system ..........................................67
Servicing your vehicle ..............212
Setting the clock .........................20
Spark plugs,
specifications .....................241, 245
Special notice
ambulance conversions ..............6
utility-type vehicles ....................6
Specification chart,
lubricants ...................................242
Speed control ..............................56
Starting your vehicle ........155–157
jump starting ..........................192
Steering wheel
controls ......................................58
tilting .........................................52
T
Tilt steering wheel ......................52
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....140
Tires ...........................126–127, 183
alignment ................................134
care ..........................................130
changing ..........................183, 187
checking the pressure ............130inflating ...................................128
label .........................................140
replacing ..................................132
rotating ....................................134
safety practices .......................133
sidewall information ...............135
snow tires and chains ............147
spare tire .................................184
terminology .............................127
tire grades ...............................127
treadwear ........................126, 131
Towing .......................................154
recreational towing .................154
trailer towing ..........................154
wrecker ....................................197
Transaxle
lubricant specifications ..........242
Transmission .............................169
brake-shift interlock (BSI) ....168
fluid, checking and adding
(automatic) .............................238
fluid, refill capacities ..............242
Trunk
remote release ..........................64
Turn signal ..................................42
V
Vehicle Identification Number
(VIN) ..........................................246
Vehicle loading ..........................148
Ventilating your vehicle ...........158
W
Warning lights (see Lights) .......12
Washer fluid ..............................215
Water, Driving through .............173
Index
257
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

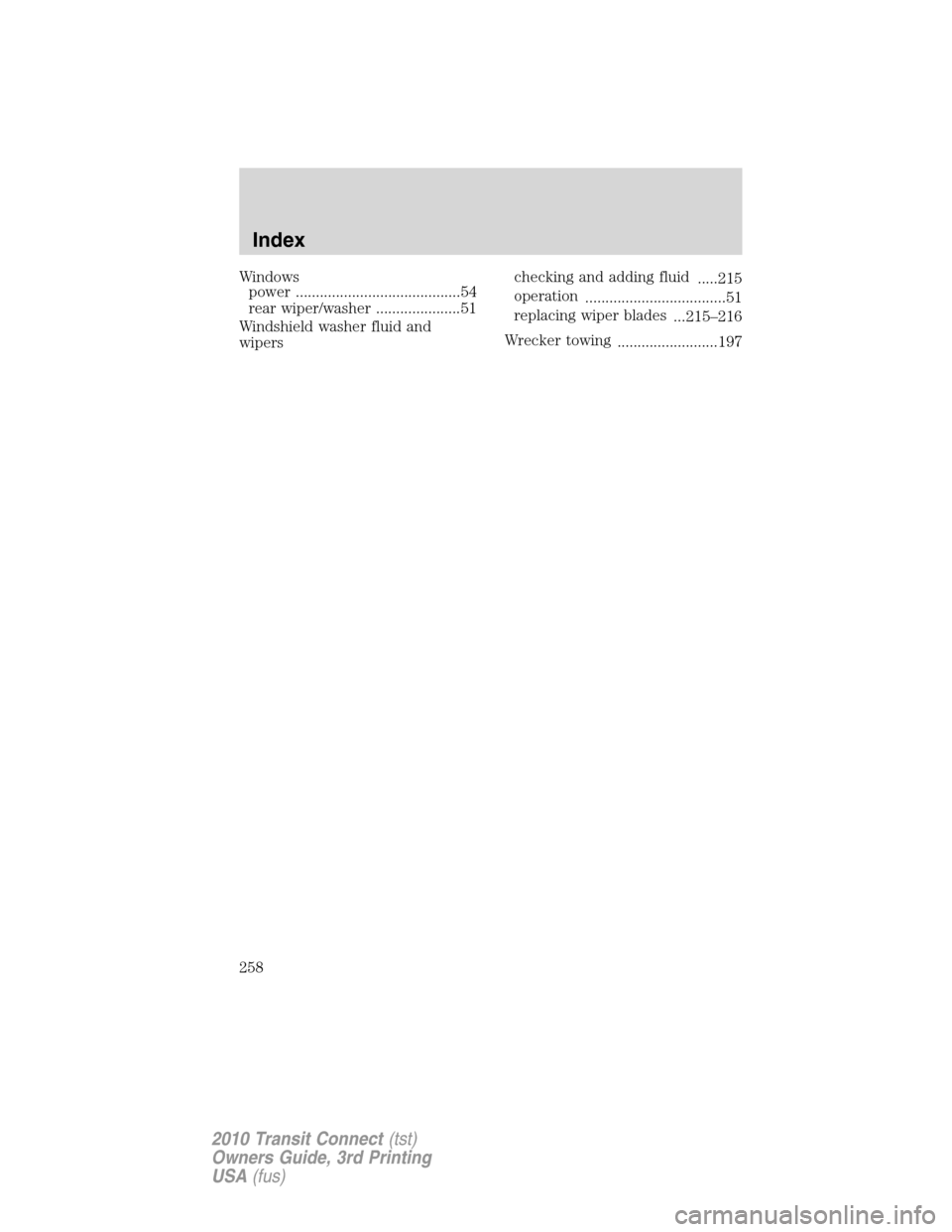

Windows
power .........................................54
rear wiper/washer .....................51
Windshield washer fluid and
wiperschecking and adding fluid
.....215
operation
...................................51
replacing wiper blades
...215–216
Wrecker towing
.........................197
Index
258
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)
