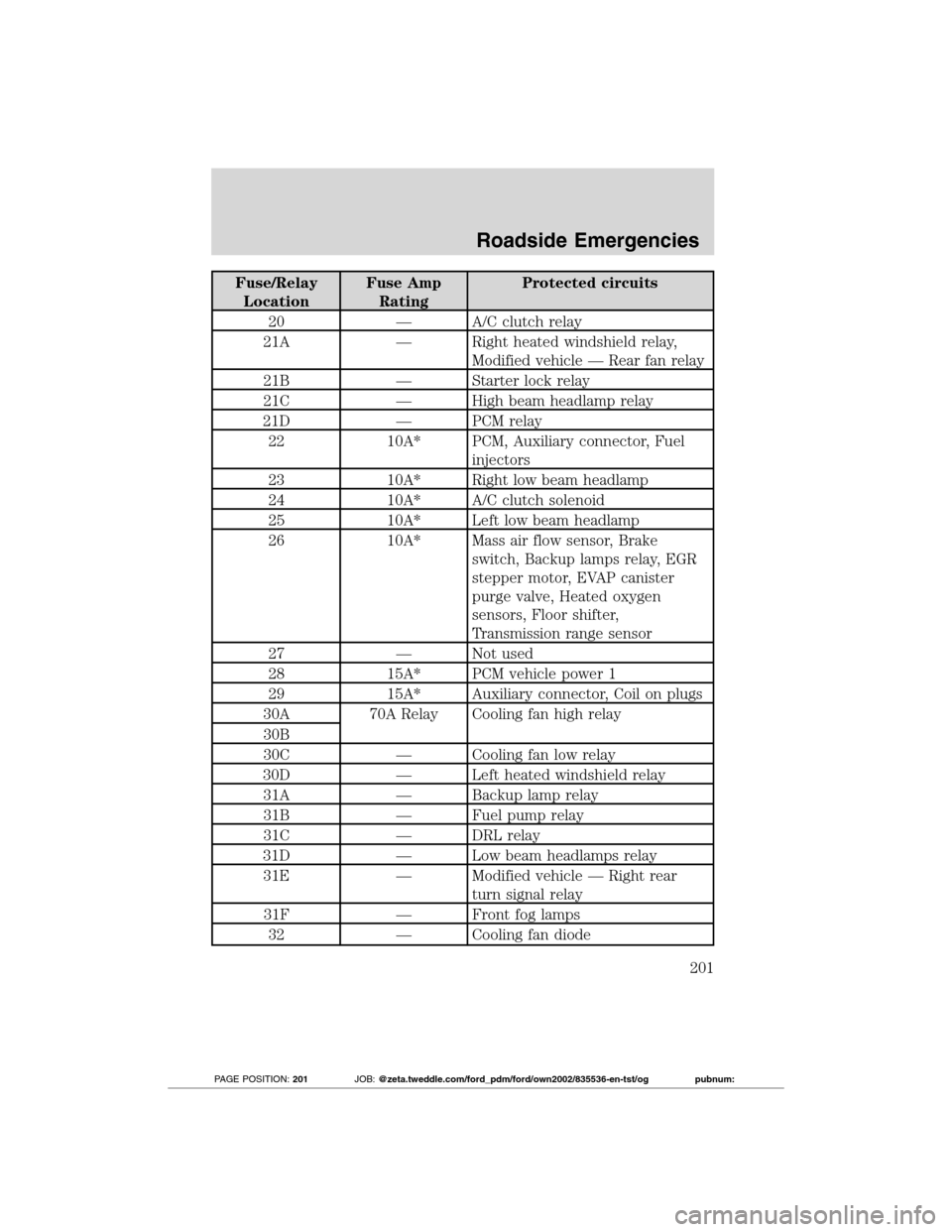

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
20 — A/C clutch relay
21A — Right heated windshield relay,
Modified vehicle — Rear fan relay
21B — Starter lock relay
21C — High beam headlamp relay
21D — PCM relay
22 10A* PCM, Auxiliary connector, Fuel
injectors
23 10A* Right low beam headlamp
24 10A* A/C clutch solenoid
25 10A* Left low beam headlamp
26 10A* Mass air flow sensor, Brake
switch, Backup lamps relay, EGR
stepper motor, EVAP canister
purge valve, Heated oxygen
sensors, Floor shifter,
Transmission range sensor
27 — Not used
28 15A* PCM vehicle power 1
29 15A* Auxiliary connector, Coil on plugs
30A 70A Relay Cooling fan high relay
30B
30C — Cooling fan low relay
30D — Left heated windshield relay
31A — Backup lamp relay
31B — Fuel pump relay
31C — DRL relay
31D — Low beam headlamps relay
31E — Modified vehicle — Right rear
turn signal relay
31F — Front fog lamps
32 — Cooling fan diode
Roadside Emergencies
201
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:201JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
33 — Fuel pump relay diode
34 — Gear shifter diode
35 30A* Start lock relay
36 — Modified vehicle — Left rear turn
signal relay
*Mini fuse **Cartridge fuse
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
Roadside Emergencies
202
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:202JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

interior lamps .....................55, 57
replacing bulbs .........................58
LATCH anchors .........................128
Liftgate ........................................74
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........175
Loading instructions .................168
Load limits .................................163
Locks
childproof ..................................76
Lubricant specifications ...........262
Lug nuts ....................................209
Lumbar support, seats ...............89
M
Manual transaxle
lubricant specifications ..........262
Mirrors ...................................68–69
automatic dimming rearview
mirror ........................................68
fold away ...................................69
heated ........................................69
side view mirrors (power) .......69
Motorcraftparts ..............229, 261
O
Octane rating ............................247
Oil (see Engine oil) ..................234
P
Parking brake ............................176
Parts
(see Motorcraftparts) ...........261Passenger Occupant
Classification Sensor ...................97
Power distribution box
(see Fuses) ...............................199
Power mirrors .............................69
Power point .................................66
Power steering ..........................180
fluid, checking and adding ....255
fluid, refill capacity ................262
fluid, specifications .................262
Power Windows ...........................67
Preparing to drive your
vehicle ........................................181
R
Radio ..........................23–24, 26, 29
Rear-view camera system .........188
Recommendations for
attaching safety restraints for
children ......................................122
Relays ........................................194
Remote entry system .................77
illuminated entry ......................81
locking/unlocking
doors ..............................76, 78–79
opening the trunk .....................79
replacement/additional
transmitters ...............................80
replacing the batteries .............79
Reverse sensing system ...........186
Roadside assistance ..................192
S
Safety belts (see Safety
restraints) ....................99–101, 103
Safety defects, reporting ..........222
