spark plugs replace FORD TRANSIT CONNECT 2012 1.G Owners Manual

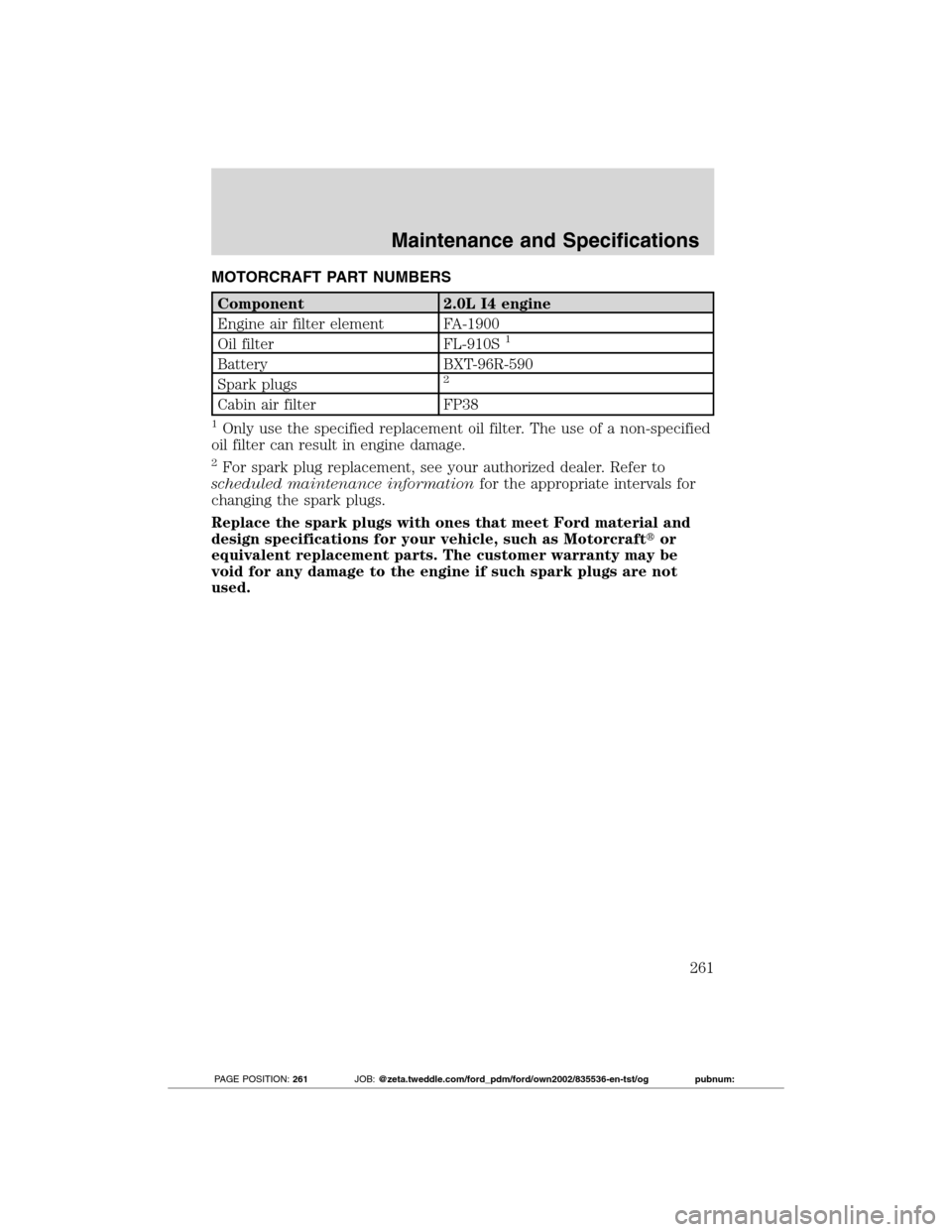

MOTORCRAFT PART NUMBERS
Component 2.0L I4 engine
Engine air filter element FA-1900
Oil filter FL-910S
1
Battery BXT-96R-590
Spark plugs2
Cabin air filter FP38
1Only use the specified replacement oil filter. The use of a non-specified
oil filter can result in engine damage.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
261
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:261JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

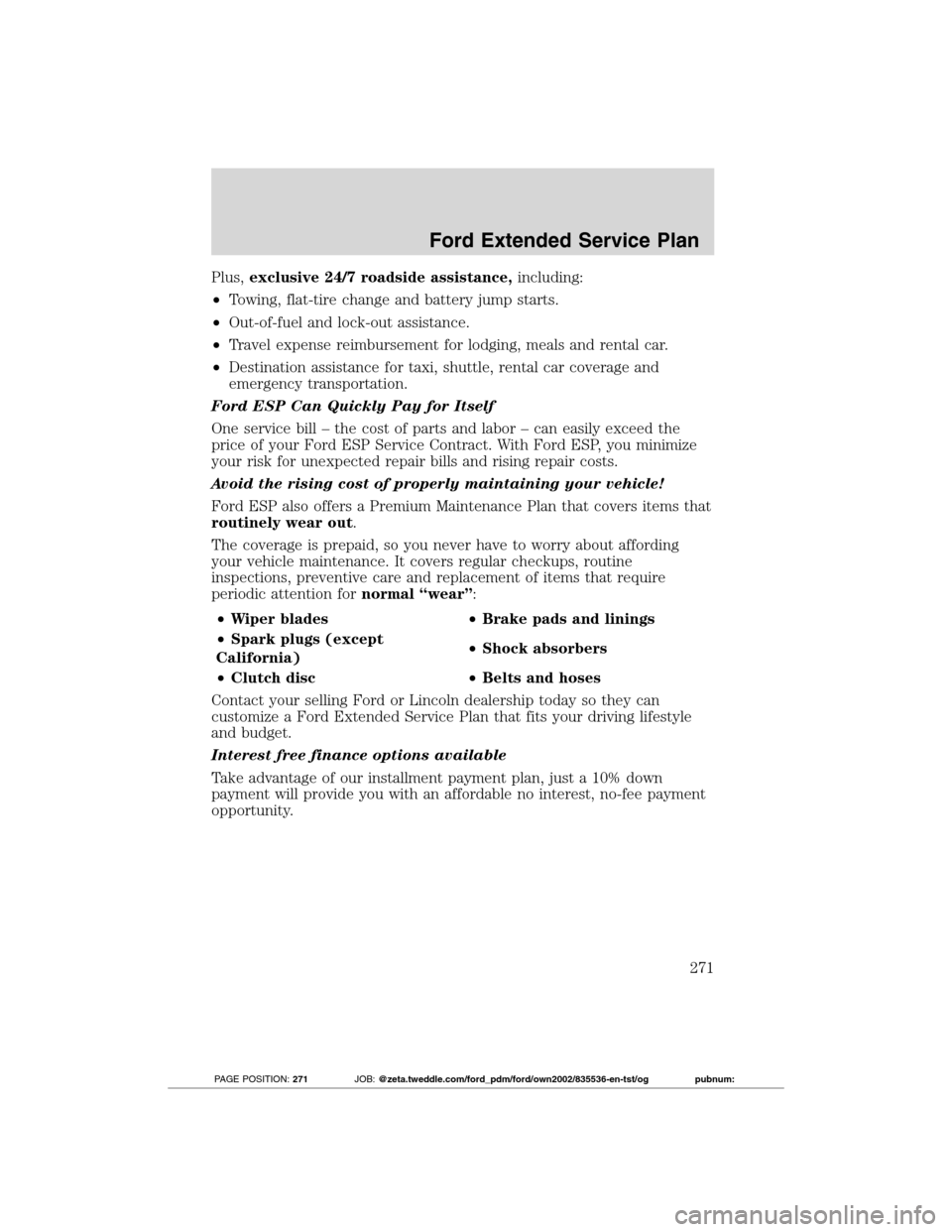

Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford or Lincoln dealership today so they can
customize a Ford Extended Service Plan that fits your driving lifestyle
and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
271
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:271JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

Every 15,000 miles
(24,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)Replace climate-controlled seat filter (if
equipped)
Replace engine air filter
Every 37,500 miles
(60,000 km)Inspect valve clearances; adjust as necessary
(Transit Connect CNG vehicles)
Every 60,000 miles
(96,000 km)Change automatic transmission fluid and filter on
5–speed TorqShifttransmission; consult dealer
for requirements
Replace front wheel bearing grease/grease seal if
non-sealed bearings are used (2WD vehicles)
Every 97,500 miles
(156,000 km)Replace spark plugs
Every 105,000 miles
(168,000 km)Change engine coolant
1
Change manual transmission fluid (except
Escape)
Change rear axle fluid (Dana axles)
Inspect accessory drive belt(s)
2
Every 150,000 miles
(240,000 km)Change automatic transmission fluid and filter
(except 5–speed TorqShifttransmission) (filter
not required on 6F35, 6F50, DPS6 and AWF-21
transmissions); consult dealer for requirements
Change front axle fluid (4WD vehicles)
Change manual transmission fluid (Escape)
Change rear axle fluid (RWD vehicles)
Change transfer case fluid (4WD vehicles)
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
Replace front wheel bearings and seals if
non-sealed bearings are used (2WD vehicles)
1Initial replacement at 105,000 miles (168,000 km) or 72 months; every
45,000 miles (72,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance
282
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:282JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect brake system
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Lubricate control arm and steering ball joints if
equipped with grease fittings
Rotate tires*, inspect tire wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsInspect and lubricate U-joints
Every 5,000 miles
(8,000 km),
6 months or 200
engine hoursChange engine oil and filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
Replace spark plugs
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Scheduled Maintenance
287
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:287JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:
