window FORD TRANSIT CONNECT 2012 1.G Owners Manual

Introduction 4
Instrument Cluster 14
Warning lights and chimes 14
Gauges 19
Entertainment Systems 23
AM/FM stereo 23
AM/FM stereo with CD 26
Auxiliary input jack (Line in) 33
USB port 35
Bluetooth system 36
SYNC46
Climate Controls 47
Manual heating and air conditioning 47
Rear window defroster 50
Lights 51
Headlamps 51
Turn signal control 54
Bulb replacement 55
Driver Controls 64
Windshield wiper/washer control 64
Steering wheel adjustment 65
Power windows 67
Mirrors 68
Speed control 69
Locks and Security 76
Keys 76
Anti-theft system 82
Table of Contents
1
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:1JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
12
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:12JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
13
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:13JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

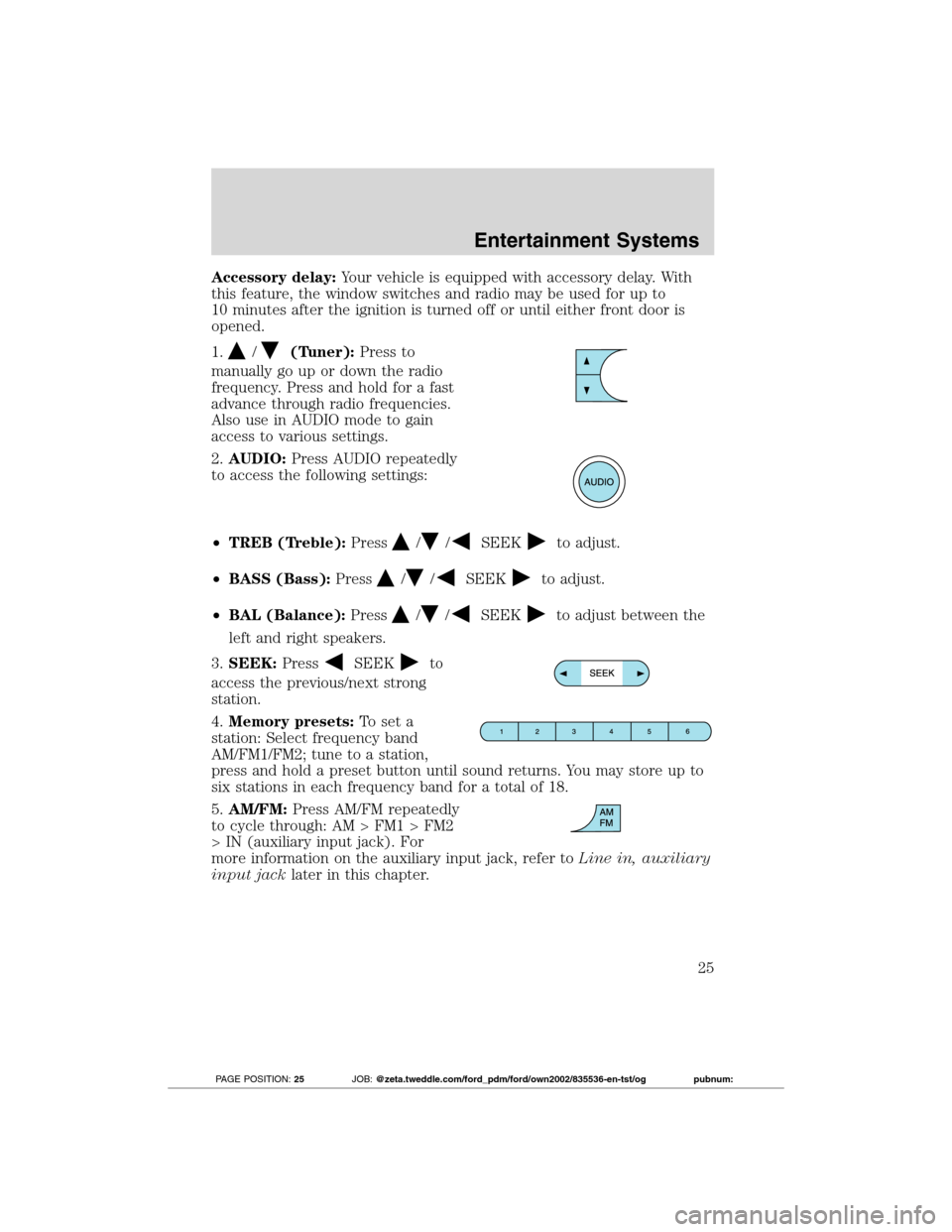

Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the window switches and radio may be used for up to
10 minutes after the ignition is turned off or until either front door is
opened.
1.
/(Tuner):Press to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
Also use in AUDIO mode to gain
access to various settings.
2.AUDIO:Press AUDIO repeatedly
to access the following settings:
•TREB (Treble):Press
//SEEKto adjust.
•BASS (Bass):Press
//SEEKto adjust.
•BAL (Balance):Press
//SEEKto adjust between the
left and right speakers.
3.SEEK:Press
SEEKto
access the previous/next strong
station.
4.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.
5.AM/FM:Press AM/FM repeatedly
to cycle through: AM > FM1 > FM2
> IN (auxiliary input jack). For
more information on the auxiliary input jack, refer toLine in, auxiliary
input jacklater in this chapter.
Entertainment Systems
25
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:25JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

To pair/bond subsequent phones to the system,simply follow the
previous procedure.
Phonebook entries:Once theBluetoothsystem connects to your
phone, it will attempt to automatically download your Phonebook entries
so that you can easily access them later. The maximum number of
entries vary depending on the information attached to the number.
Voice recognition
YourBluetoothsystem is equipped with a voice recognition system
which allows you to perform some operations by speaking certain
commands to the system. The system will respond with a series of beeps,
confirmations or questions when necessary. At any time, you can say,
“Cancel” if you do not wish to continue, or “Help” for a list of possible
voice commands in your current mode. Speak the command clearly to
ensure that the system is able to recognize and perform the desired
function.
For best system performance:
•After pressing VOICE on the
stalk, wait until the beep is heard
before speaking a command. Any
command spoken prior to this will
not register with the system.
•Speak naturally without large
pauses in between words.
•Ensure that the interior of the
vehicle is as quiet as possible.
Wind noise from open windows and road vibrations may prevent the
system from correctly recognizing spoken voice commands.
At any time, you can say these commands:
•Phone•Radio
•CD player•Cancel
•External device•Help
External device:Auxiliary input jack
Note:This system is language specific. If you would like the system to
operate in another language, please contact your authorized dealer.
VOICE
SEEK
VOL
VOL
MODE
Entertainment Systems
38
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:38JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

4.Recirculated air:Press to activate/deactivate air recirculation
in the vehicle cabin. Recirculated air may reduce the amount of time
required to cool down the interior of the vehicle and may also help
reduce undesired odors from reaching the interior of the vehicle.
Recirculated air will not function in
(defrost).
5.A/C:Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. Engages
automatically in
(defrost).
Operating tips
•To reduce fog build-up on the windshield during humid weather,
select
(defrost) and set the fan speed dial to the 3 or 4 position.
Also, set the temperature setting to the
(defrost) symbol during
cooler weather.
•To reduce humidity build-up inside the vehicle, do not drive with the
system off or with
(recirculated air) engaged and A/C off.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•To improve the time to reach comfort in hot weather, drive with the
windows slightly open for 2-3 minutes after start up or until the
vehicle has been “aired out.”
•A small amount of air may be felt from the floor vent regardless of the
air distribution setting that is selected.
During extreme high ambient temperatures when idling stationary for
extended periods of time in gear, it is recommended to run the A/C in
the max A/C mode, reduce blower fan speed from the highest setting and
put the vehicle’s transmission into the P (Park) gear position to continue
to receive cool air from your A/C system.
For maximum cooling performance, select MAX A/C by doing the
following:
1. Select the coolest temperature setting.
2. Select both the
(recirculated air) and A/C controls.
3. Set the fan to the highest speed initially. As the interior starts to cool
down, adjust the fan speed to maintain comfort and/or switch from
recirculated air to outside air mode.
Climate Controls
48
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:48JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

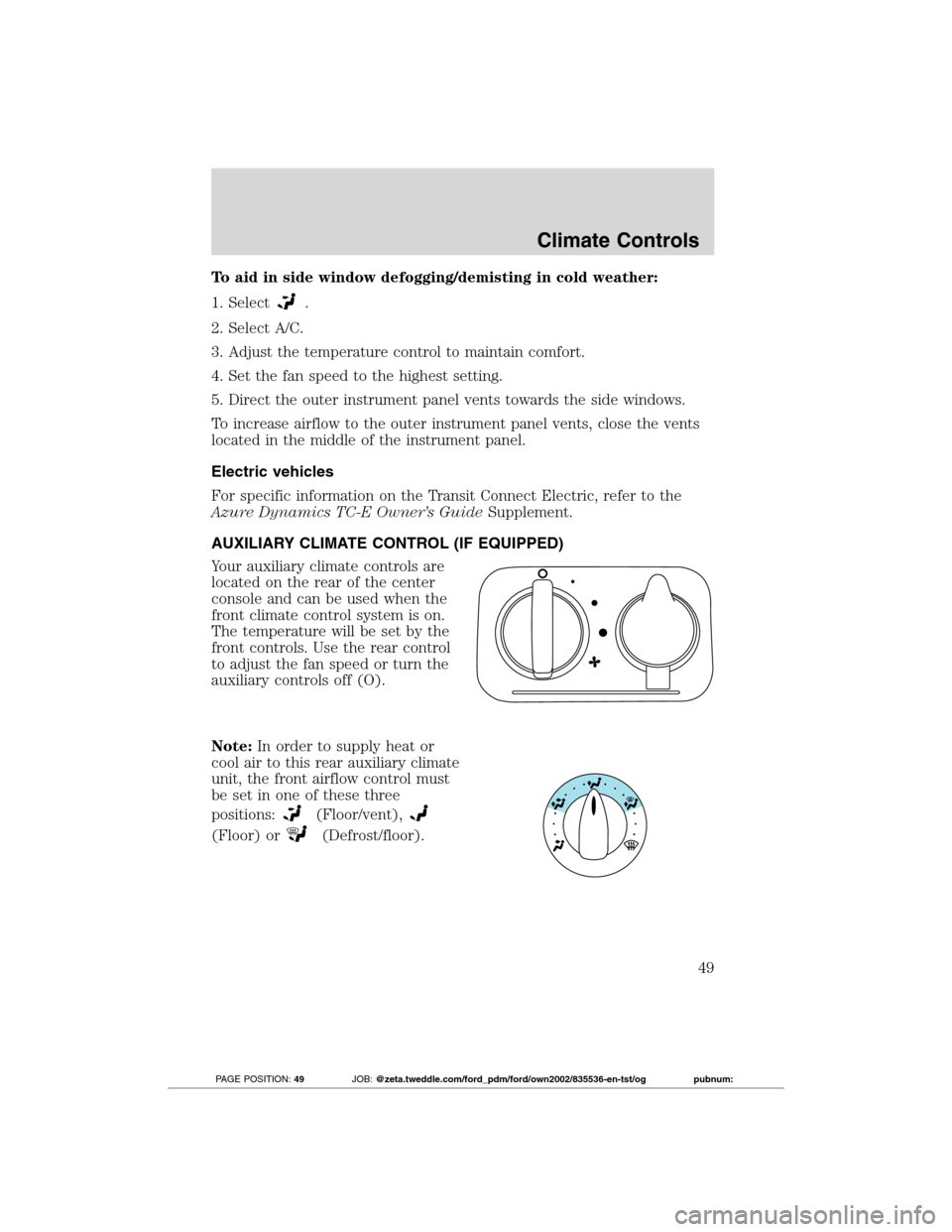

To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
AUXILIARY CLIMATE CONTROL (IF EQUIPPED)
Your auxiliary climate controls are
located on the rear of the center
console and can be used when the
front climate control system is on.
The temperature will be set by the
front controls. Use the rear control
to adjust the fan speed or turn the
auxiliary controls off (O).
Note:In order to supply heat or
cool air to this rear auxiliary climate
unit, the front airflow control must
be set in one of these three
positions:
(Floor/vent),
(Floor) or(Defrost/floor).
Climate Controls
49
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:49JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

REAR WINDOW DEFROSTER (IF EQUIPPED) / HEATED MIRRORS
(IF EQUIPPED)
The rear defroster control is located
on the instrument panel above the
radio and works to clear the rear
windows of fog and thin ice.
The ignition must be on to operate the rear window defroster.
Press
to turn the rear window defroster on. An indicator light on the
button will illuminate when active. The rear window defroster turns off
automatically after a predetermined amount of time, if a low battery
condition is detected or when the ignition is turned off. To manually turn
off the rear window defroster at any time, press the control again.
If your vehicle is equipped with heated mirrors, this button will activate
them. Refer toExterior mirrorsin theDriver Controlschapter.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside or the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
Heated Windshield Control (if equipped)
The heated windshield control is
located on the instrument panel.
To activate the heated windshield,
the engine must be running while
the heated windshield control is
pushed.
Note:During initial start-up, the windshield may have a shimmering
appearance. This is normal operation and will only last for approximately
1 minute.
The heated windshield turns off automatically after a predetermined
amount of time, if a low battery condition is detected or when the engine
is turned off. To manually turn off the heated windshield at any time,
press the control again.
Climate Controls
50
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:50JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

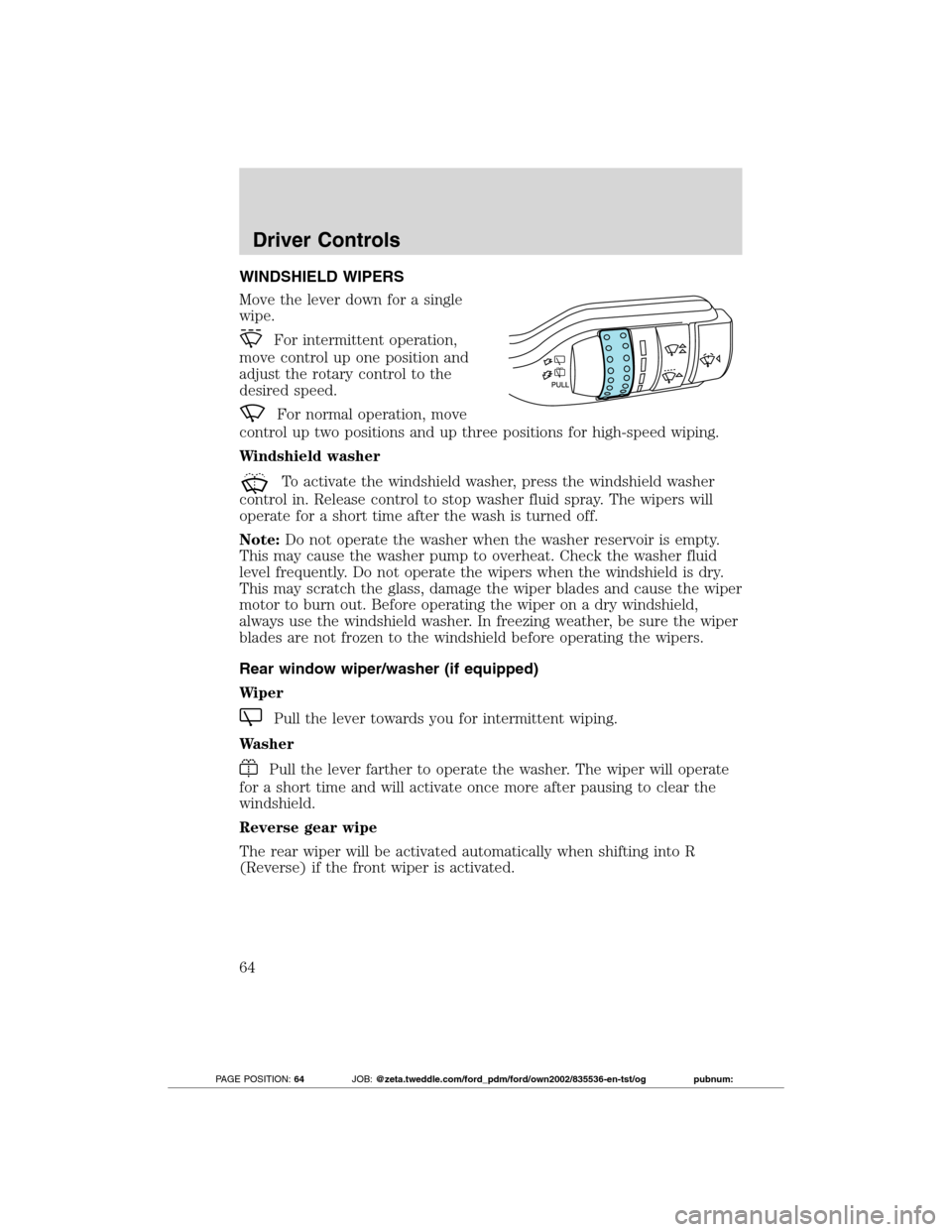

WINDSHIELD WIPERS
Move the lever down for a single
wipe.
For intermittent operation,
move control up one position and
adjust the rotary control to the
desired speed.
For normal operation, move
control up two positions and up three positions for high-speed wiping.
Windshield washer
To activate the windshield washer, press the windshield washer
control in. Release control to stop washer fluid spray. The wipers will
operate for a short time after the wash is turned off.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Rear window wiper/washer (if equipped)
Wiper
Pull the lever towards you for intermittent wiping.
Washer
Pull the lever farther to operate the washer. The wiper will operate
for a short time and will activate once more after pausing to clear the
windshield.
Reverse gear wipe
The rear wiper will be activated automatically when shifting into R
(Reverse) if the front wiper is activated.
Driver Controls
64
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:64JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:

TILT AND TELESCOPE STEERING COLUMN
Release the locking lever to adjust
the height of the steering wheel and
its distance from the driver.
Return the lever to its original
position to secure the wheel.
WARNING:Never adjust the steering wheel when the vehicle is
moving.
VISOR SLIDE-ON-ROD FEATURE (IF EQUIPPED)
Rotate the visor towards the side
window and extend it rearward for
additional sunlight coverage.
Note:To stow the visor back into
the headliner, visor must be
retracted before moving it back
towards the windshield.
Driver Controls
65
2012 Transit Connect(tst)
Owners Guide, 1st Printing
USA(fus)
PAGE POSITION:65JOB:@zeta.tweddle.com/ford_pdm/ford/own2002/835536-en-tst/og pubnum:
