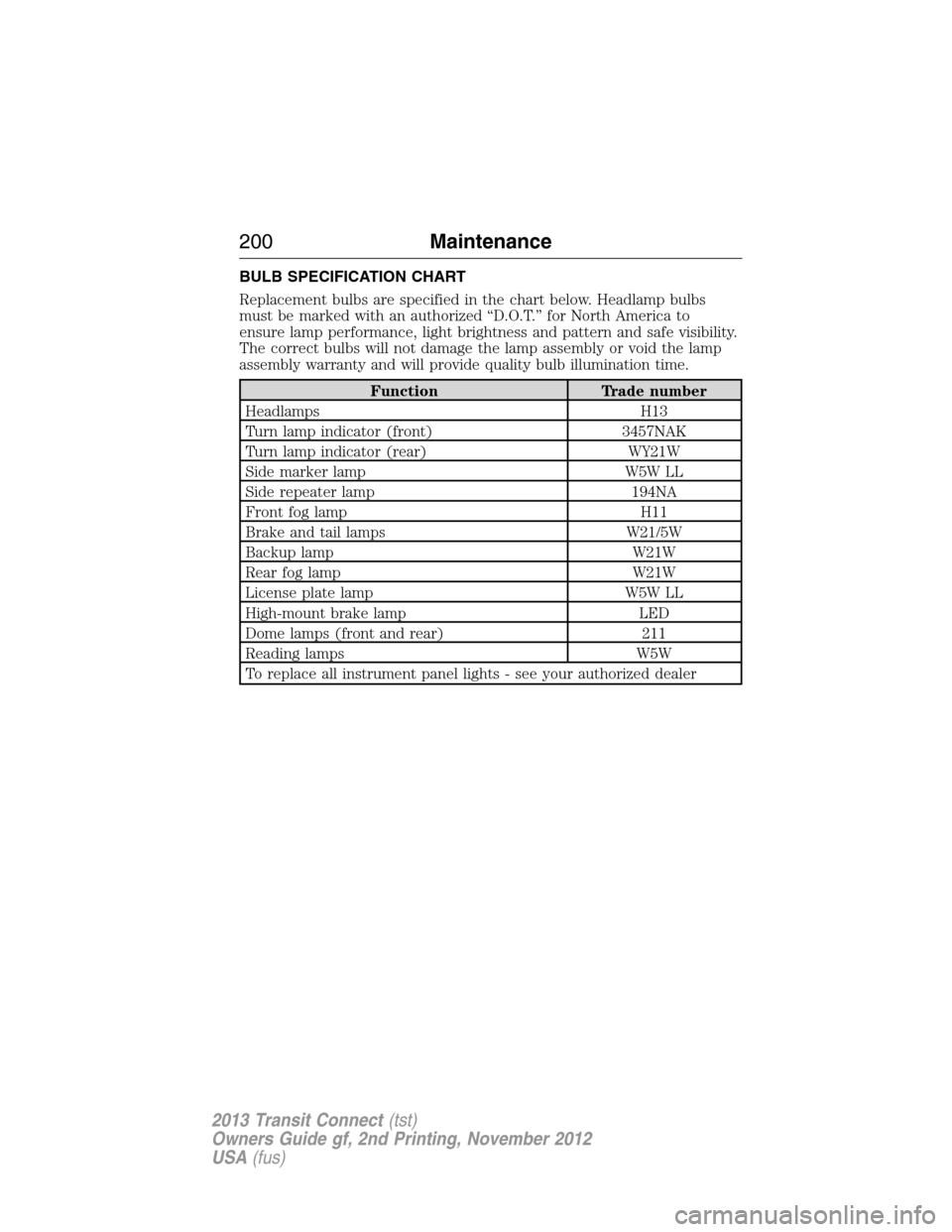

BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to
ensure lamp performance, light brightness and pattern and safe visibility.
The correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb illumination time.
Function Trade number
Headlamps H13
Turn lamp indicator (front) 3457NAK
Turn lamp indicator (rear) WY21W
Side marker lamp W5W LL
Side repeater lamp 194NA
Front fog lamp H11
Brake and tail lamps W21/5W
Backup lamp W21W
Rear fog lamp W21W
License plate lamp W5W LL
High-mount brake lamp LED
Dome lamps (front and rear) 211
Reading lamps W5W
To replace all instrument panel lights - see your authorized dealer
200Maintenance
2013 Transit Connect(tst)
Owners Guide gf, 2nd Printing, November 2012
USA(fus)
