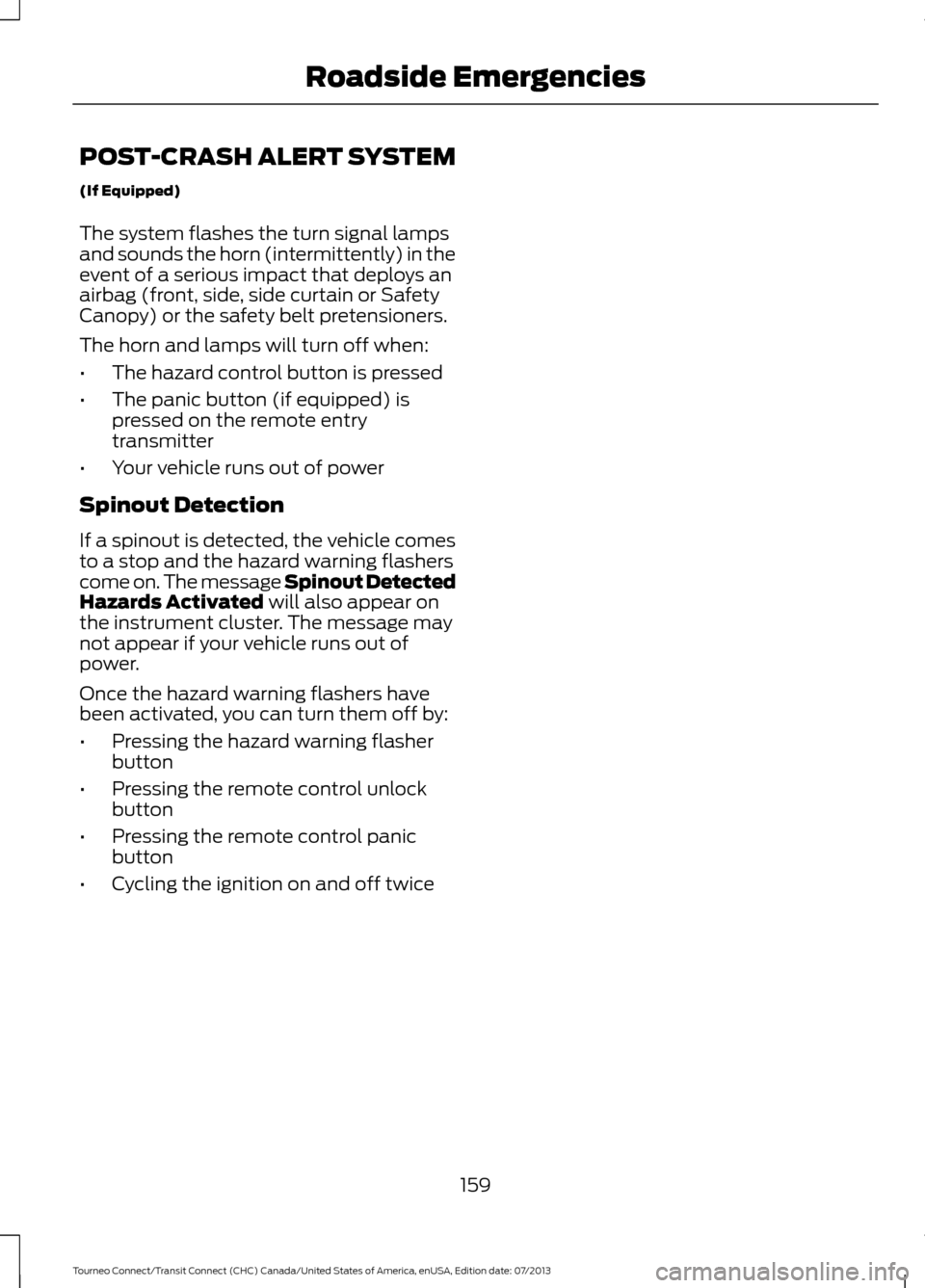

POST-CRASH ALERT SYSTEM
(If Equipped)
The system flashes the turn signal lamps
and sounds the horn (intermittently) in the
event of a serious impact that deploys an
airbag (front, side, side curtain or Safety
Canopy) or the safety belt pretensioners.
The horn and lamps will turn off when:
•
The hazard control button is pressed
• The panic button (if equipped) is
pressed on the remote entry
transmitter
• Your vehicle runs out of power
Spinout Detection
If a spinout is detected, the vehicle comes
to a stop and the hazard warning flashers
come on. The message Spinout Detected
Hazards Activated will also appear on
the instrument cluster. The message may
not appear if your vehicle runs out of
power.
Once the hazard warning flashers have
been activated, you can turn them off by:
• Pressing the hazard warning flasher
button
• Pressing the remote control unlock
button
• Pressing the remote control panic
button
• Cycling the ignition on and off twice
159
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Roadside Emergencies

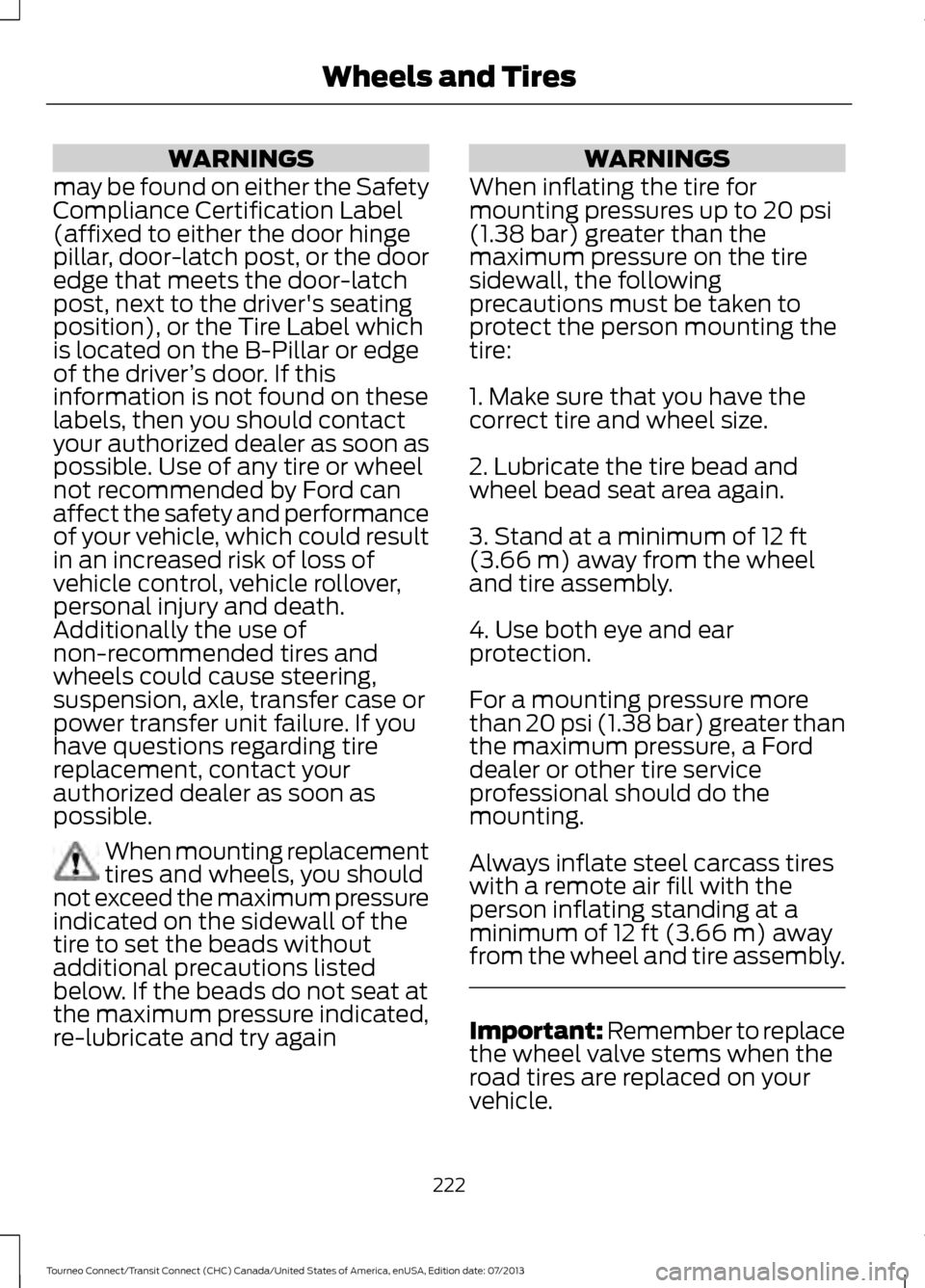

WARNINGS
may be found on either the Safety
Compliance Certification Label
(affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch
post, next to the driver's seating
position), or the Tire Label which
is located on the B-Pillar or edge
of the driver ’s door. If this
information is not found on these
labels, then you should contact
your authorized dealer as soon as
possible. Use of any tire or wheel
not recommended by Ford can
affect the safety and performance
of your vehicle, which could result
in an increased risk of loss of
vehicle control, vehicle rollover,
personal injury and death.
Additionally the use of
non-recommended tires and
wheels could cause steering,
suspension, axle, transfer case or
power transfer unit failure. If you
have questions regarding tire
replacement, contact your
authorized dealer as soon as
possible. When mounting replacement
tires and wheels, you should
not exceed the maximum pressure
indicated on the sidewall of the
tire to set the beads without
additional precautions listed
below. If the beads do not seat at
the maximum pressure indicated,
re-lubricate and try again WARNINGS
When inflating the tire for
mounting pressures up to 20 psi
(1.38 bar) greater than the
maximum pressure on the tire
sidewall, the following
precautions must be taken to
protect the person mounting the
tire:
1. Make sure that you have the
correct tire and wheel size.
2. Lubricate the tire bead and
wheel bead seat area again.
3. Stand at a minimum of 12 ft
(3.66 m) away from the wheel
and tire assembly.
4. Use both eye and ear
protection.
For a mounting pressure more
than 20 psi (1.38 bar) greater than
the maximum pressure, a Ford
dealer or other tire service
professional should do the
mounting.
Always inflate steel carcass tires
with a remote air fill with the
person inflating standing at a
minimum of 12 ft (3.66 m) away
from the wheel and tire assembly. Important: Remember to replace
the wheel valve stems when the
road tires are replaced on your
vehicle.
222
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Wheels and Tires

Interior Lamps - Vehicles With:
Panoramic Roof Panel..............................66
Center Mounted Lamp...................................... 66
Luggage Compartment Lamp........................ 66
Side Mounted Lamp........................................... 66
Interior Lamps - Vehicles Without: Panoramic Roof Panel..............................65
Courtesy Lamp...................................................... 65
Luggage Compartment Lamp........................ 65
Reading Lamps..................................................... 65
Interior Mirror...................................................70
Auto-Dimming Mirror.......................................... 70
Introduction.........................................................7
J
Jump Starting the Vehicle.........................156 Connecting the Jumper Cables...................... 157
Jump Starting...................................................... 158
Preparing Your Vehicle...................................... 157
Removing the Jumper Cables........................ 158
K
Keys and Remote Controls
..........................41
L
Lighting Control...............................................61 Headlamp Flasher............................................... 62
High Beams............................................................ 62
Parking Lamps....................................................... 61
Lighting...............................................................61 General Information............................................. 61
Load Carriers See: Roof Racks and Load Carriers..............136
Load Carrying
.................................................134
Load Limit.......................................................136 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 143
Vehicle Loading - with and without a Trailer.................................................................. 136Locking and Unlocking
................................48
Auto lock and Auto unlock Feature..............50
Emergency Locking with the Key.................... 51
Locking and Unlocking the Doors From Inside................................................................... 48
Locking and Unlocking the Doors with the Key........................................................................\
49
Opening the Double Rear Doors.................... 48
Rear Emergency Exit............................................ 51
Remote Control.................................................... 48
Smart Unlocks For Integrated Keyhead Transmitter........................................................ 49
Smart Unlocks For Intelligent Access Keys ........................................................................\
....... 50
Unlocking the Doors with the Interior Door Handles............................................................... 49
Locks...................................................................48
Luggage Anchor Points..............................134
Lug Nuts See: Changing a Road Wheel....................... 230
M
Maintenance
...................................................177
General Information........................................... 177
Manual Climate Control..............................89
Manual Liftgate
...............................................52
Opening and Closing the Liftgate.................. 52
Manual Seats
..................................................98
Adjusting the Height of the Driver
Seat...................................................................... 99
Adjusting the Lumbar Support ...................... 98
Folding the Seatback......................................... 99
Moving the Seat Backward and Forward.............................................................. 98
Recline Adjustment............................................ 99
Media Hub......................................................256
Message Center See: Information Displays.................................. 77
Mirrors See: Heated Windows and Mirrors................94
See: Windows and Mirrors................................ 67
Mobile Communications Equipment
.......12
Motorcraft Parts - 2.5L..............................239
Motorcraft Parts...........................................238
MyFord Touch ™
...........................................303
General Information......................................... 303
MyKey Troubleshooting
...............................47
403
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Index

Rear View Camera.......................................130
Switching the Rear View Camera Off..........131
Switching the Rear View Camera On.........130
Using the Display................................................ 130
Vehicles With Parking Aid................................. 131
Rear View Camera See: Rear View Camera................................... 130
Rear Window Wiper and Washers...........59 Rear Window Washer........................................ 60
Rear Window Wiper............................................ 59
Recommended Towing Weights............145 Calculating the Maximum Loaded Trailer
Weight............................................................... 146
Reduced Engine Performance.................152
Refueling...........................................................114 Easy Fuel ™ Capless Fuel System.................115
Remote Control...............................................41 Car Finder................................................................ 42
Integrated Keyhead Transmitter...................... 41
Programming a New Remote Control...........41
Replacing the Battery......................................... 42
Reprogramming the Unlocking Function............................................................... 41
Repairing Minor Paint Damage
..............206
Replacement Parts Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control.............................................................42
Reporting Safety Defects (Canada Only)...............................................................165
Reporting Safety Defects (U.S. Only)..............................................................164
Roadside Assistance
...................................155
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 155
Vehicles Sold in Canada: Using Roadside Assistance........................................................ 155
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 155
Vehicles Sold in the United States: Using Roadside Assistance.................................... 155
Roadside Emergencies...............................155
Roof Racks and Load Carriers
.................136
Maximum Load Weights.................................. 136Running-In
See: Breaking-In.................................................. 152
Running Out of Fuel......................................113 Refilling With a Portable Fuel
Container........................................................... 113
S
Safety Belt Height Adjustment.................28
Safety Belt Minder
.........................................29
Belt-Minder™........................................................ 29
Safety Belts......................................................25 Principle of Operation......................................... 25
Safety Belt Warning Lamp and Indicator Chime
..............................................................29
Conditions of operation..................................... 29
Safety Canopy ™
............................................38
Safety Precautions........................................112
Satellite Radio..............................................253
Satellite Radio Electronic Serial Number
(ESN)................................................................ 254
Satellite Radio Reception Factors...............254
SIRIUS® Satellite Radio Service.................. 254
Troubleshooting................................................. 255
Scheduled Maintenance Record
...........392
Scheduled Maintenance..........................384
Seats...................................................................96
Security..............................................................53
Settings.............................................................311 Clock........................................................................\
312
Display..................................................................... 312
Settings.................................................................. 314
Sound...................................................................... 313
Vehicle..................................................................... 313
Sitting in the Correct Position...................96
Snow Chains See: Using Snow Chains................................. 225
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Special Instructions.............................................. 12
Special Operating Conditions Scheduled Maintenance..............................................390
Speed Control See: Cruise Control............................................. 132
Stability Control............................................125 Principle of Operation....................................... 125
Starter Switch See: Ignition Switch........................................... 109
405
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Index

Using Cruise Control....................................132
Switching Cruise Control Off.......................... 132
Switching Cruise Control On........................... 132
Using MyKey With Remote Start Systems...........................................................47
Using Snow Chains.....................................225
Using Stability Control................................126
AdvanceTrac® with Roll Stability Control ™
(RSC®).............................................................. 126
Using SYNC™ With Your Media Player............................................................285
Accessing Your Play Menu.............................. 291
Connecting Your Digital Media Player to the USB Port.......................................................... 286
Media Menu Features...................................... 290
Media Voice Commands................................ 288
System Settings................................................. 293
What's Playing?................................................. 287
Using SYNC™ With Your Phone............263 Accessing Features Through the Phone
Menu.................................................................. 270
Accessing Your Phone Settings.................... 274
Making a Call...................................................... 268
Pairing a Cell Phone for the First Time................................................................... 263
Pairing Subsequent Cell Phones.................265
Phone Options during an Active Call.........269
Receiving Calls................................................... 269
System Settings................................................. 276
Text Messaging.................................................... 272
Using Traction Control
................................124
Switching the System Off Using a
Switch................................................................ 124
Switching the System Off Using the Information Display Controls.................... 124
System Indicator Lights and Messages.......................................................... 124
Using Voice Recognition
...........................260
Initiating a Voice Session............................... 260
System Interaction and Feedback...............261
Using Winter Tires
.......................................225
Utilizing the Mediation/Arbitration Program (Canada Only).........................162
V
Vehicle Care...................................................202
Vehicle Certification Label.......................240 Vehicle Identification Number
................239
Vehicle Storage............................................206
Battery.................................................................... 207
Body....................................................................... 206
Brakes..................................................................... 207
Cooling system................................................... 207
Engine..................................................................... 207
Fuel system.......................................................... 207
General.................................................................. 206
Miscellaneous..................................................... 207
Removing Vehicle From Storage.................. 207
Tires........................................................................\
. 207
Ventilation See: Climate Control.......................................... 88
Vents See: Air Vents........................................................ 88
VIN See: Vehicle Identification Number............239
Voice Control
...................................................56
W
Warning Lamps and Indicators.................73 Airbag - Front......................................................... 73
Anti-Lock Braking System................................. 73
Battery...................................................................... 73
Blind Spot Monitor............................................... 73
Brake System......................................................... 73
Cruise Control........................................................ 74
Direction Indicator................................................ 74
Engine Oil................................................................. 74
Fasten Safety Belt................................................ 74
Fog Lamps - Front................................................ 74
High Beam............................................................... 74
Information............................................................. 74
Low Fuel Level....................................................... 74
Low Tire Pressure Warning............................... 74
Parking Lamps....................................................... 75
Service Engine Soon............................................ 75
Traction and Stability Control.......................... 75
Traction and Stability Control Off.................. 75
Washer Fluid Check.....................................184
Washers See: Cleaning the Exterior.............................. 202
See: Wipers and Washers................................. 58
Waxing.............................................................203
Wheel Nuts See: Changing a Road Wheel....................... 230
407
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Index
