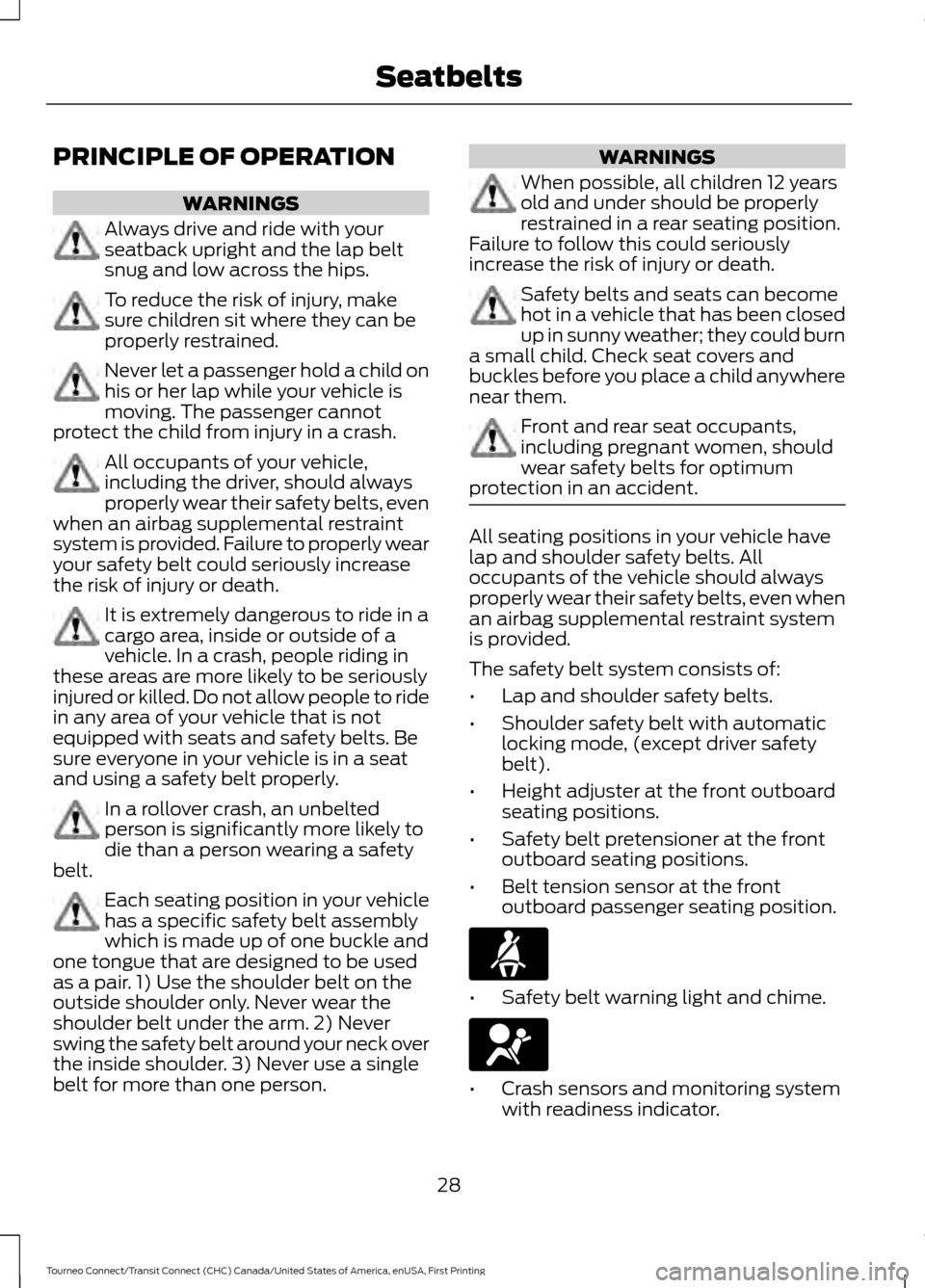

Page 31 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide PRINCIPLE OF OPERATION
WARNINGS
Always drive and ride with your
seatback upright and the lap belt
snug and low across the hips.
To reduce the risk of injury, make
sure children sit where they can be
p

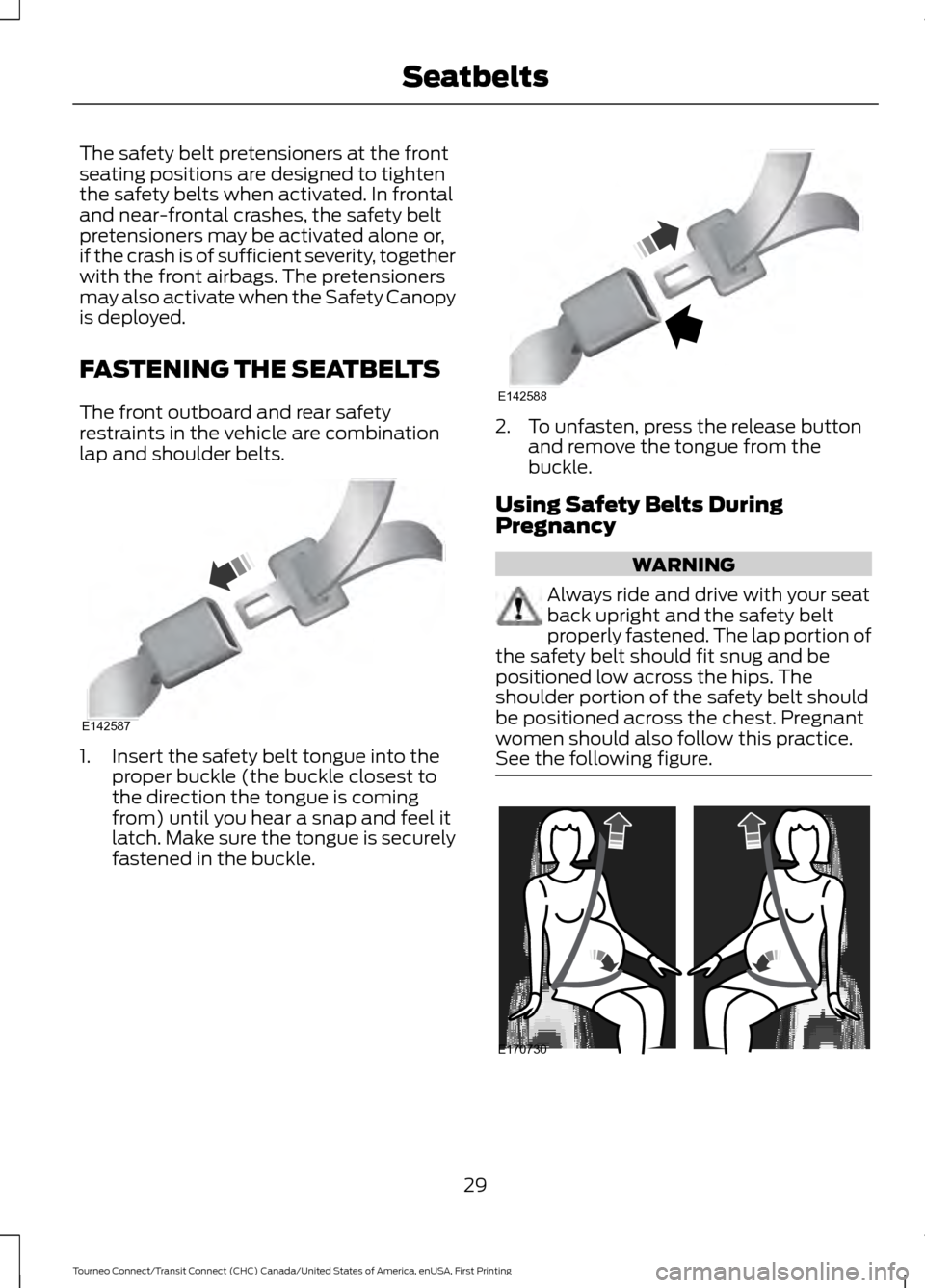

Page 32 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide The safety belt pretensioners at the front
seating positions are designed to tighten
the safety belts when activated. In frontal
and near-frontal crashes, the safety belt
pretensioners may be activate

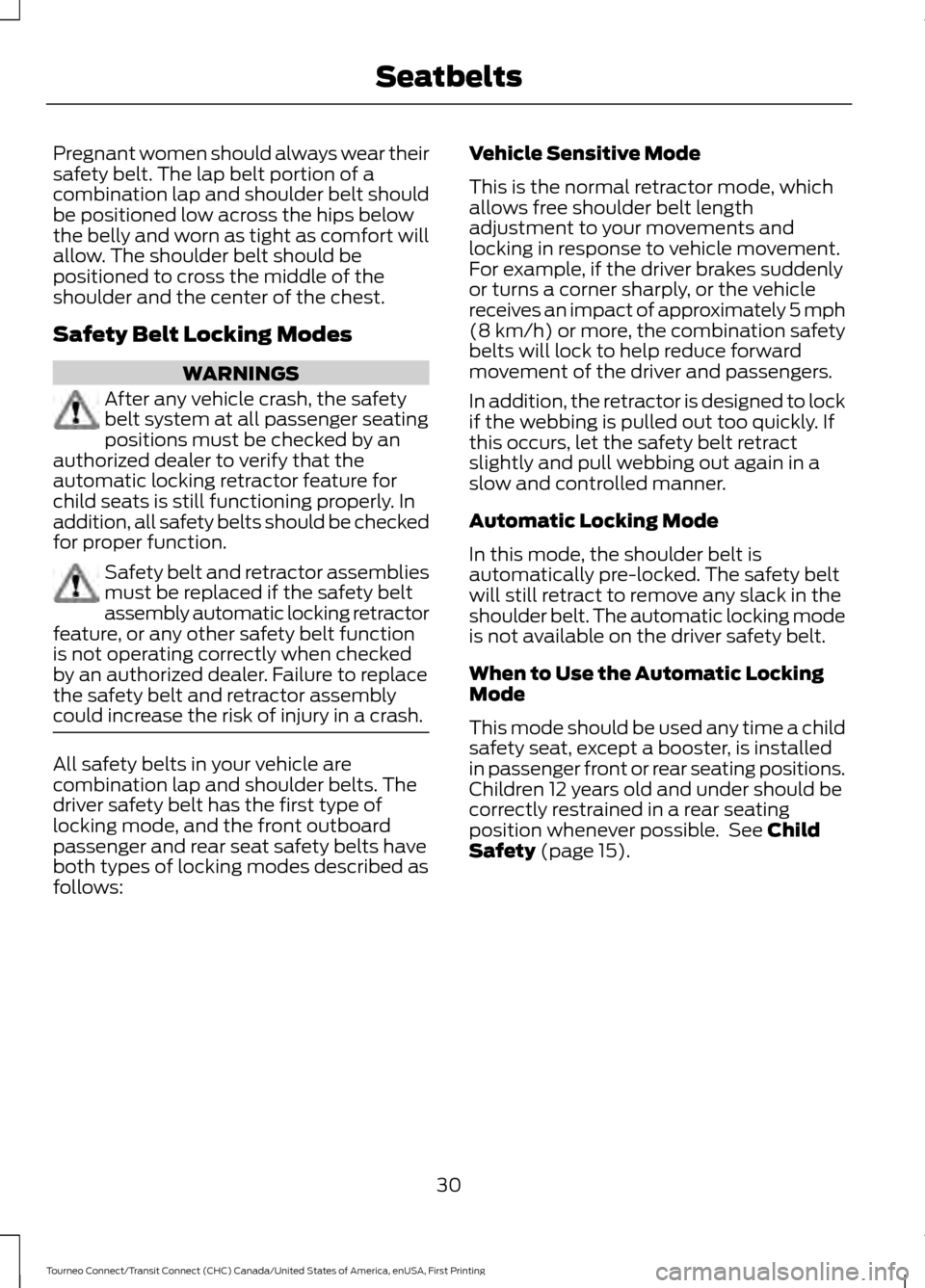

Page 33 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide Pregnant women should always wear their
safety belt. The lap belt portion of a
combination lap and shoulder belt should
be positioned low across the hips below
the belly and worn as tight as comfort w

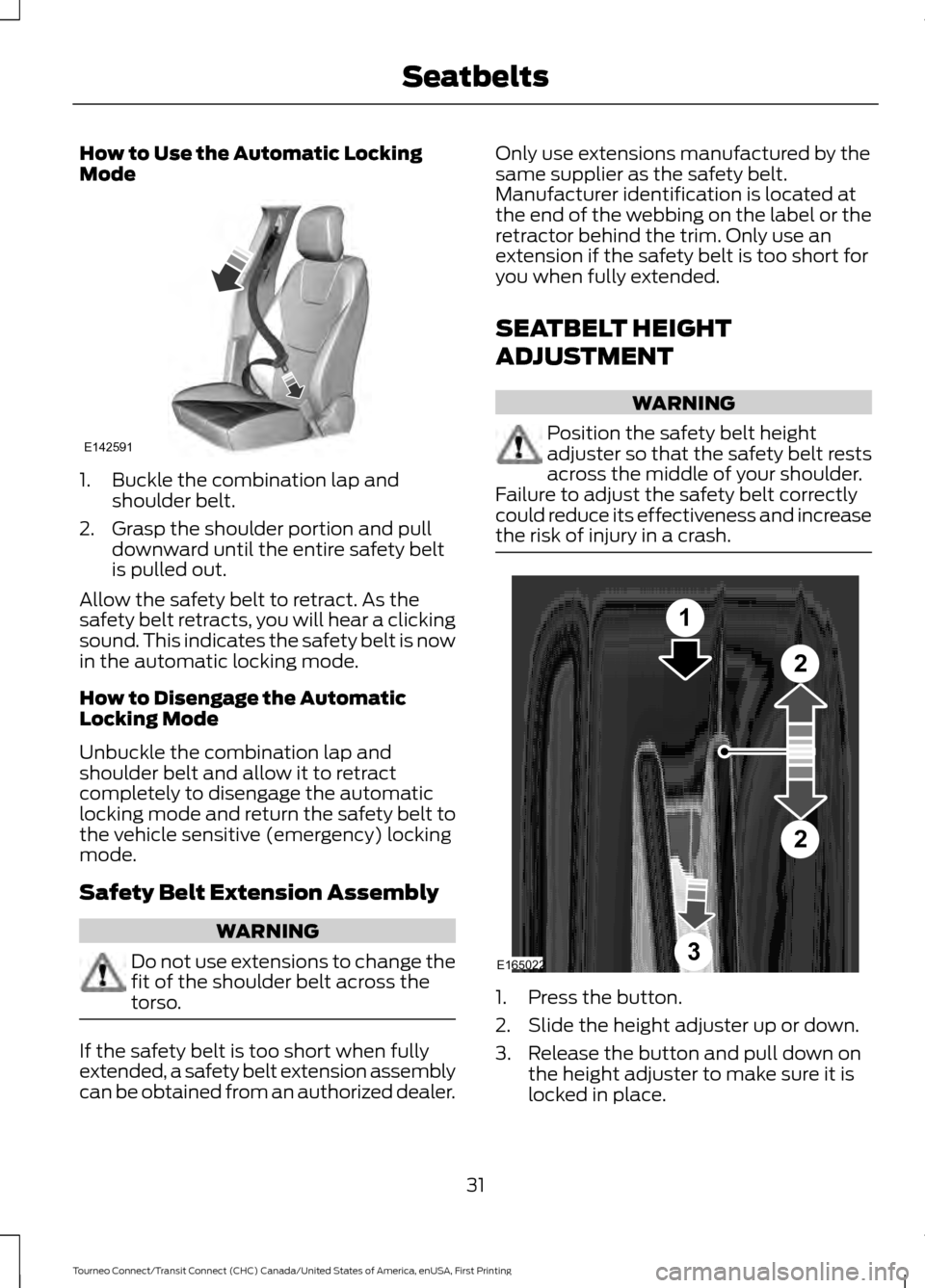

Page 34 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide How to Use the Automatic Locking
Mode
1. Buckle the combination lap and
shoulder belt.
2. Grasp the shoulder portion and pull downward until the entire safety belt
is pulled out.
Allow the safety belt

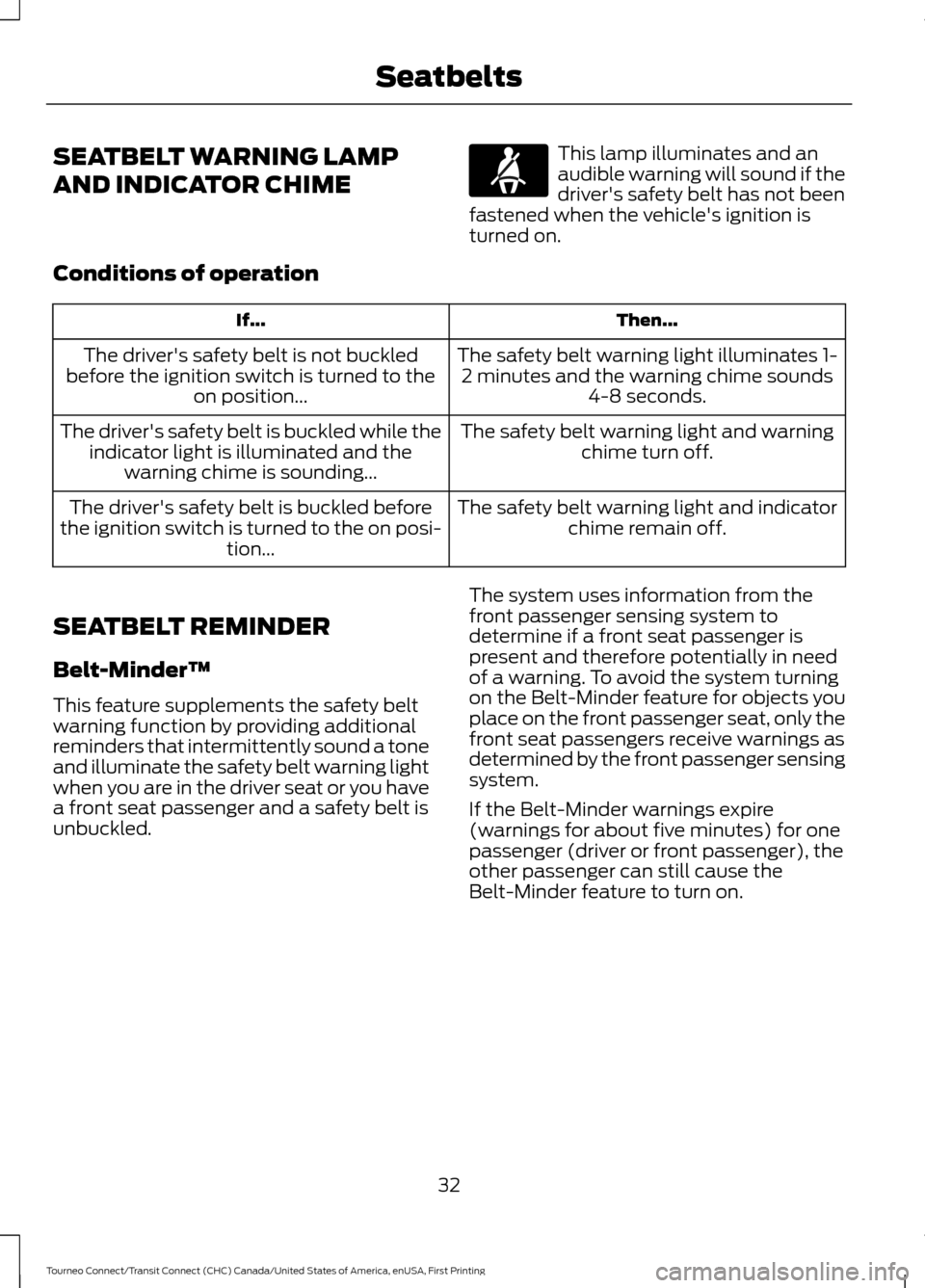

Page 35 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide SEATBELT WARNING LAMP
AND INDICATOR CHIME This lamp illuminates and an
audible warning will sound if the
drivers safety belt has not been
fastened when the vehicles ignition is
turned on.
Conditions

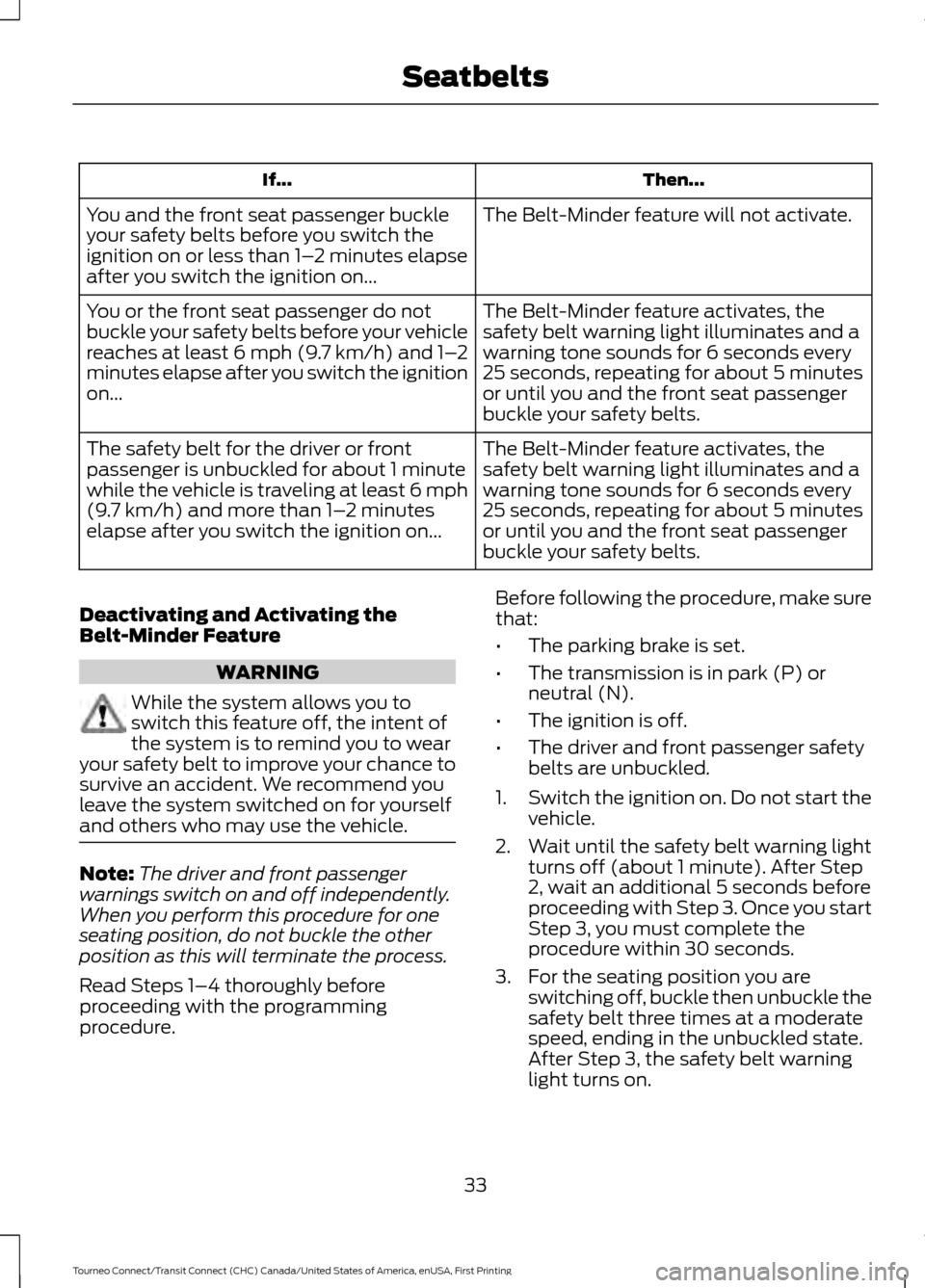

Page 36 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide Then...
If...
The Belt-Minder feature will not activate.
You and the front seat passenger buckle
your safety belts before you switch the
ignition on or less than 1– 2 minutes elapse
after you switch

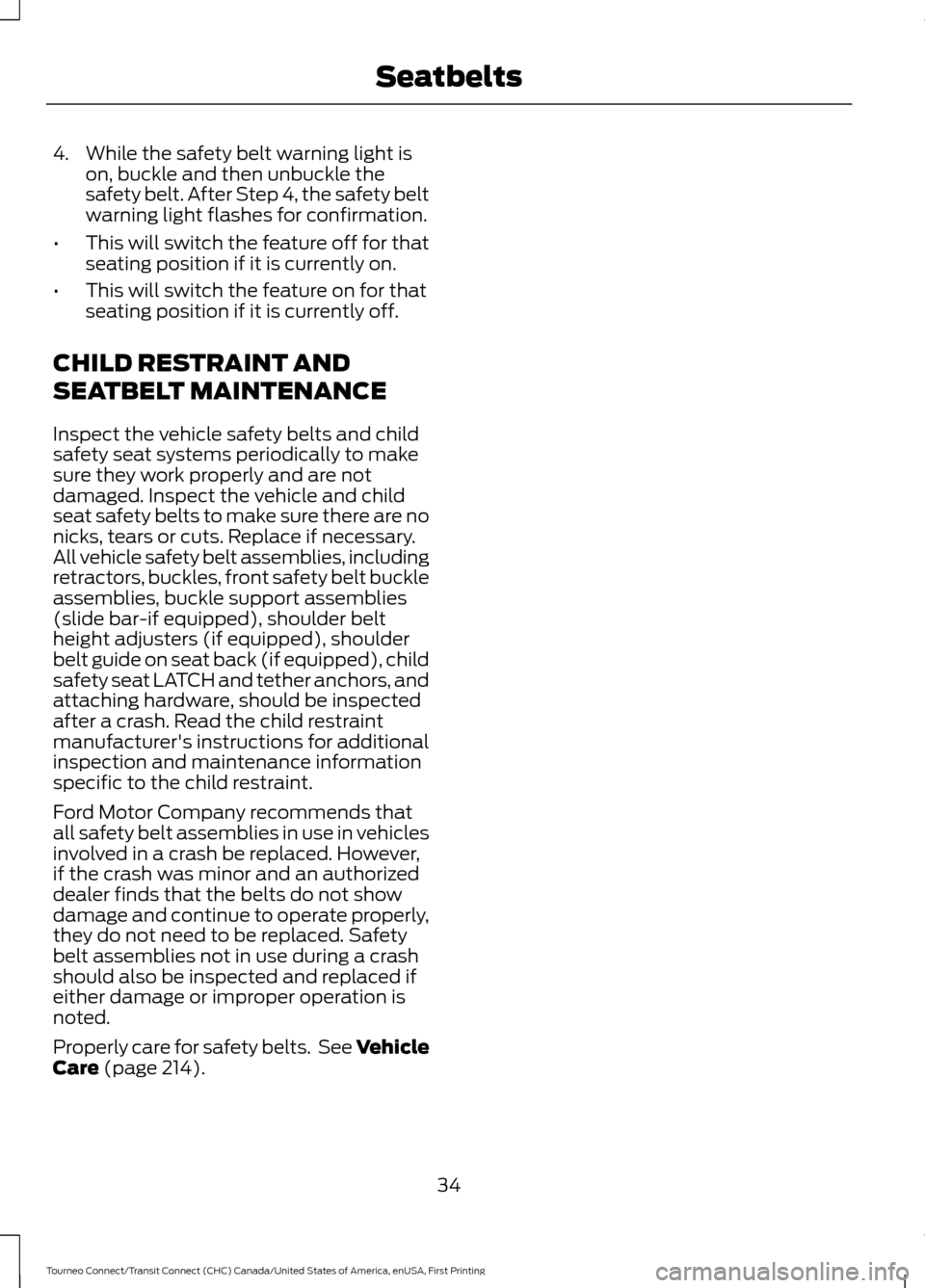

Page 37 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide 4. While the safety belt warning light is
on, buckle and then unbuckle the
safety belt. After Step 4, the safety belt
warning light flashes for confirmation.
• This will switch the feature off for t

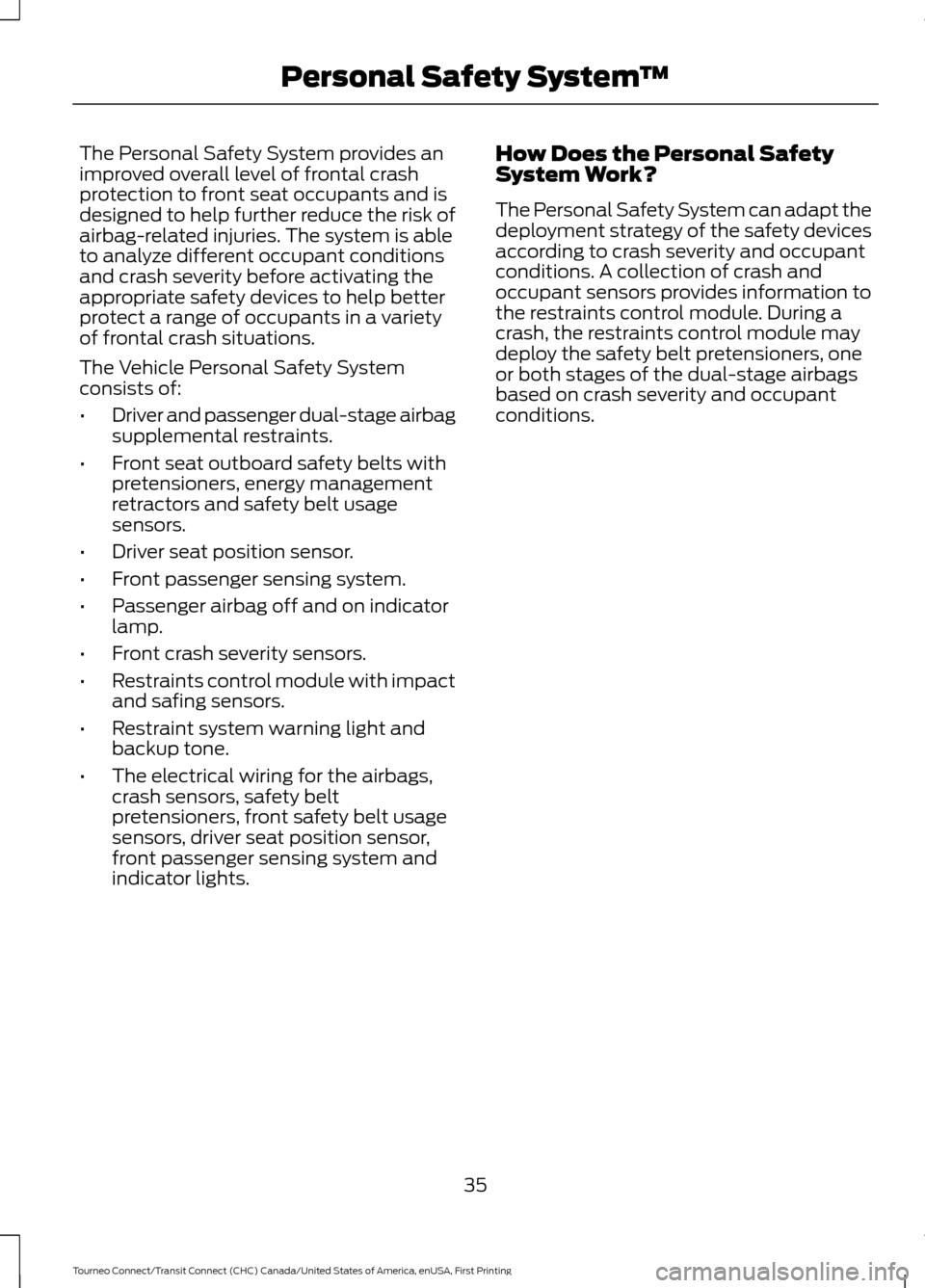

Page 38 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide The Personal Safety System provides an
improved overall level of frontal crash
protection to front seat occupants and is
designed to help further reduce the risk of
airbag-related injuries. The system

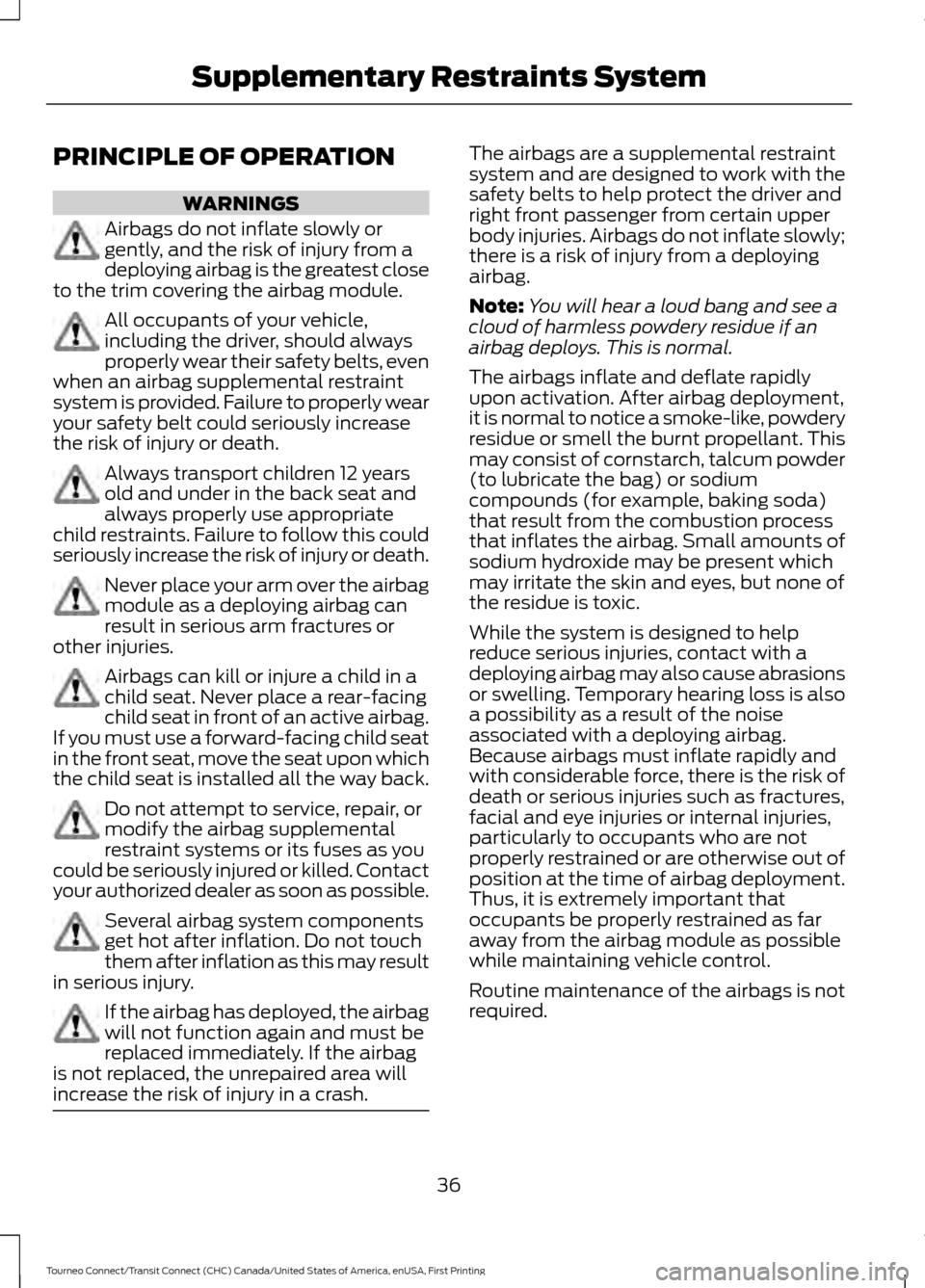

Page 39 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide PRINCIPLE OF OPERATION
WARNINGS
Airbags do not inflate slowly or
gently, and the risk of injury from a
deploying airbag is the greatest close
to the trim covering the airbag module. All occupants of y

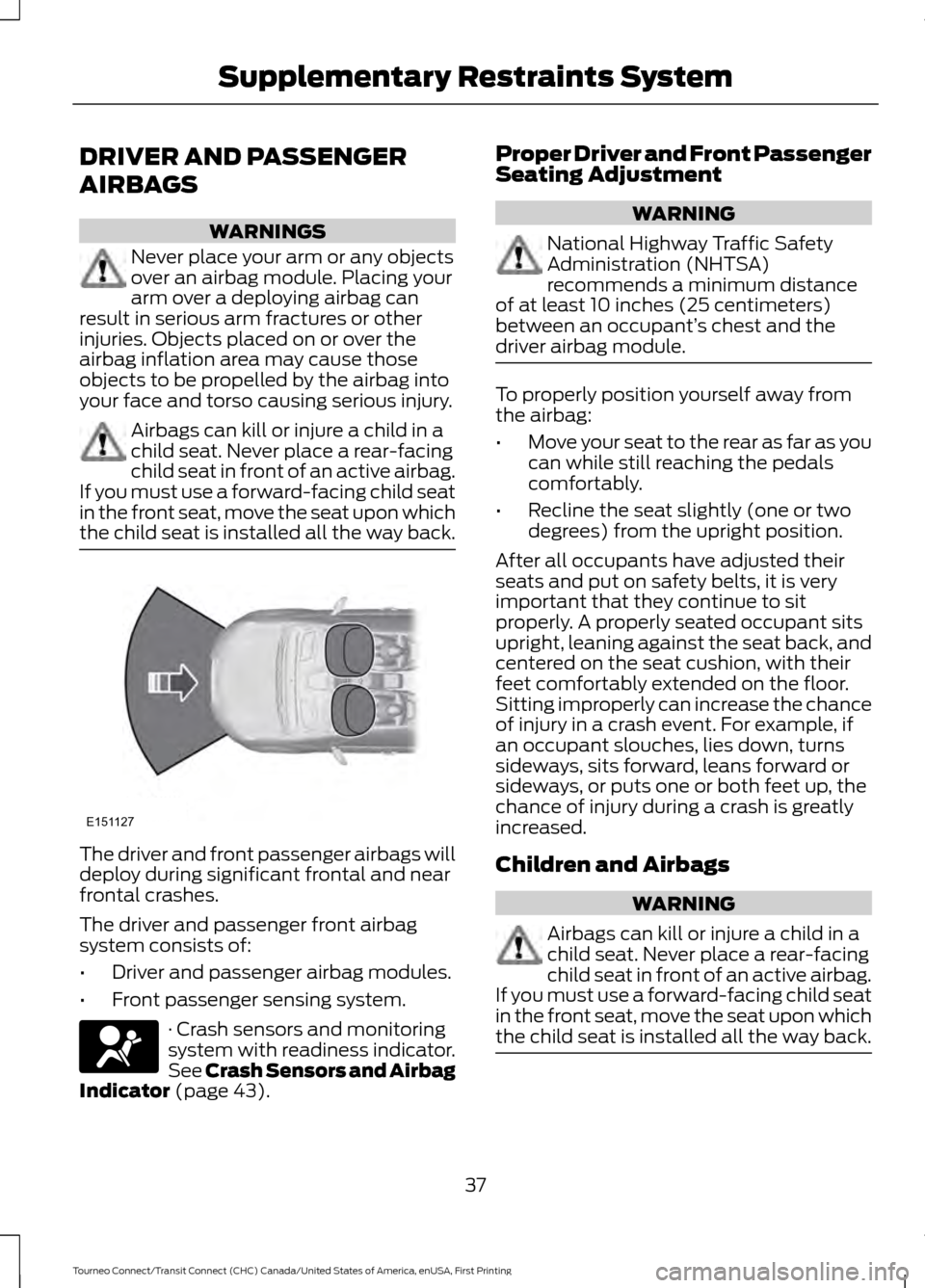

Page 40 of 439

FORD TRANSIT CONNECT 2016 2.G Owners Guide DRIVER AND PASSENGER
AIRBAGS
WARNINGS
Never place your arm or any objects
over an airbag module. Placing your
arm over a deploying airbag can
result in serious arm fractures or other
injuries. Objects
