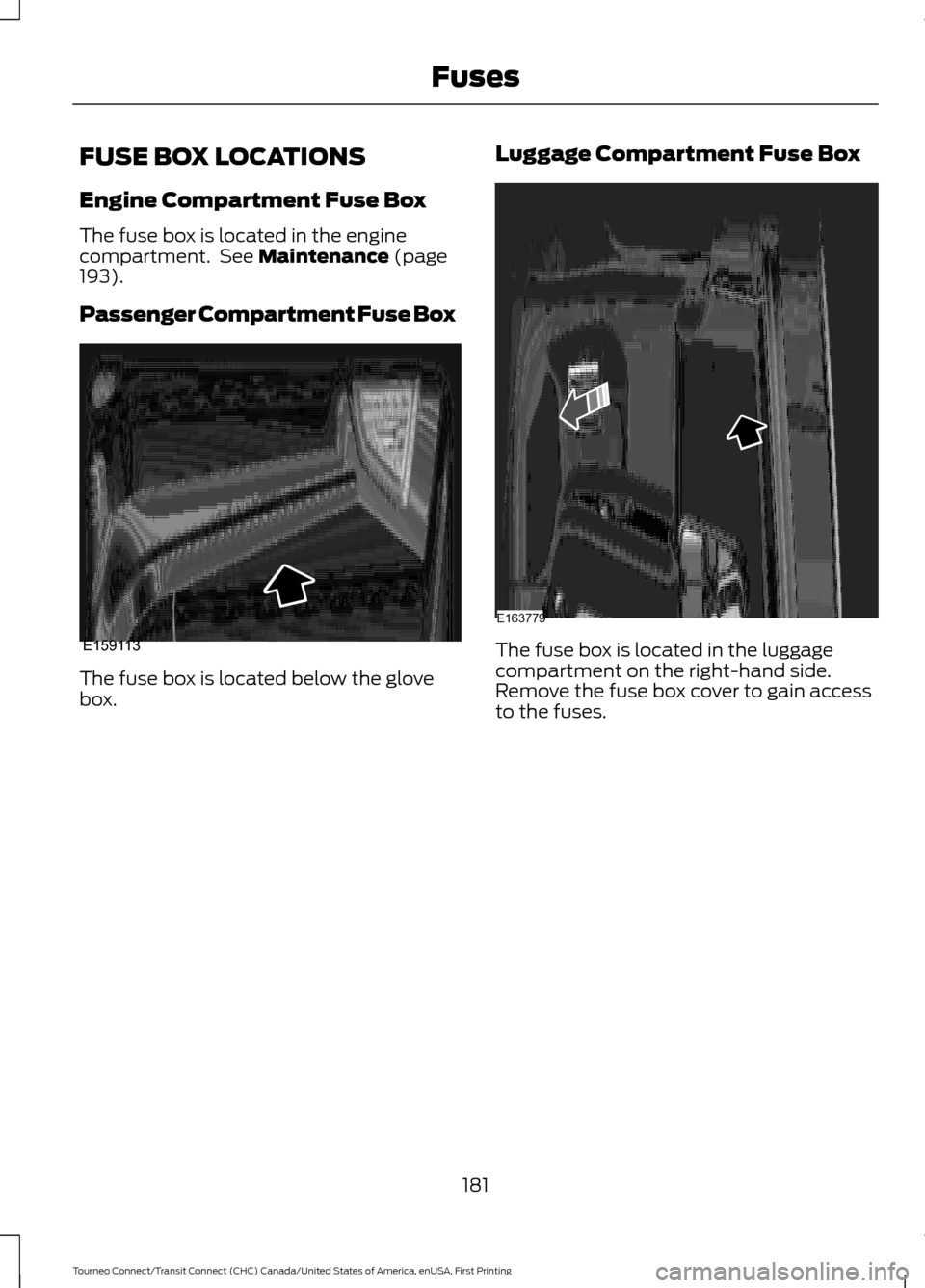

FUSE BOX LOCATIONS
Engine Compartment Fuse Box
The fuse box is located in the engine
compartment. See Maintenance (page
193).
Passenger Compartment Fuse Box The fuse box is located below the glove
box.
Luggage Compartment Fuse Box The fuse box is located in the luggage
compartment on the right-hand side.
Remove the fuse box cover to gain access
to the fuses.
181
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE159113 E163779

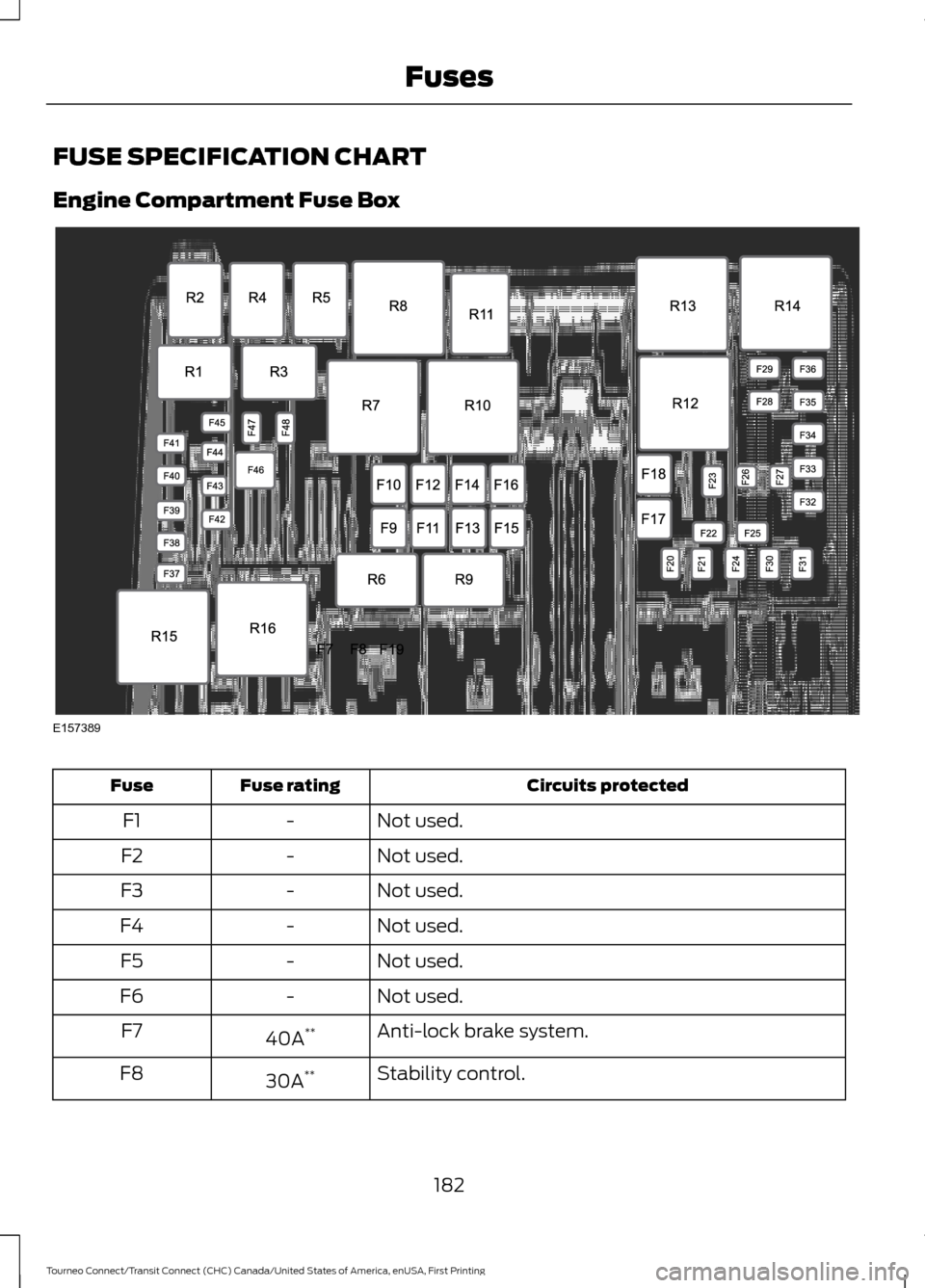

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
Circuits protected
Fuse rating
Fuse
Not used.
-
F1
Not used.
-
F2
Not used.
-
F3
Not used.
-
F4
Not used.
-
F5
Not used.
-
F6
Anti-lock brake system.
40A **
F7
Stability control.
30A **
F8
182
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE157389

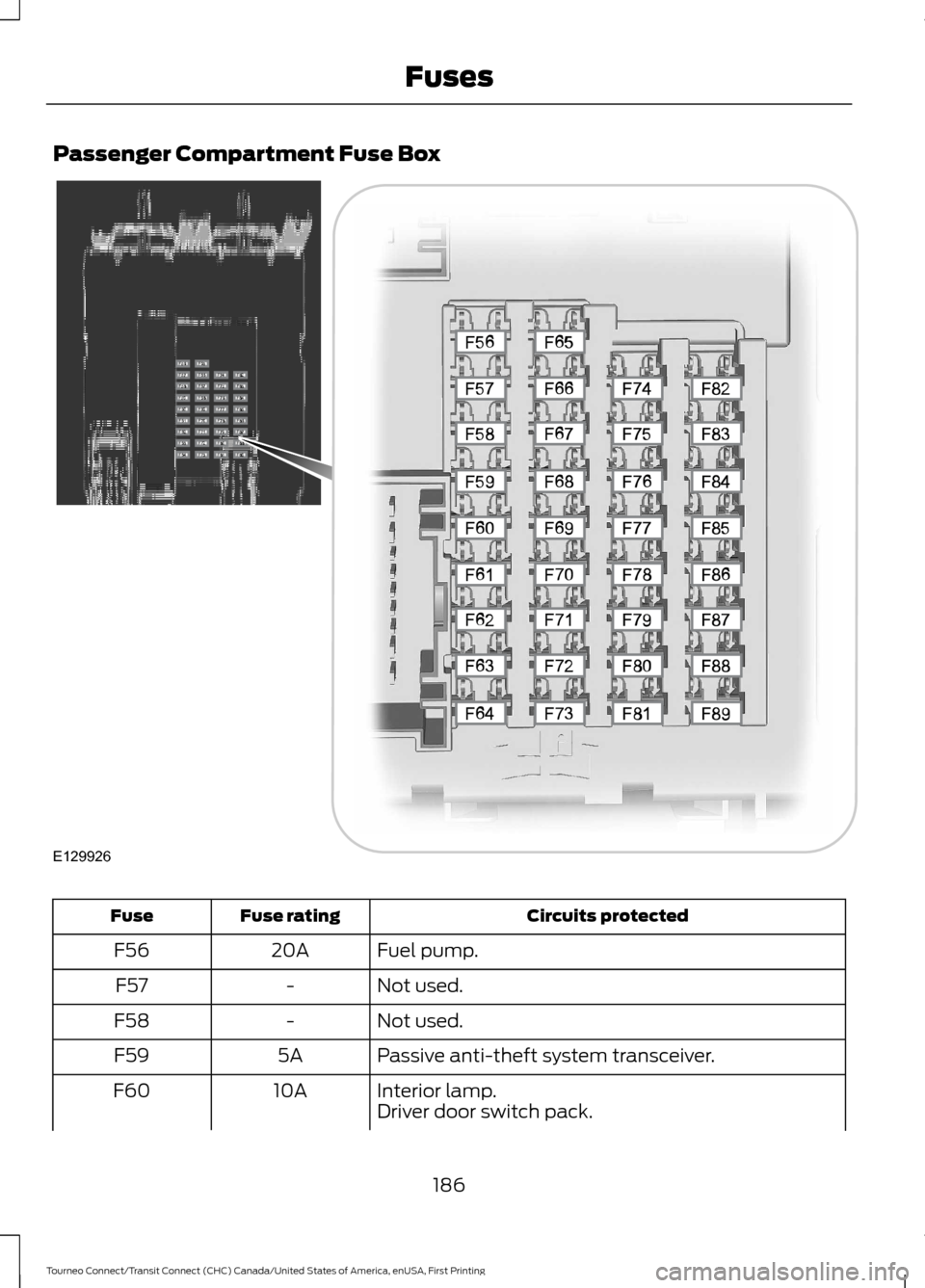

Passenger Compartment Fuse Box
Circuits protected
Fuse rating
Fuse
Fuel pump.
20A
F56
Not used.
-
F57
Not used.
-
F58
Passive anti-theft system transceiver.
5A
F59
Interior lamp.
10A
F60
Driver door switch pack.
186
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE129926

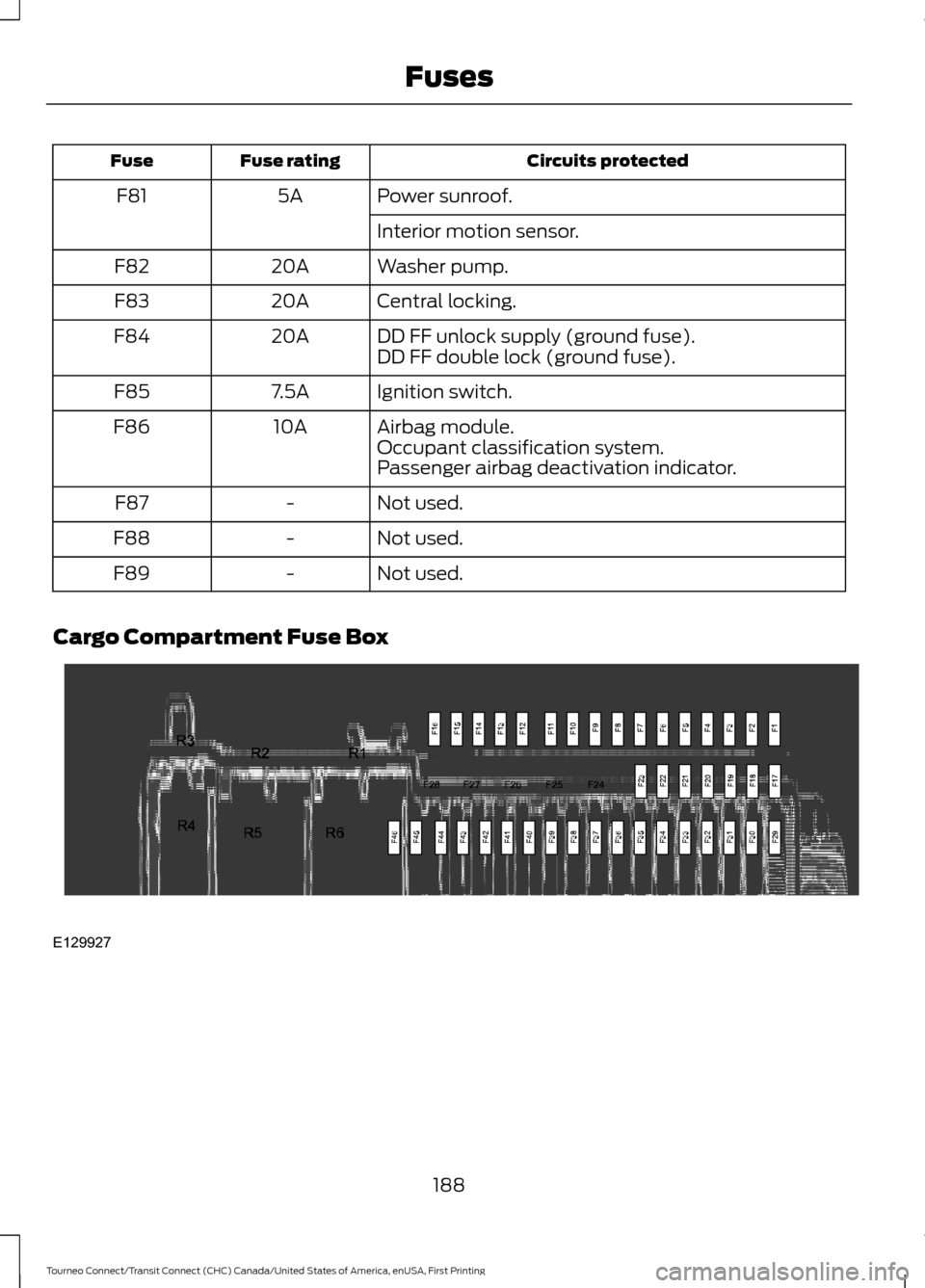

Circuits protected
Fuse rating
Fuse
Power sunroof.
5A
F81
Interior motion sensor.
Washer pump.
20A
F82
Central locking.
20A
F83
DD FF unlock supply (ground fuse).
20A
F84
DD FF double lock (ground fuse).
Ignition switch.
7.5A
F85
Airbag module.
10A
F86
Occupant classification system.
Passenger airbag deactivation indicator.
Not used.
-
F87
Not used.
-
F88
Not used.
-
F89
Cargo Compartment Fuse Box 188
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing FusesE129927

UNDER HOOD OVERVIEW - 1.6L
Engine coolant reservoir
*
: See Engine Coolant Check (page 198).
A
Engine oil filler cap *
:
See Engine Oil Check (page 197).
B
Engine oil dipstick *
:
See Engine Oil Check (page 197).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 200).
D
Battery:
See Changing the 12V Battery (page 201).
E
Engine compartment fuse box:
See Fuses (page 181).
F
Air cleaner:
See Changing the Engine Air Filter (page 212).
G
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 200).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
195
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceA
HG
DBCEF
E163400

UNDER HOOD OVERVIEW - 2.5L
Engine coolant reservoir
*
: See Engine Coolant Check (page 198).
A
Engine oil filler cap *
:
See Engine Oil Check (page 197).
B
Engine oil dipstick *
:
See Engine Oil Check (page 197).
C
Brake and clutch fluid reservoir *
:
See Brake Fluid Check (page 200).
D
Battery:
See Changing the 12V Battery (page 201).
E
Engine compartment fuse box:
See Fuses (page 181).
F
Air cleaner:
See Changing the Engine Air Filter (page 212).
G
Windshield and rear window washer fluid reservoir:
See Washer Fluid Check
(page 200).
H
* The filler caps and the engine oil dipstick are colored for easy identification.
196
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing MaintenanceBCA
HG
DEF
E166456
