Airbag
Action
Message Indic-
ator
Message
Have your vehicle checked as soon as
possible.
Amber
Airbag fault Service now
Alarm Action
Message Indic-
ator
Message
Displays when the alarm has been triggered
due to unauthorized entry. See Passive
Anti-Theft System (page 58).
Amber
Alarm activated Check
Vehicle
Have your vehicle checked as soon as
possible.
-
Alarm fault Service
required
Battery and Charging System Action
Message Indic-
ator
Message
Stop your vehicle as soon as it is safe to do
so and switch the engine off. Have your
vehicle checked as soon as possible.
Red
Electrical system over-
voltage Stop safely
Displays to warn of a low battery condition.
Turn off all unnecessary electrical
accessories. Have your vehicle checked as
soon as possible.
Amber
Battery low See manual
88
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Information Displays

Blind Spot Information and Cross Traffic Alert System
Action
Message Indic-
ator
Message
Displays when the blind spot information
system and cross traffic alert system
sensors are blocked. See Blind Spot
Information System (page 146).
Amber
Blindspot Low visibility
See manual
Displays when a fault with the system has
occurred. Have your vehicle checked as
soon as possible.
Amber
BLIS: right sensor fault
Service required
BLIS: left sensor fault Service required
Displays when the system is not available
due to trailer use. See
Blind Spot
Information System (page 146).
Amber
BLIS not available Trailer
attached
Displays when the system detects a vehicle.
See
Blind Spot Information System
(page 146).
Amber
Cross Traffic Vehicle
coming from right
Cross Traffic Vehicle coming from left
Displays when the blind spot information
system and cross traffic alert system
sensors are blocked. See
Blind Spot
Information System (page 146).
Amber
Cross Traffic Sensor
blocked See manual
Displays when the system requires service
due to a malfunction. Have your vehicle
checked as soon as possible.
Amber
Cross Traffic fault
Service required
Displays when the system is not available
due to trailer use. See
Blind Spot
Information System (page 146).
-
Cross traffic disabled
Trailer attached
89
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Information Displays

Doors Open
Action
Message Indic-
ator
Message
Vehicle MovingStop your vehicle as soon as it is safe to do
so, shift into park (P), apply the parking
brake and close the door.
Red
Driver door ajar
Stop your vehicle as soon as it is safe to do
so, shift into park (P), apply the parking
brake and close the door.
Red
Driver side rear door ajar
Stop your vehicle as soon as it is safe to do
so, shift into park (P), apply the parking
brake and close the door.
Red
Passenger door ajar
Stop your vehicle as soon as it is safe to do
so, shift into park (P), apply the parking
brake and close the door.
Red
Passenger side rear door
ajar
Stop your vehicle as soon as it is safe to do
so, shift into park (P), apply the parking
brake and close the hood.
Red
Hood open
Stop your vehicle as soon as it is safe to do
so, shift into park (P), apply the parking
brake and close the door.
Red
Rear load compartment
door ajar
Stop your vehicle as soon as it is safe to do
so, shift into park (P), apply the parking
brake and close the door.
Red
Emergency rear door ajar
Vehicle not MovingShift into park (P), apply the parking brake
and close the door.
-
Driver door ajar
Shift into park (P), apply the parking brake
and close the door.
-
Driver side rear door ajar
Shift into park (P), apply the parking brake
and close the door.
-
Passenger door ajar
Shift into park (P), apply the parking brake
and close the door.
-
Passenger side rear door
ajar
90
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Information Displays

Action
Message Indic-
ator
Message
Shift into park (P), apply the parking brake
and close the hood.
-
Hood open
Shift into park (P), apply the parking brake
and close the door.
-
Rear load compartment
door ajar
Shift into park (P), apply the parking brake
and close the door.
-
Emergency rear door ajar
Engine Action
Message Indic-
ator
Message
Have your vehicle checked as soon as
possible.
Amber
Engine fault Service now
Displays when the engine temperature is
too high. Stop your vehicle as soon as it is
safe to do so, switch the engine off and
allow it to cool. If the problem persists, have
your vehicle checked as soon as possible.
See Engine Coolant Check (page 202).
Red
High engine temperature
Stop safely
Hill Start Assist Action
Message Indic-
ator
Message
Displays when hill start assist is not avail-
able. Have your vehicle checked as soon
as possible.
Amber
Hill start assist not avail-
able
See
Hill Start Assist (page 135).
Lighting Action
Message Indic-
ator
Message
Displays if a brake lamp bulb fails.
-
Brake lamp Bulb fault
91
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Information Displays

Action
Message Indic-
ator
Message
See Changing a Bulb (page 212).
Displays if a trailer brake lamp bulb fails.
-
Trailer brake lamp Bulb
fault
Displays if a low beam bulb fails.
-
Low beam Bulb fault
See
Changing a Bulb (page 212).
Displays if an electrical malfunction occurs
with the headlamp system. Have your
vehicle checked as soon as possible.
Amber
Headlamp fault Service
required
Maintenance Action
Message Indic-
ator
Message
Displays when the engine oil life is depleted
and requires a change. See
Engine Oil
Check (page 200).
-
Oil change required
Indicates the brake fluid level is low and the
brake system should be inspected immedi-
ately. See Brake Fluid Check (page 206).
Have your vehicle checked immediately.
Red
Brake fluid level low
Service now
Displays when the washer fluid is low and
needs to be refilled. See
Washer Fluid
Check (page 206).
-
Washer fluid level low
Parking Aid Action
Message Indic-
ator
Message
The system has detected a fault that
requires service. Have your vehicle checked
as soon as possible.
Amber
Parking aid fault Service
required
92
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Information Displays

Parking Brake
Action
Message Indic-
ator
Message
Displays when the parking brake is set, the
engine is running and your vehicle speed is
above 3 mph (5 km/h). If the warning stays
on after the parking brake is released, have
your vehicle checked as soon as possible.
Red
Park brake applied
Starting System Action
Message Indic-
ator
Message
Displays when you start your vehicle as a
reminder to fully press the brake pedal.
-
Press brake to start
See
Starting and Stopping the Engine
(page 116).
Displays when your vehicle fails to start.
-
Cranking time exceeded
See
Starting and Stopping the Engine
(page 116).
93
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Information Displays

Tire Pressure Monitoring System
Action
Message Indic-
ator
Message
Displays when one or more tires on your
vehicle have low tire pressure. See Tire
Pressure Monitoring System (page 244).
-
Low Tire Pressure
Displays when the tire pressure monitoring
system is malfunctioning. If the warning
stays on or continues to come on, have your
vehicle checked as soon as possible. See
Tire Pressure Monitoring System (page
244
).
-
Tire Pressure Monitor
Fault
Displays when a tire pressure sensor is
malfunctioning, or your spare tire is in use.
Refer to the relevant chapter for informa-
tion on how the system operates under
these conditions. See
Tire Pressure
Monitoring System (page 244). If the
warning stays on or continues to come on,
have your vehicle checked as soon as
possible.
-
Tire Pressure Sensor
Fault
Traction Control Action
Message Indic-
ator
Message
Displays when you switch the system off.
-
Traction control off
See
Using Traction Control (page 137).
94
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Information Displays

Transmission
Action
Message Indic-
ator
Message
Have your vehicle checked as soon as
possible.
Red
Transmission Malfunc-
tion Service Now
The transmission is overheating and needs
to cool. Stop your vehicle as soon as it is
safe to do so, switch the engine off and
allow the transmission to cool.
Amber
Transmission Over
Temperature Stop Safely
The transmission is overheating and needs
to cool. Stop your vehicle as soon as it is
safe to do so, switch the engine off and
allow the transmission to cool.
Amber
Transmission Over-
heating Stop Safely
Have your vehicle checked as soon as
possible.
Amber
Transmission Service
Required
The transmission is overheating and needs
to cool. Stop your vehicle as soon as it is
safe to do so, switch the engine off and
allow the transmission to cool.
Red
Transmission Too Hot
Press Brake
The transmission has limited functionality.
Have your vehicle checked as soon as
possible.
Amber
Transmission Limited
Function See Manual
At low outside temperatures, after starting
the engine, it may take the transmission
several seconds to engage reverse or drive.
Keep the brake pedal fully depressed until
these messages disappear from the display.
-
Transmission Warming
Up Please Wait
Displays as a reminder to shift into park (P).
Red
Transmission Not in Park
95
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Information Displays

PRINCIPLE OF OPERATION
Outside Air
Keep the air intakes in front of the
windshield free from obstruction (such as
snow or leaves) to allow the climate
control system to function effectively.
Recirculated Air
The air currently in the passenger
compartment recirculates. Outside air does
not enter your vehicle.
Note:
Prolonged use of recirculated air may
cause the windows to fog up.
Heating
Heating performance depends on the
temperature of the coolant.
General Information on Controlling
the Interior Climate
Close the windows. Warming the Interior
Direct the air toward your feet. In cold or
humid weather conditions, direct some of
the air toward the windshield and the door
windows.
Cooling the Interior
Direct the air toward your face.
Air Conditioning
The system directs condensation to the
outside of your vehicle, which could cause
a small pool of water to form under your
vehicle. This is normal.
Note:
The air conditioning operates only
when the temperature is above 39°F (4°C).
Note: When you use air conditioning, your
vehicle uses more fuel.
MANUAL CLIMATE CONTROL 96
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Climate ControlE211736

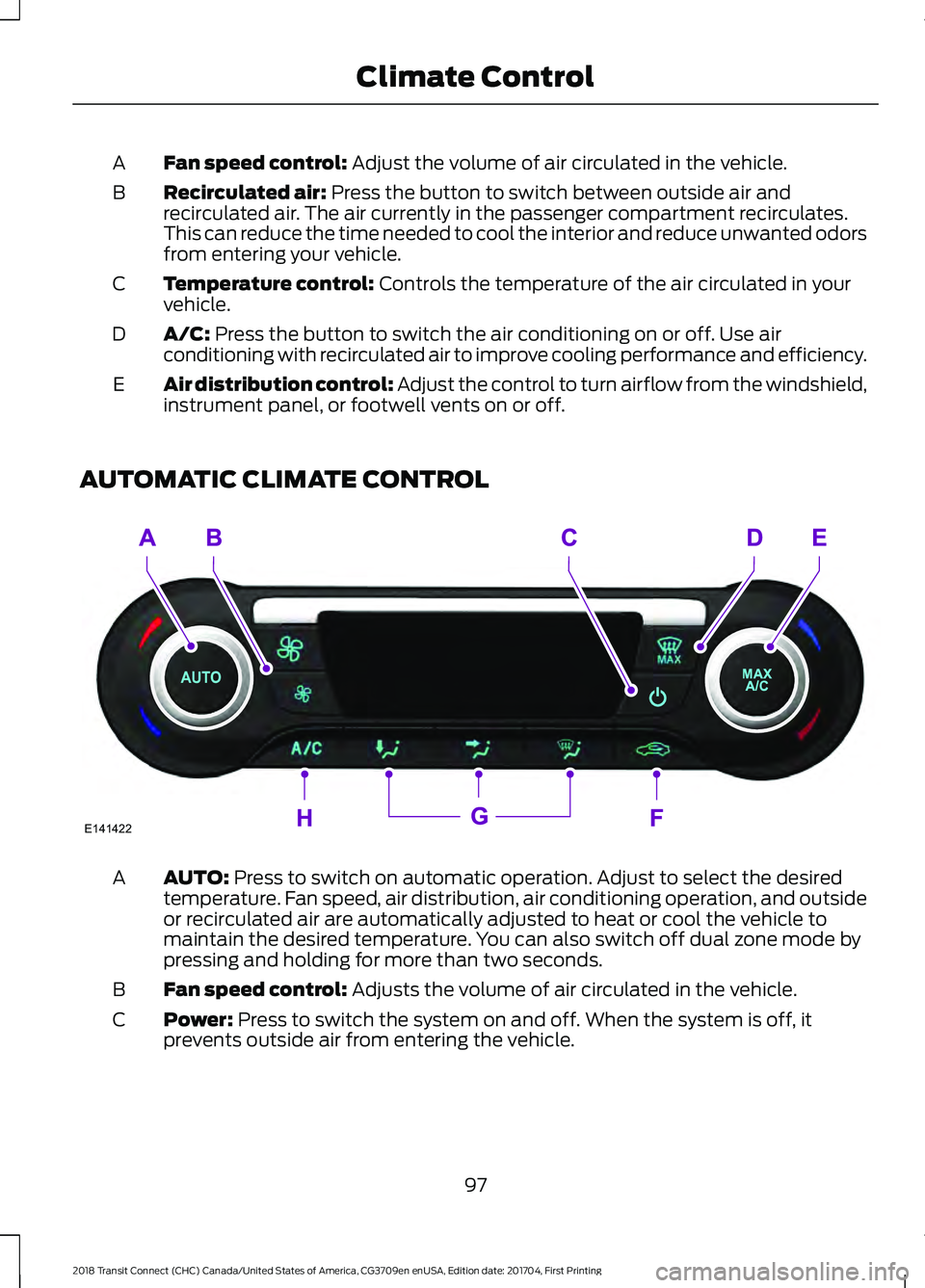

Fan speed control: Adjust the volume of air circulated in the vehicle.
A
Recirculated air:
Press the button to switch between outside air and
recirculated air. The air currently in the passenger compartment recirculates.
This can reduce the time needed to cool the interior and reduce unwanted odors
from entering your vehicle.
B
Temperature control:
Controls the temperature of the air circulated in your
vehicle.
C
A/C:
Press the button to switch the air conditioning on or off. Use air
conditioning with recirculated air to improve cooling performance and efficiency.
D
Air distribution control: Adjust the control to turn airflow from the windshield,
instrument panel, or footwell vents on or off.
E
AUTOMATIC CLIMATE CONTROL AUTO:
Press to switch on automatic operation. Adjust to select the desired
temperature. Fan speed, air distribution, air conditioning operation, and outside
or recirculated air are automatically adjusted to heat or cool the vehicle to
maintain the desired temperature. You can also switch off dual zone mode by
pressing and holding for more than two seconds.
A
Fan speed control:
Adjusts the volume of air circulated in the vehicle.
B
Power:
Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.
C
97
2018 Transit Connect (CHC) Canada/United States of America, CG3709en enUSA, Edition date: 201704, First Printing Climate ControlE141422
