When inflating the tire for
mounting pressures up to 20 psi
(1.38 bar) greater than the
maximum pressure on the tire
sidewall, the following
precautions must be taken to
protect the person mounting the
tire:
1. Make sure that you have the
correct tire and wheel size.
2. Lubricate the tire bead and
wheel bead seat area again.
3. Stand at a minimum of 12 ft
(3.66 m) away from the wheel
and tire assembly.
4. Use both eye and ear
protection.
For a mounting pressure more
than 20 psi (1.38 bar) greater than
the maximum pressure, a Ford
dealer or other tire service
professional should do the
mounting.
Always inflate steel carcass tires
with a remote air fill with the
person inflating standing at a
minimum of 12 ft (3.66 m) away
from the wheel and tire assembly.
Important: Remember to replace
the wheel valve stems when the
road tires are replaced on your
vehicle.
It is recommended that the two
front tires or two rear tires
generally be replaced as a pair.
The tire pressure sensors mounted
in the wheels (originally installed
on your vehicle) are not designed
to be used in aftermarket wheels.
The use of wheels or tires not
recommended by Ford Motor
Company may affect the
operation of your tire pressure
monitoring system.
If the tire pressure monitoring
system indicator is flashing, your
tire pressure monitoring system is
malfunctioning. Your replacement
tire might be incompatible with
your TPMS, or some component
of the TPMS may be damaged.
Safety Practices
WARNING: If your vehicle is
stuck in snow, mud, sand, etc., do
not rapidly spin the tires. Spinning
the tires can tear the tire and
cause an explosion. A tire can
explode in as little as three to five
seconds. WARNING:
Do not spin the
wheels at over 35 mph (56 km/h).
The tires may fail and injure a
passenger or bystander.
Driving habits have a great deal
to do with your tire mileage and
safety.
*Observe posted speed limits.
*Avoid fast starts, stops and turns.
*Avoid potholes and objects on
the road.
*Do not run over curbs or hit the
tire against a curb when parking.
313
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing Wheels and Tires

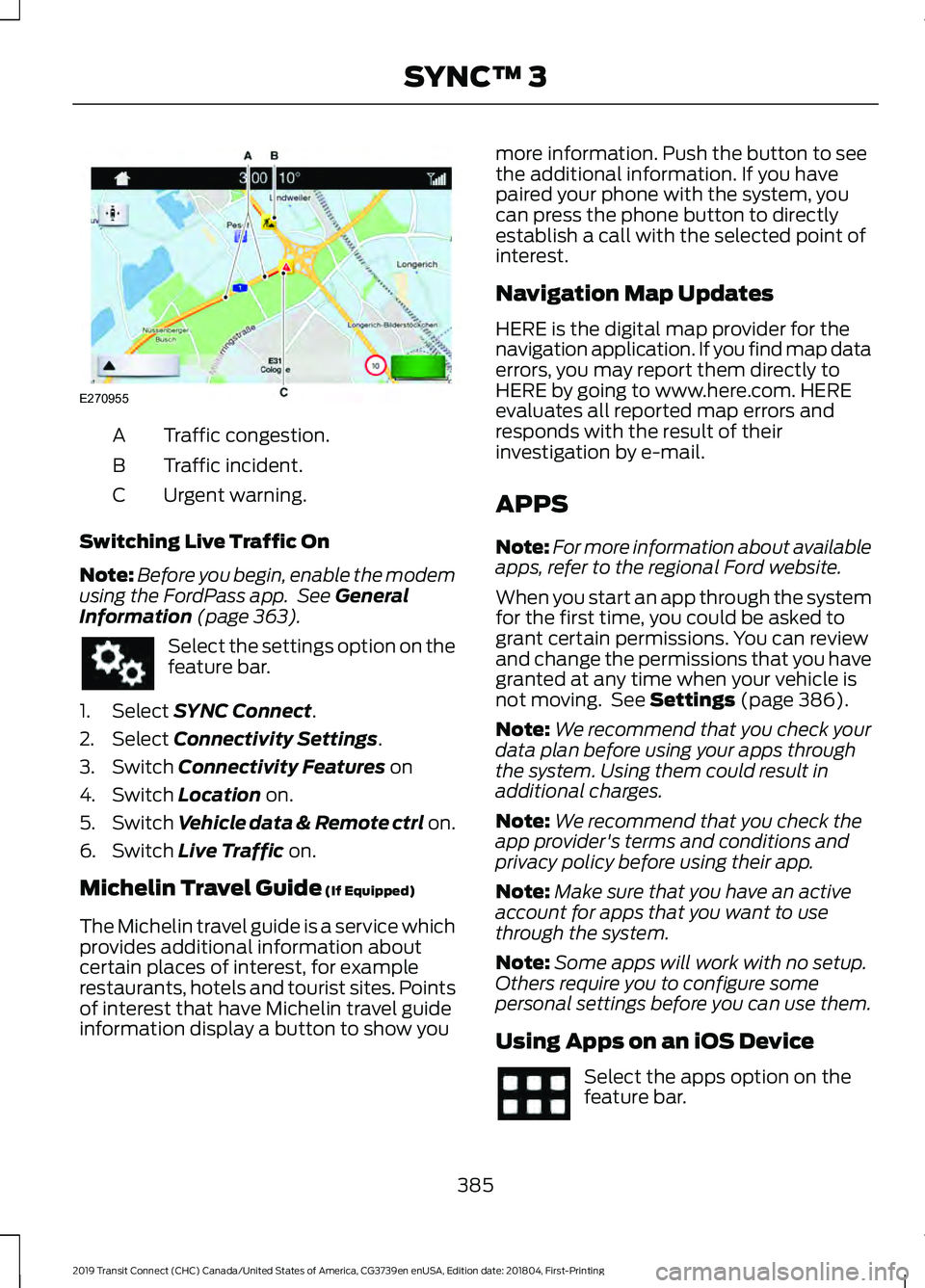

Traffic congestion.
A
Traffic incident.
B
Urgent warning.
C
Switching Live Traffic On
Note: Before you begin, enable the modem
using the FordPass app. See General
Information (page 363). Select the settings option on the
feature bar.
1. Select
SYNC Connect.
2. Select
Connectivity Settings.
3. Switch
Connectivity Features on
4. Switch
Location on.
5. Switch
Vehicle data & Remote ctrl on.
6. Switch
Live Traffic on.
Michelin Travel Guide
(If Equipped)
The Michelin travel guide is a service which
provides additional information about
certain places of interest, for example
restaurants, hotels and tourist sites. Points
of interest that have Michelin travel guide
information display a button to show you more information. Push the button to see
the additional information. If you have
paired your phone with the system, you
can press the phone button to directly
establish a call with the selected point of
interest.
Navigation Map Updates
HERE is the digital map provider for the
navigation application. If you find map data
errors, you may report them directly to
HERE by going to www.here.com. HERE
evaluates all reported map errors and
responds with the result of their
investigation by e-mail.
APPS
Note:
For more information about available
apps, refer to the regional Ford website.
When you start an app through the system
for the first time, you could be asked to
grant certain permissions. You can review
and change the permissions that you have
granted at any time when your vehicle is
not moving. See
Settings (page 386).
Note: We recommend that you check your
data plan before using your apps through
the system. Using them could result in
additional charges.
Note: We recommend that you check the
app provider's terms and conditions and
privacy policy before using their app.
Note: Make sure that you have an active
account for apps that you want to use
through the system.
Note: Some apps will work with no setup.
Others require you to configure some
personal settings before you can use them.
Using Apps on an iOS Device Select the apps option on the
feature bar.
385
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing SYNC™ 3E270955

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit the
online store web site:
Web Address (United States)
www.Accessories.Ford.com Web Address (Canada)
www.Accessories.Ford.ca
Ford Accessories are available for your
vehicle through an authorized Ford dealer.
Ford Motor Company will repair or replace
any properly authorized dealer-installed
Ford Original Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period,
as well as any component damaged by the
defective accessories.
Ford Motor Company warrants your
accessory through the warranty that
provides the greatest benefit:
• 24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Exterior Style
• Hood deflector*.
• Hitch and towing accessories.
• Keyless entry.
• Side window deflectors.
• Splash guards.
• Window grilles.
Interior Style
• All-weather floor mats.
• Cargo area protectors. •
Cargo organizers.
• Carpeted floor mats.
• Interior light kit.
Lifestyle
• Ash cup and smokers packages.
• Roof racks and carriers*.
• Telematics*.
• In-vehicle safe*.
• Bluetooth speakers*.
• Rear seat entertainment*.
Peace of Mind
• Back-up alarm*.
• Bumper-mounted parking sensor*.
• Remote start.
• Roadside assistance kit*.
• Vehicle security systems.
*Ford Licensed Accessory. The accessory
manufacturer designs, develops and
therefore warrants Ford Licensed
Accessories, and does not design or test
these accessories to Ford Motor Company
engineering requirements. Contact an
authorized Ford dealer for the
manufacturer's limited warranty details,
and request a copy of the Ford Licensed
Accessories product limited warranty from
the accessory manufacturer.
412
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing Accessories

Information Displays.....................................92
General Information............................................ 92
Information Messages.................................94
Active Park Assist................................................. 95
Adaptive Cruise Control.................................... 95
Alarm........................................................................\
95
Automatic High Beam Control....................... 96
Auto-Start-Stop................................................... 96
Blind Spot Information and Cross Traffic Alert Systems.................................................... 97
Brake System......................................................... 97
Doors and Locks................................................... 98
Driver Alert.............................................................. 98
Engine...................................................................... 98
Fuel System........................................................... 99
Headlamps............................................................. 99
Hill Start Assist..................................................... 99
Lane Keeping System........................................ 99
Maintenance........................................................ 100
MyKey...................................................................... 101
Parking Aid............................................................. 101
Parking Brake....................................................... 102
Pre-Collision Assist............................................ 102
Rear Window Lock............................................. 102
Remote Control................................................... 102
Selective Catalytic Reductant System............................................................... 103
Stability Control.................................................. 105
Starting System.................................................. 105
Steering System................................................. 105
Tire Pressure Monitoring System.................106
Transmission ........................................................ 106
Wireless Accessory Charging......................... 107
Installing Child Restraints............................19 Child Restraints...................................................... 19
Using Lap and Shoulder Belts......................... 20
Using Lower Anchors and Tethers for Children (LATCH)............................................ 22
Using Tether Straps............................................. 24
Instrument Cluster.........................................87
Instrument Lighting Dimmer......................79
Instrument Panel Overview.........................17
Interior Lamps.................................................82 Courtesy Lamp...................................................... 82
Reading Lamps..................................................... 82
Interior Mirror - Vehicles With: Auto-Dimming Interior Mirror
.................85 Interior Mirror - Vehicles Without:
Auto-Dimming Interior Mirror
.................85
Introduction.........................................................7
J
Jump Starting the Vehicle........................243 Connecting the Jumper Cables.................... 243
Jump Starting...................................................... 244
Preparing Your Vehicle..................................... 243
Removing the Jumper Cables....................... 244
K
Keyless Entry
....................................................67
Disabled Keys........................................................ 68
General Information............................................ 67
Locking and Unlocking the Doors with the Key Blade........................................................... 68
Locking Your Vehicle........................................... 67
Passive Key............................................................. 67
Unlocking Your Vehicle...................................... 68
Keys and Remote Controls..........................51
L
Lane Keeping System
................................205
Lane Keeping System Display...................... 208
Lane Keeping System Messages.................209
Lane Keeping System Settings.................... 206
Lane Keeping System Warning Lamps and Indicators......................................................... 208
Switching Lane Keeping System On or Off...................................................................... 206
Liftgate...............................................................69
Lighting Control
..............................................78
Headlamp Flasher................................................ 79
High Beams............................................................ 78
Parking Lamps....................................................... 78
Lighting...............................................................78 General Information............................................ 78
Load Carriers See: Roof Racks and Load Carriers.............224
Load Carrying
.................................................221
Load Limit.......................................................225
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................ 229
481
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing Index

Vehicle Loading - with and without a
Trailer................................................................. 225
Locking and Unlocking.................................63 Autolock.................................................................. 65
Autounlock............................................................. 65
Emergency Locking with the Key................... 65
Locking and Unlocking the Doors From Inside.................................................................... 63
Locking and Unlocking the Doors with the Key Blade........................................................... 64
Opening the Double Rear Doors..................... 63
Opening the Double Rear Doors From Inside................................................................... 66
Remote Control.................................................... 63
Smart Unlocks for Integrated Keyhead Transmitter........................................................ 64
Unlocking the Doors with the Interior Door Handles............................................................... 64
Luggage Anchor Points...............................221
Lug Nuts See: Changing a Road Wheel....................... 320
Lug Nuts..........................................................325
M
Maintenance..................................................261 General Information.......................................... 261
Manual Climate Control............................108
Directing Air to the Footwell Air
Vents.................................................................. 109
Directing Air to the Instrument Panel Air Vents.................................................................. 109
Directing Air to the Windshield Air Vents.................................................................. 109
Setting the Blower Motor Speed.................. 108
Setting the Temperature................................. 109
Switching Maximum Cooling On and Off....................................................................... 108
Switching Maximum Defrost On and Off....................................................................... 108
Switching the Air Conditioning On and Off....................................................................... 108
Switching the Climate Control On and Off....................................................................... 108
Switching the Recirculated Air On and Off....................................................................... 108
Manual Liftgate
..............................................69
Closing the Liftgate............................................. 69Opening the Liftgate...........................................
69
Unlocking the Liftgate........................................ 69
Manual Seats
...................................................117
Adjusting the Lumbar Support....................... 118
Adjusting the Seat Backrest............................ 118
Adjusting the Seat Height................................ 118
Moving the Seat Backward and Forward............................................................... 117
Single Passenger Seat....................................... 118
Message Center See: Information Displays................................. 92
Mirrors See: Windows and Mirrors................................ 83
Mobile Communications Equipment.......15
Motorcraft Parts - 1.5L Duratorq-TDCi Diesel............................................................330
Motorcraft Parts - 2.0L Duratec-HE (MI4)/2.0L Flex Fuel.................................331
Motorcraft Parts - 2.5L...............................332
MyKey Settings...............................................56 Configurable Settings......................................... 56
Non-Configurable Settings.............................. 56
MyKey Troubleshooting - Vehicles With: Push Button Start........................................61
What is an admin key?........................................ 61
Why can I not clear the MyKeys?.................... 61
Why can I not create a MyKey?....................... 61
Why can I not program a MyKey?................... 61
Why can I not start the engine with a MyKey?................................................................ 62
Why does the MyKey distance not accumulate?..................................................... 62
MyKey Troubleshooting - Vehicles Without: Push Button Start.....................61
What is an admin key?........................................ 61
Why can I not clear the MyKeys?.................... 61
Why can I not create a MyKey?....................... 61
Why can I not program a MyKey?................... 61
Why does the MyKey distance not accumulate?...................................................... 61
MyKey ™
.............................................................56
Principle of Operation........................................ 56
N
Navigation.......................................................381 Changing the Format of the Map................382
Live Traffic............................................................ 384
482
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing Index

Michelin Travel Guide.......................................
385
Navigation Map Updates................................ 385
Route Guidance................................................. 383
Setting a Destination........................................ 381
Zoom...................................................................... 382
Normal Scheduled Maintenance...........419 Intelligent Oil-Life Monitor™......................... 419
Maintenance Intervals..................................... 420
O
Oil Change Indicator Reset.......................267
Resetting the Oil Life Monitoring
System.............................................................. 267
Oil Check See: Engine Oil Check...................................... 266
Opening and Closing the Hood...............261 Closing the Hood............................................... 262
Opening the Hood.............................................. 261
Ordering Additional Owner's Literature......................................................252
Obtaining a French Owner ’s Manual..........252
Overhead Console........................................133 Rear Door Storage Compartment................133
P
Parking Aids
....................................................179
Principle of Operation....................................... 179
Parking Brake
..................................................174
Passive Anti-Theft System.........................70 Programming a Passive Key.............................. 71
Programming a Remote Flip Key................... 70
SecuriLock®........................................................... 70
Passive Key Backup Position.....................55
PATS See: Passive Anti-Theft System..................... 70
Perchlorate........................................................13
Personalized Settings..................................94 Measure Units....................................................... 94
Switching Chimes Off........................................ 94
Personal Safety System ™
..........................39
How Does the Personal Safety System
Work?.................................................................. 39
Phone...............................................................379 Android Auto........................................................ 381
Apple CarPlay..................................................... 380Pairing Your Cell Phone for the First
Time................................................................... 379
Text Messaging.................................................. 380
Using Your Cell Phone..................................... 380
Playing Media From a USB Device - Vehicles Without: SYNC 3......................361
Selecting the USB Device................................ 361
Supported Audio File Formats...................... 361
Post-Crash Alert System..........................245
Power Door Locks See: Locking and Unlocking............................. 63
Power Seats....................................................119
Power Windows - Vehicles With: One-Touch Open Driver Window.........84
One-Touch Open................................................. 84
Power Windows - Vehicles With: Rear Power Windows ..........................................83
Bounce-Back......................................................... 83
One-Touch Close................................................. 83
One-Touch Open................................................. 83
Rear Window Lock............................................... 83
Pre-Collision Assist
......................................215
Distance Alert....................................................... 217
Distance Indication............................................. 217
Pre-Collision Assist Information Messages.......................................................... 219
Pre-Collision Assist System Sensors..........218
Pre-Collision Assist Warning Lamp.............219
Programming a MyKey
.................................58
Protecting the Environment........................16
Puncture See: Changing a Road Wheel....................... 320
Push Button Ignition Switch.....................135 Failure to Start - Vehicles with Manual
Transmission................................................... 135
Fast Restart.......................................................... 136
Key Outside Vehicle Audible Warning.........137
Starting System Information Messages........................................................... 137
Starting The Engine - Vehicles with Automatic Transmission............................. 135
Starting The Engine - Vehicles with Manual Transmission................................................... 135
Stopping the Engine When Your Vehicle is Moving - Vehicles with Automatic
Transmission................................................... 136
483
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing Index

Stopping the Engine When Your Vehicle is
Moving - Vehicles with Manual
Transmission................................................... 136
Stopping the Engine When Your Vehicle is Stationary - Vehicles with Automatic
Transmission................................................... 136
Stopping the Engine When Your Vehicle is Stationary - Vehicles with Manual
Transmission................................................... 136
Switching the Ignition On to Accessory Mode................................................................... 135
Vehicles with a Diesel Engine......................... 135
R
Rear Parking Aid............................................179 Object Distance Indicator............................... 180
Rear Parking Aid Information Messages........................................................... 181
Rear Passenger Climate Controls............112 Adjusting the Blower Motor Speed...............113
Directing Air to the Footwell Air Vents.........113
Directing Air to the Overhead Air
Vents.................................................................... 113
Directing Air to the Overhead Air Vents and the Footwell Air Vents................................... 113
Switching the Rear Passenger Climate Controls On and Off....................................... 112
Rear Seats - Long Wheelbase, Vehicles With: 60/40 Split Second Row
Seating...........................................................127
Second Row Seats.............................................. 127
Third Row Seats.................................................. 128
Rear Seats - Long Wheelbase, Vehicles With: Second Row Dual Captain
Chairs.............................................................124
Second Row Seats............................................. 124
Third Row Seats.................................................. 125
Rear Seats - Short Wheelbase................120
Second Row Seats............................................. 120
Third Row Seats.................................................. 122
Rear Under Floor Storage..........................221 Adjustable Load Floor....................................... 221
Passenger Compartment Floor..................... 221
Rear View Camera........................................192 Switching the Rear View Camera Off.........194
Switching the Rear View Camera On..........193
Using the Display................................................ 193Vehicles With Parking Aid...............................
194
Rear View Camera See: Rear View Camera.................................... 192
Rear Window Wiper and Washers............77 Rear Window Washer.......................................... 77
Rear Window Wiper............................................. 77
Rear Wiper Blades See: Changing the Rear Wiper Blades -
Vehicles With: Manual Liftgate................275
See: Changing the Rear Wiper Blades - Vehicles With: Rear Cargo Doors.............276
Recommended Towing Weights.............231 Calculating the Maximum Loaded Trailer
Weight............................................................... 232
Reduced Engine Performance................238
Refueling..........................................................154 Refueling System Overview........................... 154
Refueling System Warning............................. 156
Refueling Your Vehicle...................................... 155
Remote Control - Vehicles With: Keyless Entry and Push Button Start....................51
Locating Your Vehicle......................................... 53
Removable Key Blade.......................................... 51
Replacing the Battery......................................... 52
Sounding the Panic Alarm................................ 53
Remote Control - Vehicles With: Remote Flip Key............................................................54
Locating Your Vehicle......................................... 55
Replacing the Battery......................................... 54
Sounding the Panic Alarm................................ 55
Repairing Minor Paint Damage...............292
Replacement Parts Recommendation........................................13
Collision Repairs.................................................... 14
Scheduled Maintenance and Mechanical Repairs.................................................................. 14
Warranty on Replacement Parts..................... 14
Replacing a Lost Key or Remote Control.............................................................55
Reporting Safety Defects (Canada Only)..............................................................252
Reporting Safety Defects (U.S. Only)..............................................................252
Roadside Assistance...................................241 Vehicles Sold in Canada: Getting Roadside
Assistance....................................................... 242
Vehicles Sold in Canada: Roadside Assistance Program Coverage.................242
484
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing Index

Rear Towing Point.............................................
246
Towing Eye Location........................................ 246
Towing the Vehicle on Four Wheels..........................................................237
Emergency Towing............................................ 237
Recreational Vehicle Towing.......................... 237
Towing.............................................................230
Traction Control.............................................176
Principle of Operation....................................... 176
Trailer Sway Control.....................................231
Transmission Code Designation - 6-Speed Automatic
Transmission..............................................334
Transmission Code Designation - 8-Speed Automatic
Transmission..............................................335
Transmission
..................................................169
Transporting the Vehicle...........................236
Trip Computer
.................................................94
Average Fuel.......................................................... 94
Digital Speedometer.......................................... 94
Distance to Empty............................................... 94
Resetting the Trip Computer........................... 94
Trip Odometer....................................................... 94
Type Approvals
............................................464
Radio Frequency Certification Logos for
Blind Spot Information System................471
Radio Frequency Certification Logos for Mid Range Radar.................................................. 466
Radio Frequency Certification Logos for Passive Anti-Theft System....................... 467
Radio Frequency Certification Logos for Radio Transceiver Module......................... 470
Radio Frequency Certification Logos for SYNC 3.............................................................. 473
Radio Frequency Certification Logos for Tire Pressure Monitoring Sensor(s)...............464
Radio Frequency Certification Logos for Wireless Charging......................................... 472
U
Under Hood Overview - 1.5L Duratorq-TDCi Diesel
..............................262
Under Hood Overview - 2.0L Duratec-HE (MI4)/2.0L Flex Fuel...............................263
Under Hood Overview - 2.5L...................264
Unique Driving Characteristics................146 USB Port - Vehicles Without: SYNC
3.......................................................................362
Using Adaptive Cruise Control................196 Automatic Cancellation................................... 199
Blocked Sensor.................................................. 200
Canceling the Set Speed................................. 199
Changing the Set Speed................................. 198
Detection Issues................................................. 199
Following a Vehicle............................................ 197
Hilly Condition Usage....................................... 199
Overriding the System...................................... 198
Resuming the Set Speed................................. 199
Setting the Adaptive Cruise Speed..............197
Setting the Gap Distance................................ 198
Switching Adaptive Cruise Control Off....................................................................... 199
Switching Adaptive Cruise Control On........................................................................\
196
Switching to Normal Cruise Control............201
System Not Available...................................... 200
Using Cruise Control....................................195 Switching Cruise Control Off......................... 195
Switching Cruise Control On.......................... 195
Using MyKey With Remote Start Systems...........................................................61
Using Snow Chains......................................315 Vehicles with Stability Control...................... 316
Using Stability Control................................178
Using Traction Control................................176 Switching the System Off................................ 176
System Indicator Lights and Messages.......................................................... 176
Using a Switch..................................................... 176
Using the Information Display Controls............................................................. 176
Using Voice Recognition...........................362 Apps........................................................................\
376
Automatic Blower Motor Speed Reduction......................................................... 377
Entertainment..................................................... 373
General................................................................... 372
Navigation............................................................. 375
Phone..................................................................... 374
Phone Voice Service......................................... 362
Voice Settings...................................................... 377
Using Winter Tires........................................315
Utilizing the Mediation/Arbitration Program (Canada Only)........................250
487
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing Index
