fuse box location FORD TRANSIT CONNECT 2019 Owners Manual

Using Cruise Control
...................................195
Using Adaptive Cruise Control ...............
196
Driving Aids
Speed Limiter ...............................................
202
Driver Alert ....................................................
203
Lane Keeping System ...............................
205
Blind Spot Information System ............
209
Cross Traffic Alert .........................................
211
Eco Mode ........................................................
213
Steering ...........................................................
215
Pre-Collision Assist .....................................
215
Load Carrying
Luggage Anchor Points ..............................
221
Rear Under Floor Storage .........................
221
Cargo Nets .....................................................
222
Roof Racks and Load Carriers ................
224
Load Limit ......................................................
225
Towing
Towing a Trailer ...........................................
230
Trailer Sway Control ....................................
231
Recommended Towing Weights ............
231
Essential Towing Checks .........................
233
Transporting the Vehicle ..........................
236
Towing the Vehicle on Four Wheels ......
237
Driving Hints
Breaking-In ....................................................
238
Reduced Engine Performance ...............
238
Economical Driving ....................................
238
Cold Weather Precautions ......................
239
Driving Through Water ..............................
239
Floor Mats ......................................................
239
Roadside Emergencies
Roadside Assistance ..................................
241
Hazard Flashers ...........................................
242Fuel Shutoff
..................................................
242
Jump Starting the Vehicle .......................
243
Post-Crash Alert System .........................
245
Towing Points ...............................................
245
Customer Assistance
Getting the Services You Need ..............
247
In California (U.S. Only) ...........................
248
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) ....................
249
Utilizing the Mediation/Arbitration Program (Canada Only) ......................
250
Getting Assistance Outside the U.S. and Canada .......................................................
250
Ordering Additional Owner's Literature ........................................................................\
252
Reporting Safety Defects (U.S. Only) ........................................................................\
252
Reporting Safety Defects (Canada Only) ........................................................................\
252
Fuses
Fuse Box Locations ....................................
254
Fuse Specification Chart .........................
254
Changing a Fuse .........................................
260
Maintenance
General Information ...................................
261
Opening and Closing the Hood ..............
261
Under Hood Overview - 1.5L Duratorq-TDCi Diesel ............................
262
Under Hood Overview - 2.0L Duratec-HE (MI4)/2.0L Flex Fuel .............................
263
Under Hood Overview - 2.5L ..................
264
Engine Oil Dipstick - 1.5L Duratorq-TDCi Diesel ..........................................................
265
Engine Oil Dipstick - 2.0L Duratec-HE (MI4)/2.0L Flex Fuel/2.5L ..................
266
Engine Oil Check .........................................
266
Oil Change Indicator Reset ......................
267
Engine Cooling Fan - Gasoline ...............
267
Engine Cooling Fan - Diesel ....................
268
4
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing Table of Contents

FUSE BOX LOCATIONS
Engine Compartment Fuse Box
The fuse box is in the engine compartment.
See Maintenance (page 261).
Passenger Compartment Fuse Box The fuse box is below the glove box.
FUSE SPECIFICATION CHART
254
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing FusesE272439 E159113

Engine Compartment Fuse Box
Protected Component
Fuse Rating
Fuse Location
Cooling fan.
20 A
4
Water-in-fuel sensor - diesel.
25 A
Windshield wipers.
15 A
6
Windshield wipers.
15 A
7
Rear window washer pump.
15 A
8
Rear cargo door unlock.
10 A
9
Liftgate unlock.
Rear floor console auxiliary power point.
20 A
10
Floor console auxiliary power point.
20 A
11
Rain sensor.
5 A
12
255
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing FusesE272453

Protected Component
Fuse Rating
Fuse Location
Mass air flow and intake air temperature sensor.
5 A
73
Heated exterior mirrors.
10 A
79
Modified vehicle connection.
5 A
80
Horn.
20 A
81
Left-hand heated windshield element.
40 A
82
Windshield heated washer jets.
5 A
83
Cooling fan.
60 A
84
Fuel pump.
30 A
85
Starter motor.
20 A
86
Glow plug module - diesel.
60 A
87
Blower motor.
40 A
89
Heated rear window.
25 A
90
Passenger Compartment Fuse Box 258
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing FusesE249945

Protected Component
Fuse Rating
Fuse Location
Instrument cluster.Audio unit.
20 A
23
Power windows.
30 A
25

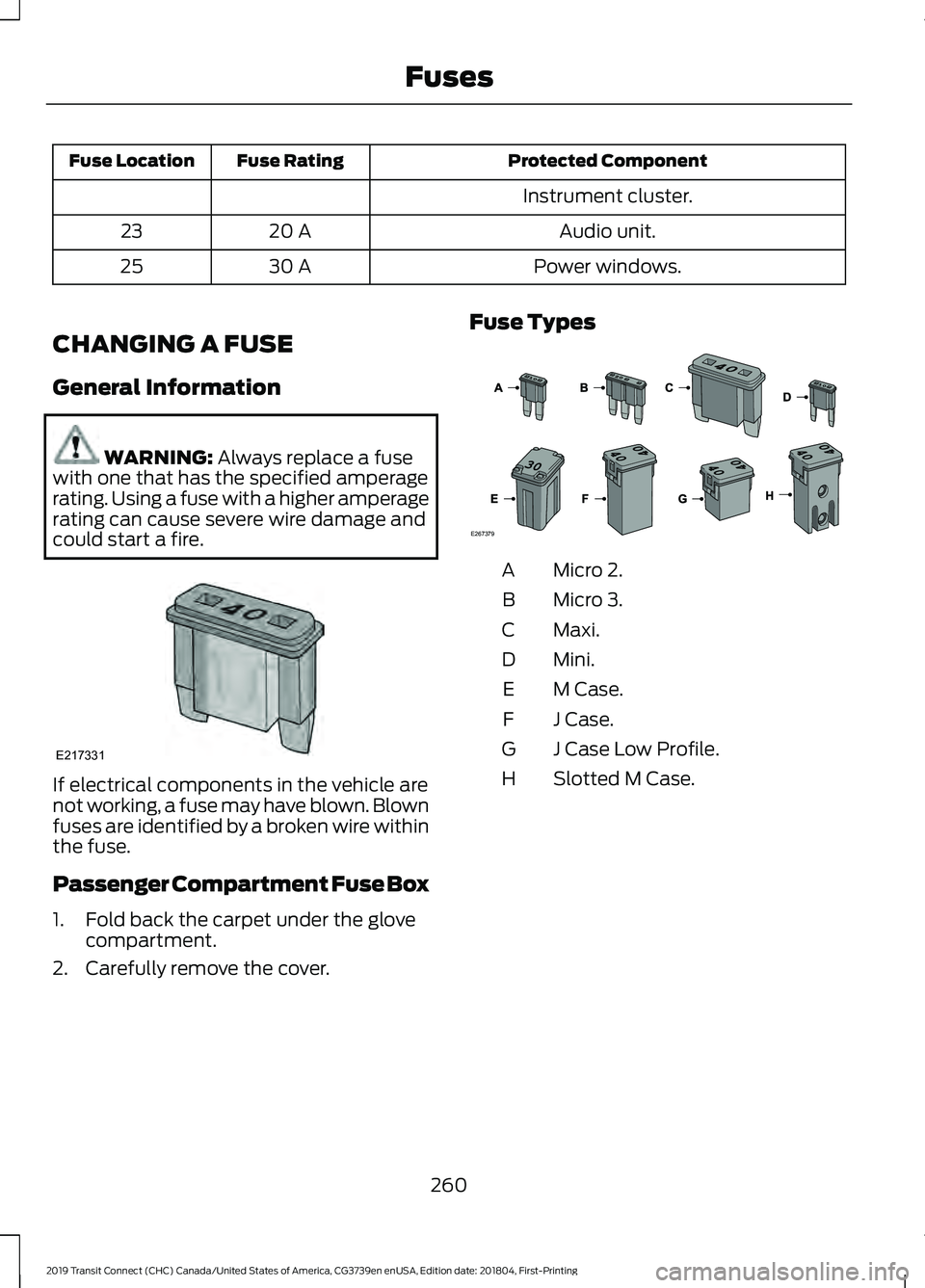

CHANGING A FUSE
General Information WARNING: Always replace a fuse
with one that has the specified amperage
rating. Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse.
Passenger Compartment Fuse Box
1. Fold back the carpet under the glove
compartment.
2. Carefully remove the cover. Fuse Types Micro 2.
A
Micro 3.
B
Maxi.
C
Mini.
D
M Case.
E
J Case.
F
J Case Low Profile.
G
Slotted M Case.
H
260
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing FusesE217331 E267379

Engine coolant reservoir. See
Engine Coolant Check (page
268).
A
Engine oil dipstick. See
Engine
Oil Dipstick (page 266).
B
Engine oil filler cap. See Engine
Oil Check
(page 266).
C
Brake fluid reservoir. See
Brake
Fluid Check (page 272).
D Battery. See
Changing the 12V
Battery (page 273).
E
Engine compartment fuse box.
See Fuse Box Locations (page
254
).
F
Air filter. See
Changing the
Engine Air Filter (page 283).
G
Windshield and rear window
washer reservoir. See
Washer
Fluid Check (page 273).
H
UNDER HOOD OVERVIEW - 2.5L
264
2019 Transit Connect (CHC) Canada/United States of America, CG3739en enUSA, Edition date: 201804, First-Printing MaintenanceABCDEF
GH
E255260
