Page 12 of 394
![FORD WINDSTAR 1996 1.G Owners Manual Safety Restraints
9
*
[SR02100(ALL)05/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
FORD WINDSTAR 1996 1.G Owners Manual Safety Restraints
9
*
[SR02100(ALL)05/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.](/img/11/5410/w960_5410-11.png)
Safety Restraints
9
*
[SR02100(ALL)05/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SR02200(ALL)03/95]
RWARNING
Never use a single belt for more than one person or
across more than one seating position. This greatly
increases the risk that one or both of the people will be
injured in a collision. Each seating position in your
vehicle has a specific safety belt assembly which is made
up of one buckle and one tongue that are designed to be
used as a pair.
*
[SR02300(ALL)05/95]
Lock the doors of your vehicle before driving to lessen the risk
of the door coming open in a collision.
*
[SR02700(ALL)05/95]
Combination Lap and Shoulder Belts
*
[SR02800(ALL)06/95]
While your vehicle is in motion, the combination lap and
shoulder belt adjusts to your movement. However, if you brake
hard, turn hard, or if your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap/shoulder belt locks and helps reduce
your forward movement.
*
[SR02900(ALL)05/95]
After you get into your vehicle, close the door and lock it. Then
adjust the seat to the position that suits you best.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996
Page 146 of 394
![FORD WINDSTAR 1996 1.G Owners Manual 144
[FV03050(ALL)10/93]
To open the sliding door from outside the vehicle, unlock the
door then unlatch the sliding door by pulling the handle
straight out and sliding the door back.
[FV03075(ALL)06/9 FORD WINDSTAR 1996 1.G Owners Manual 144
[FV03050(ALL)10/93]
To open the sliding door from outside the vehicle, unlock the
door then unlatch the sliding door by pulling the handle
straight out and sliding the door back.
[FV03075(ALL)06/9](/img/11/5410/w960_5410-145.png)
144
[FV03050(ALL)10/93]
To open the sliding door from outside the vehicle, unlock the
door then unlatch the sliding door by pulling the handle
straight out and sliding the door back.
[FV03075(ALL)06/94]
13-1/2 pica
art:0050120-B

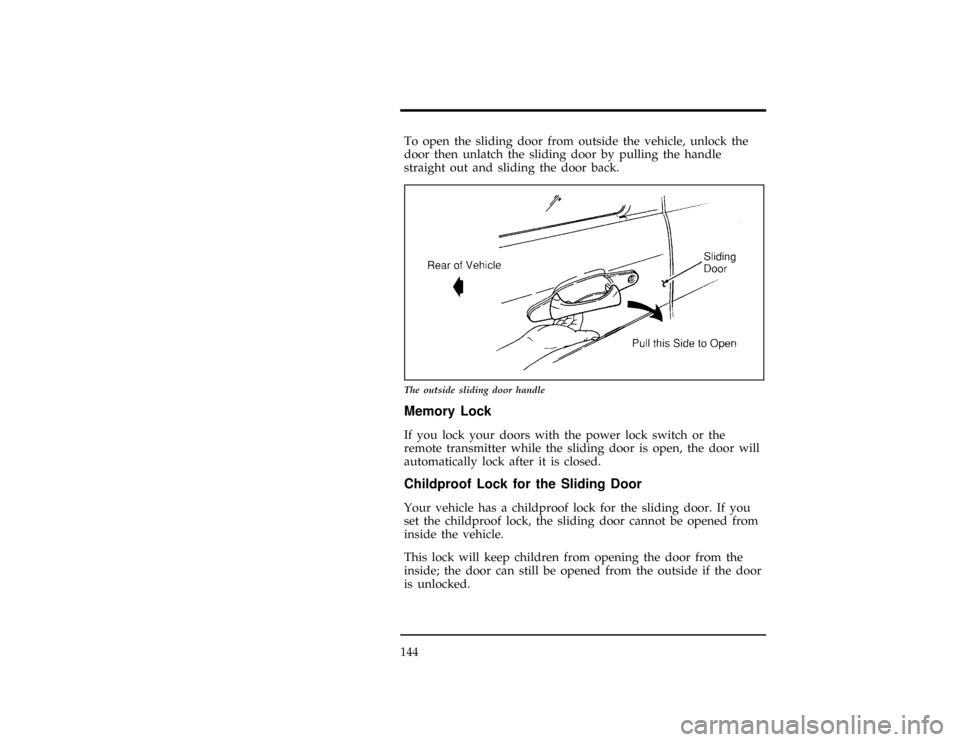

The outside sliding door handle
[FV03080(ALL)09/93]
Memory Lock
[FV03085(ALL)03/94]
If you lock your doors with the power lock switch or the
remote transmitter while the sliding door is open, the door will
automatically lock after it is closed.
%*
[FV03100(ALL)01/93]
Childproof Lock for the Sliding Door
%*
[FV03200(ALL)01/93]
Your vehicle has a childproof lock for the sliding door. If you
set the childproof lock, the sliding door cannot be opened from
inside the vehicle.
*
[FV03300(ALL)01/93]
This lock will keep children from opening the door from the
inside; the door can still be opened from the outside if the door
is unlocked.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
Page 147 of 394
![FORD WINDSTAR 1996 1.G Owners Manual Features
145
[FV03400(ALL)11/93]
24 pica art:0050082-B
Childproof lock location
*
[FV03500(ALL)01/93]
To set the childproof lock:
*
[FV03600(ALL)01/93]1.
Open the sliding door.
[FV03700(ALL)10/93]2.
F FORD WINDSTAR 1996 1.G Owners Manual Features
145
[FV03400(ALL)11/93]
24 pica art:0050082-B
Childproof lock location
*
[FV03500(ALL)01/93]
To set the childproof lock:
*
[FV03600(ALL)01/93]1.
Open the sliding door.
[FV03700(ALL)10/93]2.
F](/img/11/5410/w960_5410-146.png)
Features
145
[FV03400(ALL)11/93]
24 pica art:0050082-B

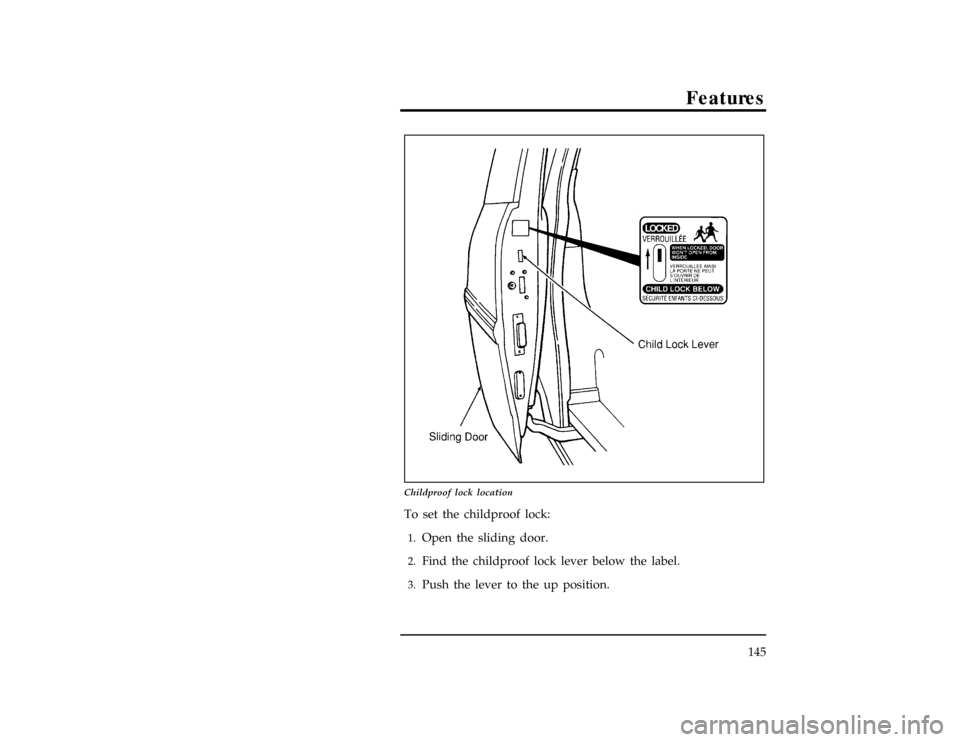

Childproof lock location
*
[FV03500(ALL)01/93]
To set the childproof lock:
*
[FV03600(ALL)01/93]1.
Open the sliding door.
[FV03700(ALL)10/93]2.
Find the childproof lock lever below the label.
[FV03800(ALL)11/93]3.
Push the lever to the up position.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
Page 148 of 394
![FORD WINDSTAR 1996 1.G Owners Manual 146
*
[FV03900(ALL)03/95]
To release the childproof lock:
*
[FV04000(ALL)01/93]1.
Open the sliding door from the outside.
[FV04100(ALL)11/93]2.
Push the lever to the down position.
%*
[FV04200(ALL)04/ FORD WINDSTAR 1996 1.G Owners Manual 146
*
[FV03900(ALL)03/95]
To release the childproof lock:
*
[FV04000(ALL)01/93]1.
Open the sliding door from the outside.
[FV04100(ALL)11/93]2.
Push the lever to the down position.
%*
[FV04200(ALL)04/](/img/11/5410/w960_5410-147.png)
146
*
[FV03900(ALL)03/95]
To release the childproof lock:
*
[FV04000(ALL)01/93]1.
Open the sliding door from the outside.
[FV04100(ALL)11/93]2.
Push the lever to the down position.
%*
[FV04200(ALL)04/95]
Power Door Locks (If equipped)
[FV04300(ALL)09/93]
The power door lock control switches are located in the panels
of the front doors. They control the locks on both front doors,
the sliding door and the liftgate. To lock all doors, push the
raised side of the switch. To unlock the doors, push the recessed
side of the switch.
[FV04400(ALL)09/93]
10-1/2 pica
art:0050029-A
The power door lock switch
[FV04450(ALL)08/94]
Door locks can also be operated from the power door lock
switch in the cargo area.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
Page 149 of 394
![FORD WINDSTAR 1996 1.G Owners Manual Features
147
[FV04460(ALL)11/93]
10-1/2 pica
art:0050186-A
The power door lock switch in the cargo area
*
[FV04500(ALL)05/95]
NOTE: If the sliding door is open when all doors are locked
with the power FORD WINDSTAR 1996 1.G Owners Manual Features
147
[FV04460(ALL)11/93]
10-1/2 pica
art:0050186-A
The power door lock switch in the cargo area
*
[FV04500(ALL)05/95]
NOTE: If the sliding door is open when all doors are locked
with the power](/img/11/5410/w960_5410-148.png)
Features
147
[FV04460(ALL)11/93]
10-1/2 pica
art:0050186-A

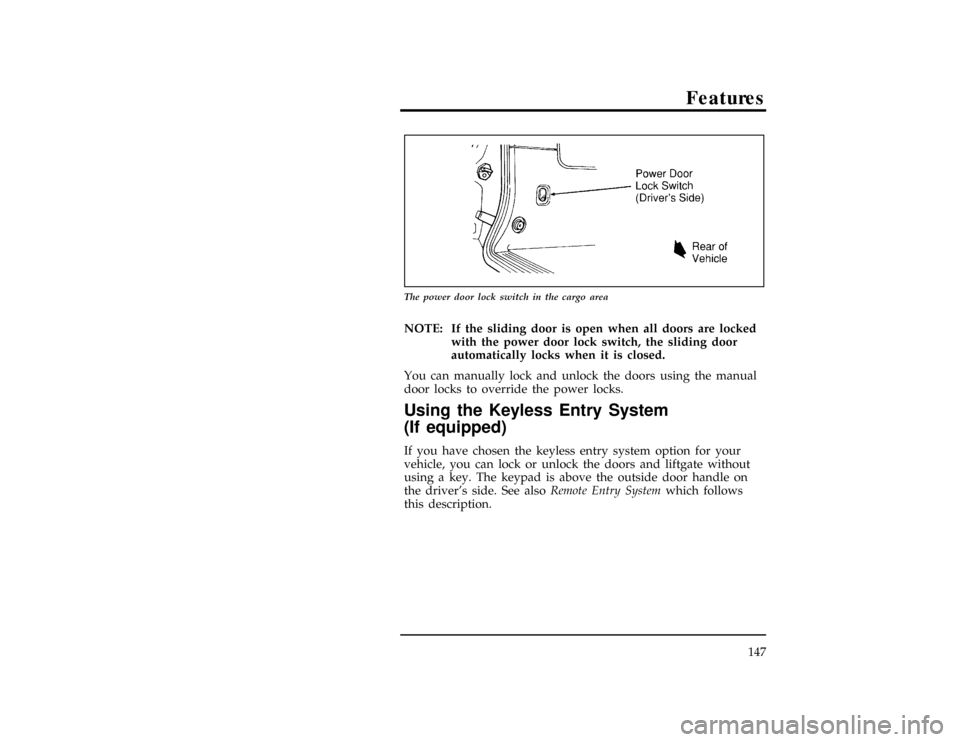

The power door lock switch in the cargo area
*
[FV04500(ALL)05/95]
NOTE: If the sliding door is open when all doors are locked
with the power door lock switch, the sliding door
automatically locks when it is closed.
*
[FV04600(ALL)01/93]
You can manually lock and unlock the doors using the manual
door locks to override the power locks.
% [FV04780(ALL)11/93]
Using the Keyless Entry System
(If equipped)
[FV04800(ALL)06/94]
If you have chosen the keyless entry system option for your
vehicle, you can lock or unlock the doors and liftgate without
using a key. The keypad is above the outside door handle on
the driver's side. See alsoRemote Entry Systemwhich follows
this description.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
Page 151 of 394
![FORD WINDSTAR 1996 1.G Owners Manual Features
149 remember. This is the number that you enter on the keypad to
unlock the door. The personal code can be changed as often as
you like.
[FV05400(ALL)02/95]
The permanent code is a number tha FORD WINDSTAR 1996 1.G Owners Manual Features
149 remember. This is the number that you enter on the keypad to
unlock the door. The personal code can be changed as often as
you like.
[FV05400(ALL)02/95]
The permanent code is a number tha](/img/11/5410/w960_5410-150.png)
Features
149 remember. This is the number that you enter on the keypad to
unlock the door. The personal code can be changed as often as
you like.
[FV05400(ALL)02/95]
The permanent code is a number that is assigned to your
vehicle and can be used to program your personal code into the
system.
[FV05500(ALL)02/95]
For your convenience, one additional piece of tape with the
permanent code has been included in the glove box. Place this
additional piece of tape in a safe location where you can refer
to it when necessary. Do not put it in any location that is
accessible to unauthorized persons, since this would allow them
entrance to your vehicle.
%*
[FV06200(ALL)02/95]
Programming your Personal Code
[FV06250(ALL)02/95]
A personal code does not replace the permanent code that the
dealership gave you. The original dealer code will always work
in addition to your personal code.
*
[FV06300(ALL)02/95]
To program your own code:
*
[FV06350(ALL)02/95]1.
Select five digits for your personal code.
[FV06400(ALL)10/93]2.
Enter the permanent code.
[FV06500(ALL)11/93]3.
Within five seconds, press the 1/2 button.
[FV06600(ALL)11/93]4.
Within five seconds of pressing the 1/2 button, enter your
personal code. Press each digit within five seconds of the
previous digit.
[FV06700(ALL)11/93]5.
The keyless system registers this second code. To open your
vehicle, you can now use either code. The module
remembers only one personal code at a time. Entering a
second personal code will erase the first and replace it with
the new code.
[FV06800(ALL)10/93]6.
After you have entered your personal code, the driver's door
will unlock.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
Page 152 of 394
![FORD WINDSTAR 1996 1.G Owners Manual 150
*
[FV06901(ALL)02/95]
To erase your personal code:
*
[FV07001(ALL)02/95]1.
Enter the original permanent code.
[FV07101(ALL)04/95]2.
Press the 1/2 button within five seconds of step #1.
*
[FV07201( FORD WINDSTAR 1996 1.G Owners Manual 150
*
[FV06901(ALL)02/95]
To erase your personal code:
*
[FV07001(ALL)02/95]1.
Enter the original permanent code.
[FV07101(ALL)04/95]2.
Press the 1/2 button within five seconds of step #1.
*
[FV07201(](/img/11/5410/w960_5410-151.png)
150
*
[FV06901(ALL)02/95]
To erase your personal code:
*
[FV07001(ALL)02/95]1.
Enter the original permanent code.
[FV07101(ALL)04/95]2.
Press the 1/2 button within five seconds of step #1.
*
[FV07201(ALL)02/95]3.
Wait six seconds.
[FV07250(ALL)11/93]4.
The keyless entry system automatically erases your personal
code. The system will now only respond to the permanent
code.
[FV07270(ALL)10/93]
Do not set a code that presents the numbers in sequential order,
such as 1/2, 3/4, 5/6, 7/8, 9/0. Studies show that people who
idly press the buttons usually press a sequential pattern. Also,
do not select a code that uses the same button five times.
Thieves can easily figure out these types of codes.
%*
[FV07300(ALL)01/93]
Unlocking the Doors with the Keyless Entry System
[FV07401(ALL)05/95]
You must unlock the driver's door before you unlock any of the
other doors. If you let more than five seconds pass between
pressing numbers, the system shuts down and you have to
enter the code again. The system has shut down if the keypad
light is out. If the keyless entry system does not work properly,
use the key or Remote Entry transmitter(s) to lock and unlock
the doors or liftgate until the system can be serviced.
[FV07501(ALL)02/95]1.
To unlock the driver's door, enter the code. All codes have 5
numbers. After you press the fifth number, the driver's door
unlocks.
[FV07601(ALL)06/94]2.
To unlock the passenger's door, sliding door and liftgate,
press 3/4 within five seconds of step #1, or re-enter the code
to open the driver's door then press 3/4.
*
[FV07701(ALL)02/95]
Locking the doors with the keyless entry system
*
[FV07801(ALL)03/94]
Along with unlocking your doors, you can use the keyless entry
system to lock the doors.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
Page 153 of 394
![FORD WINDSTAR 1996 1.G Owners Manual Features
151
[FV07901(ALL)06/94]
To lock all of the doors at the same time, press the 7/8 and 9/0
buttons at the same time. It is not necessary to first enter the
keypad code. This will also arm your FORD WINDSTAR 1996 1.G Owners Manual Features
151
[FV07901(ALL)06/94]
To lock all of the doors at the same time, press the 7/8 and 9/0
buttons at the same time. It is not necessary to first enter the
keypad code. This will also arm your](/img/11/5410/w960_5410-152.png)
Features
151
[FV07901(ALL)06/94]
To lock all of the doors at the same time, press the 7/8 and 9/0
buttons at the same time. It is not necessary to first enter the
keypad code. This will also arm your Ford anti-theft system.
%*
[FV09301(ALL)08/94]
Battery Saver
[FV09302(ALL)06/94]
When the ignition switch is turned to OFF, the vehicle will turn
off battery voltage to the interior lamps after 45 minutes. (The
exterior lamps are not affected.) The purpose is to minimize
extended battery drain if the lights have inadvertently been left
on or if a door or the glove box is not completely closed.
However, the timer will be immediately reset to another 45
minutes if any of the following occurs:
[FV09304(ALL)11/93]
n
any door is open or closed
[FV09305(ALL)11/93]
n
the front door handle is lifted (for Illuminated Entry only)
[FV09306(ALL)11/93]
n
taking the key IN or OUT of the ignition switch
[FV09307(ALL)11/93]
n
the Keyless Entry keypad is used
[FV09308(ALL)11/93]
n
the Remote Entry transmitter is activated
%*
[FV09313(ALL)02/95]
Remote Entry System (If equipped)
[FV09316(ALL)06/94]
If your vehicle has the remote entry system, you can lock and
unlock the vehicle doors without using a key. The remote entry
system also has a personal alarm feature. The buttons that
control the system are located on the hand held transmitter that
come with your vehicle.
*
[FV09318(ALL)02/95]
The system will work with up to four transmitters. Your vehicle
came with two transmitters. Additional transmitters can be
ordered from your dealer.
*
[FV09319(ALL)02/95]
The remote entry features only operate with the ignition in the
OFF position.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
Page 154 of 394
![FORD WINDSTAR 1996 1.G Owners Manual 152
[FV09323(ALL)11/93]
10-1/2 pica
art:0050158-B
The remote entry transmitter
% [FV09325(ALL)03/94]
Unlocking the doors
*
[FV09327(ALL)02/95]
To unlock the drivers door, press the UNLOCK button.
*
[ FORD WINDSTAR 1996 1.G Owners Manual 152
[FV09323(ALL)11/93]
10-1/2 pica
art:0050158-B
The remote entry transmitter
% [FV09325(ALL)03/94]
Unlocking the doors
*
[FV09327(ALL)02/95]
To unlock the drivers door, press the UNLOCK button.
*
[](/img/11/5410/w960_5410-153.png)
152
[FV09323(ALL)11/93]
10-1/2 pica
art:0050158-B

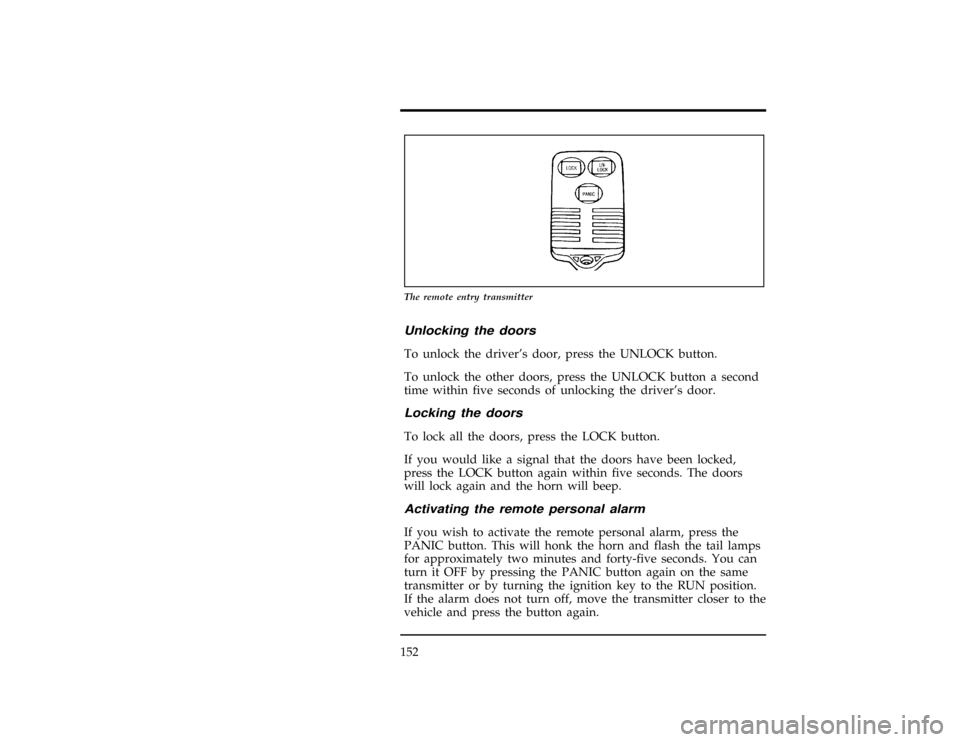

The remote entry transmitter
% [FV09325(ALL)03/94]
Unlocking the doors
*
[FV09327(ALL)02/95]
To unlock the driver's door, press the UNLOCK button.
*
[FV09329(ALL)02/95]
To unlock the other doors, press the UNLOCK button a second
time within five seconds of unlocking the driver's door.
*
[FV09331(ALL)02/95]
Locking the doors
*
[FV09333(ALL)02/95]
To lock all the doors, press the LOCK button.
[FV09336(ALL)06/94]
If you would like a signal that the doors have been locked,
press the LOCK button again within five seconds. The doors
will lock again and the horn will beep.
%*
[FV09351(ALL)02/95]
Activating the remote personal alarm
[FV09361(ALL)05/95]
If you wish to activate the remote personal alarm, press the
PANIC button. This will honk the horn and flash the tail lamps
for approximately two minutes and forty-five seconds. You can
turn it OFF by pressing the PANIC button again on the same
transmitter or by turning the ignition key to the RUN position.
If the alarm does not turn off, move the transmitter closer to the
vehicle and press the button again.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
Page 156 of 394
![FORD WINDSTAR 1996 1.G Owners Manual 154
%*
[FV09431(ALL)02/95]
Replacement/additional transmitters
*
[FV09441(ALL)02/95]
In the event a transmitter is lost, return the remaining
transmitters to your dealer for reprogramming of your remo FORD WINDSTAR 1996 1.G Owners Manual 154
%*
[FV09431(ALL)02/95]
Replacement/additional transmitters
*
[FV09441(ALL)02/95]
In the event a transmitter is lost, return the remaining
transmitters to your dealer for reprogramming of your remo](/img/11/5410/w960_5410-155.png)
154
%*
[FV09431(ALL)02/95]
Replacement/additional transmitters
*
[FV09441(ALL)02/95]
In the event a transmitter is lost, return the remaining
transmitters to your dealer for reprogramming of your remote
entry system. This is necessary to prevent further unauthorized
use of the lost transmitter.
*
[FV09451(ALL)02/95]
Additional transmitters may be purchased from your dealer
(remote entry system will work with up to four transmitters).
Return your existing transmitters to your dealer so the remote
entry system can be reprogrammed with your new and existing
transmitters.
*
[FV09461(ALL)02/95]
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
%*
[FV09501(ALL)04/95]
Illuminated Entry System (If equipped)
*
[FV09511(ALL)04/95]
This system will provide illumination of the vehicle's interior
courtesy lamps when either outside front door handle is pulled
or when the remote entry system is used to unlock the door or
sound the personal alarm. The system will automatically turn
off after approximately 25 seconds or when the ignition is
turned to the RUN or ACC position.
[FV09521(ALL)06/94]
NOTE: The illuminated entry timer will not turn off the
courtesy lamps if they have been turned on by the
door and or dimmer switch.
% [FV09525(ALL)05/95]
Autolock
[FV09530(ALL)05/95]
The Autolock feature is part of your remote entry system and is
enabled at the factory. With the Autolock feature enabled, all of
the doors will automatically lock when:
[FV09535(ALL)05/95]
n
the vehicle doors and liftgate are closed
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996
