Electronic Sound Systems
35
*
[AS05300(ALL)04/96]
n
Adjusting speaker fader
*
[AS05400(ALL)08/95]
Fade control allows you to adjust the sound distribution
between the front and rear speakers. Push the ªAUDIOº
button repeatedly until the display reads ªFADE.º Push the
ª+º side of the ªVOLº button to shift the sound to the front
speakers, and push the ª-º side to shift the sound to the rear
speakers.
[AS05500(ALL)09/95]
NOTE: Illuminated bars in the display show relative levels of
bass and treble and positions of speaker balance and
fader functions for five seconds after adjustments are
made, then revert to volume level set.
%*
[AS05600(ALL)08/95]
Clock operation
*
[AS05700(ALL)08/95]
When in the radio mode, push the ªCLOCKº button to switch
from radio frequency to clock. Only the clock numerals will be
displayed in the clock mode Ð there is no A.M./P.M.
indication. When in the clock mode, the time will be displayed
until the button is pushed again. However, if you retune the
radio while it is in the clock mode, the new radio frequency
will be displayed for approximately ten seconds and then
change back to clock.
*
[AS05800(ALL)08/95]
When in the CD mode, push the ªCLOCKº button to change
the display from elapsed time mode to track number mode to
clock mode. If the CD track selection is changed when you are
in the clock or elapsed time mode, the new track number will
be displayed for approximately ten seconds and then revert
back to the previous mode.
*
[AS05900(ALL)08/95]
To set the clock, simultaneously press the ªCLOCKº button and
either the bottom (
b) half of the ªSEEKº button to set hours,
or the top (
a) half of the ªSEEKº button to set minutes.
[AS06000(ALL)04/96]
NOTE: The clock can be set with the radio and/or ignition on
or off.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
51
*
[AS11010(ALL)08/95]
Tape error messages
*
[AS11020(ALL)08/95]
Your cassette tape player is equipped to diagnose certain
problems you may experience. Error codes are as follows:
*
[AS11030(ALL)08/95]
Error 0Ð Communication error between the radio controller
and the tape controller. The cassette player will eject the tape.
Insert the tape again. If the same error code appears, turn the
ignition off, then back on again and insert the tape.
*
[AS11040(ALL)08/95]
Error 1Ð Possible problem cartridge. The cassette tape player
will eject the tape. Insert the tape again. If the same error code
appears in the display, try a different cartridge.
*
[AS11050(ALL)08/95]
Error 2Ð Tape eject or load failure. Your cassette tape player
will go into the pause mode. Push ªEJCTº to eject the tape. If
the tape doesn't eject, refer the problem to qualified personnel
for service.
%*
[AS11060(ALL)05/96]
Clock Operation
*
[AS11080(ALL)05/96]
How to view the clock mode
*
[AS11090(ALL)08/95]
Press the ªCLOCKº button to alternate the frequency and time
in the display. In the clock mode, pressing any radio function
will automatically display the radio frequency for approximately
ten seconds before changing back to the clock mode.
*
[AS11100(ALL)05/96]
How to set the clock
[AS11120(ALL)12/93]
Press and hold in the ªCLOCKº button, press the ªSEEKº
button left (
b) to advance the hours and right (
a) to advance
the minutes.
*
[AS11130(ALL)05/96]
NOTE: The clock displays 12-hour time with no AM/PM
indications.
*
[AS11135(ALL)09/95]
NOTE: On the High-Level Audio System, the clock can be set
with the radio power on or off.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

62
*
[AS23160(ALL)02/96]
n
Using the ªSCANº function (Stereo Cassette Radio)
*
[AS23170(ALL)06/95]
Press the ªSCANº button to enter the scan mode. The radio
will begin scanning up the frequency band, stopping on each
listenable station for approximately a five-second sampling.
This continues until you press the ªSCANº button a second
time. The display flashes ªAMº or ªFM.º
*
[AS23200(ALL)03/96]
n
Setting the station MEMORY PRESET buttons
*
[AS23325(ALL)02/96]
Your radio is equipped with 5 station memory buttons.
These buttons can be used to select up to 5 preset AM
stations and 10 preset FM stations (5 in FM1 and 5 in FM2).
*
[AS23400(ALL)08/95]
Follow the easy steps below to set these buttons to the desired
frequencies:
*
[AS23500(ALL)06/96]1.
Select a band, then select a frequency.
*
[AS23700(ALL)06/96]2.
Press one of the memory preset buttons and hold the button
until the sound returns. That station is now held in memory
on that button.
*
[AS23800(ALL)06/96]3.
Follow the two steps above for each station memory preset
button you want to set.
*
[AS23900(ALL)03/96]
NOTE: If the vehicle's battery is disconnected, the clock and
station memory preset buttons will need to be reset.
*
[AS24000(ALL)10/95]
Adjusting the tone balance and speaker output of your
radio
*
[AS24100(ALL)02/96]
n
Increasing or decreasing bass response
*
[AS24225(ALL)02/96]
Push the ªAUDIOº button repeatedly until the display reads
ªBASS.º Push the right (+) side of the ªVOLUMEº button to
increase bass (more ªlowsº), and push the left (s) side to
decrease bass (less ªlowsº).
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

66
*
[AS27600(ALL)05/96]
Tips on Caring for the Cassette Player and Tapes
*
[AS27700(ALL)08/95]
In order to keep your cassette tape player performing the way it
was meant to, read and follow these simple precautions:
*
[AS27750(ALL)05/96]
n
Using a Ford or equivalent cassette cleaning cartridge to
clean the tape player head after 10-12 hours of play will help
maintain the best playback sound and proper tape operation.
*
[AS27800(ALL)08/95]
n
Only cassettes that are 90 minutes long or less should be
used. Tapes longer than 90 minutes are thinner and subject
to breakage or may jam the tape player mechanism.
*
[AS27900(ALL)08/95]
n
Protect cassettes from exposure to direct sunlight, high
humidity and extreme heat or cold. If they are exposed to
extreme conditions, allow them to reach a moderate
temperature before playing.
*
[AS28001(ALL)08/95]
n
If a tape is loose inside the cassette, tighten it before playing
by putting your finger or a pencil into one of the holes and
turning the hub until the tape is tight.
*
[AS28101(ALL)08/95]
n
Loose labels on cassette tapes can become lodged in the
mechanism. Remove any loose label material before inserting
a cassette.
*
[AS28200(ALL)08/95]
n
Do not leave a tape in the cassette tape player when not in
use. High heat in the vehicle can cause the cassette to warp.
%*
[AS28400(ALL)05/96]
Clock Operation
*
[AS28500(ALL)05/96]
How to view the clock mode
*
[AS28650(ALL)08/95]
Press the ªCLOCKº button to alternate the frequency and time
in the display. In the clock mode, pressing any radio function
will automatically display the radio frequency for approximately
ten seconds before changing back to the clock mode.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

Electronic Sound Systems
67
*
[AS28800(ALL)05/96]
How to set the clock
*
[AS28900(ALL)05/96]1.
Turn the radio on.
*
[AS29025(ALL)04/96]2.
Press and hold in the ªCLOCKº button. Press the ªSEEKº
button left (
b) to advance the hours and right (
a)to
advance the minutes.
*
[AS29200(ALL)05/96]
NOTE: The clock displays 12-hour time with no AM/PM
indications.
*
[AS35200(ALL)04/96]
Common Radio Reception Conditions
*
[AS35300(ALL)05/96]
Several conditions prevent FM reception from being completely
clear and noise-free, such as the following:
*
[AS35400(ALL)05/96]1.
Distance/Strength
*
[AS35500(ALL)05/96]
The strength of the FM signal is directly related to the distance
the signal must travel. The listenable range of an average FM
signal is approximately 25 miles (40 kilometers). Beyond this
distance, the radio is operating in a fringe area and the signal
becomes weaker.
*
[AS35600(ALL)05/96]2.
Terrain
*
[AS35700(ALL)05/96]
The terrain (hilly, mountainous, tall buildings) of the area over
which the signal travels may prevent the FM signal from being
noise-free.
*
[AS35900(ALL)05/96]
If there is a building or large structure between the antenna and
station, some of the signal ªbendsº around the building, but
certain spots receive almost no signal. Moving out of the
ªshadowº of the structure will allow the station to return to
normal.
*
[AS36000(ALL)05/96]
When the radio waves are reflected off objects or structures, the
reflected signal cancels the normal signal, causing the antenna to
pick up noise and distortion. Cancellation effects are most
prominent in metropolitan areas, but also can become quite
severe in hilly terrain and depressed roadways.
File:04wnass.ex
Update:Fri Sep 27 13:16:38 1996

90
*
[CF13500(ALL)01/96]
Clock Controls on Electronic Radios
[CF13600(ALL)01/96]
The electronic radios have a built-in clock. For complete
operating instructions, refer to theElectronic Sound Systems
chapter of this Owner Guide.
%*
[CF13700(ALL)03/96]
Radio Antenna
*
[CF13800(ALL)01/96]
The fixed radio antenna is mounted on the front fender on the
passenger's side of the vehicle.
% [CF13900(ALL)01/96]

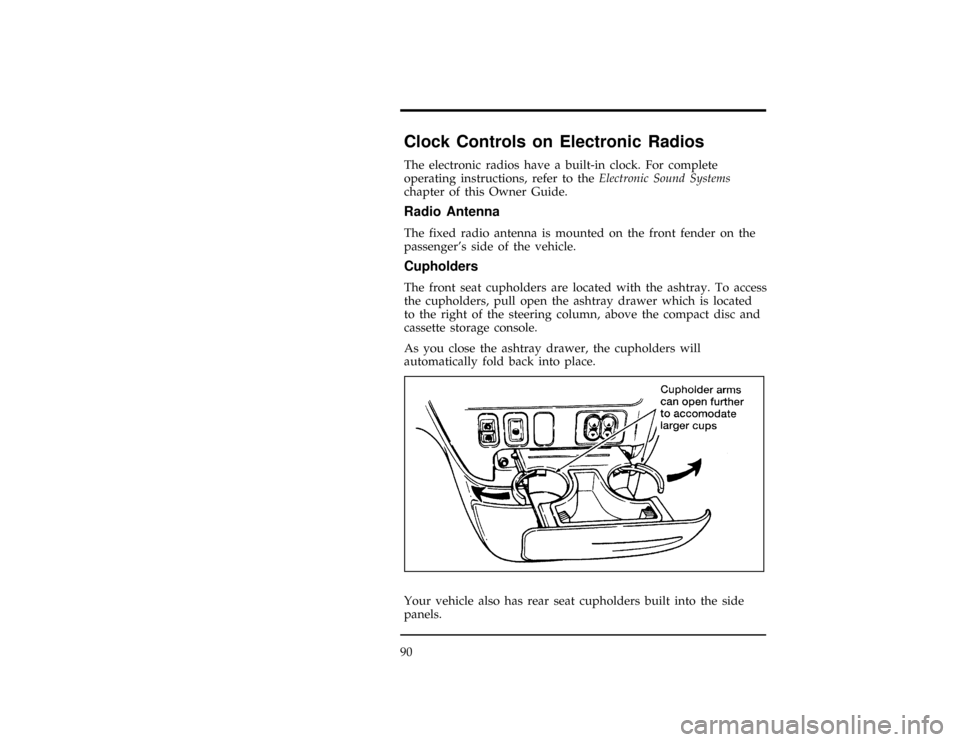

Cupholders
[CF14000(ALL)01/96]
The front seat cupholders are located with the ashtray. To access
the cupholders, pull open the ashtray drawer which is located
to the right of the steering column, above the compact disc and
cassette storage console.
[CF14100(ALL)01/96]
As you close the ashtray drawer, the cupholders will
automatically fold back into place.
[CF14200(ALL)10/96]
13-1/2 pica
art:0050010-B[CF14300(ALL)01/96]
Your vehicle also has rear seat cupholders built into the side
panels.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

220
[GF08000(ALL)01/96]
The gearshift is securely latched in P (Park) if you can not
rotate it in a clockwise direction without pulling it toward you.
*
[GF08100(ALL)05/96]
RWARNING
Always set the parking brake fully and make sure the
gearshift is latched in P (Park). Turn off the ignition
whenever you leave your vehicle.
*
[GF08200(ALL)05/96]
RWARNING
Never leave your vehicle unattended while it is running.
*
[GF08300(ALL)05/96]
Forced Downshifts
[GF08400(ALL)01/96]
To gain extra acceleration in
j(Overdrive) (when passing
another vehicle) push the accelerator to the floor. The transaxle
will automatically downshift to the appropriate gear (third,
second or first).
*
[GF08500(ALL)01/96]
Vehicle Loading Information
*
[GF08600(ALL)01/96]
Your vehicle's load capacity is designated by weight, not
volume, so you cannot necessarily use all the available space.
Maximum safe vehicle weights as well as tire sizes, rim sizes
and inflation pressures are specified for your vehicle at the
assembly plant on the Safety Compliance Certification Label.
The certification label is located on the pillar in the driver's
door opening.
*
[GF08700(ALL)01/96]
Each additional item of equipment affects how much cargo a
vehicle can carry. If a vehicle is overloaded, performance will
suffer and service concerns may arise.
*
[GF08800(ALL)01/96]
NOTE: The vehicle must not be loaded to both the front and
rear GAWR because the GVWR will be exceeded. The
GAWR of the front and rear axles exceed the GVWR
when added together.
File:09wngfs.ex
Update:Mon Oct 7 11:46:08 1996
