Instrumentation
25
% [IS19200(ALL)01/96]
Auxiliary Warning Module (If equipped)
[IS19300(ALL)01/96]
An additional bank of indicator and warning lights is located
above the driver's side vent, just to the right of the steering
wheel. The light(s) located in this module are described and
illustrated below.
[IS19400(ALL)08/96]
13-1/2 pica
art:0050122-H
The auxiliary warning module
% [IS19500(ALL)01/96]
Traction Control Active Light
[IS19600(ALL)01/96]
This light comes on when the Traction Control system begins
applying and releasing the brakes and adjusting the engine
characteristics to limit a wheelspin condition. You may feel
some steering changes and hear some noise, but this is normal.
[IS19700(ALL)01/96]
one inch art:0050274-AFile:03wniss.ex
Update:Fri Oct 11 10:45:38 1996

Controls and Features
91
*
[CF14400(ALL)04/96]
NOTE: Do not place heavy objects in the cupholders.
*
[CF14500(ALL)05/96]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
*
[CF14600(ALL)01/96]
Ignition
%*
[CF14700(ALL)01/96]
Understanding the Positions of the Ignition
*
[CF14800(ALL)01/96]
13-1/2 pica
art:0040047-D
The ignition positions
% [CF14900(ALL)12/95]
ACCESSORY allows you to operate some of your vehicle's
electrical accessories while the engine is not running. For
example, you can use ACCESSORY to turn on the radio or
windshield wipers without starting the engine.
[CF15000(ALL)12/95]
LOCK locks the steering wheel and the gearshift lever.
*
[CF15100(ALL)06/96]
OFF allows you to shut off the engine and all accessories
without locking the steering wheel, or the gearshift lever.
*
[CF15200(ALL)01/96]
ON allows you to test your vehicle's warning lights to make
sure they work before you start the engine. The key returns to
the ON position once the engine is started and remains in this
position while the engine runs.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

92
[CF15300(ALL)12/95]
START cranks the engine. Release the key once the engine starts
so that you don't damage the starter. The key should return to
the ON position when you release it. The START position also
allows you to test the brake warning light.
%*
[CF15400(ALL)03/96]
Removing the Key From the Ignition
[CF15500(ALL)12/95]
LOCK is the only position that allows you to remove the key
from the ignition. The LOCK feature helps to protect your
vehicle from theft, because it also locks the steering wheel and
the gearshift lever when the key is removed.
%*
[CF15600(ALL)01/96]
If your key is stuck in the LOCK position, and you are unable
to turn it, move your steering wheel left or right until the key
turns freely.
*
[CF15700(ALL)01/96]
To remove your key from the ignition:
[CF15750(ALL)09/96]1.
Maintain firm pressure on the service brake and set parking
brake fully. (This will avoid ªbindingº or ªloadingº the
powertrain, which may result in an objectionable noise
during park disengagement.)
[CF15800(ALL)09/96]2.
Put the gearshift lever in P (Park).
*
[CF16000(ALL)06/96]3.
Turn the ignition key to LOCK.
*
[CF16100(ALL)03/96]4.
Remove the key.
[CF16200(ALL)09/96]
RWARNING
When you leave your vehicle, set the parking brake fully,
place the gearshift lever in P (Park), and shut off the
engine. Never park your vehicle in N (Neutral). If you do
not take these precautions, your vehicle may move
suddenly and injure someone.
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Controls and Features
99 only upshift and downshift from 1st through 3rd gears. The
vehicle will always return to the overdrive operation mode
when the ignition is turned off and back on.
[CF21000(ALL)01/96]
If the lamp does not come on when the Overdrive ON/OFF
button is depressed or if the lamp flashes when you are driving,
have your vehicle serviced at the first opportunity. If this
condition persists, damage could occur to the transaxle.
%*
[CF21200(ALL)05/96]
Horn
[CF21300(ALL)01/96]
To sound the horn, press the center of the steering wheel. Check
the horn regularly to make sure it operates properly.
[CF21400(ALL)01/96]
13-1/2 pica
art:0050017-A

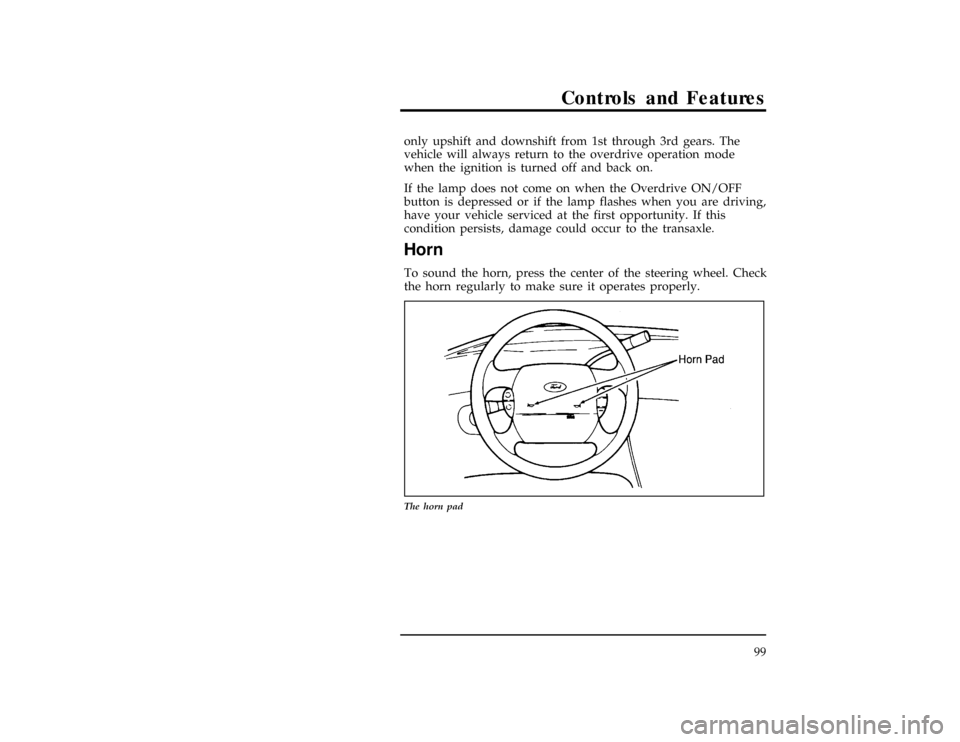

The horn pad
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

100
%*
[CF21500(ALL)05/96]
Hazard Flasher Switch
[CF21600(ALL)01/96]
The hazard flasher switch is located on top of the steering
column.
*
[CF21700(ALL)01/96]
To use the hazard flasher:
*
[CF21800(ALL)01/96]1.
Push the HAZARD switch; you will see the turn signal
arrows flash.
*
[CF21900(ALL)01/96]2.
To stop the hazard flashers, push the HAZARD switch again.
%*
[CF22000(ALL)05/96]
Tilt Steering (If equipped)
[CF22100(ALL)01/96]
With the tilt steering option, you can move your steering wheel
up or down.
[CF22200(ALL)01/96]
17-1/2 pica
art:0050101-A

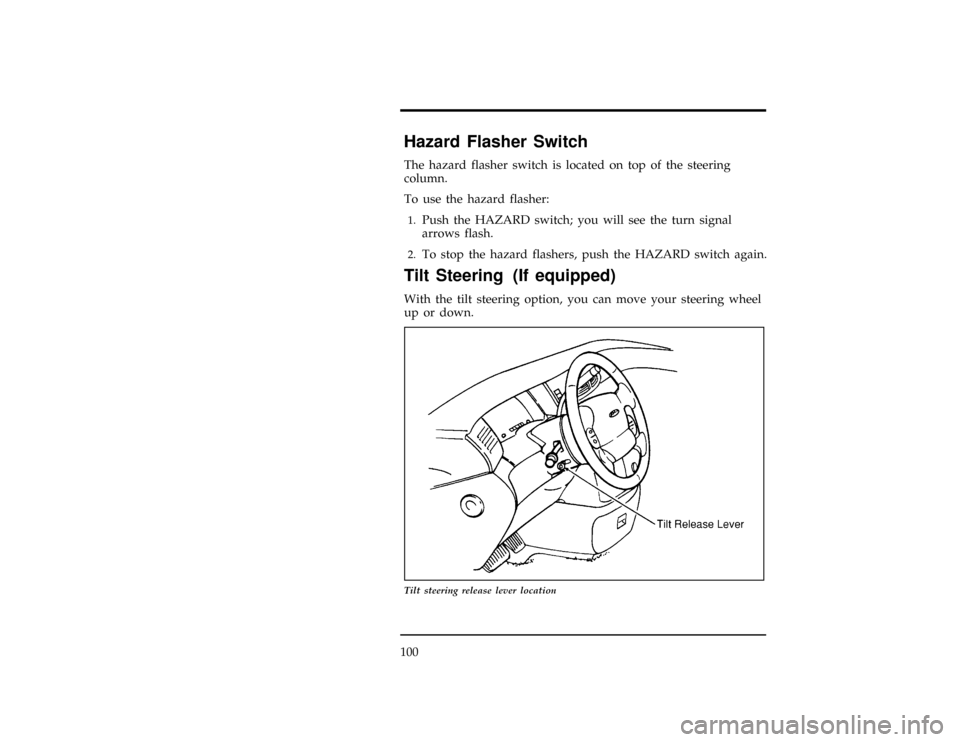

Tilt steering release lever location
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Controls and Features
101
[CF22300(ALL)04/96]
To change the position of the steering column:
[CF22400(ALL)04/96]1.
Make sure your vehicle is stopped.
[CF22500(ALL)04/96]2.
Pull the tilt release lever on the column toward you.
[CF22600(ALL)01/96]3.
Tilt the steering wheel up or down until you find the best
position for you.
[CF22700(ALL)04/96]4.
Release the lever to lock the wheel in place.
[CF22800(ALL)01/96]
Be sure the steering wheel is locked in place. It can only be
adjusted to specific positions. Do not adjust the steering wheel
while the vehicle is in motion.
%*
[CF22900(ALL)03/96]
Speed Control (If equipped)
[CF22901(ALL)10/96]
13-1/2 pica
art:0050018-A

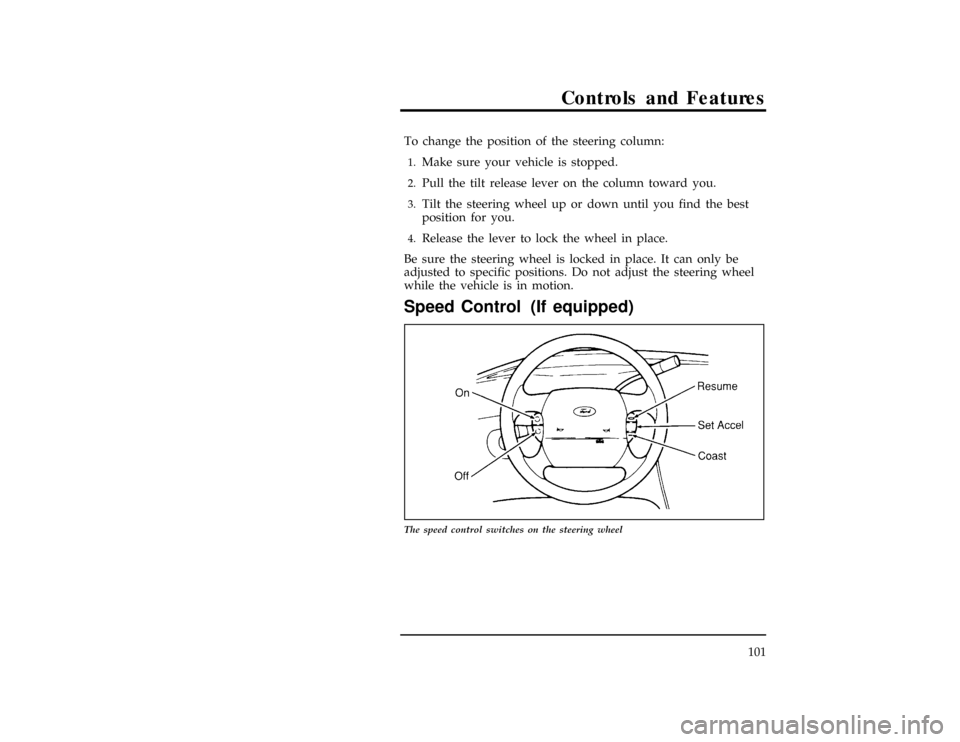

The speed control switches on the steering wheel
File:05wncfs.ex
Update:Tue Oct 8 10:20:34 1996

Seating and Safety Restraints
169
*
[SS19500(ALL)05/96]
RWARNING
Do not place objects or mount equipment on or near the
air bag cover that may come in contact with an inflating
air bag. Failure to follow this instruction may increase
the risk of personal injury in the event of a collision.
*
[SS19600(ALL)05/96]
For further information about the proper mounting of
equipment in the front seat of this vehicle, please refer to Ford's
brochure entitledSome Important Information About Air Bag
Supplemental Restraint Systemwhich can be obtained by calling
Helm Inc. at 1-800-782-4356. Ask for brochure FPS-8602.
*
[SS19700(ALL)05/96]
For additional important safety information on the proper use of
seat belts, child seats, and infant seats, please read the other
sections of this chapter of the Owner Guide, especially sections
entitledSafety Belts for ChildrenandSafety Seats for Children.
%*
[SS19800(ALL)05/96]
How Does the Air Bag Supplemental Restraint System
Work?
*
[SS19900(ALL)05/96]
The Air Bag Supplemental Restraint System consists of the
driver and passenger air bags, impact sensors, a system
diagnostic module, a readiness light and tone, and the electrical
wiring which connects the components.
[SS20000(ALL)04/96]
The driver air bag is in the center of the steering wheel and is
indicated by the letters ªSRS.º The right front passenger seat air
bag is in the upper right-hand section of the instrument panel
ledge above the glove compartment. The letters ªSRSº appear
there. Both air bags are designed to stay out of sight until they
are activated.
File:06wnsss.ex
Update:Fri Oct 11 10:48:20 1996

206
*
[TO01500(ALL)12/95]3.
DO NOT depress the accelerator pedal when starting your
engine. DO NOT use the accelerator until after the engine is
running and you are ready to drive away.
[TO01600(ALL)12/95]4.
Turn the key to the START position until the engine starts.
(Release the key after the engine has started and it will
return to the ON position.)
[TO01700(ALL)12/95]
If you have difficulty in turning the key, rotate the steering
wheel slightly to relieve any binding.
%*
[TO01800(ALL)01/96]
For a cold engine:
*
[TO01900(ALL)01/96]
n
At temperatures10ÊF (-12ÊC) andbelow:If the engine does
not start infifteen (15) secondson the first try, turn the key
to OFF, wait approximately ten (10) seconds so you do not
flood the engine, then try again.
*
[TO02000(ALL)01/96]
n
At temperaturesabove10ÊF(-12ÊC):If the engine does not
start infive (5) secondson the first try, turn the key to OFF,
wait approximately ten (10) seconds so you do not flood the
engine, then try again.
*
[TO02100(ALL)01/96]
For a warm engine:
*
[TO02200(ALL)01/96]
n
Do not hold the key in the START position for more than
five (5) secondsat a time. If the engine does not start within
five (5) seconds on the first try, turn the key to the OFF
position. Wait a few seconds after the starter stops, then try
again.
*
[TO02300(ALL)01/96]
Whenever you start your vehicle, release the key as soon as the
engine starts. Excessive cranking could damage the starter.
[TO02400(ALL)09/96]
After you start the engine, let it idle for a few seconds.Keep
your foot on the brake pedalandplace the gearshift lever in
gear. Release the parking brake,put the gearshift lever in gear,
slowly release the brake pedal and drive away in the normal
manner.
File:08wntos.ex
Update:Mon Oct 7 11:45:28 1996

Driving
215
*
[GF03600(ALL)05/96]
RWARNING
Always set the parking brake fully and make sure the
gearshift is latched in P (Park). Turn off the ignition
whenever you leave your vehicle.
[GF03700(ALL)09/96]
RWARNING
If the parking brake is fully released, but the Brake
System light remains on, check brake fluid level, then
have the brakes checked immediately. They may not be
working properly.
*
[GF03800(ALL)02/96]
The parking brake is not designed to stop a moving vehicle, but
you can use the parking brake to stop your vehicle in an
emergency if the service brakes fail. However, since the parking
brake does not stop your vehicle as quickly as the normal
brakes, the stopping distance will increase greatly.
%*
[GF04100(ALL)01/96]
Steering Your Vehicle
*
[GF04200(ALL)01/96]
Your vehicle has power steering. Power steering uses energy
from the engine to help steer your vehicle.
*
[GF04300(ALL)01/96]
Never hold the steering wheel in the extreme right or left
position for more than five seconds if the engine is running.
This can damage the power steering pump.
%*
[GF04400(ALL)03/96]
If the amount of effort needed to steer your vehicle changes at a
constant vehicle speed, have the power steering system checked.
If the power steering system breaks down (or if the engine is
turned off), you can steer the vehicle manually but it takes more
effort.
*
[GF04500(ALL)01/96]
NOTE: After any severe impact such as striking large
potholes, sliding into curbs on icy roads, or a collision
involving the front end, have the front suspension
and steering checked for possible damage.
File:09wngfs.ex
Update:Mon Oct 7 11:46:08 1996

Driving
227
*
[GF14900(ALL)01/96]
When descending a steep grade with a trailer, operate in Drive
rather than Overdrive. If additional braking is needed, shift into
2 (Second) or 1 (First) gear.
[GF15000(ALL)05/96]
Servicing Your Vehicle If You Tow
*
[GF15100(ALL)07/96]
If you tow a trailer for a long distance, your vehicle will need
to be serviced more frequently than usual. Refer to the
Maintenance Schedulebooklet for additional information.
*
[GF15200(ALL)01/96]
Trailer Towing Tips
*
[GF15300(ALL)01/96]
Before starting on a trip, practice turning, stopping and backing
in an area away from heavy traffic. Get to know the ªfeelº of
the vehicle/trailer combination.
*
[GF15400(ALL)01/96]
Practice backing up. Back up very slowly, with someone outside
at the rear of your trailer to guide you. Place your hand at the
bottom of the steering wheel and move it in the direction you
want the rear of the trailer to swing. Slight movement of the
steering wheel results in a much larger movement of the rear of
the trailer.
*
[GF15500(ALL)01/96]
When turning, drive slightly beyond the normal turning point
so the trailer wheels will clear curbs or other obstructions.
*
[GF15600(ALL)01/96]
Allow more room for stopping with a trailer attached. Trailer
brakes should be applied first, whether manually or
automatically controlled, when approaching a stop.
*
[GF15700(ALL)01/96]
For an easy-to-operate vehicle/trailer combination, the trailer
tongue load should be approximately 10-15% of the loaded
trailer weight.
*
[GF15800(ALL)01/96]
Make a thorough check of your equipment before starting out
on the road. After you have traveled about 50 miles (80 km),
stop in a protected area and double-check your hitch and
electrical connections. Also check trailer wheel lug nuts for
tightness.
File:09wngfs.ex
Update:Mon Oct 7 11:46:08 1996
