Ignition - Ignition system3. Inspection of ignition coil (including igniter) and spark test(a) Check DTC.
Note: if there is display with DTC, perform trouble shooting according to DTC procedure.
(b) Check there is spark.
(1) Remove ignition coil (including igniter).
(2) Remove spark plug with 16mm spark plug sleeve.
(3) Install spark plug to each ignition coil (including igniter), and connect ignition coil joint.
(4) Uncouple joints of 4 injection nozzles.
(5) Earth spark plug.
(6) Check spark with engine running.
Notes:Be sure to earth spark plug during checking. When there is falling or collision with ignition coil,please replace with a new oneRunning engine time for each time should not be more than 2 seconds.
If there is no spark, please perform test as the following steps.
(c) Install spark plug with 16mm spark plug sleeve.
Torque: (d) Install ignition coil and igniter.
Torque: 4. Test procedure in the state of not spark
78Perform step 3Spark testReplace with a new spark plugReplace bad spark plug with a good one, and perform spark test again.Spark plug is not goodReplace all spark plugs with new ones, and perform spark plug again.Replace with a new ignition coil (including igniter)Replace bad ignition coil (including igniter) with a new one.
Page 91 of 419

Starting and charging - Starting system(f) Connect magnetic field coil wire to terminal C.
(h) Torque: (i) Clamp starter with jaw vice.
(j) As shown in the diagram, connect battery with ampere
meter.
(k) Read current value displayed on ampere meter.
(l) Current value specification: 90 A or lower at 11.5 V.2. Starter relay80Terminal 50Terminal 30Ampere
meter Specified
conditions
Normal stateConductionConductionTerminal connected
by three-use meter Conditions
Supply battery voltage
to No. 1 and No. 2
terminals
Page 255 of 419

2. Inspection for indicating light of safety airbag
(1) When set the ignition switch at ON position, confirm whether the indicating light illuminates.
(2) After illuminating for five seconds, confirm whether indicating light extinguishes forever.
(3) If starting ignition switch for five seconds, indicating light does not extinguish (flash or illuminate for long
time), confirm the position of system malfunction with special diagnostic tool according to the flash
situation of indicating light.
3. System diagnosis
Safety airbag controller (KD4.1) will implement a series of cycle diagnostic testing to check whether the
function of airbag system has been prepared completely. This test will prevent restraint system from
exploding wrongly and insure the necessary explosion in impact. If finding any malfunction, safety airbag
controller (KD4.1) will store a applicable malfunction code and turn on indicating light to indicate a mal-
function state to be easy to maintain.
4. Malfunction judgment
(1) Malfunction category
System malfunction could be divided into three categories: power supply malfunction, subassembly
assembling malfunction and ECU inner malfunction.
a. Power supply malfunction
Normal working voltage of ECU is 9-18 V, related working voltage is 12 V. When automobile key is
turned to ACC gear, ECU connects power and begins to self-check, indicating light extinguishes
after illuminating for five seconds, this shows there is not any malfunction in ECU and exterior
subassembly, they could work normally. When automobile power voltage is less than 9V or higher
than 18V, ECU will self-check again. If self-checking could pass, ECU works normally, and indicat-
ing light extinguishes; if self-checking could not pass, it is necessary to self-check again, this self-
checking could be made six times, if indicating light illuminates all the time after six times, there is
some malfunction in power supply.
b. Assembling malfunction of airbag subassembly
Assembling malfunction of airbag subassembly is that malfunction which only needs to change or
repair airbag subassembly without needing to change ECU, including the situation that airbag
subassembly is not connected completely. If happening this malfunction when connecting power
supply, indicating light will flash N times at first, then it will illuminate all the time until malfunction is
removed. If happening impact in malfunction term, ECU could explode the channel of good part
and record every malfunction when exploding.
c. Inner malfunction of controller
Inner malfunction is the malfunction happening in ECU body, when happening this malfunction,
ECU could not explode airbag, and will record the impacting acceleration.
Note: common repairer could not repair this inner malfunction, if happening this malfunction,
it is necessary to change ECU.
(2) Malfunction state display
Malfunction treatment
1. Basic procedure of malfunction diagnosis
zAfter assembling new electronic control unit of safety airbag system, indicating light of safety airbag
system will extinguish forever after flashing for 5 seconds when ignition switch is at state of ON, this
shows airbag system works normally. At this time, the system does not need to repair, it is necessary
to make system diagnosis and repair when showing any situation except this.
zIf indicating light of safety airbag system does not illuminate when ignition switch is at the state of ON,
check the related circuits of indicating light, then operate it to make it enter working state.
Supplemental restraint system--Malfunction treatment
244
Warning light illuminate Scanning ECU by connecting Find the malfunction Deal with Clean the code
and does not extinguish diagnostic instrument malfunction
Page 256 of 419

Malfunction display of SRS could confirm originally by the flash of indicating light, detailed information
could be gained by malfunction diagnostic tool.
a. Safety airbag indicating light is driven by ECU, all malfunction displays are finished by ECU. After
working voltage is supplied for safety airbag controller (KD4.1) by battery, safety airbag controller
(KD4.1) illuminates indicating light to check SRS. To notify driver that there are some malfunctions
in system, indicating light will illuminate for long time after working voltage is supplied. If existing
SRS does not have any malfunction, indicating light will close after illuminating for five seconds
after ignition on. In original phase, safety airbag controller (KD4.1) does not prepare to check the
impact and stop the unfold until the wire of safety airbag controller (KD4.1) is reliable.
After ignition switch is turned to “ON” gear, the display type of indicating light when there is no any
malfunction in SRS is:
Assembling malfunction information of subassembly could see follow table 1.
Table1: Assembling malfunction information indicating table for airbag subassembly
Schematic drawing for slow flash indicating light
Supplemental restraint system--Malfunction treatment
245
Ignition switch “ON”
Illuminate
Extinguish NumberMalfunction type
Slow flash times (N times)Remark

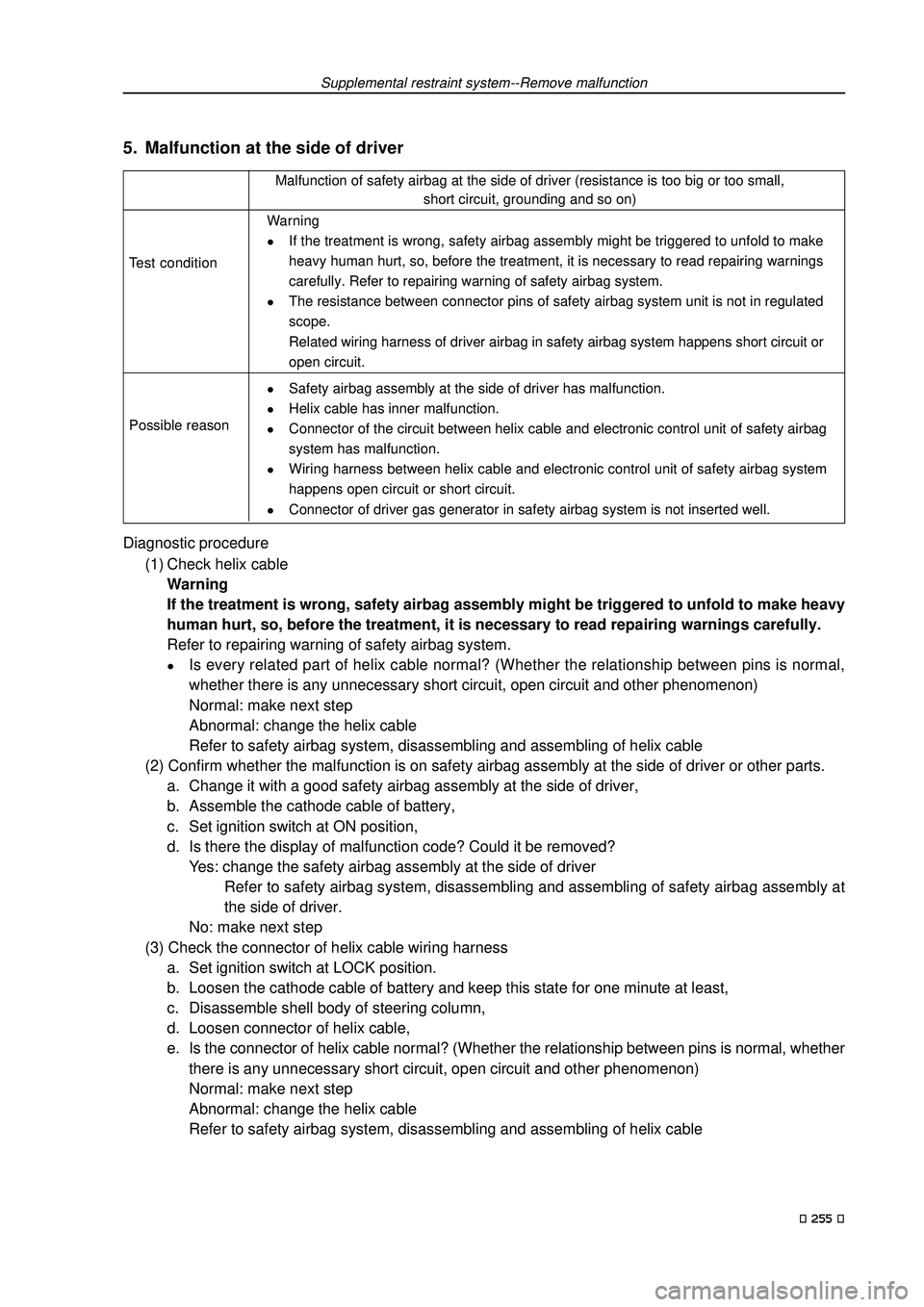

1Igniter at the side of driver happens short circuit3
2Igniter at the side of driver happens open circuit4
3Igniter at the side of driver connects grounding5
4Igniter at the side of driver connects battery6
5
Igniter at the side of passenger happens short circuit7
6
Igniter at the side of passenger happens open circuit8
7
Igniter at the side of passenger connects grounding9
8Igniter at the side of passenger connects battery10
9
Safety belt at the side of driver happens pre-tightening malfunction11
10
Safety belt at the side of passenger happens pre-tightening malfunction12
12Impact output interface happens malfunction
or wrong explosion
of airbag subas-
sembly will make
big hurt for human,
its warning rea-
sons should be di-
vided detailedly.
