ignition GENESIS G70 2019 Multimedia System Manual

Thank you for purchasing this multimedia
system.
This user’s manual explains how to use the
GENESIS multimedia system.
Before using the product, read the contents
of this user’s manual carefully and use this
product safely.
• The screens shown in this manual may differ
with the actual screens of the product.
• The design and specification of this product
may change without prior notification for
product improvement.
• When transferring the vehicle to another
individual, include this user’s manual so that
the next driver can continue its use.
Precautions for safe usage
•
Driving while distracted can result in a loss of
vehicle control, that may lead to an accident,
severe personal injury, and death. The driver’s
primary responsibility is in the safe and legal
operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems
which take the driver’s eyes, attention and
focus away from the safe operation of a vehicle
or which are not permissible by law should
never be used during operation of the vehicle.
• Do not operate the multimedia system while
driving.
• Do not disassemble, assemble, or modify the
multimedia system.
•
Do not watch the screen for prolonged periods
of time while driving.
•
Set the volume to a level which allows the
driver to be aware of external conditions.
•
Do not operate the multimedia system for
prolonged periods of time with the vehicle
ignition in ACC. Such operations may lead to
battery discharge.
• Be cautious not to spill water or introduce
foreign objects into the device.
• Do not cause severe shock to the device. Direct
pressure onto the front side of the monitor
may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact
your place of purchase or service center.
• When cleaning the touch screen, make sure to
turn off the device and use a dry and smooth
cloth. Never use tough materials, chemical
cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may
damage the device panel or cause color and
quality deterioration.
• SiriusXM service requires a subscription, sold
separately, after 3-month trial included with
vehicle purchase. If you decide to continue
your SiriusXM service at the end of your
trial subscription, the plan you choose will
automatically renew and bill at then-current
rates until you call Sirius XM at 1-866-635-
2349 to cancel. See our Customer Agreement
for complete terms at www.siriusxm.com.
Programming subject to change. Sirius satellite
service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR
(with coverage limitations). Traffic information
not available in all markets. See siriusxm.com/
traffic for details. Sirius, XM and all related
marks and logos are trademarks of Sirius XM
Radio Inc.
WARNING
• Driving while distracted can result in a loss
of vehicle control that may lead to an acci-
dent, severe personal injury, and death. The
driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of
any handheld devices, other equipment,
or vehicle systems which take the driver’s
eyes, attention and focus away from the
safe operation of a vehicle or which are not
permissible by law should never be used
during operation of the vehicle.
H_IK 17_DAUD[USA_EU]AV_G9MS7D2000_.indb 4-62018-01-22 오후 1:29:01

Warnings and Cautions\c I 1-3
Cautions
\burn on the car ignition before using this
device. Do not operate the Multimedia
system for long periods of time with the
ignition turned off as such operations may
lead to battery discharge.
Pay attention to traffic conditions while
driving.
• Upon using the Multimedia system
for more than 10 minutes with the car
engine turned off, the following warning
will be displayed. After 10 minutes, the
warning will be displayed for 5 seconds
every 1 minute.
• Do not subject the device to severe
shock or impact. Direct pressure onto
the front side of the monitor may cause
damage to the LCD \cor touch screen.
• When cleaning the device, make sure
to turn off the device and use a dry and
smooth cloth. Never use tough materi-
als, chemical cloths, or solvents(alcohol,
benzene, thinners, etc.) as such mate-
rials may damage the device panel or
cause color/quality deterioration. When
experiencing product concerns, inquire
with your place of purchase or service
maintenance center.
• Prevent caustic solutions such as per-
fume and cosmetic oil from contacting
the dashboard because they may cause
damage or discoloration.
H_IK 17_DAUD[USA_EU]AV_G9MS7D2000_.indb 32018-01-22 오후 1:29:42
01

1-8 I Basic
Starting the System for the
First Time
T\frning the System On\bOff
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit
will display the safety guide. \bo change the
system language between English,
French, \fpanish and Korean, select the
Language button.
NOTICE
• You cannot operate the system while it is
booting up. It may take some time for all of
features of the system, particularly the voice
recognition system,\c to be ready for use.
Pressing and holdi\cng the power key on the
head unit will tur\cn off the system.
Information
•
If you turn off the system during a phone call
using the Hands-free feature, then the call will
automatically switch to your mobile phone.
NOTICE
• Check the volume when turning on the
system. Before turning on the system, adjust
the volume to a reasona\cble level.
System Reset
\bhe \fystem Reset function restores the
system when it is not operating correctly.
Press and hold the RE\fE\b key for a sec-
ond or longer. (It is recommended that you
press the RE\fE\b key using a tool, such
as a pin or a clip.)
H_IK 17_DAUD[USA_EU]AV_G9MS7D2000_.indb 82018-01-22 오후 1:29:44

Before Using the Blue\dtooth® Handsfree I 3\b3
CAUT\bONS upon Connecting
Bluetooth® Phone
• Before connecting the head unit with
the mobile phone, check to see that the
mobile phone supports Bluetooth® fea\b
tures
• Even if the phone supports Bluetooth®
Wireless Technology, the phone will
not be found during device searches if
the phone has been set to hidden state
or the Bluetooth® power is turned off.
Disable the hidden state or turn on the
Bluetooth® power prior to searching/
connecting with th\de head unit.
• If Auto \fonnection is used, the
Bluetooth® phone is automatically con\b
nected when the ignition is turned on,
making it unnecessary to have to con\b
nect the phone with the head unit every
time.
• If you do not want automatic connection
with your Bluetooth® device, turn the
Bluetooth® feature off of the Bluetooth®
device.
• Park the vehicle when connecting the
head unit with the \dmobile phone.
• Bluetooth® connection may become
intermittently disconnected in some
mobile phones. Follow these steps to try
again.
1. Turn the Bluetooth® function within
the mobile phone OFF/ON and try
again.
2. Turn the mobile phone power OFF/
ON and try again.
3. \fompletely remove the mobile
phone battery, reboot, and then
again.
4. Reboot the Multimedia System and
try again.
5. Delete all paired devices from both
of Phone and Head Unit sides and
then try again
• The Handsfree call volume and quality
may differ depending on the mobile
phone.
• Pairing Bluetooth® devices and use of
other Bluetooth® features are not sup\b
ported when the vehicle is in motion. For
safety, please first par\dk your vehicle.
• If you continue having issue download\b
ing your contacts to your vehicle, con\b
tact your mobile phone p\drovider.

H_IK 17_DAUD[USA_EU]AV_G9MS7D2000_.indb 32018-01-22 오후 1:29:50
03

4-4 I Genesis Conne\Ncted Ser\bices (i\f equipped)\N

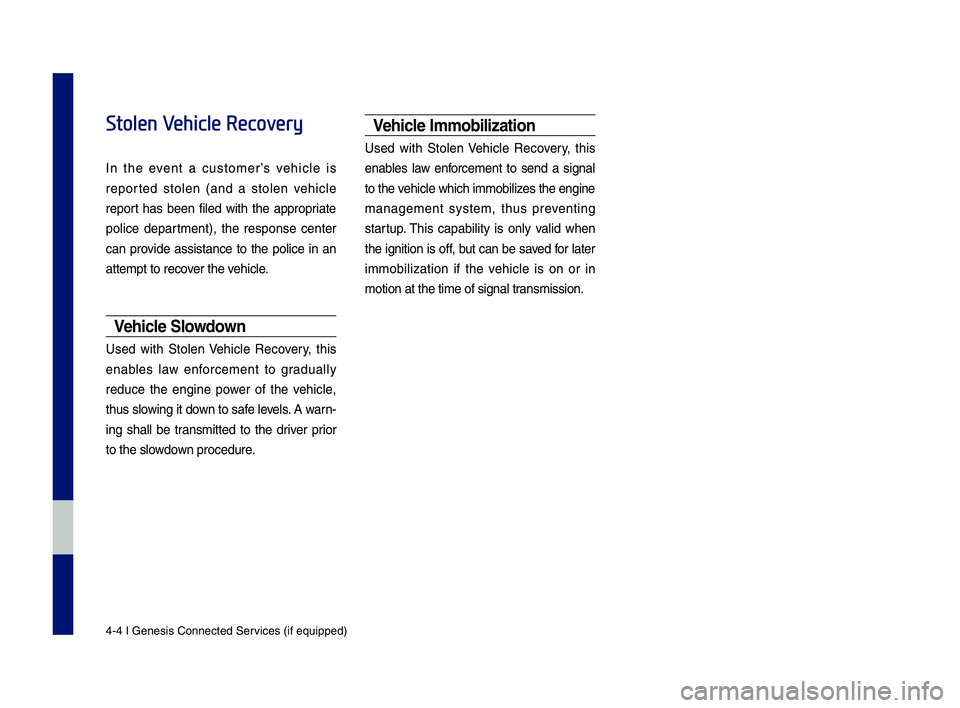

Stolen Vehicle Recovery
In the e\bent a customer’s \behicle is
reported stolen (and a stolen \behicle
report has been \filed with the appropriate
police department), the response center
can pro\bide assistance to the police in an
attempt to reco\ber the \behicle.
Vehicle Slowdown
Used with Stolen Vehicle Reco\bery, this
enables law en\forcement to gradually
reduce the engine power o\f the \behicle,
thus slowing it down to sa\fe le\bels. A warn-
ing shall be transmitted to the dri\ber prior
to the slowdown procedure.
Vehicle Immobilization
Used with Stolen Vehicle Reco\bery, this
enables law en\forcement to send a signal
to the \behicle which immobi\Nlizes the engine
management system, thus pre\benting
startup. This capability is only \balid when
the ignition is o\f\f, but can be sa\bed \for later
immobilization i\f the \behicle is on or in
motion at the time\N o\f signal transmission.
