09
9-41
7. Uniform tire quality grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width.
For example:
TREADWEAR 200
TRACTION AA
TEMPERATURE A
Tread wear
The tread wear grade is a
compar
ative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded 150 would
wear one-and-a-half times (1½) as
well on the government course as a
tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.
These grades are molded on the
sidewalls of passenger vehicle tires.
The tires available as standard or
optional equipment on your vehicle
may vary with respect to grade. Traction - AA, A, B C
The traction grades, from highest
t

o lowest, are AA, A, B and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
WARNING
The traction grade assigned to
this tire is based on straight ahead
braking traction tests, and does not
include acceleration, cornering,
hydroplaning, or peak traction
characteristics.
Temperature - A, B C
The temperature grades are A (the
highes
t), B and C representing the
tire’s resistance to the generation
of heat and its ability to dissipate
heat when tested under controlled
conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life,
and excessive temperature can
lead to sudden tire failure. Grades
B and A represent higher levels of
performance on the laboratory test
wheel than the minimum required
by law.

Maintenance9-44
Pneumatic tire
A mechanical device made of rubber,
chemicals, fabric and steel or other
materials, that, when mounted on
an automotive wheel provides the
traction and contains the gas or fluid
that sustains the load.
Pneumatic options weight
The combined weight of installed
regular production options weighing
over 5 lb. (2.3 kg) in excess of the
standard items which they replace,
not previously considered in
curb weight or accessory weight,
including heavy duty breaks, ride
levelers, roof rack, heavy duty
battery, and special trim.
Recommended inflation pressure
Vehicle manufacturer’s
recommended tire inflation pressure
as shown on the tire placard.
Radial ply tire
A pneumatic tire in which the ply
cords that extend to the beads are
laid at 90 degrees to the centerline
of the tread.
Rim
A metal support for a tire and upon
which the tire beads are seated.
Sidewall
The portion of a tire between the
tread and the bead.
Speed rating
An alphanumeric code assigned to a
tire indicating the maximum speed
at which a tire can operate. Traction
The friction between the tire and
the road surface. The amount of grip
provided.
Tread
The portion of a tire that comes into
contact with the road.
Treadwear indicators
Narrow bands, sometimes called
“wear bars”, that show across the
tread of a tire when only 1/16 inch of
tread remains.
UTQGS
Uniform Tire Quality Grading
Standards is a tire information
system that provides consumers
with ratings for a tire’s traction,
temperature and treadwear.
Ratings are determined by tire
manufacturers using government
testing procedures. The ratings are
molded into the sidewall of the tire.
Vehicle capacity weight
The number of designated seating
positions multiplied by 150 lbs. (68
kg) plus the rated cargo and luggage
load.
Vehicle maximum load on the tire
Load on an individual tire due to curb
and accessory weight plus maximum
occupant and cargo weight.
Vehicle normal load on the tire
Load on an individual tire that is
determined by distributing to each
axle its share of the curb weight,
accessory weight, and normal
occupant weight and dividing by 2.

09
9-45
Vehicle placard
A label permanently attached
to a vehicle showing the
original equipment tire size and
recommended inflation pressure.
All Season Tires
Genesis Branded Vehicle specifies
all season tires on some models to
provide good performance for use
all year round, including snowy and
icy road conditions. All season tires
are identified by ALL SEASON and/
or M+S (Mud and Snow) on the tire
sidewall. Snow tires have better
snow traction than all season tires
and may be more appropriate in
some areas.
Summer Tires
Genesis Branded Vehicle specifies
summer tires on some models to
provide superior performance on dry
roads. Summer tire performance is
substantially reduced in snow and
ice. Summer tires do not have the
tire traction rating M+S (Mud and
Snow) on the tire side wall. If you
plan to operate your vehicle in snowy
or icy conditions, Genesis Branded
Vehicle recommends the use of
snow tires or all season tires on all
four wheels.
Snow Tires
If you equip your car with snow
tires, they should be the same size
and have the same load capacity as
the original tires. Snow tires should
be installed on all four wheels;
otherwise, poor handling may result.
Snow tires should carry 4 psi (28 kPa)
more air pressure than the pressure
recommended for the standard
tires on the tire label on the driver’s
side of the center pillar, or up to the
maximum pressure shown on the tire
sidewall, whichever is less. Do not
drive faster than 75 mph (120 km/h)
when your vehicle is equipped with
snow tires.
Radial-Ply Tires
Radial-ply tires provide improved
tread life, road hazard resistance
and smoother high speed ride. The
radial-ply tires used on this vehicle
are of belted construction, and are
selected to complement the ride
and handling characteristics of
your vehicle. Radial-ply tires have
the same load carrying capacity,
as bias-ply or bias belted tires of
the same size, and use the same
recommended inflation pressure.
Mixing of radial-ply tires with
bias-ply or bias belted tires is not
recommended. Any combinations of
radial-ply and bias-ply or bias belted
tires when used on the same vehicle
will seriously deteriorate vehicle
handling. The best rule to follow
is: Identical pairs of radial-ply tires
should always be used as a set for
the front tires and a set for the rear
tires.

Maintenance9-46
Longer wearing tires can be more
susceptible to irregular tread wear.
It is very important to follow the tire
rotation interval in this chapter to
achieve the tread life potential of
these tires. Cuts and punctures in
radial-ply tires are repairable only in
the tread area, because of sidewall
flexing. Consult your tire dealer for
radial-ply tire repairs.
WARNING
Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics that may cause loss
of vehicle control resulting in an
accident.
Low Aspect Ratio Tires
The aspect ratio is lower than 50 on
low aspect ratio tires.
Because low aspect ratio tires are
optimized for handling and braking,
their sidewall is a little stiffer than a
standard tire. Also, low aspect ratio
tires tend to be wider so that they
consequently have a greater contact
patch with the road surface. In some
instances, they may generate more
road noise compared with standard
tires.
CAUTION
The side wall of a low aspect ratio
tire is shorter than the normal one.
Thus, the low-aspect wheel and
tire are easily damaged. Follow the
below instructions.

[ When driving on a rough road or
driving off a road, be careful not
to damage the tires and wheels.
After driving, inspect the tires
and wheels.

[ When passing over a pothole,
speed bump, manhole, or curb
stone, drive the vehicle slowly so
as not to damage the tires and
wheels.

[ When there is an impact on a tire,
inspect the tire condition. Or,
contact an authorized retailer of
Genesis Branded products.

[ Inspect the tire condition and
pressure every 1,800 miles (3,000
km) to prevent tire damage.

[ It is difficult to recognize a tire
damage only with your eyes.
When there is a slight hint of a
tire damage, check and replace
the tire to prevent the damage
caused by air leakage.

[ When a tire is damaged while
driving on a rough road, off a
road, or over obstacles, such as a
pothole, manhole, or curb stone,
your warranty does not cover the
damage.

[ The tire information is specified
on the tire side wall.

09
9-71
Bright-metal maintenance

[To remove road tar and insects, use
a tar remover, not a scraper or other
sharp object.

[ To protect the surfaces of brightmetal
parts from corrosion, apply a coating
of wax or chrome preservative and rub
to a high luster.

[ During winter weather or in coastal
areas, cover the bright metal parts
with a heavier coating of wax or
preservative. If necessary, coat the
parts with non-corrosive petroleum
jelly or other protective compound.
Underbody maintenance
Corrosive materials used for ice and
snow removal and dust control may
collect on the underbody. If these
materials are not removed, accelerated
rusting can occur on underbody parts
such as the fuel lines, frame, floor pan
and exhaust system, even though they
have been treated with rust protection.
Thoroughly flush the vehicle underbody
and wheel openings with lukewarm or
cold water once a month, after off-road
driving and at the end of each winter.
Pay special attention to these areas
because it will do more harm than good
if the road grime becomes wet without
removing it. The lower edges of doors,
rocker panels, and frame members have
drain holes that should not be allowed
to clog with dirt; trapped water in these
areas can cause rusting.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired, dry
the brakes by applying them lightly
while maintaining a slow forward
speed.
Aluminum wheel maintenance
The aluminum wheels are coated with a
clear protective finish.

[Do not use abrasive cleaner, polishing
compound, solvent, or wire brushes
on aluminum wheels.

[ Clean the wheel when it has cooled.

[ Use only a mild soap or neutral
detergent, and rinse thoroughly with
water. Also, clean the wheels after
driving on salted roads.

[ Do not wash the wheels with high-
speed car wash brushes.

[ Do not use any cleaners containing
acid or alkaline detergents.

Maintenance9-74
Interior Care
Interior general precautions
Prevent caustic solutions such as
perfume and cosmetic oil, from
contacting the interior parts because
they may cause damage or discoloration.
If they do contact the interior parts,
wipe them off immediately. See the
instructions for the proper way to clean
vehicle interior surfaces.
NOTICE

[ Never allow water or other liquids
to come in contact with electrical/
electronic components inside the
vehicle as this may damage them.

[ When cleaning leather products
(steering wheel, seats etc.), use
neutral detergents or low alcohol
content solutions. If you use high
alcohol content solutions or acid/
alkaline detergents, the color of the
leather may fade or the surface may
get stripped off.
Cleaning the upholstery and interior
trim
ehicle interior surfaces
Remove dust and loose dirt from interior
surf
aces with a whisk broom or a vacuum
cleaner.
If necessary, clean interior surfaces with
a mixture of warm water and mild non-
detergent cleaner (test all cleaners on a
concealed area before use).
Fabric
Remove dust and loose dirt from
f

abric with a whisk broom or vacuum
cleaner. Clean with a mild soap solution
recommended for upholstery or carpets.
Remove fresh spots immediately with
a fabric spot cleaner. If fresh spots do
not receive immediate attention, the
fabric can be stained and its color can be
affected. Also, its fire-resistant properties
can be reduced if the material is not
properly maintained.
NOTICE
Using anything but recommended
cleaners and procedures may affect the
fabric’s appearance and fire-resistant
properties.

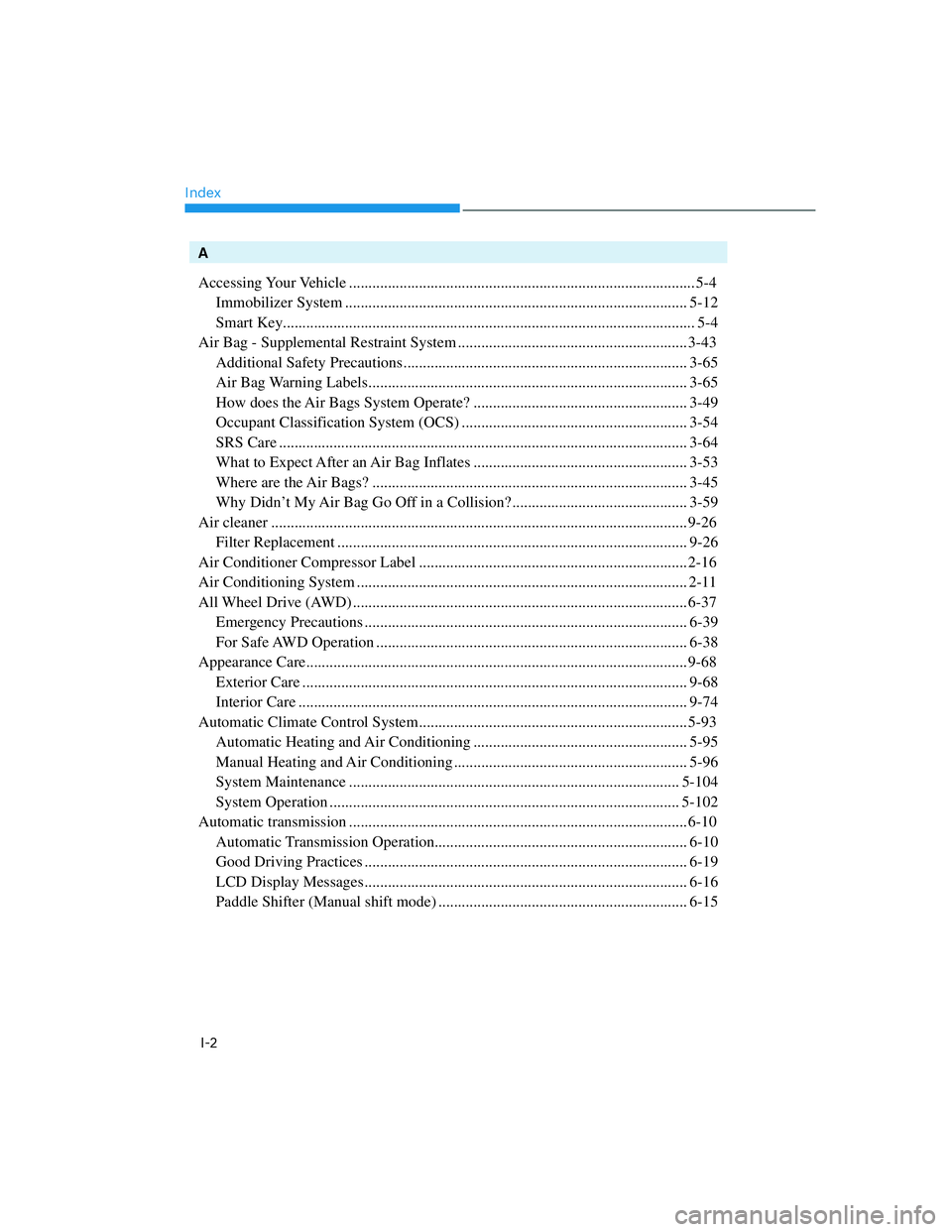

IndexI-2
A
Accessing Your Vehicle ........................................................................\
................. 5-4
Immobilizer System ........................................................................\
................ 5-12
Smart Key........................................................................\
.................................. 5-4
Air Bag - Supplemental Restraint System ........................................................... 3-43
Additional Safety Precautions ........................................................................\
. 3-65
Air Bag Warning Labels ........................................................................\
.......... 3-65
How does the Air Bags System Operate? ....................................................... 3-49
Occupant Classification System (OCS) .......................................................... 3-54
SRS Care ........................................................................\
................................. 3-64
What to Expect After an Air Bag Inflates ....................................................... 3-53
Where are the Air Bags? ........................................................................\
......... 3-45
Why Didn’t My Air Bag Go Off in a Collision? ............................................. 3-59
Air cleaner ........................................................................\
................................... 9-26
Filter Replacement ........................................................................\
.................. 9-26
Air Conditioner Compressor Label ..................................................................... 2-16
Air Conditioning System ........................................................................\
............. 2-11
All Wheel Drive (AWD) ........................................................................\
.............. 6-37
Emergency Precautions ........................................................................\
........... 6-39
For Safe AWD Operation ........................................................................\
........ 6-38
Appearance Care ........................................................................\
.......................... 9-68
Exterior Care ........................................................................\
........................... 9-68
Interior Care ........................................................................\
............................ 9-74
Automatic Climate Control System ..................................................................... 5-93
Automatic Heating and Air Conditioning ....................................................... 5-95
Manual Heating and Air Conditioning ............................................................ 5-96
System Maintenance ........................................................................\
............. 5-104
System Operation ........................................................................\
.................. 5-102
Automatic transmission ........................................................................\
............... 6-10
Automatic Transmission Operation................................................................. 6-10
Good Driving Practices ........................................................................\
........... 6-19
LCD Display Messages ........................................................................\
........... 6-16
Paddle Shifter (Manual shift mode) ................................................................ 6-15

I

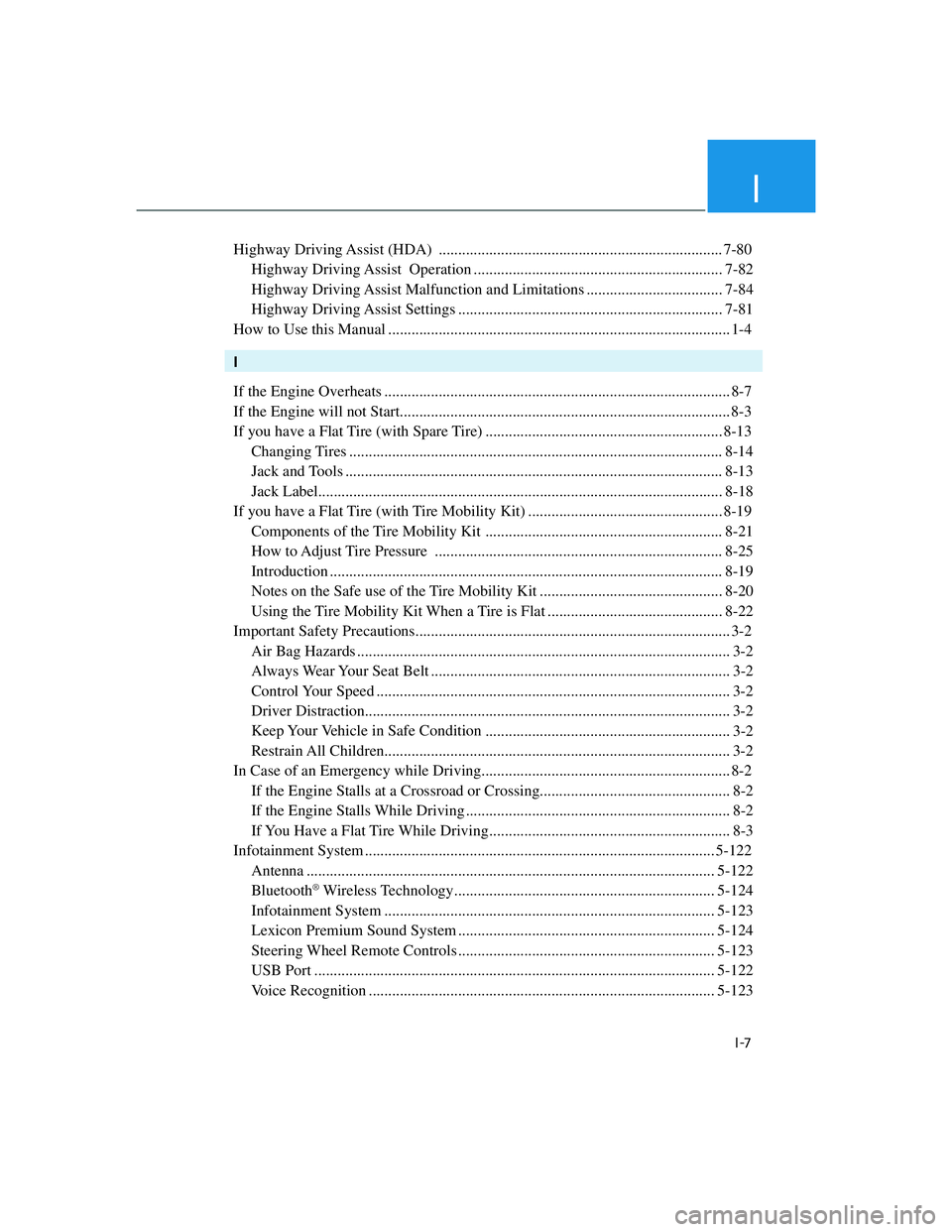

I-7
Highway Driving Assist (HDA) ........................................................................\
. 7-80Highway Driving Assist Operation ................................................................ 7-82
Highway Driving Assist Malfunction and Limitations ................................... 7-84
Highway Driving Assist Settings .................................................................... 7-81
How to Use this Manual ........................................................................\
................ 1-4
I
If the Engine Overheats ........................................................................\
................. 8-7
If the Engine will not Start........................................................................\
............. 8-3
If you have a Flat Tire (with Spare Tire) ............................................................. 8-13
Changing Tires ........................................................................\
........................ 8-14
Jack and Tools ........................................................................\
......................... 8-13
Jack Label..............................................................\
.......................................... 8-18
If you have a Flat Tire (with Tire Mobility Kit) .................................................. 8-19
Components of the Tire Mobility Kit ............................................................. 8-21
How to Adjust Tire Pressure ........................................................................\
.. 8-25
Introduction ........................................................................\
............................. 8-19
Notes on the Safe use of the Tire Mobility Kit ............................................... 8-20
Using the Tire Mobility Kit When a Tire is Flat ............................................. 8-22
Important Safety Precautions ........................................................................\
......... 3-2
Air Bag Hazards ........................................................................\
........................ 3-2
Always Wear Your Seat Belt ........................................................................\
..... 3-2
Control Your Speed ........................................................................\
................... 3-2
Driver Distraction........................................................................\
...................... 3-2
Keep Your Vehicle in Safe Condition ............................................................... 3-2
Restrain All Children........................................................................\
................. 3-2
In Case of an Emergency while Driving ................................................................ 8-2
If the Engine Stalls at a Crossroad or Crossing................................................. 8-2
If the Engine Stalls While Driving .................................................................... 8-2
If You Have a Flat Tire While Driving .............................................................. 8-3
Infotainment System ........................................................................\
.................. 5-122
Antenna ........................................................................\
................................. 5-122
Bluetooth
® Wireless Technology................................................................... 5-124
Infotainment System ........................................................................\
............. 5-123
Lexicon Premium Sound System .................................................................. 5-124
Steering Wheel Remote Controls .................................................................. 5-123
USB Port ........................................................................\
............................... 5-122
Voice Recognition ........................................................................\
................. 5-123

IndexI-12
Seats ........................................................................\
............................................... 3-3 Air Ventilation Seats ........................................................................\
............... 3-19
Front Seats ........................................................................\
................................. 3-6
Head Restraints ........................................................................\
....................... 3-13
Rear Occupant Alert (ROA) ........................................................................\
.... 3-21
Rear Seats ........................................................................\
................................ 3-11
Safety Precautions ........................................................................\
..................... 3-5
Seat Warmers ........................................................................\
........................... 3-17
Smart Cruise Control (SCC) ........................................................................\
........ 7-52
Smart Cruise Control Malfunction and Limitations........................................ 7-62
Smart Cruise Control Operation...................................................................... 7-56
Smart Cruise Control Settings ........................................................................\
. 7-53
Special Driving Conditions ........................................................................\
......... 6-49
Driving at Night ........................................................................\
...................... 6-50
Driving in Flooded Areas ........................................................................\
........ 6-51
Driving in the Rain ........................................................................\
.................. 6-50
Hazardous Driving Conditions ........................................................................\
6-49
Highway Driving ........................................................................\
..................... 6-51
Rocking the Vehicle ........................................................................\
................ 6-49
Smooth Cornering ........................................................................\
................... 6-50
Steering Wheel ........................................................................\
............................. 5-35
Heated Steering Wheel ........................................................................\
............ 5-38
Horn........................................................................\
......................................... 5-37
Motor Driven Power Steering (MDPS)....................................\
....................... 5-35
Tilt/Telescopic Steering ........................................................................\
........... 5-36
Storage Compartment ........................................................................\
................ 5-112
Center Console Storage ........................................................................\
......... 5-112
Glove Box ........................................................................\
............................. 5-113
Sunglass Holder ........................................................................\
.................... 5-113
Surround View Monitor (SVM) ........................................................................\
.. 7-90
Surround View Monitor Malfunction and Limitations ................................... 7-94
Surround View Monitor Operation ................................................................. 7-92
Surround View Monitor Settings .................................................................... 7-91

I
I-13
T
Theft-Alarm System........................................................................\
.................... 5-31
Tire Pressure Monitoring System (TPMS) ............................................................ 8-8
Changing a Tire with TPMS ........................................................................\
... 8-11
Check Tire Pressure........................................................................\
................... 8-8
Low Tire Pressure Position and Tire Pressure Telltale .................................... 8-10
Low Tire Pressure Warning Light ................................................................... 8-10
Tire Pressure Monitoring System ...................................................................... 8-9
TPMS (Tire Pressure Monitoring System) Malfunction Indicator ................. 8-11
Tire Specification and Pressure Label ................................................................. 2-15
Tires and Wheels ........................................................................\
......................... 2-10
All Season Tires ........................................................................\
...................... 9-45
Check tire Inflation Pressure ........................................................................\
... 9-35
Low Aspect Ratio Tires ........................................................................\
........... 9-46
Radial-Ply Tires ........................................................................\
....................... 9-45
Recommended Cold Tire Inflation Pressures .................................................. 9-34
Snow Tires ........................................................................\
............................... 9-45
Summer Tires ........................................................................\
.......................... 9-45
Tire Care ........................................................................\
.................................. 9-34
Tire Maintenance ........................................................................\
..................... 9-38
Tire Replacement ........................................................................\
.................... 9-37
Tire Rotation ........................................................................\
........................... 9-36
Tire Sidewall Labeling ........................................................................\
............ 9-39
Tire Terminology and Definitions ................................................................... 9-42
Tire Traction ........................................................................\
............................ 9-38
Wheel Alignment and Tire Balance ................................................................ 9-37
Wheel Replacement ........................................................................\
................ 9-38
To w i n g ........................................................................\
......................................... 8-26
Emergency Towing........................................................................\
.................. 8-28
Removable Towing Hook....................................................................\
............ 8-27
Towing Service ........................................................................\
........................ 8-26
Trailer Towing ........................................................................\
............................. 6-62
