trailer GENESIS G70 2023 User Guide

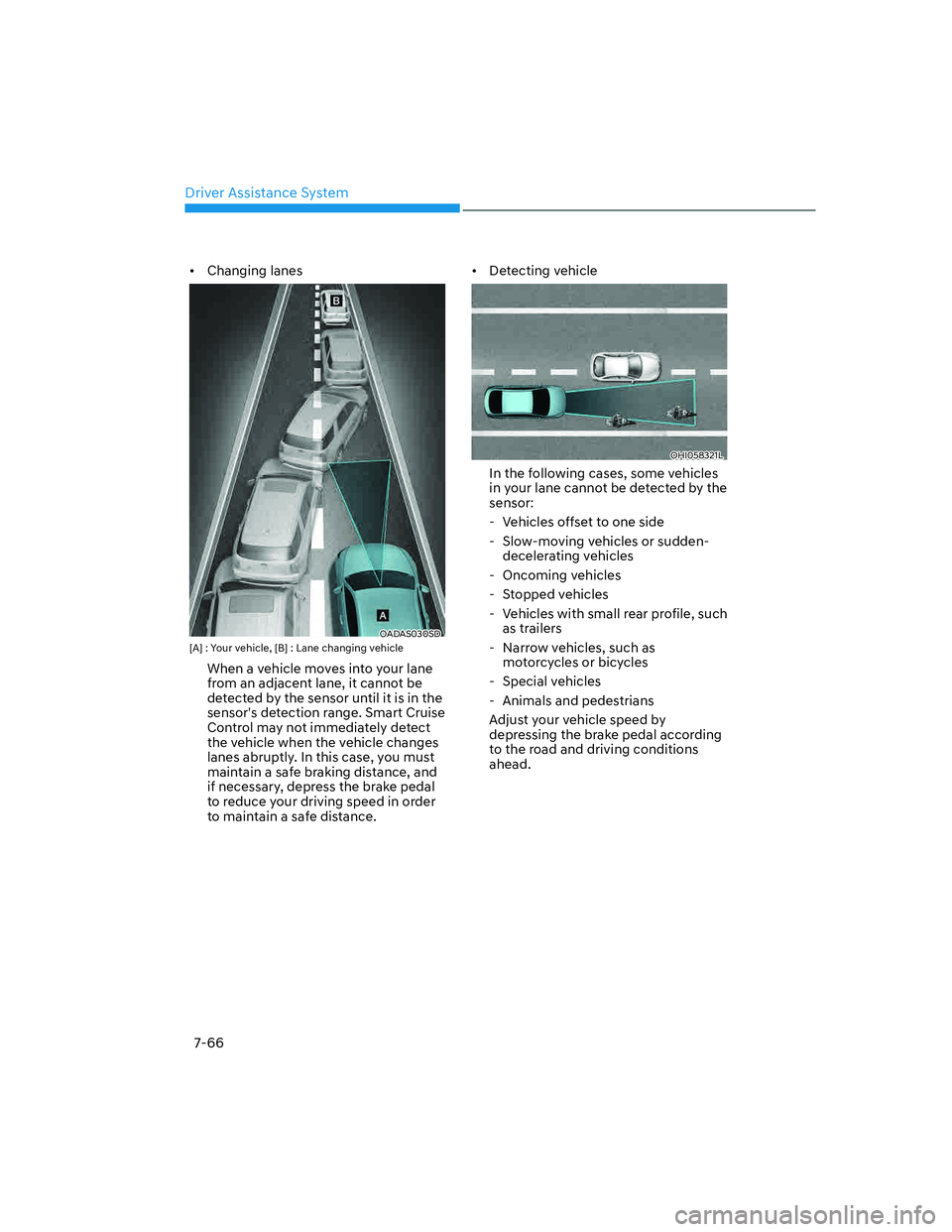

Driver Assistance System7-66

[ Changing lanes
OADAS030SD [A] : Your vehicle, [B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
[
Detecting vehicle
OHI058321L
In the following cases, some vehicles
in your lane cannot be detected by the
sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden- decelerating vehicles
- Oncoming vehicles
- Stopped vehicles

- Vehicles with small rear profile, such
as trailers
- Narrow vehicles, such as motorcycles or bicycles
- Special vehicles
- Animals and pedestrians
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.

07
7-101
Rear Cross-Traffic Collision-
Avoidance Assist Malfunction
and Limitations
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
OTM070125N
When Rear Cross-Traffic Collision-
Avoidance Assist is not working properly,
the ‘Check Rear Cross-Traffic Safety
V\VWHP
T ZDUQLQJ PHVVDJH ZLOO DSSHDU RQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. Have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
OTM070100N
When the side view mirror warning
light is not working properly, the ‘Check
VLGH YLHZ PLUURU ZDUQLQJ OLJKW
T ZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Rear Cross-Traffic Collision-
Avoidance Assist disabled
OTM070124N
When the rear bumper around the rear-
side radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Collision-Avoidance Assist.
If this occurs, the ‘Rear Cross-Traffic
6DIHW\ V\VWHP GLVDEOHG 5DGDU EORFNHG
T
warning message will appear on the
cluster.
Rear Cross-Traffic Collision-Avoidance
Assist will operate properly when
such foreign material or trailer, etc., is
removed.
If Rear Cross-Traffic Collision-Avoidance
Assist does not operate properly after it
is removed, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.

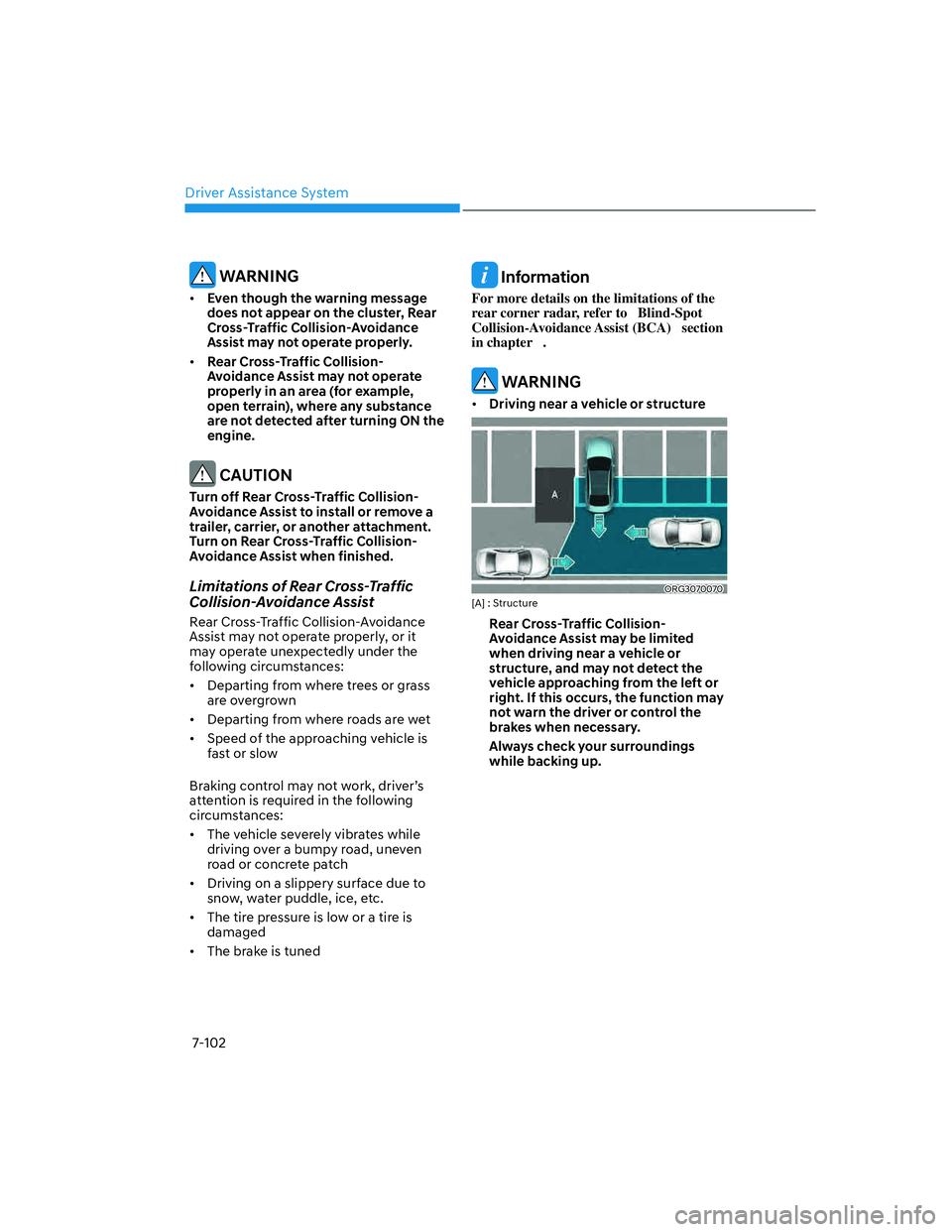

Driver Assistance System7-102
WARNING

[ Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Collision-Avoidance
Assist may not operate properly.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
properly in an area (for example,
open terrain), where any substance
are not detected after turning ON the
engine.
CAUTION
Turn off Rear Cross-Traffic Collision-
Avoidance Assist to install or remove a
trailer, carrier, or another attachment.
Turn on Rear Cross-Traffic Collision-
Avoidance Assist when finished.
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist
Rear Cross-Traffic Collision-Avoidance
Assist may not operate properly, or it
may operate unexpectedly under the
following circumstances:

[Departing from where trees or grass
are overgrown

[ Departing from where roads are wet

[ Speed of the approaching vehicle is
fast or slow
%UDNLQJFRQWUROPD\QRWZRUNGULYHU
TV
attention is required in the following
circumstances:

[ The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ The tire pressure is low or a tire is
damaged

[ The brake is tuned
Information
For more details on the limitations of the
rear corner radar, refer to Blind-Spot
Collision-Avoidance Assist (BCA) section
in chapter .
WARNING

[Driving near a vehicle or structure
ORG3070070[A] : Structure
Rear Cross-Traffic Collision-
Avoidance Assist may be limited
when driving near a vehicle or
structure, and may not detect the
vehicle approaching from the left or
right. If this occurs, the function may
not warn the driver or control the
brakes when necessary.
Always check your surroundings
while backing up.

08
8-19
OIK082008N
For safe operation, carefully read and
follow the instructions in this manual
before use.
(1) Compressor
(2) Sealant bottle
The Tire Mobility Kit is a temporary fix to
the tire and the tire should be inspected
by an authorized retailer of Genesis
Branded products or the equivalent
approved for your vehicle as soon as
possible.
CAUTION
When two or more tires are flat, do not
use the tire mobility kit because the
supported one sealant of Tire Mobility
Kit is only used for one flat tire.
WARNING
Do not use the Tire Mobility Kit to repair
punctures in the tire walls. This can
result in an accident due to tire failure.
WARNING
Have your tire repaired as soon as
possible. The tire may lose air pressure
at any time after inflating with the Tire
Mobility Kit.
Introduction
With the Tire Mobility Kit, you can keep
the mobile even after experiencing a tire
puncture.
The compressor and sealing compound
system effectively and comfortably seals
most punctures in a passenger car tire
caused by nails or similar objects and
reinflates the tire.
After you ensure that the tire is properly
sealed, you can drive cautiously
(distance up to 120 miles (200 km)) at a
max. speed of 50 mph (80 km/h) in order
to reach a service station or tire dealer
for the tire replacement.
It is possible that some tires, especially
with larger punctures or damage to the
sidewall, cannot be sealed completely.
Air pressure loss in the tire may adversely
affects tire performance.
For this reason, you should avoid abrupt
steering or other driving maneuvers,
especially if the vehicle is heavily loaded
or if a trailer is in use.
The Tire Mobility Kit is not designed
or intended as a permanent tire repair
method and is to be used for one tire
only.
This instruction shows you how to
temporarily seal the puncture simply and
reliably.
Read the section “Notes on the safe use
of the Tire Mobility Kit”.
,)<28+$9($)/$77,5(

09
9-55
Engine compartment fuse panel
Fuse NameFuse Rating Circuit Protected
ALT 175A
225A Alt

ernator, Fuse - F2,
Multi Fuse 1 - F4, F6, F7, F8, F9, F10, F11, F12, F13
C/FAN3 125A[G6DP - BLDC Motor] Cooling Fan Controller
GLOW [D4HB] Glow Relay Unit
START 30A RLY. 7 (Start Relay)
C/FAN1 80A [BLDC Motor] Cooling Fan Controller
B+3 50AICU Junction Block (Fuse - F5, Leak Current Autocut
Device Fuse - F2, F4, F13, F14, F21, F22)
B+2 50A ICU Junction Block (Fuse - F27, F35, F43, F51, F52)
B+1 50A ICU Junction Block (Fuse - F28, F29, F37, F45, F53)
EOP 50A [With ISG] Electric Oil Pump Module
ESP1 40A ESP Control Module
ESP2 40A ESP Control Module
BLOWER 40A RLY. 6 (Blower Relay)
IG2 30A PCB Block (IG2 Relay)
MDPS 100A MDPS Unit
B+4 60APCB Block
(Engine Control Relay, Fuse - F4, F5, F13, F22)
C/FAN2 60A [DC Motor] RLY. 9 (Cooling Fan Relay)
E-CVVT1 40A [G4KL] RLY. 8 (E-CVVT Relay)
TRAILER 40A Trailer Connector

I
I-13
T
Theft-Alarm System........................................................................\
.................... 5-31
Tire Pressure Monitoring System (TPMS) ............................................................ 8-8
Changing a Tire with TPMS ........................................................................\
... 8-11
Check Tire Pressure........................................................................\
................... 8-8
Low Tire Pressure Position and Tire Pressure Telltale .................................... 8-10
Low Tire Pressure Warning Light ................................................................... 8-10
Tire Pressure Monitoring System ...................................................................... 8-9
TPMS (Tire Pressure Monitoring System) Malfunction Indicator ................. 8-11
Tire Specification and Pressure Label ................................................................. 2-15
Tires and Wheels ........................................................................\
......................... 2-10
All Season Tires ........................................................................\
...................... 9-45
Check tire Inflation Pressure ........................................................................\
... 9-35
Low Aspect Ratio Tires ........................................................................\
........... 9-46
Radial-Ply Tires ........................................................................\
....................... 9-45
Recommended Cold Tire Inflation Pressures .................................................. 9-34
Snow Tires ........................................................................\
............................... 9-45
Summer Tires ........................................................................\
.......................... 9-45
Tire Care ........................................................................\
.................................. 9-34
Tire Maintenance ........................................................................\
..................... 9-38
Tire Replacement ........................................................................\
.................... 9-37
Tire Rotation ........................................................................\
........................... 9-36
Tire Sidewall Labeling ........................................................................\
............ 9-39
Tire Terminology and Definitions ................................................................... 9-42
Tire Traction ........................................................................\
............................ 9-38
Wheel Alignment and Tire Balance ................................................................ 9-37
Wheel Replacement ........................................................................\
................ 9-38
To w i n g ........................................................................\
......................................... 8-26
Emergency Towing........................................................................\
.................. 8-28
Removable Towing Hook....................................................................\
............ 8-27
Towing Service ........................................................................\
........................ 8-26
Trailer Towing ........................................................................\
............................. 6-62
