Driver Assistance System7-22

[ There is a road edge without a lane

[ There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[ The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
Information
For more details on the limitations of the
front view camera, refer to Forward
Collision-Avoidance Assist (FCA) section
in chapter .
WARNING
Take the following precautions when
using Lane Keeping Assist:

[The driver has the responsibility to
safely drive and control the vehicle.
Do not solely rely on Lane Keeping
Assist and drive dangerously.

[ The operation of Lane Keeping Assist
can be canceled or not work properly
depending on road conditions and
surroundings. Always be cautious
while driving.

[ Refer to “Limitations of Lane Keeping
Assist” if the lane is not detected
properly.

[ If emergency towing is necessary, we
recommend that Lane Keeping Assist
is turned off due to safety reasons.

[ If the vehicle is driven at high speed,
the steering wheel will not be
controlled. The driver must always
follow the speed limit when using
Lane Keeping Assist.
[
If any other system’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[ If you attach objects to the steering
wheel, steering may not be assisted
properly.

[ Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

[ Lane Keeping Assist will not operate
when:
- The turn signal or hazard warning
flasher is turned on
- The vehicle is not driven in the
center of the lane when Lane
Keeping Assist is turned on or right
after changing a lane
- ESC (Electronic Stability Control)
or VSM (Vehicle Stability
Management) is activated
- The vehicle is driven on a sharp
curve
- The vehicle speed is below 35 mph
(55 km/h) or above 130 mph
(210 km/h)
- The vehicle makes sudden lane
changes
- The vehicle brakes suddenly

07
7-35

[Driving where the road is merging/
dividing
ORG3070030
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving where the road merges
or divides. The function may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions while driving.

[ Driving on an inclined road
OIK072089N
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving on a slope. The
function may not detect the vehicle
in the next lane or may incorrectly
detect the ground or structure.
Always pay attention to road and
driving conditions while driving.
[
Driving where the heights of the
lanes are different
OIKSB071164L
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving where the heights of
the lanes are different. The function
may not detect the vehicle on a
road with different lane heights
(underpass joining section, grade
separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.
WARNING

[If emergency towing is necessary,
make sure that you turn off Blind-
Spot Collision-Avoidance Assist.

[ Blind-Spot Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.

[ Blind-Spot Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front
view camera or rear corner radars
are initialized.

Driver Assistance System7-62

[ If emergency towing is necessary,
we recommend that Smart Cruise
Control is turned off due to safety
reasons.

[ Turn off Smart Cruise Control when
your vehicle is being towed.

[ Smart Cruise Control may not
operate properly if interfered by
strong electromagnetic waves.

[ Smart Cruise Control may not
detect an obstacle in front and lead
to a collision. Always look ahead
cautiously to prevent unexpected
and sudden situations from
occurring.

[ Vehicles moving in front of you with
a frequent lane change may cause
a delay in Smart Cruise Control
reaction or may cause Smart Cruise
Control to react to a vehicle actually
in an adjacent lane. Always drive
cautiously to prevent unexpected
and sudden situations from
occurring.

[ Always be aware of the surroundings
and drive safely, even though a
warning message does not appear or
an audible warning does not sound.

[ If any other system’s warning
message is displayed or warning
sound is generated, Smart Cruise
Control warning message may not
be displayed and warning sound may
not be generated.

[ You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[ The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Always set the vehicle speed under
the speed limit in your area. Information

[Smart Cruise Control may not operate
for a few seconds after the vehicle is
started or the front view camera or
front radar is initiali ed.

[ You may hear a sound when the brake
is controlled by Smart Cruise Control.
Smart Cruise Control
Malfunction and Limitations
Smart Cruise Control malfunction
OTM070116N
When Smart Cruise Control is not working
properly, the ‘Check Smart Cruise Control
V\VWHP
T ZDUQLQJ PHVVDJH ZLOO DSSHDU DQG
the
warning light will illuminate on the
cluster. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

Driver Assistance System7-64

[ Only part of the vehicle is detected

[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[ The brightness outside is low, and the
tail lamps are not on or are not bright

[ The rear of the front vehicle is small
or does not look normal (for example,
tilted, overturned, etc.)

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV
low or high

[ A vehicle suddenly cuts in front

[ Your vehicle is being towed

[ Driving through a tunnel or iron bridge

[ Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[ An object reflecting off the front radar
such as a guardrail, nearby vehicle,
etc.

[ The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[ The temperature around the front
radar is high or low

[ Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[ The vehicle in front is made of
material that does not reflect on the
front radar

[ Driving near a highway (or motorway)
interchange or tollgate

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ Driving on a curved road

[ The vehicle in front is detected late

[ The vehicle in front is suddenly
blocked by an obstacle

[ The vehicle in front suddenly changes
lane or suddenly reduces speed
[
The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU
slow

[ With a vehicle in front, your vehicle
changes lane at low speed

[ The vehicle in front is covered with
snow

[ Unstable driving

[ You are on a roundabout and the
vehicle in front is not detected

[ You are continuously driving in a circle

[ Driving in a parking lot

[ Driving through a construction area,
unpaved road, partially paved road,
uneven road, speed bumps, etc.

[ Driving on an incline road, curved
road, etc.

[ Driving through a roadside with trees
or streetlights

[ The adverse road conditions cause
excessive vehicle vibrations while
driving

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Driving through a narrow road where
trees or grass are overgrown

[ There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise

Driver Assistance System7-74
OJX1070282L[1] : Driving route, [2] : Branch line,
[3] : Curved road section, [4] : Main road

[ If there is no destination set on the
navigation, Highway Curve Zone Auto
Slowdown function will operate based
on the curve information on the main
road.

[ Even if you depart from the main road,
Highway Curve Zone Auto Slowdown
function may temporarily operate
due to navigation information of the
highway curve section.
WARNING

[Navigation-based Smart Cruise
Control is not a substitute for safe
driving practices, but a convenience
function. Always have your eyes on
the road, and it is the responsibility
of the driver to avoid violating traffic
laws.

[ The navigation’s speed limit
information may differ from the
actual speed limit information on the
road. It is the driver's responsibility
to check the speed limit on the
actual driving road or lane.

[ Navigation-based Smart Cruise
Control will automatically be
canceled when you leave the
highway main road. Always pay
attention to road and driving
conditions while driving.

[ Navigation-based Smart Cruise
Control may not operate due to the
existence of leading vehicles and
the driving conditions of the vehicle.
Always pay attention to road and
driving conditions while driving.

[ If emergency towing is necessary, we
recommend that Navigation-based
Smart Cruise Control is turned off
due to safety reasons.

07
7-85
WARNING

[The driver is responsible for
controlling the vehicle for safe
driving.

[ Always have your hands on the
steering wheel while driving.

[ Highway Driving Assist is a
supplemental function that assists
the driver in driving the vehicle
and is not a complete autonomous
driving function. Always check road
conditions, and if necessary, take
appropriate actions to drive safely.

[ Always have your eyes on the road,
and it is the responsibility of the
driver to avoid violating traffic laws.
The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Highway Driving Assist may not
be able to recognize all traffic
situations. Highway Driving Assist
may not detect possible collisions
due to limitations of the function.
Always be aware of the limitations
of the function. Obstacles such as
vehicles, motorcycles, bicycles,
pedestrians, or unspecified objects
or structures such as guardrails,
tollgate, etc., that may collide with
the vehicle may not be detected.

[ Highway Driving Assist will turn off
automatically under the following
situations:
- Driving on roads that Highway
Driving Assist does not operate,
such as a rest area, intersection,
junction, etc.
- The navigation does not operate
properly such as when the
navigation is being updated or
restarted
[
Highway Driving Assist may
inadvertently operate or turn off
depending on road conditions
(navigation information) and
surroundings.

[ Lane Following Assist function may
be temporarily disabled when the
front view camera cannot detect
lanes properly or the hands-off
warning is on.

[ You may not hear the warning sound
of Highway Driving Assist if the
surrounding is noisy.

[ If the vehicle is driven at high speed
above a certain speed at a curve,
your vehicle may drive to one side or
may depart from the driving lane.

[ If emergency towing is necessary, we
recommend that Highway Driving
Assist is turned off due to safety
reasons.

[ The hands–off warning message
may appear early or late depending
on how the steering wheel is held or
road conditions. Always have your
hands on the steering wheel while
driving.

[ For your safety, please read the
owner's manual before using the
Highway Driving Assist.

[ Highway Driving Assist will not
operate when the engine is started,
or when the detecting sensors or
navigation is being initialized.

07
7-99

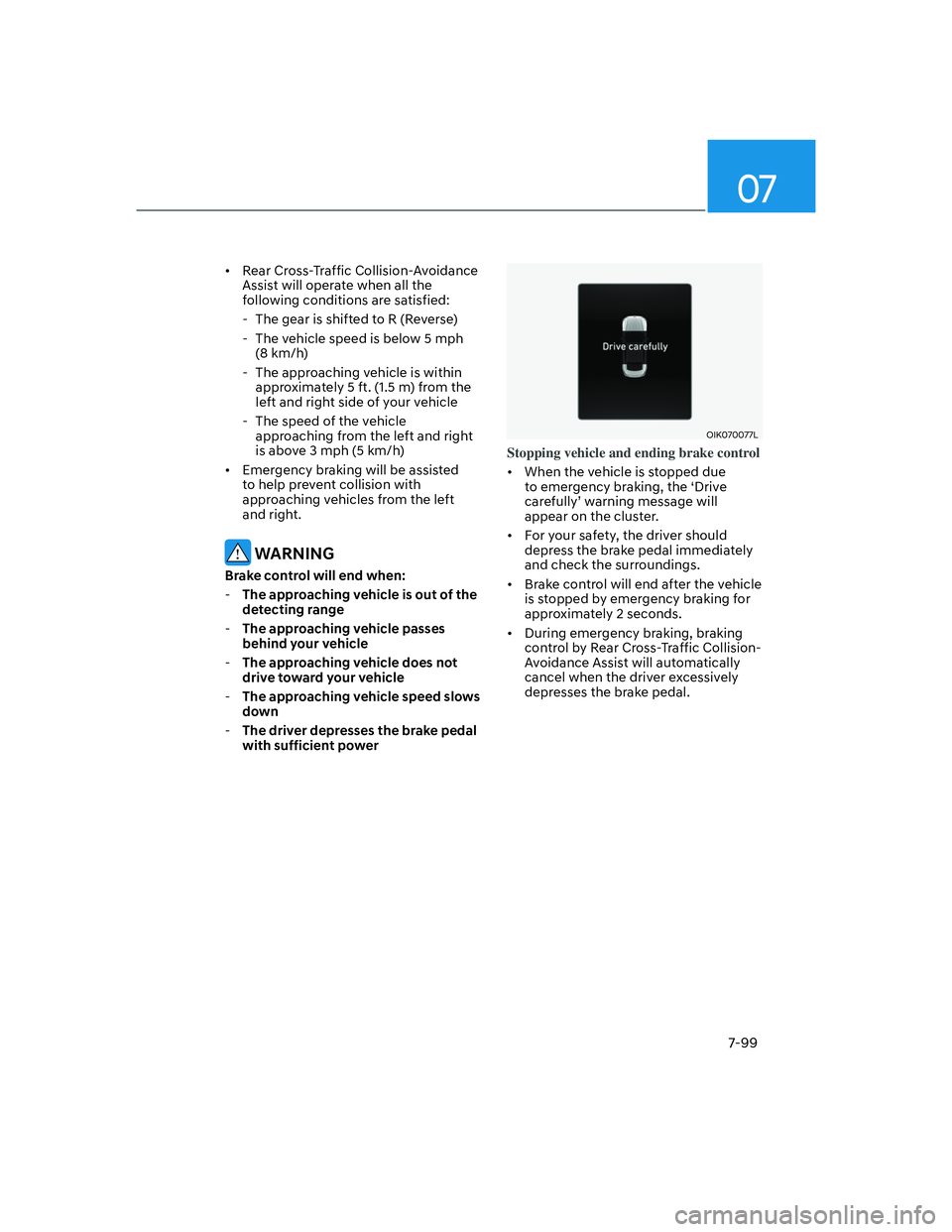

[Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 5 ft. (1.5 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)

[ Emergency braking will be assisted
to help prevent collision with
approaching vehicles from the left
and right.
WARNING
Brake control will end when:
- The approaching vehicle is out of the
detecting range
- The approaching vehicle passes
behind your vehicle
- The approaching vehicle does not
drive toward your vehicle
- The approaching vehicle speed slows
down
- The driver depresses the brake pedal
with sufficient power
OIK070077L
Stopping vehicle and ending brake control

[ When the v
ehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.

[ For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

[ During emergency braking, braking
control by Rear Cross-Traffic Collision-
Avoidance Assist will automatically
cancel when the driver excessively
depresses the brake pedal.

07
7-105

[When the vehicle is parked rearward
ORG3070074
Rear Cross-Traffic Collision-
Avoidance Assist may detect vehicles
passing by behind you when parking
in reverse into a parking space.
If this occurs, the function may
unnecessarily warn the driver and
control the brake.
Always check your surroundings
while backing up.
WARNING

[If emergency towing is necessary, we
recommend that Rear Cross-Traffic
Collision-Avoidance Assist is turned
off due to safety reasons.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
normally if interfered by strong
electromagnetic waves.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
for 3 seconds after the vehicle is
started, or the rear corner radars are
initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is sub ect to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user s
authority to operate the device.
Information
Radio fre uency radiation exposure
information:
This e uipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This e uipment should be installed and
operated with minimum distance of in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in con unction with any other
antenna or transmitter.

8
Hazard Warning Flasher ........................................................................\
........... 8-2
In Case of an Emergency while Driving........................................................... 8-2
If the Engine Stalls While Driving ........................................................................\
........ 8-2
If the Engine Stalls at a Crossroad or Crossing .......................................................... 8-2
If You Have a Flat Tire While Driving .......................................................................\
....8-3
If the Engine will not Start ........................................................................\
........ 8-3
Jump Starting .......................................................................\
............................ 8-4
If the Engine Overheats .......................................................................\
..............8-7
Tire Pressure Monitoring System (TPMS) ........................................................ 8-8
Check Tire Pressure ........................................................................\
............................. 8-8
Tire Pressure Monitoring System .......................................................................\
........ 8-9
Low Tire Pressure Warning Light .......................................................................\
........ 8-10
Low Tire Pressure Position and Tire Pressure Telltale .............................................. 8-10
TPMS (Tire Pressure Monitoring System) Malfunction Indicator ............................. 8-11
Changing a Tire with TPMS .......................................................................\
................. 8-11
If you have a Flat Tire (with Spare Tire) .......................................................... 8-13
Jack and Tools ........................................................................\
.................................... 8-13
Changing Tires .......................................................................\
..................................... 8-14
Jack Label .......................................................................\
............................................ 8-18
If you have a Flat Tire (with Tire Mobility Kit) .................................................8-19Introduction ...............................................................\
................................................. 8- 19
Notes on the Safe use of the Tire Mobility Kit ......................................................... 8-20
Components of the Tire Mobility Kit .......................................................................\
. 8-21
Using the Tire Mobility Kit When a Tire is Flat .......................................................... 8-22
How to Adjust Tire Pressure ........................................................................\
.............. 8-25
Towing ...................................................................\
.......................................... 8-26
Towing Service ........................................................................\
...................................8-26
Removable Towing Hook .......................................................................\
.................... 8-27
Emergency Towing .......................................................................\
..............................8-28
8. Emergency Situations

Emergency Situations8-4
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about how to properly jump start
your vehicle, we strongly recommend
that you have a service technician or
towing service do it for you.
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present
in battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing. If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you feel
pain or a burning sensation, get medical
attention immediately.

[
When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.

[ Do not attempt to jump start your
vehicle if your battery is frozen.

[ NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.

[ The electrical ignition system works
with high voltage.
NEVER touch these components
with the engine running or when the
Engine Start/Stop button is in the ON
position.
JUMP STARTING
