charging GENESIS G70 2023 Owners Manual

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-5
4. Hazard warning flasher button .............. 8-2
5. Infotainment system ........................... 5-122
6. Automatic climate control system ....... 5-91
7. Heated steering wheel button ............. 5-38
8. Seat warmer button .............................. 3-18
9. Air ventilation seat button .................... 3-19
10. Passenger’s front air bag ..................... 3-45
11. Glove box .............................................. 5-113
12. Transmission shift lever .......................... 6-913. Drive mode integrated control ............ 6-46
14. ESC (Electronic Stability Control) OFF
button .................................................... 6-32
15. Parking Safety button ........................... 7-110
16. Auto Hold button ...................................6-27
17. Parking/View button .............................7-92
18. EPB (Electronic Parking Brake) switch .................................................... 6-23
19. Power outlet .......................................... 5-115
20. USB port ............................................... 5-122
21. Wireless charging system indicator .... 5-117
22. Wireless charging system pad ............. 5-117
The actual shape may differ from the illustration.
OIK010004N
,167580(173$1(/29(59,(:

Safety System3-54
Occupant Classification System
(OCS)
OIK030111N
Your vehicle is equipped with an
Occupant Classification System (OCS) in
the front passenger’s seat.
Main components of the Occupant
Classification System

[ A detection device located within the
front passenger seat cushion.

[ Electronic system to help determine
whether the passenger air bag
systems should be activated or
deactivated.

[ An indicator light located on the
overhead console the words
“PASSENGER AIR BAG OFF” indicating
the front passenger air bag system is
deactivated.

[ The air bag light on the overhead
console is interconnected with the
OCS.
The OCS is designed to help detect
the presence of a properly-seated
front passenger and determine if the
passenger’s front air bag should be
enabled (may inflate) or not.
The purpose is to help reduce the risk
of injury or death from an inflating air
bag to certain front passenger seat
occupants, such as children, by requiring
the air bag to be automatically turned
OFF. For example, if a child restraint of the
type specified in the regulations is on the
seat, the occupant classification sensor
can detect it and cause the air bag to
turn OFF.
Front passenger seat adult occupants
who are properly seated and wearing the
seat belt properly, should not cause the
passenger air bag to be automatically
turned OFF. For smaller adults it may turn
off. However, if the occupant does not
sit in the seat properly (for example, by
not sitting upright, by sitting on the edge
of the seat, or by otherwise being out of
position), this could cause the sensor to
turn the air bag OFF.
You will find the “PASSENGER AIR BAG
OFF” indicator on the overhead console.
This system detects the conditions 1-4
in the following table and activates or
deactivates the front passenger air bag
based on these conditions.
Always be sure that you and all vehicle
occupants are seated properly and
wearing the seat belt properly for the
most effective protection by the air bag
and the seat belt.
The OCS may not function properly if the
passenger takes actions which can affect
the classification system. These include:

[
Failing to sit in an upright position.

[ Leaning against the door or center
console.

[ Sitting towards the sides of the front
of the seat.

[ Putting their legs on the dashboard or
resting them on other locations which
reduce the passenger weight on the
front seat.

[ Wearing the seat belt improperly.

[ Reclining the seatback.

[ Wearing a thick clothes like ski wear
or hip protection wear.

[ Putting an additional thick cushion on
the seat.

[ Putting electrical devices ( for
example, notebook, satellite radio) on
the seat with inverter charging.

4
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination .......................................................................\
............4-5
Gauges and Meters .......................................................................\
.............................. 4-6
Speedometer .......................................................................\
..................................... 4-6
Tachometer .......................................................................\
........................................ 4-6
Engine coolant temperature gauge .......................................................................\
... 4-7
Fuel gauge .......................................................................\
........................................... 4-7
Outside temperature gauge .......................................................................\
.............. 4-8
Odometer .......................................................................\
........................................... 4-9
Distance to empty .......................................................................\
............................. 4-9
Transmission Shift Indicator .......................................................................\
............... 4-10
Automatic transmission shift indicator .................................................................. 4-10
Warning and Indicator Lights .......................................................................\
............. 4-10
Seat belt warning light .......................................................................\
..................... 4-10
Air bag warning light .......................................................................\
........................ 4-10
Parking brake & Brake fluid warning light ............................................................... 4-11
Anti-lock Brake System (ABS) warning light .......................................................... 4-12
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-12
Electric Power Steering (EPS) warning light .......................................................... 4-13
Charging system warning light .......................................................................\
........ 4-13
Engine oil pressure warning light .......................................................................\
.... 4-13
Engine coolant temperature warning light (for 8-inch cluster) ............................ 4-14
Low fuel level warning light .......................................................................\
............. 4-14
Malfunction Indicator Lamp (MIL) .......................................................................\
... 4-14
Master warning light .......................................................................\
......................... 4-15
Electronic Parking Brake (EPB) warning light ........................................................ 4-15
Low tire pressure warning light .......................................................................\
....... 4-16
Forward Safety warning light .......................................................................\
........... 4-16
Lane Safety indicator light .......................................................................\
............... 4-16
All Wheel Drive (AWD) warning light .......................................................................\
4-17
LED headlight warning light .......................................................................\
..............4-17
Icy road warning light .......................................................................\
....................... 4-18
Electronic Stability Control (ESC) indicator light ................................................... 4-18
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-18
Immobilizer indicator light .......................................................................\
............... 4-19
Turn signal indicator light .......................................................................\
................. 4-19
High beam indicator light .......................................................................\
................ 4-19
Low beam indicator light .......................................................................\
.................4-20
Light ON indicator light .......................................................................\
....................4-20
High Beam Assist indicator light .......................................................................\
......4-20
4. Instrument Cluster

4
AUTO HOLD indicator light ........................................................................\
.............4-20
SPORT mode indicator light .......................................................................\
..............4-21
ECO mode indicator light .......................................................................\
..................4-21
SPORT + mode indicator light .......................................................................\
...........4-21
CUSTOM mode indicator light .......................................................................\
..........4-21
LCD Display Messages .......................................................................\
........................ 4-22
Vehicle is on .......................................................................\
...................................... 4-22
Shift to P .......................................................................\
............................................ 4-22
Vehicle is in N. Press START button and shift to P ................................................. 4-22
Low key battery .......................................................................\
................................. 4-22
Press brake pedal to start engine .......................................................................\
.... 4-22
Key not in vehicle .......................................................................\
.............................. 4-22
Key not detected .......................................................................\
............................... 4-22
Press START button again .......................................................................\
................ 4-22
Press START button with key .......................................................................\
............ 4-23
Check BRAKE SWITCH fuse .......................................................................\
............. 4-23
Shift to P or N to start engine .......................................................................\
........... 4-23
Battery discharging due to external electrical devices ......................................... 4-23
Door, Hood, trunk open indicator .......................................................................\
.... 4-23
Sunroof open indicator .......................................................................\
..................... 4-24
Low tire pressure .......................................................................\
.............................. 4-24
Lights .......................................................................\
................................................. 4-24
Wiper .......................................................................\
................................................. 4-25
Low washer fluid .......................................................................\
............................... 4-25
Low fuel .......................................................................\
............................................. 4-25
Low engine oil .......................................................................\
................................... 4-25
Engine overheated .......................................................................\
............................4-26
Check haptic steering wheel system ......................................................................4-26
Check headlight .......................................................................\
................................4-26
Check turn signal .......................................................................\
..............................4-26
Check headlight LED .......................................................................\
........................4-26

04
4-13
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[When y
ou set the Engine Start/Stop
button to the ON position.
- The electric powering steering warning light illuminates for about 3
seconds and then goes off.

[ Whenever there is a malfunction with
the electric power steering.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
Charging system warning
light
This warning light illuminates:
When there is a malfunction with either
the alt

ernator or electrical charging
system.
If there is a malfunction with either the
alternator
or electrical charging system:
1. Drive carefully to the nearest safe loca
tion and stop your vehicle.
2. Turn the engine off and check the alternator drive belt for looseness or
breakage.
If the belt is adjusted properly, there
may be a problem in the electrical
charging system.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products as soon as
possible.
Engine oil pressure warning
light
If the engine oil pressure is low:

[Driv
e carefully to the nearest safe
location and stop your vehicle.

[ Turn the engine off and check the
engine oil level (For more details,
refer to “Engine Oil” section in
chapter 9). If the level is low, add oil as
required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
(Continued driving with the warning
light on may cause engine failure.)
NOTICE
If the engine is not stopped
immediately after the Engine Oil
Pressure warning light is illuminated
while the engine is running, severe
damage could result.

04
4-23
Press START button with key
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message ''Key not detected''
is displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse
This message is displayed if the brake
switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Shift to P or N to start engine
This message is displayed if you try to
start the engine in any other position
except P (Park) or N (Neutral).
Information
You can start the engine with the gear
in N (Neutral). But, for your safety, we
recommend that you start the engine with
the gear shifted to P (Park).
Battery discharging due to external
electrical devices
This message is displayed if the 12V
battery voltage is weak due to any
non-factory electrical accessories (ex.
dashboard camera) while parking. Be
careful that the battery is not discharged.
If the message appears after removing
the non-factory electrical accessories,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Door, Hood, trunk open indicator
OIK040017
This warning is displayed if any door or
hood or trunk is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/ hood/trunk are
fully closed.

5
Windshield Defrosting and Defogging .........................................................5-106To Defog Inside Windshield ........................................................................\
............. 5-106
To Defrost Inside Windshield .......................................................................\
.............5-107
Defogging Logic .......................................................................\
.................................5-107
Rear Window Defroster........................................................................\
.................... 5-108
Climate Control Additional Features ............................................................5-109Auto Defogging System ........................................................................\
................... 5-109
Automatic Ventilation .......................................................................\
...................... 5-110
Recirculating Air when Washer Fluid is Used ........................................................... 5-111
Sunroof Inside Air Recirculation .......................................................................\
......... 5-111
Storage Compartment ........................................................................\
............ 5-112Center Console Storage ........................................................................\
.................... 5-112
Glove Box .......................................................................\
............................................ 5-113
Sunglass Holder .......................................................................\
................................. 5-113
Interior Features ........................................................................\
......................5-114Cup Holder ........................................................................\
......................................... 5-114
Sunvisor .......................................................................\
.............................................. 5-115
Power Outlet .......................................................................\
....................................... 5-115
USB Charger .......................................................................\
....................................... 5-116
Wireless Smart Phone Charging System ................................................................. 5-117
Clock .......................................................................\
.................................................. 5-120
Coat Hook .......................................................................\
.......................................... 5-120
Floor Mat Anchor(s) .......................................................................\
........................... 5-120
Luggage Net Holder .......................................................................\
........................... 5-121
Infotainment System ........................................................................\
............. 5-122USB Port ........................................................................\
.............................................5-122
Antenna .......................................................................\
...............................................5-122
Steering Wheel Remote Controls .......................................................................\
......5-123
Infotainment System .......................................................................\
..........................5-123
Voice Recognition .......................................................................\
..............................5-123
Bluetooth® Wireless Technology .......................................................................\
...... 5-124
Lexicon Premium Sound System .......................................................................\
..... 5-124
5. Convenience Features

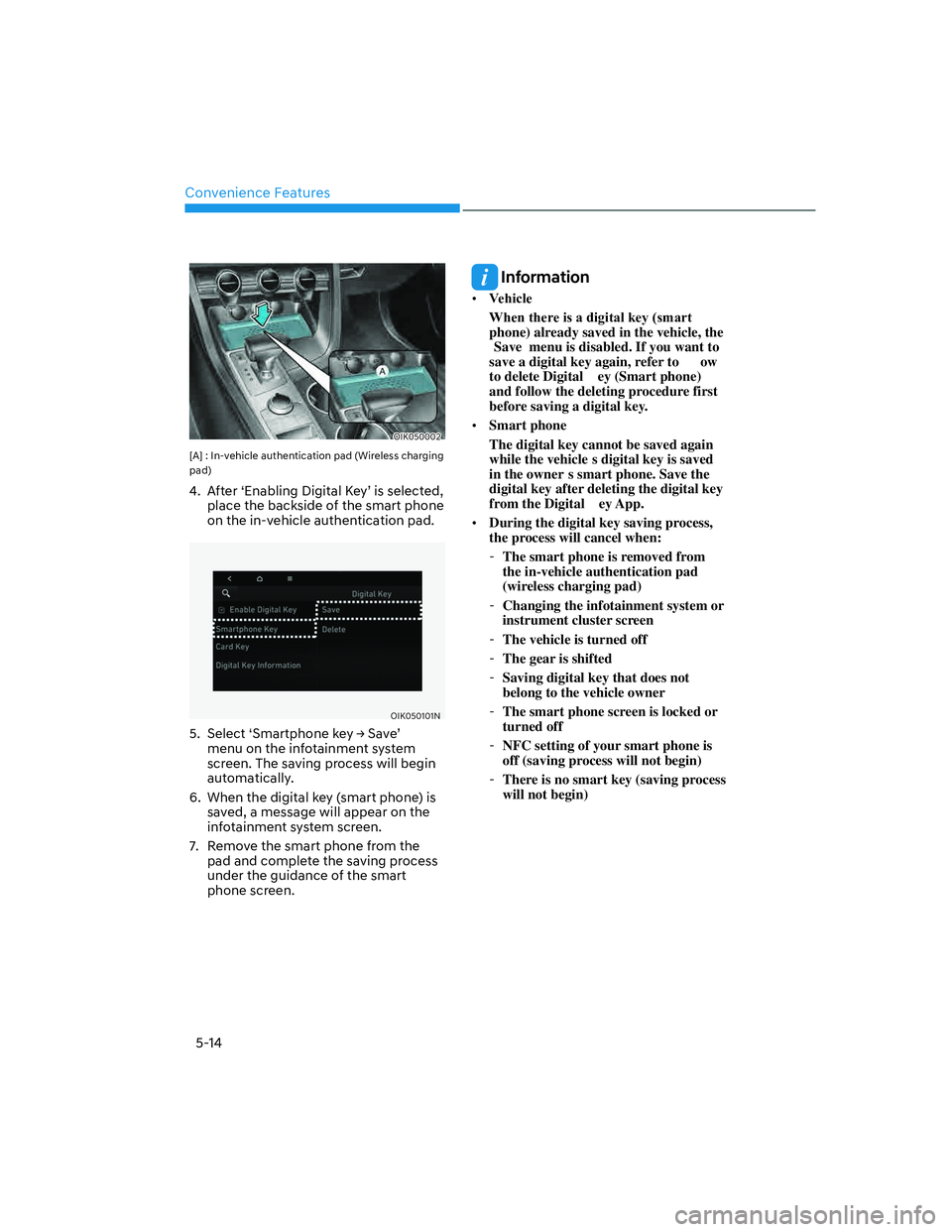

Convenience Features5-14
OIK050002
[A] : In-vehicle authentication pad (Wireless charging
pad)
4. After ‘Enabling Digital Key’ is selected, place the backside of the smart phone
on the in-vehicle authentication pad.
OIK050101N
5. 6HOHFW
S6PDUWSKRQHNH\

05
5-15
How to Use the Digital Key (Smart
phone)
Smart phone touch control
The driver can lock and unlock the door
b
y touching the smart phone on the door
handle without activating the Digital
Key App. Also, the engine can be started
by placing the smart phone on the
in-vehicle authentication pad (wireless
charging pad).
OIK050098
[A] : Door handle authentication pad
[B] : NFC antenna (Backside of the smart phone) (The
antenna position differs depending on models.)

[ Locking/Unlocking the doors
- If the driver touches the smart phone NFC antenna to the driver’s
or passenger’s door handle
authentication pad for more than
2 seconds, the door will lock or
unlock.
- If Two Press Unlock function is set, only the driver’s door will be
unlocked by touching the smart
phone on the driver’s door handle.
Touch the smart phone once more
within 4 seconds to unlock all doors.
- After unlocking the doors, the doors will automatically re-lock after 30
seconds unless a door is opened.
- If the smart phone digital key does not operate, move the smart phone
more than 4 in. (0.1 m) from the
door handle authentication pad and
try it again. Note that you cannot lock your vehicle
using the smart phone NFC antenna if
any of the following occur:
- The Smart Key is in the vehicle
- The Engine Start/Stop button is in ACC or ON position
- Any of the doors are open except for the engine hood or trunk

[ Starting the engine
1. After placing your registered smart phone on the in-vehicle
authentication pad (wireless charging
pad), depress the brake pedal and
press the Engine Start/ Stop button.
2. After starting the engine, the digital key data will be automatically
updated. It will take 5 to 20 seconds.
After that, the smart phone will
automatically go into the wireless
charging mode. Once the engine is
started, you can remove the smart
phone from the pad.
For more details, refer to the “Engine
Start/Stop Button” section in chapter
6.
Information
7RORFNXQORFNWKHGRRUVDQGRUVWDUWWKH
engine with the smart phone Digital ey,
always turn on and unlock the smart
phone screen.

Convenience Features5-16
Information

[ After the battery has been reconnected
or the battery has been recharged, it
will take time for the digital key (smart
phone) to operate due to remote security
XSGDWH:KHQORFNLQJRUXQORFNLQJWKH
door with the smart phone NFC antenna,
touch and hold the smart phone on the
door handle until the door(s) is locked or
unlocked.

[ If the mobile data connection of the
smart phone is weak, remote security
information update may fail. At this
time, use the card key to lock or unlock
WKHGRRUVRUVWDUWWKHHQJLQH:KHQ
you are in a place where the mobile
data connection of your smart phone is
available, place your smart phone on the
in-vehicle authentication pad (wireless
charger pad) and start your vehicle, or
touch the digital key on the door handle
to lock or unlock the door, the remote
security information will be automatically
updated. Even though the engine is not
started, wait until the remote security
information is updated and the in-vehicle
authentication pad (wireless charging
pad) changes to charging mode.
WARNING
The engine can be started when the
registered smart phone is placed on the
in-vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
smart phone with you to prevent
vehicle theft when leaving the vehicle. Digital key App remote control
Various control functions such as Door
Lock/Unlock, Remote Start, Panic and
Trunk Open/Close are available using the
Digital Key App. To use the Digital Key App
functions, the smart phone’s Bluetooth must
be activated, and must be approximately
within 32 ft. (10 m) from the vehicle.

[
Connecting Digital Key App with the
vehicle
1. Open the Genesis Digital Key App in the smart phone. Select the vehicle
you want to control from the vehicle
list in the App.
2. Approach the vehicle with the Genesis Digital Key App opened. The Digital
Key App will automatically connect
with the vehicle.
3. When the connection is complete, the icons in the Digital Key App will
become active.

[ Controlling the vehicle with Digital
Key App
OIK050111
Press the icons to remotely control the
vehicle.
1. Lock Doors
2. Unlock Doors
3. Panic On
4. Panic Off
5. Remote Engine On
6. Remote Engine Off
7. Open Trunk
