infotainment GENESIS G70 2023 Owners Manual

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-5
4. Hazard warning flasher button .............. 8-2
5. Infotainment system ........................... 5-122
6. Automatic climate control system ....... 5-91
7. Heated steering wheel button ............. 5-38
8. Seat warmer button .............................. 3-18
9. Air ventilation seat button .................... 3-19
10. Passenger’s front air bag ..................... 3-45
11. Glove box .............................................. 5-113
12. Transmission shift lever .......................... 6-913. Drive mode integrated control ............ 6-46
14. ESC (Electronic Stability Control) OFF
button .................................................... 6-32
15. Parking Safety button ........................... 7-110
16. Auto Hold button ...................................6-27
17. Parking/View button .............................7-92
18. EPB (Electronic Parking Brake) switch .................................................... 6-23
19. Power outlet .......................................... 5-115
20. USB port ............................................... 5-122
21. Wireless charging system indicator .... 5-117
22. Wireless charging system pad ............. 5-117
The actual shape may differ from the illustration.
OIK010004N
,167580(173$1(/29(59,(:

Safety System3-4
OIK030113NInfotainment system
6HOHFW
S6HWXS

Safety System3-18
„Front
OIK030017L
„Rear (if equipped)
OIK037017
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat (and/or rear
passenger's seat).
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.

[ Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows:

OFF HIGH ()
LOW (
) MEDIUM ()
➞➞
➞
➞

[ Automatic temperature control
The seat warmer starts to
automatically control the seat
temperature in order to prevent
low-temperature burns after being
manually turned on.

OFF HIGH ()
LOW (
) MEDIUM ()➞
➞
➞
➞
30 MIN
60 MIN
You may manually press the switch to
increase seat temperature, However,
it soon returns the automatic mode
again.

[ Auto. Controls That Use Climate
Control Settings (for driver’s seat)
The seat warmer automatically
controls the seat temperature
depending on the ambient
temperature when the engine is
running.
To use this function, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
- 6HWXS

03
3-19

[If the vehicle is turned off then on
again, the seat warmer turns on or off
as follows:
- Driver’s seat
The seat warmer stays OFF if it was
turned off before the vehicle was
turned off.
The seat warmer stays ON (HIGH) if
it was turned ON (HIGH/MEDIUM/
LOW) before the vehicle was turned
off.
- Passenger’s seat
The seat warmer stays OFF
regardless of the previous state of
the seat warmer.

[
OIK030108L
You can also adjust the rear seat
warmers from the front seats. With
the engine running, touch the seat
warmer icon on the infotainment
system screen.
Air Ventilation Seats
(if equipped)
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the air
ventilation seats off.
NOTICE
To prevent damage to the air ventilation
seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Avoid spilling liquids on the surface
of the front seats and seatbacks; this
may cause the air vent holes to block
and not work properly.

[ Do not place materials such as plastic
bags or newspapers under the seats.
They may block the air intake causing
malfunction of the air vent.

[ Do not change the seat covers. It may
damage the air ventilation seat.

[ If the air vents do not operate, restart
the vehicle. If there is no change,
have your vehicle inspected by
an authorized retailer of Genesis
Branded products.

03
3-21

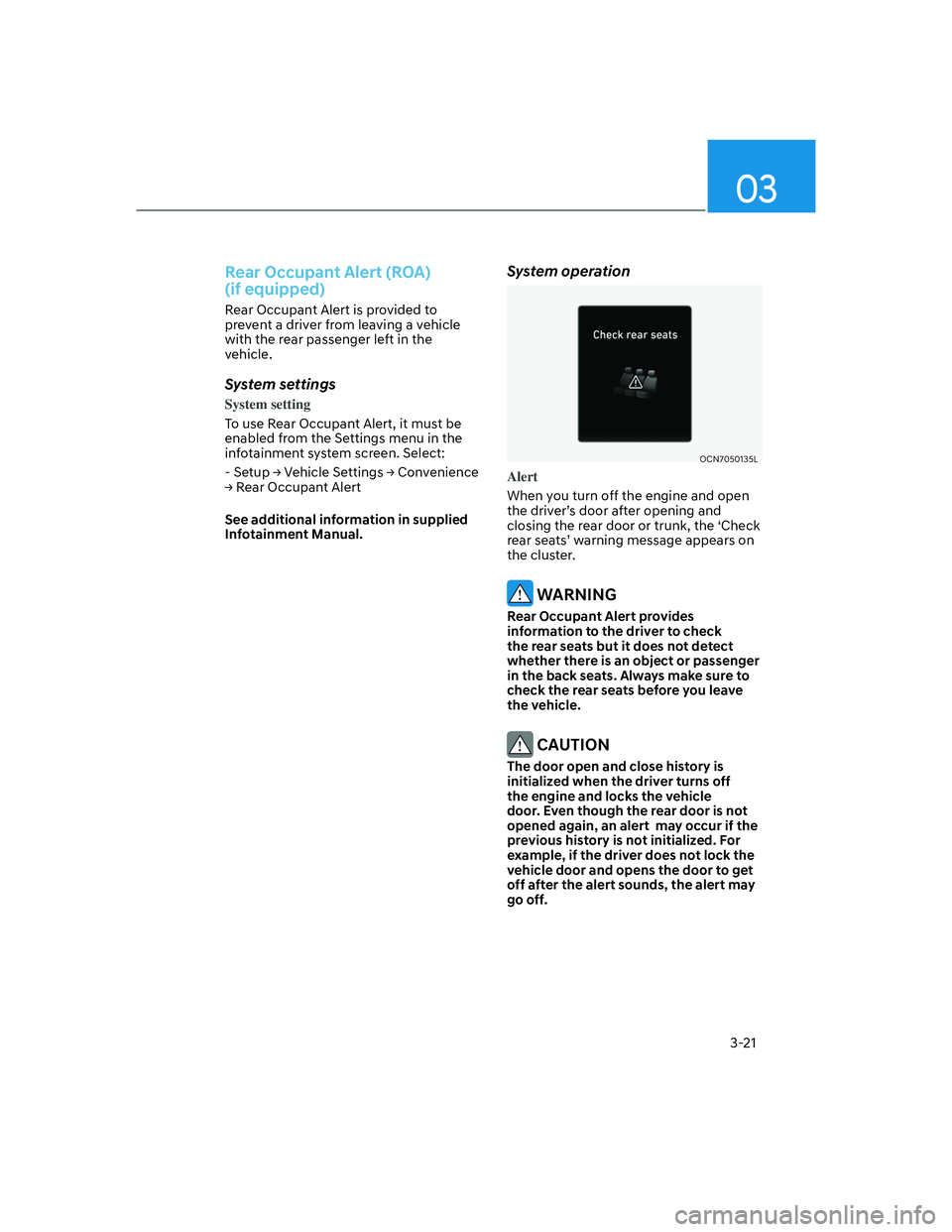

Rear Occupant Alert (ROA)
(if equipped)
Rear Occupant Alert is provided to
prevent a driver from leaving a vehicle
with the rear passenger left in the
vehicle.
System settings
System setting
To use Rear Occupant Alert, it must be
enabled fr
om the Settings menu in the
infotainment system screen. Select:
6HWXS

4
LCD Display ........................................................................\
..............................4-27LCD Display Control ........................................................................\
........................... 4-27
View Modes .......................................................................\
......................................... 4-27
Driving Assist view .......................................................................\
............................4-28
Turn By Turn (TBT) view .......................................................................\
....................4-28
Utility view .......................................................................\
.........................................4-28
Option Menu .......................................................................\
........................................ 4-31
Service messages .......................................................................\
............................. 4-32
Head-up display .......................................................................\
................................ 4-32
Driver Assistance settings .......................................................................\
................ 4-32
Speed unit .......................................................................\
......................................... 4-32
Vehicle Settings (Infotainment System) ........................................................ 4-33Setting Your Vehicle ........................................................................\
...........................4-33
4. Instrument Cluster

Instrument Cluster4-8
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “E
(Empty)” level.
NOTICE
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.
Outside temperature gauge
OIK040012N
This gauge indicates the current outside
air temperatures by 1°F (1°C).
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature
unit from the Settings menu in the
infotainment system screen. Select: - 6HWXS

Instrument Cluster4-18
Icy road warning light(if
equipped)
This warning light is to warn the driver
the road may be icy.
When the temperature on the outside
temperature gauge is approximately
below 40°F (4°C), the Icy Road warning
light and Outside Temperature Gauge
blinks and then illuminates. Also, the
warning chime sounds 1 time.
You can activate or deactivate Icy Road
Warning function from the Settings
menu in the infotainment system screen.
Select: - 6HWXS

Instrument Cluster4-24
Sunroof open indicator (if equipped)
OIK040018
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
Low tire pressure
OIK080024L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
Lights
OIK040075L
This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the Settings
menu in the infotainment system screen.
Select: - 6HWXS

04
4-25
Wiper
OIK040077L
This indicator displays which wiper speed
is selected using the wiper control.
You can activate or deactivate Wiper/
Lights display function from the Settings
menu in the infotainment system screen.
Select: - 6HWXS
