3
3. Safety System
Important Safety Precautions ........................................................................\
...3-2Always Wear Your Seat Belt ........................................................................\
................. 3-2
Restrain All Children .......................................................................\
.............................. 3-2
Air Bag Hazards .......................................................................\
..................................... 3-2
Driver Distraction .......................................................................\
.................................. 3-2
Control Your Speed .......................................................................\
............................... 3-2
Keep Your Vehicle in Safe Condition .......................................................................\
.... 3-2
Seats .....................................................................\
............................................. 3-3Safety Precautions ........................................................................\
............................... 3-5
Front Seats .......................................................................\
.............................................3-6
Rear Seats .......................................................................\
............................................. 3-11
Head Restraints .......................................................................\
....................................3-13
Seat Warmers .......................................................................\
....................................... 3-17
Air Ventilation Seats .......................................................................\
............................ 3-19
Rear Occupant Alert (ROA) .......................................................................\
..................3-21
Seat Belts ........................................................................\
..................................3-22Seat Belt Safety Precautions ........................................................................\
............. 3-22
Seat Belt Warning Light .......................................................................\
...................... 3-23
Seat Belt Restraint System .......................................................................\
................. 3-24
Additional Seat Belt Safety Precautions ....................................................................3-31
Care of Seat Belts .......................................................................\
................................ 3-33
Child Restraint System (CRS) ........................................................................\
. 3-34
Children Always in the Rear ........................................................................\
...............3-34
Selecting a Child Restraint System (CRS) ................................................................. 3-35
Installing a Child Restraint System (CRS) ................................................................. 3-37
Air Bag - Supplemental Restraint System ..................................................... 3-43Where are the Air Bags? ........................................................................\
.....................3-45
How does the Air Bags System Operate? ................................................................ 3-49
What to Expect After an Air Bag Inflates ..................................................................3-53
Occupant Classification System (OCS) .....................................................................3-54
Why Didn’t My Air Bag Go Off in a Collision? ...........................................................3-59
SRS Care .......................................................................\
............................................. 3-64
Additional Safety Precautions .......................................................................\
............3-65
Air Bag Warning Labels .......................................................................\
.......................3-65

Safety System3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones. Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:

[
Set up your mobile devices (for
example, MP3 players, phones,
navigation units, etc.) ONLY when
your vehicle is parked or safely
stopped.

[ ONLY use your mobile device when
allowed by laws and conditions permit
safe use. NEVER text or email while
driving. Most countries have laws
prohibiting drivers from texting. Some
countries and cities also prohibit
drivers from using handheld phones.

[ NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

Driving Your Vehicle6-20

[ Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.

[ Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident

[ Optimum vehicle performance
and fuel economy is obtained by
smoothly depressing and releasing
the accelerator. WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[ Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.

[ Genesis Branded Vehicle
recommends you to follow all posted
speed limits.
NOTICE
ickdown mechanism
se the kickdown mechanism for
maximum acceleration. Depress the
accelerator pedal beyond the pressure
point. The automatic transmission will
shift to a lower gear depending on the
engine speed.

Driving Your Vehicle6-32
WARNING
If the ABS () warning light is on and
stays on, you may have a problem with
the ABS. Your power brakes will work
normally. To reduce the risk of serious
injury or death, contact your authorized
retailer of Genesis Branded products as
soon as possible.
NOTICE
When you drive on a road having poor
traction, such as an icy road, and apply
your brakes continuously, ABS will be
active continuously and the ABS (
)
warning light may illuminate. Pull your
vehicle over to a safe place and turn the
vehicle off.
Restart the vehicle. If the ABS warning
light is off, then your ABS system is
normal.
Otherwise, you may have a problem
with your ABS system. Contact an
authorized retailer of Genesis Branded
products as soon as possible.
Information
hen you ump start your vehicle because
of a drained battery, the ABS (ehicle b()
warning light may turn on at the same
time. This happens because of the low
battery voltage. It does not mean your
ABS is malfunctioning. ave the battery
recharged before driving the vehicle.
Electronic Stability Control (ESC)
(if equipped)
OIK060025
Electronic Stability Control helps to
stabilize the vehicle during cornering
maneuvers.
ESC checks where you are steering and
where the vehicle is actually going. ESC
applies braking pressure to any one of
the vehicle's brakes and intervenes in the
engine management system to assist the
driver with keeping the vehicle on the
intended path. It is not a substitute for
safe driving practices. Always adjust your
speed and driving to the road conditions.
WARNING
Never drive too fast for the road
conditions when cornering. ESC will not
prevent accidents.
Excessive speed in turns, abrupt
maneuvers, and hydroplaning on wet
surfaces can result in severe accidents.

06
6-33
ESC operation
ESC ON condition
When the Engine Start/Stop button is
in the ON position, ESC and the ESC
OFF indica
tor lights illuminate for
approximately three seconds. After both
lights go off, ESC is enabled.
hen operating
When ESC is in operation, the
ESC indicator light blinks:

[ When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in
the brake pedal. This is normal and it
means your ESC is active.

[ When ESC activates, the engine may
not respond to the accelerator as it
does under routine conditions.

[ If Smart Cruise Control was in use
when ESC activates, Smart Cruise
Control automatically disengages.
Smart Cruise Control can be
reengaged when the road conditions
allow. See “Smart Cruise Control
(SCC)” section in chapter 7 (if
equipped).

[ When moving out of the mud or
driving on a slippery road, the engine
RPM (revolutions per minute) may
not increase even if you press the
accelerator pedal deeply. This is to
maintain the stability and traction of
the vehicle and does not indicate a
problem. ESC OFF condition
To cancel ESC operation:

[ State 1
Press the ESC OFF button briefly. The
ESC OFF indicator light and/or message
'Traction Control disabled' will illuminate.
In this state, the traction control function
of ESC (engine management) is disabled,
but the brake control function of ESC
(braking management) still operates.
ESC OFF state 1 will be automatically set
and the ESC OFF indicator light and/or
message will illuminate on the cluster
when SPORT+ mode is selected for Drive
mode.

[ State 2
Press and hold the ESC OFF button
continuously for more than 3 seconds.
The ESC OFF indicator light and/or
message 'Traction & Stability Control
disabled' illuminates and a warning
chime sounds. In this state, both the
traction control function of ESC (engine
management) and the brake control
function of ESC (braking management)
are disabled.
If the Engine Start/Stop button is pressed
to the OFF position when ESC is off, ESC
remains off. Upon restarting the vehicle,
ESC will automatically turn on again.

06
6-35
Vehicle Stability Management
(VSM)
Vehicle Stability Management is a
function of the Electronic Stability
Control (ESC) system. It helps the vehicle
stay stable when accelerating or braking
suddenly on wet, slippery and rough
roads where traction over the four tires
can suddenly become uneven.
WARNING
Take the following precautions when
using Vehicle Stability Management:

[ALWAYS check the speed and the
distance to the vehicle ahead. VSM
is not a substitute for safe driving
practices.

[ Never drive too fast for the road
conditions. VSM will not prevent
accidents. Excessive speed in bad
weather, on slippery and uneven
roads can result in severe accidents.
VSM operation
hen operating
When you apply your brakes under
conditions which ma
y activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Information
SM does not operate when:

[ Driving on a banked road such as
gradient or incline.

[ Driving in reverse.

[ The ESC OFF indicator light is on.

[ The EPS (Electric power steering)
warning light (
() is on or blinks.
SM OFF condition
To cancel VSM operation, press the ESC
OFF butt
on. ESC OFF () indicator light
will illuminate.
To turn on VSM, press the ESC OFF
button again. The ESC OFF indicator light
will go out.
WARNING
If the ESC () indicator light or EPS
() warning light stays illuminated
or blinks, your vehicle may have a
malfunction with the VSM system.
When the warning light illuminates,
have the vehicle checked by an
authorized retailer of Genesis Branded
products as soon as possible.
NOTICE
Driving with wheels and tires with
different sizes may cause the VSM
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized tires and
wheels installed.

06
6-37
All Wheel Drive (AWD) delivers engine
power to front and rear wheels for
maximum traction. AWD is useful when
extra traction is required, such as when
driving on, muddy, wet, or snow-covered
roads.
WARNING
If the AWD warning light () stays on
the instrument cluster, your vehicle
may have a malfunction with the AWD
system. When the AWD warning light
(
) illuminates we recommend that the
vehicle be checked by an authorized
retailer of Genesis Branded products as
soon as possible.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ Do not drive in conditions that
exceed the vehicles intended
design such as challenging off-road
conditions.

[ Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of a rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.
NOTICE

[Do not drive in water if the water
level is higher than the bottom of the
vehicle.

[ Check your brake condition once
you are out of mud or water. Depress
the brake pedal several times as you
move slowly until you feel normal
braking condition is returned.

[ Shorten your scheduled
maintenance interval if you drive in
off-road conditions such as sand,
mud or water (see "Maintenance
Under Severe Usage Conditions"
section in chapter 9).

[ Always wash your vehicle thoroughly
after off road use, especially the
bottom of the vehicle.

[ Be sure to equip the vehicle with four
tires of the same size and type.

[ Make sure that a full time AWD
vehicle is towed by a flat bed tow
truck.
$//:+((/'5,9(
í$:'
î
í,)(48,33('
î

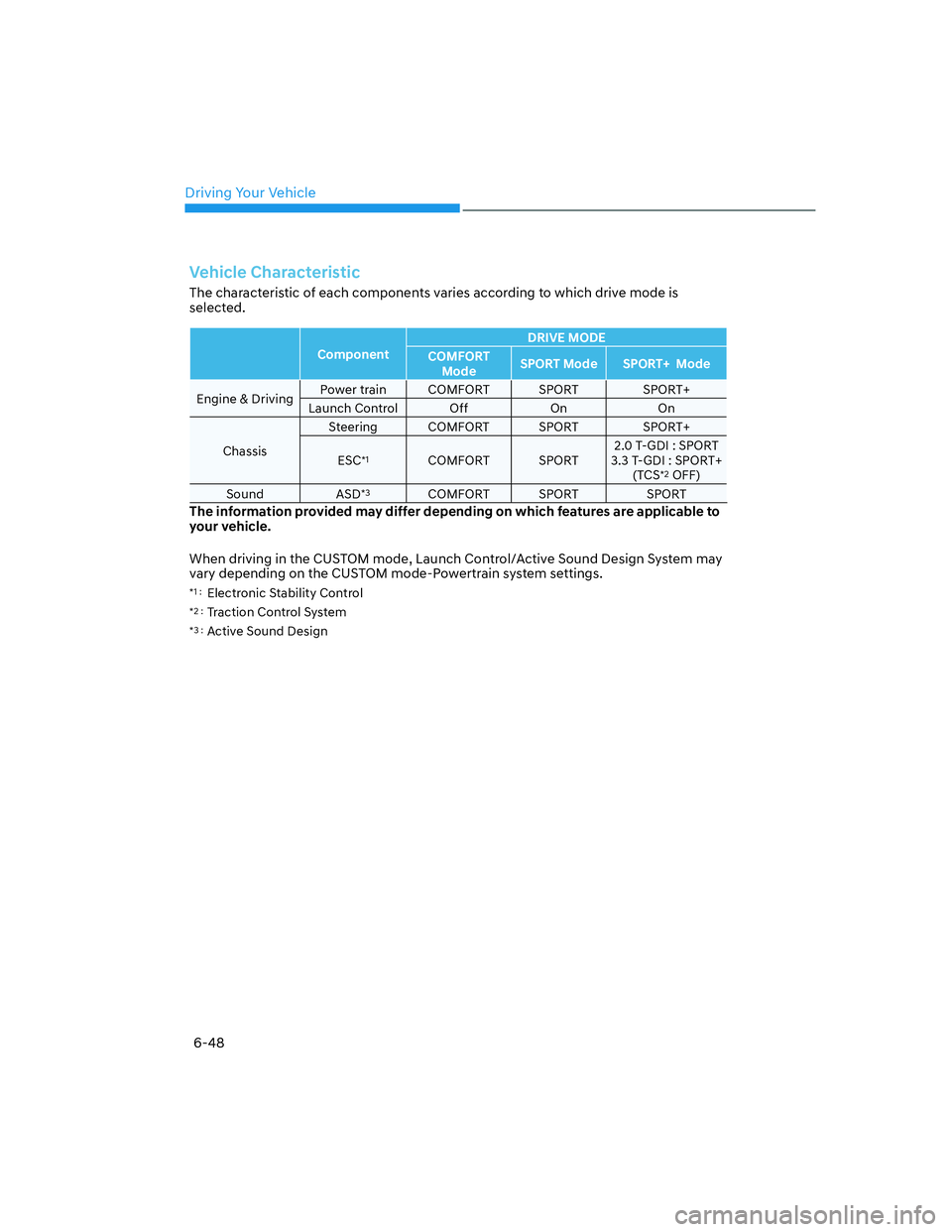

Driving Your Vehicle6-48
Vehicle Characteristic
The characteristic of each components varies according to which drive mode is
selected.
Component DRIVE MODE
COMFORT Mode SPORT Mode SPORT+ Mode
Engine & Driving P
ower train COMFORT SPORT SPORT+
Launch Control Off On On
Chassis Steering COMFORT SPORT SPORT+
ESC
*1COMFORT SPORT 2.0 T-GDI : SPORT
3.3 T-GDI : SPORT+ (TCS*2 OFF)
Sound ASD
*3COMFORT SPORT SPORT
The information provided may differ depending on which features are applicable to
your vehicle.
When driving in the CUSTOM mode, Launch Control/Active Sound Design System may
vary depending on the CUSTOM mode-Powertrain system settings.
*1 : Electronic Stability Control
*2 : Traction Control System
*3 : Active Sound Design

9
Tires and Wheels ........................................................................\
..................... 9-34Tire Care ........................................................................\
..............................................9-34
Recommended Cold Tire Inflation Pressures ...........................................................9-34
Check tire Inflation Pressure .......................................................................\
..............9-35
Tire Rotation .......................................................................\
........................................9-36
Wheel Alignment and Tire Balance .......................................................................\
.... 9-37
Tire Replacement .......................................................................\
................................ 9-37
Wheel Replacement .......................................................................\
........................... 9-38
Tire Traction .......................................................................\
........................................ 9-38
Tire Maintenance..................................................................\
..................................... 9-38 Tire Sidewall Labeling .......................................................................\
.........................9-39
Tire Terminology and Definitions .......................................................................\
...... 9-42
All Season Tires .......................................................................\
................................... 9-45
Summer Tires .......................................................................\
..................................... 9-45
Snow Tires......................................................................\
............................................ 9-45 Radial-Ply Tires .......................................................................\
................................... 9-45
Low Aspect Ratio Tires .......................................................................\
....................... 9-46
Fuses ...................................................................\
............................................. 9-47
Instrument Panel Fuse Replacement ....................................................................... 9-48
Engine Compartment Panel Fuse Replacement ..................................................... 9-49
Fuse/Relay Panel Description........................................................................\
........... 9-50
Light Bulbs ........................................................................\
............................... 9-63Headlight, position lamp, turn signal lamp, Daytime Running Light (DRL)
replacement .......................................................................\
....................................... 9-64
Side Repeater Lamp Replacement .......................................................................\
... 9-64
Puddle Lamp Replacement .......................................................................\
............... 9-65
Rear Combination Lamp Replacement ................................................................... 9-65
High Mounted Stop Lamp Replacement ................................................................. 9-66
License Plate Lamp Replacement .......................................................................\
..... 9-66
Interior Light Replacement .......................................................................\
.................9-67
Appearance Care ........................................................................\
....................9-68Exterior Care ........................................................................\
...................................... 9-68
Interior Care .......................................................................\
......................................... 9-74
Emission Control System ........................................................................\
.........9-77
California Perchlorate Notice .......................................................................\
.. 9-79

Maintenance9-34
TIRES AND WHEELS
WARNING
Tire failure may cause loss of
vehicle control resulting in an
accident. To reduce risk of SERIOUS
INJURY or DEATH, take the
following precautions:

[ Inspect your tires monthly for
proper inflation as well as wear
and damage.

[ The recommended cold tire
pressure for your vehicle can be
found in this manual and on the
tire label located on the driver’s
side center pillar. Always use a
tire pressure gauge to measure
tire pressure. Tires with too
much or too little pressure wear
unevenly causing poor handling.

[ Check the pressure of the
spare every time you check the
pressure of the other tires on
your vehicle.

[ Replace tires that are worn, show
uneven wear, or are damaged.
Worn tires can cause loss of
braking effectiveness, steering
control, or traction.

[ ALWAYS replace tires with the
same size, type, construction and
tread pattern as each tire that
was originally supplied with this
vehicle. Using tires and wheels
other than the recommended
sizes could cause unusual
handling characteristics, poor
vehicle control, or negatively
affect your vehicle’s Anti-Lock
Brake System (ABS) resulting in a
serious accident.
Tire Care
For proper maintenance, safety, and
maximum fuel economy, you must
always maintain recommended
tire inflation pressures and stay
within the load limits and weight
distribution recommended for your
vehicle.
OIK087002L
All specifications (sizes and
pressures) can be found on a label
attached to the driver’s side center
pillar.
Recommended Cold Tire
Inflation Pressures
All tire pressures (including the
spare) should be checked when the
tires are cold. “Cold tires” means the
vehicle has not been driven for at
least three hours or driven less than
one mile (1.6 km).
Warm tires normally exceed
recommended cold tire pressures
by 4 to 6 psi (28 to 41 kPa). Do not
release air from warm tires to adjust
the pressure or the tires will be
under-inflated. For recommended
inflation pressure, refer to “Tire and
Wheels” section in chapter 2.
