Page 384 of 661
6-58
Driving Your Vehicle
Tire chains (Auto sock)
ORG3EV061033
Since the sidewalls of radial tires are
thinner, they can be damaged by
mounting some types of snow chains on
them. Therefore, the use of snow tires is
recommended instead of snow chains.
Do not mount tire chains on vehicle
equipped with aluminum wheels;
snow chains may cause damage to the
wheels. If snow chains must be used, use
AutoSock (fabric snow chain). Damage
to your vehicle caused by improper snow
chain use is not covered by your vehicle
manufacturer’s warranty.
When using tire chains, install tire chains
only on the rear tires.
WARNING
The use of AutoSock (fabric snow chain)
may adversely affect vehicle handling:
[ Drive less than 20 mph (30 km/h)
or the chain manufacturer’s
recommended speed limit,
whichever is lower.
[ Drive carefully and avoid bumps,
holes, sharp turns, and other road
hazards, which may cause the
vehicle to bounce.
[ Avoid sharp turns or locked wheel
braking.
Information
[ Install AutoSock (fabric snow chain)
only in pairs and on the rear tires.
It should be noted that installing
AutoSock (fabric snow chain) on the
tires will provide a greater driving
force, but will not prevent side skids.
[ Do not install studded tires without
first checking local and municipal
regulations for possible restrictions
against their use.
Page 385 of 661
6-59
06
Chain Installation
When installing tire chains, follow the
manufacturer’s instructions and mount
them as tightly possible. Drive slowly
(less than 20 mph (30 km/h)) with
chains installed. If you hear the chains
contacting the body or chassis, stop and
tighten them. If they still make contact,
slow down until the noise stops. Remove
the tire chains as soon as you begin
driving on cleared roads.
When mounting snow chains, park the
vehicle on level ground away from traffic.
Turn on the vehicle Hazard Warning
Flasher and place a triangular emergency
warning device behind the vehicle (if
available). Always place the vehicle in P
(Park), apply the parking brake and turn
off the vehicle before installing snow
chains.
NOTICE
When using AutoSock (fabric snow
chain):
[ Wrong size chains or improperly
installed chains can damage your
vehicle’s brake lines, suspension,
body and wheels.
[ If you hear noise caused by chains
contacting the body, retighten the
chain to prevent contact with the
vehicle body.
[ To prevent body damage, retighten
the chains after driving 0.3~0.6 miles
(0.5~1.0 km).
Winter Precautions
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in chapter 9. The
battery charging level can be checked by
an authorized retailer of Genesis Branded
products or in a service station.
To prevent locks from freezing
To prevent the locks from being frozen,
spray approved de-icing fluid or glycerin
into key holes. When a lock opening is
already covered with ice, spray approved
de-icing fluid over the ice to remove it.
When an internal part of a lock freezes,
try to thaw it with a heated key. Carefully
use the heated key to avoid an injury.
Use approved window washer anti-
freeze solution in system
To prevent the window washer from
being frozen, add authorized window
washer anti-freeze solution, as specified
on the window washer container.
Window washer anti-freeze solution is
available from an authorized retailer of
Genesis Branded products, and most
vehicle accessory outlets. Do not use
coolant or other types of anti-freeze
solution, to prevent any damage to the
vehicle paint.
Page 389 of 661
6-63
06
Steps for determining correct load
limit
1. Locate the statement "The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lbs." on your
vehicle's placard.
2. Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
3. Subtract the combined weight of
the driver and passengers from
XXX kg or XXX lbs.
4. The resulting figure equals
the available amount of cargo
and luggage load capacity. For
example, if the "XXX" amount
equals 1400 lbs. and there will
be five 150 lb passengers in your
vehicle, the amount of available
cargo and luggage load capacity
is 650 lbs. (1400 - 750 (5 x 150) =
650 lbs.)
5. Determine the combined weight
of luggage and cargo being
loaded on the vehicle. That
weight may not safely exceed the
available cargo and luggage load
capacity calculated in Step 4.
6. If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity
of your vehicle.
WARNING
Do not overload the vehicle as
there is a limit to the total weight,
or load limit, including occupants
and cargo, the vehicle can carry.
Overloading can shorten the life
of the vehicle. If the GVWR or
the GAWR is exceeded, parts on
the vehicle can be broken and it
can change the handling of your
vehicle. These could cause you
to lose control and result in an
accident.
Page 391 of 661
6-65
06
Certification label
OBH059070
The certification label is located on
the driver's door sill at the center
pillar and shows the maximum
allowable weight of the fully loaded
vehicle. This is called the GVWR
(Gross Vehicle Weight Rating). The
GVWR includes the weight of the
vehicle, all occupants, fuel and
cargo.
This label also tells you the maximum
weight that can be supported by the
front and rear axles, called Gross
Axle Weight Rating (GAWR).
The total weight of the vehicle,
including all occupants, accessories,
cargo, and trailer tongue load must
not exceed the Gross Vehicle Weight
Rating (GVWR) or the Gross Axle
Weight Rating (GAWR). To find out
the actual loads on your front and
rear axles, you need to go to a weigh
station and weigh your vehicle. Be
sure to spread out your load equally
on both sides of the centerline.
WARNING
Overloading
[ Never exceed the GVWR for your
vehicle, the GAWR for either the
front or rear axle and vehicle
capacity weight. Exceeding these
ratings can affect your vehicle's
handling and braking ability, and
cause an accident.
[ Do not overload your vehicle.
Overloading your vehicle can
cause heat buildup in your
vehicle's tires and possible
tire failure, increased stopping
distances and poor vehicle
handling-all of which may result
in a crash.
NOTICE
Overloading your vehicle may cause
damage. Repairs would not be
covered by your warranty. Do not
overload your vehicle.
Page 392 of 661
6-66
Driving Your Vehicle
WARNING
If you carry items inside your
vehicle (for example, suitcases,
tools, packages, or anything else),
they are moving as fast as the
vehicle. If you have to stop or turn
quickly, or if there is a crash, the
items will keep going and can cause
an injury if they strike the driver or a
passenger.
[ Put items in the cargo area of
your vehicle. Try to spread the
weight evenly.
[ Do not stack items - like suitcases
- inside the vehicle above the
tops of the seats.
[ Do not leave an unsecured child
restraint in your vehicle.
[ When you carry something inside
the vehicle, secure it.
TRAILER TOWING
We do not recommend using this vehicle
for trailer towing.
Page 393 of 661
7
Driving SafetyForward Collision–Avoidance Assist (FCA) .............................................................. 7-2
Lane Keeping Assist (LKA) ....................................................................................... 7-26
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................ 7-32
Safe Exit Warning (SEW) .......................................................................................... 7-46
Safe Exit Assist (SEA) .............................................................................................. 7-52
Manual Speed Limit Assist (MSLA) ......................................................................... 7-59
Intelligent Speed Limit Assist (ISLA) ....................................................................... 7-62
Driver Attention Warning (DAW) .............................................................................7-68
Forward Attention Warning (FAW) ..........................................................................7-74
Blind-Spot View Monitor (BVM) ............................................................................. 7-79
Driving ConvenienceSmart Cruise Control (SCC) .....................................................................................7-81
Navigation-based Smart Cruise Control (NSCC) ................................................ 7-100
Lane Following Assist (LFA) ................................................................................... 7-107
Highway Driving Assist (HDA) ................................................................................. 7-111
Parking SafetyRear View Monitor (RVM) ....................................................................................... 7-123
Surround View Monitor (SVM) .............................................................................. 7-127
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ........................................ 7-133
Forward/Reverse Parking Distance Warning (PDW) ............................................7-144
Reverse Parking Collision-Avoidance Assist (PCA) ..............................................7-149
Parking convenienceRemote Smart Parking Assist (RSPA) .................................................................... 7-157
Declaration of Conformity ............................................................................................7-183
7. Driver Assistance System
Page 394 of 661
7-2
Driver Assistance System
ORG3EV071083
Forward Collision-Avoidance Assist is
designed to help detect and monitor the
vehicle ahead or help detect a pedestrian
or cyclist in the roadway and warn the
driver that a collision is imminent with
a warning message, an audible warning
and apply emergency braking.
In addition, if equipped with front corner
radars, when driving at high speeds,
Forward Collision-Avoidance Assist helps
detect vehicles in front and adjacent
lanes. If a collision is imminent when
changing lanes, Forward Collision-
Avoidance Assist will apply emergency
braking to help prevent a collision.Junction Turning functionORG3EV071295N
Junction Turning function helps avoid
a collision with an oncoming vehicle in
an adjacent lane when turning left at
a crossroad with the turn signal on by
applying emergency braking.
Junction Crossing function (if
equipped)
ORG3EV071085
Junction Crossing function helps avoid
a collision with oncoming vehicles on
the left or right side when crossing an
intersection by applying emergency
braking.
) 2 5 : $ 5 ' & 2 / / , 6 , 2 1
Page 397 of 661

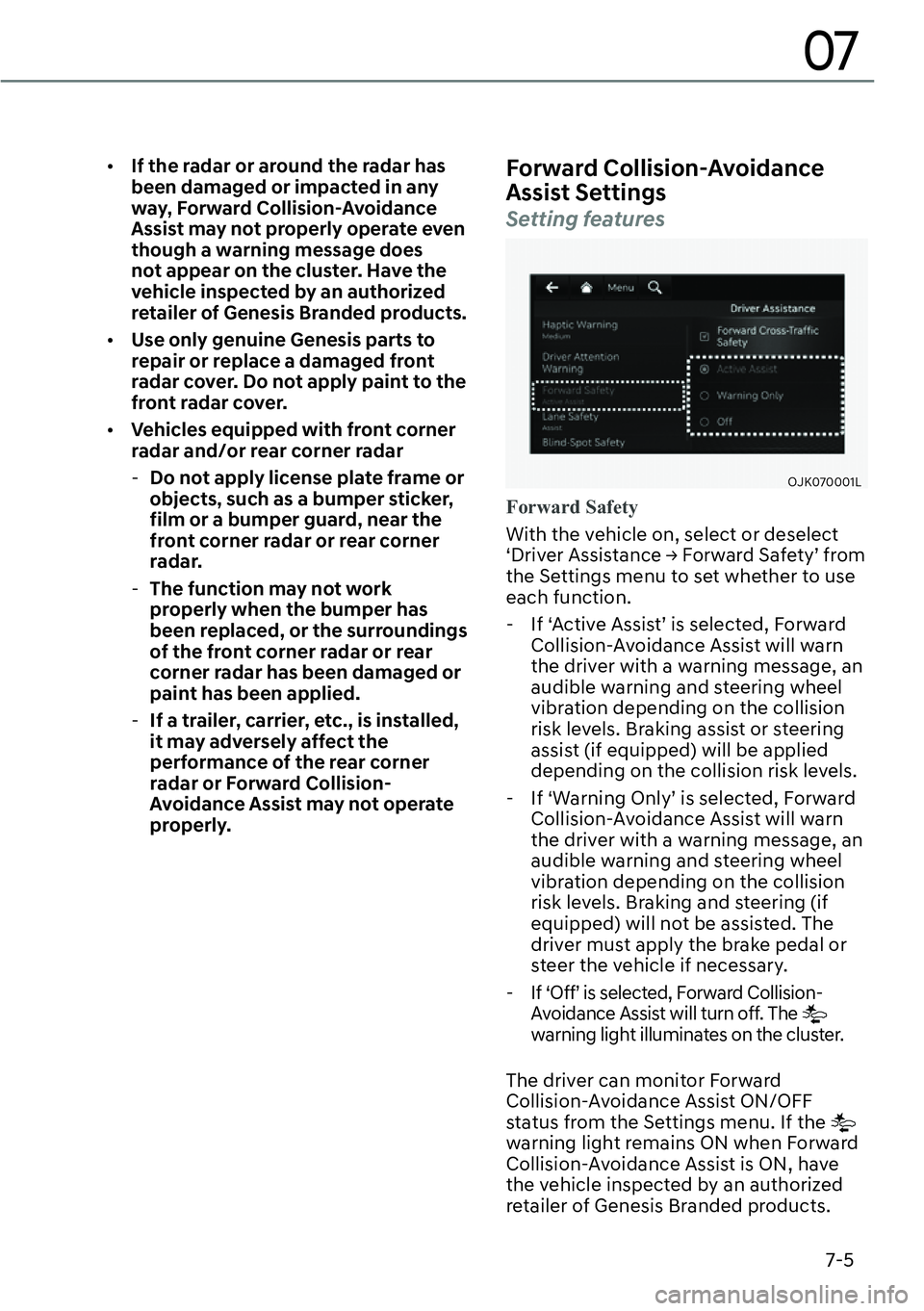

![GENESIS G80 2023 Owners Manual 7-5
07
[ If the radar or around the radar has
E H H Q G D P D J H G R U L P S D F W H G L Q D Q \
Z D \ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D](/img/46/58824/w960_58824-396.png "GENESIS G80 2023 Owners Manual 7-5
07
[ If the radar or around the radar has
E H H Q G D P D J H G R U L P S D F W H G L Q D Q \
Z D \ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D")
7-5
07
[ If the radar or around the radar has
E H H Q G D P D J H G R U L P S D F W H G L Q D Q \
Z D \ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D \ Q R W S U R S H U O \ R S H U D W H H Y H Q
though a warning message does
Q R W D S S H D U R Q W K H F O X V W H U + D Y H W K H
Y H K L F O H L Q V S H F W H G E \ D Q D X W K R U L ] H G
U H W D L O H U R I * H Q H V L V % U D Q G H G S U R G X F W V
[ 8 V H R Q O \ J H Q X L Q H * H Q H V L V S D U W V W R
repair or replace a damaged front
U D G D U F R Y H U ' R Q R W D S S O \ S D L Q W W R W K H
I U R Q W U D G D U F R Y H U
[ 9 H K L F O H V H T X L S S H G Z L W K I U R Q W F R U Q H U
radar and/or rear corner radar
- ' R Q R W D S S O \ O L F H Q V H S O D W H I U D P H R U
R E M H F W V V X F K D V D E X P S H U V W L F N H U
I L O P R U D E X P S H U J X D U G Q H D U W K H
front corner radar or rear corner
U D G D U
- 7 K H I X Q F W L R Q P D \ Q R W Z R U N
S U R S H U O \ Z K H Q W K H E X P S H U K D V
E H H Q U H S O D F H G R U W K H V X U U R X Q G L Q J V
of the front corner radar or rear
F R U Q H U U D G D U K D V E H H Q G D P D J H G R U
S D L Q W K D V E H H Q D S S O L H G
- , I D W U D L O H U F D U U L H U H W F L V L Q V W D O O H G
L W P D \ D G Y H U V H O \ D I I H F W W K H
performance of the rear corner
radar or Forward Collision-
$ Y R L G D Q F H $ V V L V W P D \ Q R W R S H U D W H
S U R S H U O \ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
Assist Settings
Setting features
OJK070001L
Forward Safety
With the vehicle on, select or deselect
S ' U L Y H U $ V V L V W D Q F H
Page 399 of 661
7-7
07

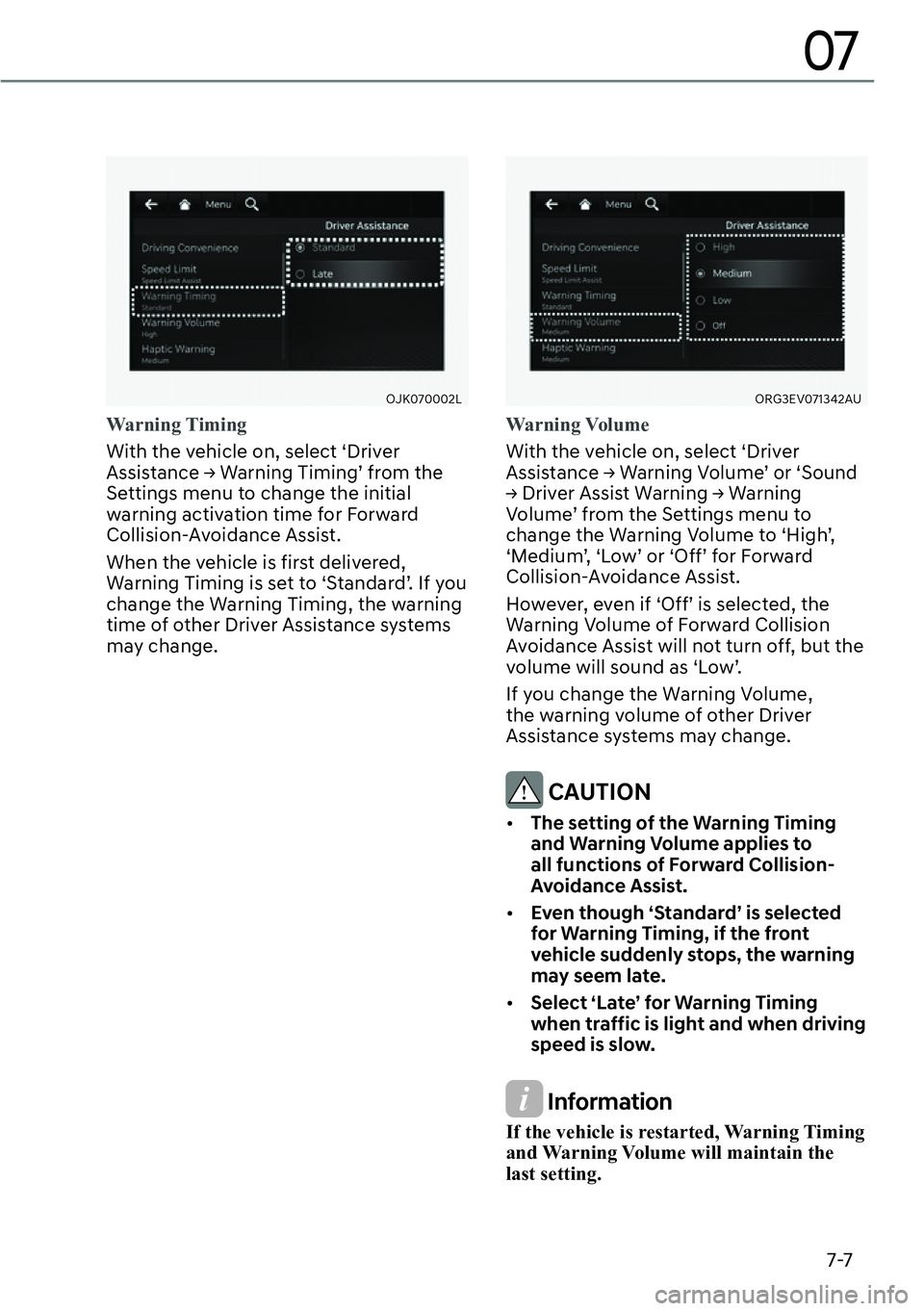

OJK070002L
Warning Timing
With the vehicle on, select ‘Driver
$ V V L V W D Q F H
Page 400 of 661
7-8
Driver Assistance System
) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
Assist Operation
Basic function
Warning and control
The basic function for Forward Collision-
Avoidance Assist is to warn and help
control the vehicle depending on the
collision risk level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control’.
ORG3EV071002L
Collision Warning
[ To warn the driver of a collision, the
‘Collision Warning’ warning message
will appear on the cluster, an audible
warning will sound and the steering
wheel will vibrate.
[ If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~124 mph (10~200
km/h).
[ If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~53 mph (10~85
km/h).
[ If ‘Active Assist’ is selected, braking
may be assisted.
ORG3EV071003L
Emergency Braking
[ To warn the driver that emergency
braking will be assisted, the
‘Emergency Braking’ warning
message will appear on the cluster,
an audible warning will sound and the
steering wheel will vibrate.
[ If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~53 mph (10~85
km/h).
[ If Forward Collision- Avoidance
Assist judges that avoiding a collision
is difficult even by changing the
driving lane, the function will operate
when your vehicle speed is between
approximately 6~62 mph (10~100
km/h) (if equipped with front corner
radar).
The function operation range may
decrease due to the front traffic
condition or the surroundings of the
vehicle.
[ If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~40 mph (10~65
km/h).
[ In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the vehicle, pedestrian
or cyclist ahead.
