GENESIS G80 2023 Owners Manual

5-57
05
Side View Mirrors
ORG3EV051024
Your vehicle is equipped with both left-
hand and right-hand side view mirrors.
The mirrors can be adjusted remotely
with the mirror adjustment control
switch. The side view mirrors can be
folded to help prevent damage when
going through an automatic car wash or
when passing through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside view mirror or look back
directly to determine the actual distance
of other vehicles prior to changing lanes.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

[Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

5-58
Convenience Features
Adjusting the rearview mirrors
ORG3EV051025L
Adjusting the side view mirrors:
1. Press either the L (Left side) or R
(Right side) button (1) to select the
side view mirror you would like to
adjust.
2. Use the mirror adjustment control
switch (2) to position the selected
mirror up, down, left or right.
3. After adjustment, press both L and
R button off (indicator light off) to
prevent inadvertent adjustment.
NOTICE

[The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.

[Do not attempt to adjust the
rearview mirrors by hand, because
this can damage the motor.
Folding the rearview mirrors
ORG3EV051026L
Folding button
The rearview mirrors can be folded or
unfolded by pressing the button.
Infotainment system setting

[Enable on door unlock
,I
S6HWXS

5-59
05
NOTICE
The electric type outside rearview
mirror operates even though the Start/
Stop button is in the OFF position.
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary while the
vehicle is not running.
NOTICE
Do not fold the electric type outside
rearview mirror by hand. It could cause
motor failure.
Reverse Parking Aid (if equipped)
ORG3EV051027
When the gear is shifted to the R
(Reverse) position, the side view mirror(s)
will rotate downwards to aid with driving
in reverse.
The state of the side view mirror button
(1) determines whether or not the mirrors
will move:
How it works

[When the L or R button (1) is pressed
(indicator lights ON), both side view
mirrors will move.

[If the L and R buttons (1) are not
pressed (indicator lights OFF), both
side view mirrors will not move.
The side view mirrors will automatically
revert to their original positions if any of
the following occur:

[The Start/Stop button is pressed to
either the OFF position or the ACC
position.

[The gear is shifted to any position
except R (Reverse).

[The side view mirror adjustment
button is not selected.

5-60
Convenience Features

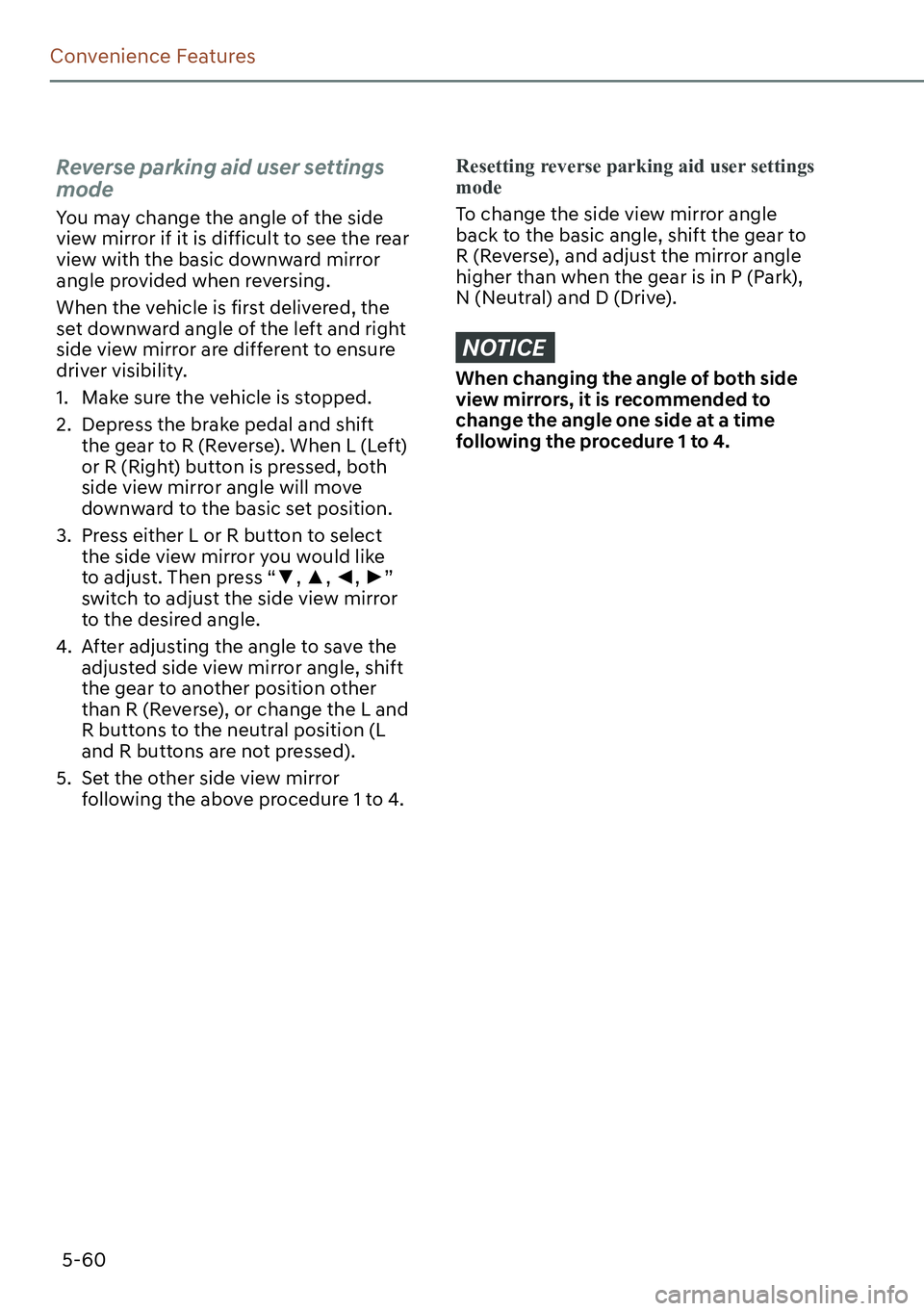

Reverse parking aid user settings
mode
You may change the angle of the side
view mirror if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing.
When the vehicle is first delivered, the
set downward angle of the left and right
side view mirror are different to ensure
driver visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift
the gear to R (Reverse). When L (Left)
or R (Right) button is pressed, both
side view mirror angle will move
downward to the basic set position.
3. Press either L or R button to select
the side view mirror you would like
to adjust. Then press “
z,
x,
{,
y
V
switch to adjust the side view mirror
to the desired angle.
4. After adjusting the angle to save the
adjusted side view mirror angle, shift
the gear to another position other
than R (Reverse), or change the L and
R buttons to the neutral position (L
and R buttons are not pressed).
5. Set the other side view mirror
following the above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirror angle
back to the basic angle, shift the gear to
R (Reverse), and adjust the mirror angle
higher than when the gear is in P (Park),
N (Neutral) and D (Drive).
NOTICE
When changing the angle of both side
view mirrors, it is recommended to
change the angle one side at a time
following the procedure 1 to 4.

5-61
05
ORG3EV051213L
WINDOWS
(1) Driver’s door power window switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window switch(4) Rear door (right) power window
switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch

5-62
Convenience Features
Power Windows
The Start/Stop button must be in the
ON position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that door’s
window. The driver has a Power Window
Lock button which can block the
operation of rear passenger windows.
The power windows will operate for
approximately 3 minutes after the
Start/Stop button is in the ACC or OFF
position. However, if the front doors are
opened, the Power Windows will not
operate even within the 3 minute period.
Window opening and closing
OJX1059031
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto up/down window
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers or lifts
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the Start/Stop button to the ON
position.
2. Close the window and continue
pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
inspected by an authorized retailer of
Genesis Branded products.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system.Make sure body parts
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.

5-63
05
Automatic reverse
ORG3EV051029
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.
Power window lock button
ORG3EV051212
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:

[The rear passenger control will not
be able to operate the rear passenger
power window.

[Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE

[To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.

[Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.

5-64
Convenience Features
62/$5522)

5-65
05
Solar roof generating level
The amount of electricity generated
from the solar roof varies according to
the amount of sunlight the solar roof is
exposed to.
Generation
levelEnvironmental condition
LowA cloudy and sun-deprived
day
Morning and night when
sunlight is weak
InoperableDark outdoors due to a
cloudy day
Night-time without
sunlight
Generation
amount levelOperation condition
Slight
decrease in
electricity
generatedSolar roof is contaminated
with dust
Decrease in
electricity
generated Solar roof is partially
covered by a shadow
from trees, traffic lights,
buildings etc.
Solar roof temperature
rises excessively
InoperableVehicle is parked indoors
or located in a tunnel
Solar roof is cover with
snow
Solar roof is hidden by
a directly approaching
object
WARNING
High voltage electricity may flow in
the inner wire or controller when the
vehicle is exposed to sunlight even
though the vehicle is turned off. Check
whether the solar roof operation lamp
installed on the upper part of the
dashboard is off before touching the
inner wire or controller.
Solar Roof Malfunction
ODN8HQ019031N
When the solar roof controller is not
working properly, the ‘Check solar
charging system’ warning message will
appear on the cluster. Take your vehicle
to an authorized retailer of Genesis
Branded products and have the system
checked.
NOTICE

[Do not place heavy objects or apply
impact on the solar roof. The solar
roof may not work properly.

[If roof bars are installed, the shadow
of the roof bars may prevent the
solar roof from working properly and
reduce the life of related parts.
Information
The color and the distance between solar
cells may vary due to the characteristics of
the solar cell.

5-66
Convenience Features
EXTERIOR FEATURES
Hood
Opening the hood
ORG3EV051033
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
ORG3EV051034
3. Go to the front of the vehicle, raise the
hood slightly, push up the secondary
latch (1) inside of the hood center and
lift the hood (2).
After the hood has been lifted halfway,
it will raise completely by itself.
Closing the hood
1. Before closing the hood, check in and
around the motor compartment to
ensure the following:
-Any tools or other loose objects are
removed from the motor room area
or hood opening area
-All glove, rags, or other
combustible material is removed
from the motor compartment
-All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted
approximately 12 in. (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
