radio GENESIS G80 2023 Owner's Manual

7-170
Driver Assistance System

[When operating Remote Smart
Parking function, make sure all
smart keys are outside of the
vehicle.

[Remote Smart Parking function will
operate only when the smart key is
within 13 ft. (4 m) from the vehicle.
If there is no vehicle movement
even when the Remote Forward or
Backward button is pressed on the
smart key, check the distance to the
vehicle and press the button again.

[The detecting range of the smart
key may vary depending on the
surroundings that are affected by
radio waves such as transmission
tower, broadcast station, etc.

[The parking location indicator is
displayed on Surround View Monitor
screen and is displayed until the
vehicle enters the parking space
for the first time by Remote Smart
Parking function.

[Depending on parking
environments, if the vehicle is
stopped by a stopper, parking may
be completed.

[If you need to change the vehicle's
position or location, manually
complete parking your vehicle.
&$87,21

[:KHQXVLQJ5HPRWH6PDUW3DUNLQJ
IXQFWLRQPDNHVXUHWKDWDOO
SDVVHQJHUVKDYHJRWWHQRXWRIWKH
YHKLFOH

[After ending or turning off Remote
6PDUW3DUNLQJIXQFWLRQEHIRUH
OHDYLQJWKHYHKLFOHFORVHZLQGRZV
DQGVXQURRIVDQGPDNHVXUHWKH
YHKLFOHLVRIIEHIRUHORFNLQJWKH
GRRUV

[:KHQXVLQJ5HPRWH6PDUW3DUNLQJ
IXQFWLRQZLWKWKHGLJLWDONH\WKH
VPDUWNH\VKRXOGEHZLWKLQIW
PIURPWKHYHKLFOH
How to turn off Parking function while
operating

[Press the Parking/View () button
in the following stage:
-Searching for parking space
-Select parking type

[Shift the gear to R (Reverse) in the
following stage:
-Searching for parking space
-Select parking type
-Select operating mode

[Press the Parking Safety (
) button
or select ‘Cancel’ on the infotainment
system screen to turn off Parking
function.

[While Smart Parking function is
operating:
-If the vehicle is stopped by
depressing the brake pedal, and the
gear is shifted, Parking function will
turn off. At this time, EPB (Electronic
Parking Brake) will not be engaged.

[While Remote Smart Parking function
is operating:
-Press the Remote Start (
) button
on the smart key. Parking function
will turn off.
-Get on the vehicle with the smart
key. Parking function will turn off. At
this time, the vehicle will remain on.

7-184
Driver Assistance System

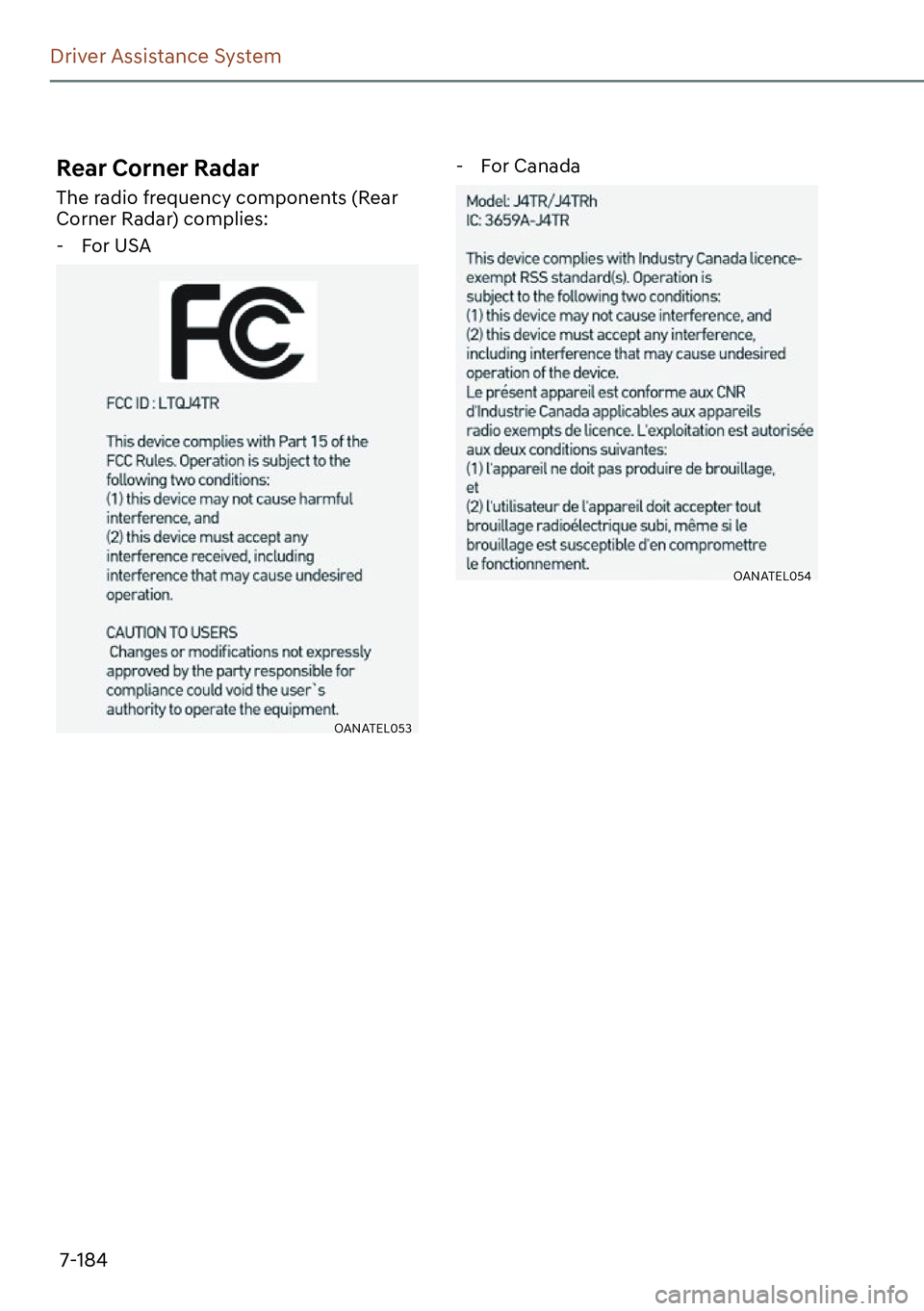

Rear Corner Radar
The radio frequency components (Rear
Corner Radar) complies:
-For USA
OANATEL053
-For Canada
OANATEL054

8-5
08
WARNING

[Keep sparks away from the battery as
the explosive gas is generated by the
sparks while the battery is running.

[When connecting the supplementary
battery and the discharged battery
with a jump cable because the
jump start does not operate with
jump start terminal in the motor
compartment, do not directly
connect the (-) to the jump cable.
Connect the (-) to the one of the
metallic parts located far from the
jump cable in the vehicle. The direct
(-) connection to the jumpcable may
cause an explosion.

[The battery contains dilute sulfuric
acid, which is highly corrosive, so be
careful not to let the battery liquid
get on your body, clothes, or car
body. If dilute sulfuric acid gets on
your body or eyes, immediately rinse
the area with clean water for about
15 minutes and then consult a doctor.
Information
Your vehicle has a battery in the luggage
compartment, but when you jump start
your vehicle, use the jumper terminal in
the motor compartment.
If jump start does not operate with
the jump start terminal in the motor
compartment, use the battery terminal in
the trunk.
Jump starting procedure
Information
Your vehicle has a battery in the luggage
compartment, but when you jump start
your vehicle, use the jumper terminal in
the motor compartment.
1. Position the vehicles close enough
that the jumper cables will reach, but
do not allow the vehicle to touch.
2. Avoid fans or any moving parts in the
motor compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as
radios, lights, air conditioning, etc.
Put the vehicles in P (Park) and set the
parking brake. Turn both vehicles OFF.
4. Open the hood.
ORG3EV081010
5. Remove the motor compartment fuse
box cover.
CAUTION
Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.

8-11
08
TPMS (Tire Pressure
Monitoring System)
Malfunction Indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System.
Have the system checked by an
authorized retailer of Genesis Branded
products as soon as possible.
NOTICE
If there is a malfunction with the TPMS,
the Low Tire Pressure Position Telltale
will not be displayed even though the
vehicle has an under-inflated tire.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
on. Have the flat tire repaired by an
authorized retailer of Genesis Branded
products as soon as possible or replace
the flat tire with the spare tire.
NOTICE
It is recommended that you do not use a
puncture-repairing agent not approved
by an authorized retailer of Genesis
Branded products or the equivalent
specified for your vehicle to repair
and/or inflate a low pressure tire. Tire
sealant not approved by an authorized
retailer of Genesis Branded products or
the equivalent specified for your vehicle
may damage the tire pressure sensor.
The spare tire (if equipped) does not
come with a tire pressure monitoring
sensor. When the low pressure tire or
the flat tire is replaced with the spare
tire, the Low Tire Pressure Telltale will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25 km/h) for
approximately 10 minutes.
Once the original wheel equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tire Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving.
If the indicators do not extinguish after
a few minutes, consult an authorized
retailer of Genesis Branded products.
