GENESIS G80 2023 Owners Manual

9-33
09
Maximum loaded vehicle weight
The sum of curb weight; accessory
weight; vehicle capacity weight; and
production options weight.
Normal occupant weight
The number of occupants a vehicle
is designed to seat multiplied by 150
pounds (68 kg).
Occupant distribution
Designated seating positions.
Outward facing sidewall
An asymmetrical tire has a particular
side that faces outward when
mounted on a vehicle. The outward
facing sidewall bears white lettering
or bears manufacturer, brand, and/or
model name molding that is higher
or deeper than the same moldings
on the inner facing sidewall.
Passenger (P-Metric) tire
A tire used on passenger cars
and some light duty trucks and
multipurpose vehicles.
Ply
A layer of rubber-coated parallel
cords.
Pneumatic tire
A mechanical device made of rubber,
chemicals, fabric and steel or other
materials, that, when mounted on
an automotive wheel provides the
traction and contains the gas or fluid
that sustains the load.
Pneumatic options weight
The combined weight of installed
regular production options weighing
over 5 lb. (2.3 kg) in excess of the
standard items which they replace,
not previously considered in
curb weight or accessory weight,
including heavy duty breaks, ride
levelers, roof rack, heavy duty
battery, and special trim.
Recommended inflation pressure
Vehicle manufacturer’s
recommended tire inflation pressure
as shown on the tire placard.
Radial ply tire
A pneumatic tire in which the ply
cords that extend to the beads are
laid at 90 degrees to the centerline
of the tread.
Rim
A metal support for a tire and upon
which the tire beads are seated.
Sidewall
The portion of a tire between the
tread and the bead.
Speed rating
An alphanumeric code assigned to a
tire indicating the maximum speed
at which a tire can operate.

9-34
Maintenance
Traction
The friction between the tire and
the road surface. The amount of grip
provided.
Tread
The portion of a tire that comes into
contact with the road.
Treadwear indicators
Narrow bands, sometimes called
“wear bars”, that show across the
tread of a tire when only 1/16 inch of
tread remains.
UTQGS
Uniform Tire Quality Grading
Standards is a tire information
system that provides consumers
with ratings for a tire’s traction,
temperature and treadwear.
Ratings are determined by tire
manufacturers using government
testing procedures. The ratings are
molded into the sidewall of the tire.
Vehicle capacity weight
The number of designated seating
positions multiplied by 150 lbs. (68
kg) plus the rated cargo and luggage
load.
Vehicle maximum load on the tire
Load on an individual tire due to curb
and accessory weight plus maximum
occupant and cargo weight.
Vehicle normal load on the tire
Load on an individual tire that is
determined by distributing to each
axle its share of the curb weight,
accessory weight, and normal
occupant weight and dividing by 2.
Vehicle placard
A label permanently attached
to a vehicle showing the
original equipment tire size and
recommended inflation pressure.

9-35
09
All Season Tires
Genesis Branded Vehicle specifies
all season tires on some models to
provide good performance for use
all year round, including snowy and
icy road conditions. All season tires
are identified by ALL SEASON and/
or M+S (Mud and Snow) on the tire
sidewall. Snow tires have better
snow traction than all season tires
and may be more appropriate in
some areas.
Summer Tires
Genesis Branded Vehicle specifies
summer tires on some models to
provide superior performance on dry
roads. Summer tire performance is
substantially reduced in snow and
ice. Summer tires do not have the
tire traction rating M+S (Mud and
Snow) on the tire side wall. If you
plan to operate your vehicle in snowy
or icy conditions, Genesis Branded
Vehicle recommends the use of
snow tires or all season tires on all
four wheels.
Snow Tires
If you equip your car with snow
tires, they should be the same size
and have the same load capacity as
the original tires. Snow tires should
be installed on all four wheels;
otherwise, poor handling may result.
Snow tires should carry 4 psi (28 kPa)
more air pressure than the pressure
recommended for the standard
tires on the tire label on the driver’s
side of the center pillar, or up to the
maximum pressure shown on the tire
sidewall, whichever is less. Do not
drive faster than 75 mph (120 km/h)
when your vehicle is equipped with
snow tires.
Radial-Ply Tires
Radial-ply tires provide improved
tread life, road hazard resistance
and smoother high speed ride. The
radial-ply tires used on this vehicle
are of belted construction, and are
selected to complement the ride
and handling characteristics of
your vehicle. Radial-ply tires have
the same load carrying capacity,
as bias-ply or bias belted tires of
the same size, and use the same
recommended inflation pressure.
Mixing of radial-ply tires with
bias-ply or bias belted tires is not
recommended. Any combinations of
radial-ply and bias-ply or bias belted
tires when used on the same vehicle
will seriously deteriorate vehicle
handling. The best rule to follow
is: Identical pairs of radial-ply tires
should always be used as a set for
the front tires and a set for the rear
tires.
Longer wearing tires can be more
susceptible to irregular tread wear.
It is very important to follow the tire
rotation interval in this chapter to
achieve the tread life potential of
these tires. Cuts and punctures in
radial-ply tires are repairable only in
the tread area, because of sidewall
flexing. Consult your tire dealer for
radial-ply tire repairs.
WARNING
Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics that may cause loss
of vehicle control resulting in an
accident.

9-36
Maintenance
Low Aspect Ratio Tires
The aspect ratio is lower than 50 on
low aspect ratio tires.
Because low aspect ratio tires are
optimized for handling and braking,
their sidewall is a little stiffer than a
standard tire. Also, low aspect ratio
tires tend to be wider so that they
consequently have a greater contact
patch with the road surface. In some
instances, they may generate more
road noise compared with standard
tires.
CAUTION
The side wall of a low aspect ratio
tire is shorter than the normal one.
Thus, the low-aspect wheel and
tire are easily damaged. Follow the
below instructions.

[When driving on a rough road or
driving off a road, be careful not
to damage the tires and wheels.
After driving, inspect the tires
and wheels.

[When passing over a pothole,
speed bump, manhole, or curb
stone, drive the vehicle slowly so
as not to damage the tires and
wheels.

[When there is an impact on a tire,
inspect the tire condition. Or,
contact an authorized retailer of
Genesis Branded products.

[Inspect the tire condition and
pressure every 1,800 miles (3,000
km) to prevent tire damage.

[It is difficult to recognize a tire
damage only with your eyes.
When there is a slight hint of a
tire damage, check and replace
the tire to prevent the damage
caused by air leakage.

[When a tire is damaged while
driving on a rough road, off a
road, or over obstacles, such as a
pothole, manhole, or curb stone,
your warranty does not cover the
damage.

[The tire information is specified
on the tire side wall.

9-37
09

v
Blade type

v
Cartridge type

v
Multi typeNormal Blown
Normal Blown
Normal Blown
OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the vehicle compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
vehicle and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved. Consult an
authorized retailer of Genesis Branded
products.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[A higher capacity fuse could cause
damage and possibly cause a fire.

[Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES

9-38
Maintenance
Instrument Panel Fuse
Replacement
„Driver’s side
ORG3EV091007
„Trunk
ORG3EV091044
1. Turn the vehicle off.
2. Turn all other switches off.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
ORG3EV091059
5. Pull the suspected fuse straight out.
Use the removal tool (1) provided in
the motor compartment fuses panel
cover.
6. Check the removed fuse; replace it if
it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the motor compartment fuse panel).
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized retailer of Genesis Branded
products.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not need
for operating the vehicle, such as the
cigarette lighter fuse.
If the headlamps or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the motor compartment. If a fuse is
blown, it must be replaced with the same
rating.

9-39
09

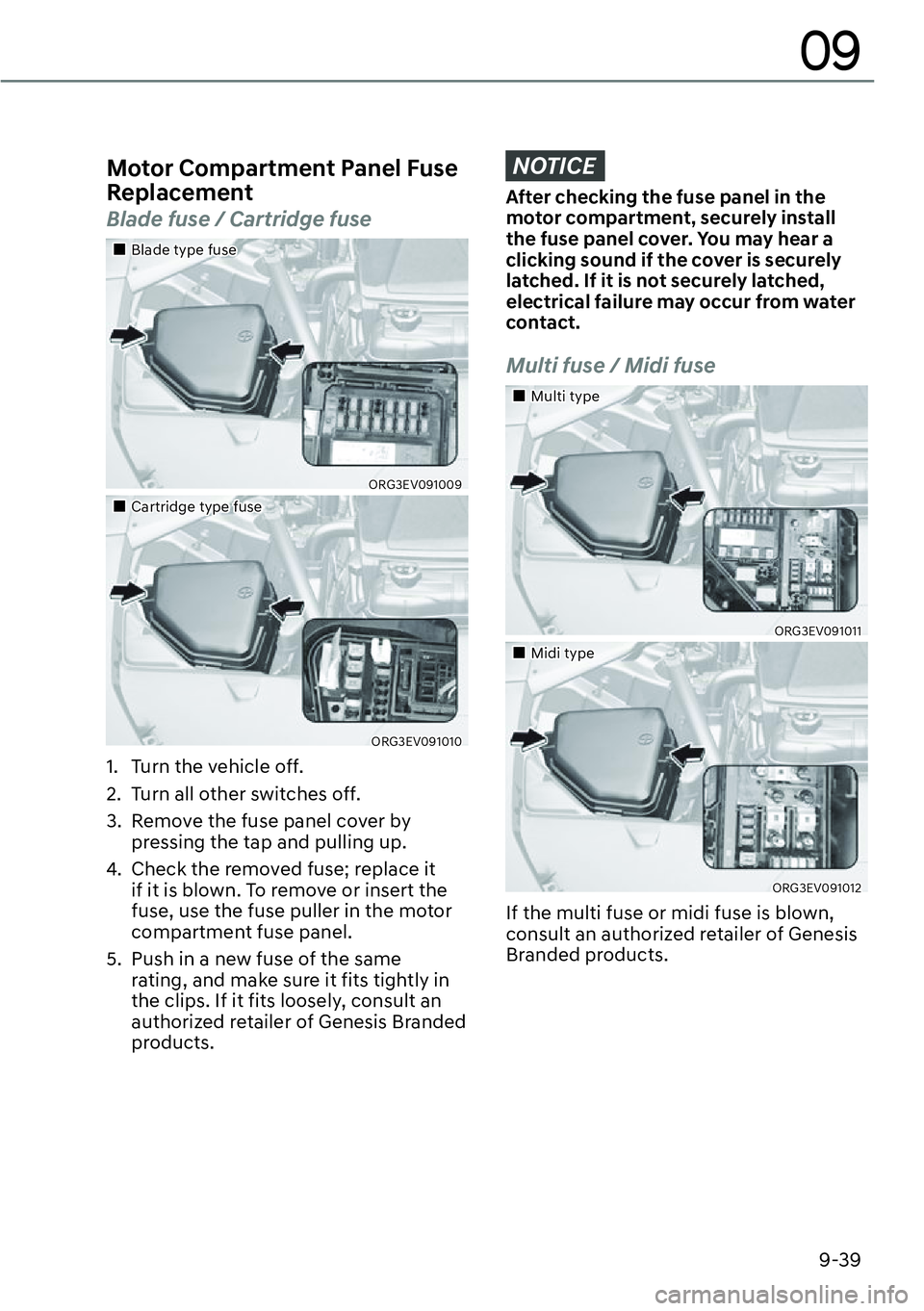

Motor Compartment Panel Fuse
Replacement
Blade fuse / Cartridge fuse
„Blade type fuse
ORG3EV091009
„Cartridge type fuse
ORG3EV091010
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it
if it is blown. To remove or insert the
fuse, use the fuse puller in the motor
compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized retailer of Genesis Branded
products.
NOTICE
After checking the fuse panel in the
motor compartment, securely install
the fuse panel cover. You may hear a
clicking sound if the cover is securely
latched. If it is not securely latched,
electrical failure may occur from water
contact.
Multi fuse / Midi fuse
„Multi type
ORG3EV091011
„Midi type
ORG3EV091012
If the multi fuse or midi fuse is blown,
consult an authorized retailer of Genesis
Branded products.

9-40
Maintenance
Fuse/Relay Panel Description
Instrument panel fuse panel
ORG3EV091013N
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
ORG3EV091060N

9-41
09
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
Module 910AOverhead Console, AMP, A/V & Navigation Head Unit,
Driver/Passenger Power Seat Module, Inverter (Rear),
Rear Seat LH/RH Heater Unit, Electro Chromic Mirror,
Rear Seat Console Remote Control Switch, SDC,
Smart Phone Wireless Charger, Data Link Connector
Module 1110AHead Lamp LH/RH, ADAS Unit (Parking),
Multifunction Switch
Module1210A IAU, IBU
A/C310AA/C Control Module, Front A/C Controller,
Rear A/C Controller
A/BAG IND.10A Instrument Cluster, Overhead Console
E-Shifter210A Electronic ATM Shift Dial
Spare15A Not Used
Module 1010A ICU Junction Block (ESU)
Module 710ADriver Door Module, Stop Lamp Switch, IBU, IAU,
Multifunction Switch
Multi Media25A A/V & Navigation Head Unit
Module 1310AICU Junction Block (ESU), A/C Control Module,
Front A/C Controller, Rear A/C Controller,
Instrument Cluster, Head-Up Display, Security Indicator
Cluster10A Instrument Cluster, Head-Up Display
IBU 210A IBU
Airbag 215ASRS Control Module, Passenger Occupant Detection
Sensor
Presafety Seat
Belt 310A Pre-Active Seat Belt Unit
Module810ARear Corner Radar LH/RH, ECS Unit, Crash Pad Switch,
ADAS Unit (Driving), ADAS Unit (Parking), Front View
Camera, Front Console Switch, Steering Tilt & Telescopic
Unit
Spare10A Not Used
Module310ARear Corner Radar LH/RH, Front Console Keyboard,
Rear Seat Console Remote Control Switch, VESS Unit,
Steering Tilt & Telescopic Unit, Front Corner Radar LH/RH,
Smart Phone Wireless Charger, Clock Spring

9-42
Maintenance
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
P/Window LH30ARear Power Window Module LH, Driver Power Window
Module
Curtain10A IBU
P/Seat PASS 225A Passenger Power Seat Module
Trunk Open10A Trunk Latch Motor
Airbag 115A SRS Control Module
E-Shifter 110A Electronic ATM Shift Dial, SCU
Module 410ADriver/Passenger Power Outside Mirror, Hazard Switch,
Rear Seat Console Remote Control Switch, Rain Sensor,
Data Link Connector, A/C Control Module,
Rear Occupant Alert (ROA) Sensor, Multifunction Switch,
Passenger Power Seat Module
P/Seat DRV 125A Driver Power Seat Module
P/Seat10A Driver Lumbar Support Unit
Power Handle15A Steering Tilt & Telescopic Unit
Module 515ADriver Door Module, Driver/Passenger Power Seat Switch,
Driver/Passenger Power Seat Module, PTL Unit,
Driver Lumbar Support Unit
IBU 110A BLE Unit, IBU, IAU, Driver/Passenger Door Outside Handle
Power Outlet20A Armrest Power Outlet
P/Seat DRV 225A Driver Power Seat Module
P/Seat PASS 125A Passenger Power Seat Module
S/Heater DRV20A Driver Power Seat Module
S/Heater PASS20A Passenger Power Seat Module
Door Lock20A Center Door Lock/Unlock Relay, Driver Door Unlock Relay
Spare10A Not Used
Module 210ACDM, P/R Junction Block (Blower Relay, Rear Heated
Relay)
Module 610AArmrest Lamp, IBU, A/V & Navigation Head Unit, IAU,
ADAS Unit (Parking), Front Console Keyboard,
Electronic ATM Shift Dial, Front Tray Lamp, VESS Unit,
Rear Seat Console Remote Control Switch, AMP,
Rear Console USB Charger
Brake Switch10A Stop Lamp Switch, IBU
