bulb GENESIS G80 2023 Owners Manual

2
2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (I) ..........................................................................................2-2
Exterior Overview (II) .........................................................................................2-3
Interior Overview ............................................................................................. 2-4
Instrument Panel Overview (I) ......................................................................... 2-5
Instrument Panel Overview (II) ........................................................................ 2-6
Motor Compartment ......................................................................................... 2-7
Dimensions ........................................................................................................ 2-8
Electric Vehicle Specifications ......................................................................... 2-8
Bulb Wattage ..................................................................................................... 2-9
Tires and Wheels .............................................................................................. 2-10
Air Conditioning System ................................................................................... 2-11
Vehicle Weight and Luggage Volume ............................................................. 2-11
Recommended Lubricants and Capacities .................................................... 2-12
Vehicle Identification Number (VIN) .............................................................. 2-13
Vehicle Certification Label .............................................................................. 2-13
Tire Specification and Pressure Label ............................................................ 2-14
Motor Number ................................................................................................. 2-14
Air Conditioner Compressor Label ................................................................. 2-15
Refrigerant Label ............................................................................................. 2-15
Consumer Information .................................................................................... 2-16
Reporting Safety Defects ................................................................................ 2-17

2-9
02
Light bulb Bulb type Wattage
FrontHeadlampLow LED LED
High LED LED
Turn signal lamp LED LED
Parking lamp LED LED
Side marker LED LED
Daytime Running Lamp (DRL) LED LED
Puddle lamp LED LED
RearStop lamp LED LED
Tail lamp LED LED
Turn signal lamp LED LED
Reverse lamp LED LED
Side marker LED LED
License plate lamp LED LED
High mounted stop lamp LED LED
InteriorMap lamp LED LED
Room lamp (without solar roof) LED LED
Personal lamp (with solar roof) LED LED
Vanity mirror lamp LED LED
Glove box lamp LED LED
Handle lamp / Mood lamp /
Door courtesy lampLED LED
Trunk lamp LED LED
BULB WATTAGE

4-24
Instrument Cluster
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlamp LED (if equipped)
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Shift to P to charge
ORG3EVQ011117N
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Remaining time
„AC charge„DC charge
ORG3EVQ011054LORG3EVQ011055L
This message is displayed to notify the
remaining time to charge the battery to
the selected target battery charge level.

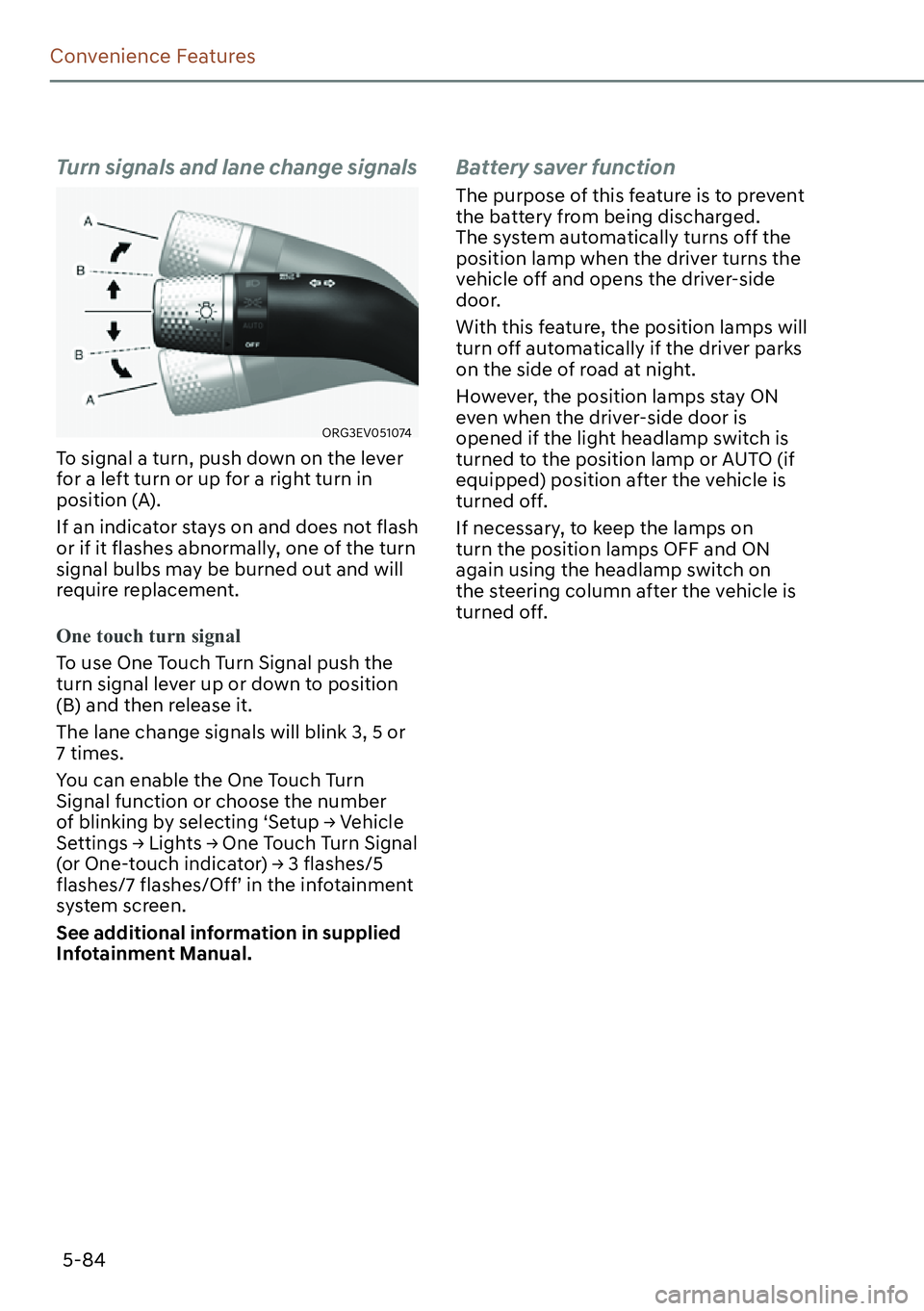

5-84
Convenience Features
Turn signals and lane change signals
ORG3EV051074
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal lever up or down to position
(B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
RIEOLQNLQJE\VHOHFWLQJ
S6HWXS

9
Tires and Wheels ............................................................................................. 9-24Tire Care ......................................................................................................................9-24
Recommended Cold Tire Inflation Pressures ...........................................................9-24
Check Tire Inflation Pressure ..................................................................................... 9-25
Tire Rotation ...............................................................................................................9-26
Wheel Alignment and Tire Balance ........................................................................... 9-27
Tire Replacement ....................................................................................................... 9-27
Wheel Replacement ...................................................................................................9-28
Tire Traction ................................................................................................................9-28
Tire Maintenance........................................................................................................9-28
Tire Sidewall Labeling ................................................................................................9-28
Tire Terminology and Definitions .............................................................................. 9-31
All Season Tires ...........................................................................................................9-35
Summer Tires .............................................................................................................9-35
Snow Tires...................................................................................................................9-35
Radial-Ply Tires ...........................................................................................................9-35
Low Aspect Ratio Tires ...............................................................................................9-36
Fuses ................................................................................................................ 9-37Instrument Panel Fuse Replacement ....................................................................... 9-38
Motor Compartment Panel Fuse Replacement .......................................................9-39
Fuse/Relay Panel Description................................................................................... 9-40
Light Bulbs .......................................................................................................9-49
Headlamp, Parking Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement ............................................................................................................. 9-50
Side Repeater Lamp Replacement ........................................................................... 9-51
Puddle Lamp Replacement ....................................................................................... 9-51
Rear Combination Lamp Replacement ....................................................................9-52
High Mounted Stop Lamp Replacement ..................................................................9-52
License Plate Lamp Replacement .............................................................................9-53
Interior Light Replacement ........................................................................................9-53
Appearance Care ............................................................................................ 9-55Exterior Care ...............................................................................................................9-55
Interior Care ............................................................................................................... 9-60
California Perchlorate Notice ......................................................................... 9-63

9-49
09
Consult an authorized retailer of
Genesis Branded products to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlamp assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING

[Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, press the Start/
Stop button to the OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.

[Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information - Headlamp
desiccant (if equipped)
This vehicle is equipped with desiccant to
reduce fogging inside the headlamp due
to moisture. The desiccant is consumable
and its performance may change based on
the used period or environment. If fogging
inside the headlamp due to moisture
continues for a long time, consult an
authorized retailer of Genesis Branded
products.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
LIGHT BULBS
