Page 425 of 661
7-33
07
ORG3EV071093
When you are driving forward out of a
parking space, if Blind-Spot Collision-
Avoidance Assist judges that there is
a collision risk with an approaching
vehicle in the blind spot, it can help avoid
collision by applying the brake.
Detecting sensor
ORG3EV071074
ORG3EV071076[1] : Front view camera, [2] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
& $ 8 7 , 2 1
Take the following precautions to
maintain optimal performance of the
detecting sensor:
[ 1 H Y H U G L V D V V H P E O H W K H U H D U F R U Q H U
U D G D U R U U D G D U D V V H P E O \ R U F D X V H D Q \
G D P D J H W R L W
[ If the rear corner radar or near
W K H U D G D U K D V E H H Q G D P D J H G R U
L P S D F W H G L Q D Q \ Z D \ H Y H Q W K R X J K
the warning message does not
D S S H D U R Q W K H F O X V W H U % O L Q G 6 S R W
& R O O L V L R Q $ Y R L G D Q F H $ V V L V W P D \ Q R W
R S H U D W H S U R S H U O \ + D Y H W K H Y H K L F O H
L Q V S H F W H G E \ D Q D X W K R U L ] H G U H W D L O H U R I
* H Q H V L V % U D Q G H G S U R G X F W V
Page 538 of 661
7-146
Driver Assistance System
[ When ‘Parking Distance Warning Auto
On’ is deselected, and the vehicle’s
forward speed is above 12 mph (20
km/h), the Parking Safety (
) button
indicator will turn off. Although you
drive below 6 mph (10 km/h), Forward
Parking Distance Warning will not turn
on.
ÃIf equipped with Reverse
ParkingCollision-Avoidance Assist
or Remote Smart Parking Assist,
Forward/Reverse Parking Distance
Warning will turn off when vehicle
speed is above 18 mph (30 km/h).
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
forwardWarning
sound
24~40 in.
(60~100 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance Warning
[ Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).
[ Reverse Parking Distance Warning
helps detect a person, animal or
object in the rear when the vehicle’s
rearward speed is below 6 mph (10
km/h).
[ When the vehicle’s rearward speed is
below 6 mph (10 km/h), both the front
and rear ultrasonic sensors will help
detect objects. However, the front
ultrasonic sensors can help detect a
person, animal or object when it is
within 24 in. (60 cm) from the sensors.
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
rearwardWarning
sound
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Page 540 of 661
7-148
Driver Assistance System
Limitations of Forward/Reverse
Parking Distance Warning
[ Forward/Reverse Parking Distance
Warning may not operate properly
when:
-Moisture is frozen to the sensor
-Sensor is covered with substance,
such as snow or water (Forward/
Reverse Parking Distance Warning
will operate properly when such
substance is removed.)
-The weather is extremely hot or cold
-The sensor or sensor assembly is
disassembled
-The surface of the sensor is pressed
hard or hit with a hard object
-The surface of the sensor is
scratched with a sharp object
-The sensors or its surrounding
area is directly sprayed with high
pressure washer
[ Forward/Reverse Parking Distance
Warning may malfunction when:
-Heavy rain or water spray is present
-Water flows on the surface of the
sensor
-Affected by another vehicle’s
sensors
-The sensor is covered with snow or
ice
-Driving on uneven road, gravel
roads or bushes
-Objects that generate ultrasonic
waves are near the sensor
-License plate is installed in a
different spot from the original
location
-The vehicle bumper height or
ultrasonic sensor installation has
been modified
-Attaching equipment or accessories
next to the ultrasonic sensors[ The following objects may not be
detected:
-Sharp or slim objects, such as ropes,
chains or small poles.
-Narrow objects, such as corners of a
square column
-Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
-Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.
-Pedestrians, animals or objects
that are very close to the ultrasonic
sensors
[ Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.
[ Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
[ If Forward/Reverse Parking Distance
Warning needs repair, have the
vehicle inspected by an authorized
retailer of Genesis Branded products.
Page 543 of 661
7-151
07
5 H Y H U V H 3 D U N L Q J & R O O L V L R Q
$ Y R L G D Q F H $ V V L V W 2 S H U D W L R Q
Operating conditions
If ‘Rear Active Assist’ or ‘Rear Warning
Only’ is set from the Settings menu,
Reverse Parking Collision-Avoidance
Assist will be in the ready status when
the following conditions are satisfied:
-The trunk is closed
-The gear is shifted to R (Reverse)
-Vehicle speed is below 6 mph (10
km/h)
-Reverse Parking Collision-Avoidance
Assist components such as the rear
view camera and the rear ultrasonic
sensors are in normal conditions
When Reverse Parking Collision-
Avoidance Assist activates, a line
appears behind the vehicle image in the
instrument cluster.
Reverse Parking Collision-Avoidance
Assist operates only once after the gear
is shifted to R (Reverse). To reactivate
Reverse Parking Collision-Avoidance
Assist, shift the gear from another gear
to R (Reverse).
ORG3EV071067
Rear Active Assist
[ If Reverse Parking Collision-Avoidance
Assist detects a risk of collision with
a pedestrian or an object, Reverse
Parking Collision-Avoidance Assist
will warn the driver with an audible
warning and warning message on the
cluster. When Rear View Monitor is
operating, a warning will appear on
the infotainment system screen.
[ If Reverse Parking Collision-Avoidance
Assist detects an imminent collision
with a pedestrian or an object behind
the vehicle, Reverse Parking Collision-
Avoidance Assist will assist you with
braking. The driver needs to pay
attention and apply the brakes as the
brake assist will last for 5 minutes.
The driver must immediately depress
the brake pedal and check vehicle
surroundings.
[ Brake control will end when:
-The gear is shifted to P (Park) or D
(Drive).
-The driver depresses the brake
pedal with sufficient power
-Braking assist has last for
approximately 5 minutes
[ The warning will turn off when:
-The driver shifts the gear to P (Park),
N (Neutral), or D (Drive)
Rear Warning Only
[ If Reverse Parking Collision-Avoidance
Assist detects a risk of collision with
a pedestrian or an object, Reverse
Parking Collision-Avoidance Assist
will warn the driver with an audible
warning and warning message on the
cluster. When Rear View Monitor is
operating, a warning will appear on
the infotainment system screen.
[ If ‘Rear Warning Only’ is selected,
braking will not be assisted.
[ The warning will turn off when the
gear is shifted to P (Park), N (Neutral)
or D (Drive).
Page 544 of 661
7-152
Driver Assistance System
5 H Y H U V H 3 D U N L Q J & R O O L V L R Q
$ Y R L G D Q F H $ V V L V W 0 D O I X Q F W L R Q
and Limitations
Reverse Parking Collision-
Avoidance Assist malfunction
ORG3EV071068L
When Reverse Parking Collision-
Avoidance Assist or other related
functions are not working properly, the
‘Check Parking Safety system’ warning
message will appear on the cluster, and
Reverse Parking Collision-Avoidance
Assist will turn off automatically. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Reverse Parking Collision-Avoidance
Assist disabled
ORG3EV071052
The rear view camera is used as a
detecting sensor to detect pedestrians. If
the camera lens is covered with foreign
material, such as snow or rain, it may
adversely affect camera performance
and Reverse Parking Collision-Avoidance
Assist may not operate properly. Always
keep the camera lens clean.
ORG3EV071071
The rear ultrasonic sensors are located
inside the rear bumper to detect objects
in the rear area. If the sensors are
covered with foreign material, such as
snow or rain, it may adversely affect
sensor performance and Reverse Parking
Collision-Avoidance Assist may not
operate properly. Always keep the rear
bumper clean.
Page 545 of 661
7-153
07
„Rear view camera „Rear ultrasonic sensor
ORG3EV071069LORG3EV071070LThe ‘Camera error or blockage’ or
‘Ultrasonic sensor error or blockage’
warning message will appear on the
cluster if the following situations occur:
-The rear view camera or rear
ultrasonic sensor(s) is covered with
foreign material, such as snow or rain,
etc.
-There is inclement weather, such as
heavy snow, heavy rain, etc.
If this occurs, Reverse Parking Collision-
Avoidance Assist may turn off or may not
operate properly. Check whether the rear
view camera and rear ultrasonic sensors
are clean.
Limitations of Reverse Parking
Collision-Avoidance Assist
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn
the driver even if there are pedestrians
or objects under the following
circumstances:
[ Any non-factory equipment or
accessory is installed
[ Your vehicle is unstable due to an
accident or other causes
[ Bumper height or rear ultrasonic
sensor installation has been modified
[ Rear view camera or rear ultrasonic
sensor(s) is damaged
[ Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.
[ Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.
[ The surrounding is very bright or very
dark
[ Outside temperature is very high or
very low
[ The wind is either strong (above
12 mph (20 km/h)) or blowing
perpendicular to the rear bumper
[ Objects generating excessive
noise, such as vehicle horns, loud
motorcycle vehicles or truck air
brakes, are near your vehicle
[ An ultrasonic sensor with similar
frequency is near your vehicle
[ There is ground height difference
between the vehicle and the
pedestrian
[ The image of the pedestrian in the
rear view camera is indistinguishable
from the background
Page 548 of 661
7-156
Driver Assistance System
& $ 8 7 , 2 1
Take the following precautions to
maintain optimal performance of the
detecting sensors:
[ $ O Z D \ V N H H S W K H U H D U Y L H Z F D P H U D
D Q G U H D U X O W U D V R Q L F V H Q V R U V F O H D Q
[ ' R Q R W X V H D Q \ F O H D Q V H U F R Q W D L Q L Q J
acid or alkaline detergents when
F O H D Q L Q J W K H U H D U Y L H Z F D P H U D O H Q V
8 V H R Q O \ D P L O G V R D S R U Q H X W U D O
G H W H U J H Q W D Q G U L Q V H W K R U R X J K O \ Z L W K
Z D W H U
[ ' R Q R W V S U D \ W K H U H D U Y L H Z F D P H U D R U
the rear ultrasonic sensors or their
V X U U R X Q G L Q J D U H D G L U H F W O \ Z L W K D
K L J K S U H V V X U H Z D V K H U , W P D \ F D X V H
W K H U H D U Y L H Z F D P H U D R U W K H U H D U
X O W U D V R Q L F V H Q V R U V W R P D O I X Q F W L R Q
[ ' R Q R W D S S O \ R E M H F W V V X F K D V D
E X P S H U V W L F N H U R U D E X P S H U J X D U G
Q H D U W K H U H D U Y L H Z F D P H U D R U U H D U
X O W U D V R Q L F V H Q V R U V R U D S S O \ S D L Q W W R
W K H E X P S H U ' R L Q J V R P D \ D G Y H U V H O \
D I I H F W W K H S H U I R U P D Q F H R I 5 H Y H U V H
3 D U N L Q J & R O O L V L R Q $ Y R L G D Q F H $ V V L V W
[ 1 H Y H U G L V D V V H P E O H R U D S S O \ L P S D F W
R Q W K H U H D U Y L H Z F D P H U D R U W K H U H D U
X O W U D V R Q L F V H Q V R U V F R P S R Q H Q W V
[ ' R Q R W D S S O \ X Q Q H F H V V D U \ I R U F H R Q
W K H U H D U Y L H Z F D P H U D R U W K H U H D U
X O W U D V R Q L F V H Q V R U V 5 H Y H U V H 3 D U N L Q J
& R O O L V L R Q $ Y R L G D Q F H $ V V L V W P D \
Q R W R S H U D W H S U R S H U O \ L I W K H U H D U
Y L H Z F D P H U D R U W K H U H D U X O W U D V R Q L F
V H Q V R U V L V I R U F L E O \ P R Y H G R X W R I
S U R S H U D O L J Q P H Q W + D Y H W K H Y H K L F O H
L Q V S H F W H G E \ D Q D X W K R U L ] H G U H W D L O H U R I
* H Q H V L V % U D Q G H G S U R G X F W V
Information
Reverse Parking Collision-Avoidance
Assist can detect a pedestrian or an object
when:
[ A pedestrian is standing behind the
vehicle
[ A large obstacle, such as a vehicle,
is parked in the rear center of your
vehicle
Page 566 of 661
7-174
Driver Assistance System
& K H F N L Q J V S D F H
ORG3EV071209L
(1) When the vehicle is stopped by
depressing the brake pedal, the
vehicle sensors will detect the
distance from nearby objects and
check for space to exit.
(2) When checking for space is
complete, a message will appear
on the infotainment system screen
with an audible sound to notify the
search is complete.
WARNING
[ : K L O H F K H F N L Q J I R U V S D F H L I W K H U H L V
D U L V N R I F R O O L V L R Q Z L W K S H G H V W U L D Q
D Q L P D O R U R E M H F W L Q W K H G L U H F W L R Q R I
Y H K L F O H H [ L W I R U \ R X U V D I H W \ 6 P D U W
( [ L W I X Q F W L R Q F D Q E H W X U Q H G R I I
[ ( Y H Q L I F K H F N L Q J I R U V S D F H L V
F R P S O H W H G R E M H F W V L Q W K H E O L Q G V S R W
D U H D F D Q Q R W E H G H W H F W H G E \ W K H
V H Q V R U V 7 K H G U L Y H U P X V W G L U H F W O \
F K H F N W K H E O L Q G V S R W D U H D D Q G
F R Q W L Q X H X V L Q J W K H I X Q F W L R Q
Information
Due to abnormal performance of the
ultrasonic sensor or the influence of the
surroundings, Parking function may not
be able to search for a parking space even
if there is a parking space, or may search
for a space that is not suitable for parking.
-The parked vehicle has objects attached
to the bumper such as bumper guard,
trailer hitch, etc.
6 H O H F W H [ L W G L U H F W L R Q
ORG3EV071210L
(1) With the vehicle stopped by
depressing the brake pedal, the
infotainment system screen
displays the possible directions for
parallel exit.
(2) Touch the infotainment system
screen or use the central controller
to select the desired exit direction.
& $ 8 7 , 2 1
[ % H I R U H V H O H F W L Q J W K H ( [ L W ' L U H F W L R Q
W K H G U L Y H U V K R X O G F K H F N Z K H W K H U W K H
V S D F H I R U H [ L W L V V X L W D E O H
[ , I W K H V H D U F K H G H [ L W V S D F H E \ 5 H P R W H
6 P D U W 3 D U N L Q J $ V V L V W L V Q D U U R Z R U
X Q V X L W D E O H V X U U R X Q G L Q J Y H K L F O H V D U H
S D U N H G Y H U W L F D O O \ H W F G R Q R W X V H
W K H 6 P D U W ( [ L W I X Q F W L R Q
Page 571 of 661
7-179
07
[ There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc., near the
parking space
[ The road surface is bumpy (curbstone,
speed bump, etc.)
[ The road is slippery
[ The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.
[ The parking space is Inclined
[ There is heavy wind
[ Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.
[ The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather
[ The ultrasonic sensor is covered with
snow or water
[ An object that generates ultrasonic
waves is nearby
[ A wireless device with a transmission
function operates near the ultrasonic
sensors
[ Your vehicle is affected by another
vehicle’s Parking Distance Warning
[ The sensor is mounted or positioned
incorrectly by an impact to the
bumper
[ When the ultrasonic sensor cannot
detect the following objects:
-Sharp or slim objects, such as ropes,
chains or small poles
-Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter
-Objects which tend to absorb
sensor frequency, such as clothes,
spongy material or snow
-A narrow object such as a corner of
a square pillar
-Person, animal or object near the
ultrasonic sensorRemote Smart Parking Assist may not
operate properly under the following
circumstances:
[ Parking on inclines
ORG3EV071172
Park manually when parking on
inclines.
[ Parking in snow
ORG3EV071178
Snow may interfere with sensor
operation, or Remote Smart Parking
Assist may cancel if the road is
slippery while parking.
Page 653 of 661
9-55
09

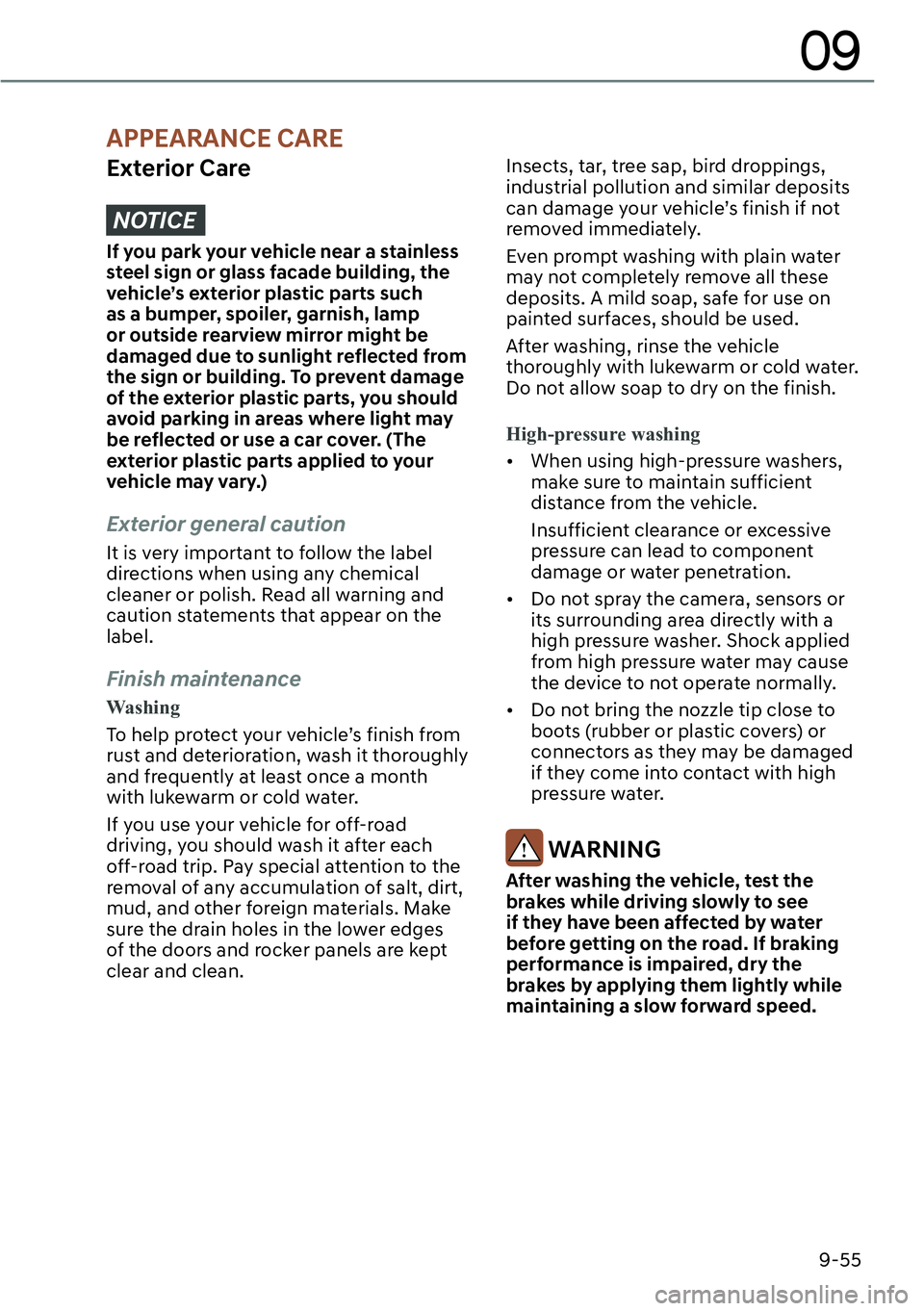

Exterior Care
NOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp
or outside rearview mirror might be
damaged due to sunlight reflected from
the sign or building. To prevent damage
of the exterior plastic parts, you should
avoid parking in areas where light may
be reflected or use a car cover. (The
exterior plastic parts applied to your
vehicle may vary.)
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing
[ When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
[ Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.
[ Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
APPEARANCE CARE
