sensor GENESIS G90 2018 Workshop Manual

7-64
Maintenance
Fuse name Fuse rating Circuit protected
POWER OUT-LET1 40A Metal Core Block (PCB #1 - Power Outlet Relay)
RR
BLOWER 30ARLY. 4 (Rear Blower Relay)
WIPER1 30AWiper Motor
DRIVER CCS 20A Driver CCS Module
PASSENGER CCS 20A Passenger CCS Module
POWER OUT-LET4 20A [W/O 5:5 Seat] Power Outlet Relay
4WD 30A 4WD ECM
PRESAFETYSEAT BELT1 30A Pre Active Seat Belt Unit
PRESAFETYSEAT BELT2 30APre Active Seat Belt Unit
DRIVER
P/DOOR 15ADriver Door Latch
PASSENGER P/DOOR 15APassenger Door Latch
RR LH
P/DOOR 15ARear Door Latch LH
RR RH
P/DOOR 15ARear Door Latch RH
IGN230AIG2 Relay
ECU330AEngine Control Relay
MODULE110A4WD ECM, Active Air Flap, Smart Cruse Control Radar
WIPER210APCB #2 (Wiper Relay)
WASHER20AWasher Relay
SENSOR210A[Lambda 3.3 T-GDI] Oxygen Sensor #1/#2/#3/#4
[Tau 5.0 GDI] Oxygen Sensor #1/#2/#3/#4, Electronic Thermostat

7-65
07
Fuse name Fuse rating Circuit protected
SENSOR110A
[Lambda 3.3 T-GDI] Oil Controlvalve #1/#2/#3/#4(Intake/Exhaust), Purge Control
Solenoid Valve, Oil Pressure Solenoid
Valve, Canister Close Valve
[Tau 5.0 GDI] Oil Controlvalve #1/#2/#3/#4 (Intake/ Exhaust), Purge Control Solenoid Valve,
Canister Close Valve
SENSOR310A[Lambda 3.3 T-GDI] Electronic Thermostat, Rear Sub Junction Block (Fuel Pump Relay)
[Tau 5.0 GDI] Rear Sub Junction Block (Fuel Pump Relay)
SENSOR410A
[Lambda 3.3 T-GDI] E/R Junction Block (RLY. 1 - Cooling Fan Relay)
[Tau 5.0 GDI] E/R Junction Block (RLY. 1 - Cooling Fan Relay), Camshaft Position Sensor #1/#2/#3/#4
(Intake/ Exhaust)
IGN COIL15A[Lambda 3.3 T-GDI] Ignition Coil #1/#2/#3/#4/#5/#6
[Tau 5.0 GDI] Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8
ECU420AECM
H/LAMPHI SOL10AHead Lamp (HI SOL) Relay
H/LAMP
WASHER25AHead Lamp Washer Relay
A/CON110AA/C Control Module
FRT
BLOWER40AFront Blower Relay
IGN140AIG1 Relay
START30AE/R Junction Block (RLY. 2 - Start Relay)
ECU115AECM
TCU120ATCM
ESC310AESC Control Module

7-66
Maintenance
Fuse name Fuse rating Circuit protected
MODULE210A4WD ECM, Active Air Flap, Smart Cruse Control Radar
MDPS210AMDPS Unit, Steering Angle Sensor
SENSOR510A[G6DP] E/R Junction Block (RLY. 3 - Vacuum Pump- Relay),Brake Vacuum Switch
HORN20AHorn Relay
ECU210AECM
TCU215ATCM, B/UP Lamp Relay, P/N Relay
EPB215AElectric Parking Brake Module
EPB115AElectric Parking Brake Module
B/UP
LAMP10AB/Up Lamp Relay
ACC40AACC Relay

7-70
Maintenance
Trunk fuse panel
Fuse nameFuse rating Circuit protected
B+100ARear Sub Junction Block (Fuse - F55 ~ F73)
B+80AMetal Core Block (PCB #2 Fuse - F57/F58/F59/ F60)
AMS10ABattery Sensor

7-75
07
Exterior Care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
High-pressure washing
When using high-pressure wash-ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers)or
connectors as they may be dam-
aged if they come into contact with
high pressure water.
Do not use any high-pressure noz- zles, which induce either one-direct
water stream or water swirling.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear and
clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain
water may not completely remove all
these deposits. A mild soap, safe for
use on painted surfaces, should be
used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
A AP
PP
PE
EA
A R
RA
A N
N C
CE
E
C
C A
A R
RE
E
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water before getting on the
road. If braking performance is
impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.
WARNING

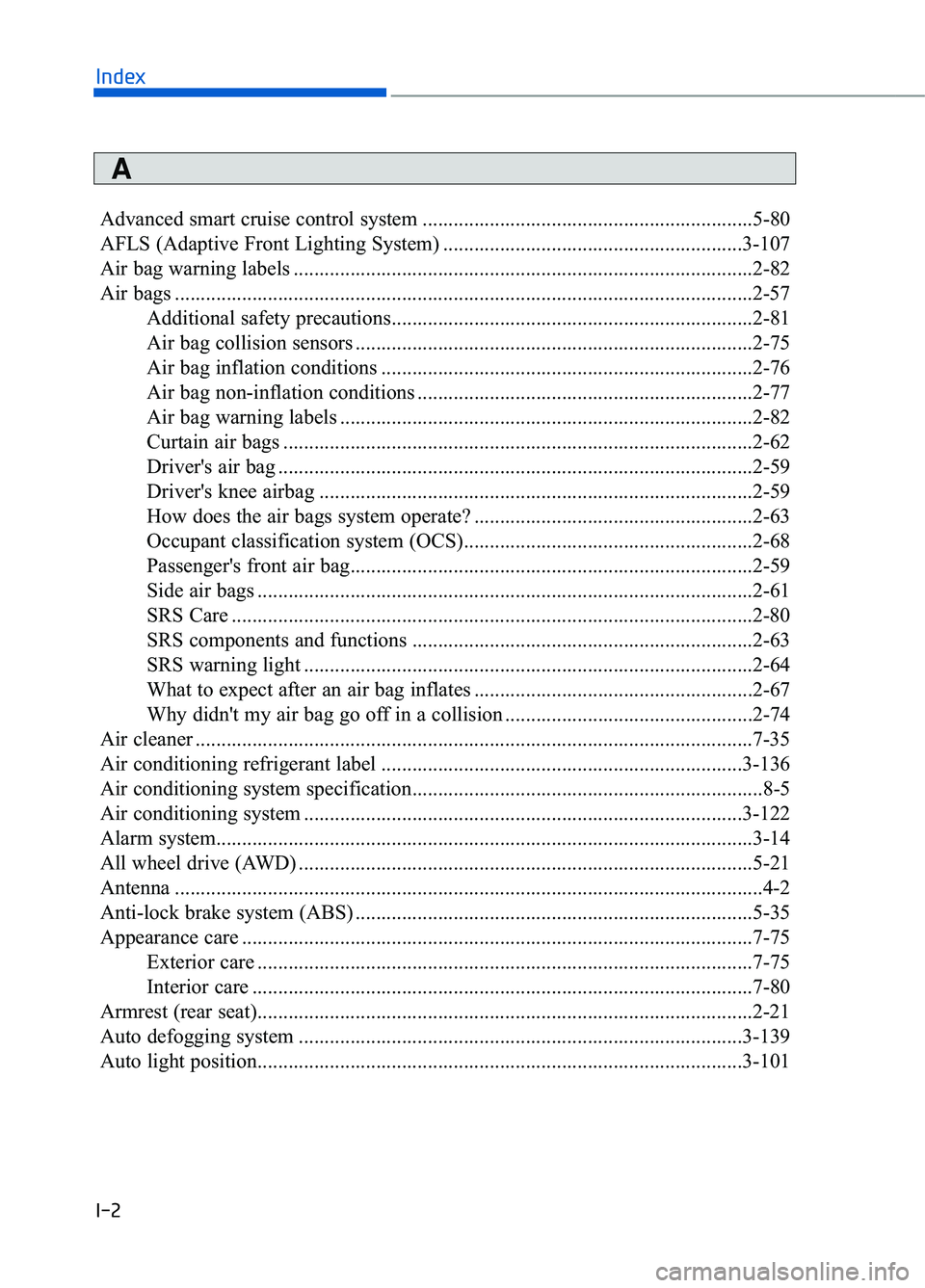

Advanced smart cruise control system ................................................................5-80
AFLS (Adaptive Front Lighting System) ..........................................................3-107
Air bag warning labels ........................................................................\
.................2-82
Air bags ........................................................................\
........................................2-57Additional safety precautions......................................................................2-\
81
Air bag collision sensors ........................................................................\
.....2-75
Air bag inflation conditions ........................................................................\
2-76
Air bag non-inflation conditions .................................................................2-77
Air bag warning labels ........................................................................\
........2-82
Curtain air bags ........................................................................\
...................2-62
Driver's air bag ........................................................................\
....................2-59
Driver's knee airbag ........................................................................\
............2-59
How does the air bags system operate? ......................................................2-63
Occupant classification system (OCS)........................................................2-68
Passenger's front air bag........................................................................\
......2-59
Side air bags ........................................................................\
........................2-61
SRS Care ........................................................................\
.............................2-80
SRS components and functions ..................................................................2-63
SRS warning light ........................................................................\
...............2-64
What to expect after an air bag inflates ......................................................2-67
Why didn't my air bag go off in a collision ................................................2-74
Air cleaner ........................................................................\
....................................7-35
Air conditioning refrigerant label ......................................................................3-\
136
Air conditioning system specification....................................................................8-5
Air conditioning system ........................................................................\
.............3-122
Alarm system........................................................................\
................................3-14
All wheel drive (AWD) ........................................................................\
................5-21
Antenna ........................................................................\
..........................................4-2
Anti-lock brake system (ABS) ........................................................................\
.....5-35
Appearance care ........................................................................\
...........................7-75 Exterior care ........................................................................\
........................7-75
Interior care ........................................................................\
.........................7-80
Armrest (rear seat)........................................................................\
........................2-21
Auto defogging system ........................................................................\
..............3-139
Auto light position........................................................................\
......................3-101
I-2
Index
A
