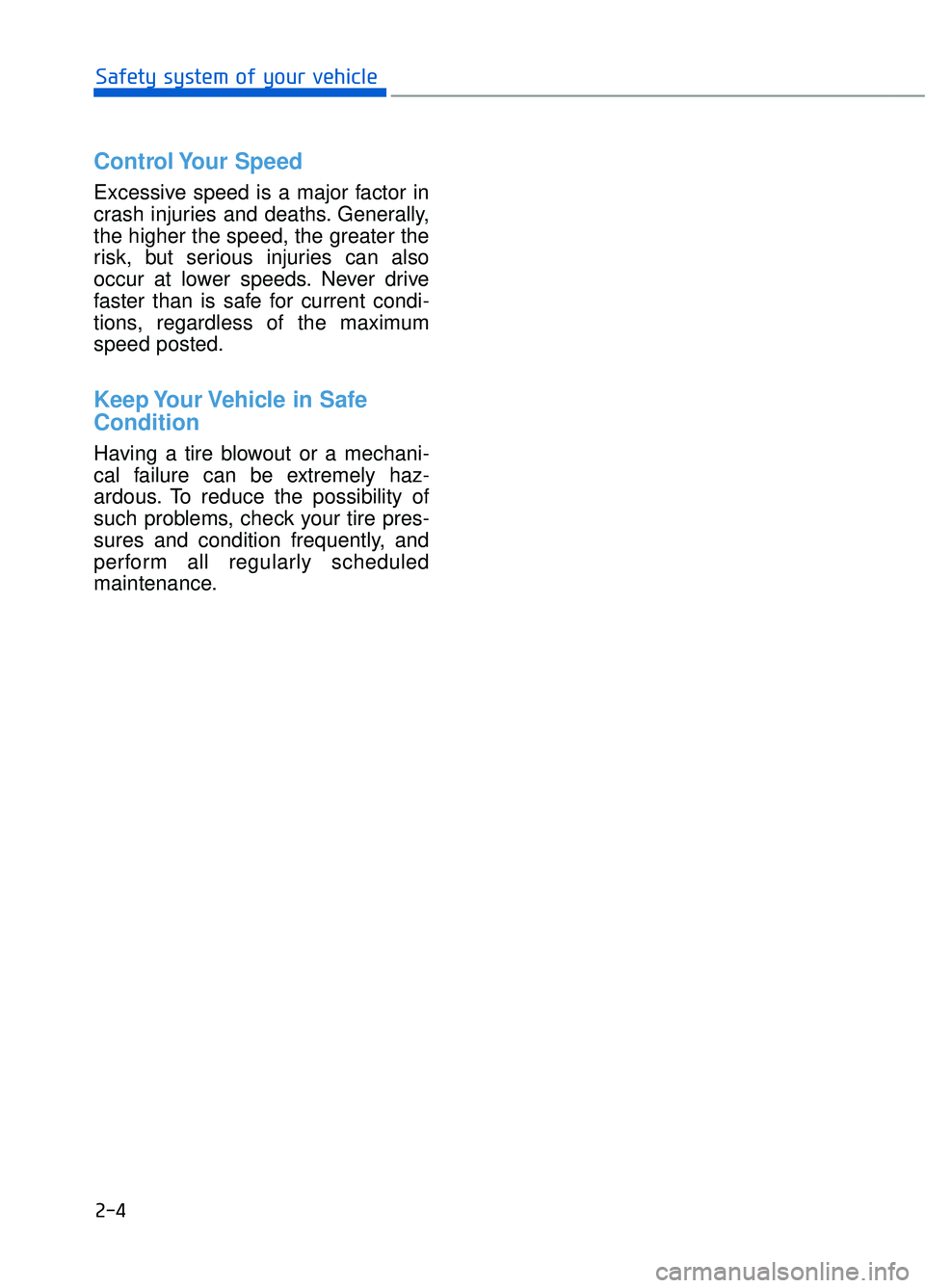

2-4
Safety system of your vehicle
Control Your Speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi-
tions, regardless of the maximum
speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechani-
cal failure can be extremely haz-
ardous. To reduce the possibility of
such problems, check your tire pres-
sures and condition frequently, and
perform all regularly scheduled
maintenance.

Air conditioning system operation
tips
If the vehicle has been parked indirect sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
After sufficient cooling has been achieved, switch back from the
recirculated air to the fresh outside
air position.
To help reduce moisture inside of the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the win-
dows and sunroof closed.
Use the air conditioning system every month only for a few minutes
to ensure maximum system per-
formance.
If you operate air conditioner excessively, the difference between
the temperature of the outside air
and that of the windshield could
cause the outer surface of the
windshield to fog up, causing loss
of visibility. In this case, set the
mode selection knob or button to
the position and fan speed
control to the lower speed.
System Maintenance
Climate control air filter
This filter is installed behind the glove
box. It filters the dust or other pollu-
tants that enter the vehicle through the
heating and air conditioning system.
Have the climate control air filter
replaced by an authorized retailer of
Genesis Branded products accord-
ing to the maintenance schedule. If
the car is being driven in severe con-
ditions such as dusty or rough roads,
more frequent air conditioner filter
inspections and changes are
required.
If the air flow rate suddenly decreas-
es, the system should be checked at
an authorized retailer of Genesis
Branded products.
3-135
03
OHI046480
Outside air
Recirculatedair
Climate control air filter Blower
Evaporatorcore Heater core

5-21
05
Using All Wheel Drive (AWD)
The All Wheel Drive (AWD) System
delivers engine power to the front
and rear wheels for maximum trac-
tion. AWD is useful when extra trac-
tion is required, such as when driving
on slippery, muddy, wet, or snow-
covered roads.
If the system determines there is a
need for addition traction, engine
power will automatically be distrib-
uted to all four wheels.
Information
• Do not drive in water if the level ishigher than the bottom of the vehi-
cle.
• Check your brake condition once you are out of mud or water.
Depress the brake pedal several
times as you move slowly until you
feel normal braking return.
• Shorten your scheduled mainte- nance interval if you drive in off-
road conditions such as sand, mud
or water (see "Maintenance Under
Severe Usage Conditions" in chap-
ter 7).
• Make sure that an AWD vehicle is towed by flatbed tow truck.
i
A AL
LL
L
W
W H
HE
EE
EL
L
D
D R
RI
IV
V E
E
(
( A
A W
W D
D)
)
(
( I
IF
F
E
E Q
Q U
UI
IP
P P
PE
ED
D )
)
If the AWD warning light ( )
stays on the instrument cluster,
your vehicle may have a mal-
function with the AWD system.
When the AWD warning light
( ) illuminates have your
vehicle checked by an author-
ized retailer of Genesis Branded
products as soon as possible.
WARNING
To reduce the risk of SERIOUS
INJURY or DEATH:
Do not drive in conditions that
exceed the vehicles intended
design such as challenging
off-road conditions.
Avoid high speeds when cor- nering or turning.
Do not make quick steering wheel movements, such as
sharp lane changes or fast,
sharp turns.
(Continued)
(Continued)
The risk of a rollover is great-ly increased if you lose con-
trol of your vehicle at highway
speeds.
Loss of control often occurs if two or more wheels drop off
the roadway and the driver
over steers to reenter the
roadway.
In the event your vehicle leaves the roadway, do not
steer sharply. Instead, slow
down before pulling back into
the travel lanes.
Always drive safely and use caution when driving an AWD
vehicle.
WARNING

5-107
05
Chain Installation
When installing AutoSock®(fabric
snow chain), follow the manufactur-
er's instructions and mount them as
tightly as possible. Drive slowly (less
than 20 mph (30 km/h)) with chains
installed. If you hear the chains con-
tacting the body or chassis, stop and
tighten them. If they still make con-
tact, slow down until the noise stops.
Remove the AutoSock
®(fabric snow
chain) as soon as you begin driving
on cleared roads.
When mounting AutoSock
®(fabric
snow chain), park the vehicle on
level ground away from traffic.
Turn on the vehicle Hazard Warning
Flasher and place a triangular emer-
gency warning device behind the
vehicle (if available).
Always place the vehicle in P (Park),
apply the parking brake and turn off
the engine before installing tire
chains.
When using AutoSock
®(fabric
snow chain):
Wrong size chains or improperly installed chains can damage
your vehicle's brake lines, sus-
pension, body and wheels.
If you hear noise caused by chains contacting the body,
retighten the chain to prevent
contact with the vehicle body.
To prevent body damage, retighten the chains after driving
0.3~0.6 miles (0.5~1.0 km).
AutoSock
®is a Registered trade-
mark of AutoSock.
Winter Precautions
Use high quality ethylene glycol coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in chapter 7. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Change to "winter weight" oil ifnecessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
chapter 8 for recommendations. If
you aren't sure what weight oil you
should use, consult an authorized
retailer of Genesis Branded prod-
ucts.
Check battery and cables
Winter puts additional burdens on
the battery system. Visually inspect
the battery and cables as described
in chapter 7. The level of charge in
your battery can be checked by an
authorized retailer of Genesis
Branded products or a service sta-
tion.
NOTICE

Engine Compartment ...................................................................7-3
Maintenance Services .................................................................7-5
Owner's Responsibility ........................................................................\
.......7-5
Owner Maintenance Precautions ............................................................7-5
Owner Maintenance ....................................................................7-6
Owner Maintenance Schedule..................................................................7-7
Scheduled Maintenance Service................................................7-8
Normal Maintenance Schedule (Tau 5.0 GDI) .......................................7-9
Maintenance Under Severe Usage Conditions (Tau 5.0 GDI) .........7-12
Normal Maintenance Schedule (Lambda 3.3 Turbo-GDI) ................7-14
Maintenance Under Severe Usage Conditions (Lambda 3.3 Turbo-GDI) ........................................................................\
.7-17
Explanation of Scheduled Maintenance Items ......................7-19
Engine oil........................................................................\
.............7-22
Checking the Engine Oil Level................................................................7-22
Checking the Engine Oil and Filter .......................................................7-23
Engine Coolant ........................................................................\
...7-24
Checking the Engine Coolant Level ......................................................7-24
Changing Engine Coolant........................................................................\
.7-26
Brake Fluid ........................................................................\
..........7-27
Checking the Brake Fluid Level .............................................................7-27
Washer Fluid ........................................................................\
.......7-28
Checking the Washer Fluid Level ..........................................................7-28
Air Cleaner ........................................................................\
..........7-29
Filter Replacement........................................................................\
.............7-29
Climate Control Air Filter ..........................................................7-30
Filter Inspection ........................................................................\
.................7-30
Wiper Blades ........................................................................\
.......7-31
Blade Inspection ........................................................................\
.................7-31
Blade Replacement ........................................................................\
............7-31
Battery ........................................................................\
.................7-33
For Best Battery Service ........................................................................\
.7-34
Battery Recharging ........................................................................\
...........7-35
Reset features ........................................................................\
....................7-36
7
M M a
ai
in
n t
te
e n
n a
an
n c
ce
e

7-5
07
You should exercise the utmost care
to prevent damage to your vehicle
and injury to yourself whenever per-
forming any maintenance or inspec-
tion procedures.
We recommend you have your vehi-
cle maintained and repaired by an
authorized retailer of Genesis
Branded products. An authorized
retailer of Genesis Branded products
meets Genesis Branded Vehicle's
high service quality standards and
receives technical support from
Genesis Branded Vehicle in order to
provide you with a high level of serv-
ice satisfaction.
Owner's Responsibility
Maintenance service and record
retention are the owner's responsibil-
ity.
You should retain documents that
show proper maintenance has been
performed on your vehicle in accor-
dance with the scheduled mainte-
nance service charts shown on the
following pages. You need this infor-
mation to establish your compliance
with the servicing and maintenance
requirements of your vehicle war-
ranties.
Detailed warranty information is pro-
vided in your Owner's Handbook &
Warranty Information booklet.
Repairs and adjustments required as
a result of improper maintenance or
a lack of required maintenance are
not covered.
Owner Maintenance
Precautions
Inadequate, incomplete or insuffi-
cient servicing may result in opera-
tional problems with your vehicle that
could lead to vehicle damage, an
accident, or personal injury. This
chapter provides instructions only for
the maintenance items that are easy
to perform. Several procedures can
be done only by an authorized retail-
er of Genesis Branded products with
special tools.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance,
safety or durability of your vehicle
and may, in addition, violate condi-
tions of the limited warranties cover-
ing the vehicle.
Certain modifications may also be in
violation of regulations established by
the U.S. Department of Transportation
and other federal or state agencies.
Improper owner maintenance dur-
ing the warranty period may affect
warranty coverage.
For details, read the separate
Owner's Handbook & Warranty
Information booklet provided with
the vehicle.
If you're unsure about any service
or maintenance procedure, have it
done by an authorized retailer of
Genesis Branded products.
NOTICE
M MA
AI
IN
N T
TE
EN
N A
AN
N C
CE
E
S
S E
E R
R V
V I
IC
C E
E S
S

7-7
07
Owner Maintenance Schedule
When you stop for fuel:
• Check the engine oil level.
Check coolant level in the enginecoolant reservoir.
Check the windshield washer fluid level.
Check for low or under-inflated tires.
While operating your vehicle:
Note any changes in the sound ofthe exhaust or any smell of exhaust
fumes in the vehicle.
Check for vibrations in the steering wheel. Notice if there is any
increased steering effort or loose-
ness in the steering wheel, or
change in its straight-ahead posi-
tion.
Notice if your vehicle constantly turns slightly or "pulls" to one side
when traveling on smooth, level
road.
When stopping, listen and check for unusual sounds, pulling to one
side, increased brake pedal travel
or "hard-to-push" brake pedal.
If any slipping or changes in the operation of your transmission
occurs, check the transmission
fluid level.
Check the automatic transmission P (Park) function.
Check the parking brake.
Check for fluid leaks under your vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:
Check coolant level in the enginecoolant reservoir.
Check the operation of all exterior lights, including the brake lights,
turn signals and hazard warning
flashers.
Check the inflation pressures of all tires including the spare for tires
that are worn, show uneven wear,
or are damaged.
Check for loose wheel lug nuts.
Be careful when checking your
engine coolant level when the
engine is hot. This may result in
coolant being blown out of the
opening and cause serious
burns and other injuries.
WARNING

7-8
Maintenance
At least twice a year:(i.e., every Spring and Fall)
Check radiator, heater and air con-
ditioning hoses for leaks or dam-
age.
Check windshield washer spray and wiper operation. Clean wiper
blades with clean cloth dampened
with washer fluid.
Check headlamp alignment.
Check muffler, exhaust pipes, shields and clamps.
Check the seat belts for wear and function.
At least once a year:
Clean body and door drain holes.
Lubricate door hinges and hoodhinges.
Lubricate door and hood locks and latches.
Lubricate door rubber weather strips.
Lubricate door checker.
Check the air conditioning system.
Inspect and lubricate automatic transmission linkage and controls.
Clean the battery and terminals.
Check the brake fluid level. Follow Normal Maintenance Schedule
if the vehicle is usually operated where
none of the following conditions apply.
If any of the following conditions apply,
you must follow the Maintenance
Under Severe Usage Conditions.
Repeated driving short distance of
less than 5 miles (8 km) in normal
temperature or less than 10miles
(16 km) in freezing temperature
Extensive engine idling or low speed driving for long distances
Driving on rough, dusty, muddy, unpaved, graveled or salt-spread
roads
Driving in areas using salt or other corrosive materials or in very cold
weather
Driving in heavy dust condition
Driving in heavy traffic area
Driving on uphill, downhill, or mountain road repeatedly
Towing a trailer or using a camper, or roof rack
Driving as a patrol car, taxi, other commercial use of vehicle towing
Frequently driving in stop-and-go condition
For additional information or assis-
tance see an authorized retailer ofGenesis Branded products.
S S C
C H
H E
ED
D U
U L
LE
E D
D
M
M A
AI
IN
N T
TE
EN
N A
AN
N C
CE
E
S
S E
E R
R V
V I
IC
C E
E

7-9
07
Normal Maintenance Schedule (Tau 5.0 GDI)The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown,
the frequency of service is determined by whichever occurs first.I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1: The drive belt should be replaced when cracks occur or tension is reduced.
*2: If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized retailer of Genesis Branded products along with information on how to use them. Do not mix other additives.
Number of months or driving distance, whichever comes first
180112.5180
At first, inspect at 60,000 miles (96,000 km) or 72 months,
after that, inspect every 15,000 miles (24,000 km) or 24 months
R
Add every 7,500 miles (12,000 km) or 12 months
I
Replace every 97,500 miles (156,000 km) Rotate every 7,500 miles (12,000 km)
R
168105168RIR
15697.5156RIR
14490144RRR
13282.5132RIR
12075120RIR
10867.5108RIR
966096RRR
8452.584RIR
724572RIR
6037.560RIR
483048RRR
3622.536RIR
241524RIR
127.512RIR
MonthsMiles×1,000Km×1,000
Drive belts *
1
Engine oil and engine oil filterFuel additives *
2
Air cleaner filterSpark plugsRotate tiresClimate control air filter
(for evaporator and blower unit)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM

7-10
Maintenance
Normal Maintenance Schedule (Tau 5.0 GDI) (CONT.)I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
Number of months or driving distance, whichever comes first
180112.5180I
At first, replace at 120,000 miles (192,000 km) or 10 years
after that, replace every 30,000 miles (48,000 km) or 24 months
IIIIIIIIIII
168105168IIIIIIIIIIII
15697.5156IIIIIIIIIIII
14490144IIIIIIIIIIII
13282.5132IIIIIIIIIIII
12075120IIIIIIIIIIII
10867.5108IIIIIIIIIIII
966096IIIIIIIIIIII
8452.584IIIIIIIIIIII
724572IIIIIIIIIIII
6037.560IIIIIIIIIIII
483048IIIIIIIIIIII
3622.536IIIIIIIIIIII
241524IIIIIIIIIIII
127.512IIIIIIIIIIII
MonthsMiles×1,000Km×1,000
Vacuum hoseEngine coolantBattery conditionBrake lines, hoses and connectionsFront brake disc/pads, calipersRear brake disc/padsSteering gear rack, linkage and boots /
lower arm ball joint, upper arm ball jointDriveshaft and bootsSuspension mounting boltsAir conditioner refrigerantAir conditioner compressorPropeller shaftExhaust pipe and muffler
MAINTENANCE INTERVALS
MAINTENANCE
ITEM
