GENESIS G90 2021 Owner's Manual

8-4
Specifications, Consumer information and Reporting safety defects
* Normal load : Up to 3 persons
Information
• It is permissible to add 3 psi to the standard tire pressure specification if cold-
er temperatures are expected soon. Tires typically loose 1 psi (7 kPa) for every
12°F temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area
above sea level. Thus, if you plan to drive a high-altitude area, check the tire
pressures in advance. If necessary, inflate them to a proper level. (Air inflation
per altitude: +2.4psi/1mile )
When replacing tires, use the same size originally supplied with the
vehicle. Using tires of a different size can damage the related parts or
not work properly.
NOTICE
i

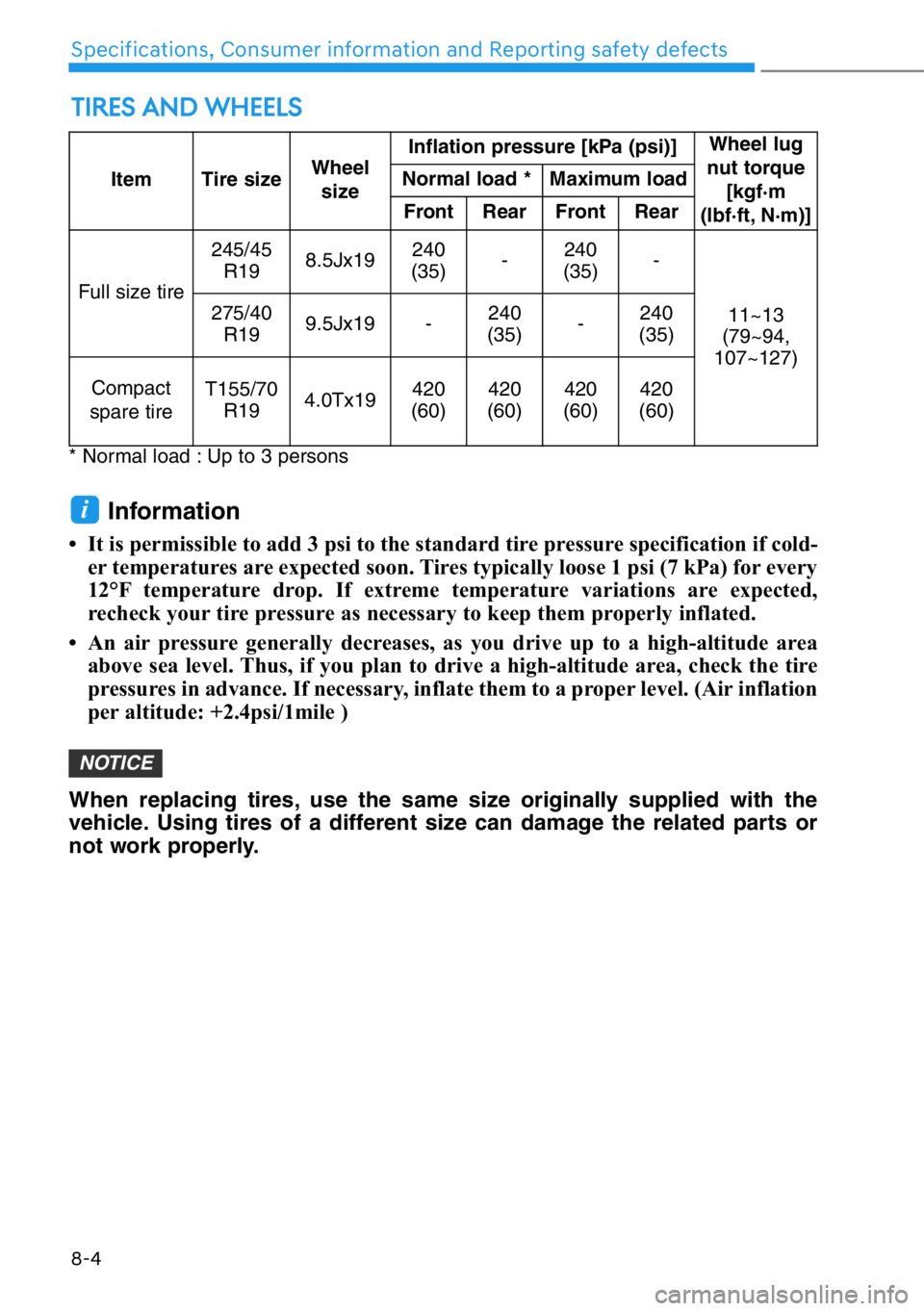

TIRES AND WHEELS
Item Tire sizeWheel
sizeInflation pressure [kPa (psi)]Wheel lug
nut torque
[kgf·m
(lbf·ft, N·m)] Normal load * Maximum load
Front Rear Front Rear
Full size tire245/45
R198.5Jx19240
(35)-240
(35)-
11~13
(79~94,
107~127) 275/40
R199.5Jx19 -240
(35)-240
(35)
Compact
spare tireT155/70
R194.0Tx19420
(60)420
(60)420
(60)420
(60)

AIR CONDITIONING SYSTEM
8-5
08
Items3.3 T-GDI 5.0 GDI
2WD AWD 2WD AWD
Gross vehicle weight
lbs (kg)5,578 (2,530) 5,732 (2,600) 5,710 (2,590) 5,864 (2,660)
Contact an authorized retailer of Genesis Branded products for more details.Items Weight of Volume Classification
Refrigerant
oz. (g)22.22±0.88 (630±25) R-1234yf
Compressor lubricant
cu. in (cc)3.52±0.35 (100±10)PAG (FD46XG)
GROSS VEHICLE WEIGHT
ltem 3.3 T-GDI 5.0 GDI
SAE15.67 cu ft (444 l)
LUGGAGE VOLUME

To help achieve proper engine and powertrain performance and durability, use
only lubricants of the proper quality. The correct lubricants also help promote
engine efficiency that results in improved fuel economy.
RECOMMENDED LUBRICANTS AND CAPACITIES
8-6
Specifications, Consumer information and Reporting safety defects
Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
3.3 T-GDI7.29 US qt. (6.9 l)ACEA A5 or above *3/
5W-30 (SAE Viscosity Number)
5.0
GDI2WD8.45 US qt. (8.0 l)API SM & ILSAC GF-4 or
above *4/
5W-20 (SAE Viscosity Number)AWD9.72 US qt. (9.2 l)
Automatic
transmission fluid9.72 US qt. (9.2 l)GS ATF SP-IV-RR, Genesis/
Hyundai ATF SP-IV-RR or other
brands meeting the above
specification approved by
Genesis Customer Care
Engine coolant3.3 T-GDI10.36 US qt. (9.8l)
Mixture of antifreeze and water
(Ethylene glycol based coolant
for aluminum radiator)
5.0
GDI2WD12.68 US qt. (12.0 l)
AWD12.05 US qt. (11.4l)
Brake fluid0.74~0.85 US qt.
(0.7~0.8 l)FMVSS116 DOT-4
Front differential oil (AWD) *
50.74 US qt. (0.7 l)Hypoid gear oil MS517-15GT
75W/85 (GL-5)
(SK HK SYN GEAR OIL
75W/85 or equivalent) Rear differential oil *
51.48 US qt. (1.4 l)
Transfer case oil (AWD)0.66 US qt. (0.62 l)SHELL TF0870B
Fuel21.9 US gal. (83 l)Refer to “Fuel Requirements” in
the Introduction chapter.
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other
additional benefits, they contribute to fuel economy by reducing the amount of fuel
necessary to overcome engine friction. Often, these improvements are difficult to
measure in everyday driving, but in a year’s time, they can offer significant cost and
energy savings.
*
3: If the ACEA A5 engine oil is not available in your country, you are able to use API
SM & ILSAC GF4 (or above) or ACEA A3.
*
4: If the API SM & ILSAC GF-4 engine oil is not available in your country, you are able
to use API SL & ILSAC GF-3.
*
5: If the front/rear differential is submerged, we recommend that you visit an author-
ized retailer of Genesis Branded products to replace differential oil.

8-7
08
Recommended SAE Viscosity Number
Always be sure to clean the area around any filler plug, drain plug, or
dipstick before checking or draining any lubricant. This is especially
important in dusty or sandy areas and when the vehicle is used on
unpaved roads. Cleaning the plug and dipstick areas will prevent dirt
and grit from entering the engine and other mechanisms that could be
damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weath-
er operating (engine start and engine oil flowability). Lower viscosity engine
oils can provide better fuel economy and cold weather performance, howev-
er, higher viscosity engine oils are required for satisfactory lubrication in hot
weather. Using oils of any viscosity other than those recommended could
result in engine damage. When choosing an oil, consider the range of temper-
ature your vehicle will be operated in before the next oil change. Proceed to
select the recommended oil viscosity from the chart.
NOTICE
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 5W-30 (ACEA A5). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil viscosity chart.
*
2: For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 5W-20 (API SM / ILSAC GF-4
(or above)). However, if the engine oil is not available in your country, select the
proper engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine
Oil
3.3 Turbo-
GDI
*1
5.0 GDI *2
°C
(°F)
5W-30
10W-30
10W-30
5W-20, 5W-30
An engine oil displaying this API Certification Mark conforms to the
international Lubricant Specification Advisory Committee (ILSAC). It
is recommended to only use engine oils that uphold this API
Certification Mark.

8-8
Specifications, Consumer information and Reporting safety defects
The vehicle identification number is
the number used in registering your
car and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attached on the driver's side center
pillar gives the Vehicle Identification
Number.
TIRE SPECIFICATION AND
PRESSURE LABEL
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver

8-9
08
ENGINE NUMBER
The engine number is stamped on
the engine block as shown in the
drawing.
OHI088003
■3.3 T-GDI
OHI088004
■5.0 GDI

8-10
Specifications, Consumer information and Reporting safety defects
CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the U.S.
Department of Transportation. Your retailer of Genesis Branded products will
help answer any questions you may have as you read this information.
Genesis Branded Vehicles are designed and manufactured to meet or exceed
all applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions
in this Owner's Manual, particularly the information under the headings
"NOTICE", "CAUTION" and "WARNING".
If, after reading this manual, you have any questions regarding the operation of
your vehicle, please contact your nearest Genesis Customer Care Regional
Office as listed in the following:
Eastern Region:
Connecticut, Delaware,
Maine, Massachusetts, New
Hampshire, New Jersey, New York,
Pennsylvania, Rhode Island, Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831
844-340-9741
Southern Region:
Florida, Georgia, Maryland, North
Carolina, South Carolina, Virginia,
West Virginia.
Southern Region
3025 Chastain Meadows Parkway
Suite 100 Marietta, GA 30066
844-340-9741
South Central Region:
Alabama, Arkansas, Louisiana,
Mississippi, New Mexico, Oklahoma,
Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
844-340-9741Central Region:
Illinois, Indiana, lowa, Kentucky,
Michigan, Minnesota, Nebraska,
North Dakota, South Dakota, Ohio,
Wisconsin, Kansas, Missouri.
Central Region
2 Trans Am Plaza Dr #500 Oakbrook
Terrace, IL 60181
844-340-9741
Western Region:
Alaska, Hawaii, Arizona, California,
Colorado, Idaho, Montana, Nevada,
Oregon, Utah, Washington,
Wyoming.
Western Region
10550 Talbert Avenue P.O.Box 20850
Fountain Valley, California 92728-
0850
844-340-9741

If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
Genesis Customer Care.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Genesis Customer Care.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA.
1200 New Jersey Ave, SE.,
Washington, DC. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS
