GENESIS G90 2023 Owners Manual

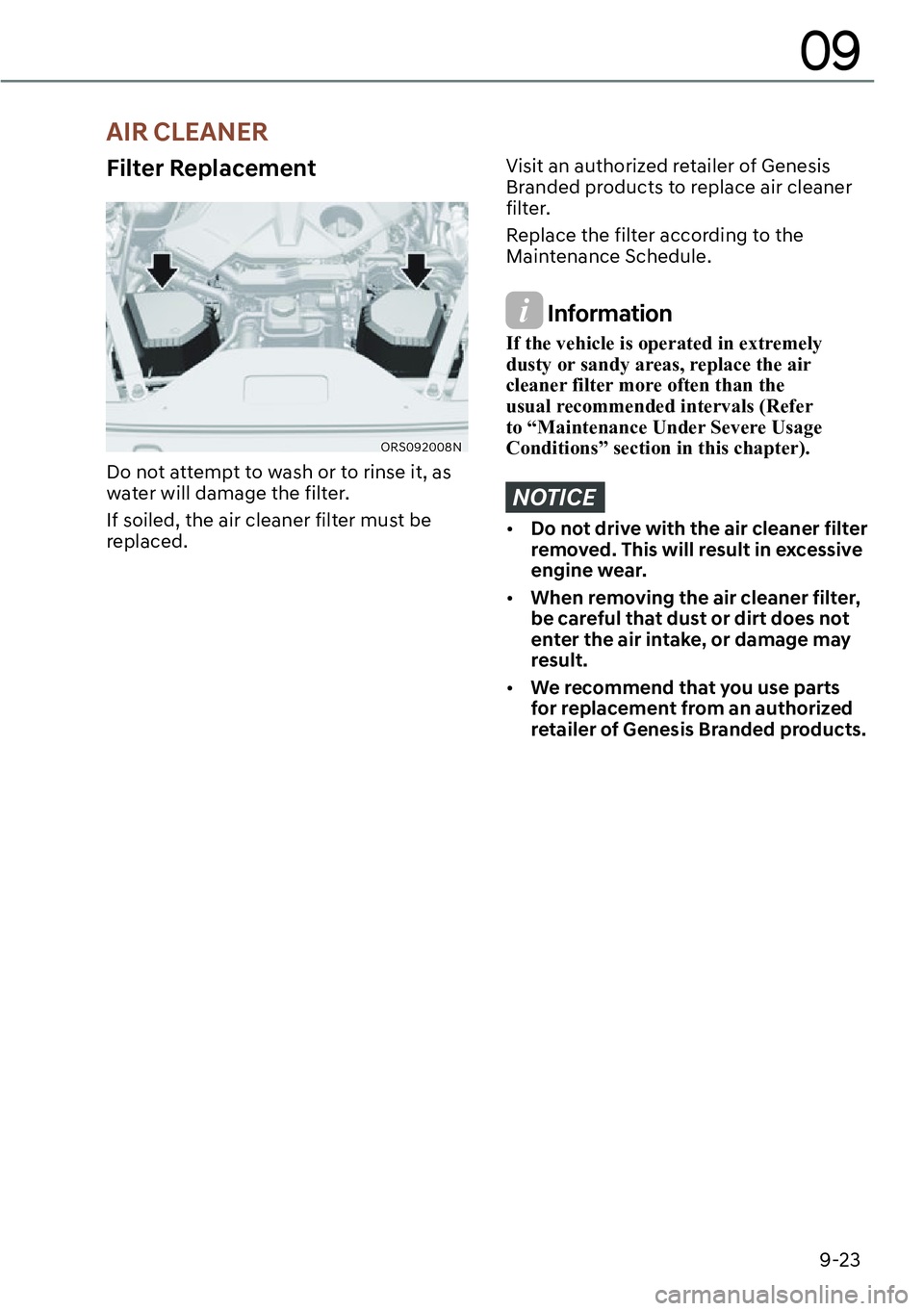

9-23
09
Filter Replacement
ORS092008N
Do not attempt to wash or to rinse it, as
water will damage the filter.
If soiled, the air cleaner filter must be
replaced.
Visit an authorized retailer of Genesis
Branded products to replace air cleaner
filter.
Replace the filter according to the
Maintenance Schedule.
Information
If the vehicle is operated in extremely
dusty or sandy areas, replace the air
cleaner filter more often than the
usual recommended intervals (Refer
to “Maintenance Under Severe Usage
Conditions” section in this chapter).
NOTICE

[Do not drive with the air cleaner filter
removed. This will result in excessive
engine wear.

[When removing the air cleaner filter,
be careful that dust or dirt does not
enter the air intake, or damage may
result.

[We recommend that you use parts
for replacement from an authorized
retailer of Genesis Branded products.
AIR CLEANER

9-24
Maintenance
Filter Inspection
The cabin air filter should be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely air-
polluted cities or on dusty rough roads
for a long period, it should be inspected
more frequently and replaced sooner.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.
Filter Replacement
ORS091009
1. Open the glove box and remove the
support rod M.
ORS091010
2. Remove the stoppers on both sides to
allow the glove box to hang freely on
the hinges.
ORS092011N
3. Press and hold the lock M on the left
side of the cover.
4. Pull out N the cover
5. Replace the cabin air filter.
6. Reassemble in the reverse order of
disassembly.
CABIN AIR FILTER

9-25
09
Engine Compartment
ORS091012
ORS092054N
1. Open the engine hood and remove
the cover of the air conditioning
assembly to locate the air filter.
2. Open the engine hood and remove
the cover of air conditioning unit.
3. Press and hold the lock M on the left
side of the cover.
4. Pull out N the cover
5. Replace the cabin air filter.
6. Reassemble in the reverse order of
disassembly.
NOTICE
ORS091061
A : Glove box,
B : Engine compartment
Install a new cabin air filter in the
correct direction to prevent noise and
reduce effectiveness.

[Glove box: Install with the arrow
V\PEROIDFLQJGRZQZDUG

9-26
Maintenance
WIPER BLADES
Blade Inspection
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wipers.
Common sources of contamination are
insects, tree sap, and hot wax treatments
used by some commercial car washes. If
the blades are not wiping properly, clean
both the window and the blades with a
good cleaner or mild detergent, and rinse
thoroughly with clean water.
NOTICE
To prevent damage to the wiper blades,
arms or other components, do not:

[Use gasoline, kerosene, paint
thinner, or other solvents on or near
them.

[Attempt to move the wipers
manually.

[Use non-specified wiper blades.
Information
Commercial hot waxes applied by
automatic car washes have been known to
make the windshield difficult to clean.
Information
Wiper blades are consumable items.
Normal wear of the wipers may not be
covered by your vehicle warranty.
Blade Replacement
When the wipers no longer clean
adequately, the blades may be worn or
cracked, and require replacement.
NOTICE

[In order to prevent damage to the
hood and the wiper arms, the wiper
arms should only be lifted when in
the top wiping position.

[Always return the wiper arms to the
windshield before driving.
ORS091013
1. Within 20 seconds of turning off the
engine, lift up and hold the wiper
lever to the MIST position for about 2
seconds until the wipers move to the
top wipe position.
2. At this time you can lift the wipers off
the windshield.
Information
This vehicle has a “hidden” wiper design
which means that the wipers cannot be
lifted manually when they are in their
bottom resting position.

9-27
09
ORS091014
3. Lift up the wiper blade clip M.
ORS091015
4. Then slide the wiper blade down N.
ORS091016
5. Remove the wiper blade from the
wiper arm O.
6. Install the new blade assembly in the
reverse order of removal.
7. Return the wiper arm on the
windshield.

9-28
Maintenance
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present
in battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you feel
pain or a burning sensation, get medical
attention immediately.
[When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.

[Do not attempt to jump start your
vehicle if your battery is frozen.

[NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.

[The electrical ignition system works
with high voltage. NEVER touch
these components with the engine
running or when the Engine Start/
Stop button is in the ON position.

[Don’t remove the battery vent
hose. When the battery vent hose is
removed, insert it into the vent hole.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Battery posts, terminals, and related
accessories contain lead and lead
compounds, chemicals known to the
State of California to cause cancer,
birth defects and reproductive harm.
Batteries also contain other chemicals
known to the State of California
to cause cancer. Wash hands after
handling.
BATTERY

9-29
09
NOTICE
Always follow these instructions when
handling your vehicle's battery to
prevent damage to your battery:

[When you do not use the vehicle for a
long time in a low temperature area,
disconnect the battery and keep it
indoors.

[Always charge the battery fully to
prevent battery case damage in low
temperature areas.

[Prevent liquid from wetting the
battery terminals. The performance
of the battery may be degraded, and
may cause injury. Be cautious when
loading liquid in the trunk.

[Do not tilt the battery.

[If you connect unauthorized
electronic devices to the battery, the
battery may be discharged. Never
use unauthorized devices.
Battery Usage
Recommendations
ORS091032

[Keep the battery securely mounted.

[Keep the battery top clean and dry.

[Keep the terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.

[Rinse any spilled electrolyte from the
battery immediately with a solution of
water and baking soda.

[If the vehicle is not going to be used
for an extended time, disconnect the
battery cables.
Information
For vehicles with power trunks, note
that the power trunk needs to be reset
after the battery has been replaced.
For more details, refer to "Power
Trunk" section in chapter 5.
NOTICE
Make sure the battery is installed
securely when the it is replaced. If the
battery vibrates while driving, the case
and electrode plate can be damaged.

9-30
Maintenance
Battery Replacement
12 V battery
ORS091031
When replacing the battery, disconnect
the negative (-) cable M and remove the
positive (+) battery fuse box N.
Information
Mild hybrid vehicles have 48 V battery
installed in the trunk, and 12 V battery is
below the 48 V battery.
48 V battery (if equipped)
ORS091033
Vehicles with a 48V battery have the
battery in the trunk. Have the battery
replaced by an authorized retailer of
Genesis Branded products.
WARNING
Inspections or repairs related to the
48 V battery must be performed by an
authorized retailer of Genesis Branded
products.

9-31
09
Battery Recharging
By battery charger
Should your vehicle's battery become
discharged either run the engine for
at least 60 minutes driving or at idle.
Alternatively you may connect a fully
automatic regulated charger to the
engine compartment front jumper posts
or at the battery in the trunk.
CAUTION
Do not use a manual unregulated
charger. It may cause the battery
to overheat and create a potential
hazard.
WARNING
Always follow these instructions when
recharging your vehicle’s battery to
avoid the risk of SERIOUS INJURY or
DEATH from explosions or acid burns:

[Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.

[Keep all flames, sparks, or smoking
materials away from the battery.

[Always work outdoors or in an area
with plenty of ventilation.

[Wear eye protection when checking
the battery during charging.

[The battery must be removed from
the vehicle and placed in a well
ventilated area.

[Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin boiling
violently.

[The negative battery cable must
be removed first and installed last
when the battery is disconnected.
Disconnect the battery charger in the
following order:
1. Turn off the battery charger main
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from
the positive battery terminal.

[Always use a genuine Genesis Part
approved battery when you replace
the battery.

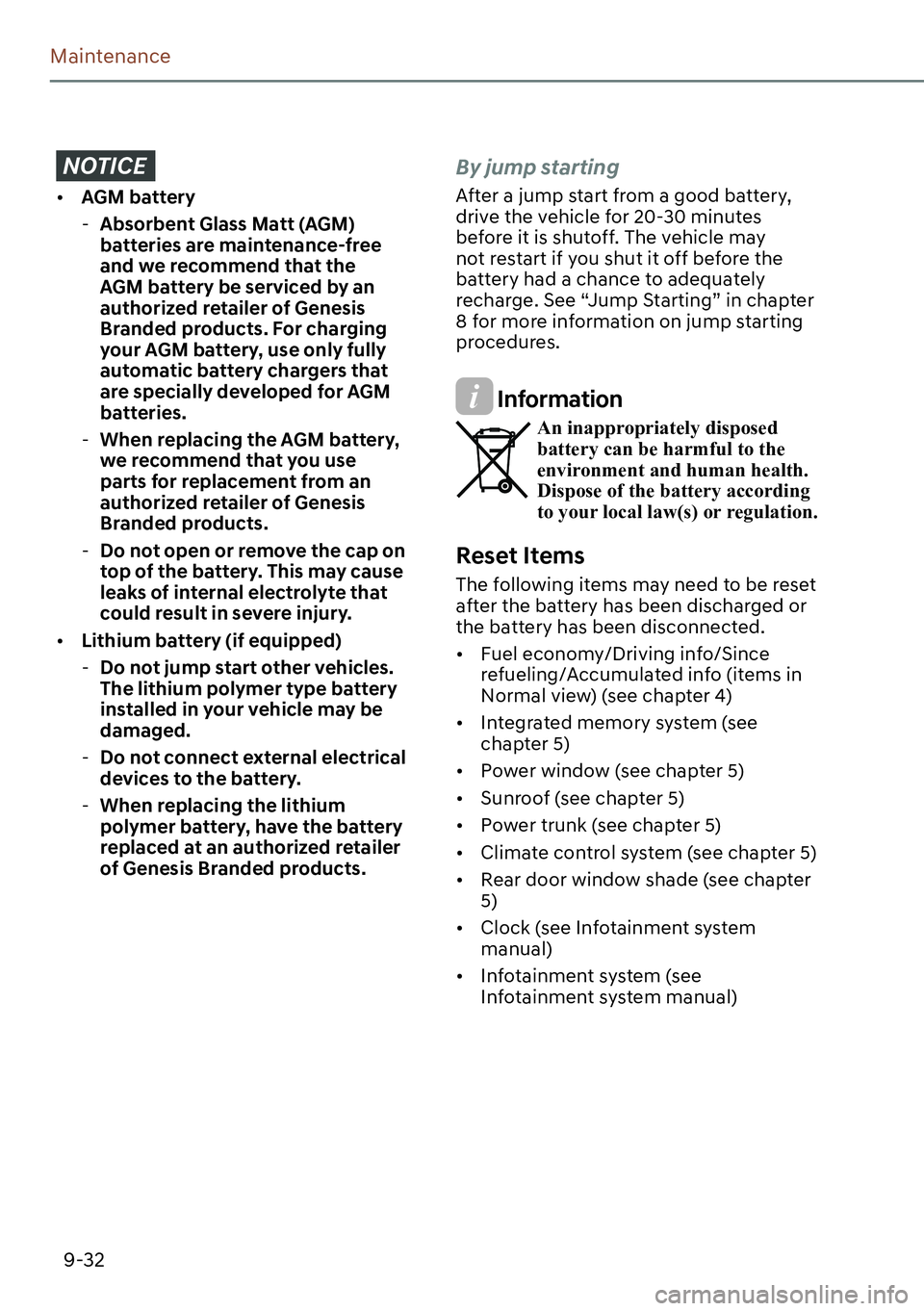

9-32
Maintenance
NOTICE

[AGM battery
-Absorbent Glass Matt (AGM)
batteries are maintenance-free
and we recommend that the
AGM battery be serviced by an
authorized retailer of Genesis
Branded products. For charging
your AGM battery, use only fully
automatic battery chargers that
are specially developed for AGM
batteries.
-When replacing the AGM battery,
we recommend that you use
parts for replacement from an
authorized retailer of Genesis
Branded products.
-Do not open or remove the cap on
top of the battery. This may cause
leaks of internal electrolyte that
could result in severe injury.

[Lithium battery (if equipped)
-Do not jump start other vehicles.
The lithium polymer type battery
installed in your vehicle may be
damaged.
-Do not connect external electrical
devices to the battery.
-When replacing the lithium
polymer battery, have the battery
replaced at an authorized retailer
of Genesis Branded products.
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
8 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.
Reset Items
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected.

[Fuel economy/Driving info/Since
refueling/Accumulated info (items in
Normal view) (see chapter 4)

[Integrated memory system (see
chapter 5)

[Power window (see chapter 5)

[Sunroof (see chapter 5)

[Power trunk (see chapter 5)

[Climate control system (see chapter 5)

[Rear door window shade (see chapter
5)

[Clock (see Infotainment system
manual)

[Infotainment system (see
Infotainment system manual)
