remote control GENESIS G90 2023 Owners Manual

5
Steering Wheel ................................................................................................ 5-55Motor Driven Power Steering (MDPS) ...................................................................... 5-55
Tilt/Telescopic Steering .............................................................................................5-56
Horn............................................................................................................................. 5-57
Heated Steering Wheel .............................................................................................. 5-57
Steering Wheel Grip Sensor.......................................................................................5-59
Haptic Warning/Steering Wheel Vibration Warning ................................................5-59
Rear Wheel Steering (RWS) ......................................................................................5-59
Mirrors ..............................................................................................................5-61Inside Rearview Mirror ............................................................................................... 5-61
Side View Mirrors ........................................................................................................ 5-71
Reverse Parking Aid ................................................................................................... 5-74
Windows ...........................................................................................................5-75Power Windows .......................................................................................................... 5-76
Remote Window Open Feature (Remote Window Control) .................................... 5-79
Panoramic Sunroof ......................................................................................... 5-80Power Sunshade ........................................................................................................ 5-80
Tilt Open/Close...........................................................................................................5-82
Slide Open/Close .......................................................................................................5-82
Automatic Reverse .....................................................................................................5-83
Resetting the Sunroof ............................................................................................... 5-84
Rear Seat Power Sunshade ........................................................................................5-85
Sunroof Open Warning .............................................................................................5-85
Hood ................................................................................................................ 5-86Opening the Hood ..................................................................................................... 5-86
Closing the Hood ....................................................................................................... 5-86
Power Trunk ..................................................................................................... 5-87
Power Trunk Operating Conditions ........................................................................... 5-87
Operating the Power Trunk ....................................................................................... 5-88
Power Trunk Settings ................................................................................................. 5-91
Trunk Lid Control Button............................................................................................ 5-91
Resetting the Power Trunk ........................................................................................5-92
Emergency Trunk Safety Release ..............................................................................5-92
Smart Trunk ..................................................................................................... 5-94How to Use the Smart Trunk ..................................................................................... 5-94
Detecting Area ............................................................................................................5-95
Fuel filler door ................................................................................................. 5-96Opening the Fuel Filler Door .................................................................................... 5-96
Closing the Fuel Filler Door ...................................................................................... 5-96

5
Infotainment system ......................................................................................5-166USB-C Port ................................................................................................................ 5-166
Antenna ......................................................................................................................5-167
Steering Wheel Remote Controls .............................................................................5-167
Infotainment System ................................................................................................ 5-168
Voice Recognition .................................................................................................... 5-168
Bluetooth® Wireless Technology ............................................................................. 5-169
Bang & Olufsen Sound System ................................................................................ 5-169
5. Convenience Features

5-17
05

[Ultra Wide Band supported smart
phone
- The digital key can be registered
if the smart phone is inside the
vehicle even without placing it
on the vehicle authentication pad
(wireless charging pad).
4. Press the ‘Save’ button from the
infotainment system screen. The
saving process begins automatically.

[When the digital key (smart phone)
is saved, a message appears on the
infotainment system screen.
Information

[If you want to register a digital key
(smart phone) again, refer to ‘How to
Delete Digital Key (Smart Phone)’ and
delete the digital key (smart phone)
before re-registering.

[During the digital key saving process,
the process will cancel when:
-The smart phone is removed from the
vehicle authentication pad (wireless
charging pad)
-The infotainment system screen is
changed
-The vehicle is turned off
-The gear is shifted

[The registering process does not start if
a smart key is not in the vehicle.

[Some smart phones may not start the
registering process depending on the
internal structure. Move the smart
phone to the left or right on the vehicle
authentication pad (wireless charger
pad) and try registering the smart
phone.
Using the digital key (smart phone)
Digital key touch control
The driver can lock or unlock the door by
placing the smart phone on the outside
door handle, and the vehicle can be
started by placing the smart phone on
the vehicle authentication pad (wireless
charging pad).
Digital key close proximity control

[If you have the smart phone in
possession, the doors can be locked
or unlocked without touching the
smart phone to the door handle, but
by touching the door lock/unlock
sensor (engraved part) on the door
handle. Also, the vehicle can be
started by pressing the Engine Start/
Stop button without placing the smart
phone on the vehicle authentication
pad (wireless charging pad).

[When the smart phone and vehicle is
connected by Bluetooth, the Remote
Start, Door Lock/Unlock, and Panic
functions are available using the
App provided by the smart phone
manufacturer.
Information

[The function is only available for Ultra
Wide Ban supported smart phone
digital keys. To use the function, the
smart phone’s Bluetooth must be
activated.

[The necessary distance between the
smart phone and vehicle for Bluetooth
connection may vary depending on the
surroundings of the vehicle and smart
phone.

5-71
05
Side View Mirrors
ORS051040
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside side view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

[Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

5-79
05
5HPRWH:LQGRZ2SHQ)HDWXUH
(Remote Window Control) (if
equipped)
ORS051048N
You can open the window remotely with
the smart key.
1. Press and hold the door unlock button
M for over 3 seconds, while the engine
is turned off.

[Rear doors are unlocked and
windows are completely opened.

[If you release the button while the
window is opening, the window will
stop operating.
CAUTION

[If the distance between the vehicle
and your smart key changes while
the window is being opened or
closed, the window may stop
operating. Do not stand too far away
from the vehicle when remotely
opening or closing the window.

[Note that the doors are also unlocked
when you open the window with the
remote opening feature.

5-167
05

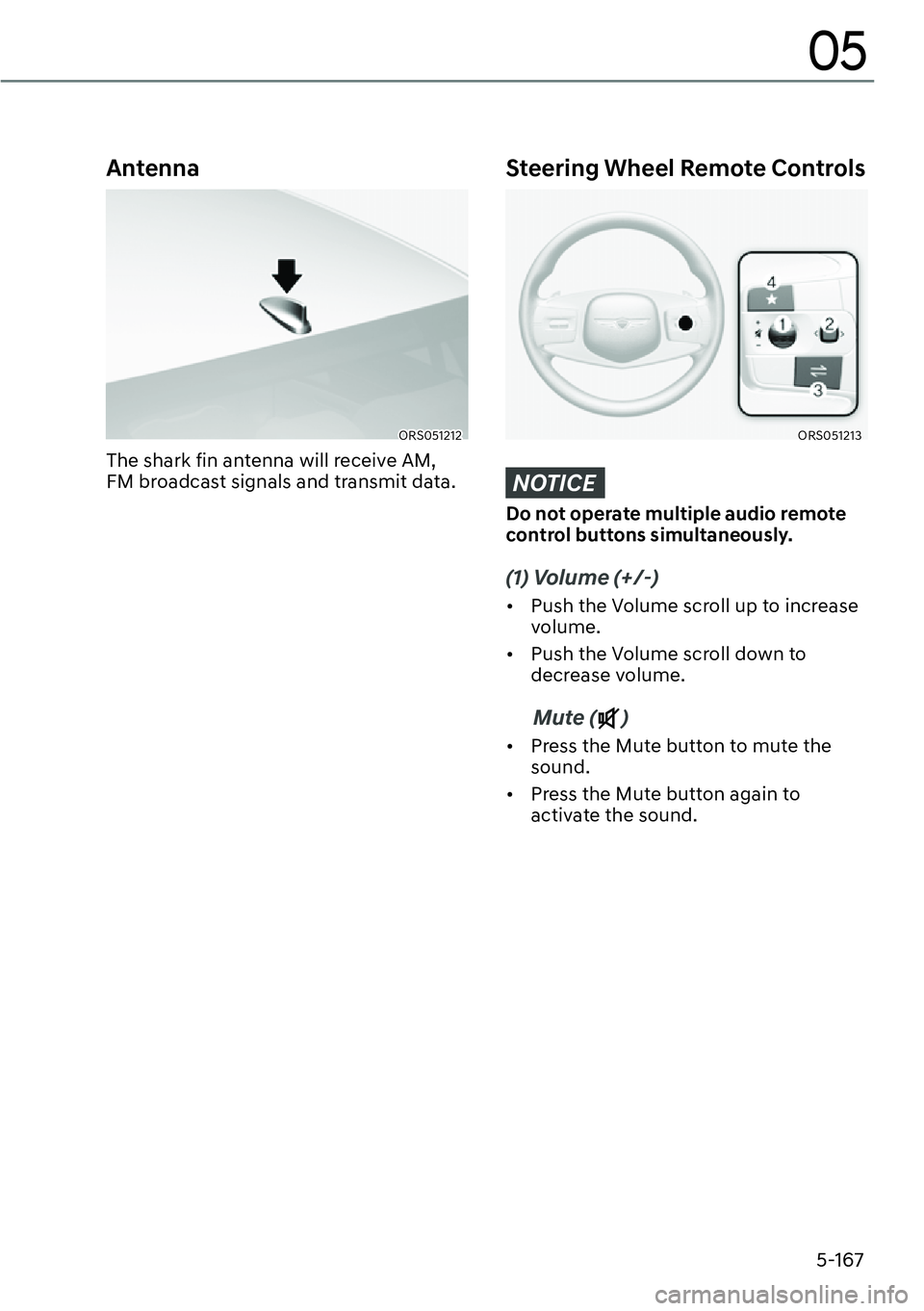

Antenna
ORS051212
The shark fin antenna will receive AM,
FM broadcast signals and transmit data.
Steering Wheel Remote Controls
ORS051213
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
(1) Volume (+/-)

[Push the Volume scroll up to increase
volume.

[Push the Volume scroll down to
decrease volume.
Mute ()

[Press the Mute button to mute the
sound.

[Press the Mute button again to
activate the sound.

6
Before Driving ................................................................................................... 6-4Before Entering the Vehicle ........................................................................................ 6-4
Before Starting ............................................................................................................ 6-4
Engine Start/Stop Button ................................................................................. 6-5Engine Stop/Start Button Positions ........................................................................... 6-6
Starting the Engine ...................................................................................................... 6-7
Turning Off the Engine ................................................................................................ 6-8
Remote Starting .......................................................................................................... 6-9
Vehicle Auto-Shut Off ......................................................................................6-10Operating Conditions ................................................................................................ 6-10
Deactivating Conditions ........................................................................................... 6-10
System Operation ....................................................................................................... 6-10
Automatic Transmission ...................................................................................6-11Automatic Transmission Operation ............................................................................ 6-11
LCD Display Messages (Cluster) .................................................................................6-17
Paddle Shifter (Manual Shift Mode) .......................................................................... 6-21
Good Driving Practices .............................................................................................. 6-21
Braking System ............................................................................................... 6-23Power-Assist Brakes ................................................................................................... 6-23
Disc Brakes Wear Indicator........................................................................................ 6-23
Electronic Parking Brake (EPB) ..................................................................................6-24
Auto Hold ....................................................................................................................6-28
Anti-Lock Brake System (ABS) ................................................................................... 6-31
Electronic Stability Control (ESC) .............................................................................6-33
Vehicle Stability Management (VSM) .......................................................................6-35
Hill-Start Assist Control (HAC) ................................................................................... 6-37
Brake Assistant System (BAS) .................................................................................... 6-37
Good Braking Practices ............................................................................................ 6-38
All Wheel Drive (AWD) ................................................................................... 6-39All Wheel Drive (AWD) Operation ............................................................................. 6-40
Emergency Precautions ............................................................................................. 6-41
Electronically Controlled Suspension with Road Preview ........................... 6-43System Malfunction .................................................................................................. 6-44
Limitations of the System ......................................................................................... 6-44
Multi-chamber Air Suspension ...................................................................... 6-45Vehicle Height Adjustment ...................................................................................... 6-45
Multi-Chamber Air Suspension Malfunction ........................................................... 6-46
Additional Height Adjustment Function ...................................................................6-47
Towing When the Air Suspension Malfunction ...................................................... 6-48
6. Driving Your Vehicle

7
Driving SafetyForward Collision–Avoidance Assist (FCA) ............................................................. 7-2
Lane Keeping Assist (LKA) ...................................................................................... 7-29
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................ 7-35
Safe Exit Assist (SEA) .............................................................................................. 7-52
Manual Speed Limit Assist (MSLA) ......................................................................... 7-58
Intelligent Speed Limit Assist (ISLA) .......................................................................7-61
Driver Attention Warning (DAW) ............................................................................. 7-67
Blind-Spot View Monitor (BVM) ............................................................................. 7-73
Driving ConvenienceSmart Cruise Control (SCC) .....................................................................................7-75
Navigation-based Smart Cruise Control (NSCC) .................................................. 7-93
Lane Following Assist (LFA) .................................................................................. 7-100
Highway Driving Assist (HDA) ............................................................................... 7-104
Parking SafetySurround View Monitor (SVM) .............................................................................. 7-116
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) .........................................7-121
Forward/Side/Reverse Parking Distance Warning (PDW) .................................... 7-133
Forward/Side/Reverse Parking Collision-Avoidance Assist (PCA) ..................... 7-140
Parking ConvenienceRemote Smart Parking Assist 2 (RSPA 2) ..............................................................7-149
Declaration of Conformity ............................................................................................ 7-177
7. Driver Assistance System
Driver Assistance system functions can be updated by Over-The-Air software update. Descriptions
for each function of the system may differ from the owners' manual once updated. See "Over-The-
Air Software Update" section in chapter 5 for details.

7-129
07
CAUTION
Turn off Rear Cross-Traffic Collision-
$YRLGDQFH$VVLVWWRLQVWDOORUUHPRYHD
WUDLOHUFDUULHURUDQRWKHUDWWDFKPHQW
Turn on Rear Cross-Traffic Collision-
$YRLGDQFH$VVLVWZKHQILQLVKHG
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist
Rear Cross-Traffic Collision-Avoidance
Assist may not operate properly, or it
may operate unexpectedly under the
following circumstances:

[Departing from where trees or grass
are overgrown

[Departing from where roads are wet

[Speed of the approaching vehicle is
fast or slow
Braking control may not work, driver’s
attention is required in the following
circumstances:

[The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[The tire pressure is low or a tire is
damaged

[The braking system has been modified

[Remote Smart Parking Assist is
operating (if equipped)
Information
For more details on the limitations of the
UHDUFRUQHUUDGDUUHIHUWR

7-149
07
Remote Smart Parking Assist uses
vehicle sensors to help the driver park
and exit parking spaces remotely from
outside the vehicle by controlling the
steering wheel, vehicle speed, and
gearshifts.
Function Description
Remote
OperationRemotely moving forward
or backward
ORS071079
Smart
Parking or
Remote
Smart
ParkingPerpendicular reverse
parking
ORS071080
Diagonal reverse parking
ORS071081
Parallel reverse parking
ORS071190
Function Description
Smart ExitParallel forward exit
ORS072082N

[Remote Smart Parking and Remote
Operation function may be operated
from outside the vehicle using the
smart key.

[Smart Parking and Remote Smart
Parking function may be operated
from inside the vehicle.

[Smart Parking and Remote Smart
Parking function helps the driver
with perpendicular reverse parking,
diagonal reverse parking and parallel
reverse parking.

[Smart Exit function helps the driver
with parallel forward exit.

[When Remote Smart Parking Assist
operates, Parking Distance Warning
and Surround View Monitor will also
operate. For more details, refer to
“Parking Distance Warning (PDW)”
and “Surround View Monitor (SVM)”
sections in this chapter.

[Remote Smart Parking Assist helps
parking by recognizing the parking
lines with the wide view camera.
5(027(60$573$5.,1*$66,67
