Page 191 of 690
4-34
Instrument Cluster
9 ( + , & / ( 6 ( 7 7 , 1 * 6
Page 192 of 690
5
Accessing Your Vehicle ..................................................................................... 5-5Smart Key ...................................................................................................................... 5-5
Immobilizer System .................................................................................................... 5-11
Genesis Digital Key .......................................................................................... 5-12Digital Key (Smart Phone) ...........................................................................................5-12
Digital Key (Card Key) ................................................................................................. 5-18
Personalized Profile and Vehicle Settings ................................................................ 5-22
Used Vehicle/Digital Key Maintenance .................................................................... 5-25
Limitations of the System .......................................................................................... 5-25
Face Connect .................................................................................................. 5-26Face Connect Settings ............................................................................................... 5-26
Face Connect Operation ............................................................................................ 5-28
Limitations of Face Connect...................................................................................... 5-28
When Purchasing a Used Vehicle .............................................................................. 5-29
Legal Compliance ...................................................................................................... 5-29
Fingerprint Authentication System ................................................................ 5-30Fingerprint Authentication System Settings ............................................................5-30
Fingerprint Authentication System Operation ..........................................................5-31
Limitations of the System .......................................................................................... 5-32
Used vehicle ............................................................................................................... 5-32
Over-The-Air Software Update ....................................................................... 5-33Downloading Software .............................................................................................. 5-33
Approving Software Update ...................................................................................... 5-33
Preparing Software Update ....................................................................................... 5-33
Updating Software ..................................................................................................... 5-34
Door Locks ....................................................................................................... 5-36Operating Door Locks from Outside the Vehicle .....................................................5-36
Operating Door Locks from Inside the Vehicle ........................................................ 5-37
Automatic Door Lock and Unlock Features ............................................................. 5-40
Child-protector Rear Door Locks .............................................................................. 5-41
Electronic Child Safety Lock ...................................................................................... 5-41
Vehicle Auto-Shut Off Function ................................................................................5-43
5. Convenience Features
Page 193 of 690
5
Theft-Alarm System ........................................................................................ 5-44
Advanced Rear Occupant Alert (ROA) ........................................................... 5-45
Advanced Rear Occupant Alert Settings .................................................................5-45
Advanced Rear Occupant Alert Operation ...............................................................5-45
Advanced Rear Occupant Alert Precautions .......................................................... 5-46
Integrated Memory System............................................................................ 5-48Storing Memory Positions ........................................................................................ 5-48
Recalling Memory Positions ..................................................................................... 5-49
Resetting the System ................................................................................................ 5-49
Seat Easy Access ....................................................................................................... 5-50
Smart Posture Care System ............................................................................ 5-51
Steering Wheel ................................................................................................ 5-52
Electric Power Steering (EPS) .................................................................................... 5-52
Tilt/Telescopic Steering .............................................................................................5-53
Horn.............................................................................................................................5-54
Heated Steering Wheel .............................................................................................. 5-55
Mirrors ............................................................................................................. 5-56Inside Rearview Mirror ...............................................................................................5-56
Side View Mirrors .......................................................................................................5-65
Reverse Parking Aid ................................................................................................... 5-67
Windows .......................................................................................................... 5-69Power Windows .......................................................................................................... 5-70
Remote Window Opening/Closing Function ........................................................... 5-73
Vision Roof .......................................................................................................5-74
Resetting the Power Sunshade ................................................................................. 5-76
Exterior Features .............................................................................................. 5-77Roof Rack .................................................................................................................... 5-7 7
Hood ............................................................................................................................ 5-78
Front Trunk .................................................................................................................. 5-7 9
Power Liftgate ............................................................................................................ 5-81
Smart Liftgate ............................................................................................................. 5-87
Charging Door ........................................................................................................... 5-89
Head-Up Display(HUD) ...................................................................................5-91Head-up Display Settings .......................................................................................... 5-91
Head-up Display Information .................................................................................... 5-91
Precautions while using the Head-up Display .........................................................5-92
Page 194 of 690
5
Lighting ............................................................................................................ 5-93Exterior Lights ............................................................................................................5-93
High Beam Assist (HBA) ................................................................................ 5-97High Beam Assist Setting .......................................................................................... 5-97
High Beam Assist Operation ..................................................................................... 5-98
High Beam Assist Malfunction and Limitations ...................................................... 5-99
Interior Lights ................................................................................................ 5-100Interior Lamp AUTO Cut........................................................................................... 5-100
Front Lamps .............................................................................................................. 5-100
Rear Lamps ................................................................................................................ 5-101
Vanity Mirror Lamp .................................................................................................... 5-101
Glove Box Lamp ........................................................................................................ 5-101
Door Mood Lamp ..................................................................................................... 5-102
Luggage Compartment Lamp ................................................................................. 5-102
Front Trunk Lamp ..................................................................................................... 5-103
Puddle Lamp ............................................................................................................. 5-103
Wipers and Washers ...................................................................................... 5-105Front Windshield Wipers ......................................................................................... 5-105
Windshield Washers ................................................................................................. 5-106
Automatic Climate Control System ..............................................................5-108Automatic Temperature Control Mode ................................................................... 5-109
Manual Temperature Control Mode ......................................................................... 5-110
System Operation ...................................................................................................... 5-118
System Maintenance ................................................................................................ 5-119
Windshield Defrosting and Defogging ......................................................... 5-122To Defog Inside Windshield ......................................................................................5-122
To Defrost Inside Windshield ....................................................................................5-123
Defogging Logic ........................................................................................................5-123
Rear Window Defroster............................................................................................ 5-124
Climate Control Additional Features ............................................................ 5-125Auto Defogging System ............................................................................................5-125
Auto Dehumidify ...................................................................................................... 5-126
Recirculating Air when Washer Fluid is Used .......................................................... 5-127
Sunroof Inside Air Recirculation ............................................................................... 5-127
Auto. Controls That Use Climate Control Settings (for driver’s seat) .................... 5-127
5. Convenience Features

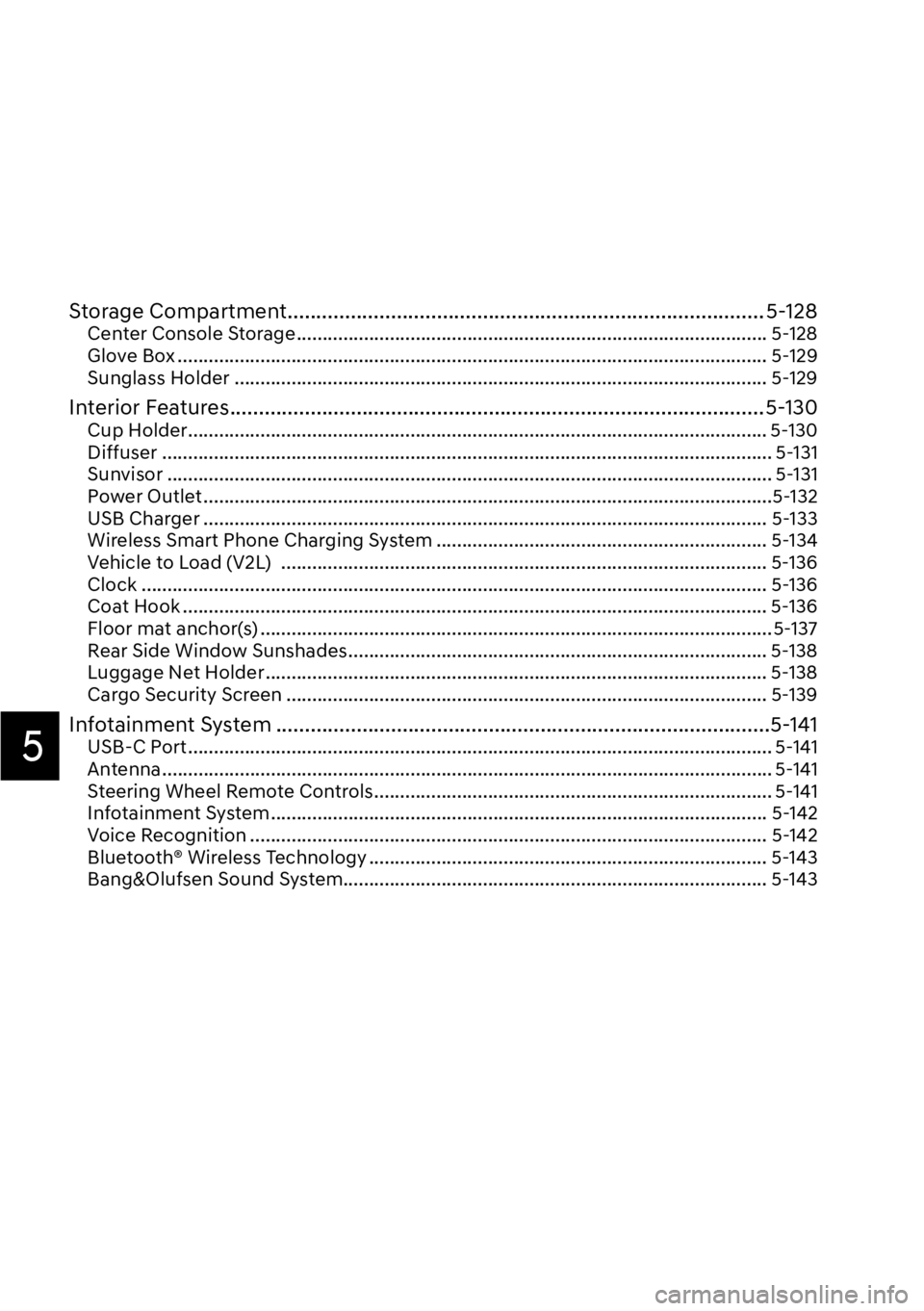

Page 195 of 690
5
Storage Compartment ................................................................................... 5-128Center Console Storage ........................................................................................... 5-128
Glove Box .................................................................................................................. 5-129
Sunglass Holder ....................................................................................................... 5-129
Interior Features .............................................................................................5-130Cup Holder ................................................................................................................ 5-130
Diffuser ......................................................................................................................5-131
Sunvisor ..................................................................................................................... 5-131
Power Outlet ..............................................................................................................5-132
USB Charger ............................................................................................................. 5-133
Wireless Smart Phone Charging System ................................................................ 5-134
Vehicle to Load (V2L) .............................................................................................. 5-136
Clock .........................................................................................................................5-136
Coat Hook ................................................................................................................. 5-136
Floor mat anchor(s) ...................................................................................................5-137
Rear Side Window Sunshades ................................................................................. 5-138
Luggage Net Holder ................................................................................................. 5-138
Cargo Security Screen ............................................................................................. 5-139
Infotainment System ......................................................................................5-141
USB-C Port ................................................................................................................. 5-141
Antenna ...................................................................................................................... 5-141
Steering Wheel Remote Controls ............................................................................. 5-141
Infotainment System ................................................................................................ 5-142
Voice Recognition .................................................................................................... 5-142
Bluetooth® Wireless Technology ............................................................................. 5-143
Bang&Olufsen Sound System.................................................................................. 5-143
Page 196 of 690
5-5
05
Smart Key
OJWEV051001
OJWEV051002
Your Genesis Branded Vehicle uses a Smart
Key, which you can use to lock or unlock the
driver and passenger doors, the charging
door or the rear liftgate.
1. Door lock
2. Door unlock
3. Liftgate open/close
4. Panic
5. Remote Start
6. Charging door open/close
7. Forward/Backward (if equipped)
Locking your vehicle
OJWEV051003
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
liftgate are closed.
2. Make sure you have the smart key in
your possession.
3. Touch the touch sensor on the door
handle (the engraved part) or press
the Door Lock button (1) on the smart
key. The hazard warning lights will
blink.
4. Make sure the doors are locked. when
doors lock, the handles become flush
to the body. when doors are unlocked,
the handles present themselves (stick
out).
Information
[ The side view mirror will fold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
- 6 H W X S : 9 H K L F O H 6 H W W L Q J V :
& R Q Y H Q L H Q F H : : H O F R P H 0 L U U R U
/ L J K W : ( Q D E O H R Q ' R R U 8 Q O R F N
[ The door handle touch sensor will only
operate when the smart key is within
0.7~1 m (28~40 in.) from the outside
door handle.
[ Touching the door handle touch sensor
does not unlock the doors. To unlock
the doors, refer to the following page.
ACCESSING YOUR VEHICLE
Page 197 of 690
5-6
Convenience Features
Note that you cannot lock your vehicle
using the door handle touch sensor if any
of the following occur:
[ The Smart Key is in the vehicle.
[ The Start/Stop button is from ACC or
ON position.
[ Any of the doors are open except for
the liftgate.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Start/ Stop button and may operate
power windows, lock the doors or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle (When the
Two Press Unlock feature is off)
OJWEV051003
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key. All doors
will unlock and the hazard warning
lights will blink two times.
3. After unlocking the doors, the doors
will automatically relock after 30
seconds unless a door is opened.
Unlocking your vehicle (When the
Two Press Unlock feature is on)
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key.
3. The driver’s door will be unlocked.
4. Touch the touch sensor on the door
handle or press the Door Unlock
button (2) on the smart key within
4 seconds again. All door will be
unlocked and the hazard warning
lights will blink twice and the chime
will sound.
5. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with one
press may be adjusted in the Settings
menu in the infotainment system screen.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
6 H W X S
Page 198 of 690
5-7
05
Information
[ If you press the front passenger outside
door handle with the smart key in your
possession, all the doors will unlock.
[ The Two Press Unlock feature is off
when the vehicle is first delivered. To
use the feature, enable the feature from
the Settings menu in the infotainment
system screen.
Information
[ The side view mirror will unfold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
- 6 H W X S : 9 H K L F O H 6 H W W L Q J V :
& R Q Y H Q L H Q F H : : H O F R P H 0 L U U R U
/ L J K W : ( Q D E O H R Q ' R R U 8 Q O R F N
[ The door handle touch sensor will only
operate when the smart key is within
28~40 in. (0.7~1 m) from the outside
door handle.
[ The doors may lock or unlock if the
touch sensor of the outer door handle is
recognized while washing your car or
due to heavy rain.
[ To prevent unintentional door lock or
unlock:
Press the lock button on the smart
key and immediately press the unlock
button along with the lock button
for more than 4 seconds. The hazard
warning lights will blink four times.
At this time, the doors will not lock or
unlock even though the touch sensor is
touched on the outside door handle.
To deactivate the function, press the
door lock or unlock button on the
smart key.
[ The doors may not lock or unlock in
the following situations.
-If the touch sensor is touched with
gloves on
-If the door is suddenly approached
Information
During a car wash or rain, in order to
minimize unintentional operation of the
touch sensor, the touch sensor may become
insensitive. This is not a malfunction.
Opening the liftgate
OJWEV051292N
To open the liftgate:
1. Make sure you have the smart key in
your possession.
2. Press either the liftgate open/close
button on the vehicle or press and
hold the Liftgate Unlock button (3)
on the smart key for more than one
second. The hazard warning lights will
blink two times and the liftgate will
open.
Information
7 K H O L I W J D W H R S H Q F O R V H E X W W R Q Z L O O R Q O \
operate when the smart key is within 28
in. (0.7 m) from the liftgate.
Page 199 of 690
5-8
Convenience Features
Remotely opening and closing the
charging door
To open charging door remotely:
Press the Charging Door Open/Close
button (6) for more than one second,
or press the charging door open/close
button on the vehicle while carrying the
smart key.
To close the charging door:
Press the Charging Door Open/Close
button (6) for more than a second while
the door is open, or press the charging
door open/close button on the vehicle
while carrying the smart key when the
charging door is opened.
Remotely initiating electricity
charging
To remotely start charging the vehicle:
Press the charging door open/close
button in the smart key while the
charging connector is connected to the
vehicle.
For more details, refer to “Charging
Electric Vehicle” section in chapter 1.
Remotely starting vehicle (if
equipped)
You can start the vehicle using the
Remote Start button (5) on the smart key.
To start the vehicle remotely:
1. Press the door lock button on the
smart key within 10 m (32 feet) from
the vehicle.
2. Press the Remote Start button (5) for
more than 2 seconds within 4 seconds
after pressing the door lock button.
3. The vehicle will start.
4. To turn off the remote start function,
press the Remote Start button (5)
once.
Information
[ The vehicle must be in P (Park) for the
remote start function to start.
[ The vehicle turns off if you get in the
vehicle without a registered smart key.
[ The vehicle turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.
[ The Remote Start button (5) may not
operate if the smart key is not within 32
feet (10 m).
[ The vehicle will not remotely start if the
vehicle hood or liftgate is opened.
Remotely moving vehicle forward or
backward (if equipped)
With the smart key, the driver can move
the vehicle forward or backward using
the Forward/Backward button (7) on the
smart key.
For more details, refer to “Remote
Smart Parking Assist (RSPA)” section in
chapter 7.
Page 200 of 690
5-9
05
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Start/
Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:
[ Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.
[ Avoid dropping or throwing the
smart key.
[ Protect the smart key from extreme
temperatures.
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
OJWEV051097
1. Press the Genesis text section of the
Mechanical key to remove the case.
OJWEV051278C
2. Remove the mechanical key from the
case.
3. After use, reinstall the mechanical key
in the reverse order of removal.
Loss of a smart key
A maximum of two Smart Keys can
be registered to a single vehicle. If
you happen to lose your smart key,
immediately take the vehicle and
remaining keys to your authorized
retailer of Genesis Branded products or
tow the vehicle, if necessary.
