GENESIS GV60 2023 Owners Manual

7-147
07
Parking Distance Warning
Operation
Operating button
OJWEV071113
Parking Safety button

[Press the Parking Safety () button
to turn on Parking Distance Warning.
Press the button again to turn off the
function.

[When the gear is shift to R (Reverse),
Parking Distance Warning will
automatically turn on (Parking Safety
button indicator on).

[When the gear is in R (Reverse),
Parking Distance Warning does not
turn off even if the Parking Safety
button is pressed.
Forward Parking Distance Warning
Forward Parking Distance Warning will
operate under the following conditions.

[The gear is shifted from R (Reverse)
to D (Drive) with Reverse Parking
Distance Warning on

[The gear is in D (Drive) and the
Parking Safety (
) button indicator
light is on

[‘Parking Distance Warning Auto On’ is
selected from the Settings menu and
the gear is in D (Drive)

[Vehicle speed is below 6 mph (10
km/h).
Information

[Forward Parking Distance Warning
does not operate when the vehicle's
forward speed is above 6 mph (10
km/h) even when the Parking Safety
(
) button indicator is on. Forward
Parking Distance Warning will operate
again when the vehicle's forward speed
decreases below 6 mph (10 km/h)
while the Parking Safety (
) button
indicator is on.

[Forward Parking Distance Warning is
deactivated if the vehicle speed reaches
above 18mph (30km/h). It will not
reactivate although the vehicle speed
drops below 6mph (10km/h). (Only
when Parking Warning Auto On is not
selected)

7-148
Driver Assistance System
Distance
IURPREMHFWWarning
indicator
when
GULYLQJ
forwardWarning
sound
24~40 in.
(60~100 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously

[The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[The shape of the indicator in the
illustration may differ from the actual
vehicle.
Side Parking Distance Warning
Side Parking Distance Warning will
operate under the following conditions.

[The gear is shifted to R (Reverse).

[The gear is shifted from R (Reverse)
to D (Drive) with Reverse Parking
Distance Warning on

[The gear is in D (Drive) and the
Parking Safety (
) button indicator
light is on

[‘Parking Distance Warning Auto On’ is
selected from the Settings menu and
the gear is in D (Drive)

[The vehicle speed is below 6 mph (10
km/h).

7-149
07
Distance
IURPREMHFWWarning
indicator
when
GULYLQJ
forward/
rearwardWarning
sound
24~40 in.
(60~100 cm)-
12~24 in.
(30~60 cm)
-
within 12 in.
(30 cm)
Beeps
continuously

[The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range.

[If an object located within 12 in. (30
cm) from the side of the vehicle's path
is detected, an audible warning will
sound.

[If an object outside the side of the
vehicle's path is detected, the warning
indicator will be displayed.

[The shape of the indicator in the
illustration may differ from the actual
vehicle.
Information
Side Parking Distance Warning operated
only when Forward or Reverse Parking
Distance Warning is on.
Reverse Parking Distance Warning
Rear Parking Distance Warning will
operate under the following conditions.
- The gear is shifted to R (Reverse).
- Vehicle speed is below 6 mph (10
km/h).
Information
Parking Distance Warning detects and
warns the driver of both rear and front
corners, when the vehicle speed is below 6
mph (10 km/h).

7-150
Driver Assistance System
Distance
IURPREMHFWWarning
indicator
when
GULYLQJ
EDFNZDUGWarning
sound
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously

[The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[The shape of the indicator in the
illustration may differ from the actual
vehicle.
Parking Distance Warning
Malfunction and Limitations
Parking Distance Warning
malfunction
After starting the vehicle, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Forward/Reverse
Parking Distance Warning is operating
properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle be inspected
by an authorized retailer of Genesis
Branded products.

[The audible warning does not sound.

[The buzzer sounds intermittently.

[The ‘Ultrasonic sensor error or
blockage’ warning message appears
on the cluster.
OJWEV071232LOJWEV071350N

7-151
07
Parking Distance Warning disabled
OJWEV071233L
If this occurs the ‘Parking Distance
Warning system limited. Ultrasonic
sensor blocked’ warning message
appears on the cluster. Parking Distance
Warning will operate properly when
snow, rain or foreign material is removed.
If Parking Distance Warning does not
operate properly after obstruction (snow,
rain, or foreign material) is removed
(including trailer, carrier, etc., from
the rear bumper), have the vehicle be
inspected by an authorized retailer of
Genesis Branded products.
Limitations of Parking Distance
Warning

[Parking Distance Warning may not
operate properly when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign
substance, such as snow or water
(Parking Distance Warning will
operate properly when such
substance is removed.)
- The weather is extremely hot or cold
- The sensor or sensor assembly is
disassembled
- The surface of the sensor is pressed
hard or hit with a hard object
- The surface of the sensor is
scratched with a sharp object
- The sensors or its surrounding
area is directly sprayed with high
pressure washer

[Parking Distance Warning may
malfunction when:
- Heavy rain or water spray is present
- Water flows on the surface of the
sensor
- Affected by another vehicle’s
sensors
- The sensor is covered with snow or
ice
- Driving on uneven road, gravel
roads or bushes
- Objects that generates ultrasonic
waves are near the sensor
- License plate is installed in a
different spot from the original
location
- The vehicle bumper height or
ultrasonic sensor installation has
been modified
- Attaching equipment or accessories
next to the ultrasonic sensors

7-152
Driver Assistance System

[The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Narrow objects, such as corners of a
square column
- Objects, which tend to absorb
sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects
that are very close to the ultrasonic
sensors
- An object in the side space between
the front corner ultrasonic sensor
and the rear corner ultrasonic
sensor or an object approaching the
side space:$51,1*

[Parking Distance Warning is
DVXSSOHPHQWDOIXQFWLRQ7KH
operation of Parking Distance
:DUQLQJFDQEHDIIHFWHGE\VHYHUDO
IDFWRUVLQFOXGLQJHQYLURQPHQWDO
FRQGLWLRQV,WLVWKHUHVSRQVLELOLW\RI
WKHGULYHUWRDOZD\VFKHFNWKHIURQW
DQGUHDUYLHZVEHIRUHDQGZKLOH
SDUNLQJ

[<RXUQHZYHKLFOHZDUUDQW\GRHVQRW
FRYHUDQ\DFFLGHQWVRUGDPDJHWR
WKHYHKLFOHGXHWRWKHPDOIXQFWLRQRI
3DUNLQJ'LVWDQFH:DUQLQJ

[3D\FORVHDWWHQWLRQZKHQGULYLQJ
QHDUREMHFWVSHGHVWULDQVDQG
HVSHFLDOO\FKLOGUHQ6RPHREMHFWV
PD\QRWEHGHWHFWHGE\WKH
XOWUDVRQLFVHQVRUVGXHWRWKHREMHFWV
GLVWDQFHVL]HRUPDWHULDODOORI
ZKLFKFDQOLPLWWKHHIIHFWLYHQHVVRI
WKHVHQVRU

[Parking Distance Warning does not
ZDUQ\RXLQWKHRUGHURIGHWHFWLRQ
,WYDULHVGHSHQGLQJRQWKHVSHHGRI
WKHYHKLFOHRUWKHVKDSHRIDSHUVRQ
DQLPDORUREMHFW

[If the Parking Distance Warning does
QRWRSHUDWHSURSHUO\ZHUHFRPPHQG
WKDWWKHYHKLFOHEHLQVSHFWHGE\
DQDXWKRUL]HGUHWDLOHURI*HQHVLV
%UDQGHGSURGXFWV

7-153
07
3$5.,1*&2//,6,21

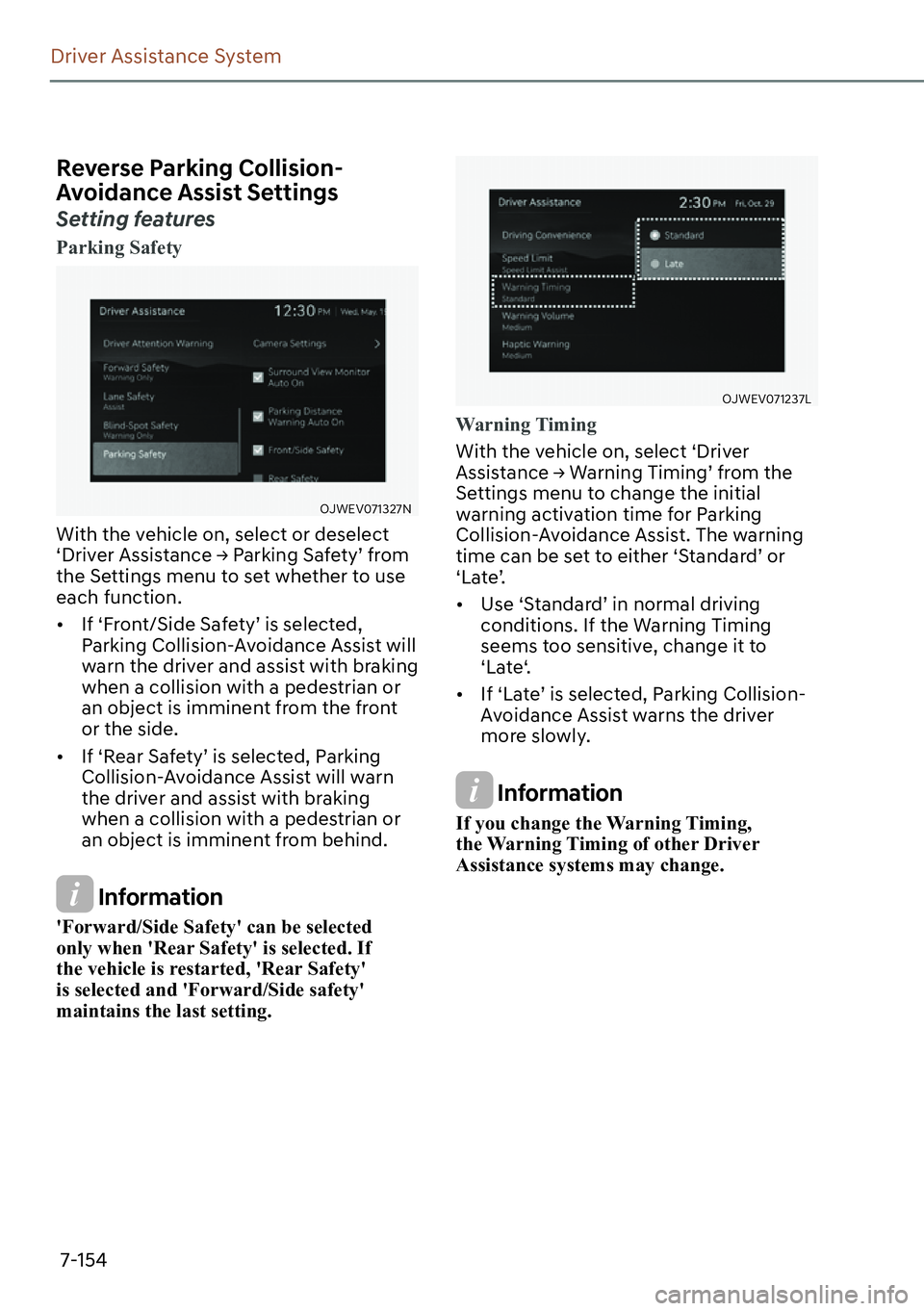

7-154
Driver Assistance System
5HYHUVH3DUNLQJ&ROOLVLRQ
$YRLGDQFH$VVLVW6HWWLQJV
Setting features
Parking Safety
OJWEV071327N
With the vehicle on, select or deselect

S'ULYHU$VVLVWDQFH

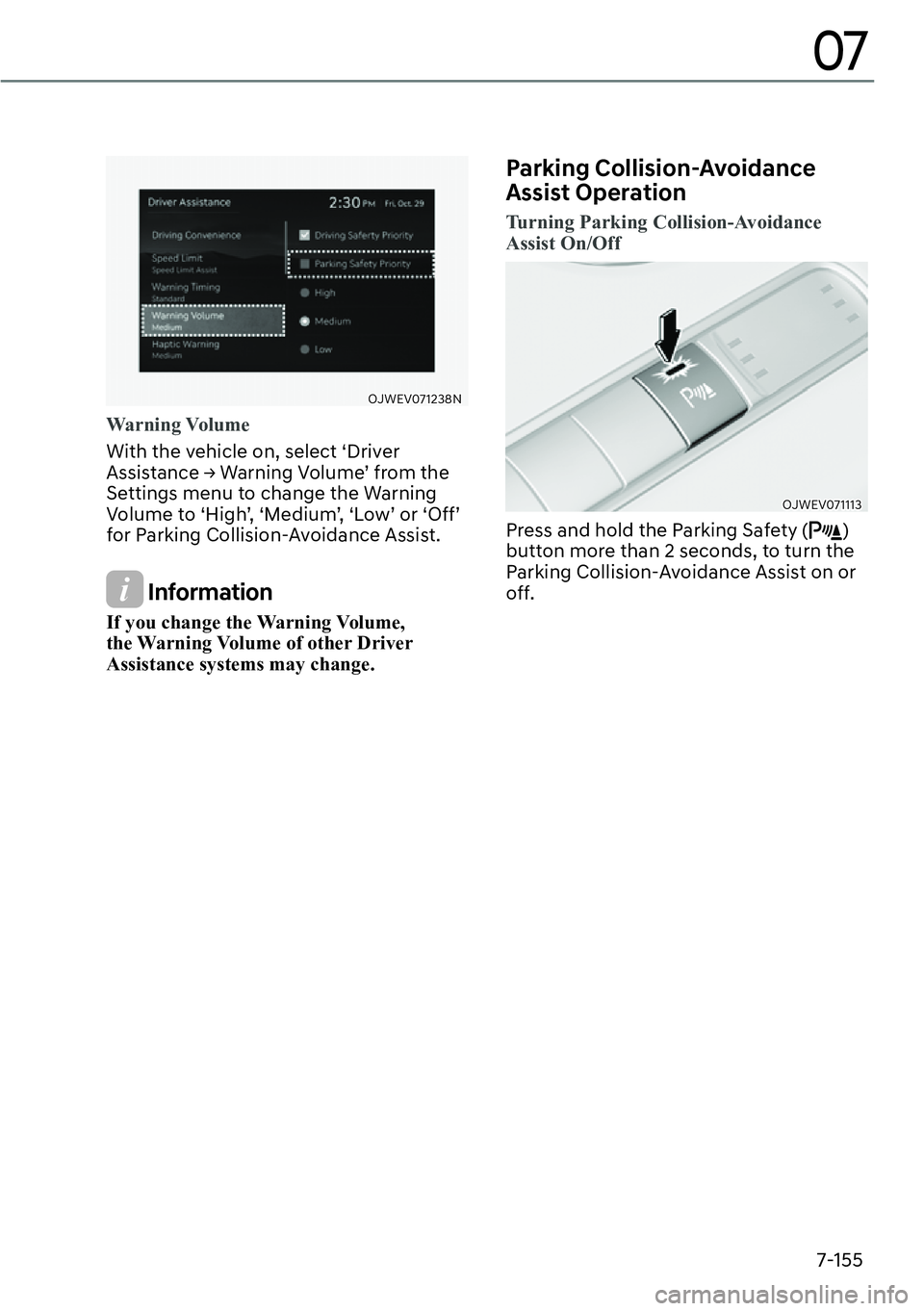

7-155
07
OJWEV071238N
Warning Volume
With the vehicle on, select ‘Driver
$VVLVWDQFH

7-156
Driver Assistance System
Operating conditions
Select ‘Rear Safety’ from the ‘Parking
Safety’ menu of the infotainment system.
Parking Collision-Avoidance Assist is
enabled when the following conditions
are satisfied:
Rear Safety

[The liftgate and door are closed

[The Electronic Parking Brake (EPB) is
released

[A trailer is not connected

[The gear is shifted to R (Reverse)

[Vehicle speed is below 6 mph (10
km/h) (detecting pedestrians)

[Vehicle speed is below 2.4 mph (4
km/h) (detecting objects)

[Parking Collision-Avoidance Assist
components such as the rear view
camera and the rear ultrasonic
sensors are in normal conditions
Front/Side Safety

[The liftgate and door are closed

[The Electronic Parking Brake (EPB) is
released

[A trailer is not connected

[The gear is shifted to R (Reverse) or D
(Drive)

[Vehicle speed is below 2.4 mph (4
km/h) (for pedestrians, objects)

[Parking Collision-Avoidance Assist
components such as the wide rear
view camera and the rear ultrasonic
sensors are in normal conditionsWhen Parking Collision-Avoidance Assist
activates, a line appears behind the
vehicle image in the instrument cluster.

[Rear Safety: Behind the vehicle image

[Front/Side Safety: In front of vehicle
OJWEV071357N
Information
Parking Collision-Avoidance Assist
operates only once after shifting the gear
to R (Reverse) or D (Drive). To reactivate
Parking Collision-Avoidance Assist, shift
the gear from another gear to R (Reverse)
or D (Drive).
