Page 193 of 690
5
Theft-Alarm System ........................................................................................ 5-44
Advanced Rear Occupant Alert (ROA) ........................................................... 5-45
Advanced Rear Occupant Alert Settings .................................................................5-45
Advanced Rear Occupant Alert Operation ...............................................................5-45
Advanced Rear Occupant Alert Precautions .......................................................... 5-46
Integrated Memory System............................................................................ 5-48Storing Memory Positions ........................................................................................ 5-48
Recalling Memory Positions ..................................................................................... 5-49
Resetting the System ................................................................................................ 5-49
Seat Easy Access ....................................................................................................... 5-50
Smart Posture Care System ............................................................................ 5-51
Steering Wheel ................................................................................................ 5-52
Electric Power Steering (EPS) .................................................................................... 5-52
Tilt/Telescopic Steering .............................................................................................5-53
Horn.............................................................................................................................5-54
Heated Steering Wheel .............................................................................................. 5-55
Mirrors ............................................................................................................. 5-56Inside Rearview Mirror ...............................................................................................5-56
Side View Mirrors .......................................................................................................5-65
Reverse Parking Aid ................................................................................................... 5-67
Windows .......................................................................................................... 5-69Power Windows .......................................................................................................... 5-70
Remote Window Opening/Closing Function ........................................................... 5-73
Vision Roof .......................................................................................................5-74
Resetting the Power Sunshade ................................................................................. 5-76
Exterior Features .............................................................................................. 5-77Roof Rack .................................................................................................................... 5-7 7
Hood ............................................................................................................................ 5-78
Front Trunk .................................................................................................................. 5-7 9
Power Liftgate ............................................................................................................ 5-81
Smart Liftgate ............................................................................................................. 5-87
Charging Door ........................................................................................................... 5-89
Head-Up Display(HUD) ...................................................................................5-91Head-up Display Settings .......................................................................................... 5-91
Head-up Display Information .................................................................................... 5-91
Precautions while using the Head-up Display .........................................................5-92
Page 196 of 690
5-5
05

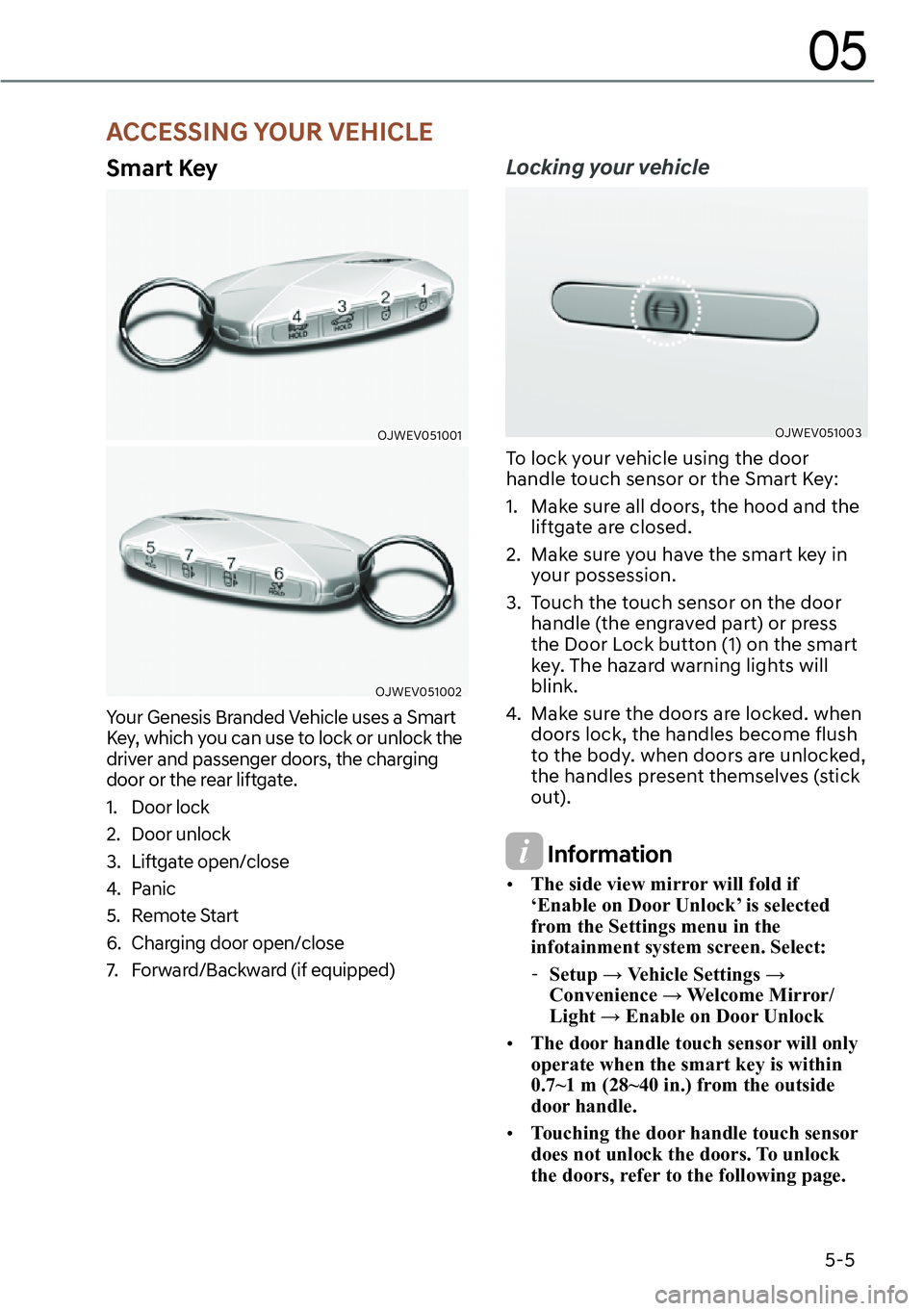

Smart Key
OJWEV051001
OJWEV051002
Your Genesis Branded Vehicle uses a Smart
Key, which you can use to lock or unlock the
driver and passenger doors, the charging
door or the rear liftgate.
1. Door lock
2. Door unlock
3. Liftgate open/close
4. Panic
5. Remote Start
6. Charging door open/close
7. Forward/Backward (if equipped)
Locking your vehicle
OJWEV051003
To lock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure all doors, the hood and the
liftgate are closed.
2. Make sure you have the smart key in
your possession.
3. Touch the touch sensor on the door
handle (the engraved part) or press
the Door Lock button (1) on the smart
key. The hazard warning lights will
blink.
4. Make sure the doors are locked. when
doors lock, the handles become flush
to the body. when doors are unlocked,
the handles present themselves (stick
out).
Information
[ The side view mirror will fold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
- 6 H W X S : 9 H K L F O H 6 H W W L Q J V :
& R Q Y H Q L H Q F H : : H O F R P H 0 L U U R U
/ L J K W : ( Q D E O H R Q ' R R U 8 Q O R F N
[ The door handle touch sensor will only
operate when the smart key is within
0.7~1 m (28~40 in.) from the outside
door handle.
[ Touching the door handle touch sensor
does not unlock the doors. To unlock
the doors, refer to the following page.
ACCESSING YOUR VEHICLE
Page 240 of 690
5-49
05
Recalling Memory Positions
1. Shift to P (Park) while the Start/Stop
button is in the ON position.
2. Press the desired memory button (1
or 2). The system will beep once, and
then the driver’s seat position, side
view mirror position, steering wheel
position and head-up display height
will automatically adjust to the stored
positions.
3. ‘Driver 1(or 2) settings saved’ will
appear on the infotainment screen.
Information
If you adjust the seat, rearview mirror,
steering wheel or head-up display while
recalling the stored positions, the pre-set
settings will become ineffective.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the Start/Stop button in the
ON position and the vehicle shifted to
P (Park).
2. Adjust the driver’s seat and seatback
to the foremost position.
3. Press the memory button (1 or 2)
and push forward the driver’s seat
movement switch over 2 seconds
simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification
sound.
2. The driver’s seat and seatback is
adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is
re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
[ The memory button is pressed.
[ The seat control switch is operated.
[ The gear is shifted out of P (Park).
[ The driving speed exceeds
2 mph (3 km/h).
[ The driver’s door is closed.
Page 247 of 690
5-56
Convenience Features
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
headrests which could interfere with
your vision through the rear window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature
will automatically detect and reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
ORG3050208N
(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4) Garage Door Opener Status Indicator:
Closing or Closed
(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator:
Opening or Opened
(7) HomeLink User Interface Indicator
MIRRORS
Page 257 of 690
5-66
Convenience Features
Adjusting the rearview mirrors
OJWEV051026
OJWEV051027
Adjusting the rearview mirrors:
1. Turn the outer ring to either the L (Left
side) or R (Right side) button (1) to
select the rearview mirror you would
like to adjust.
2. Use the mirror adjustment control
switch (2) to position the selected
mirror up, down, left or right.
3. After adjustment, return the outer
ring to the center position to prevent
inadvertent adjustment.
NOTICE
[ The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.
[ Do not attempt to adjust the
rearview mirrors by hand, because
this can damage the motor.
Folding the rearview mirrors
OJWEV051028
Folding button
The rearview mirrors can be folded or
unfolded by pressing the button.
Page 259 of 690
5-68
Convenience Features
Reverse parking aid user settings
mode
You may change the angle of the side
view mirror if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing.
When the vehicle is first delivered, the
set downward angle of the left and right
side view mirror are different to ensure
driver visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift
the gear to R (Reverse). Outer ring
is either in the left position or right
position, both side view mirror angle
will move downward to the basic set
position.
3. Rotate the outer ring either to the left
position or right position to select
the side view mirror you would like
to adjust. Then press “z, x, {, y”
switch to adjust the side view mirror
to the desired angle.
4. After adjusting the angle to save the
adjusted side view mirror angle, shift
the gear to another position other
than R (Reverse), or rotate the outer
ring to the center position.
5. Set the other side view mirror
following the above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirror angle
back to the basic angle, shift the gear to
R (Reverse), and adjust the mirror angle
higher than when the gear is in P (Park),
N (Neutral) and D (Drive).
NOTICE
When changing the angle of both side
view mirrors, it is recommended to
change the angle one side at a time
following the procedure 1 to 4.
Page 313 of 690
5-122
Convenience Features
WINDSHIELD DEFROSTING AND DEFOGGING
WARNING
Windshield heating
Do not use the
position during
cooling operation in extremely humid
weather. The difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility could cause
an accident resulting in serious injury
or death. In this case, set the mode
selection button to the
position
and fan speed control knob to a lower
speed.
[ For maximum defrost performance,
set the temperature control to the
highest temperature setting and
the fan speed control to the highest
setting.
[ If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.
[ Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.
[ Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up the inside of
the windshield.
To Defog Inside Windshield
OJWEV051113
1. Select the desired fan speed.
2. Select the desired temperature.
3. Press the defroster button (
).
4. Fresh mode will be selected
automatically.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator light is illuminated, press the
button once to enable Fresh mode
(indicator light OFF).
If the
position is selected, the fan
speed is automatically increased.
Page 315 of 690
5-124
Convenience Features
Rear Window Defroster
NOTICE
To prevent damage to the rear window
defroster conducting elements bonded
to the inside surface of the rear window,
never use sharp instruments or window
cleaners containing abrasives to clean
the window.
OJWEV051115
The defroster heats the window to
remove frost, fog and thin ice from the
interior and exterior of the rear window,
while the vehicle is running.
[ To activate the rear window defroster,
press the rear window defroster
button located in the center control
panel. The indicator on the rear
window defroster button illuminates
when the defroster is ON.
[ To turn off the defroster, press the rear
window defroster button again.
Information
[ If there is heavy accumulation of snow
on the rear window, brush it off before
operating the rear defroster.
[ The rear window defroster
automatically turns off after
approximately 20 minutes or when
W K H 6 W D U W 6 W R S E X W W R Q L V L Q W K H 2 ) )
position.
Side view mirror defroster
If your vehicle is equipped with the
rearview mirror defrosters, they will
operate at the same time you turn on the
rear window defroster.
Page 337 of 690
6-3
06
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide variety of
automobile components including
components found in the interior
furnishings in a vehicle, contain or
emit harmful chemicals known to the
State of California to cause cancer and
birth defects and reproductive harm.
In addition, certain fluids contained
in vehicles and certain products of
components contain or emit chemicals
known to the State of California to
cause cancer and birth defects or other
reproductive harm.
Before Entering the Vehicle
[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.
[ Remove frost, snow, or ice.
[ Visually check the tires for uneven
wear and damage.
[ Check under the vehicle for any sign
of leaks.
[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting
[ Make sure the hood, the liftgate, and
the doors are securely closed and
locked.
[ Adjust the position of the seat and
steering wheel.
[ Adjust the inside and outside rearview
mirrors.
[ Verify all the lights work.
[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.
[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the vehicle is in the ON position.
[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:
[ ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.
[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.
[ Stay focused on the task of driving.
Driver distraction can cause
accidents.
[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING
Page 450 of 690
7-36
Driver Assistance System
OTM070097N
When the vehicle is restarted with
Blind-Spot Collision-Avoidance Assist
off, the ‘Blind-Spot Safety System is Off’
message will appear on the cluster.
If you change the setting from ‘Off’ to
‘Active Assist’ or ‘Warning Only’, the
warning light on the outside rearview
mirror will blink for three seconds.
In addition, if the vehicle is turned on,
when Blind-Spot Collision-Avoidance
Assist is set to ‘Active Assist’ or ‘Warning
Only’, the warning light on the outside
rearview mirror will blink for three
seconds.
: $ 5 1 , 1 *
[ , I S : D U Q L Q J 2 Q O \T L V V H O H F W H G E U D N L Q J
L V Q R W D V V L V W H G
[ , I S 2 I IT L V V H O H F W H G W K H G U L Y H U V K R X O G
D O Z D \ V E H D Z D U H R I W K H V X U U R X Q G L Q J V
D Q G G U L Y H V D I H O \
Information
If the vehicle is restarted, Blind-Spot
Collision-Avoidance Assist will maintain
the last setting.
OJWEV071237L
Warning Timing
With the vehicle on, select ‘Driver
$ V V L V W D Q F H
