GENESIS GV70 2023 Owner's Manual

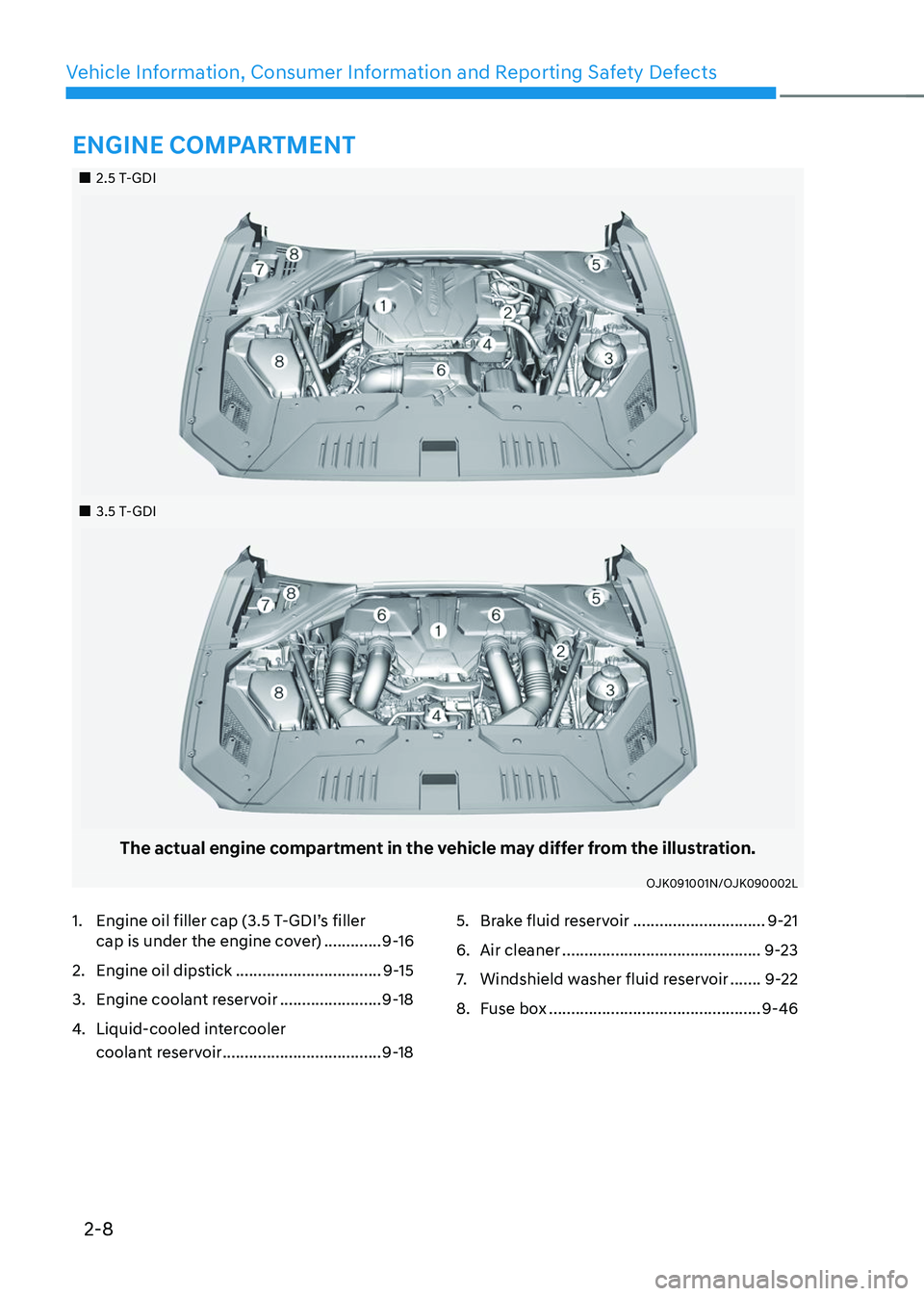

2-8
Vehicle Information, Consumer Information and Reporting Safety Defects

02
2-9

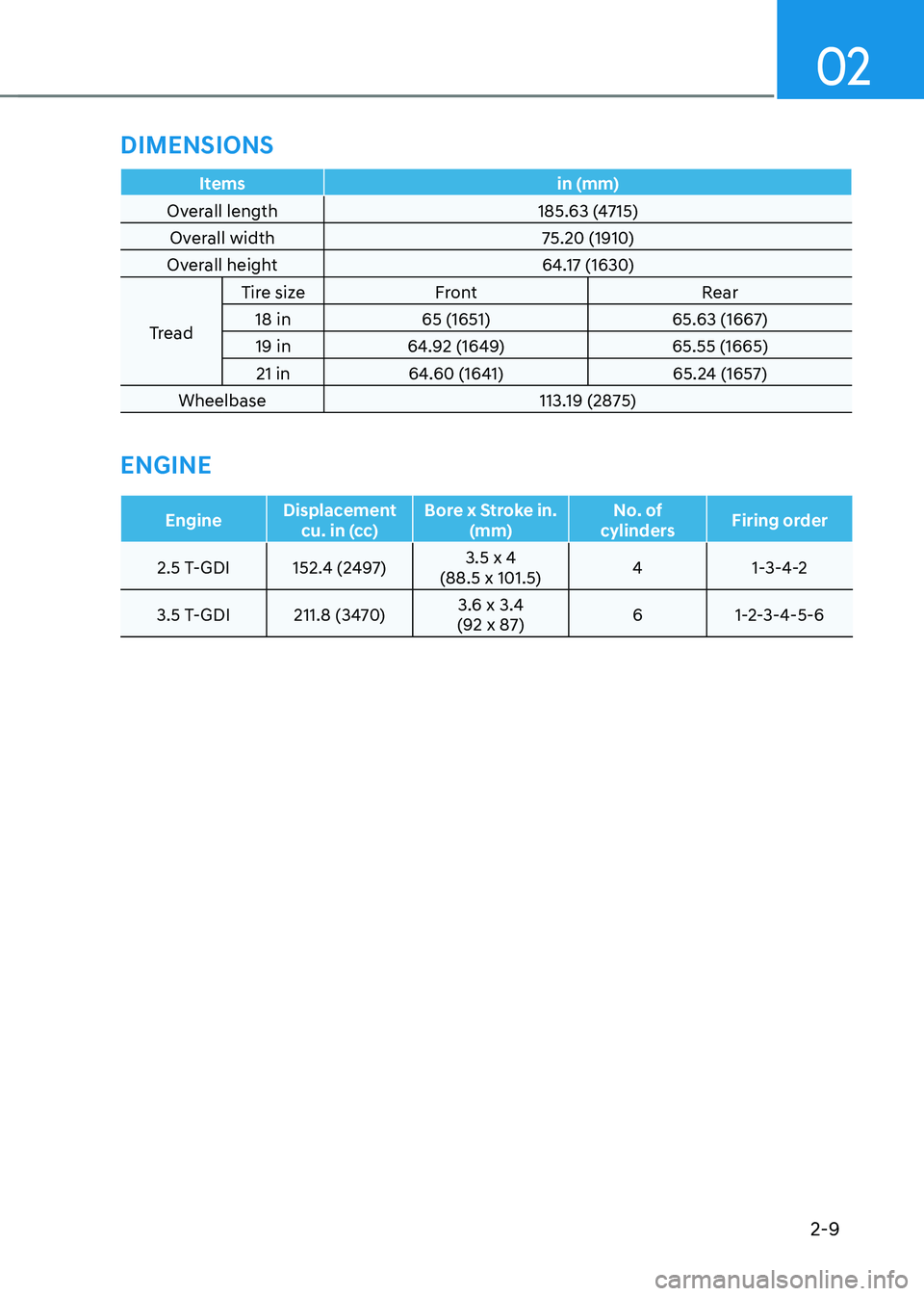

Itemsin (mm)
Overall length 185.63 (4715)
Overall width 75.20 (1910)
Overall height 64.17 (1630)
Tread Tire size
Front Rear
18 in 65 (1651) 65.63 (1667)
19 in 64.92 (1649) 65.55 (1665)
21 in 64.60 (1641) 65.24 (1657)
Wheelbase 113.19 (2875)
ENGINE
EngineDisplacement
cu. in (cc) Bore x Stroke in.
(mm) No. of
cylinders Firing order
2.5 T-GDI 152.4 (2497) 3.5 x 4
(88.5 x 101.5) 4
1-3-4-2
3.5 T-GDI 211.8 (3470) 3.6 x 3.4
(92 x 87) 6
1-2-3-4-5-6
DIMENSIONS

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10

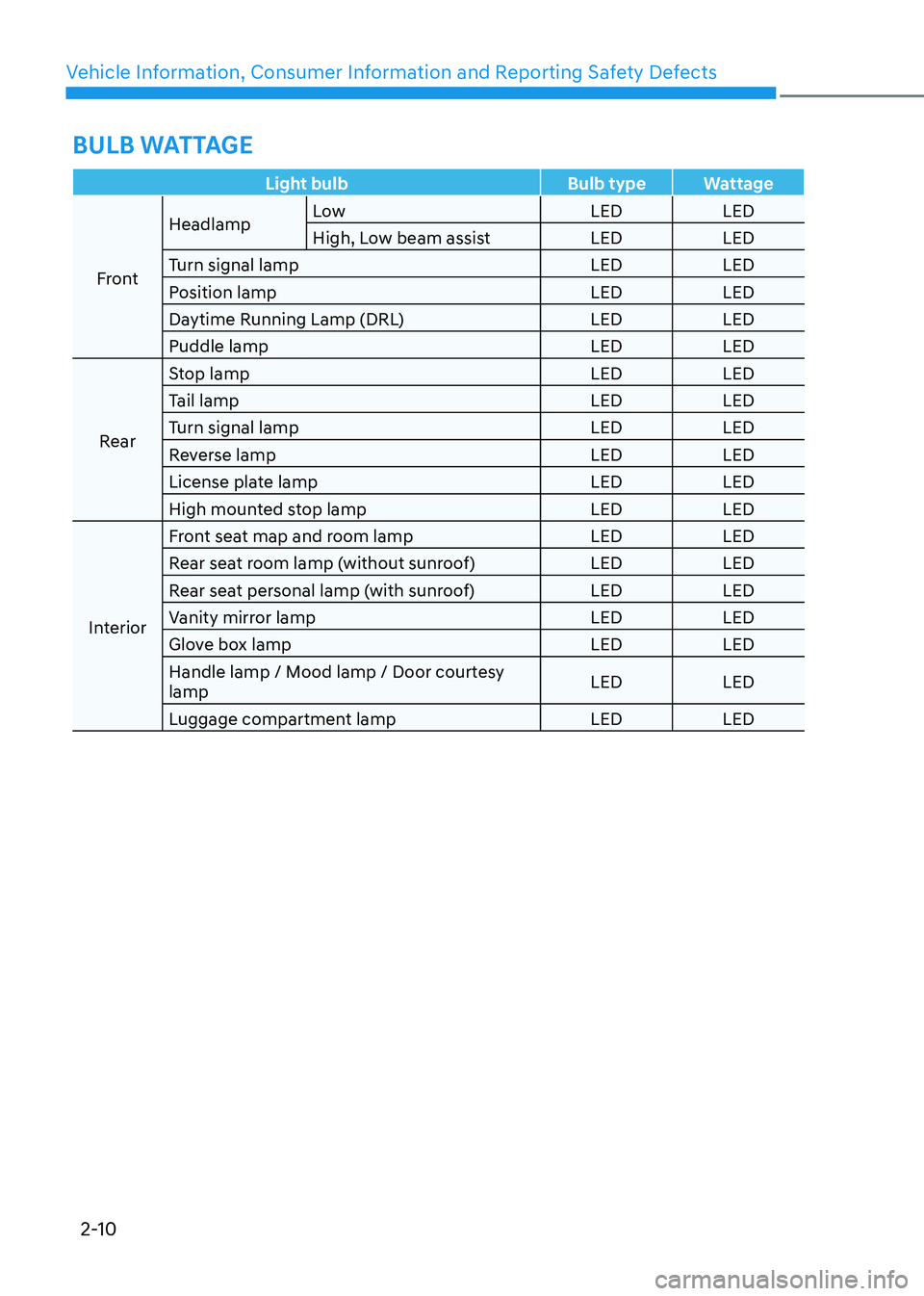

Light bulbBulb typeWattage
Front Headlamp
Low
LEDLED
High, Low beam assist LEDLED
Turn signal lamp LEDLED
Position lamp LEDLED
Daytime Running Lamp (DRL) LEDLED
Puddle lamp LEDLED
Rear Stop lamp
LEDLED
Tail lamp LEDLED
Turn signal lamp LEDLED
Reverse lamp LEDLED
License plate lamp LEDLED
High mounted stop lamp LEDLED
Interior Front seat map and room lamp
LEDLED
Rear seat room lamp (without sunroof) LEDLED
Rear seat personal lamp (with sunroof) LEDLED
Vanity mirror lamp LEDLED
Glove box lamp LEDLED
Handle lamp / Mood lamp / Door courtesy
lamp LED
LED
Luggage compartment lamp LEDLED
BULB WATTAGE

02
2-11

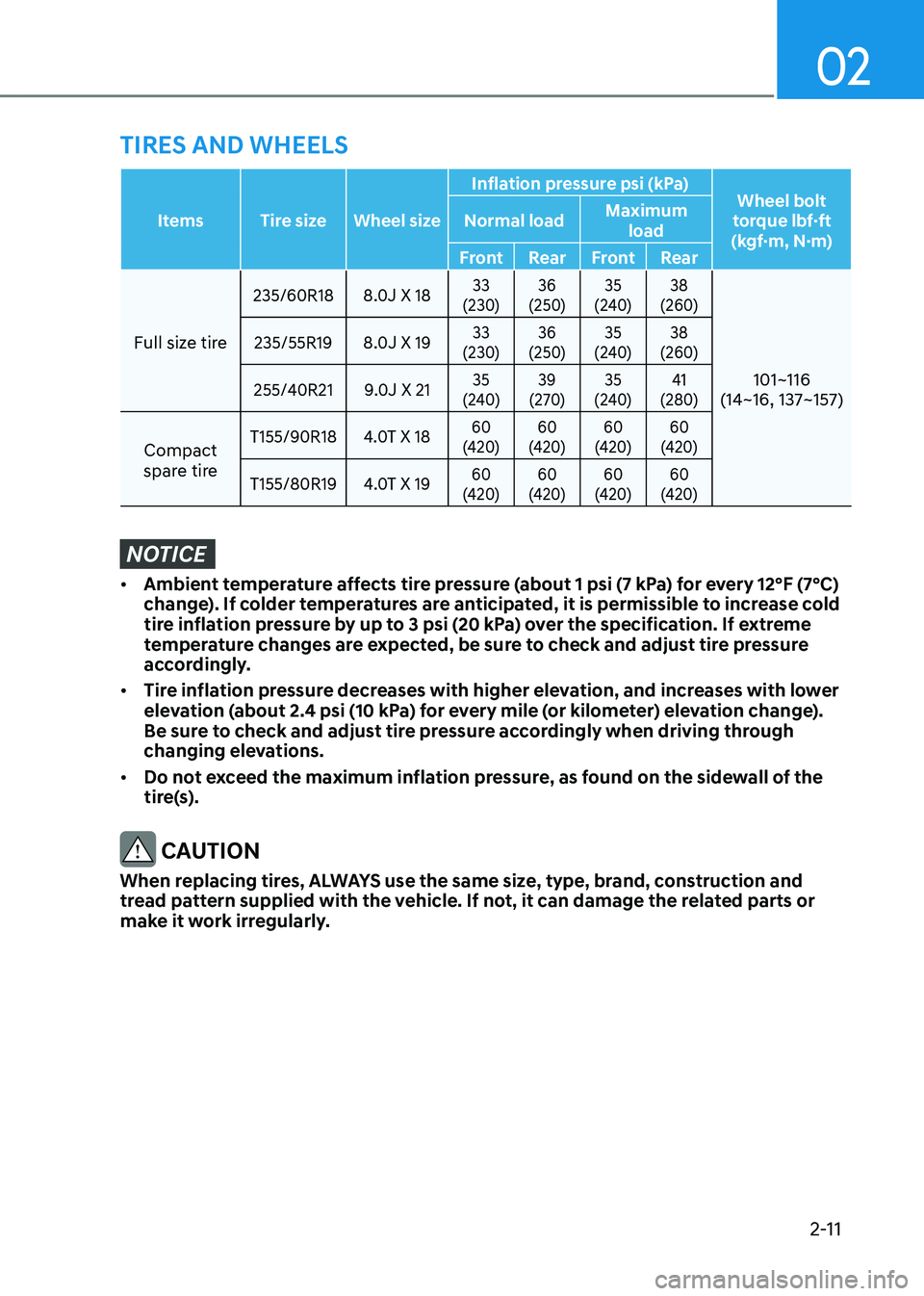

ItemsTire sizeWheel size Inflation pressure psi (kPa)
Wheel bolt
torque lbf·ft
(kgf·m, N·m)
Normal load
Maximum
load
Front RearFront Rear
Full size tire
235/60R18 8.0J X 1833
(230) 36
(250) 35
(240) 38
(260)
101~116
(14~16, 137~157)
235/55R19 8.0J X 1933
(230) 36
(250) 35
(240) 38
(260)
255/40R21 9.0J X 2135
(240) 39
(270) 35
(240) 41
(280)
Compact
spare tireT155/90R18 4.0T X 1860
(420) 60
(420) 60
(420) 60
(420)
T155/80R19 4.0T X 1960
(420) 60
(420) 60
(420) 60
(420)
NOTICE
• Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12°F (7°C)
change). If colder temperatures are anticipated, it is permissible to increase cold
tire inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme
temperature changes are expected, be sure to check and adjust tire pressure
accordingly.
• Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.
• Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12

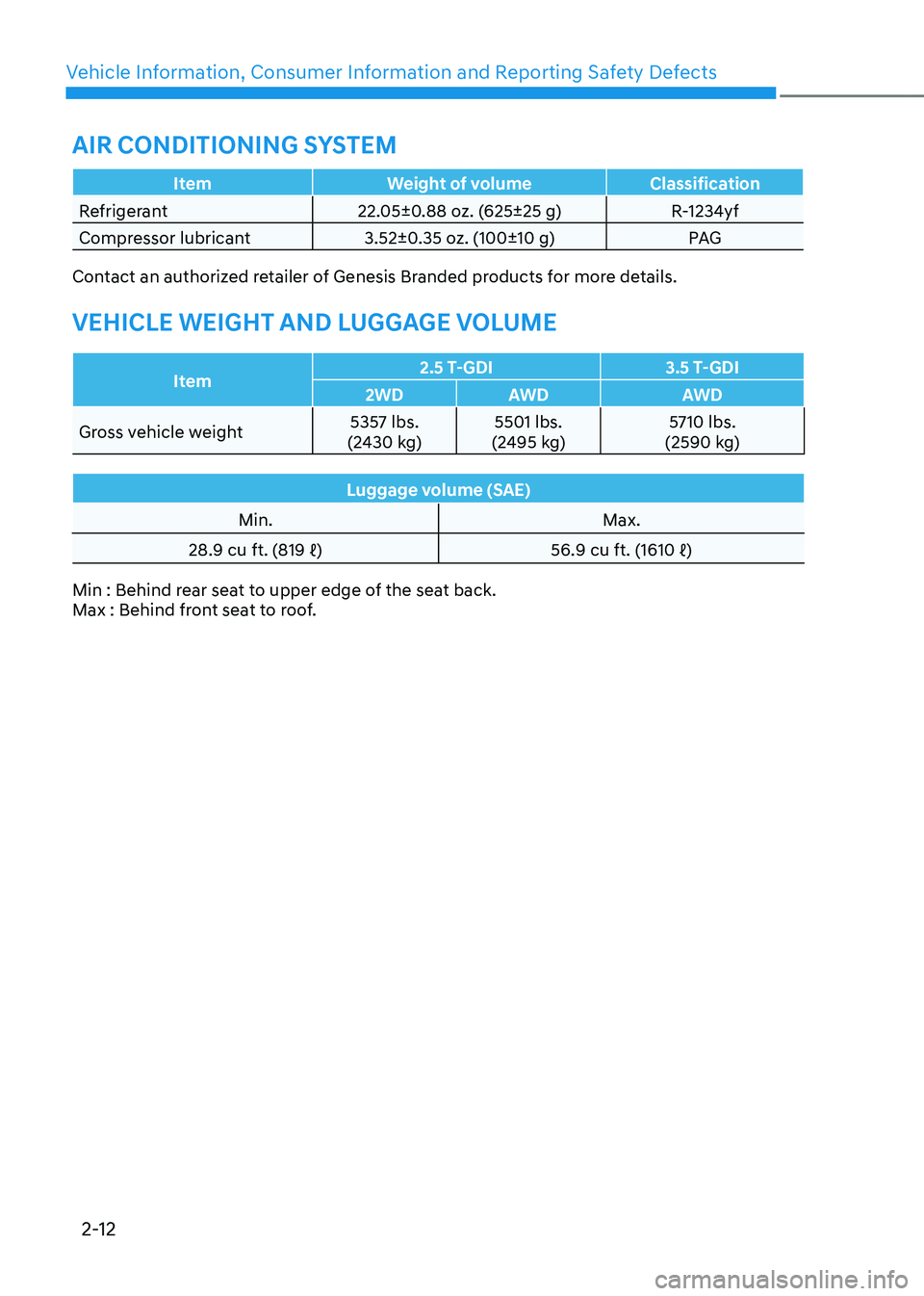

ItemWeight of volume Classification
Refrigerant 22.05±0.88 oz. (625±25 g) R-1234yf
Compressor lubricant 3.52±0.35 oz. (100±10 g) PAG
Contact an authorized retailer of Genesis Branded products for more details.
VEHICLE WEIGHT AND LUGGAGE VOLUME
Item 2.5 T-GDI
3.5 T-GDI
2WD AWD AWD
Gross vehicle weight 5357 lbs.
(2430 kg) 5501 lbs.
(2495 kg) 5710 lbs.
(2590 kg)
Luggage volume (SAE)
Min. Max.
28.9 cu ft. (819 ℓ) 56.9 cu ft. (1610 ℓ)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
AIR CONDITIONING SYSTEM

02
2-13

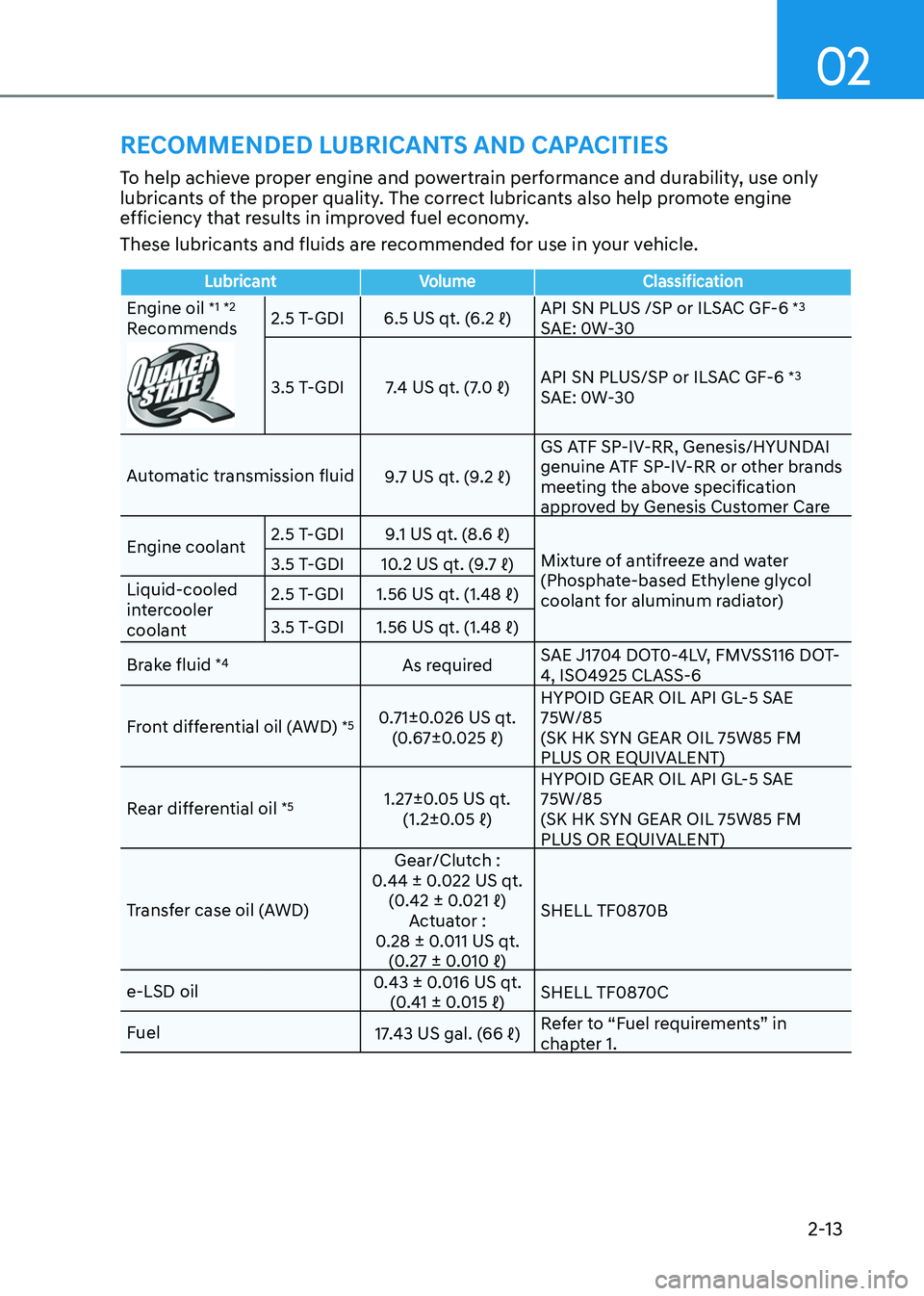

To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolume Classification
Engine oil *1 *2
Recommends 2.5 T-GDI
6.5 US qt. (6.2 ℓ) API SN PLUS /SP or ILSAC GF-6 *3
SAE: 0W-30
3.5 T-GDI7.4 US qt. (7.0 ℓ)API SN PLUS/SP or ILSAC GF-6 *3
SAE: 0W-30
Automatic transmission fluid 9.7 US qt. (9.2 ℓ)GS ATF SP-IV-RR, Genesis/HYUNDAI
genuine ATF SP-IV-RR or other brands
meeting the above specification
approved by Genesis Customer Care
Engine coolant 2.5 T-GDI
9.1 US qt. (8.6 ℓ)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
3.5 T-GDI
10.2 US qt. (9.7 ℓ)
Liquid-cooled
intercooler
coolant 2.5 T-GDI
1.56 US qt. (1.48 ℓ)
3.5 T-GDI 1.56 US qt. (1.48 ℓ)
Brake fluid
*4As required SAE J1704 DOT0-4LV, FMVSS116 DOT-
4, ISO4925 CLASS-6
Front differential oil (AWD)
*50.71±0.026 US qt. (0.67±0.025 ℓ) HYPOID GEAR OIL API GL-5 SAE
75W/85
(SK HK SYN GEAR OIL 75W85 FM
PLUS OR EQUIVALENT)
Rear differential oil
*51.27±0.05 US qt. (1.2±0.05 ℓ) HYPOID GEAR OIL API GL-5 SAE
75W/85
(SK HK SYN GEAR OIL 75W85 FM
PLUS OR EQUIVALENT)
Transfer case oil (AWD) Gear/Clutch :
0.44 ± 0.022 US qt.
(0.42 ± 0.021 ℓ) Actuator :
0.28 ± 0.011 US qt. (0.27 ± 0.010 ℓ) SHELL TF0870B
e-LSD oil 0.43 ± 0.016 US qt.

(0.41 ± 0.015 ℓ) SHELL TF0870C
Fuel 17.43 US gal. (66 ℓ)Refer to “Fuel requirements” in
chapter 1.
RECOMMENDED LUBRICANTS AND CAPACITIES

Vehicle Information, Consumer Information and Reporting Safety Defects
2-14

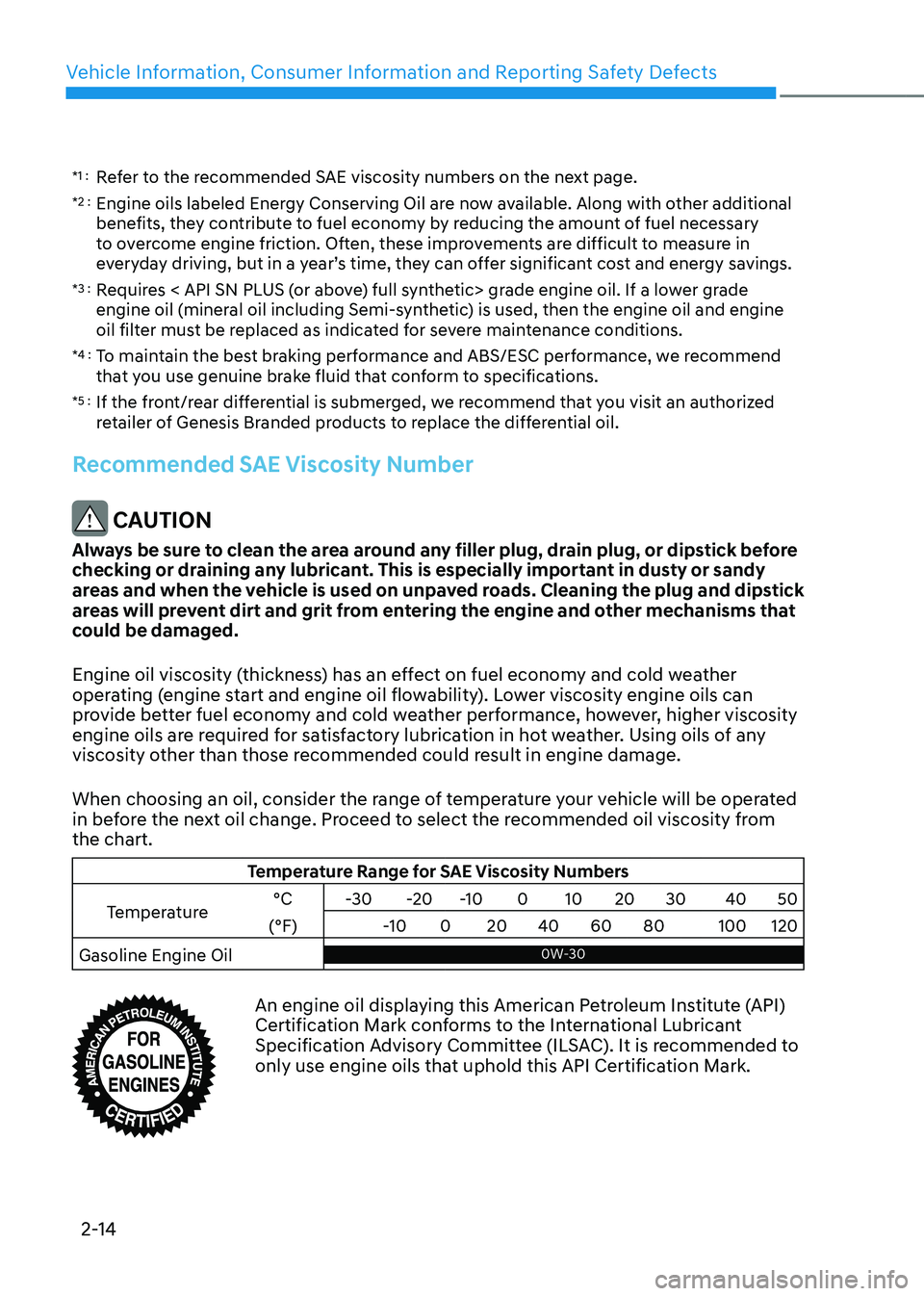

*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional
benefits, they contribute to fuel economy by reducing the amount of fuel necessary
to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3 : Requires < API SN PLUS (or above) full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated for severe maintenance conditions.
*4 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications.
*5 : If the front/rear differential is submerged, we recommend that you visit an authorized
retailer of Genesis Branded products to replace the differential oil.
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C
-30-20-10 010 20 30 4050
(°F) -10020 40 60 80 100120
Gasoline Engine Oil
0W-30 0W-30
An engine oil displaying this American Petroleum Institute (API) Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended to
only use engine oils that uphold this API Certification Mark.

02
2-15

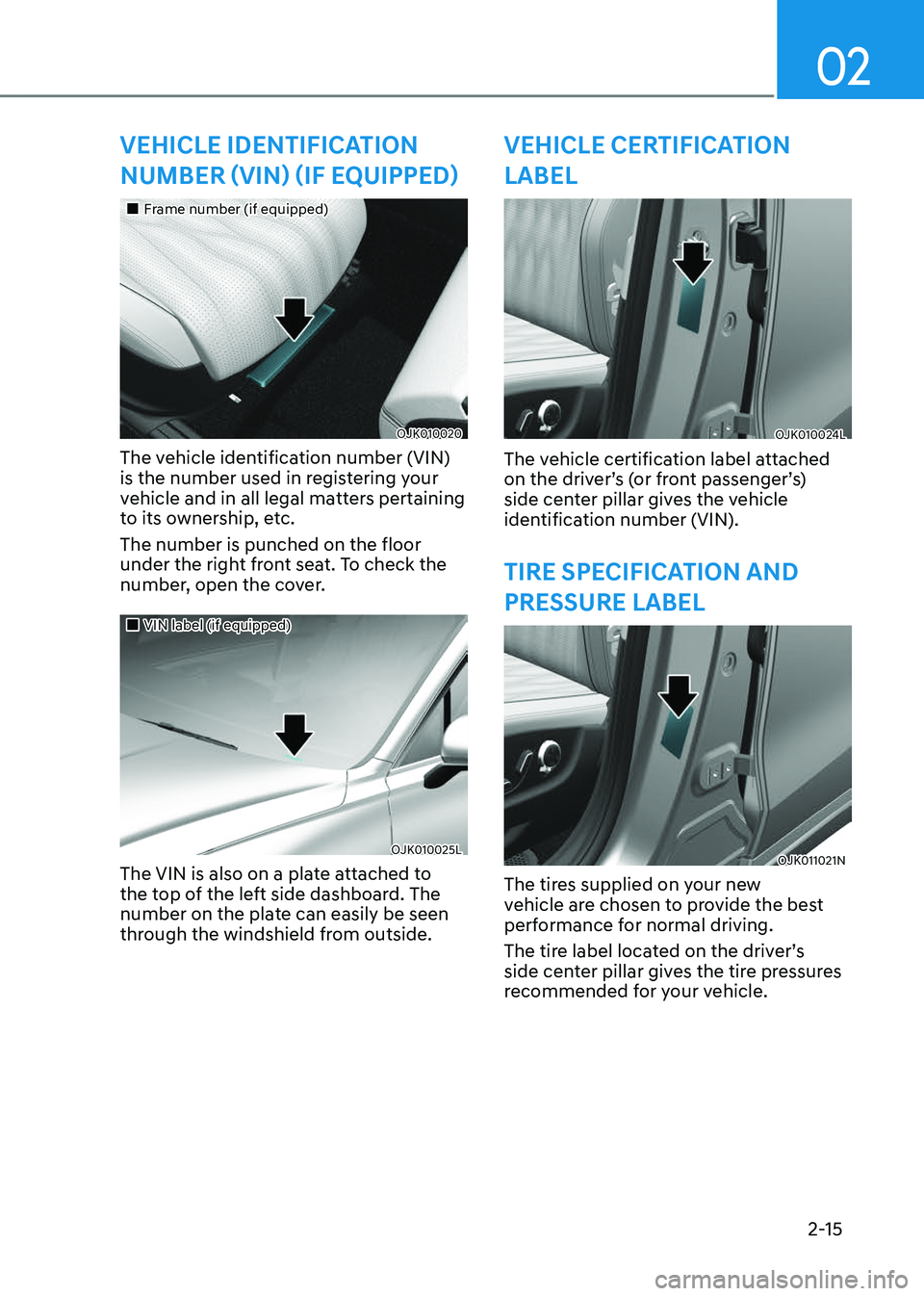

VEHICLE IDENTIFICATION
NUMBER (VIN) (IF EQUIPPED)

Vehicle Information, Consumer Information and Reporting Safety Defects
2-16

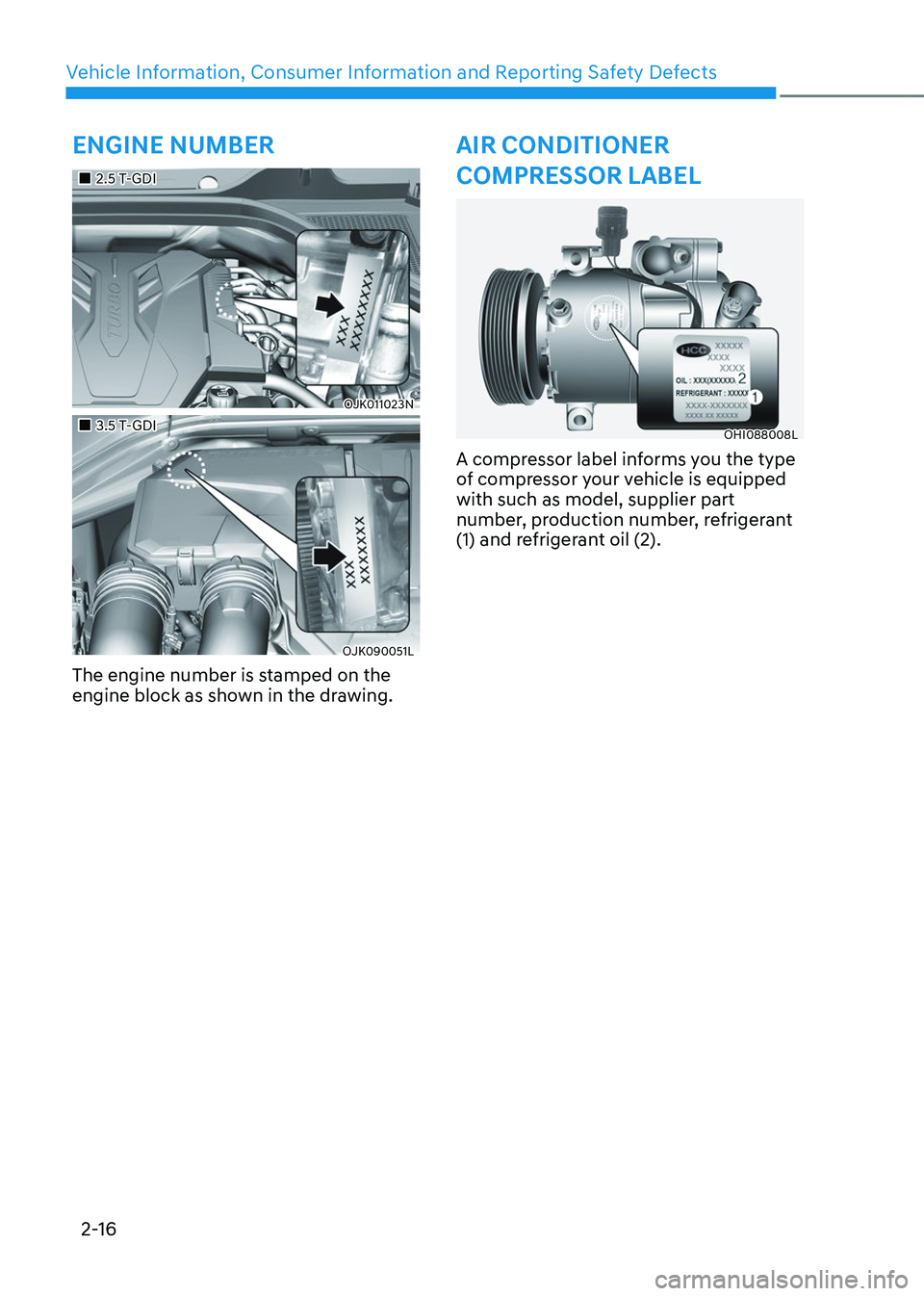

ENGINE NUMBER

02
2-17

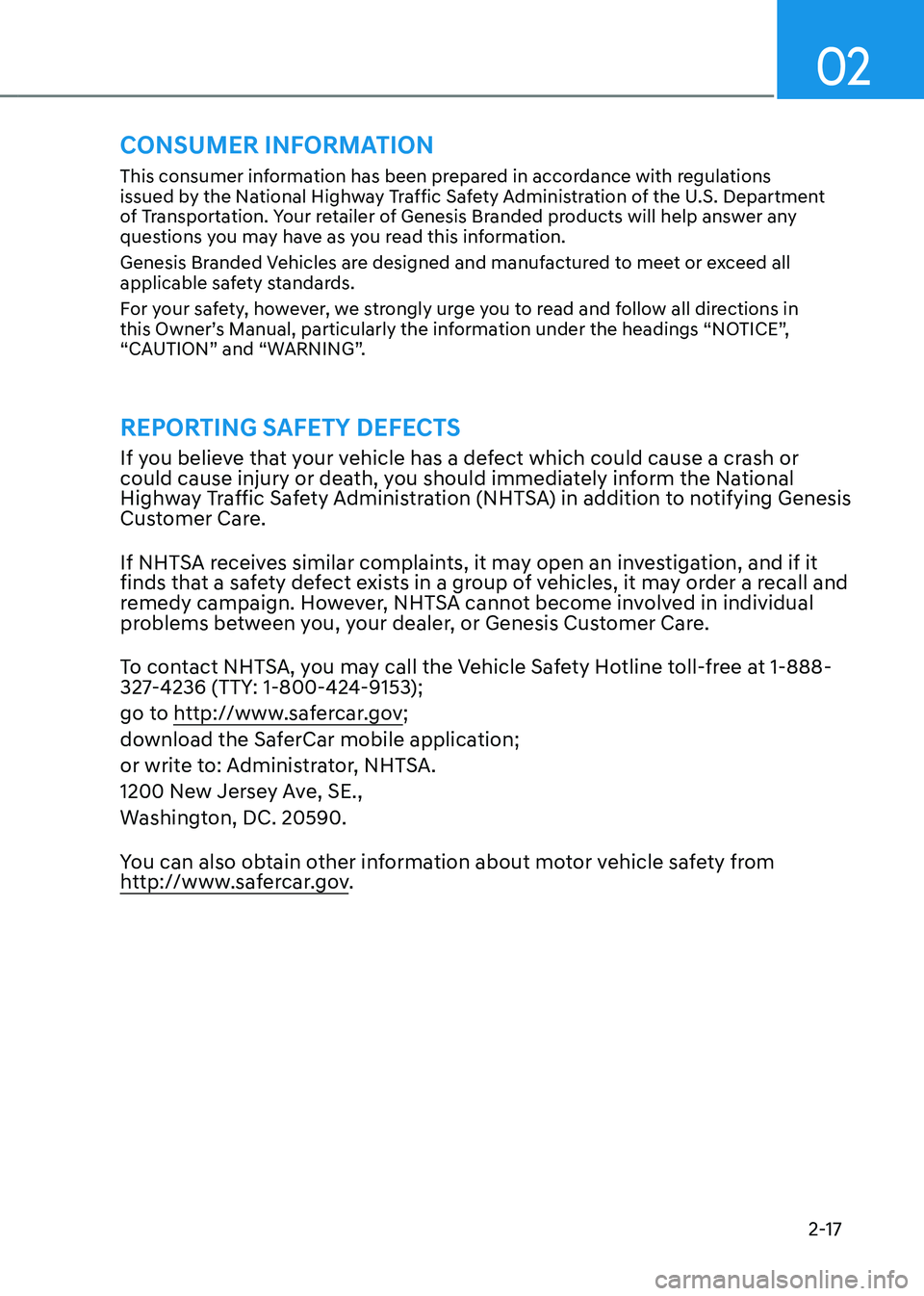

CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the U.S. Department
of Transportation. Your retailer of Genesis Branded products will help answer any
questions you may have as you read this information.
Genesis Branded Vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying Genesis
Customer Care.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Genesis Customer Care.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA.
1200 New Jersey Ave, SE.,
Washington, DC. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
