3rd ON
-+
DEFOGGING / DEFROSTINGSYSTEM OFF
Pressing the OFF button will
place the system in below settings.
• Front blower will turn off.
• Outside (fresh) air position
will be selected.
• Vented air will be at last set
temperature.
Front seat control
MODE SELECTION
NOTE: To reduce window fogging and improve visibility, keep the interior
surface of the windshield clean by wiping it with a clean cloth and glas\
s
cleaner. In addition, position the air intake control to circulate fresh air
whenever possible while operating the vehicle.
NOTE: Use a microfiber towel to
prevent scratches on the climate
controls while removing
fingerprints, dust, or stains.
Immediately wipe off any interior
cleaning products to prevent
damage to the climate controls.
AIR INTAKE CONTROL
Automatically controls the
modes, fan speeds, air intake
and air-conditioning functions.
AUTOMATIC HEATING /
AIR CONDITIONING
Rear seat control (if equipped)
If cabin humidity increase while
Climate Control is off, fresh air will
be circulated into the cabin.
Please refer to the Owner's Manual
for further details.
SMART VENT
When Fresh mode is
selected, air enters the
vehicle from outside and is
heated or cooled
according to the function
selected.
When Recirculation mode
is selected, air from the
passenger compartment
will be recirculated
through the system and
heated or cooled
according to the function
selected.

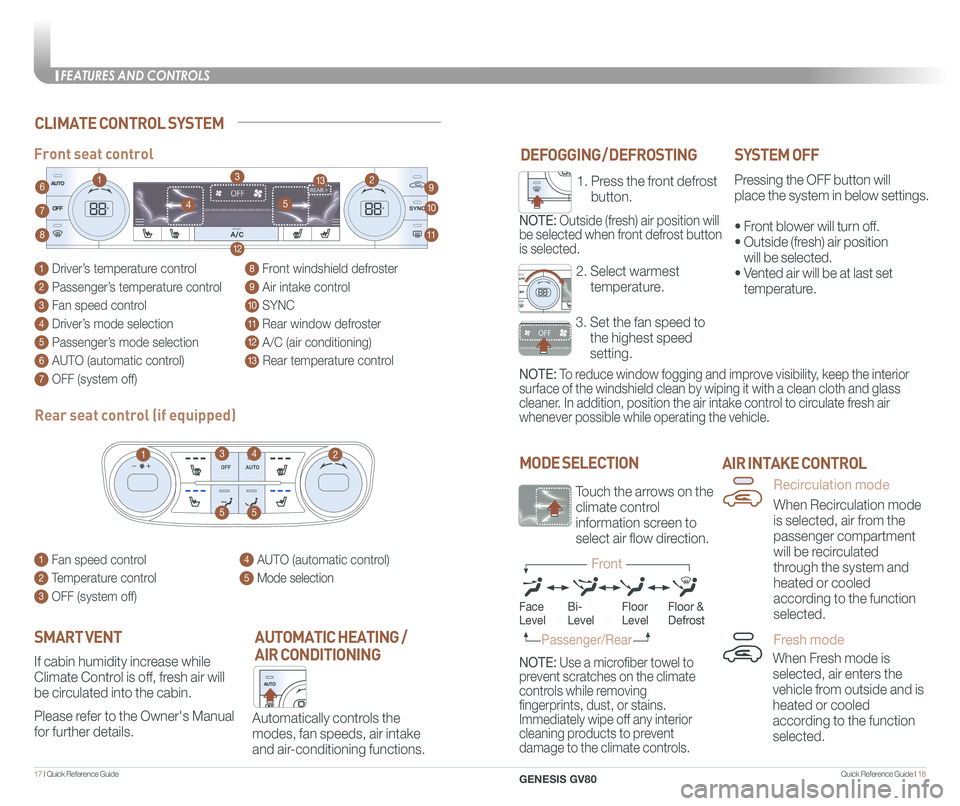

CLIMATE CONTROL SYSTEM
3. Set the fan speed to
the highest speed
setting.
2. Select warmest
temperature.
1. Press the front defrost
button.
NOTE: Outside (fresh) air position will
be selected when front defrost button
is selected.
FaceLevelFloorLevelFloor &Defrost
Passenger/Rear
Recirculation mode
Fresh mode
Front
Bi-Level
1 Driver’s temperature control
2 Passenger’s temperature control
3 Fan speed control
4 Driver’s mode selection
5 Passenger’s mode selection
6 AUTO (automatic control)
7 OFF (system off)
8 Front windshield defroster
9 Air intake control
10 SYNC
11 Rear window defroster
12 A/C (air conditioning)
13 Rear temperature control
1 Fan speed control
2 Temperature control
3 OFF (system off)
4 AUTO (automatic control)
5 Mode selection
10
9
8
12
7
11
4
4
63
2
5
55
13
13
12
Touch the arrows on the
climate control
information screen to
select air flow direction.
