GENESIS GV80 2023 Service Manual

03
3-11

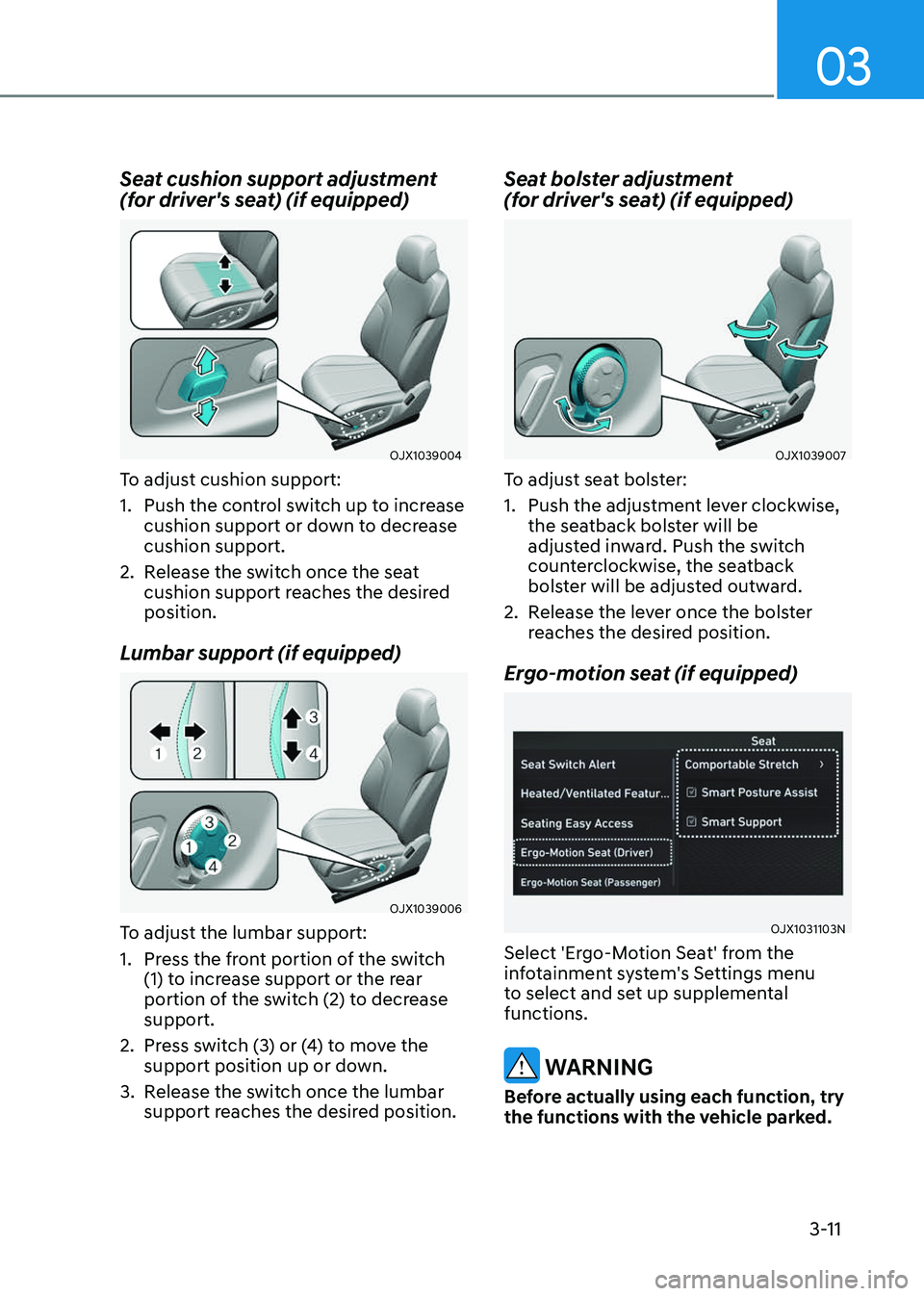

Seat cushion support adjustment
(for driver's seat) (if equipped)
OJX1039004OJX1039004
To adjust cushion support:
1. Push the control switch up to increase
cushion support or down to decrease
cushion support.
2. Release the switch once the seat
cushion support reaches the desired
position.
Lumbar support (if equipped)
OJX1039006OJX1039006
To adjust the lumbar support:
1. Press the front portion of the switch
(1) to increase support or the rear
portion of the switch (2) to decrease
support.
2. Press switch (3) or (4) to move the
support position up or down.
3. Release the switch once the lumbar
support reaches the desired position.
Seat bolster adjustment
(for driver's seat) (if equipped)
OJX1039007OJX1039007
To adjust seat bolster:
1. Push the adjustment lever clockwise,
the seatback bolster will be
adjusted inward. Push the switch
counterclockwise, the seatback
bolster will be adjusted outward.
2. Release the lever once the bolster
reaches the desired position.
Ergo-motion seat (if equipped)
OJX1031103NOJX1031103N
Select 'Ergo-Motion Seat' from the
infotainment system's Settings menu
to select and set up supplemental
functions.
WARNING
Before actually using each function, try
the functions with the vehicle parked.

Safety System

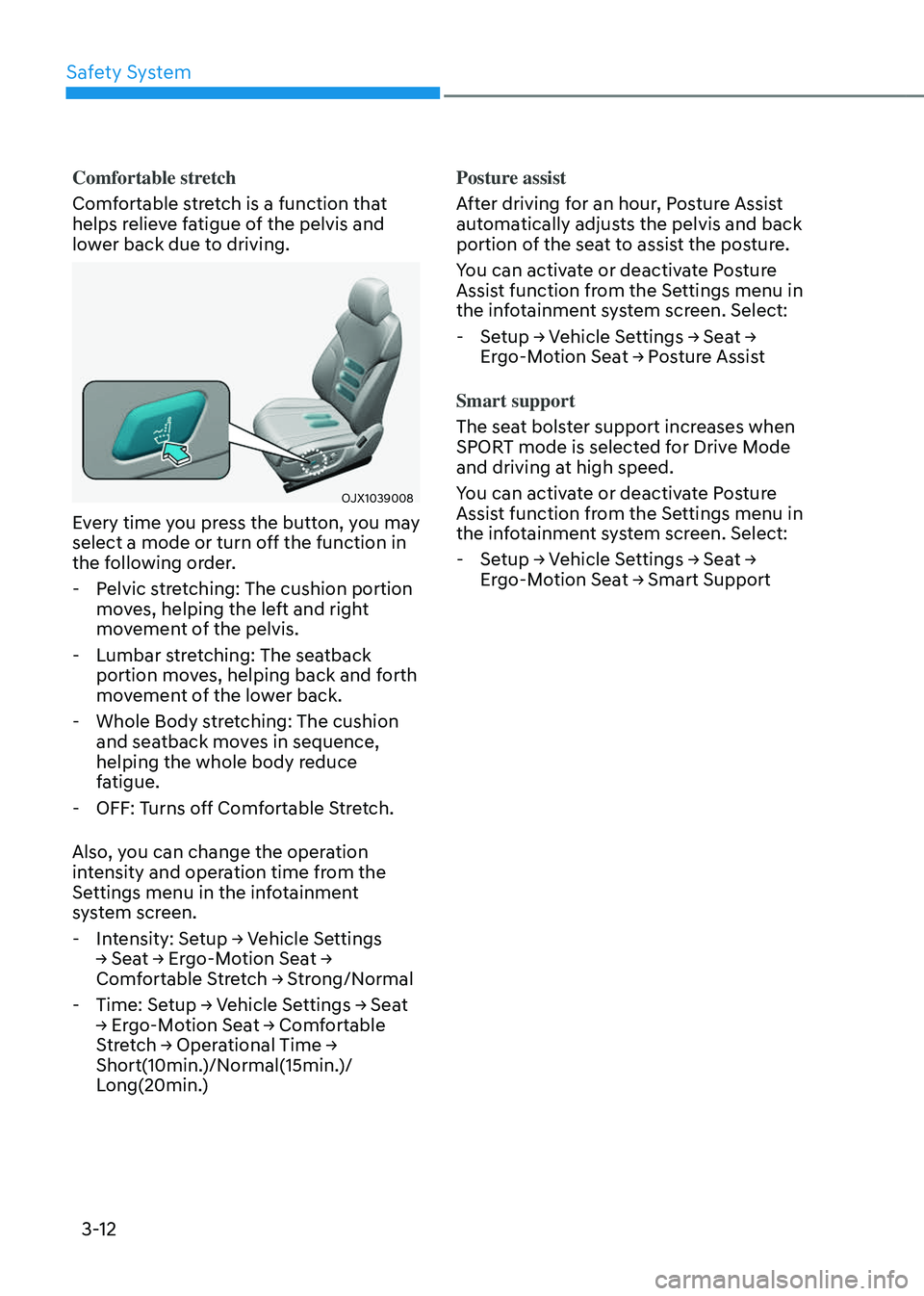

3-12
Comfortable stretch
Comfortable stretch is a function that
helps relieve fatigue of the pelvis and
lower back due to driving.
OJX1039008OJX1039008
Every time you press the button, you may
select a mode or turn off the function in
the following order.
-Pelvic stretching: The cushion portion
moves, helping the left and right
movement of the pelvis.
-Lumbar stretching: The seatback
portion moves, helping back and forth
movement of the lower back.
-Whole Body stretching: The cushion
and seatback moves in sequence,
helping the whole body reduce
fatigue.
-OFF: Turns off Comfortable Stretch.
Also, you can change the operation
intensity and operation time from the
Settings menu in the infotainment
system screen.
-Intensity: Setup -> Vehicle Settings -> Seat -> Ergo-Motion Seat -> Comfortable Stretch -> Strong/Normal
-Time: Setup -> Vehicle Settings -> Seat -> Ergo-Motion Seat -> Comfortable Stretch -> Operational Time -> Short(10min.)/Normal(15min.)/
Long(20min.) Posture assist
After driving for an hour, Posture Assist
automatically adjusts the pelvis and back
portion of the seat to assist the posture.
You can activate or deactivate Posture
Assist function from the Settings menu in
the infotainment system screen. Select:
-Setup -> Vehicle Settings -> Seat -> Ergo-Motion Seat -> Posture Assist
Smart support
The seat bolster support increases when
SPORT mode is selected for Drive Mode
and driving at high speed.
You can activate or deactivate Posture
Assist function from the Settings menu in
the infotainment system screen. Select:
-Setup -> Vehicle Settings -> Seat -> Ergo-Motion Seat -> Smart Support

03
3-13

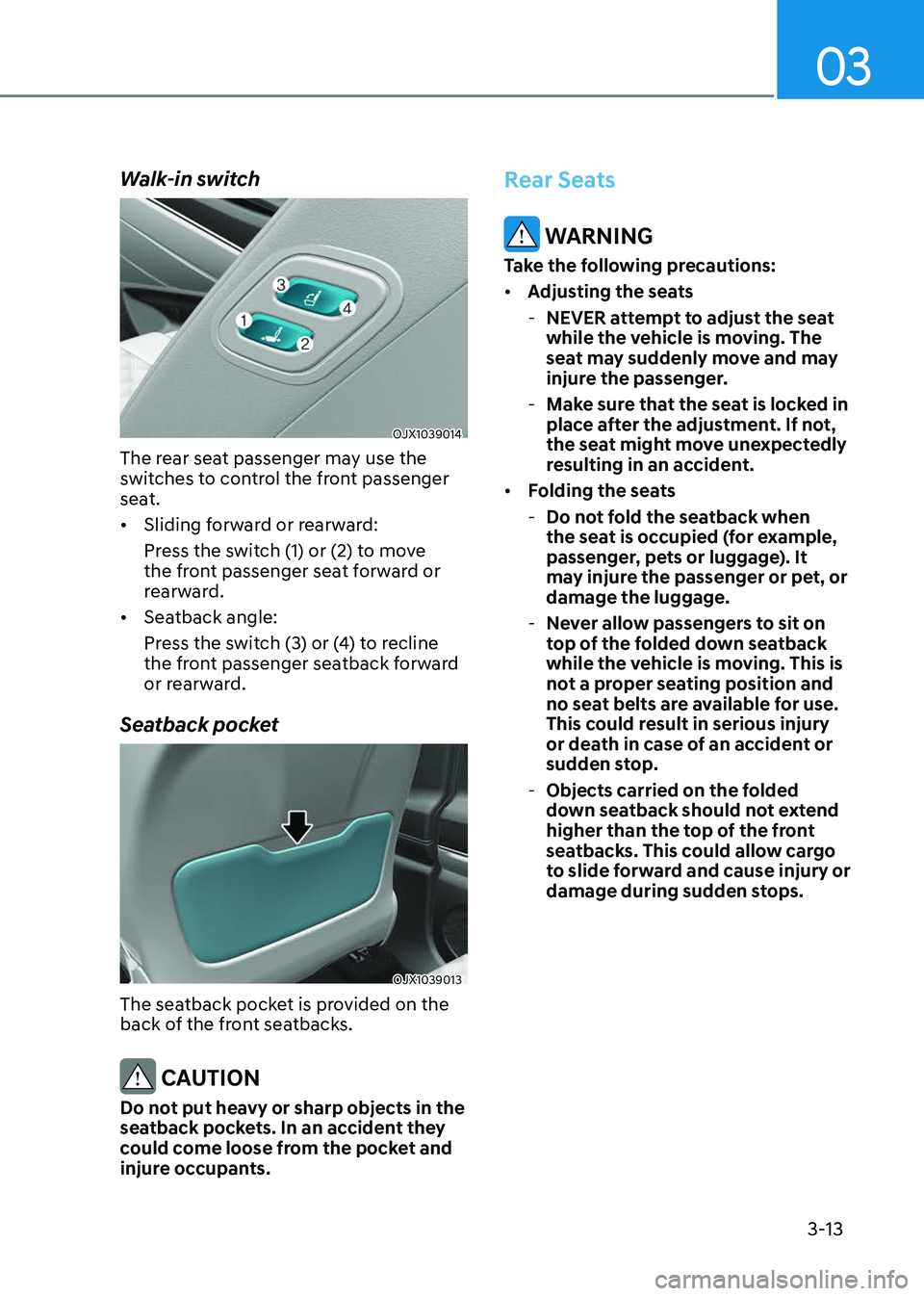

Walk-in switch
OJX1039014OJX1039014
The rear seat passenger may use the
switches to control the front passenger
seat.
• Sliding forward or rearward:
Press the switch (1) or (2) to move
the front passenger seat forward or
rearward.
• Seatback angle:
Press the switch (3) or (4) to recline
the front passenger seatback forward
or rearward.
Seatback pocket
OJX1039013OJX1039013
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.
Rear Seats
WARNING
Take the following precautions:
• Adjusting the seats
-NEVER attempt to adjust the seat
while the vehicle is moving. The
seat may suddenly move and may
injure the passenger.
-Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
• Folding the seats
-Do not fold the seatback when
the seat is occupied (for example,
passenger, pets or luggage). It
may injure the passenger or pet, or
damage the luggage.
-Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This is
not a proper seating position and
no seat belts are available for use.
This could result in serious injury
or death in case of an accident or
sudden stop.
-Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.

Safety System

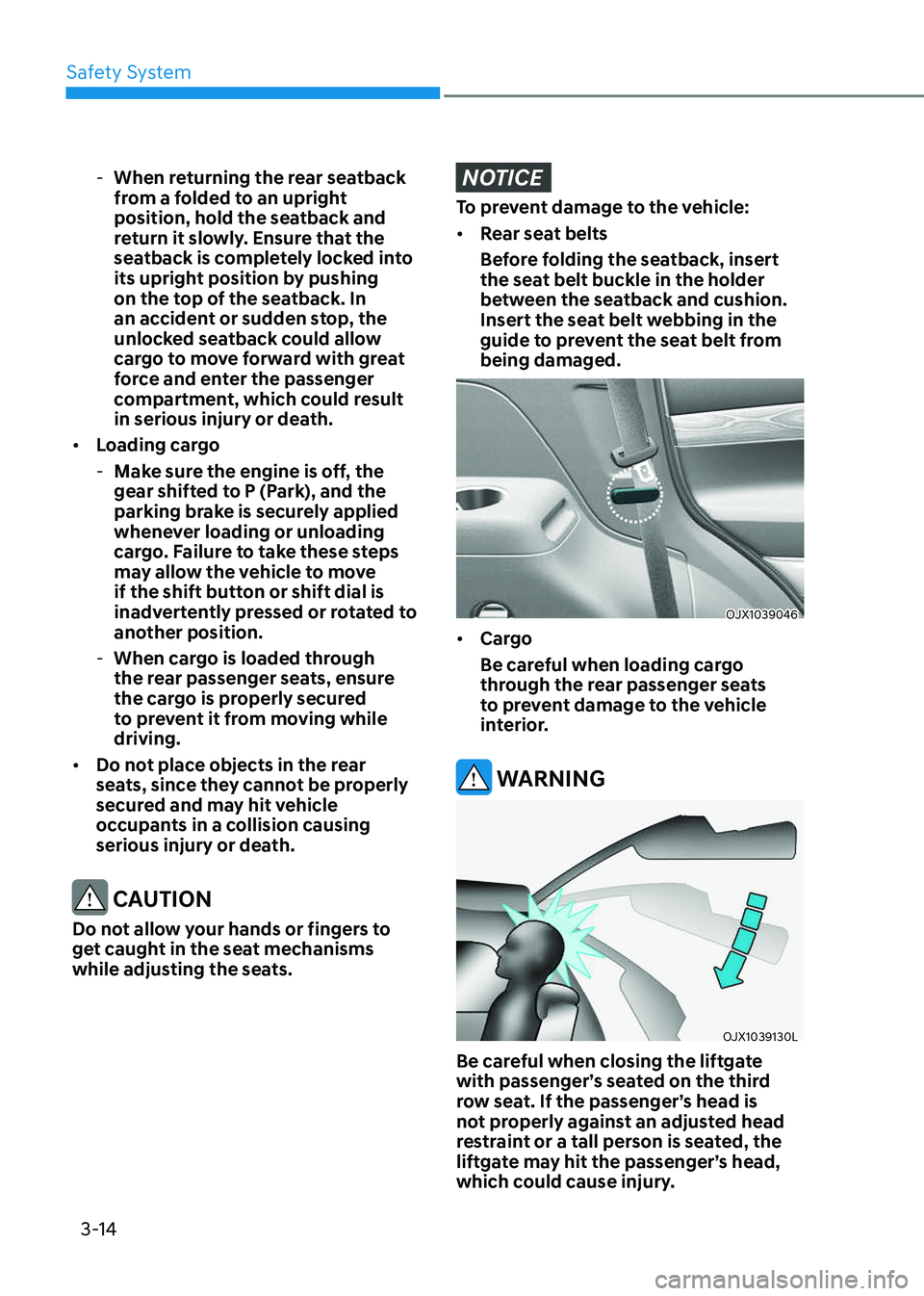

3-14
-When returning the rear seatback
from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked into
its upright position by pushing
on the top of the seatback. In
an accident or sudden stop, the
unlocked seatback could allow
cargo to move forward with great
force and enter the passenger
compartment, which could result
in serious injury or death.
• Loading cargo
-Make sure the engine is off, the
gear shifted to P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move
if the shift button or shift dial is
inadvertently pressed or rotated to
another position.
-When cargo is loaded through
the rear passenger seats, ensure
the cargo is properly secured
to prevent it from moving while
driving.
• Do not place objects in the rear
seats, since they cannot be properly
secured and may hit vehicle
occupants in a collision causing
serious injury or death.
CAUTION
Do not allow your hands or fingers to
get caught in the seat mechanisms
while adjusting the seats.
NOTICE
To prevent damage to the vehicle:
• Rear seat belts
Before folding the seatback, insert
the seat belt buckle in the holder
between the seatback and cushion.
Insert the seat belt webbing in the
guide to prevent the seat belt from
being damaged.
OJX1039046OJX1039046
• Cargo
Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.
WARNING
OJX1039130LOJX1039130L
Be careful when closing the liftgate
with passenger’s seated on the third
row seat. If the passenger’s head is
not properly against an adjusted head
restraint or a tall person is seated, the
liftgate may hit the passenger’s head,
which could cause injury.

03
3-15

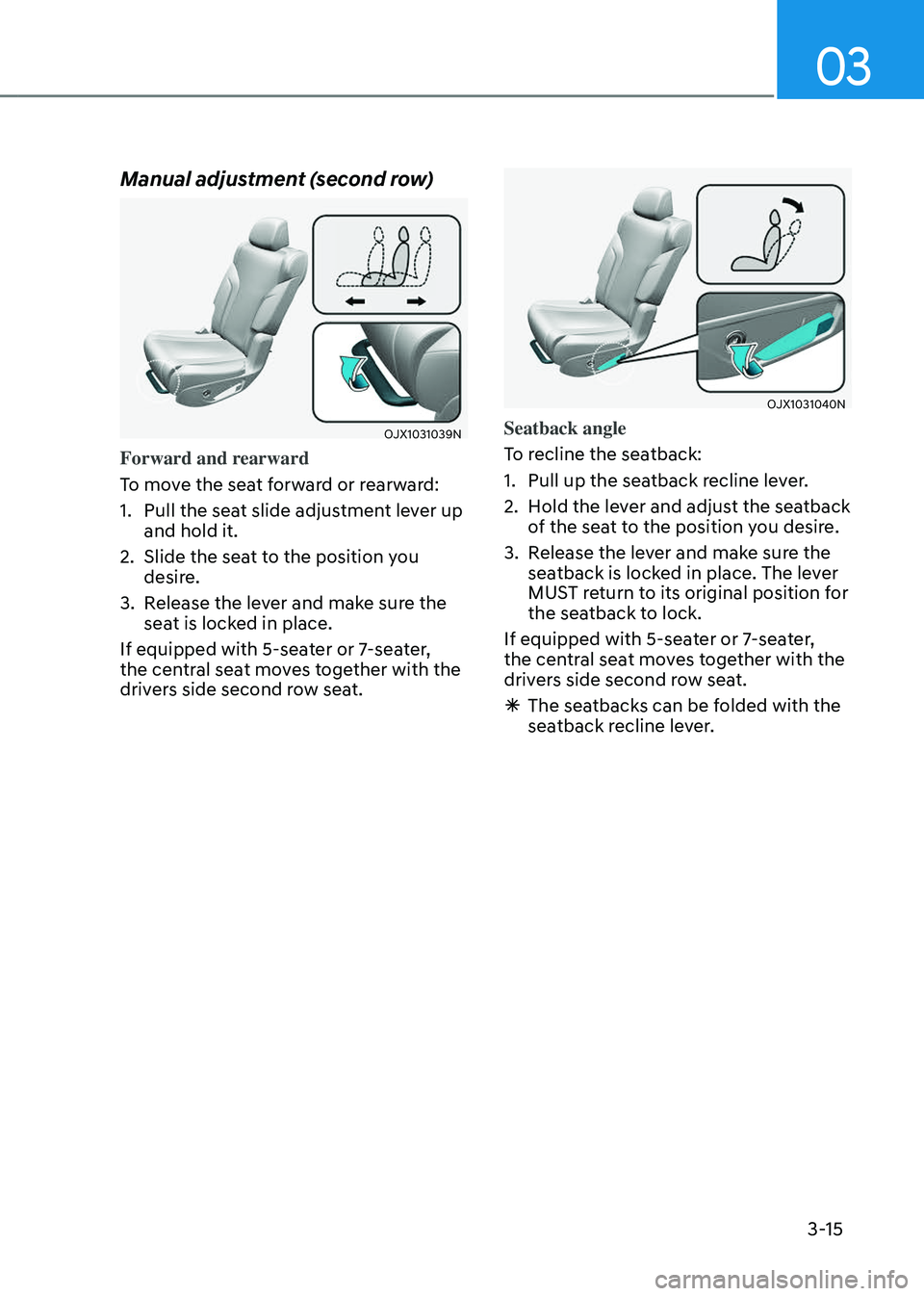

Manual adjustment (second row)
OJX1031039NOJX1031039N
Forward and rearward
To move the seat forward or rearward:
1. Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure the
seat is locked in place.
If equipped with 5-seater or 7-seater,
the central seat moves together with the
drivers side second row seat.
OJX1031040NOJX1031040N
Seatback angle
To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback
of the seat to the position you desire.
3. Release the lever and make sure the
seatback is locked in place. The lever
MUST return to its original position for
the seatback to lock.
If equipped with 5-seater or 7-seater,
the central seat moves together with the
drivers side second row seat.
à The seatbacks can be folded with the
seatback recline lever.

Safety System
3-16

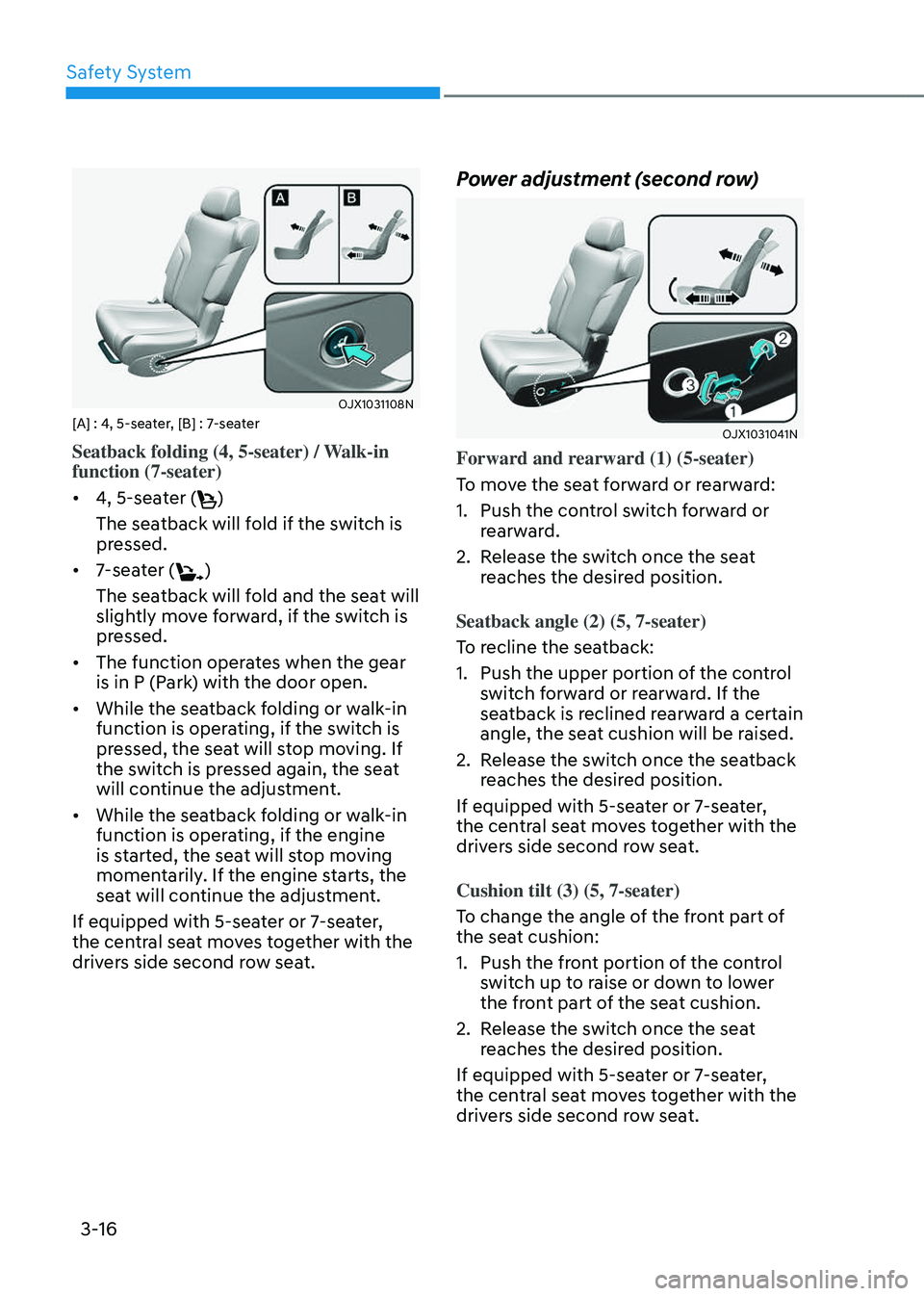

OJX1031108NOJX1031108N[A] : 4, 5-seater, [B] : 7-seater
Seatback folding (4, 5-seater) / Walk-in
function (7-seater)
• 4, 5-seater ()
The seatback will fold if the switch is
pressed.
• 7-seater ()
The seatback will fold and the seat will
slightly move forward, if the switch is
pressed.
• The function operates when the gear
is in P (Park) with the door open.
• While the seatback folding or walk-in
function is operating, if the switch is
pressed, the seat will stop moving. If
the switch is pressed again, the seat
will continue the adjustment.
• While the seatback folding or walk-in
function is operating, if the engine
is started, the seat will stop moving
momentarily. If the engine starts, the
seat will continue the adjustment.
If equipped with 5-seater or 7-seater,
the central seat moves together with the
drivers side second row seat.
Power adjustment (second row)
OJX1031041NOJX1031041N
Forward and rearward (1) (5-seater)
To move the seat forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
reaches the desired position.
Seatback angle (2) (5, 7-seater)
To recline the seatback:
1. Push the upper portion of the control
switch forward or rearward. If the
seatback is reclined rearward a certain
angle, the seat cushion will be raised.
2. Release the switch once the seatback
reaches the desired position.
If equipped with 5-seater or 7-seater,
the central seat moves together with the
drivers side second row seat.
Cushion tilt (3) (5, 7-seater)
To change the angle of the front part of
the seat cushion:
1. Push the front portion of the control
switch up to raise or down to lower
the front part of the seat cushion.
2. Release the switch once the seat
reaches the desired position.
If equipped with 5-seater or 7-seater,
the central seat moves together with the
drivers side second row seat.

03
3-17

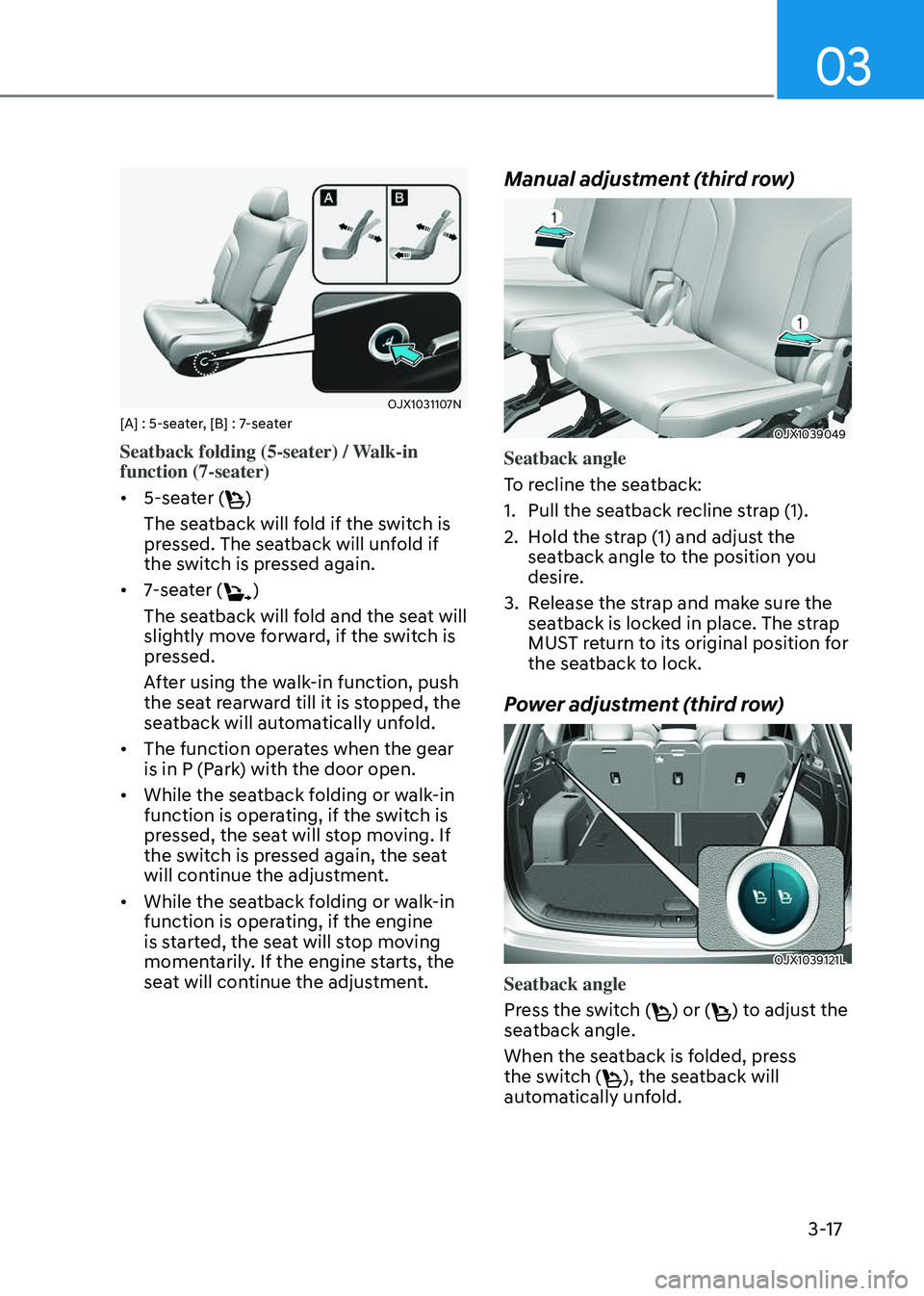

OJX1031107NOJX1031107N[A] : 5-seater, [B] : 7-seater
Seatback folding (5-seater) / Walk-in
function (7-seater)
• 5-seater ()
The seatback will fold if the switch is
pressed. The seatback will unfold if
the switch is pressed again.
• 7-seater ()
The seatback will fold and the seat will
slightly move forward, if the switch is
pressed.
After using the walk-in function, push
the seat rearward till it is stopped, the
seatback will automatically unfold.
• The function operates when the gear
is in P (Park) with the door open.
• While the seatback folding or walk-in
function is operating, if the switch is
pressed, the seat will stop moving. If
the switch is pressed again, the seat
will continue the adjustment.
• While the seatback folding or walk-in
function is operating, if the engine
is started, the seat will stop moving
momentarily. If the engine starts, the
seat will continue the adjustment.
Manual adjustment (third row)
OJX1039049OJX1039049
Seatback angle
To recline the seatback:
1. Pull the seatback recline strap (1).
2. Hold the strap (1) and adjust the
seatback angle to the position you
desire.
3. Release the strap and make sure the
seatback is locked in place. The strap
MUST return to its original position for
the seatback to lock.
Power adjustment (third row)
OJX1039121LOJX1039121L
Seatback angle
Press the switch (
) or () to adjust the
seatback angle.
When the seatback is folded, press
the switch (
), the seatback will
automatically unfold.

Safety System
3-18

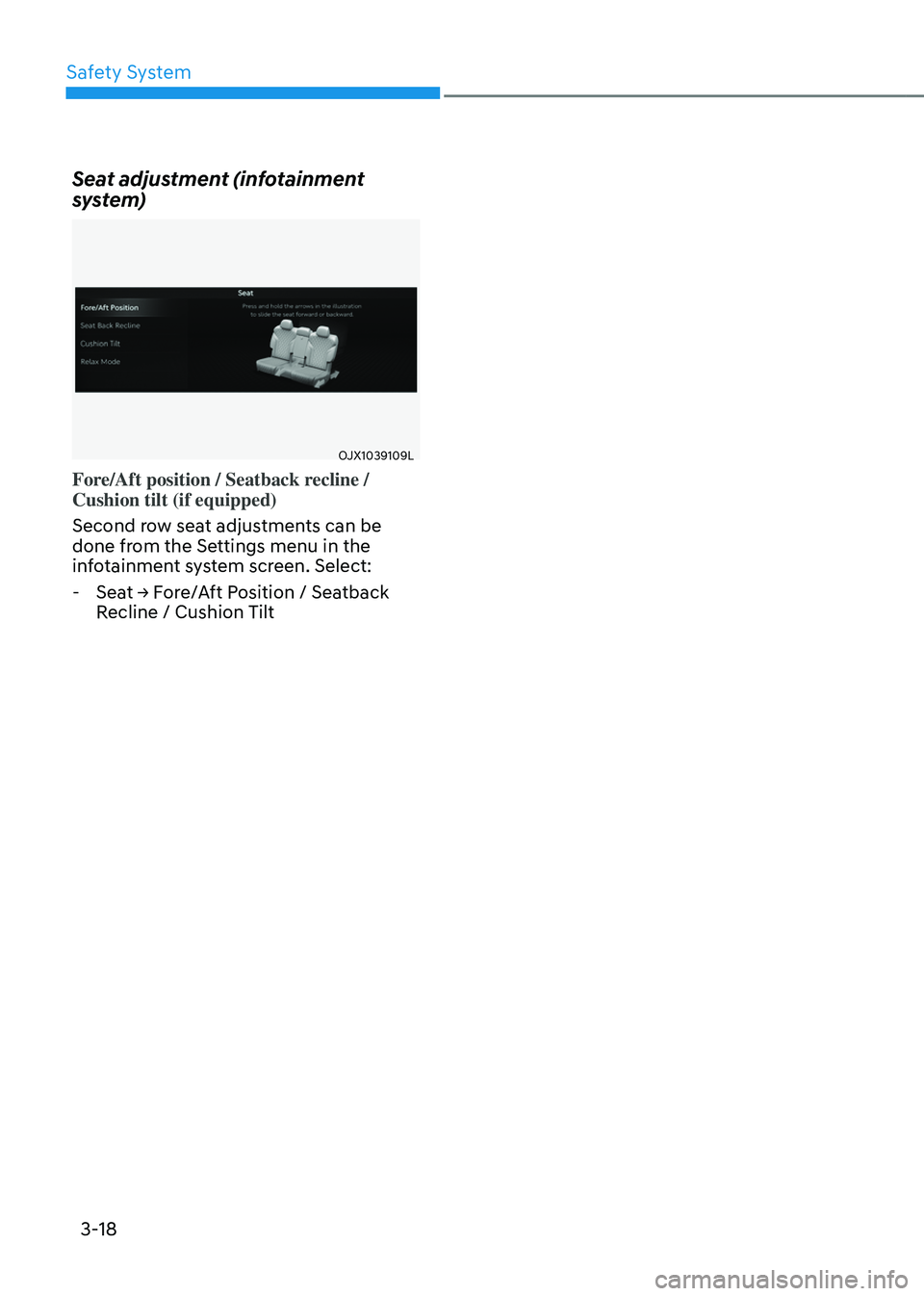

Seat adjustment (infotainment
system)
OJX1039109LOJX1039109L
Fore/Aft position / Seatback recline /
Cushion tilt (if equipped)
Second row seat adjustments can be
done from the Settings menu in the
infotainment system screen. Select:
-Seat -> Fore/Aft Position / Seatback Recline / Cushion Tilt

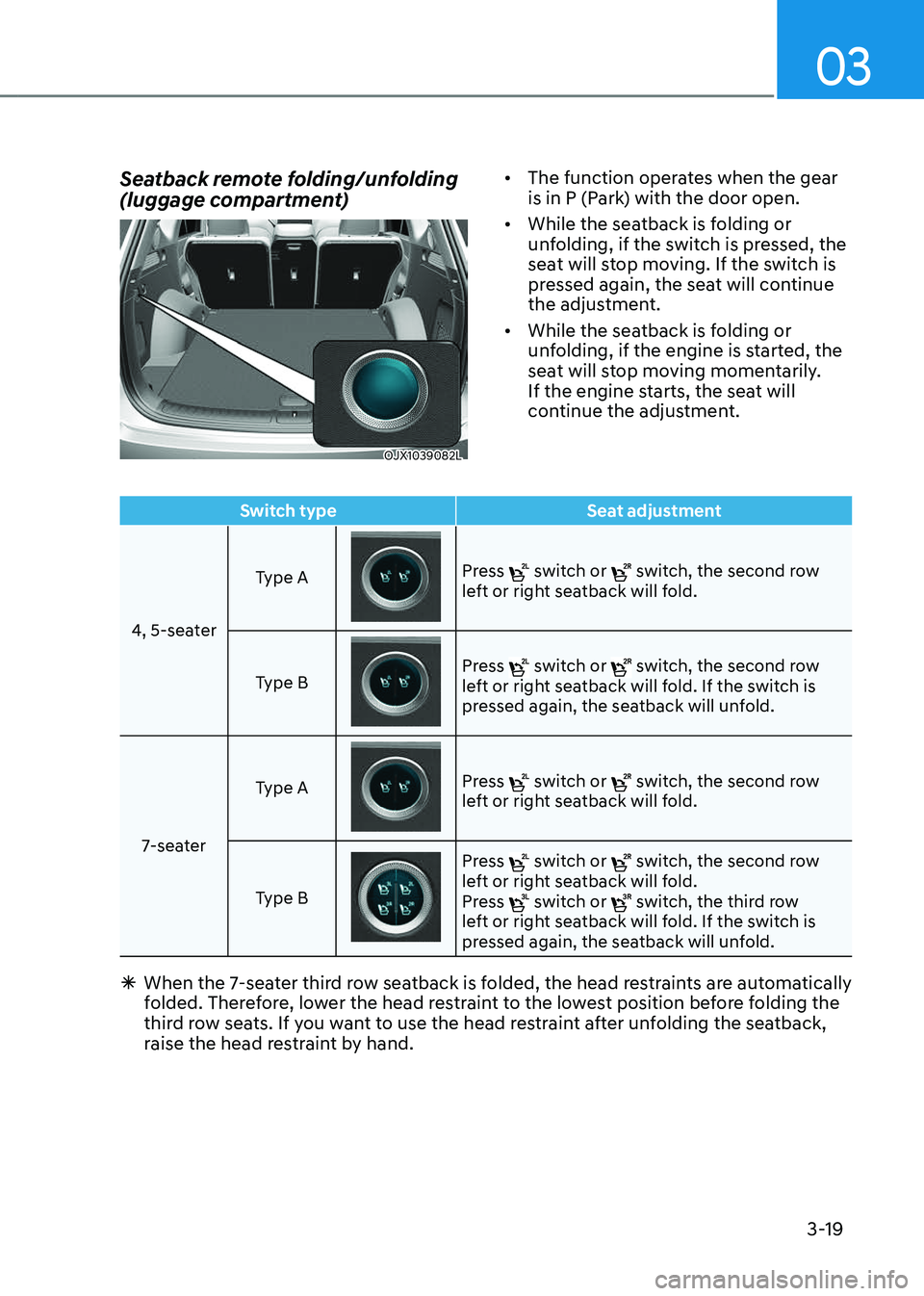

03
3-19
Switch typeSeat adjustment
4, 5-seater Type A
Press switch or switch, the second row left or right seatback will fold.
Type B
Press switch or switch, the second row left or right seatback will fold. If the switch is
pressed again, the seatback will unfold.
7-seater Type A
Press switch or switch, the second row left or right seatback will fold.
Type B
Press switch or switch, the second row left or right seatback will fold.
Press switch or switch, the third row left or right seatback will fold. If the switch is
pressed again, the seatback will unfold.
à When the 7-seater third row seatback is folded, the head restraints are automatically
folded. Therefore, lower the head restraint to the lowest position before folding the
third row seats. If you want to use the head restraint after unfolding the seatback,
raise the head restraint by hand.
Seatback remote folding/unfolding
(luggage compartment)
OJX1039082LOJX1039082L
• The function operates when the gear
is in P (Park) with the door open.
• While the seatback is folding or
unfolding, if the switch is pressed, the
seat will stop moving. If the switch is
pressed again, the seat will continue
the adjustment.
• While the seatback is folding or
unfolding, if the engine is started, the
seat will stop moving momentarily.
If the engine starts, the seat will
continue the adjustment.

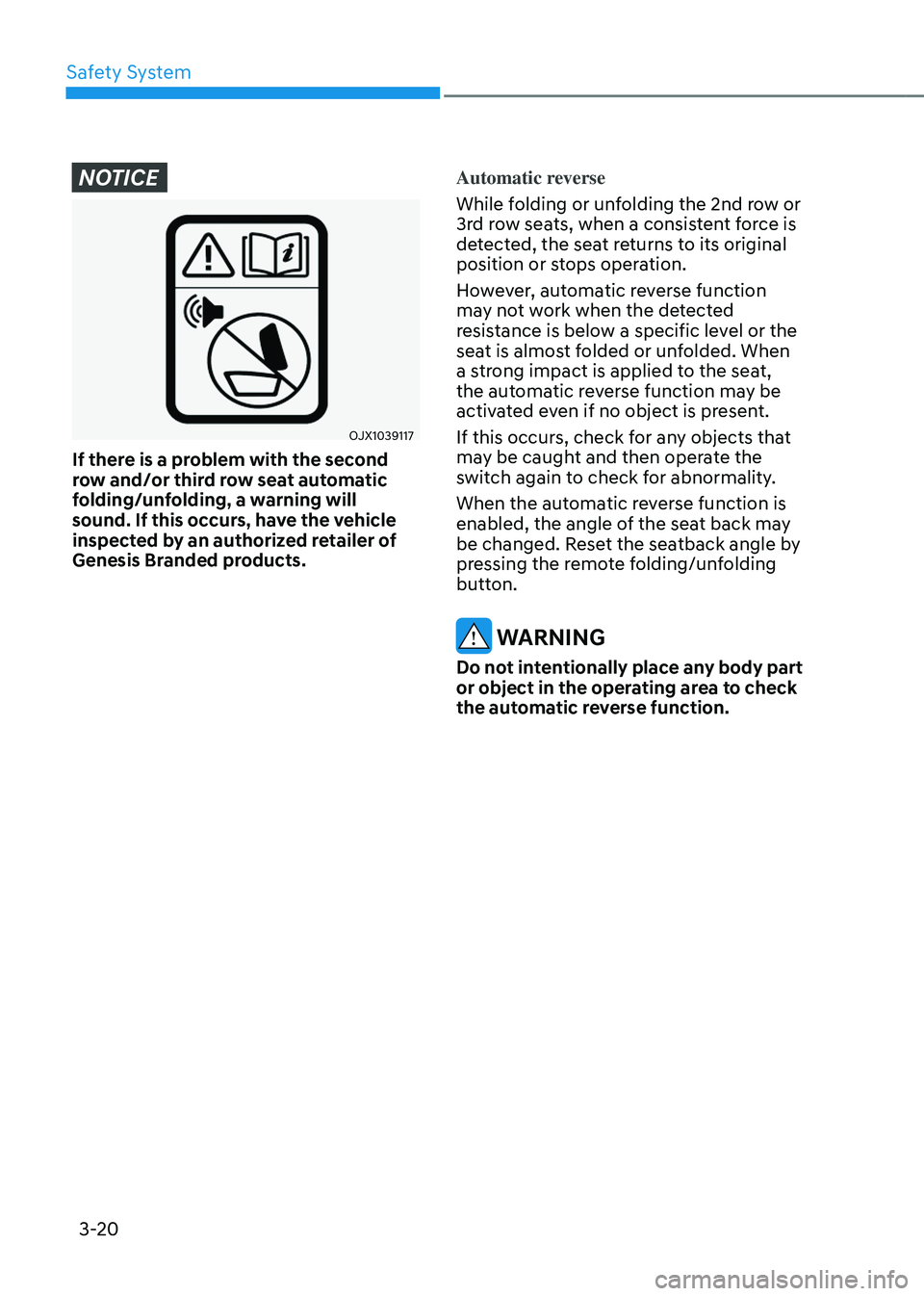

Safety System
3-20
NOTICE
OJX1039117OJX1039117
If there is a problem with the second
row and/or third row seat automatic
folding/unfolding, a warning will
sound. If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.Automatic reverse
While folding or unfolding the 2nd row or
3rd row seats, when a consistent force is
detected, the seat returns to its original
position or stops operation.
However, automatic reverse function
may not work when the detected
resistance is below a specific level or the
seat is almost folded or unfolded. When
a strong impact is applied to the seat,
the automatic reverse function may be
activated even if no object is present.
If this occurs, check for any objects that
may be caught and then operate the
switch again to check for abnormality.
When the automatic reverse function is
enabled, the angle of the seat back may
be changed. Reset the seatback angle by
pressing the remote folding/unfolding
button.
WARNING
Do not intentionally place any body part
or object in the operating area to check
the automatic reverse function.
