GENESIS GV80 2023 Owners Manual

08
8-27

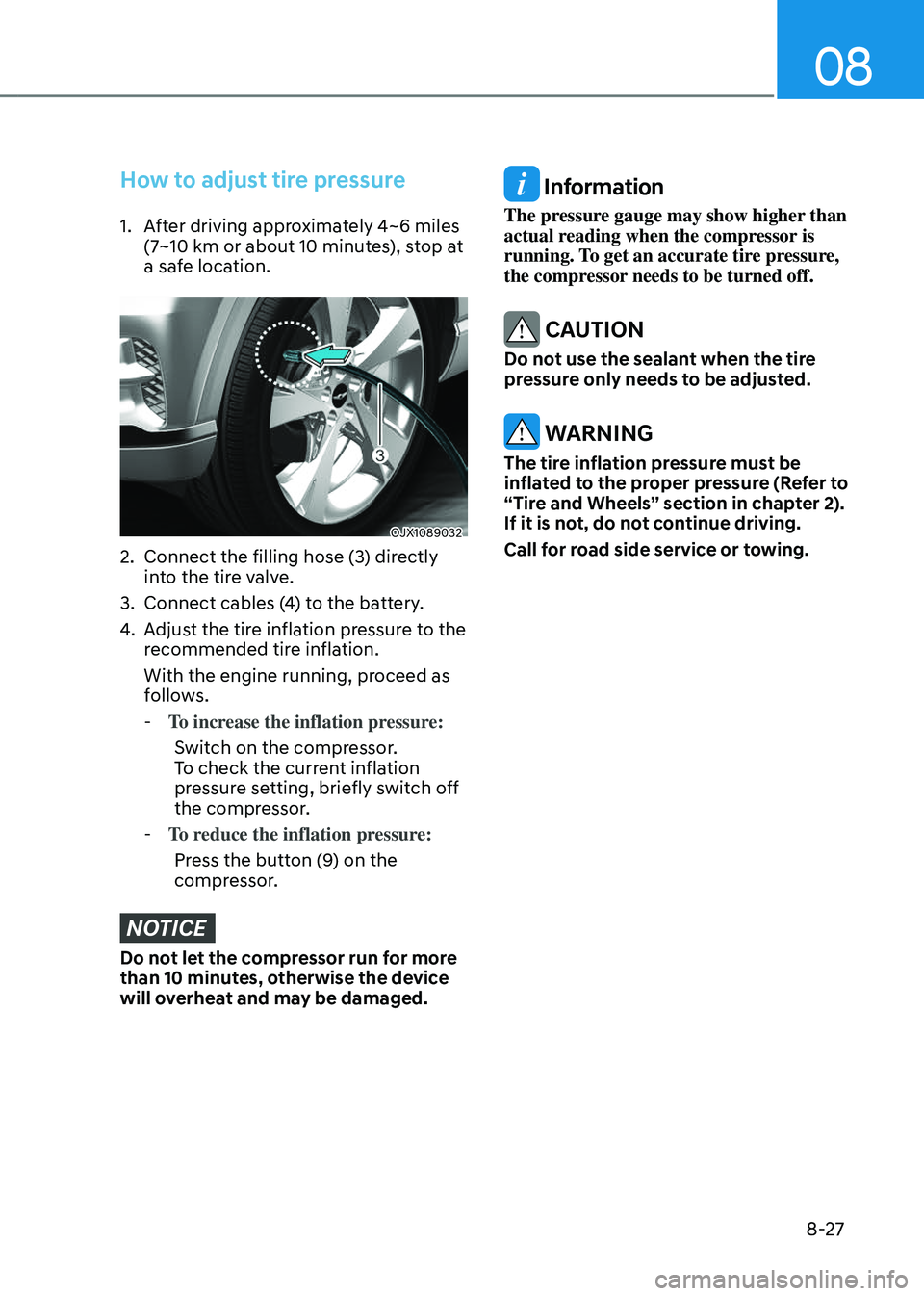

How to adjust tire pressure
1. After driving approximately 4~6 miles
(7~10 km or about 10 minutes), stop at
a safe location.
OJX1089032OJX1089032
2. Connect the filling hose (3) directly
into the tire valve.
3. Connect cables (4) to the battery.
4. Adjust the tire inflation pressure to the
recommended tire inflation.
With the engine running, proceed as
follows.
-To increase the inflation pressure:
Switch on the compressor.
To check the current inflation
pressure setting, briefly switch off
the compressor.
- To reduce the inflation pressure:
Press the button (9) on the
compressor.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.
Information
The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire pressure,
the compressor needs to be turned off.
CAUTION
Do not use the sealant when the tire
pressure only needs to be adjusted.
WARNING
The tire inflation pressure must be
inflated to the proper pressure (Refer to
“Tire and Wheels” section in chapter 2).
If it is not, do not continue driving.
Call for road side service or towing.

Emergency Situations
8-28

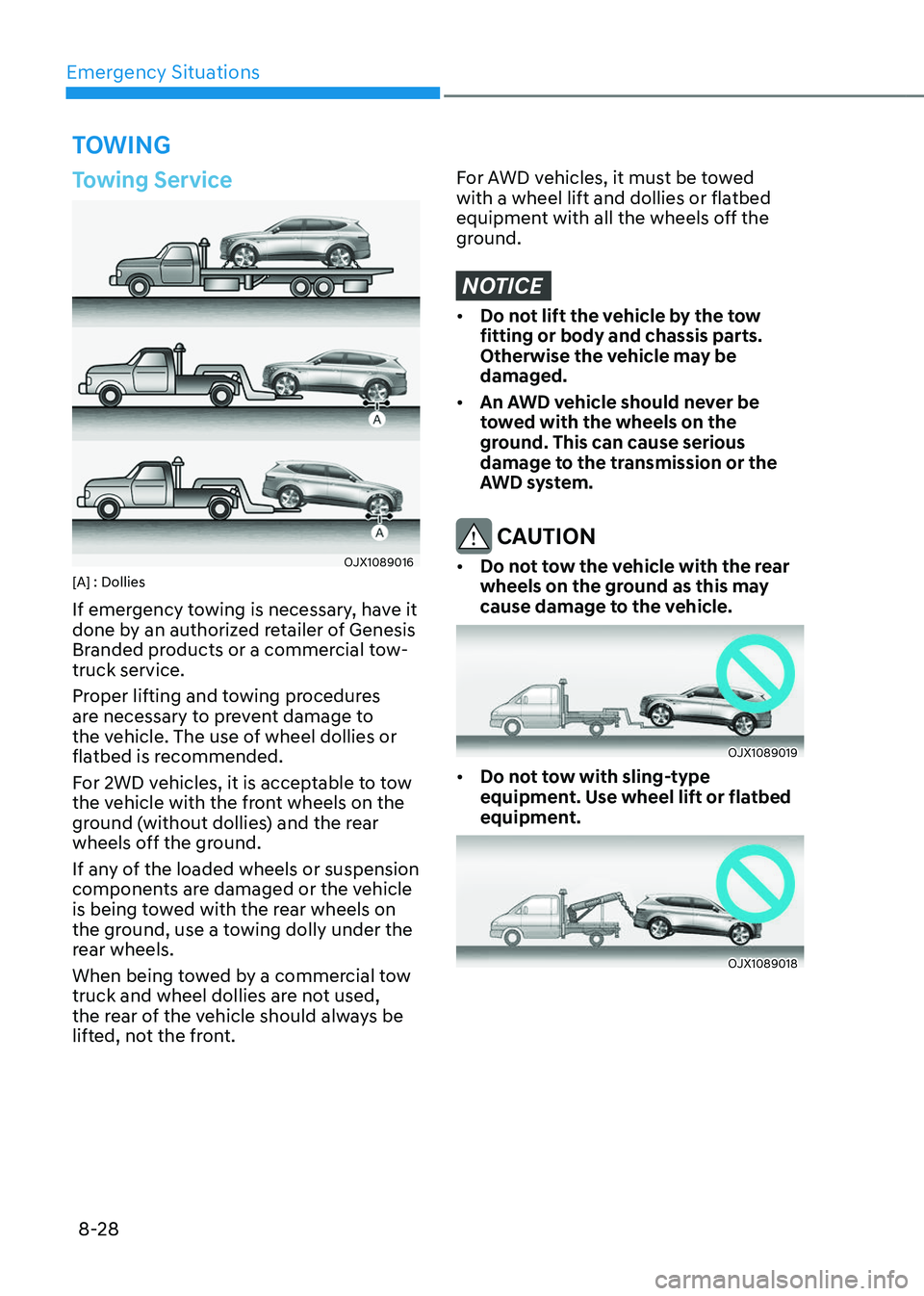

TOWING
Towing Service
OJX1089016OJX1089016[A] : Dollies
If emergency towing is necessary, have it
done by an authorized retailer of Genesis
Branded products or a commercial tow-
truck service.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle. The use of wheel dollies or
flatbed is recommended.
For 2WD vehicles, it is acceptable to tow
the vehicle with the front wheels on the
ground (without dollies) and the rear
wheels off the ground.
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the rear wheels on
the ground, use a towing dolly under the
rear wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the rear of the vehicle should always be
lifted, not the front.
For AWD vehicles, it must be towed
with a wheel lift and dollies or flatbed
equipment with all the wheels off the
ground.
NOTICE
• Do not lift the vehicle by the tow
fitting or body and chassis parts.
Otherwise the vehicle may be
damaged.
• An AWD vehicle should never be
towed with the wheels on the
ground. This can cause serious
damage to the transmission or the
AWD system.
CAUTION
• Do not tow the vehicle with the rear
wheels on the ground as this may
cause damage to the vehicle.
OJX1089019OJX1089019
• Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
OJX1089018OJX1089018

08
8-29

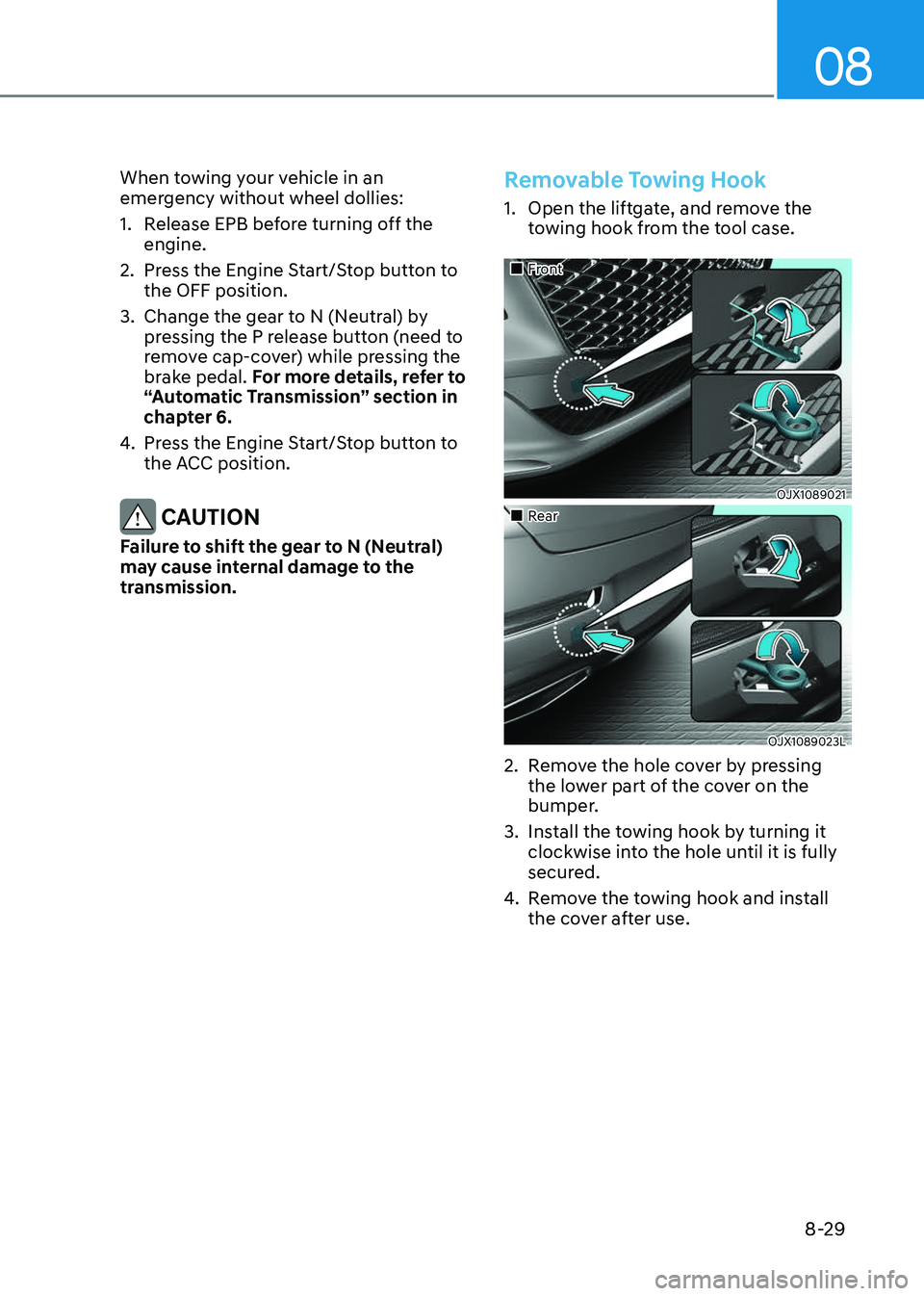

When towing your vehicle in an
emergency without wheel dollies:
1. Release EPB before turning off the
engine.
2. Press the Engine Start/Stop button to
the OFF position.
3. Change the gear to N (Neutral) by
pressing the P release button (need to
remove cap-cover) while pressing the
brake pedal. For more details, refer to
“Automatic Transmission” section in
chapter 6.
4. Press the Engine Start/Stop button to
the ACC position.
CAUTION
Failure to shift the gear to N (Neutral)
may cause internal damage to the
transmission.
Removable Towing Hook
1. Open the liftgate, and remove the
towing hook from the tool case.

Emergency Situations
8-30
Emergency Towing

08
8-31

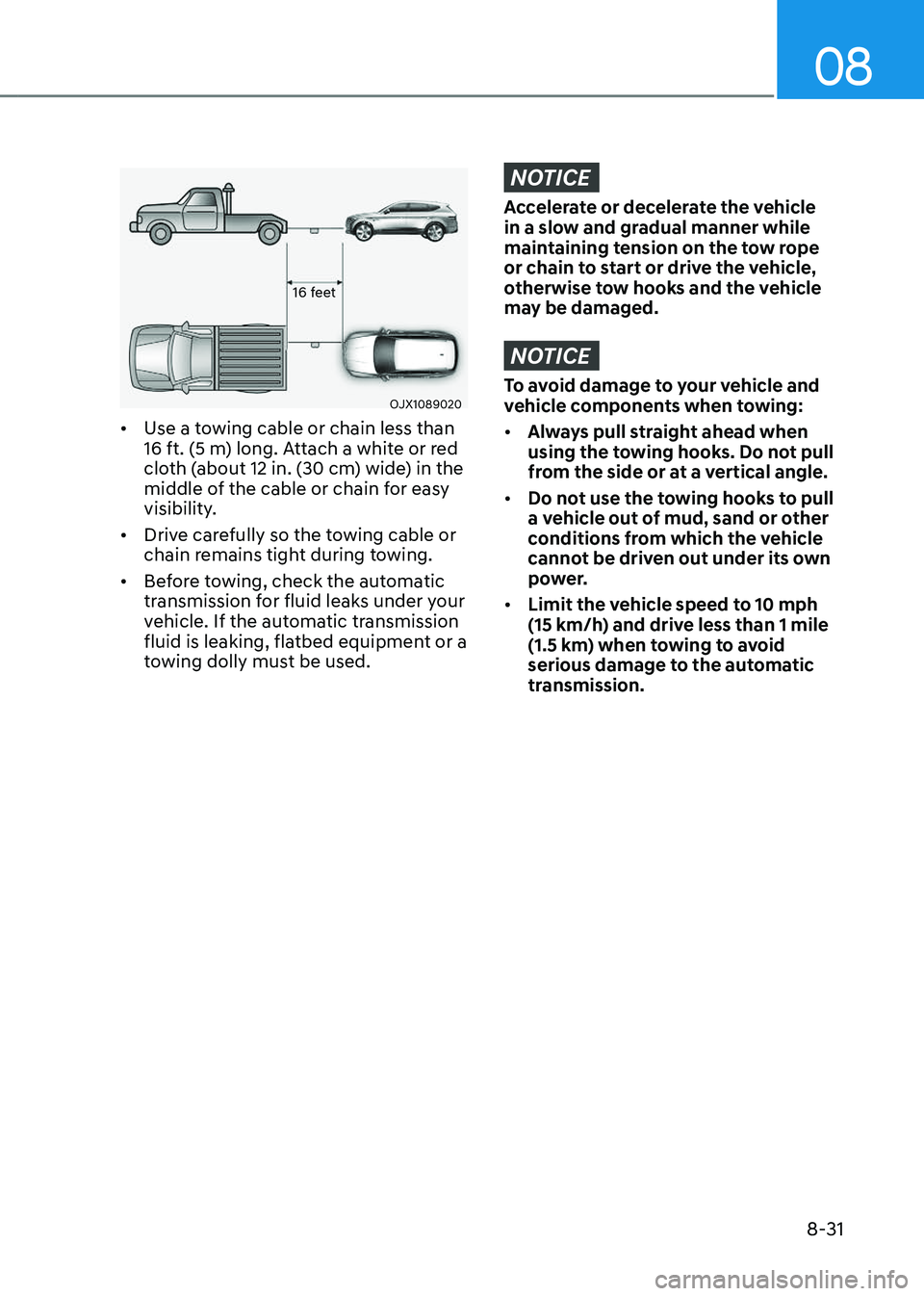

16 feet
OJX1089020OJX1089020
• Use a towing cable or chain less than
16 ft. (5 m) long. Attach a white or red
cloth (about 12 in. (30 cm) wide) in the
middle of the cable or chain for easy
visibility.
• Drive carefully so the towing cable or
chain remains tight during towing.
• Before towing, check the automatic
transmission for fluid leaks under your
vehicle. If the automatic transmission
fluid is leaking, flatbed equipment or a
towing dolly must be used.
NOTICE
Accelerate or decelerate the vehicle
in a slow and gradual manner while
maintaining tension on the tow rope
or chain to start or drive the vehicle,
otherwise tow hooks and the vehicle
may be damaged.
NOTICE
To avoid damage to your vehicle and
vehicle components when towing:
• Always pull straight ahead when
using the towing hooks. Do not pull
from the side or at a vertical angle.
• Do not use the towing hooks to pull
a vehicle out of mud, sand or other
conditions from which the vehicle
cannot be driven out under its own
power.
• Limit the vehicle speed to 10 mph (15 km/h) and drive less than 1 mile (1.5 km) when towing to avoid serious damage to the automatic
transmission.

Maintenance

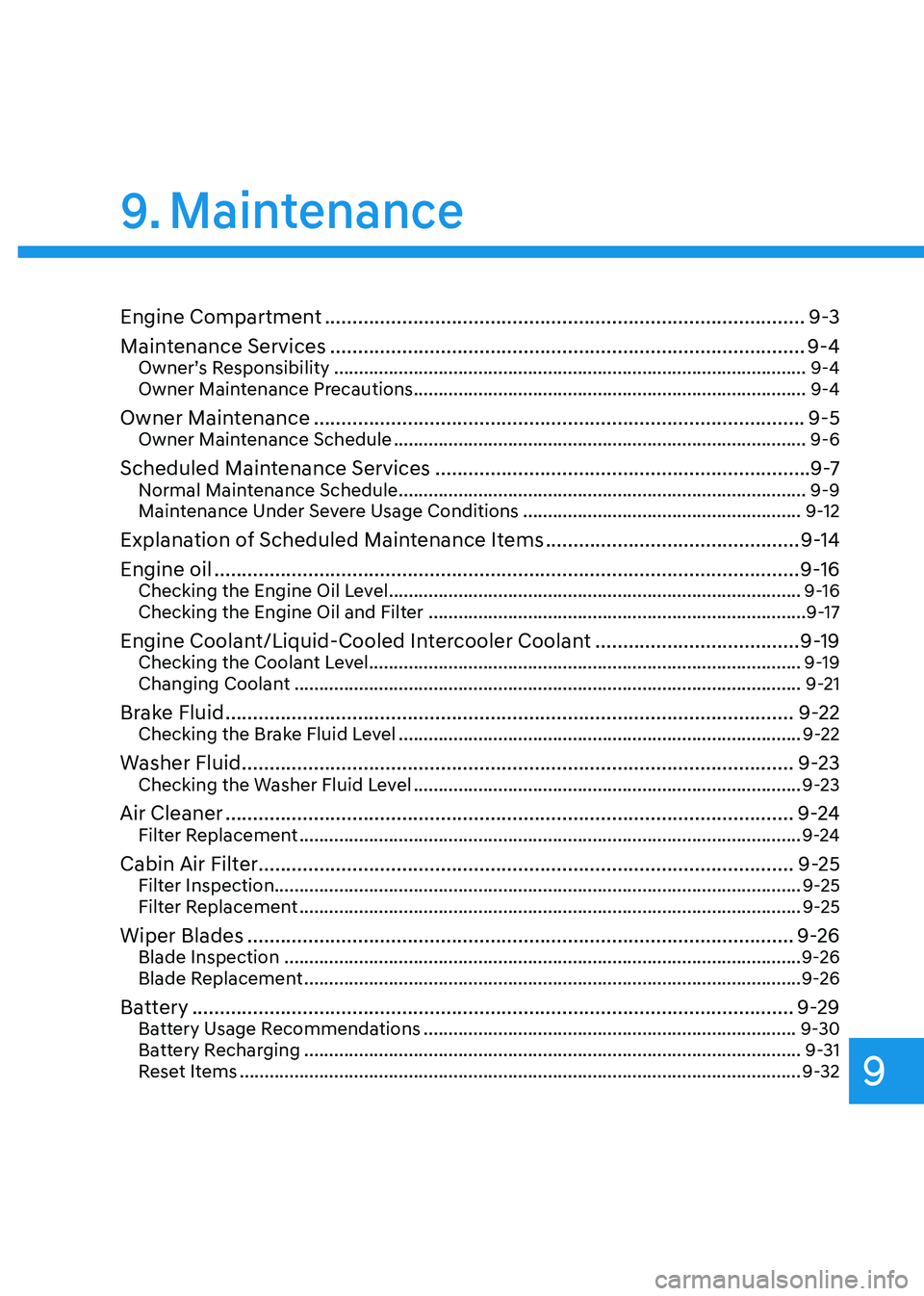

9. Maintenance
Engine Compartment ........................................................................\
...............9-3
Maintenance Services
........................................................................\
..............9-4Owner’s Responsibility ........................................................................\
.......................9-4
Owner Maintenance Precautions ........................................................................\
.......9-4
Owner Maintenance ........................................................................\
.................9-5Owner Maintenance Schedule ........................................................................\
...........9-6
Scheduled Maintenance Services ....................................................................9 -7Normal Maintenance Schedule ........................................................................\
..........9-9
Maintenance Under Severe Usage Conditions ........................................................9-12
Explanation of Scheduled Maintenance Items ..............................................9-14
Engine oil
........................................................................\
..................................9-16Checking the Engine Oil Level ........................................................................\
...........9-16
Checking the Engine Oil and Filter ........................................................................\
....9-17
Engine Coolant/Liquid-Cooled Intercooler Coolant .....................................9-19Checking the Coolant Level ........................................................................\
............... 9-19
Changing Coolant ........................................................................\
..............................9-21
Brake Fluid ........................................................................\
...............................9-22Checking the Brake Fluid Level ........................................................................\
.........9-22
Washer Fluid ........................................................................\
............................9-23Checking the Washer Fluid Level ........................................................................\
......9-23
Air Cleaner ........................................................................\
...............................9-24Filter Replacement ........................................................................\
.............................9-24
Cabin Air Filter ........................................................................\
.........................9-25Filter Inspection ........................................................................\
.................................. 9-25
Filter Replacement ........................................................................\
.............................9-25
Wiper Blades ........................................................................\
...........................9-26Blade Inspection ........................................................................\
................................9-26
Blade Replacement ........................................................................\
............................9-26
Battery ........................................................................\
.....................................9-29
Battery Usage Recommendations ........................................................................\
...9-30
Battery Recharging ........................................................................\
............................9-31
Reset Items ........................................................................\
.........................................9-32
9

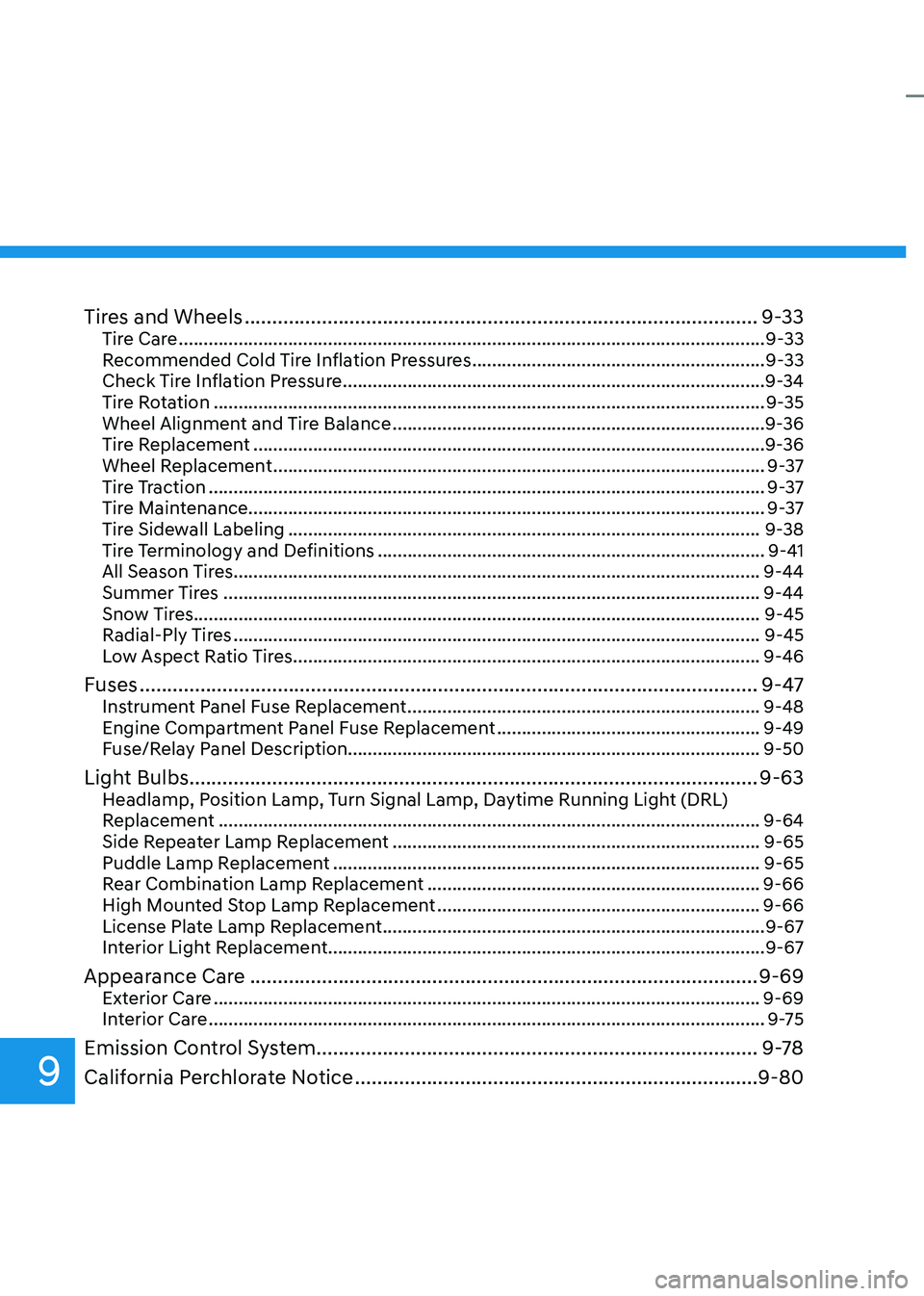

Tires and Wheels ........................................................................\
.....................9-33Tire Care ........................................................................\
..............................................9-33
Recommended Cold Tire Inflation Pressures ...........................................................9-33
Check Tire Inflation Pressure ........................................................................\
.............9-34
Tire Rotation ........................................................................\
.......................................9-35
Wheel Alignment and Tire Balance ........................................................................\
...9-36
Tire Replacement ........................................................................\
...............................9-36
Wheel Replacement ........................................................................\
...........................9-37
Tire Traction ........................................................................\
........................................9-37
Tire Maintenance ........................................................................\
................................ 9-37
Tire Sidewall Labeling
........................................................................\
.......................9-38
Tire Terminology and Definitions ........................................................................\
......9-41
All Season Tires ........................................................................\
..................................9-44
Summer Tires ........................................................................\
....................................9-44
Snow Tires ........................................................................\
.......................................... 9-45
Radial-Ply Tires
........................................................................\
..................................9-45
Low Aspect Ratio Tires ........................................................................\
......................9-46
Fuses ........................................................................\
........................................9-47Instrument Panel Fuse Replacement .......................................................................9-48
Engine Compartment Panel Fuse Replacement .....................................................9-49
Fuse/Relay Panel Description ........................................................................\
........... 9-50
Light Bulbs ........................................................................\
...............................9-63Headlamp, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement ........................................................................\
.....................................9-64
Side Repeater Lamp Replacement ........................................................................\
..9-65
Puddle Lamp Replacement ........................................................................\
..............9-65
Rear Combination Lamp Replacement ...................................................................9-66
High Mounted Stop Lamp Replacement .................................................................9-66
License Plate Lamp Replacement ........................................................................\
.....9-67
Interior Light Replacement ........................................................................\
................9-67
Appearance Care ........................................................................\
....................9-69Exterior Care ........................................................................\
......................................9-69
Interior Care ........................................................................\
........................................9-75
Emission Control System ........................................................................\
........9-78
California Perchlorate Notice
........................................................................\
.9-80
9

9-3
09

Maintenance

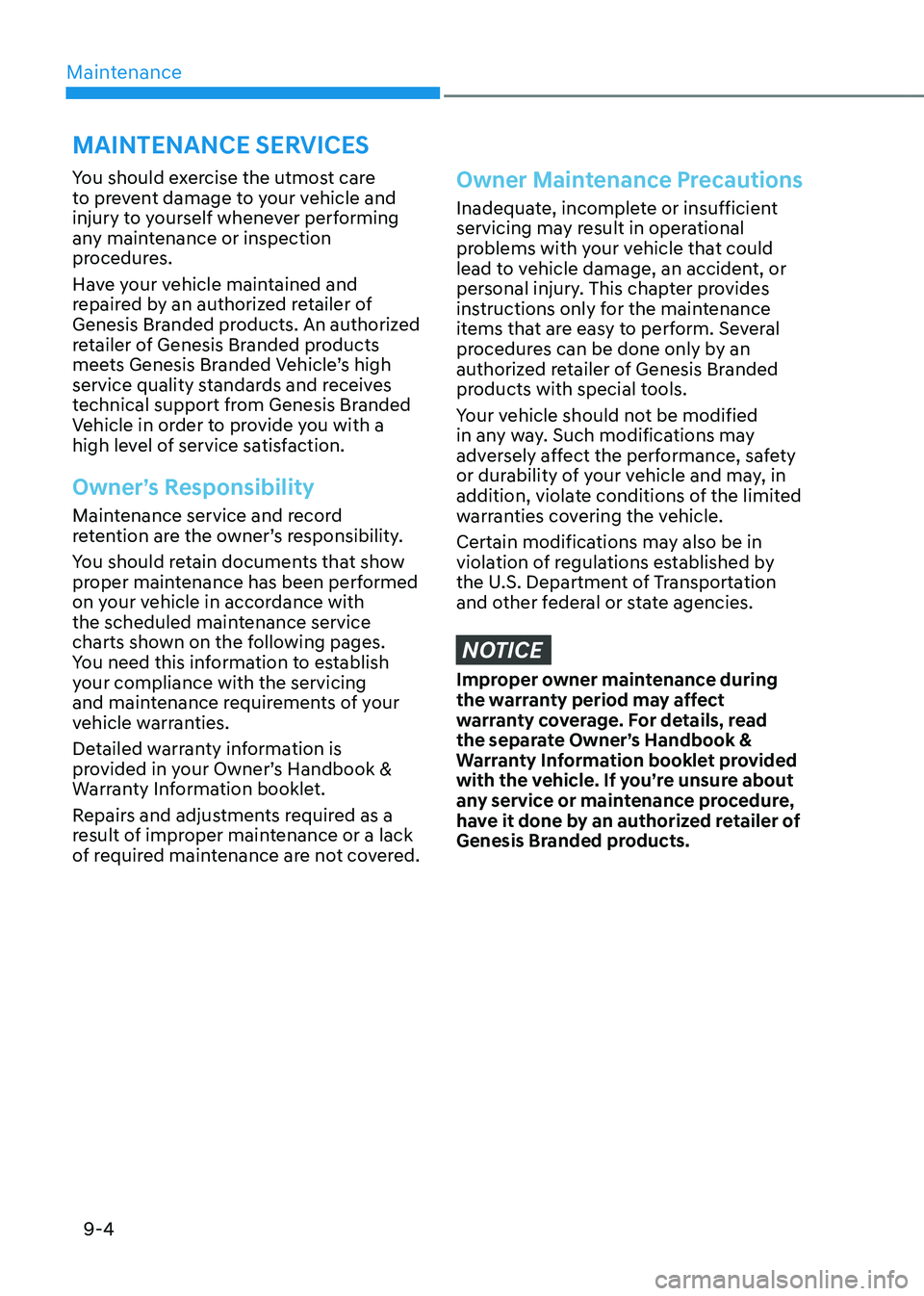

9-4
You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
Have your vehicle maintained and
repaired by an authorized retailer of
Genesis Branded products. An authorized
retailer of Genesis Branded products
meets Genesis Branded Vehicle’s high
service quality standards and receives
technical support from Genesis Branded
Vehicle in order to provide you with a
high level of service satisfaction.
Owner’s Responsibility
Maintenance service and record
retention are the owner’s responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with
the scheduled maintenance service
charts shown on the following pages.
You need this information to establish
your compliance with the servicing
and maintenance requirements of your
vehicle warranties.
Detailed warranty information is
provided in your Owner’s Handbook &
Warranty Information booklet.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
Owner Maintenance Precautions
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could
lead to vehicle damage, an accident, or
personal injury. This chapter provides
instructions only for the maintenance
items that are easy to perform. Several
procedures can be done only by an
authorized retailer of Genesis Branded
products with special tools.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance, safety
or durability of your vehicle and may, in
addition, violate conditions of the limited
warranties covering the vehicle.
Certain modifications may also be in
violation of regulations established by
the U.S. Department of Transportation
and other federal or state agencies.
NOTICE
Improper owner maintenance during
the warranty period may affect
warranty coverage. For details, read
the separate Owner’s Handbook &
Warranty Information booklet provided
with the vehicle. If you’re unsure about
any service or maintenance procedure,
have it done by an authorized retailer of
Genesis Branded products.
MAINTENANCE SERVICES

09
9-5
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
retailer of Genesis Branded products.
ALWAYS follow these precautions for
performing maintenance work:
• Park your vehicle on level ground.
Shift the vehicle to P (Park), apply
the parking brake, and press the
Engine Start/Stop button to the OFF
position.
• Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.
• If you must run the engine during
maintenance, do so in an outdoor
area or in an area with plenty of
ventilation.
• Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.
WARNING
Touching metal parts
Do not touch metal parts
(including strut bars) while
the engine is operating or
hot. Doing so could result in
serious personal injury. Turn
the engine off and wait until
the metal parts cool down to
perform maintenance work on
the vehicle.
The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized retailer
of Genesis Branded products at the
frequencies indicated to help ensure
safe, dependable operation of your
vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
OWNER MAINTENANCE
