6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.7. If your child restraint has a top tether, and the
position that you are using has a top tether
anchor, attach and tighten the top tether to the
top tether anchor. Refer to the instructions
that came with the child restraint and toLower
Anchors and Tethers for Children (LATCH)
on page 61.
8. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
When the safety belt is not in use, slide the latch
plate up the safety belt webbing. The latch
plate should rest on the stitching on the safety
belt, near the guide loop on the side wall.
71

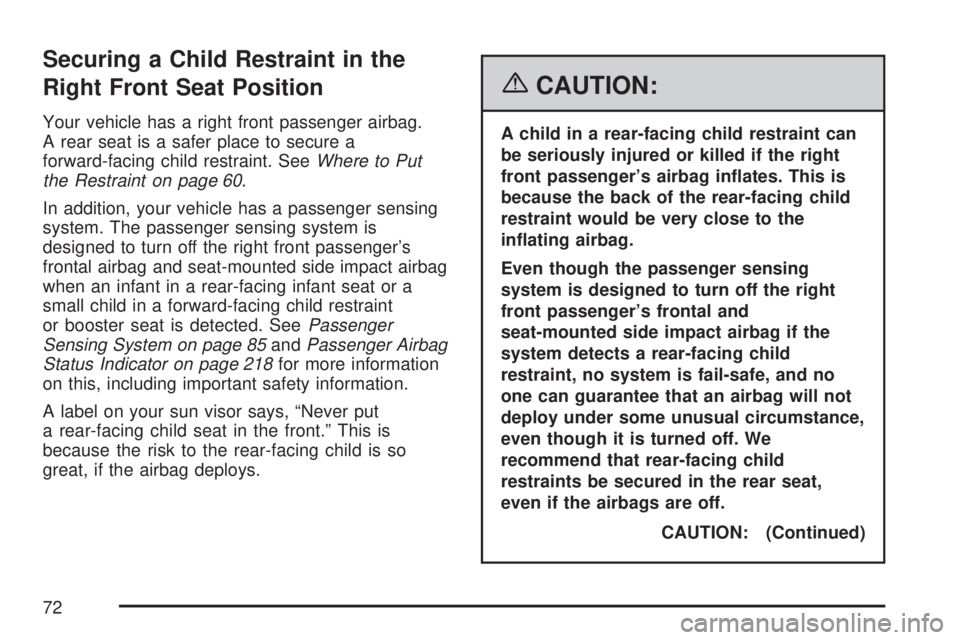

Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger airbag.
A rear seat is a safer place to secure a
forward-facing child restraint. SeeWhere to Put
the Restraint on page 60.
In addition, your vehicle has a passenger sensing
system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag and seat-mounted side impact airbag
when an infant in a rear-facing infant seat or a
small child in a forward-facing child restraint
or booster seat is detected. SeePassenger
Sensing System on page 85andPassenger Airbag
Status Indicator on page 218for more information
on this, including important safety information.
A label on your sun visor says, “Never put
a rear-facing child seat in the front.” This is
because the risk to the rear-facing child is so
great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal and
seat-mounted side impact airbag if the
system detects a rear-facing child
restraint, no system is fail-safe, and no
one can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. We
recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbags are off.
CAUTION: (Continued)
72

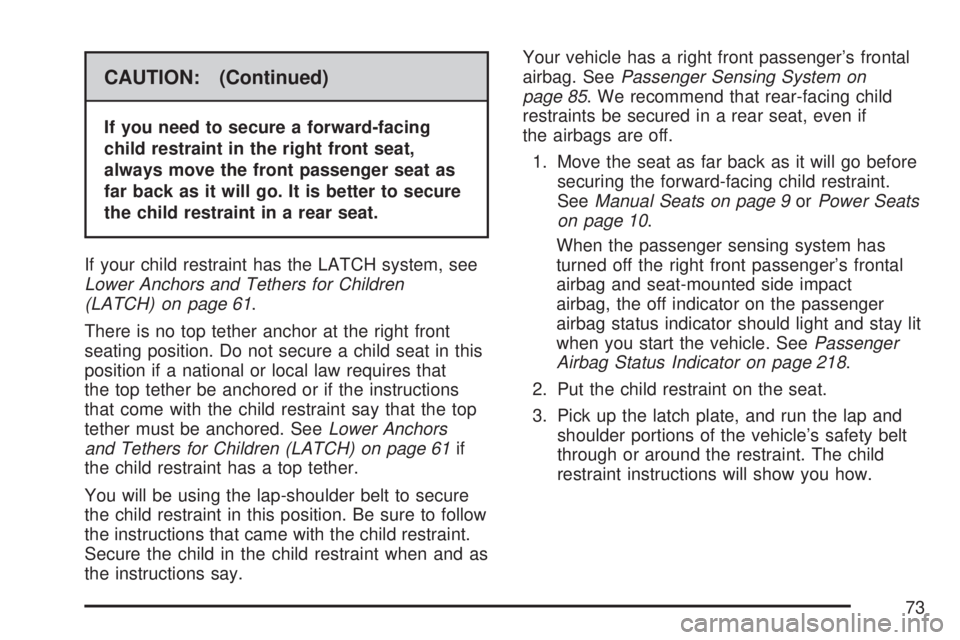

CAUTION: (Continued)
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 61.
There is no top tether anchor at the right front
seating position. Do not secure a child seat in this
position if a national or local law requires that
the top tether be anchored or if the instructions
that come with the child restraint say that the top
tether must be anchored. SeeLower Anchors
and Tethers for Children (LATCH) on page 61if
the child restraint has a top tether.
You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.Your vehicle has a right front passenger’s frontal
airbag. SeePassenger Sensing System on
page 85. We recommend that rear-facing child
restraints be secured in a rear seat, even if
the airbags are off.
1. Move the seat as far back as it will go before
securing the forward-facing child restraint.
SeeManual Seats on page 9orPower Seats
on page 10.
When the passenger sensing system has
turned off the right front passenger’s frontal
airbag and seat-mounted side impact
airbag, the off indicator on the passenger
airbag status indicator should light and stay lit
when you start the vehicle. SeePassenger
Airbag Status Indicator on page 218.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
73

4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
74

6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.If the airbag is off, the off indicator will be lit and
stay lit when you start the vehicle.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer/retailer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger. When the safety belt is not in use,
slide the latch plate up the safety belt webbing.
The latch plate should rest on the stitching on the
safety belt, near the upper anchor on the side wall.
75

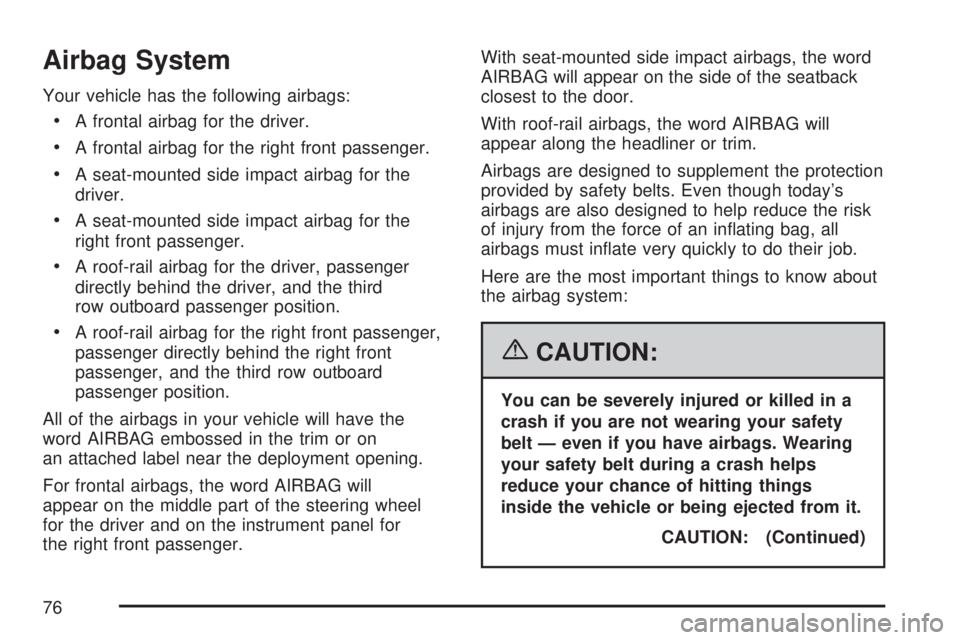

Airbag System
Your vehicle has the following airbags:
A frontal airbag for the driver.
A frontal airbag for the right front passenger.
A seat-mounted side impact airbag for the
driver.
A seat-mounted side impact airbag for the
right front passenger.
A roof-rail airbag for the driver, passenger
directly behind the driver, and the third
row outboard passenger position.
A roof-rail airbag for the right front passenger,
passenger directly behind the right front
passenger, and the third row outboard
passenger position.
All of the airbags in your vehicle will have the
word AIRBAG embossed in the trim or on
an attached label near the deployment opening.
For frontal airbags, the word AIRBAG will
appear on the middle part of the steering wheel
for the driver and on the instrument panel for
the right front passenger.With seat-mounted side impact airbags, the word
AIRBAG will appear on the side of the seatback
closest to the door.
With roof-rail airbags, the word AIRBAG will
appear along the headliner or trim.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inating bag, all
airbags must inate very quickly to do their job.
Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
CAUTION: (Continued)
76

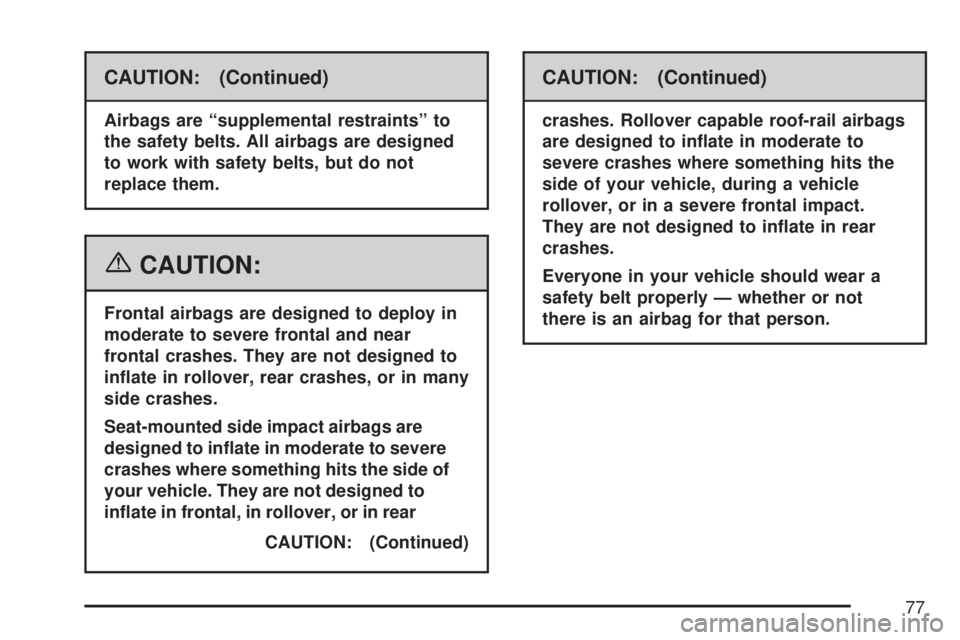

CAUTION: (Continued)
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts, but do not
replace them.
{CAUTION:
Frontal airbags are designed to deploy in
moderate to severe frontal and near
frontal crashes. They are not designed to
inate in rollover, rear crashes, or in many
side crashes.
Seat-mounted side impact airbags are
designed to inate in moderate to severe
crashes where something hits the side of
your vehicle. They are not designed to
inate in frontal, in rollover, or in rear
CAUTION: (Continued)
CAUTION: (Continued)
crashes. Rollover capable roof-rail airbags
are designed to inate in moderate to
severe crashes where something hits the
side of your vehicle, during a vehicle
rollover, or in a severe frontal impact.
They are not designed to inate in rear
crashes.
Everyone in your vehicle should wear a
safety belt properly — whether or not
there is an airbag for that person.
77

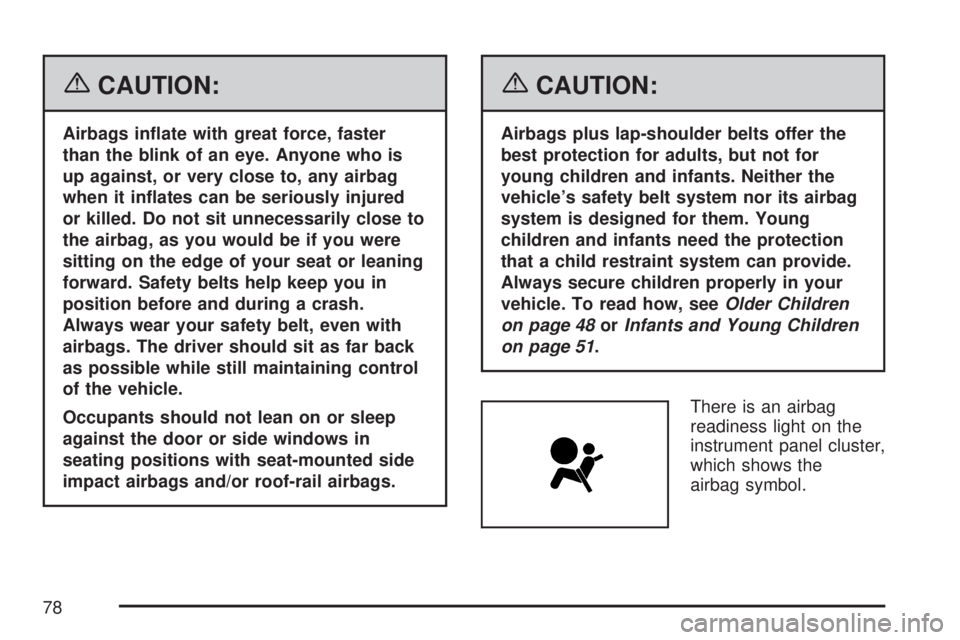

{CAUTION:
Airbags inate with great force, faster
than the blink of an eye. Anyone who is
up against, or very close to, any airbag
when it inates can be seriously injured
or killed. Do not sit unnecessarily close to
the airbag, as you would be if you were
sitting on the edge of your seat or leaning
forward. Safety belts help keep you in
position before and during a crash.
Always wear your safety belt, even with
airbags. The driver should sit as far back
as possible while still maintaining control
of the vehicle.
Occupants should not lean on or sleep
against the door or side windows in
seating positions with seat-mounted side
impact airbags and/or roof-rail airbags.
{CAUTION:
Airbags plus lap-shoulder belts offer the
best protection for adults, but not for
young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young
children and infants need the protection
that a child restraint system can provide.
Always secure children properly in your
vehicle. To read how, seeOlder Children
on page 48orInfants and Young Children
on page 51.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
78

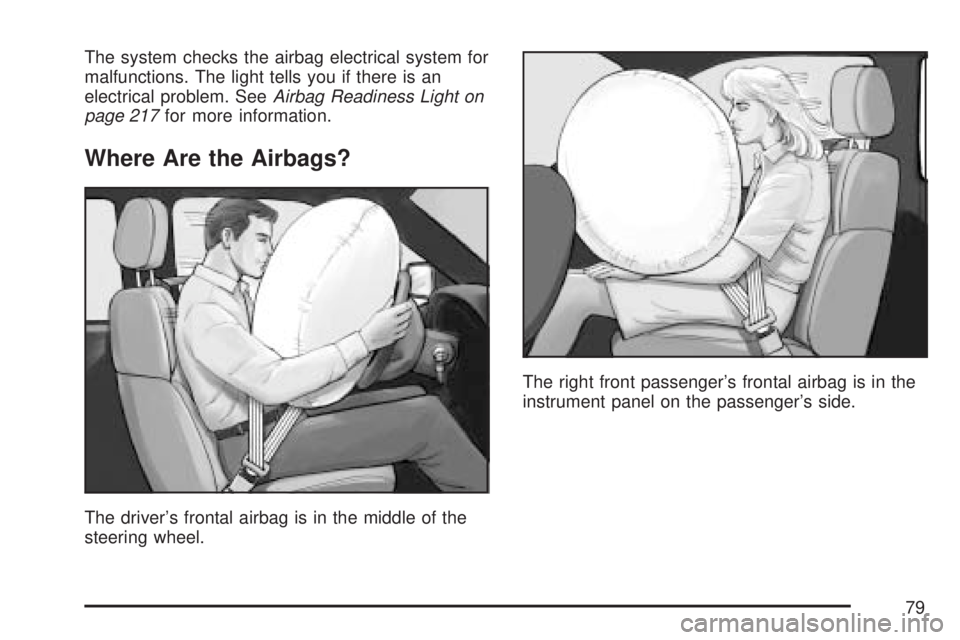

The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 217for more information.
Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
79

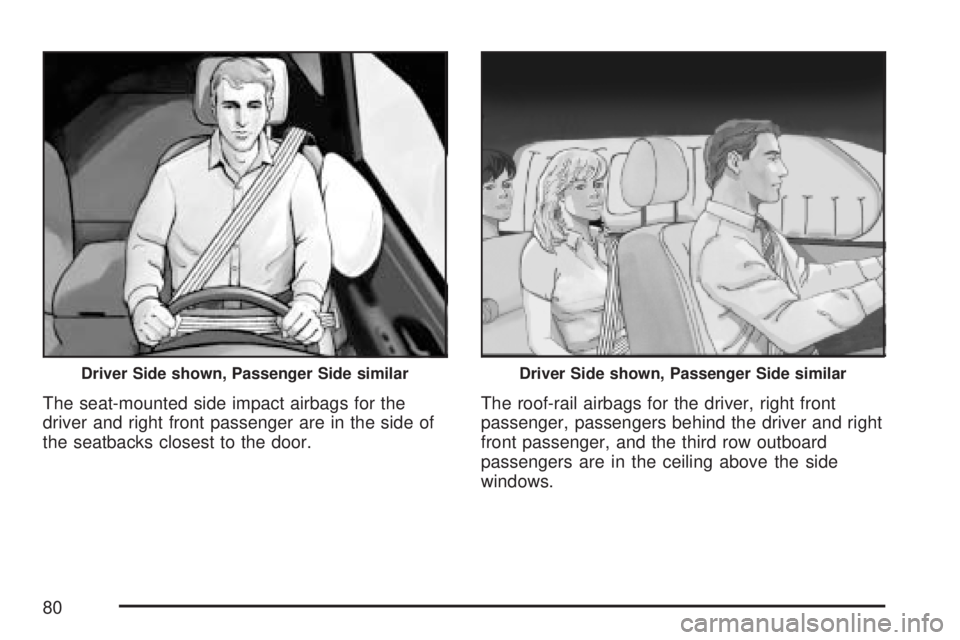

The seat-mounted side impact airbags for the
driver and right front passenger are in the side of
the seatbacks closest to the door.The roof-rail airbags for the driver, right front
passenger, passengers behind the driver and right
front passenger, and the third row outboard
passengers are in the ceiling above the side
windows.
Driver Side shown, Passenger Side similarDriver Side shown, Passenger Side similar
