bulb GMC ACADIA 2007 Owner's Manual

Seats and Restraint Systems
........................ 7
Front Seats
.............................................. 9
Rear Seats
............................................. 18
Safety Belts
............................................ 24
Child Restraints
...................................... 48
Airbag System
........................................ 76
Restraint System Check
......................... 92
Features and Controls
................................. 95
Keys
....................................................... 97
Doors and Locks
.................................. 106
Windows
............................................... 114
Theft-Deterrent Systems
....................... 118
Starting and Operating Your Vehicle
..... 123
Mirrors
.................................................. 140
OnStar
®System
................................... 145
Universal Home Remote System
.......... 149
Storage Areas
...................................... 161
Sunroof
................................................ 164Instrument Panel
........................................ 167
Instrument Panel Overview
................... 170
Climate Controls
................................... 199
Warning Lights, Gages, and Indicators
... 214
Driver Information Center (DIC)
............ 232
Audio System(s)
................................... 264
Driving Your Vehicle
.................................. 329
Your Driving, the Road, and
Your Vehicle
..................................... 330
Towing
................................................. 367
Service and Appearance Care
................... 383
Service
................................................. 385
Fuel
...................................................... 387
Checking Things Under the Hood
......... 394
All-Wheel Drive
..................................... 430
Headlamp Aiming
................................. 431
Bulb Replacement
................................ 432
Windshield Wiper Blade Replacement
... 434
2007 GMC Acadia Owner ManualM
1

LQWindshield Washer. SeeWindshield
Washer on page 177.
5ZRear Wiper/Washer. SeeRear Window
Wiper/Washer on page 179.
For information on the headlamps, seeExterior
Lamps on page 183.
Turn and Lane-Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever will
return automatically.
An arrow on the
instrument panel
cluster will ash in
the direction of the
turn or lane change.To signal a lane change, raise or lower the lever
until the arrow starts to ash. Hold it there until you
complete your lane change. The lever will return
by itself when you release it. If you momentarily
press and release the lever, the turn signal
will ash three times.
If the arrow ashes faster than normal as you
signal a turn or a lane change, a signal bulb may
be burned out and other drivers will not see
your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when
you signal a turn, check for burned-out bulbs and
then check the fuse. SeeFuses and Circuit
Breakers on page 490.
Turn Signal On Chime
If you leave either one of your turn signals on and
drive more than 3/4 mile (1.2 km), a chime will
sound to alert you.
175

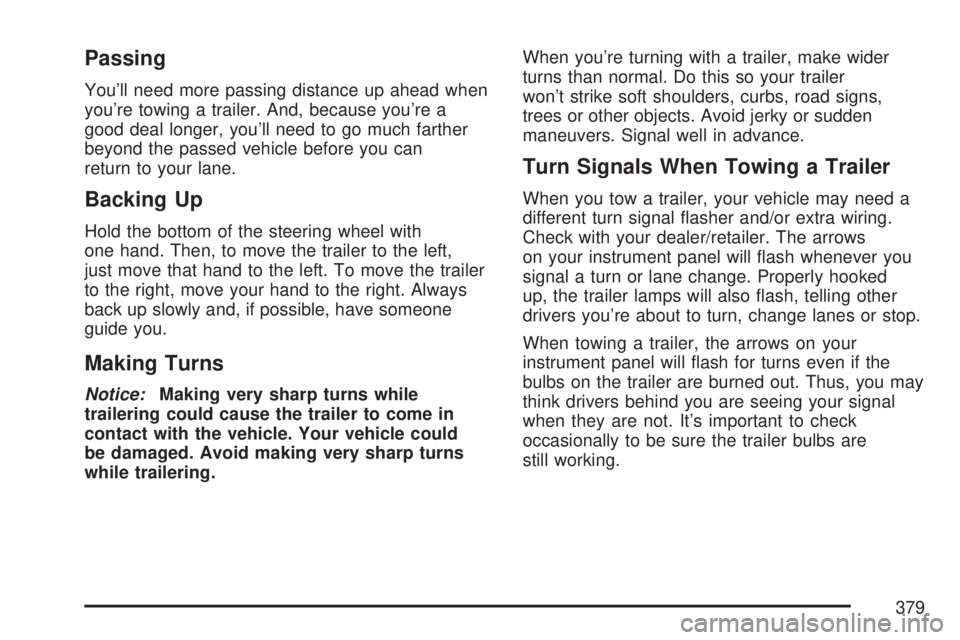

Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re a
good deal longer, you’ll need to go much farther
beyond the passed vehicle before you can
return to your lane.
Backing Up
Hold the bottom of the steering wheel with
one hand. Then, to move the trailer to the left,
just move that hand to the left. To move the trailer
to the right, move your hand to the right. Always
back up slowly and, if possible, have someone
guide you.
Making Turns
Notice:Making very sharp turns while
trailering could cause the trailer to come in
contact with the vehicle. Your vehicle could
be damaged. Avoid making very sharp turns
while trailering.When you’re turning with a trailer, make wider
turns than normal. Do this so your trailer
won’t strike soft shoulders, curbs, road signs,
trees or other objects. Avoid jerky or sudden
maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal asher and/or extra wiring.
Check with your dealer/retailer. The arrows
on your instrument panel will ash whenever you
signal a turn or lane change. Properly hooked
up, the trailer lamps will also ash, telling other
drivers you’re about to turn, change lanes or stop.
When towing a trailer, the arrows on your
instrument panel will ash for turns even if the
bulbs on the trailer are burned out. Thus, you may
think drivers behind you are seeing your signal
when they are not. It’s important to check
occasionally to be sure the trailer bulbs are
still working.
379

Service........................................................ 385
Accessories and Modications................... 385
California Proposition 65 Warning.............. 386
Doing Your Own Service Work.................. 386
Adding Equipment to the Outside
of Your Vehicle...................................... 387
Fuel............................................................. 387
Gasoline Octane........................................ 388
Gasoline Specications.............................. 388
California Fuel........................................... 388
Additives................................................... 389
Fuels in Foreign Countries........................ 390
Filling the Tank......................................... 390
Filling a Portable Fuel Container............... 393
Checking Things Under the Hood.............. 394
Hood Release........................................... 395
Engine Compartment Overview.................. 396
Engine Oil................................................. 397
Engine Oil Life System.............................. 400
Engine Air Cleaner/Filter............................ 402
Automatic Transmission Fluid.................... 404
Engine Coolant.......................................... 406
Radiator Pressure Cap.............................. 410
Engine Overheating................................... 410Overheated Engine Protection
Operating Mode..................................... 412
Cooling System......................................... 413
Power Steering Fluid................................. 419
Windshield Washer Fluid........................... 420
Brakes...................................................... 421
Battery...................................................... 424
Jump Starting............................................ 425
All-Wheel Drive........................................... 430
Headlamp Aiming........................................ 431
Bulb Replacement....................................... 432
High Intensity Discharge (HID) Lighting..... 432
Halogen Bulbs........................................... 432
License Plate Lamp................................... 433
Replacement Bulbs................................... 433
Windshield Wiper Blade Replacement....... 434
Tires............................................................ 435
Tire Sidewall Labeling............................... 436
Tire Terminology and Denitions............... 439
Ination - Tire Pressure............................. 442
Tire Pressure Monitor System................... 444
Tire Inspection and Rotation...................... 448
When It Is Time for New Tires.................. 450
Section 5 Service and Appearance Care
383

Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 433.
For any bulb changing procedure not listed in this
section, contact your dealer/retailer.
High Intensity Discharge (HID)
Lighting
{CAUTION:
The high beam and low beam high
intensity discharge lighting system
operates at a very high voltage. If you try
to service any of the system components,
you could be seriously injured. Have your
dealer/retailer or a qualied technician
service them.Your vehicle may have HID headlamps. After your
vehicle’s HID headlamp bulb has been replaced,
you may notice that the beam is a slightly different
shade than it was originally. This is normal.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
432

License Plate Lamp
To replace one of these bulbs:
1. Remove the two screws holding each of the
license plate lamps to the liftgate trim.
2. Turn and pull the license plate lamp forward
through the lift gate trim opening.3. Turn the bulb socket counterclockwise and
pull the bulb straight out of the socket.
4. Install the new bulb.
5. Reverse steps1–3toreinstall the license
plate lamp.
Replacement Bulbs
Exterior Lamp Bulb Number
License Plate Lamp 194
For replacement bulbs not listed here, contact
your dealer/retailer.
433

Audio System.............................................. 264
Audio Steering Wheel Controls................. 325
Care of Your CD and DVD Player............ 328
Care of Your CDs and DVDs................... 328
Navigation/Radio System,
see Navigation Manual......................... 311
Radio with CD......................................... 268
Rear Audio Controller (RAC).................... 324
Rear Seat Audio (RSA)............................ 322
Setting the Time...................................... 266
Theft-Deterrent Feature............................ 325
Understanding Radio Reception............... 326
Audio System(s)
Radio with CD and DVD.......................... 278
Automatic Transmission
Fluid........................................................ 404
Operation................................................. 129B
Battery........................................................ 424
Electric Power Management..................... 188
Run-Down Protection............................... 189
Before Leaving on a Long Trip.................... 352
Brake
Emergencies............................................ 336
Parking.................................................... 134
Brakes........................................................ 421
System Warning Light.............................. 222
Braking....................................................... 334
Braking in Emergencies............................... 336
Break-In, New Vehicle................................. 123
Bulb Replacement....................................... 432
Halogen Bulbs......................................... 432
Headlamp Aiming..................................... 431
High Intensity Discharge (HID) Lighting.... 432
License Plate Lamps................................ 433
Replacement Bulbs.................................. 433
Buying New Tires........................................ 450
540

G
Gage
Engine Coolant Temperature.................... 225
Fuel......................................................... 231
Speedometer........................................... 216
Tachometer.............................................. 216
Voltmeter Gage........................................ 221
Garage Door Opener................................... 150
Gasoline
Octane..................................................... 388
Specications........................................... 388
Glove Box................................................... 161
GM Mobility Reimbursement Program.......... 523
H
Hazard Warning Flashers............................ 172
Head Restraints............................................ 17
Headlamp
Aiming..................................................... 431
Headlamps
Bulb Replacement.................................... 432
Daytime Running Lamps/Automatic
Headlamp System................................ 185Headlamps (cont.)
Delayed................................................... 184
Exterior Lamps......................................... 183
Flash-to-Pass........................................... 176
Halogen Bulbs......................................... 432
High Intensity Discharge (HID) Lighting.... 432
High/Low Beam Changer......................... 176
Head-Up Display (HUD).............................. 190
Heated Seats................................................ 12
Heater......................................................... 199
Heater......................................................... 203
Height Adjuster, Driver Seat.......................... 10
High Voltage Devices and Wiring................ 489
Highbeam On Light..................................... 230
Highway Hypnosis....................................... 353
Hill and Mountain Roads............................. 354
Hood
Checking Things Under............................ 394
Release................................................... 395
Horn............................................................ 173
How to Use This Manual................................ 4
How to Wear Safety Belts Properly............... 29
545

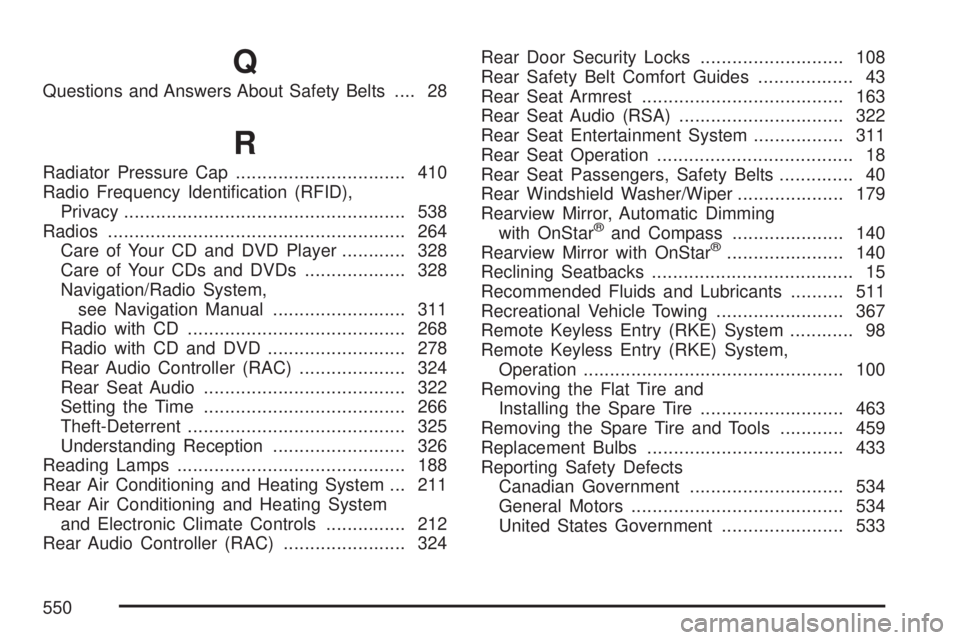

Q
Questions and Answers About Safety Belts.... 28
R
Radiator Pressure Cap................................ 410
Radio Frequency Identication (RFID),
Privacy..................................................... 538
Radios........................................................ 264
Care of Your CD and DVD Player............ 328
Care of Your CDs and DVDs................... 328
Navigation/Radio System,
see Navigation Manual......................... 311
Radio with CD......................................... 268
Radio with CD and DVD.......................... 278
Rear Audio Controller (RAC).................... 324
Rear Seat Audio...................................... 322
Setting the Time...................................... 266
Theft-Deterrent......................................... 325
Understanding Reception......................... 326
Reading Lamps........................................... 188
Rear Air Conditioning and Heating System ... 211
Rear Air Conditioning and Heating System
and Electronic Climate Controls............... 212
Rear Audio Controller (RAC)....................... 324Rear Door Security Locks........................... 108
Rear Safety Belt Comfort Guides.................. 43
Rear Seat Armrest...................................... 163
Rear Seat Audio (RSA)............................... 322
Rear Seat Entertainment System................. 311
Rear Seat Operation..................................... 18
Rear Seat Passengers, Safety Belts.............. 40
Rear Windshield Washer/Wiper.................... 179
Rearview Mirror, Automatic Dimming
with OnStar
®and Compass..................... 140
Rearview Mirror with OnStar®...................... 140
Reclining Seatbacks...................................... 15
Recommended Fluids and Lubricants.......... 511
Recreational Vehicle Towing........................ 367
Remote Keyless Entry (RKE) System............ 98
Remote Keyless Entry (RKE) System,
Operation................................................. 100
Removing the Flat Tire and
Installing the Spare Tire........................... 463
Removing the Spare Tire and Tools............ 459
Replacement Bulbs..................................... 433
Reporting Safety Defects
Canadian Government............................. 534
General Motors........................................ 534
United States Government....................... 533
550
