GMC CANYON 2012 Owner's Manual

Black plate (5,1)GMC Canyon Owner Manual - 2012

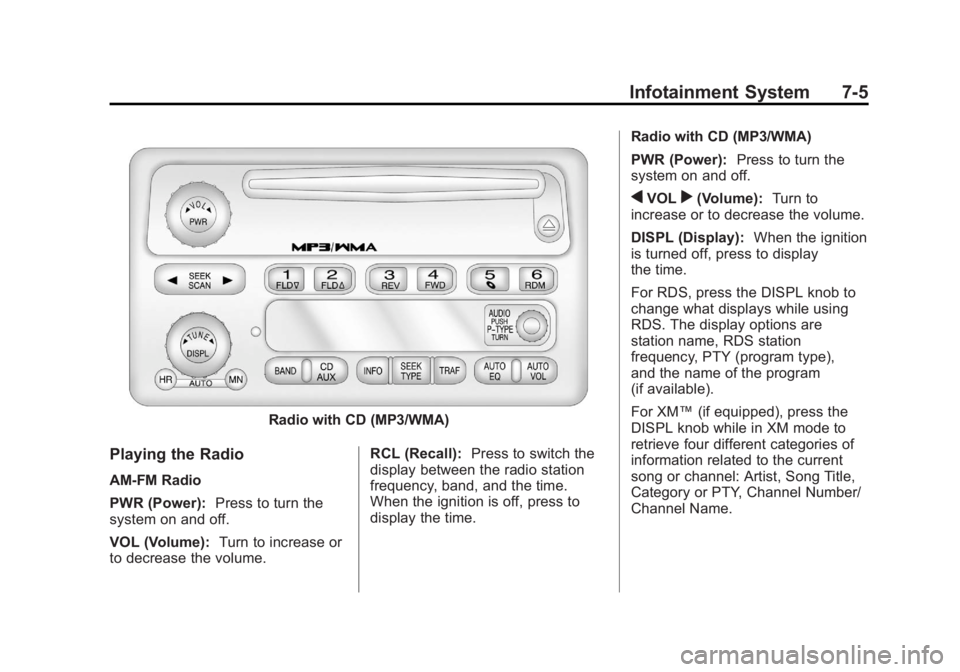

Infotainment System 7-5
Radio with CD (MP3/WMA)
Playing the Radio
AM-FM Radio
PWR (Power):Press to turn the
system on and off.
VOL (Volume): Turn to increase or
to decrease the volume. RCL (Recall):
Press to switch the
display between the radio station
frequency, band, and the time.
When the ignition is off, press to
display the time. Radio with CD (MP3/WMA)
PWR (Power):
Press to turn the
system on and off.
qVOLr(Volume): Turn to
increase or to decrease the volume.
DISPL (Display): When the ignition
is turned off, press to display
the time.
For RDS, press the DISPL knob to
change what displays while using
RDS. The display options are
station name, RDS station
frequency, PTY (program type),
and the name of the program
(if available).
For XM™ (if equipped), press the
DISPL knob while in XM mode to
retrieve four different categories of
information related to the current
song or channel: Artist, Song Title,
Category or PTY, Channel Number/
Channel Name.

Black plate (6,1)GMC Canyon Owner Manual - 2012
7-6 Infotainment System

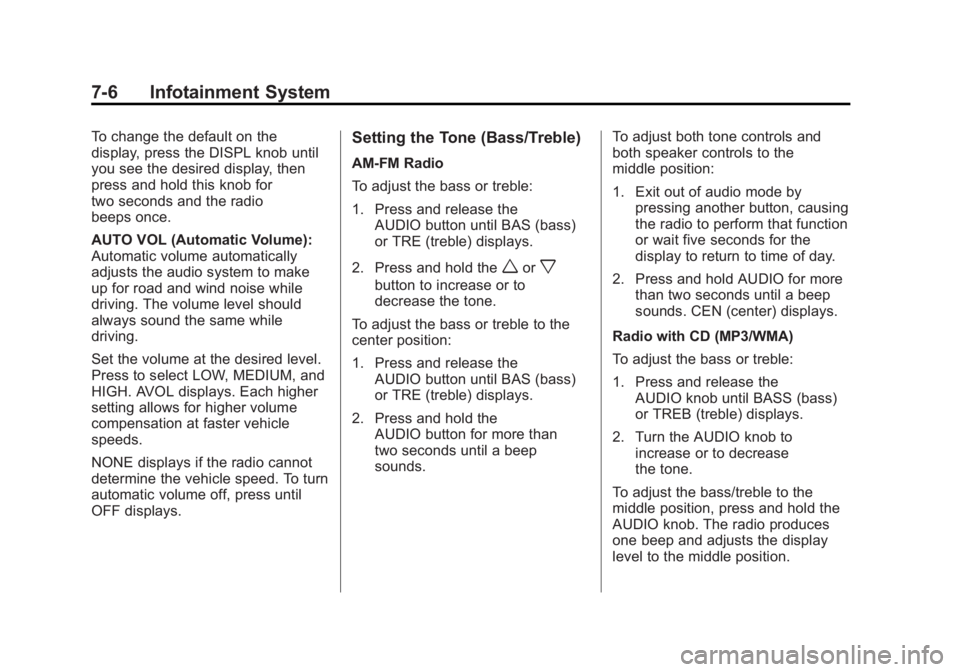

To change the default on the
display, press the DISPL knob until
you see the desired display, then
press and hold this knob for
two seconds and the radio
beeps once.
AUTO VOL (Automatic Volume):
Automatic volume automatically
adjusts the audio system to make
up for road and wind noise while
driving. The volume level should
always sound the same while
driving.
Set the volume at the desired level.
Press to select LOW, MEDIUM, and
HIGH. AVOL displays. Each higher
setting allows for higher volume
compensation at faster vehicle
speeds.
NONE displays if the radio cannot
determine the vehicle speed. To turn
automatic volume off, press until
OFF displays.Setting the Tone (Bass/Treble)
AM-FM Radio
To adjust the bass or treble:
1. Press and release theAUDIO button until BAS (bass)
or TRE (treble) displays.
2. Press and hold the
worx
button to increase or to
decrease the tone.
To adjust the bass or treble to the
center position:
1. Press and release the AUDIO button until BAS (bass)
or TRE (treble) displays.
2. Press and hold the AUDIO button for more than
two seconds until a beep
sounds. To adjust both tone controls and
both speaker controls to the
middle position:
1. Exit out of audio mode by
pressing another button, causing
the radio to perform that function
or wait five seconds for the
display to return to time of day.
2. Press and hold AUDIO for more than two seconds until a beep
sounds. CEN (center) displays.
Radio with CD (MP3/WMA)
To adjust the bass or treble:
1. Press and release the AUDIO knob until BASS (bass)
or TREB (treble) displays.
2. Turn the AUDIO knob to increase or to decrease
the tone.
To adjust the bass/treble to the
middle position, press and hold the
AUDIO knob. The radio produces
one beep and adjusts the display
level to the middle position.

Black plate (7,1)GMC Canyon Owner Manual - 2012
Infotainment System 7-7

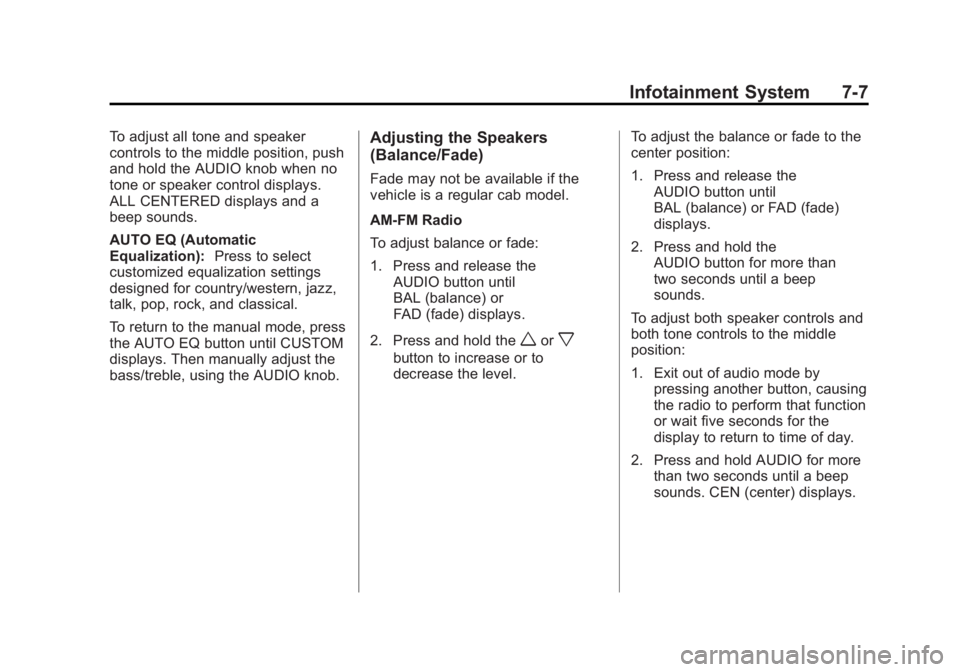

To adjust all tone and speaker
controls to the middle position, push
and hold the AUDIO knob when no
tone or speaker control displays.
ALL CENTERED displays and a
beep sounds.
AUTO EQ (Automatic
Equalization):Press to select
customized equalization settings
designed for country/western, jazz,
talk, pop, rock, and classical.
To return to the manual mode, press
the AUTO EQ button until CUSTOM
displays. Then manually adjust the
bass/treble, using the AUDIO knob.Adjusting the Speakers
(Balance/Fade)
Fade may not be available if the
vehicle is a regular cab model.
AM-FM Radio
To adjust balance or fade:
1. Press and release the
AUDIO button until
BAL (balance) or
FAD (fade) displays.
2. Press and hold the
worx
button to increase or to
decrease the level. To adjust the balance or fade to the
center position:
1. Press and release the
AUDIO button until
BAL (balance) or FAD (fade)
displays.
2. Press and hold the AUDIO button for more than
two seconds until a beep
sounds.
To adjust both speaker controls and
both tone controls to the middle
position:
1. Exit out of audio mode by pressing another button, causing
the radio to perform that function
or wait five seconds for the
display to return to time of day.
2. Press and hold AUDIO for more than two seconds until a beep
sounds. CEN (center) displays.

Black plate (8,1)GMC Canyon Owner Manual - 2012

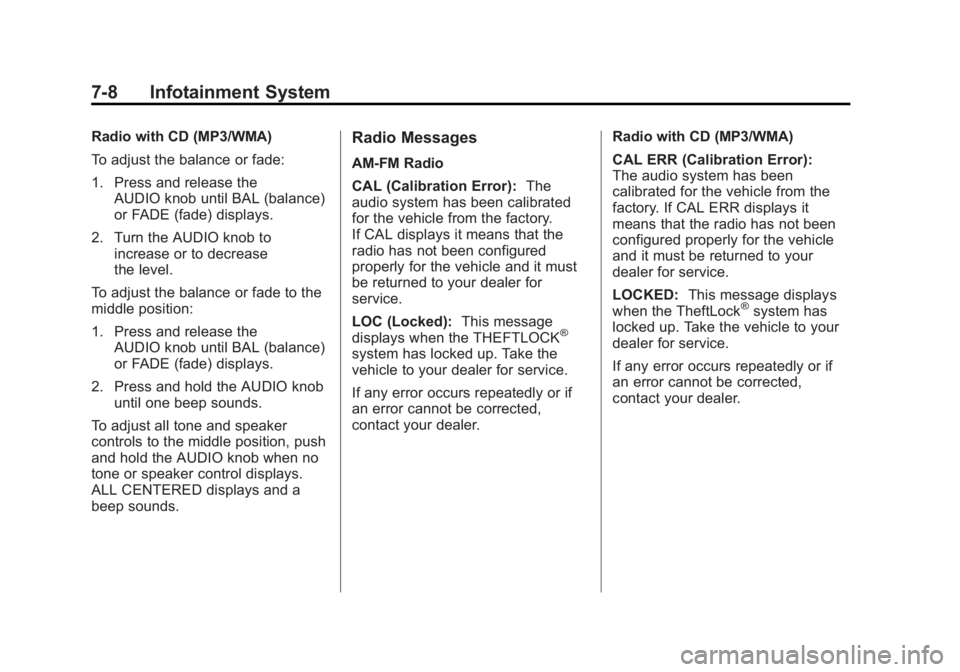

7-8 Infotainment System
Radio with CD (MP3/WMA)
To adjust the balance or fade:
1. Press and release theAUDIO knob until BAL (balance)
or FADE (fade) displays.
2. Turn the AUDIO knob to increase or to decrease
the level.
To adjust the balance or fade to the
middle position:
1. Press and release the AUDIO knob until BAL (balance)
or FADE (fade) displays.
2. Press and hold the AUDIO knob until one beep sounds.
To adjust all tone and speaker
controls to the middle position, push
and hold the AUDIO knob when no
tone or speaker control displays.
ALL CENTERED displays and a
beep sounds.Radio Messages
AM-FM Radio
CAL (Calibration Error): The
audio system has been calibrated
for the vehicle from the factory.
If CAL displays it means that the
radio has not been configured
properly for the vehicle and it must
be returned to your dealer for
service.
LOC (Locked): This message
displays when the THEFTLOCK
®
system has locked up. Take the
vehicle to your dealer for service.
If any error occurs repeatedly or if
an error cannot be corrected,
contact your dealer. Radio with CD (MP3/WMA)
CAL ERR (Calibration Error):
The audio system has been
calibrated for the vehicle from the
factory. If CAL ERR displays it
means that the radio has not been
configured properly for the vehicle
and it must be returned to your
dealer for service.
LOCKED:
This message displays
when the TheftLock
®system has
locked up. Take the vehicle to your
dealer for service.
If any error occurs repeatedly or if
an error cannot be corrected,
contact your dealer.

Black plate (9,1)GMC Canyon Owner Manual - 2012
Infotainment System 7-9

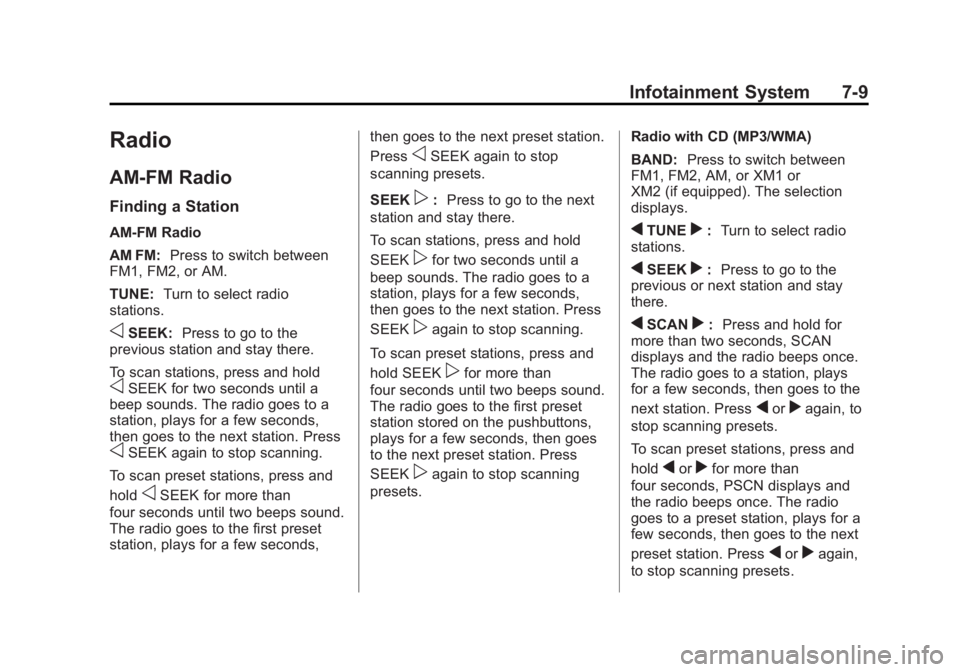

Radio
AM-FM Radio
Finding a Station
AM-FM Radio
AM FM:Press to switch between
FM1, FM2, or AM.
TUNE: Turn to select radio
stations.
oSEEK: Press to go to the
previous station and stay there.
To scan stations, press and hold
oSEEK for two seconds until a
beep sounds. The radio goes to a
station, plays for a few seconds,
then goes to the next station. Press
oSEEK again to stop scanning.
To scan preset stations, press and
hold
oSEEK for more than
four seconds until two beeps sound.
The radio goes to the first preset
station, plays for a few seconds, then goes to the next preset station.
Press
oSEEK again to stop
scanning presets.
SEEK
p: Press to go to the next
station and stay there.
To scan stations, press and hold
SEEK
pfor two seconds until a
beep sounds. The radio goes to a
station, plays for a few seconds,
then goes to the next station. Press
SEEK
pagain to stop scanning.
To scan preset stations, press and
hold SEEK
pfor more than
four seconds until two beeps sound.
The radio goes to the first preset
station stored on the pushbuttons,
plays for a few seconds, then goes
to the next preset station. Press
SEEK
pagain to stop scanning
presets. Radio with CD (MP3/WMA)
BAND:
Press to switch between
FM1, FM2, AM, or XM1 or
XM2 (if equipped). The selection
displays.
qTUNEr: Turn to select radio
stations.
qSEEKr: Press to go to the
previous or next station and stay
there.
qSCANr: Press and hold for
more than two seconds, SCAN
displays and the radio beeps once.
The radio goes to a station, plays
for a few seconds, then goes to the
next station. Press
qorragain, to
stop scanning presets.
To scan preset stations, press and
hold
qorrfor more than
four seconds, PSCN displays and
the radio beeps once. The radio
goes to a preset station, plays for a
few seconds, then goes to the next
preset station. Press
qorragain,
to stop scanning presets.

Black plate (10,1)GMC Canyon Owner Manual - 2012
7-10 Infotainment System

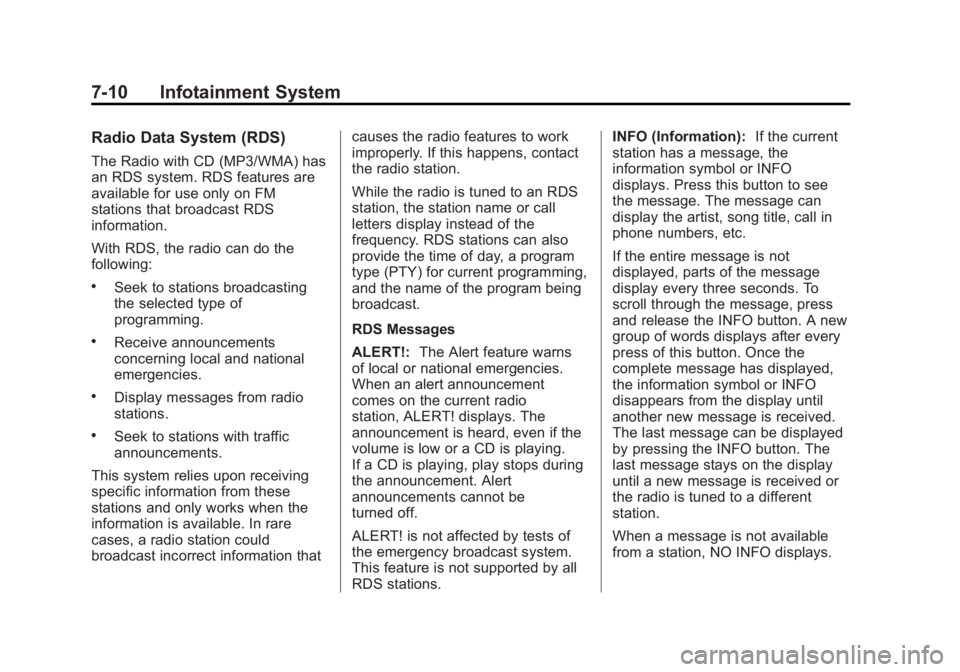

Radio Data System (RDS)
The Radio with CD (MP3/WMA) has
an RDS system. RDS features are
available for use only on FM
stations that broadcast RDS
information.
With RDS, the radio can do the
following:
.Seek to stations broadcasting
the selected type of
programming.
.Receive announcements
concerning local and national
emergencies.
.Display messages from radio
stations.
.Seek to stations with traffic
announcements.
This system relies upon receiving
specific information from these
stations and only works when the
information is available. In rare
cases, a radio station could
broadcast incorrect information that causes the radio features to work
improperly. If this happens, contact
the radio station.
While the radio is tuned to an RDS
station, the station name or call
letters display instead of the
frequency. RDS stations can also
provide the time of day, a program
type (PTY) for current programming,
and the name of the program being
broadcast.
RDS Messages
ALERT!:
The Alert feature warns
of local or national emergencies.
When an alert announcement
comes on the current radio
station, ALERT! displays. The
announcement is heard, even if the
volume is low or a CD is playing.
If a CD is playing, play stops during
the announcement. Alert
announcements cannot be
turned off.
ALERT! is not affected by tests of
the emergency broadcast system.
This feature is not supported by all
RDS stations. INFO (Information):
If the current
station has a message, the
information symbol or INFO
displays. Press this button to see
the message. The message can
display the artist, song title, call in
phone numbers, etc.
If the entire message is not
displayed, parts of the message
display every three seconds. To
scroll through the message, press
and release the INFO button. A new
group of words displays after every
press of this button. Once the
complete message has displayed,
the information symbol or INFO
disappears from the display until
another new message is received.
The last message can be displayed
by pressing the INFO button. The
last message stays on the display
until a new message is received or
the radio is tuned to a different
station.
When a message is not available
from a station, NO INFO displays.

Black plate (11,1)GMC Canyon Owner Manual - 2012
Infotainment System 7-11

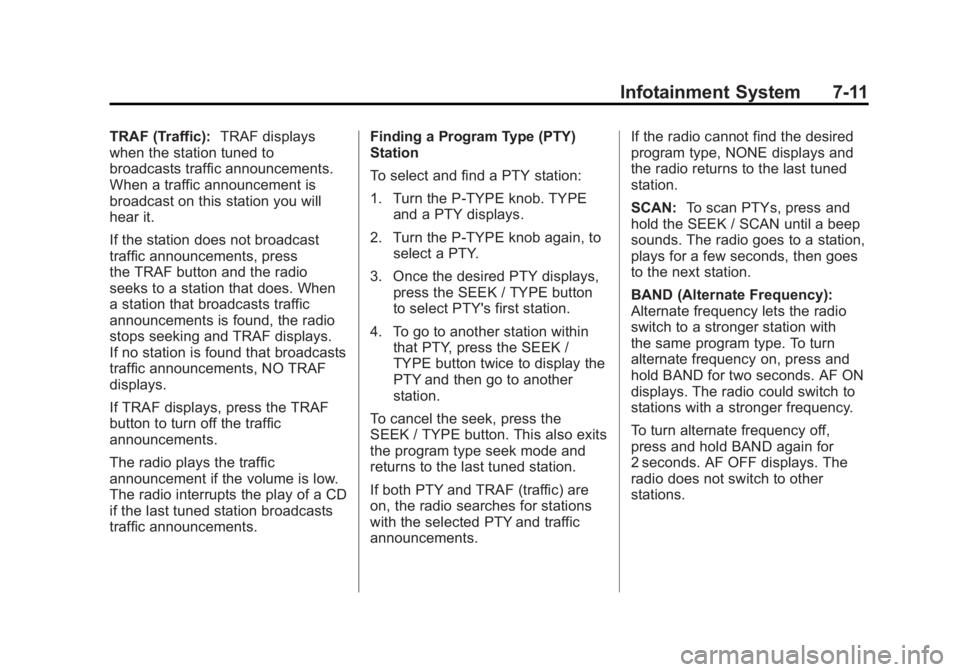

TRAF (Traffic):TRAF displays
when the station tuned to
broadcasts traffic announcements.
When a traffic announcement is
broadcast on this station you will
hear it.
If the station does not broadcast
traffic announcements, press
the TRAF button and the radio
seeks to a station that does. When
a station that broadcasts traffic
announcements is found, the radio
stops seeking and TRAF displays.
If no station is found that broadcasts
traffic announcements, NO TRAF
displays.
If TRAF displays, press the TRAF
button to turn off the traffic
announcements.
The radio plays the traffic
announcement if the volume is low.
The radio interrupts the play of a CD
if the last tuned station broadcasts
traffic announcements. Finding a Program Type (PTY)
Station
To select and find a PTY station:
1. Turn the P-TYPE knob. TYPE
and a PTY displays.
2. Turn the P-TYPE knob again, to select a PTY.
3. Once the desired PTY displays, press the SEEK / TYPE button
to select PTY's first station.
4. To go to another station within that PTY, press the SEEK /
TYPE button twice to display the
PTY and then go to another
station.
To cancel the seek, press the
SEEK / TYPE button. This also exits
the program type seek mode and
returns to the last tuned station.
If both PTY and TRAF (traffic) are
on, the radio searches for stations
with the selected PTY and traffic
announcements. If the radio cannot find the desired
program type, NONE displays and
the radio returns to the last tuned
station.
SCAN:
To scan PTYs, press and
hold the SEEK / SCAN until a beep
sounds. The radio goes to a station,
plays for a few seconds, then goes
to the next station.
BAND (Alternate Frequency):
Alternate frequency lets the radio
switch to a stronger station with
the same program type. To turn
alternate frequency on, press and
hold BAND for two seconds. AF ON
displays. The radio could switch to
stations with a stronger frequency.
To turn alternate frequency off,
press and hold BAND again for
2 seconds. AF OFF displays. The
radio does not switch to other
stations.

Black plate (12,1)GMC Canyon Owner Manual - 2012

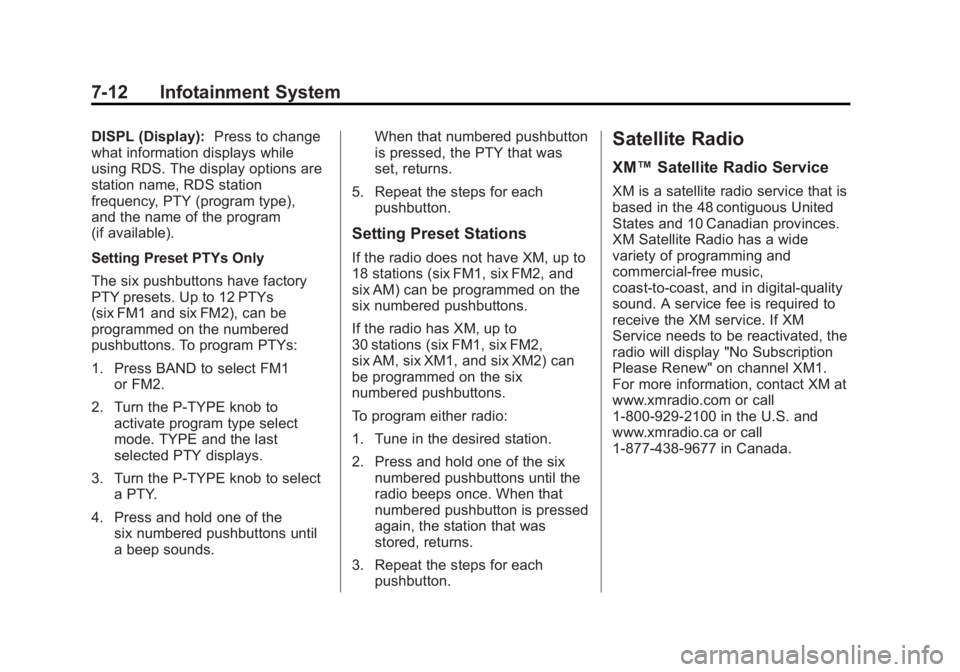

7-12 Infotainment System
DISPL (Display):Press to change
what information displays while
using RDS. The display options are
station name, RDS station
frequency, PTY (program type),
and the name of the program
(if available).
Setting Preset PTYs Only
The six pushbuttons have factory
PTY presets. Up to 12 PTYs
(six FM1 and six FM2), can be
programmed on the numbered
pushbuttons. To program PTYs:
1. Press BAND to select FM1
or FM2.
2. Turn the P‐TYPE knob to activate program type select
mode. TYPE and the last
selected PTY displays.
3. Turn the P‐TYPE knob to select a PTY.
4. Press and hold one of the six numbered pushbuttons until
a beep sounds. When that numbered pushbutton
is pressed, the PTY that was
set, returns.
5. Repeat the steps for each pushbutton.
Setting Preset Stations
If the radio does not have XM, up to
18 stations (six FM1, six FM2, and
six AM) can be programmed on the
six numbered pushbuttons.
If the radio has XM, up to
30 stations (six FM1, six FM2,
six AM, six XM1, and six XM2) can
be programmed on the six
numbered pushbuttons.
To program either radio:
1. Tune in the desired station.
2. Press and hold one of the sixnumbered pushbuttons until the
radio beeps once. When that
numbered pushbutton is pressed
again, the station that was
stored, returns.
3. Repeat the steps for each pushbutton.
Satellite Radio
XM™ Satellite Radio Service
XM is a satellite radio service that is
based in the 48 contiguous United
States and 10 Canadian provinces.
XM Satellite Radio has a wide
variety of programming and
commercial-free music,
coast-to-coast, and in digital-quality
sound. A service fee is required to
receive the XM service. If XM
Service needs to be reactivated, the
radio will display "No Subscription
Please Renew" on channel XM1.
For more information, contact XM at
www.xmradio.com or call
1-800-929-2100 in the U.S. and
www.xmradio.ca or call
1-877-438-9677 in Canada.

Black plate (13,1)GMC Canyon Owner Manual - 2012

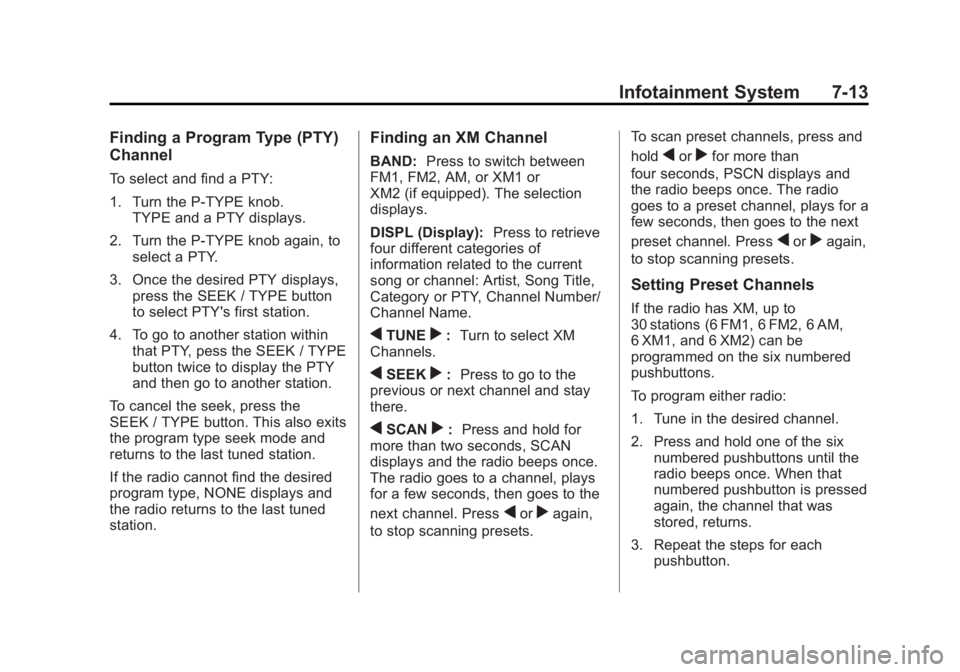

Infotainment System 7-13
Finding a Program Type (PTY)
Channel
To select and find a PTY:
1. Turn the P-TYPE knob.TYPE and a PTY displays.
2. Turn the P-TYPE knob again, to select a PTY.
3. Once the desired PTY displays, press the SEEK / TYPE button
to select PTY's first station.
4. To go to another station within that PTY, pess the SEEK / TYPE
button twice to display the PTY
and then go to another station.
To cancel the seek, press the
SEEK / TYPE button. This also exits
the program type seek mode and
returns to the last tuned station.
If the radio cannot find the desired
program type, NONE displays and
the radio returns to the last tuned
station.
Finding an XM Channel
BAND: Press to switch between
FM1, FM2, AM, or XM1 or
XM2 (if equipped). The selection
displays.
DISPL (Display): Press to retrieve
four different categories of
information related to the current
song or channel: Artist, Song Title,
Category or PTY, Channel Number/
Channel Name.
qTUNEr: Turn to select XM
Channels.
qSEEKr: Press to go to the
previous or next channel and stay
there.
qSCANr: Press and hold for
more than two seconds, SCAN
displays and the radio beeps once.
The radio goes to a channel, plays
for a few seconds, then goes to the
next channel. Press
qorragain,
to stop scanning presets. To scan preset channels, press and
hold
qorrfor more than
four seconds, PSCN displays and
the radio beeps once. The radio
goes to a preset channel, plays for a
few seconds, then goes to the next
preset channel. Press
qorragain,
to stop scanning presets.
Setting Preset Channels
If the radio has XM, up to
30 stations (6 FM1, 6 FM2, 6 AM,
6 XM1, and 6 XM2) can be
programmed on the six numbered
pushbuttons.
To program either radio:
1. Tune in the desired channel.
2. Press and hold one of the six numbered pushbuttons until the
radio beeps once. When that
numbered pushbutton is pressed
again, the channel that was
stored, returns.
3. Repeat the steps for each pushbutton.

Black plate (14,1)GMC Canyon Owner Manual - 2012

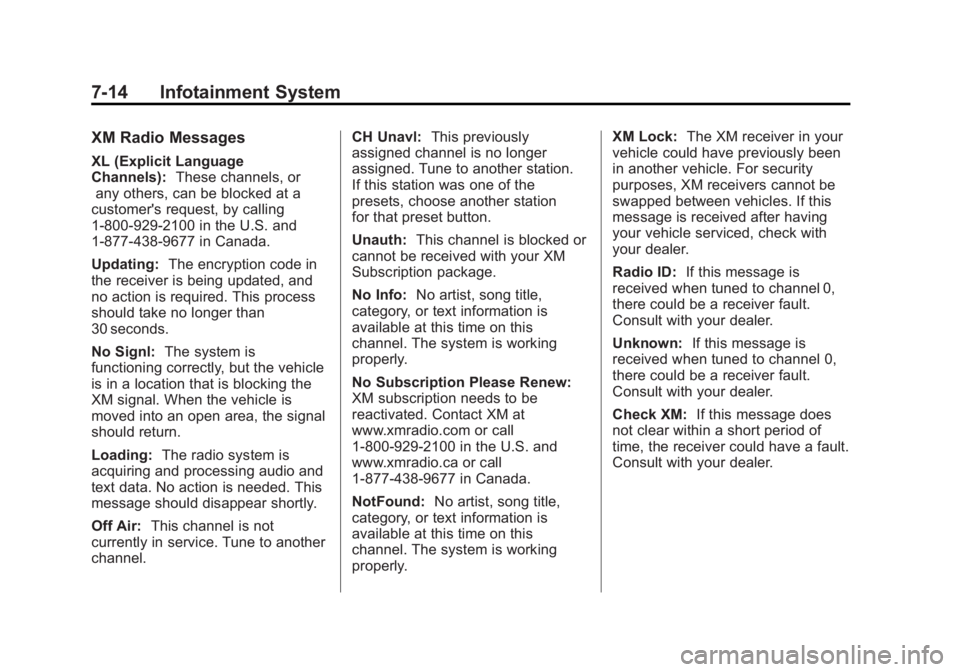

7-14 Infotainment System
XM Radio Messages
XL (Explicit Language
Channels):These channels, or
any others, can be blocked at a
customer's request, by calling
1-800-929-2100 in the U.S. and
1-877-438-9677 in Canada.
Updating: The encryption code in
the receiver is being updated, and
no action is required. This process
should take no longer than
30 seconds.
No Signl: The system is
functioning correctly, but the vehicle
is in a location that is blocking the
XM signal. When the vehicle is
moved into an open area, the signal
should return.
Loading: The radio system is
acquiring and processing audio and
text data. No action is needed. This
message should disappear shortly.
Off Air: This channel is not
currently in service. Tune to another
channel. CH Unavl:
This previously
assigned channel is no longer
assigned. Tune to another station.
If this station was one of the
presets, choose another station
for that preset button.
Unauth: This channel is blocked or
cannot be received with your XM
Subscription package.
No Info: No artist, song title,
category, or text information is
available at this time on this
channel. The system is working
properly.
No Subscription Please Renew:
XM subscription needs to be
reactivated. Contact XM at
www.xmradio.com or call
1-800-929-2100 in the U.S. and
www.xmradio.ca or call
1-877-438-9677 in Canada.
NotFound: No artist, song title,
category, or text information is
available at this time on this
channel. The system is working
properly. XM Lock:
The XM receiver in your
vehicle could have previously been
in another vehicle. For security
purposes, XM receivers cannot be
swapped between vehicles. If this
message is received after having
your vehicle serviced, check with
your dealer.
Radio ID: If this message is
received when tuned to channel 0,
there could be a receiver fault.
Consult with your dealer.
Unknown: If this message is
received when tuned to channel 0,
there could be a receiver fault.
Consult with your dealer.
Check XM: If this message does
not clear within a short period of
time, the receiver could have a fault.
Consult with your dealer.
