GMC ENVOY 2001 Owners Manual

3-33 Remote Cassette Tape Player (If Equipped)
If you have an AM-FM Stereo Audio Compact Disc
Automatic Tone Control System that includes a remote
cassette player, the cassette player is located in the front
of the center console.
Your tape player is built to work best with tapes that
are up to 30 to 45 minutes long on each side. Tapes
longer than that are so thin they may not work well in
this player.
To load a cassette tape with the ignition off, first press
EJECT on the remote player. Then, insert the cassette tape.
The tape will play if the ignition is on but the radio is off.
Once the tape is playing, use the control knobs for VOL,
AUTO TONE, BAL, FADE, BASS and TREB just as
you do for the radio. A lighted tape symbol shows when a cassette tape is in
the player. A lighted arrow will also appear and show the
direction of play when a tape is active.
The player automatically senses if the cassette tape is
metal or CrO
2 and adjusts for best playback sound.
Anytime a cassette tape is inserted, the top side is
selected for play first.
PREV (1): Press PREV or the SEEK left arrow (in the
opposite direction that the lighted tape direction arrow
points) to search for the previous selection. A minimum
three
-second blank gap is needed for the player to
stop at the beginning of the selection. The tape direction
arrow will blink during the SEEK operation and the
sound is muted in this mode.
NEXT (3): Press NEXT or the SEEK right arrow
(in the direction that the lighted tape direction arrow
points) to search for the next selection. The tape
direction arrow will blink during SEEK operation and
the sound is muted in this mode.
REV (4): Press this button to rapidly reverse the tape.
The tape will rapidly reverse to the beginning of the
cassette reel or until you press REV again. The radio
plays the last selected station during REV.
ProCarManuals.com

3-34
(5): Press this pushbutton to turn Dolby NR on
and off. Dolby NR is active when a tape is inserted in
the remote cassette. The double
-D symbol will appear
on the display.
Dolby Noise Reduction is manufactured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and the double
-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
FWD (6): Press this button to rapidly advance the tape.
The tape will rapidly advance to the end of the cassette
reel or until you press FWD again. The radio plays the
last selected station during FWD.
PROG: Press this button on the remote player to go
from one side of the tape to the other.
TAPE: Press the AM
-FM button to switch from the
player and the radio when a tape is playing. To return to
the tape player, press CD AUX. The lighted arrow will
appear next to the symbol and show the direction of
play when a tape is active.
EJECT: Press this button on the remote player to
remove the tape. EJECT can be used with either the
ignition or radio off. Also, you must press EJECT before
loading a cassette with the radio off to allow loading.
Rear Seat Audio (RSA) (If Equipped)
This feature allows rear seat passengers to listen to and
control any of the music sources, including AM
-FM,
cassette tapes and CDs, through the Rear Seat Audio
(RSA) controller. However, the rear seat passengers
can only control the music sources that the front seat
passengers are not listening to.
ProCarManuals.com

3-35
For example, rear seat passengers may listen to a
cassette tape through headphones while the driver listens
to the radio through the front speakers. The rear seat
passengers have control of the volume for each set of
headphones. Be aware that the front seat audio controls
always have priority over the RSA controls. The front
seat passengers switch the source for the main radio to
a remote source, the RSA will play the same remote
source. The rear speakers will be muted when the RSA
power is turned on. You may operate the RSA functions
even when the main radio is off.
This feature is intended for rear seat passengers.
The following function is controlled by the knob on the
main radio:
PWR
-VOL: Push this knob twice to turn RSA off.
The following functions are controlled by the RSA
system buttons:
PWR: Press this button to turn RSA on or off.VOL: Press this knob lightly so it extends.
Turn the knob clockwise to increase volume and
counterclockwise to decrease volume. Push the knob
back into its stored position when you're not using it.
The left VOL knob controls the left headphone and the
right VOL knob controls the right headphone.
AM FM: Press this button to switch between AM,
FM1 and FM2. If the front passengers are already
listening to AM
-FM, the RSA controller will not switch
between the bands and cannot change the frequency.
SEEK: While listening to AM
-FM, press the right
arrow to tune to the next higher station and stay there.
Press the left arrow to tune to the next lower station
and stay there. The sound will mute while seeking.
The SEEK button is inactive if the AM
-FM mode on
the front radio is in use.
While listening to a cassette tape, press the right arrow to
hear the next selection on the tape. Press the left arrow to
go back to the previous selection. The SEEK button is
inactive if the tape mode on the front radio is in use.
ProCarManuals.com

3-36
While listening to a CD, press the right arrow to hear the
next selection on the CD. Press the left arrow to go back
to the start of the current selection (if more than eight
seconds have played). The SEEK button is inactive if
the CD mode on the front radio (if equipped) or the
CD changer is in use.
SCAN: Press and hold SEEK until the radio goes into
SCAN mode. SCAN allows you to listen to stations for
a few seconds. The receiver will continue to scan and
momentarily stop at each station until you press SEEK
again. The SCAN function is inactive if the AM
-FM
mode on the front radio is in use.
P.SET PROG: The front passengers must be
listening to something different for each of these
functions to work:

Press this button to seek through the preset radio
stations set on the pushbuttons on the main radio.

When a cassette tape is playing, press this button
to go to the other side of the tape.

When a CD is playing in the CD changer,
press this button to select a disc.TAPE CD: Press this button to switch between the tape
or CD and console
-mounted CD changer if both are
loaded. Press AM
-FM to return to the radio when a
cassette tape or CD is playing. The inactive tape or CD
will remain safely inside the radio for future listening.
This feature allows rear seat passengers to listen to and
control any of the music sources, including AM
-FM,
cassette tapes and CDs, through the Rear Seat Audio
(RSA) controller. However, the rear seat passengers
can only control the music sources that the front seat
passengers are not listening to. For example, rear seat
passengers may listen to a cassette tape through
headphones while the driver listens to the radio through
the front speakers. The rear seat passengers have control
of the volume for each set of headphones. Be aware that
the front seat audio controls always have priority over
the RSA controls. The front seat passengers switch the
source for the main radio to a remote source, the RSA
will play the same remote source. The rear speakers
will be muted when the RSA power is turned on.
You may operate the RSA functions even when the
main radio is off.
This feature is intended for rear seat passengers.
ProCarManuals.com

3-37
The following function is controlled by the knob on the
main radio:
PWR
-VOL: Push this knob twice to turn RSA off.
The following functions are controlled by the RSA
system buttons:
PWR: Press this button to turn RSA on or off.
VOL: Press this knob lightly so it extends.
Turn the knob clockwise to increase volume and
counterclockwise to decrease volume. Push the knob
back into its stored position when you're not using it.
The left VOL knob controls the left headphone and the
right VOL knob controls the right headphone.
AM FM: Press this button to switch between AM, FM1
and FM2. If the front passengers are already listening to
AM
-FM, the RSA controller will not switch between the
bands and cannot change the frequency.SEEK: While listening to AM
-FM, press the right
arrow to tune to the next higher station and stay there.
Press the left arrow to tune to the next lower station
and stay there. The sound will mute while seeking.
The SEEK button is inactive if the AM
-FM mode on
the front radio is in use.
While listening to a cassette tape, press the right arrow
to hear the next selection on the tape. Press the left
arrow to go back to the previous selection. The SEEK
button is inactive if the tape mode on the front radio is
in use.
While listening to a CD, press the right arrow to hear the
next selection on the CD. Press the left arrow to go back
to the start of the current selection (if more than eight
seconds have played). The SEEK button is inactive if
the CD mode on the front radio (if equipped) or the
CD changer is in use.
ProCarManuals.com

3-38
SCAN: Press and hold SEEK until the radio goes into
SCAN mode. SCAN allows you to listen to stations for
a few seconds. The receiver will continue to scan and
momentarily stop at each station until you press SEEK
again. The SCAN function is inactive if the AM
-FM
mode on the front radio is in use.
P.SET PROG: The front passengers must be listening to
something different for each of these functions to work:

Press this button to seek through the preset radio
stations set on the pushbuttons on the main radio.

When a cassette tape is playing, press this button
to go to the other side of the tape.

When a CD is playing in the CD changer, press this
button to select a disc.
TAPE CD: Press this button to switch between the tape
or CD and console
-mounted CD changer if both are
loaded. Press AM
-FM to return to the radio when a
cassette tape or CD is playing. The inactive tape or CD
will remain safely inside the radio for future listening.
Console-Mounted CD Changer (If Equipped)
Your vehicle's compact disc changer is located in the
center console. Some vehicles may have the compact
disc changer mounted in the front console just below
the climate control system and accessory power outlets.
With the compact disc changer, you can play up to
six discs continuously. Normal size discs may be played
using the slots supplied in the magazine.
ProCarManuals.com

3-39

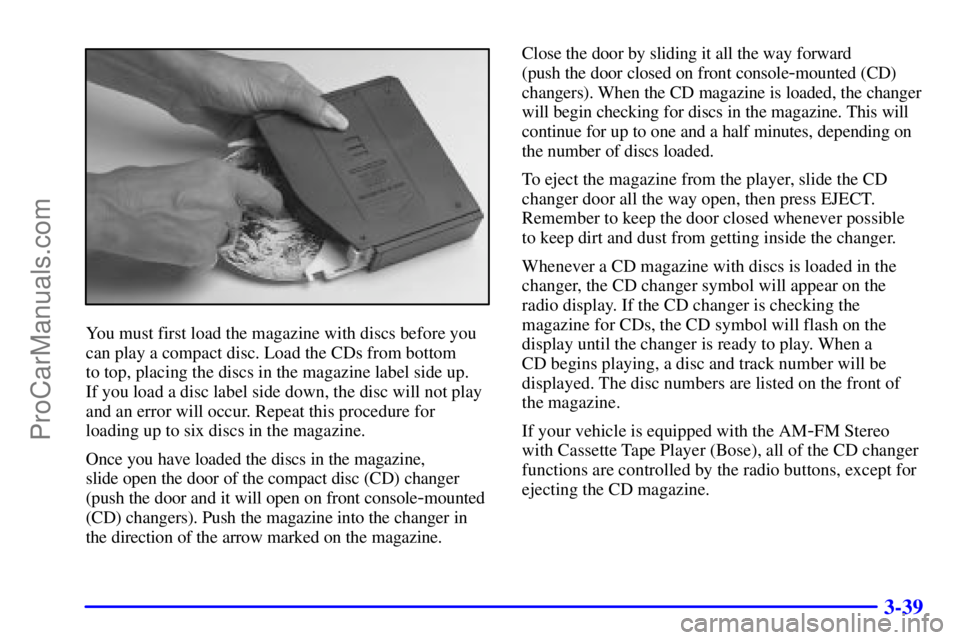

You must first load the magazine with discs before you
can play a compact disc. Load the CDs from bottom
to top, placing the discs in the magazine label side up.
If you load a disc label side down, the disc will not play
and an error will occur. Repeat this procedure for
loading up to six discs in the magazine.
Once you have loaded the discs in the magazine,
slide open the door of the compact disc (CD) changer
(push the door and it will open on front console
-mounted
(CD) changers). Push the magazine into the changer in
the direction of the arrow marked on the magazine.Close the door by sliding it all the way forward
(push the door closed on front console
-mounted (CD)
changers). When the CD magazine is loaded, the changer
will begin checking for discs in the magazine. This will
continue for up to one and a half minutes, depending on
the number of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open, then press EJECT.
Remember to keep the door closed whenever possible
to keep dirt and dust from getting inside the changer.
Whenever a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
radio display. If the CD changer is checking the
magazine for CDs, the CD symbol will flash on the
display until the changer is ready to play. When a
CD begins playing, a disc and track number will be
displayed. The disc numbers are listed on the front of
the magazine.
If your vehicle is equipped with the AM
-FM Stereo
with Cassette Tape Player (Bose), all of the CD changer
functions are controlled by the radio buttons, except for
ejecting the CD magazine.
ProCarManuals.com

3-40
PREV (1): Press this button or the SEEK left arrow to
go to the previous track if the current selection has been
playing for less than eight seconds. If the PREV button
is pressed and the current selection has been playing for
more than eight seconds, it will go to the beginning of
the current selection. If you hold or press this button
more than once, the player will continue moving back
through the disc. The sound will mute while seeking.
PROG (2): Press this button to select a disc.
The disc number and track number will be displayed.
NEXT (3): Press this button or the SEEK right arrow
to go to the next track. If you hold the button or press it
more than once, the player will continue moving forward
through the disc. The sound will mute while seeking.
REV (4): Press and hold this button to reverse quickly
through a track selection. Release it to resume playing.
FWD (6): Press and hold this button to advance quickly
through a track selection. Release it to resume playing.
SEEK: Press the right arrow to seek to the next
selection on the CD. Press the left arrow to search for
the previous selection on the CD. The sound will mute
while seeking.P.SCAN: Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on
the display. Press P.SCAN again to turn off random play.
TAPE AUX: Press this button if you have a disc loaded
in the changer and the radio is turned on, to play a
compact disc. Press AM
-FM to return to the radio when
a compact disc is playing. Press TAPE AUX to switch
between the tape and console
-mounted CD changer
if both are loaded.
If your vehicle is equipped with the AM
-FM Stereo
with Compact Disc Player (Bose), all of the CD changer
functions are controlled by the radio buttons, except for
ejecting the CD magazine.
PREV (1): Press this button or the SEEK left arrow to
go to the previous track if the current selection has been
playing for less than eight seconds. If the PREV button
is pressed and the current selection has been playing for
more than eight seconds, it will go to the beginning of
the current selection. If you hold or press this button
more than once, the player will continue moving back
through the disc. The sound will mute while seeking.
RDM (2): Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on
the display. Press RDM again to turn off random play.
ProCarManuals.com

3-41
NEXT (3): Press this button or the SEEK right arrow
to go to the next track. If you hold the button or press it
more than once, the player will continue moving forward
through the disc. The sound will mute while seeking.
REV (4): Press and hold this button to reverse quickly
through a track selection. Release it to resume playing.
(5): Press this button to select a disc. The disc number
and track number will be displayed.
FWD (6): Press and hold this button to advance quickly
through a track selection. Release it to resume playing.
SEEK: Press the right arrow to seek to the next
selection on the CD. Press the left arrow to search for
the previous selection on the CD. The sound will mute
while seeking.
CD AUX: Press this button if you have a disc loaded
in the changer and the radio is turned on, to play a
compact disc. Press AM
-FM to return to the radio
when a compact disc is playing. Press CD AUX to
switch between the compact disc and console
-mounted
CD changer if both are loaded.Compact Disc Changer Errors
If ERR appears on the display, it could be that:

You are driving on a very rough road.
(The disc should play when the road gets smoother.)

A disc is upside down.

It is dirty, scratched or wet.

It is very humid. (If so, wait about an hour and
try again.)

The disc player is very hot.

The CD changer door is open. Completely close
the changer door to restore normal operation.

An empty magazine is inserted in the CD changer.
Try the magazine again with a disc loaded on one
of the trays.
Press RECALL to make ERR go off the display.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer.
ProCarManuals.com

3-42 Theft-Deterrent Feature (If Equipped)
THEFTLOCK
is designed to discourage theft of
your radio. It works by using a secret code to disable
all radio functions whenever battery power is removed.
The THEFTLOCK feature for the radio may be used or
ignored. If ignored, the system plays normally and the
radio is not protected by the feature. If THEFTLOCK is
activated, your radio will not operate if stolen.
When THEFTLOCK is activated, the radio will display
LOC to indicate a locked condition anytime battery
power has been interrupted. If your battery loses power
for any reason, you must unlock the radio with the secret
code before it will operate.
Activating the Theft
-Deterrent Feature
The instructions which follow explain how to enter
your secret code to activate the THEFTLOCK system.
It is recommended that you read through all nine steps
before starting the procedure.
If you allow more than 15 seconds to elapse between
any steps, the radio automatically reverts to time and
you must start the procedure over at Step 4.1. Write down any three or four
-digit number from
000 to 1999 and keep it in a safe place separate from
the vehicle.
2. Turn the ignition to ACCESSORY or RUN.
3. Turn the radio off.
4. Press the 1 and 4 buttons together. Hold them down
until
--- shows on the display. Next you will use the
secret code number which you have written down.
5. Press MN and 000 will appear on the display.
6. Press MN again to make the last two digits agree
with your code.
7. Press HR to make the first one or two digits agree
with your code.
8. Press AM
-FM after you have confirmed that the
code matches the secret code you have written down.
The display will show REP to let you know that you
need to repeat Steps 5 through 7 to confirm your
secret code.
9. Press AM
-FM and this time the display will show
SEC to let you know that your radio is secure.
The LED indicator by the volume control will begin
flashing when the ignition is turned off.
ProCarManuals.com
