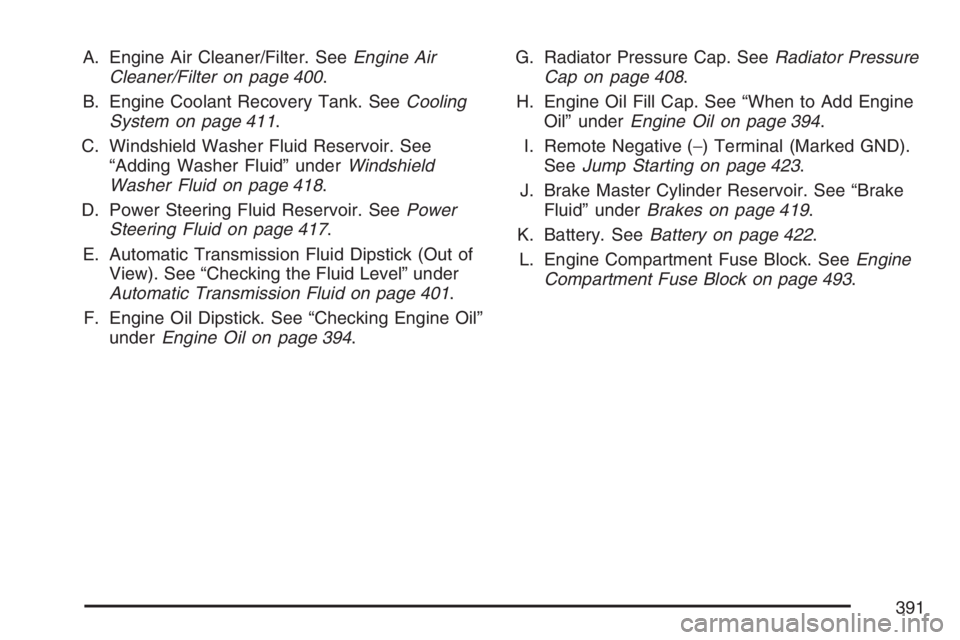

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 400.
B. Engine Coolant Recovery Tank. SeeCooling
System on page 411.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 418.
D. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 417.
E. Automatic Transmission Fluid Dipstick (Out of
View). See “Checking the Fluid Level” under
Automatic Transmission Fluid on page 401.
F. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 394.G. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 408.
H. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 394.
I. Remote Negative (−) Terminal (Marked GND).
SeeJump Starting on page 423.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 419.
K. Battery. SeeBattery on page 422.
L. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 493.
391

A. Engine Coolant Recovery Tank. SeeCooling
System on page 411.
B. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 400.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 418.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 394.
E. Automatic Transmission Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transmission Fluid on page 401.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 394.G. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 408.
H. Remote Negative (−) Terminal (Marked GND).
SeeJump Starting on page 423.
I. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 417.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 419.
K. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 493.
L. Battery. SeeBattery on page 422.
393

Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 390
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
When to Add Engine Oil
L6 Engine
V8 Engine
394

Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system that lets you
know when to change the engine oil and lter.
This is based on engine revolutions and engine
temperature, and not on mileage. Based on driving
conditions, the mileage at which an oil change
will be indicated can vary considerably. For the oil
life system to work properly, you must reset the
system every time the oil is changed.
When the system has calculated that oil life has
been diminished, it will indicate that an oil change is
necessary. A change engine oil light will come on,
and, if your vehicle has a Driver Information Center
(DIC), a CHANGE ENGINE OIL message will
come. SeeChange Engine Oil Light on page 214
andDIC Warnings and Messages on page 222.
Change your oil as soon as possible within the next
600 miles (1 000 km). It is possible that, if you are
driving under the best conditions, the oil life system
may not indicate that an oil change is necessary for
over a year. However, the engine oil and lter must
be changed at least once a year and at this time the
system must be reset.Your dealer has GM-trained people who will
perform this work using genuine GM parts and reset
the system. It is also important to check the oil
regularly and keep it at the proper level.
If the system is ever reset accidentally, you must
change your oil at 3,000 miles (5 000 km)
since the last oil change. Remember to reset the
oil life system whenever the oil is changed.
How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where you
change your oil prior to a change engine oil light
or CHANGE ENGINE OIL message being
turned on, reset the system.
398

{CAUTION:
Operating the engine with the air
cleaner/lter off can cause you or others
to be burned. The air cleaner not only
cleans the air; it helps to stop ames if
the engine backres. If it is not there and
the engine backres, you could be
burned. Do not drive with it off, and be
careful working on the engine with the air
cleaner/lter off.
Notice:If the air cleaner/lter is off, a backre
can cause a damaging engine re. And, dirt
can easily get into your engine, which will
damage it. Always have the air cleaner/lter in
place when you are driving.
Automatic Transmission Fluid
When to Check and Change Automatic
Transmission Fluid
A good time to check your automatic transmission
uid level is when the engine oil is changed.
Change the uid and lter at the intervals listed in
Additional Required Services on page 510, and
be sure to use the transmission uid listed in
Recommended Fluids and Lubricants on page 517.
401

How to Check Automatic Transmission
Fluid
Because this operation can be a little difficult, you
may choose to have this done at the dealership
service department.
If you do it yourself, be sure to follow all the
instructions here, or you could get a false reading
on the dipstick.
Notice:Too much or too little uid can
damage your transmission. Too much can
mean that some of the uid could come out
and fall on hot engine parts or exhaust system
parts, starting a re. Too little uid could
cause the transmission to overheat. Be sure to
get an accurate reading if you check your
transmission uid.
Wait at least 30 minutes before checking the
transmission uid level if you have been driving:
When outside temperatures are above
90°F (32°C).
At high speed for quite a while.
In heavy traffic — especially in hot weather.
While pulling a trailer.To get the right reading, the uid should be at
normal operating temperature, which is 180°F to
200°F (82°C to 93°C).
Get the vehicle warmed up by driving about
15 miles (24 km) when outside temperatures are
above 50°F (10°C). If it is colder than 50°F (10°C),
drive the vehicle in THIRD (3) until the engine
temperature gage moves and then remains steady
for 10 minutes.
A cold uid check can be made after the vehicle
has been sitting for eight hours or more with
the engine off, but this is used only as a reference.
Let the engine run at idle for ve minutes if
outside temperatures are 50°F (10°C) or more. If it
is colder than 50°F (10°C), you may have to idle
the engine longer. Should the uid level be
low during this cold check, you must check the
uid hot before adding uid. Checking the uid hot
will give you a more accurate reading of the
uid level.
402

Checking the Fluid Level
Prepare your vehicle as follows:
1. Park your vehicle on a level place. Keep the
engine running.
2. With the parking brake applied, place the shift
lever in PARK (P).
3. With your foot on the brake pedal, move the
shift lever through each gear range, pausing
for about three seconds in each range.
Then, position the shift lever in PARK (P).
4. Let the engine run at idle for three minutes
or more.Then, without shutting off the engine, follow
these steps:
1. Flip the handle up and then remove the
dipstick and wipe it with a clean rag or
paper towel.
The automatic
transmission dipstick
handle with this symbol
on it is located in the
engine compartment on
the passenger’s side
of the vehicle.
SeeEngine Compartment Overview on
page 390for more information on location.
2. Reinstall it back in all the way, wait three
seconds and then pull it back out again. If
the dipstick does not go down the tube easily,
turn the blade and try again until it is fully
inserted in the tube.
403

Notice:Use of the incorrect automatic
transmission uid may damage your vehicle,
and the damages may not be covered by
your warranty. Always use the automatic
transmission uid listed inRecommended
Fluids and Lubricants on page 517.
After adding uid, recheck the uid level as
described under “How to Check Automatic
Transmission Fluid,” earlier in this section.
When the correct uid level is obtained, push
the dipstick back in all the way; then ip the
handle down to lock the dipstick in place.
Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years or
150,000 miles (240 000 km), whichever occurs
rst, if you add only DEX-COOL
®extended
life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 408.A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down to
−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as
they should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core, or
radiator corrosion. In addition, the engine
coolant may require changing sooner,
at the rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would
not be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
405

What to Use
Use a mixture of one-half clean, drinkable water
and one-half DEX-COOL®coolant. If you use
this coolant mixture, you do not need to add
anything else.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant.Notice:If you use an improper coolant
mixture, your engine could overheat and be
badly damaged. The repair cost would not be
covered by your warranty. Too much water
in the mixture can freeze and crack the engine,
radiator, heater core, and other parts.
If you have to add coolant more than four times a
year, have your dealer check your cooling system.
Notice:If you use extra inhibitors and/or
additives in your vehicle’s cooling system,
you could damage your vehicle. Use only the
proper mixture of the engine coolant listed
in this manual for the cooling system.
SeeRecommended Fluids and Lubricants
on page 517for more information.
406

Checking Coolant
The engine coolant
recovery tank is in the
engine compartment on
the passenger’s side of
the vehicle. The cap has
this symbol on it. See
Engine Compartment
Overview on page 390
for more information on
location.
The vehicle must be on a level surface. When
your engine is cold, the coolant level should be
at FULL COLD, or a little higher.
Adding Coolant
If you need more coolant, add the proper
DEX-COOL®coolant mixture at the coolant
recovery tank.
{CAUTION:
Turning the radiator pressure cap when
the engine and radiator are hot can allow
steam and scalding liquids to blow out
and burn you badly. With the coolant
recovery tank, you will almost never have
to add coolant at the radiator. Never turn
the radiator pressure cap — even a
little — when the engine and radiator
are hot.
407
