GMC ENVOY DENALI 2007 Owners Manual

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious
injury or even death in a crash. To help
make sure your restraint systems are
working properly after a crash, have
them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts
or LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If the frontal airbags inate you will also need to
replace the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the
new retractor assembly will be there to help protect
you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after
you start your vehicle or while you are driving.
SeeAirbag Readiness Light on page 201.
91

✍NOTES
92

Keys.............................................................. 95
Remote Keyless Entry (RKE) System.......... 97
Remote Keyless Entry (RKE)
System Operation.................................... 98
Doors and Locks........................................ 100
Door Locks................................................ 100
Power Door Locks..................................... 101
Delayed Locking........................................ 102
Programmable Automatic Door Locks........ 102
Rear Door Security Locks......................... 105
Lockout Protection..................................... 105
Liftgate/Liftglass......................................... 106
Windows...................................................... 107
Power Windows........................................ 108
Sun Visors................................................ 109
Theft-Deterrent Systems............................. 110
Content Theft-Deterrent............................. 110
Passlock
®.................................................. 111
Starting and Operating Your Vehicle......... 112
New Vehicle Break-In................................ 112
Ignition Positions....................................... 113
Retained Accessory Power (RAP)............. 114Starting the Engine.................................... 114
Adjustable Throttle and Brake Pedal.......... 116
Engine Coolant Heater.............................. 116
Active Fuel Management™........................ 117
Automatic Transmission Operation............. 118
Four-Wheel Drive...................................... 122
Parking Brake........................................... 126
Shifting Into Park (P) ................................. 127
Shifting Out of Park (P)............................. 129
Parking Over Things That Burn................. 130
Engine Exhaust......................................... 131
Running the Engine While Parked............. 132
Mirrors......................................................... 133
Manual Rearview Mirror............................. 133
Manual Rearview Mirror with OnStar
®....... 133
Automatic Dimming Rearview Mirror
with OnStar
®and Compass................... 134
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display.............................. 136
Automatic Dimming Rearview Mirror
with Compass........................................ 138
Section 2 Features and Controls
93

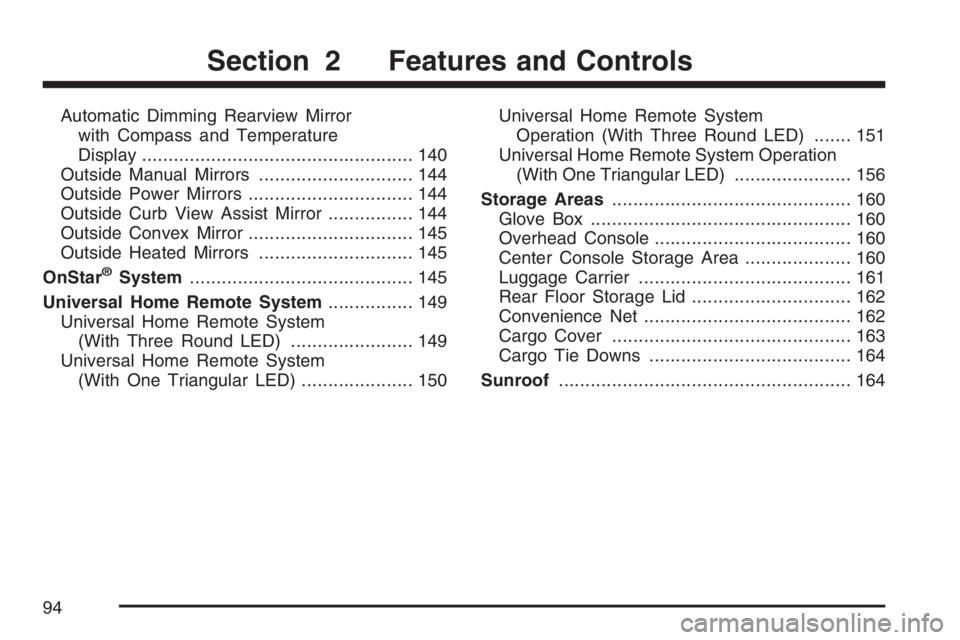

Automatic Dimming Rearview Mirror
with Compass and Temperature
Display................................................... 140
Outside Manual Mirrors............................. 144
Outside Power Mirrors............................... 144
Outside Curb View Assist Mirror................ 144
Outside Convex Mirror............................... 145
Outside Heated Mirrors............................. 145
OnStar
®System.......................................... 145
Universal Home Remote System................ 149
Universal Home Remote System
(With Three Round LED)....................... 149
Universal Home Remote System
(With One Triangular LED)..................... 150Universal Home Remote System
Operation (With Three Round LED)....... 151
Universal Home Remote System Operation
(With One Triangular LED)...................... 156
Storage Areas............................................. 160
Glove Box................................................. 160
Overhead Console..................................... 160
Center Console Storage Area.................... 160
Luggage Carrier........................................ 161
Rear Floor Storage Lid.............................. 162
Convenience Net....................................... 162
Cargo Cover............................................. 163
Cargo Tie Downs...................................... 164
Sunroof....................................................... 164
Section 2 Features and Controls
94

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons. They could operate the power
windows or other controls or even make
the vehicle move. The children or others
could be badly injured or even killed.
Do not leave the keys in a vehicle with
children.
95

This vehicle has keys
that can be used for the
ignition and door lock
that will t with
either side up.
When a new vehicle is delivered, the dealer
provides the owner with a pair of identical keys
and a key code number.The key code number tells your dealer or a
qualied locksmith how to make extra keys. Keep
this number in a safe place. If you lose your
keys, you will be able to have new ones made
easily using this number. Your selling dealer
should also have this number.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.
If you ever do get locked out of your vehicle, call
the GM Roadside Assistance Center. See
Roadside Assistance Program on page 532.
96

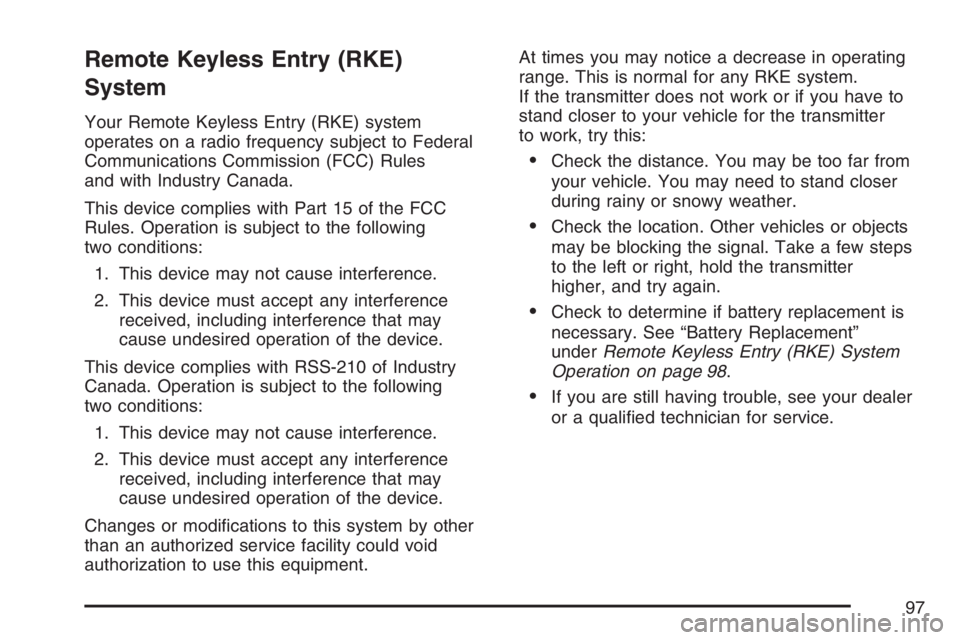

Remote Keyless Entry (RKE)
System
Your Remote Keyless Entry (RKE) system
operates on a radio frequency subject to Federal
Communications Commission (FCC) Rules
and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.At times you may notice a decrease in operating
range. This is normal for any RKE system.
If the transmitter does not work or if you have to
stand closer to your vehicle for the transmitter
to work, try this:
Check the distance. You may be too far from
your vehicle. You may need to stand closer
during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 98.
If you are still having trouble, see your dealer
or a qualied technician for service.
97

Remote Keyless Entry (RKE)
System Operation
If your vehicle has this feature, you can lock and
unlock your doors from about 3 feet (1 m) up
to 30 feet (9 m) away using the RKE transmitter
supplied with your vehicle.
K(Unlock):Press
unlock for the driver’s
door to unlock
automatically, the
parking lamps to ash
and the interior lights
to go on. Press the
unlock button a
second time within
three seconds to unlock
all the doors.
You can program different feedback settings
through the Driver Information Center (DIC).
For more information seeDriver Information
Center (DIC) on page 218.
Q(Lock):Press lock to lock all the doors. Press
lock again within three seconds and the horn
will chirp.
L(Panic):Press the horn symbol to make the
horn sound. The headlamps and taillamps
will ash for up to 30 seconds. This can be turned
off by pressing the horn button again, by waiting
for 30 seconds, or by starting the vehicle.
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to
bring any remaining transmitters with you when
you go to your dealer. When the dealer matches
the replacement transmitter to your vehicle,
any remaining transmitters must also be matched.
Once your dealer has coded the new transmitter,
the lost transmitter will not unlock your vehicle.
Each vehicle can have a maximum of four
transmitters matched to it.
98

Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about two years.
the battery is weak if the transmitter does not work
at the normal range in any location. If you have
to get close to your vehicle before the transmitter
works, it is probably time to change the battery.
The Driver Information Center (DIC) will display a
KEY FOB # BATTERY LOW message when
the transmitter battery is low.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.To replace the battery in the RKE transmitter do
the following:
1. Insert a thin coin in the slot between the
covers of the transmitter housing. Gently
pry the transmitter apart.
2. Remove and replace the battery with a
three-volt CR2032 or equivalent battery.
3. Align the covers and snap them together.
4. Check the operation of the transmitter.
99

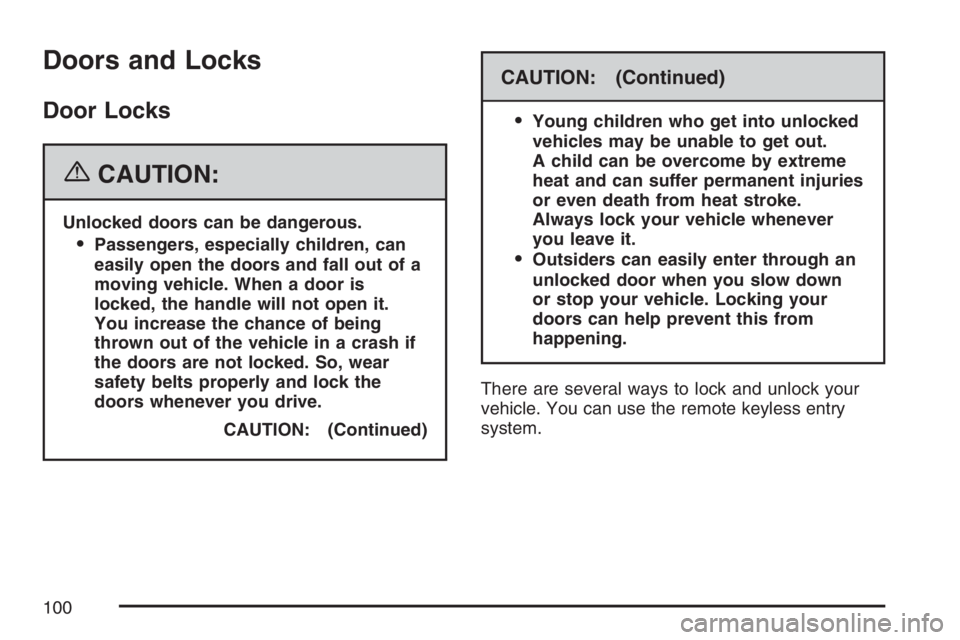

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle. You can use the remote keyless entry
system.
100
