Automatic Headlamp System
When it is dark enough outside, the Automatic
Headlamp System turns on the headlamps when
the vehicle is started and after the transaxle
has been shifted out of the PARK (P) position.
The headlamps, taillamps, sidemarker, and parking
lamps will come on. The instrument panel lights
and radio lights will also turn on at normal
brightness. Once on, the system remains on
during these conditions even if the vehicle
is shifted back into PARK (P).
The vehicle has a light sensor on the top of the
instrument panel. Make sure it is not covered or the
system may come on whenever the ignition is on
and the vehicle is shifted out of the PARK (P)
position.
The system could also turn on the lamps when
driving through a parking garage, heavy overcast
weather or a tunnel. This is normal.There is a delay in the transition between the
daytime and nighttime operation of the Daytime
Running Lamps (DRL) and the automatic headlamp
systems, so that driving under bridges or bright
overhead street lights does not affect the system.
The DRL and automatic headlamp system are only
affected when the light sensor sees a change in
lighting lasting longer than the delay.
If you start your vehicle in a dark garage, the
automatic headlamp system comes on after the
transmission is shifted out of PARK (P). Once you
leave the garage, it will take about one minute
for the automatic headlamp system to change to
DRL if it is light outside. During that delay, the
instrument panel cluster might not be as bright as
usual. Make sure the instrument panel brightness
control is in the full bright position.
If the vehicle is running and the automatic
headlamp system is already on, it can be turned
off by turning and releasing the headlamp
control at the off position. The automatic headlamp
system stays off until you turn and release the
headlamp control at the off position again.
SeeHeadlamps on page 179.
181

Fog Lamps
Use the fog lamps for better vision in foggy or
misty conditions. The ignition must be in RUN for
the fog lamps to work.
The fog lamp button is
located on the
instrument panel to the
right of the exterior
lamps knob.
Press the button to turn the fog lamps on. Press
the button again to turn them off. A light glows
near the button while the fog lamps are on.
Fog lamps turn off whenever the high-beam
headlamps are on.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
Instrument Panel Brightness
Press the knob located
next to the exterior
lamps knob to extend it.
Turn the knob to adjust the instrument panel
lights. Turn the knob all the way up to turn on the
interior lamps. Press the knob back into its
stored position when you are not using it.
Dome Lamps
The dome lamps will come on when you open a
door unless the dome lamp override is pressed in.
182

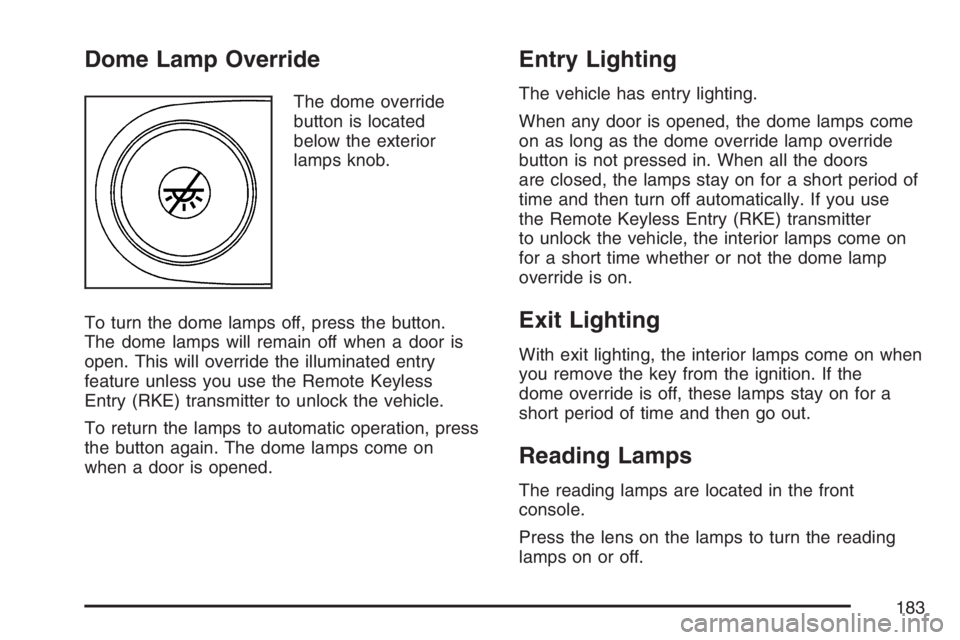

Dome Lamp Override
The dome override
button is located
below the exterior
lamps knob.
To turn the dome lamps off, press the button.
The dome lamps will remain off when a door is
open. This will override the illuminated entry
feature unless you use the Remote Keyless
Entry (RKE) transmitter to unlock the vehicle.
To return the lamps to automatic operation, press
the button again. The dome lamps come on
when a door is opened.
Entry Lighting
The vehicle has entry lighting.
When any door is opened, the dome lamps come
on as long as the dome override lamp override
button is not pressed in. When all the doors
are closed, the lamps stay on for a short period of
time and then turn off automatically. If you use
the Remote Keyless Entry (RKE) transmitter
to unlock the vehicle, the interior lamps come on
for a short time whether or not the dome lamp
override is on.
Exit Lighting
With exit lighting, the interior lamps come on when
you remove the key from the ignition. If the
dome override is off, these lamps stay on for a
short period of time and then go out.
Reading Lamps
The reading lamps are located in the front
console.
Press the lens on the lamps to turn the reading
lamps on or off.
183

Electric Power Management
This vehicle has Electric Power
Management (EPM), an advanced control
system. It estimates the battery’s temperature
and state of charge and then adjusts the voltage
for best performance and extended life of
the battery.
When the battery’s state of charge is low, the
voltage is raised slightly to quickly put the charge
back in. When the state of charge is high, the
voltage is lowered slightly to prevent overcharging.
If the vehicle has a voltmeter gage, you may
see the voltage move up or down. This is normal.
If there is a problem, an alert will be displayed.
The battery can be discharged at idle if the
electrical loads are very high. This is true for all
vehicles. This is because the generator (alternator)
may not be spinning fast enough at idle to
produce all the power that is needed for very high
electrical loads.A high electrical load occurs when several of the
following loads are on: headlamps, high beams,
fog lamps, rear window defogger, climate
control fan at high speed, heated seats, engine
cooling fans, trailer loads, and loads plugged into
accessory power outlets.
EPM works to prevent excessive discharge of the
battery. It does this by balancing the generator’s
output and the vehicle’s electrical needs. It
can increase engine idle speed to generate more
power, whenever needed. It can temporarily
reduce the power demands of some accessories.
Normally, these actions occur in steps or levels,
without being noticeable. In rare cases at the
highest levels of corrective action, this action may
be noticeable to the driver. If so, a Driver
Information Center (DIC) message might be
displayed, such as Battery Saver Active or Battery
Voltage Low. If this message is displayed, it is
recommended that the driver reduce the electrical
loads as much as possible. SeeDIC Warnings
and Messages on page 222.
184

Battery Run-Down Protection
This feature shuts off the dome, courtesy, and
vanity lamps if they are left on for more than
20 minutes when the ignition is off. This will keep
the battery from running down.
If the battery run-down protection shuts off the
interior lamps, it may be necessary to do one of
the following to return to normal operation:
Shut off all lamps and close all doors.
Turn the ignition key to RUN.
This feature will also turn off the parking lamps
and headlamps under most circumstances, if they
are left on. If you would like to turn them back
on, turn the exterior lamps knob.
Accessory Power Outlet(s)
With the accessory power outlets, you can plug in
auxiliary electrical equipment such as a cellular
telephone or CB radio.
Your vehicle has three accessory power outlets.
There are two outlets located below the climate
controls and one outlet is on the rear of the center
oor console.Remove the cover from the outlet to use the
outlet. Be sure to put the cover back on when not
using the accessory power outlet.
Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adaptor fuses.
If you experience a problem, see your dealer
for additional information on the accessory
power outlets.
Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should. The
repairs would not be covered by your warranty.
Do not use equipment exceeding maximum
amperage rating of 20 amperes. Check with
your dealer before adding electrical equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
185

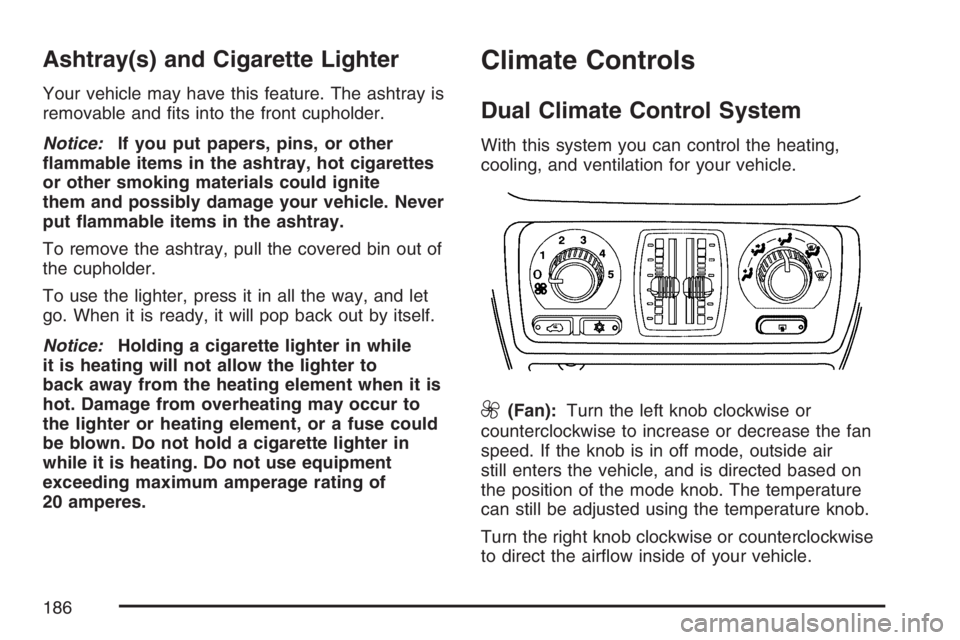

Ashtray(s) and Cigarette Lighter
Your vehicle may have this feature. The ashtray is
removable and ts into the front cupholder.
Notice:If you put papers, pins, or other
ammable items in the ashtray, hot cigarettes
or other smoking materials could ignite
them and possibly damage your vehicle. Never
put ammable items in the ashtray.
To remove the ashtray, pull the covered bin out of
the cupholder.
To use the lighter, press it in all the way, and let
go. When it is ready, it will pop back out by itself.
Notice:Holding a cigarette lighter in while
it is heating will not allow the lighter to
back away from the heating element when it is
hot. Damage from overheating may occur to
the lighter or heating element, or a fuse could
be blown. Do not hold a cigarette lighter in
while it is heating. Do not use equipment
exceeding maximum amperage rating of
20 amperes.
Climate Controls
Dual Climate Control System
With this system you can control the heating,
cooling, and ventilation for your vehicle.
9(Fan):Turn the left knob clockwise or
counterclockwise to increase or decrease the fan
speed. If the knob is in off mode, outside air
still enters the vehicle, and is directed based on
the position of the mode knob. The temperature
can still be adjusted using the temperature knob.
Turn the right knob clockwise or counterclockwise
to direct the airow inside of your vehicle.
186

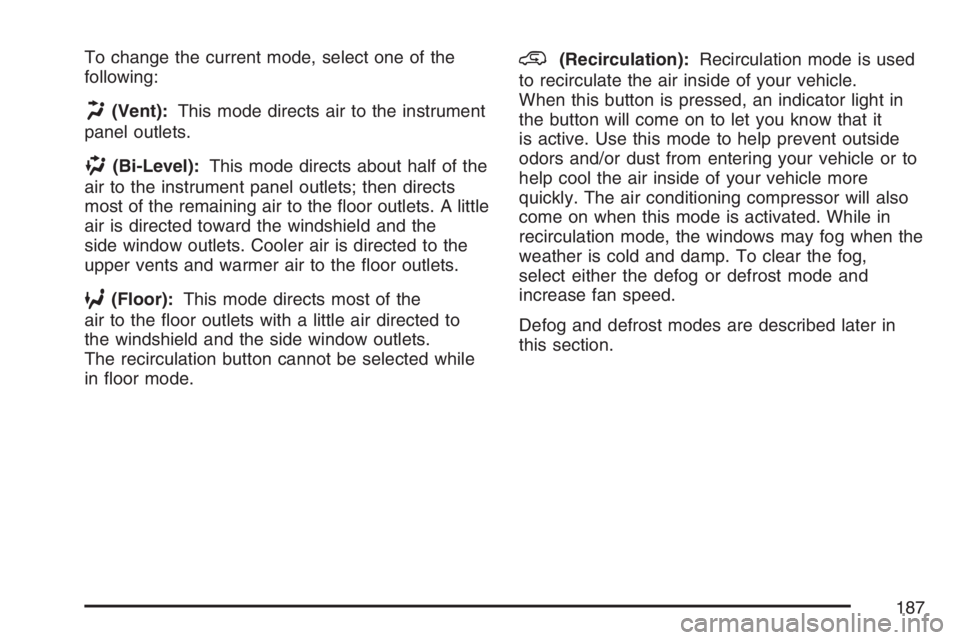

To change the current mode, select one of the
following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs about half of the
air to the instrument panel outlets; then directs
most of the remaining air to the oor outlets. A little
air is directed toward the windshield and the
side window outlets. Cooler air is directed to the
upper vents and warmer air to the oor outlets.
6(Floor):This mode directs most of the
air to the oor outlets with a little air directed to
the windshield and the side window outlets.
The recirculation button cannot be selected while
in oor mode.
@(Recirculation):Recirculation mode is used
to recirculate the air inside of your vehicle.
When this button is pressed, an indicator light in
the button will come on to let you know that it
is active. Use this mode to help prevent outside
odors and/or dust from entering your vehicle or to
help cool the air inside of your vehicle more
quickly. The air conditioning compressor will also
come on when this mode is activated. While in
recirculation mode, the windows may fog when the
weather is cold and damp. To clear the fog,
select either the defog or defrost mode and
increase fan speed.
Defog and defrost modes are described later in
this section.
187

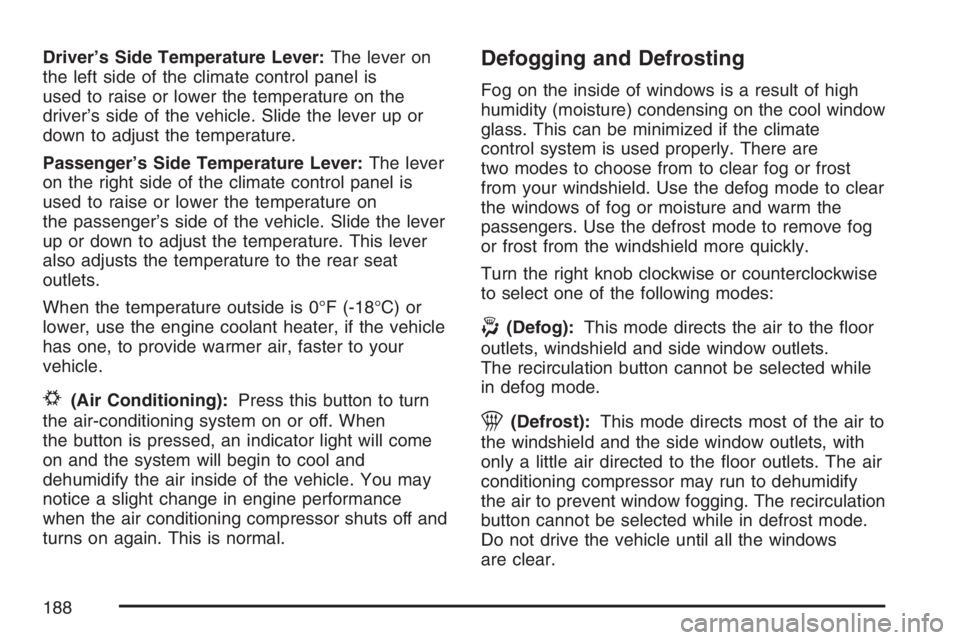

Driver’s Side Temperature Lever:The lever on
the left side of the climate control panel is
used to raise or lower the temperature on the
driver’s side of the vehicle. Slide the lever up or
down to adjust the temperature.
Passenger’s Side Temperature Lever:The lever
on the right side of the climate control panel is
used to raise or lower the temperature on
the passenger’s side of the vehicle. Slide the lever
up or down to adjust the temperature. This lever
also adjusts the temperature to the rear seat
outlets.
When the temperature outside is 0°F (-18°C) or
lower, use the engine coolant heater, if the vehicle
has one, to provide warmer air, faster to your
vehicle.
#(Air Conditioning):Press this button to turn
the air-conditioning system on or off. When
the button is pressed, an indicator light will come
on and the system will begin to cool and
dehumidify the air inside of the vehicle. You may
notice a slight change in engine performance
when the air conditioning compressor shuts off and
turns on again. This is normal.
Defogging and Defrosting
Fog on the inside of windows is a result of high
humidity (moisture) condensing on the cool window
glass. This can be minimized if the climate
control system is used properly. There are
two modes to choose from to clear fog or frost
from your windshield. Use the defog mode to clear
the windows of fog or moisture and warm the
passengers. Use the defrost mode to remove fog
or frost from the windshield more quickly.
Turn the right knob clockwise or counterclockwise
to select one of the following modes:
-(Defog):This mode directs the air to the oor
outlets, windshield and side window outlets.
The recirculation button cannot be selected while
in defog mode.
1(Defrost):This mode directs most of the air to
the windshield and the side window outlets, with
only a little air directed to the oor outlets. The air
conditioning compressor may run to dehumidify
the air to prevent window fogging. The recirculation
button cannot be selected while in defrost mode.
Do not drive the vehicle until all the windows
are clear.
188

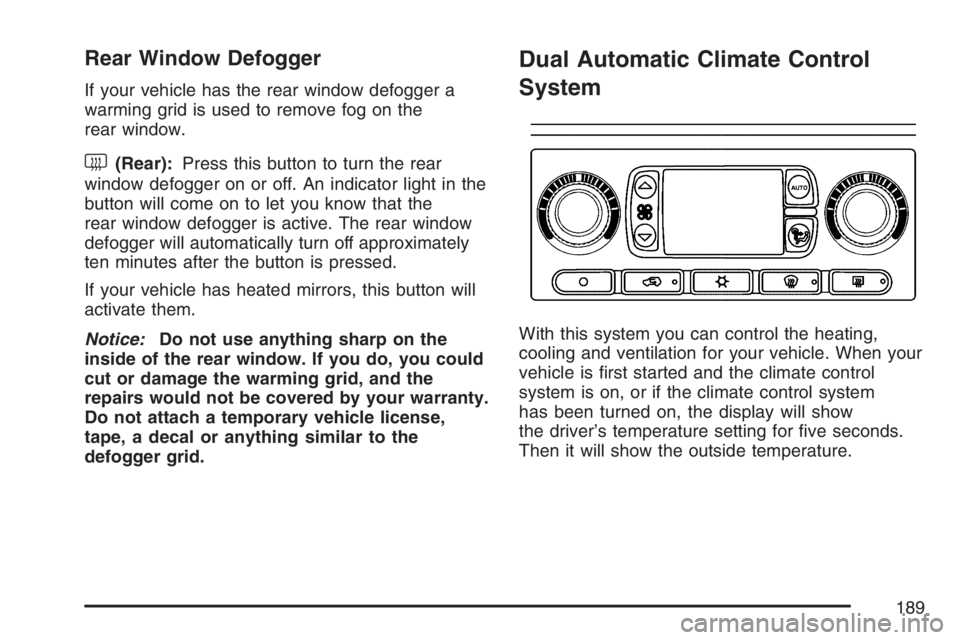

Rear Window Defogger
If your vehicle has the rear window defogger a
warming grid is used to remove fog on the
rear window.
<(Rear):Press this button to turn the rear
window defogger on or off. An indicator light in the
button will come on to let you know that the
rear window defogger is active. The rear window
defogger will automatically turn off approximately
ten minutes after the button is pressed.
If your vehicle has heated mirrors, this button will
activate them.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you could
cut or damage the warming grid, and the
repairs would not be covered by your warranty.
Do not attach a temporary vehicle license,
tape, a decal or anything similar to the
defogger grid.
Dual Automatic Climate Control
System
With this system you can control the heating,
cooling and ventilation for your vehicle. When your
vehicle is rst started and the climate control
system is on, or if the climate control system
has been turned on, the display will show
the driver’s temperature setting for ve seconds.
Then it will show the outside temperature.
189

9(Off):Press this button to turn off the entire
climate control system. Outside air will still
enter the vehicle, and will be directed to the oor.
Press the AUTO button, the mode button, the
fan arrows, or either temperature knob to turn the
system on.
C(Mode):Press this button to manually select
the air delivery mode to the oor, instrument panel,
or windshield outlets. The system will stay in the
selected mode until the mode button is pressed
again or the AUTO button is pressed.
Driver’s Side Temperature Knob:Turn this knob
clockwise or counterclockwise to raise or lower
the temperature on the driver’s side of the vehicle.
The display will show the temperature setting
decreasing or increasing and an arrow pointing
toward the driver. This knob can also adjust
the passenger’s side temperature setting if the
two are linked.
Passenger’s Side Temperature Knob:Turn this
knob clockwise or counterclockwise to manually
raise or lower the temperature on the passenger’s
side of the vehicle. The display will show the
temperature setting decreasing or increasing and
an arrow pointing toward the passenger.The passenger’s temperature setting can be set to
match and link to the driver’s temperature
setting by pressing and holding the AUTO button
for three seconds. When adjusting the driver’s
side temperature setting, the passenger’s
side temperature setting will follow and both
arrows will appear on the display. The passenger’s
side temperature setting also resets and relinks
to the driver’s side temperature setting if the
vehicle has been off for more than three hours.
Outside Air Temperature Display
A new outside temperature reading will be
displayed if the vehicle has been off for more than
three hours. If the vehicle has been off for less
than three hours, the old temperature reading may
be displayed because underhood heat is
affecting the true outside temperature. Underhood
heat can also affect the outside temperature
while the engine is running. It may also take
several minutes of driving before the display
updates to the actual outside temperature.
190
