GMC ENVOY DENALI 2007 Owners Manual

Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven. It
could fail suddenly and cause a crash. If
you have to replace a wheel, use a new
GM original equipment wheel.
Tire Chains
{CAUTION:
Do not use tire chains. There is not
enough clearance. Tire chains used on a
vehicle without the proper amount of
clearance can cause damage to the
brakes, suspension, or other vehicle
parts. The area damaged by the tire
chains could cause you to lose control of
your vehicle and you or others may be
injured in a crash. Use another type of
traction device only if its manufacturer
recommends it for use on your vehicle
and tire size combination and road
conditions. Follow that manufacturer’s
instructions. To help avoid damage to
your vehicle, drive slowly, re-adjust or
remove the device if it is contacting your
vehicle, and do not spin your wheels. If
you do nd traction devices that will t,
install them on the rear tires.
461

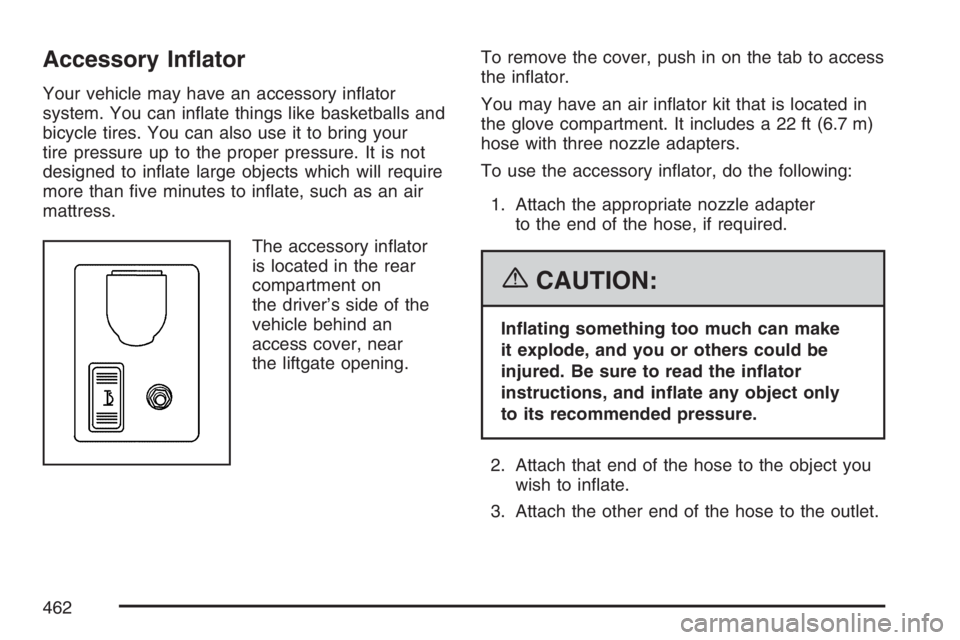

Accessory Inator
Your vehicle may have an accessory inator
system. You can inate things like basketballs and
bicycle tires. You can also use it to bring your
tire pressure up to the proper pressure. It is not
designed to inate large objects which will require
more than ve minutes to inate, such as an air
mattress.
The accessory inator
is located in the rear
compartment on
the driver’s side of the
vehicle behind an
access cover, near
the liftgate opening.To remove the cover, push in on the tab to access
the inator.
You may have an air inator kit that is located in
the glove compartment. It includes a 22 ft (6.7 m)
hose with three nozzle adapters.
To use the accessory inator, do the following:
1. Attach the appropriate nozzle adapter
to the end of the hose, if required.
{CAUTION:
Inating something too much can make
it explode, and you or others could be
injured. Be sure to read the inator
instructions, and inate any object only
to its recommended pressure.
2. Attach that end of the hose to the object you
wish to inate.
3. Attach the other end of the hose to the outlet.
462

4. Press and release the switch to turn the air
inator on. The indicator light will remain on
when the inator is running.
The system has an internal clock to prevent
the system from overheating. The system
will allow about ve minutes of running time,
then the compressor will stop. The indicator
light will then begin to ash. When the indicator
is off, the inator can be started again by
pressing the switch. If the compressor is still
hot, it may only run for a short time before
shutting off again.
5. Press and release the switch to turn the
inator off.Place the inator kit tools in the pouch and store it
in its proper location. Remove the inator hose
from the outlet during loading and unloading. Load
leveling will not function with the inator hose
attached to the inator outlet. SeeElectronically
Controlled Air Suspension System on page 360for
more information.
To reinstall the cover, line up the tabs at the back
of the cover, put it in place and latch the tabs.
A continuous ashing indicator light may also
indicate a malfunction in the air suspension
system. SeeElectronically Controlled Air
Suspension System on page 360for more
information.
463

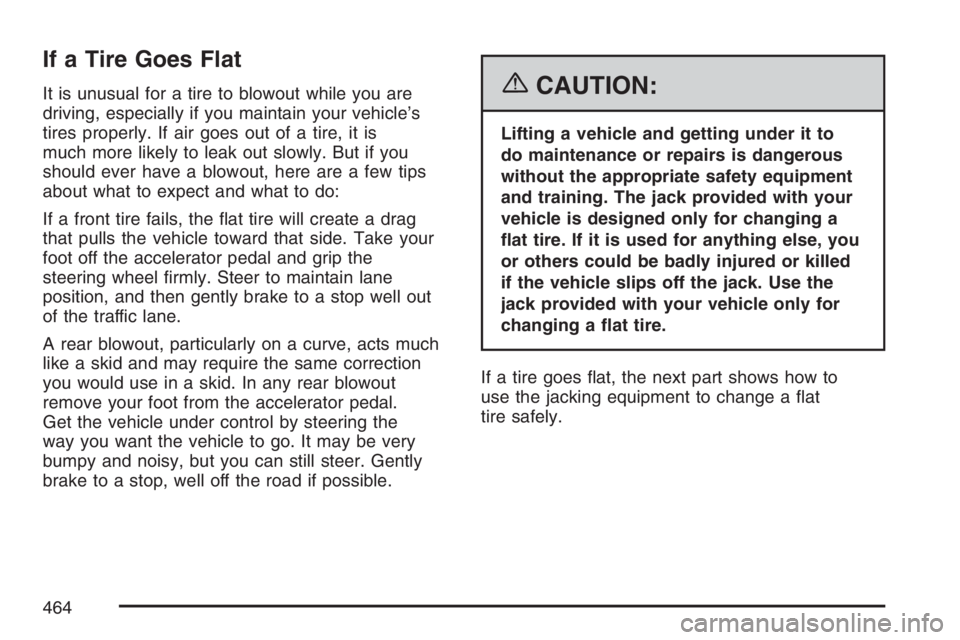

If a Tire Goes Flat
It is unusual for a tire to blowout while you are
driving, especially if you maintain your vehicle’s
tires properly. If air goes out of a tire, it is
much more likely to leak out slowly. But if you
should ever have a blowout, here are a few tips
about what to expect and what to do:
If a front tire fails, the at tire will create a drag
that pulls the vehicle toward that side. Take your
foot off the accelerator pedal and grip the
steering wheel rmly. Steer to maintain lane
position, and then gently brake to a stop well out
of the traffic lane.
A rear blowout, particularly on a curve, acts much
like a skid and may require the same correction
you would use in a skid. In any rear blowout
remove your foot from the accelerator pedal.
Get the vehicle under control by steering the
way you want the vehicle to go. It may be very
bumpy and noisy, but you can still steer. Gently
brake to a stop, well off the road if possible.{CAUTION:
Lifting a vehicle and getting under it to
do maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
at tire. If it is used for anything else, you
or others could be badly injured or killed
if the vehicle slips off the jack. Use the
jack provided with your vehicle only for
changing a at tire.
If a tire goes at, the next part shows how to
use the jacking equipment to change a at
tire safely.
464

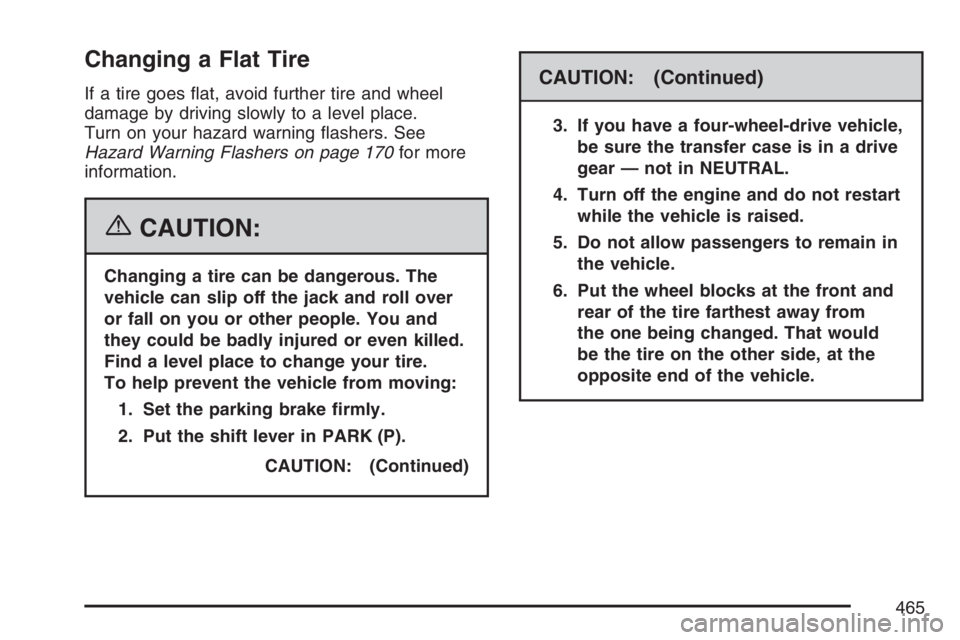

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel
damage by driving slowly to a level place.
Turn on your hazard warning ashers. See
Hazard Warning Flashers on page 170for more
information.
{CAUTION:
Changing a tire can be dangerous. The
vehicle can slip off the jack and roll over
or fall on you or other people. You and
they could be badly injured or even killed.
Find a level place to change your tire.
To help prevent the vehicle from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
CAUTION: (Continued)
CAUTION: (Continued)
3. If you have a four-wheel-drive vehicle,
be sure the transfer case is in a drive
gear — not in NEUTRAL.
4. Turn off the engine and do not restart
while the vehicle is raised.
5. Do not allow passengers to remain in
the vehicle.
6. Put the wheel blocks at the front and
rear of the tire farthest away from
the one being changed. That would
be the tire on the other side, at the
opposite end of the vehicle.
465

When your vehicle has a at tire, use the following
example as a guide to assist you in the placement
of wheel blocks.
The following information will tell you how to use
the jack and change a tire.Removing the Spare Tire and Tools
The jacking equipment needed to remove the
spare tire is stored under the rear seat. To release
the jack from its holder, turn the knob on the
jack counterclockwise to lower the jack head.
SeeRear Seat Operation on page 18for more
information.
466

The tools you will be using include the wheel
wrench (A), wheel blocks (B), extension(s)
(socket end) (C), handle (jack end) (D),
and jack (E).
The following instructions explain how to remove
the underbody-mounted spare underneath
your vehicle.
Notice:If you remove or restow a tire from/to
the storage position under the vehicle when
it is supported by a jack, you could damage the
tire and/or your vehicle. Always remove or
restow a tire when the vehicle is on the ground.A. Wheel Wrench
B. Hoist Shaft
C. Extension
D. Retainer
E. Spare or Flat Tire
(Valve Stem
Pointed Up)
1. Open the liftgate. SeeLiftgate/Liftglass
on page 106for more information.
2. Attach the wheel wrench (A) to the
extension (C).
467

3. Insert the socket
end of the
extension (C)
on a 45 degree
angle downward
into the hoist drive
shaft hole.
It is exposed when the rear gate is open and
is just above the rear bumper. Be sure the
socket end of the extension (C) connects
to the hoist shaft.
4. Turn the wheel wrench counterclockwise to
lower the spare tire. Keep turning the wheel
wrench until the spare tire can be pulled
out from under the vehicle.
If the spare tire does not lower to the ground,
the secondary latch is engaged causing
the tire not to lower. SeeSecondary Latch
System on page 475for more information.
468

5. Tilt the retainer at the end of the cable when
the tire has been completely lowered, and pull
it through the wheel opening.
6. Pull the tire out from under the vehicle.
Notice:If you drive away before the spare tire
or secondary latch system cable has been
reinstalled, you could damage your vehicle.
Always reinstall this cable before driving your
vehicle.
7. Put the spare tire near the at tire.
Removing the Flat Tire and
Installing the Spare Tire
1. If your vehicle has a wheel cap that covers
the wheel nuts, position the chisel end of the
wheel wrench in the notch and pry it off.
469

2. Using the wheel
wrench, loosen all
the wheel nuts.
Do not remove
them yet.
3. Turn the jack adjusting knob clockwise by
hand to raise the jack lift head.
4. Place the handle, extension, and wheel
wrench onto the jack.A. Front Frame/Rear Axle
B. Jack
C. Handle
D. Extension
E. Wheel Wrench
5. Place the jack in the appropriate position
nearest the at tire.
Front PositionRear Position
470
