Automatic Transmission Fluid
Operating the engine with the air cleaner off can
cause you or others
to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine
backfires.
If it isn't there, and the engine
backfires, you could be burned. Don't drive with
it
off, and be careful working on the engine with
the air cleaner
off.
I NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily get
into your engine, which
will damage it. Always
have the air cleaner
in place when you're driving.
When to Check and Change
A good time to check your automatic transmission fluid
level is when the engine oil is changed.
Change both the fluid
and filter every 50.000 miles
(83 000 km) if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside temperature
regularly reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi. police or delivery service.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require changing.
See "Scheduled Maintenance Services"
in the Index.
6-14

Manual Transmission Fluid
When to Check
A good time to have it checked is when the engine oil is
changed. However, the fluid in YOLK manual
transmission doesn't require changing.
How to Check
Because this operation can be a little dii'licult, you
may choose to have this done at your GM dealership
Service Department.
If you do it yourself, be sure to follow all the
instructions here, or you could get
false reading.
NOTICE:
Too much or too little fluid can damage your
transmission.
Too much can mean that some of
the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a
fire. Be
~ sure to get an accurate reading if you check your
~ transmission fluid.
6-18

Brake Pedal Travel
See your dealer if the brake pedal does not return to
nor~nal height, or
if there is a rapid increase in pedal
travel.
This could be a sign of brake trouble.
Brake Adjustment
Every time you make a brake stop, your disc brakes
adjust for wear.
If your brake pedal goes down farther than normal. your
rear drum brakes may need adjustment. Adjust them
by
backing up and firmly app1yin.g the brakes a lew times.
Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its
many parts have to be of top quality and work well
together
if the vehicle is to have really good braking.
Your vehicle was designed and tested
with top-quality
GM brake parts. When
you replace parts of your braking system
-- for
example, when your brake linings wear down and you
haw to have new ones
put in -- be sure you get new
approved
GM replacement parts. If you don’t, your
brakes may
no longer work properly. For example, if
someone puts in brake linings that are wrong for your
vehicle, the balance between
your front and rear brakes
can change
-- for the worse. The braking performance
you’ve come to expect can change
in many other ways if
someone puts in the wrong replacement brake parts.
Battery
Every new vehicle has a Delco Freedom@ battery. You
never have to add water to one of these. When it’s time
for a new battery, we recomlnend a Delco Freedom
battery. Get one that has the replacement number shown
on the original battery‘s label.
6-32

I1
If your vehicle has a compact spare tire, don’t include it
in your tire rotation.
After the tires have been rotated, adjust the front and
rear inflation pressures as shown on the
Certificatioflire label. Make certain that all wheel nuts
are properly tightened. See “Wheel Nut Torque’’ in
the Index.
Rust or dirt on a wheel, or on the parts to which
it is fastened, can make wheel nuts become loose
after a time. The wheel could come
off and cause
an accident. When you change a wheel, remove
any rust or dirt from places where the wheel
attaches to the vehicle.
In an emergency, you can
use a cloth or a paper towel to do this; but be
sure to use a scraper or wire brush later, if you
need to, to get all the rust or dirt
off. (See
“Changing a Flat Tire” in the Index.)
6-43

Capacities and Specifications
Engine Description ............ “VORTEC” 4300
Type .................................... V6
VINCode ................................. W
Firing Order ...................... 1-6-5-4-3-2
Horsepower
................... 190 at 4,400 rpm
Thermostat Specification ........... I95 OF (9 I “C)
Spark Plug Gap .......... 0.045 inches (0. I 14 cm)
Wheels and Tires
Wheel Nut Torque ............ 95 lb-ft ( 130 N-m)
Tire Pressure ...... See the Certification/Tire label.
See ”Loading Your
Vehicle”
in the Index.
Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are
based on the latest information available at the time
of
printing, and are subject to change. If a part listed in this
manual is not the same
as the part used in your vehicle
when
it was built, or if you have any questions, please
contact your
GM truck dealer.
Thermostat
......................... 12551472
Oil Filter.. ............................. PF52
Air Cleaner Filter
...................... A 1 163C
PCV Valve
.......................... CV746C
Automatic Transmission Filter
Kit ...... 24200796
Spark Plugs
........................... 4 1-932
Fuel Filter. ............................ GF481
Front Windshield
Wiper Blade
.......... Trico (20 inchedS0.8 cm)
Backglass Wiper Blade
... Trico (14 inched35.6 cm)
6-63

Short Trip/City Maintenance Schedule
The services shown in this schedule LIP to 100.000 miles
( I66 000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals. The services shown
at 150.000 miles (240
000 km) should be performed at
the
same interval after 150.000 miles (240 000 km).
See "Owner Checks and Services" and "Periodic
Maintenance Inspections" following.
Footnotes
-f The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not
nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle's useful life. We. however,
urge that
all recommended maintenance services be
performed at the indicated intervals and
the maintenance
be recorded.
## Lubricate the front suspension. ball joints. steering
linkage and transfer case shift linkage. parking brake
cable guides, propshaft splines. Lulivel-sal joints and
brake
pedal springs.
+ A good time to check your brakes is during tire
rotation. See "Brake System Inspection" under "Periodic
Maintenance Inspection"
in Part C of this schedule.
'i::k Drive axle service (see "Recommended Fluids and
Lubricants"
in the Index for proper lubricant to use):
0
0
0
Locking Differential -- Drain fluid and refill at first
engine oil change. At subsequent oil changes, check
fluid level and add fluid as needed.
If driving in
dusty areas or towing a trailer, drain tluid and refil
every 15,000 miles
(25 000 km).
Standard Differential
-- Check fluid level and add
tluid
as needed at every oil change. If driving in
dusty areas or towing a trailer, drain fluid and refil
every
15,000 miles (25 000 km).
More frequent lubrication may be required
for
heavy-duty or off-road use.
1
1
7-7

I Long Trip/Highway Maintenance Schedule
The services shown in this schedule up to 100,000 miles
( I66 000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after
150,000 miles (240 000 km).
See "Owner Checks and Services" and "Periodic
Maintenance Inspections'' following.
Footnotes
3' The U.S. Environmental Protection Agency 01- the
California Air Resources Board has determined that the
failure to perform this maintenance item
will not nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle's useful life. We, however,
urge that
all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
# Lubricate Ihe front suspension, ball joints, steering
linkage and transfer case
shift linkage, parking brake
cable guides, propshaft splines, universal
joints and
brake pedal springs.
+ A good time to check your brakes is during tire
rotation. See "Brake System Inspection'' under "Periodic
Maintenance Inspections"
in Part C of this schedule.
Drive axle service (see "Recommended Fluids and
Lubricants"
in the Index for proper lubricant to use):
0 Locking Differential -- Drain fluid and refill at first
engine oil change.
At subsequent oil changes, check
fluid level and
add fluid as needed.
0 Standard Differential -- Check fluid level and add
fluid as needed at every engine
oil change.
More frequent lubrication may be required for
heavy-duty or off-road use.
7-30

Courtesy Transportation
GMC Commitment Plus offers courtesy transportation
for customers when obtaining warranty service.
This program is offered
in conjunction with the
3 year/36,000 mile (60 000 kmj Bumper to Bumper
New Vehicle Limited Warranty.
Courtesy transportation includes:
One way shuttle ride from the dealership (up to
10 miles (16 km)) for same-day warranty repairs.
0 A loaner vehicle will be made available for overnight
warranty repairs
up to a five day rnaximum, or LIP to a
$30 allowance for a rental vehicle, cab. bus or other
transportation
in lieu of a loaner. (Bringing vehicles in
late in the day, for service on the next day, clclc~s not
constitute overnight repairs.)
Gas allowance of up to $10 a day for rides provided
by another person (i.e.? friend, neighbor, etc.)
in
lieu of rental for overnight warranty repair up to
five day maximum. Some state insurance regulations
make
it impractical
to rent vehicles to people under 21 years of age. If
you are under 21 and have difficulty renting a vehicle,
GMC
will reimburse up to $30/day for documented
transportation you receive.
The Commitment Plus Courtesy Transportation Program
is not part of the Bumper to Bumper Limited Warranty.
GMC reserves the right to make any changes or
discontinue the Courtesy Transportation Program at any
time without notification.
For additional program details contact your
GMC dealer.
In Canada, please consult your CM dealer for
information on Courtesy Transportation.
8-8

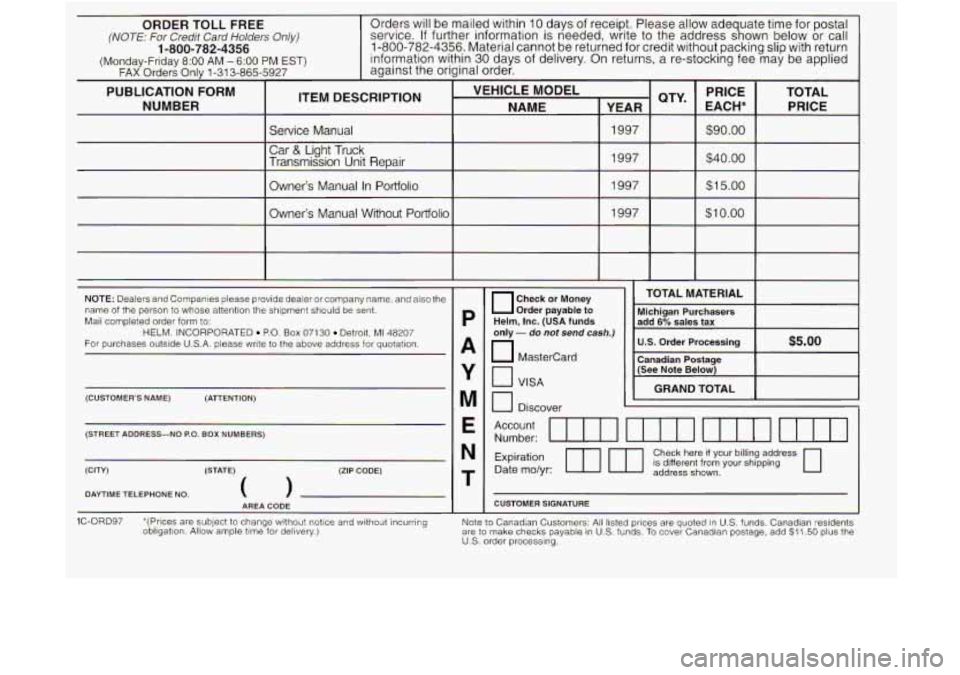

ORDER TOLL FREE service. If further information is needed, write to the address s gh own below or call (NOTE: For Credit Card Holders Only)
Orders will be mailed within 10 days of receipt. Please allow ade uate time for postal
information within
30 days of delivery. On returns, a re-stocking fee may be applied (Monday-Friday 8:OO AM - 6:OO PM EST)
1-800-782-4356. Material cannot be returned for credit without packing slip with return 1-800-782-4356
FAX Orders Only 1-31 3-865-5927 against the original order.
PUBLICATION FORM ITEM DESCRIPTION VEHICLE MODEL
QTY. I EACH*
PRICE TOTAL
NUMBER NAME
I YEAR PRICE I I
I Service Manual I I 1997 I I $90.00 I
I Owner’s Manual In Portfolio I 1997 I I $15.00 I ~~
Owner’s Manual Without Portfolio 1997 $1 0.00
NOTE: Dealers and Companies please provide dealer or company name, and also the
name of the person to whose attention the shipment should be sent.
Mail completed order form to:
For purchases outside USA. please write to the above address for quotation. HELM. INCORPORATED P.O. Box 07130 Detroit, MI 48207
(CUSTOMER’S NAME) (ATTENTION)
(STREET ADDRESS-NO P.O. BOX NUMBERS)
(CITY) (STATE)
(ZIP CODE)
DAYTIME TELEPHONE NO. 0
AREA CODE
IC-ORD97 *(Prices are subject to change without notice and without incurring
obligation. Allow ample time for delivery.)
-
P
A
Y
M
E
N
T
-
Check or Money Order Davable to Helm, Inc. (USA funds
only - do not send cash.)
Mastercard
0 VISA
n
I I
TOTAL MATERtAL
Michigan Purchasers
add 6% sales tax
US. Order Processing $5.00
Canadian Postage
(See Note Below)
GRAND TOTAL
Discover IL
Expiration m
Date mo/yr:
Check here if your billing address is different from your shipping
address shown.
CUSTOMER SIGNATURE
Note to Canadian Customers: All listed prices are quoted in U.S. funds. Canadian residents
are to make checks payable in US. funds. To cover Canadian postage, add $11.50 plus the U.S. order processing.

Theft ......................................... 2-12
THEFTLOCK ............................... 3- 1 7
Thermostat .................................... 6-26
Third Gear. Manual Transmission
.................. 2-2 I
Tilt Steering Wheel ............................. 2-38
Time. Setting ................................... 3-6
Tire Chains
.................................... 6-48
Tires Alignme.
nt and Balance ........................ 6-46
BuyingNew
................................. 6-44
Changing a Flat
.............................. 5-23
Cleaning
.................................... 6-55
Inflation
............................... 6-41.7-46
Inspection and Rotation
........................ 6-42
Pressure
.................................... 6-41
Temperature
................................. 6-46
Traction
.................................... 6-46
Treadwear
................................... 6-45
Uniform Quality Grading
....................... 6-45
Wear Indicators
.............................. 6-44
When It’s Time
for New ....................... 6-44
Topstrap
..................................... 1-38
TorqueLock
................................... 2-32
Towing a Trailer ................................ 4-45
Towing. Recreational Vehicle
..................... 4-4 1
Towing Your Vehicle ............................. 5-7
Trailer Brakes
..................................... 4-49
Torque. Wheel
Nut ......................... 5-32. 6-63
Driving on
Grades ............................ 4-52
Hitches
..................................... 4-48
Driving with a Trailer .......................... 4-50
Maintenance When Towing
..................... 4-54
Parking
on Hills .............................. 4-52
Safety Chains
................................ 4-49
Total Weight on Tires
.......................... 4-48
Towing
..................................... 4-45
Weight
............................ [ ........ 4-46
Wiring Harness
............................... 4-55
Transfer Case
.................................. 6-21
Electronic
................................... 2-26
Manual ..................................... 2-24
Automatic
................................... 6-14
Manual
..................................... 6-18
Transmitters. Keyless
Entry ........................ 2-6
Transportation. Courtesy
.......................... 8-8
Trip. Before Leaving ............................ 4-34
Trip Odometer
................................. 2-71
Tongueweight
............................... 4-47
Turnsignals
................................. 4-51
Transmission Fluid
TTYUsers
..................................... 8-4
Turn Signal and Lane Change Signals
............... 2-39
Turn Signals When Towing a Trailer
................ 4-51
Underbody Maintenance
........................ 6-56
Underhood Lamp Bulb Replacement ................ 6-37
9-10
