Composite Headlamps
I. Open the 1700d.
3 -.
4. Unplug the electrical connector.
5. Turn the bulb
counterclockwise to
remove It ,
3. 6. Put the new bulb into the headlamp lens assembly
and turn it clockwise until it is tight.
7. Plug in the electrical connector.
8. Put the headlamp lens assembly back into the
vehicle. Install and tighten the screws.
6-35

Each new wheel should have the same load-carrying
capacity, diameter. width. offset and
be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts. replace them only with new GM original
equipment parts. This way.
you will be sure to have the
right wheel. wheel bolts
and wheel nuts for your vehicle.
I
A CAUTION: r)
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose
air and make you
lose control. You could have a collision in which
you or others could be injured.
Alwrays use the
correct wheel, wheel
bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance
to the body and chassis.
~~ ,.
See "Changing a Flat Tire" in the Index for
more information.
Used Replacement Wheels
'
A CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how
far it's been driven. It could fail suddenly
and cause an accident.
If you have to replace a
wheel, use
a new GkI original equipment wheel.
6-47

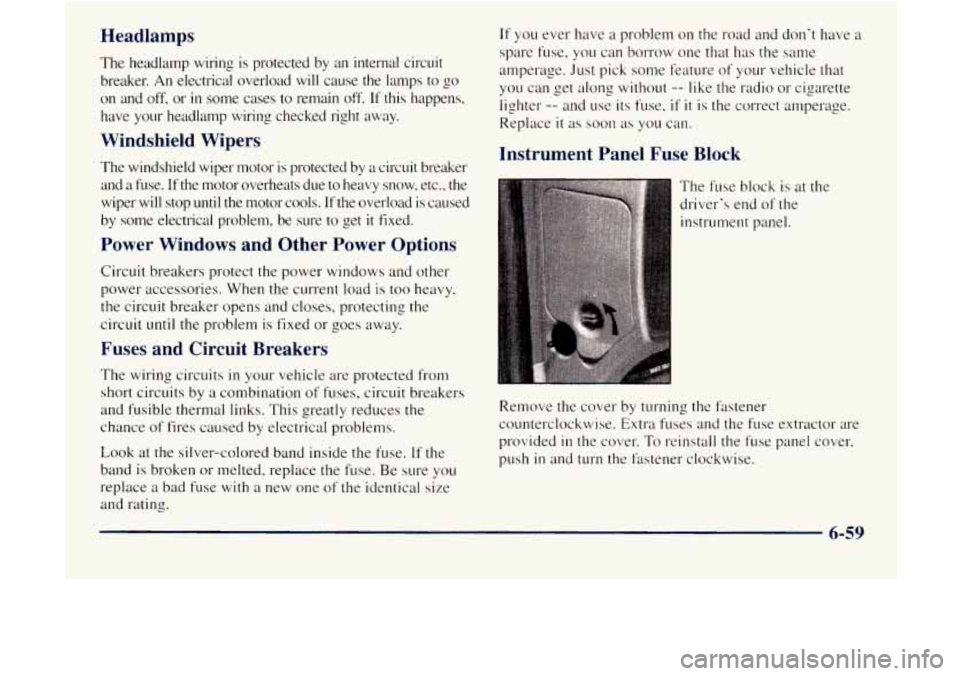

Headlamps
The headlamp wiring is protected by an internal circuit
breaker. An electrical overload
will cause the lamps to go
on and
off, or in some cases to remain off. If this happens,
have
your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker
and a fuse.
If the motor overheats due to heavy snow, etc.. the
wiper will stop
until the motor cools. If the overload is caused
by some electrical problem, be sure
to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy.
the circuit breaker opens and closes, protecting the
circuit
until the problem is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by
a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of fires caused by electrical problems.
Look
at the silver-colored band inside the fuse. If the
band is broken
or melted, replace the fuse. Be sure you
replace a bad fuse
with a new one of the identical size
and rating.
If you ever have a problem on the road and don't have a
spare fuse.
you can borrow one that has the same
amperage. Just pick
some feature of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace
it as soon as you can.
Instrument Panel Fuse Block
The fuse block is at the
driver's end of the
instrument panel.
Remove the
toller by turning the fastener
counterclockwise. Extra fuses and the fuse extractor are
provided
in the cover. To reinstall the fuse panel cover.
push in and turn the fastener clockwise.
6-59

,I,, WDO >- ACCY
Fuse/Circuit Breaker
Usage
A Power Door Locks, Power Seat,
Power Seat Lumbar, Remote Keyless Entry
Power Windows, Sunroof
Modde/Motor
B
Fuse/Circuit
Breaker Usage
1
2
3
4
Stoplamps, Hazard Lamps, Chime,
Center High-Mounted Stoplamp Relay,
Center High-Mounted Stoplamp
Dome Lamps, Cargo Lamps, Visor
Vanity Mirror, Cigarette Lighter,
Inside Rearview Mirror Lamp,
Overhead Console L,amps, Glove
Box Lamp, Horns, Horn Relay, IP
Courtesy Lamps, Power Outside
Rearview Mirror, Liftglass Release
Motor, Illuminated Entry Module
Parking Lamps, License Plate Lamps,
Electric Shift Transfer Case Module,
Underhood Lamp, Rear Wiper,
Fog
Lamp Relay, Door Switch Lamp,
Ashtray Lamp, Headlamp Switch
A/C Compressor Relay, Cluster
Chime Module. DRL Relay Coil,
Four-Wheel-Drive Indicator Lamp,
DRL Module, Rear
Defog Timer,
Transfer Case Control Module
Ignition, SIR Redundant Ignition,
RKE Ignition. Fuel Sender Module
6-60

Repl; ~ nent Bulbs
Lamps
Halogen Headlamps, Sealed Beam
Halogen Headlarnps, Composite
Low-Beam
Halogen Headlamps, Composite, High-Beam
Tail and Stoplamps
Front Sidemarker Lamps
Turn Signal Lamps
Underhood Lamp
Visor Vanity Mirror Lamps
Ove.rhead Console Reading Lamps
Quantity
2
2
2
4
2
I ?
Number
2E 1
9006 HB4
9005 HB?
30.57
194
3157 NA
93
74
194
6-62
